Calculate Standardized Residuals in Python

A residual represents the fundamental difference between an observed data point and the value predicted by a statistical regression model. Understanding residuals is critical for assessing the overall fit and validity of any predictive model.

Mathematically, the residual for a given observation is calculated simply as:

Residual = Observed Value – Predicted Value

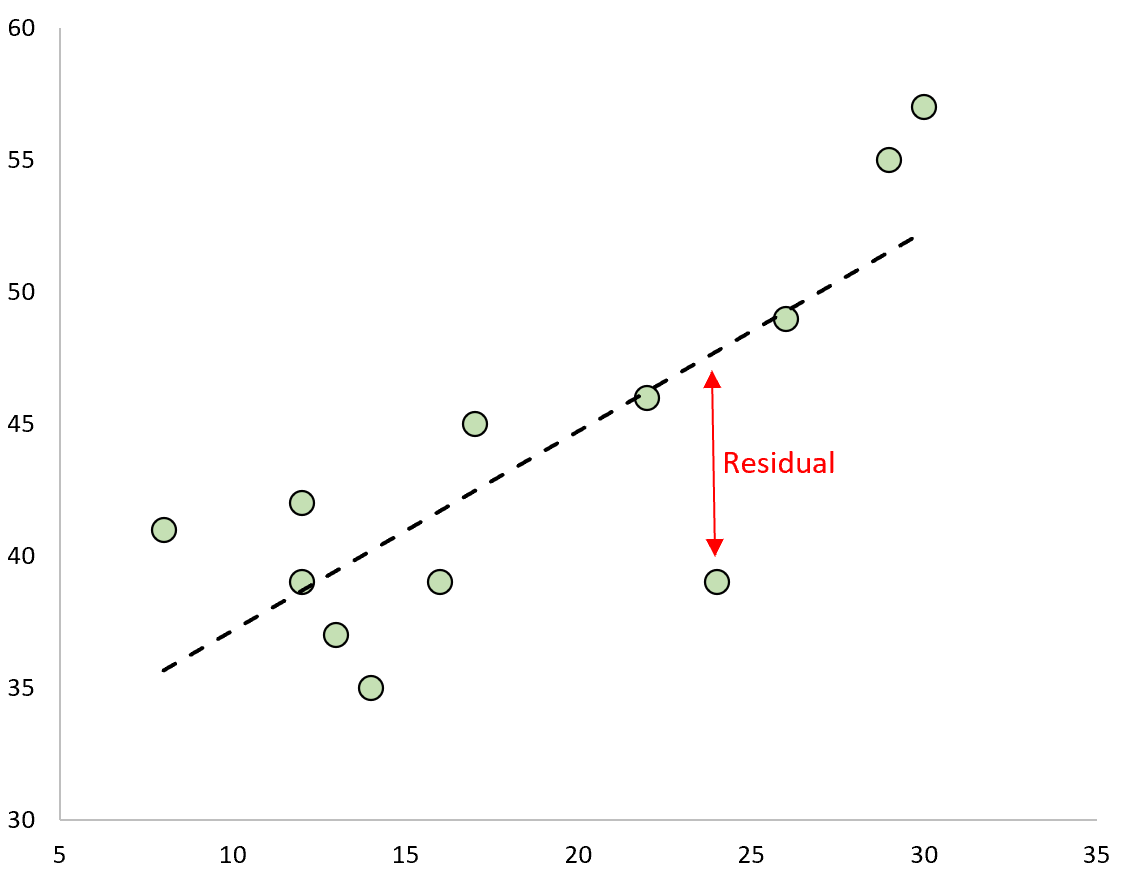

When visualizing a fitted regression line overlaid on the original data, the residual for each data point is the vertical distance separating that point from the line of best fit. This visual representation helps to illustrate the model’s error for individual observations:

Understanding Standardized Residuals

While raw residuals are useful, they do not provide a standardized measure of error that accounts for variability across the dataset. This is where the standardized residual becomes an essential diagnostic tool. Standardized residuals normalize the error by dividing the raw residual by an estimate of its standard deviation.

This standardization is crucial because it allows us to compare residuals across different observations and models, making it far easier to identify influential data points or potential outliers.

The general formula for the standardized residual is expressed as:

r_i  =  e_i / s(e_i)  =  e_i / RSE√1-h_ii

In this formula, the components are defined as follows:

• e_i: The i^th raw residual.
• RSE: The Residual Standard Error of the model, which estimates the standard deviation of the error term.
• h_ii: The leverage of the i^th observation, which measures how far the observation’s explanatory variable value is from the mean of the explanatory variable values.

In statistical practice, a common rule of thumb is that any standardized residual with an absolute value greater than 3 is generally considered a significant outlier that warrants further investigation, as it suggests the observation is three or more standard deviations away from the fitted line. This tutorial demonstrates the precise steps to calculate these residuals using Python.

Step 1: Define and Prepare the Data

Our first step is to establish the necessary data structure within the Python environment. We will utilize the powerful pandas library to create and manage our dataset, which consists of a predictor variable (x) and a response variable (y).

This small, illustrative dataset will serve as the foundation for fitting our linear regression model and calculating the subsequent residuals.

import pandas as pd

#create dataset
df = pd.DataFrame({'x': [8, 12, 12, 13, 14, 16, 17, 22, 24, 26, 29, 30],
                   'y': [41, 42, 39, 37, 35, 39, 45, 46, 39, 49, 55, 57]})

Step 2: Fit the Linear Regression Model using Statsmodels

With the data prepared, the next phase involves fitting the appropriate statistical model. We rely on the statsmodels library, a robust package in Python designed for estimating statistical models and performing statistical tests.

We must first clearly define the response variable (y) and the explanatory variable (x). Crucially, for Ordinary Least Squares (OLS) regression, we must use the sm.add_constant(x) function to include the intercept term in the model calculation.

import statsmodels.api as sm

#define response variable
y = df['y']

#define explanatory variable
x = df['x']

#add constant to predictor variables (for the intercept)
x = sm.add_constant(x)

#fit linear regression model
model = sm.OLS(y, x).fit()

Step 3: Calculate and Interpret the Standardized Residuals

Once the regression model is fitted, we can access diagnostic statistics, including the standardized residuals. The statsmodels package provides the get_influence() method, which is specifically designed to calculate various influence statistics needed for model diagnostics.

We use the resid_studentized_internal attribute from the influence object to retrieve the standardized residuals (often interchangeably referred to as internally studentized residuals). These values quantify how many standard deviations each observation’s residual is away from zero.

#create instance of influence object
influence = model.get_influence()

#obtain standardized residuals (internally studentized)
standardized_residuals = influence.resid_studentized_internal

#display standardized residuals
print(standardized_residuals)

[ 1.40517322  0.81017562  0.07491009 -0.59323342 -1.2482053  -0.64248883
  0.59610905 -0.05876884 -2.11711982 -0.066556    0.91057211  1.26973888]

Upon reviewing the output, we observe that none of the standardized residuals have an absolute value exceeding 3. Based on the conventional statistical benchmark, this suggests that none of the observations in this dataset qualify as extreme outliers that significantly distort the model fit.

Step 4: Visualize the Standardized Residuals for Diagnostic Checks

A crucial component of regression model diagnostics is the visualization of the residuals. Plotting the standardized residuals against the predictor variable (x) allows us to visually check key assumptions, particularly the assumption of homoscedasticity (constant variance of errors).

A well-fitting model should display residuals scattered randomly around the zero horizontal line without any clear pattern (such as a cone shape or a curve). We use matplotlib in Python to generate this diagnostic plot.

import matplotlib.pyplot as plt

plt.scatter(df.x, standardized_residuals)
plt.xlabel('x')
plt.ylabel('Standardized Residuals')
plt.axhline(y=0, color='black', linestyle='--', linewidth=1)
plt.show()

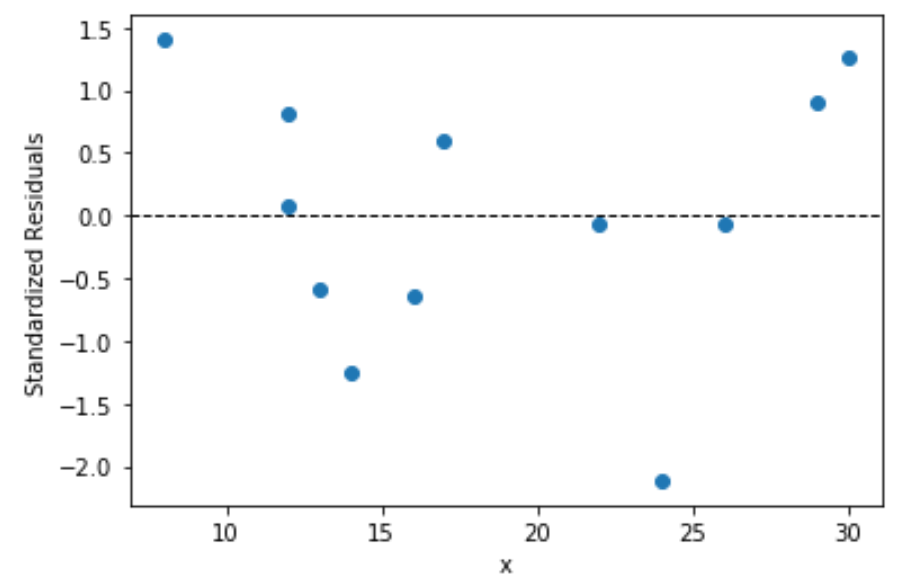

The resulting scatterplot visually confirms our numerical findings from Step 3: the points are scattered randomly around the zero line, indicating that the assumption of constant error variance is likely met and that there are no obvious structural issues or problematic outliers skewing the standardized residual distribution.
