Understanding and Calculating Studentized Residuals for Regression Analysis in Python

In the highly specialized field of statistical modeling and regression analysis, the ability to accurately assess the validity and fit of a model is paramount. A critical component of this validation process is the rigorous examination of residuals, which serve as the foundation for powerful diagnostic tools designed to identify poorly fitted data points and potential model violations.

While basic residuals—the simple vertical distance between the observed data point and the model’s prediction—offer an initial measure of error, they possess a significant statistical limitation: their variance is often inconsistent across different observations. This non-constant variance, known as heteroscedasticity, hinders reliable comparison, particularly when dealing with observations that exert high leverage on the model. To overcome this fundamental challenge, statisticians rely on the concept of the studentized residual.

The Essential Difference: Standard vs. Studentized Residuals

A standard residual simply calculates the observed value minus the predicted value. However, the studentized residual employs a sophisticated scaling mechanism to ensure uniform variance. It is derived by dividing the residual by an estimate of its standard deviation, crucially calculated using a model that excludes the observation in question. This process is often referred to as “deleting” or “jackknifing” the observation.

This exclusion process ensures that the resulting standard deviation estimate is independent of the point being tested, yielding a standardized metric known as the externally studentized residual. Because these scaled residuals are distributed according to a Student’s t-distribution (with adjusted degrees of freedom), they become reliable standardized measures, making them ideally suited for comparative analysis and formal statistical testing of influence or extremity.

The primary benefit of this standardization is that it allows researchers and data scientists to compare residuals from different points within the dataset on a level playing field. Unlike raw residuals, which can be misleadingly large or small depending on the point’s leverage, studentized residuals provide a true measure of how far an observation deviates from the pattern established by the rest of the data, thereby enabling far more robust and statistically sound diagnostic conclusions.

Detecting Anomalies: The Power of Studentized Residuals

The core utility of studentized residuals lies in their unparalleled effectiveness for identifying potential outliers—observations that significantly deviate from the structure of the regression model. Since these residuals follow a known distribution, they facilitate formal hypothesis testing to determine whether a data point’s deviation is merely due to random chance or represents a statistically significant anomaly demanding further investigation.

In standard statistical practice, a widely accepted heuristic threshold is applied: any observation yielding a studentized residual with an absolute value greater than 3 (i.e., $|t| > 3$) is immediately flagged as a potential, high-leverage outlier. This strong heuristic marker suggests that the point is statistically unusual relative to the model derived from the remaining data. Identifying and understanding these influential points is a foundational step in validating any model fitted using methods such as Ordinary Least Squares (OLS).

For modern data practitioners working within the Python ecosystem, the process of calculating these sophisticated metrics is significantly streamlined by the powerful capabilities of the statsmodels library. This package is meticulously engineered to integrate complex statistical theory directly into a highly accessible programming framework, providing dedicated functions for automatic calculation and formal testing of these critical residuals.

Implementing Diagnostics with Python’s statsmodels

To accurately compute and evaluate the studentized residuals of a fitted regression model in Python, we must leverage the comprehensive statistical functionality provided by the statsmodels package. This library is an essential tool for analysts requiring in-depth statistical modeling capabilities, particularly those focusing on rigorous diagnostic evaluations that extend far beyond standard predictive performance metrics.

The specific diagnostic operation is encapsulated within the OLSResults class method: OLSResults.outlier_test(). This function is designed to be executed directly on the results object that is produced after a successful linear model fit using the ols() function. It handles the complex internal scaling and calculation of the externally studentized residuals.

The output of the outlier_test() method is highly informative, providing not just the scaled residual values themselves, but also the essential associated p-values. These p-values are indispensable for making formal statistical judgments regarding the potential outlier status of any given observation. The syntax required to deploy this powerful diagnostic tool is remarkably straightforward:

OLSResults.outlier_test()

Here, the OLSResults object represents the complete statistical summary and fitted parameters generated by calling the .fit() method on the model specification. Because this object encapsulates all data derived from the fitted Ordinary Least Squares model, it serves as the perfect input for subsequent, detailed diagnostic analyses.

Step-by-Step Practical Implementation

To provide a clear demonstration of this technique, let us walk through a concrete example. We will construct a simple linear regression model designed to predict a dependent variable, ‘rating’, based on a single predictor, ‘points’. Our initial phase involves setting up the Python environment, importing all necessary libraries, and defining a small, simulated dataset.

We require the fundamental libraries: numpy for efficient numerical operations and pandas for robust data manipulation. Additionally, we need the core statsmodels components—specifically statsmodels.api and the ols function from statsmodels.formula.api—to execute the regression analysis. The following code snippet illustrates the setup, data creation, and the fitting of the initial OLS model:

# Import necessary packages and functions
import numpy as np
import pandas as pd
import statsmodels.api as sm
from statsmodels.formula.api import ols

# Create dataset
df = pd.DataFrame({'rating': [90, 85, 82, 88, 94, 90, 76, 75, 87, 86],
                   'points': [25, 20, 14, 16, 27, 20, 12, 15, 14, 19]})

# Fit simple linear regression model
model = ols('rating ~ points', data=df).fit()

With the successful fitting of the model, the resulting model object now holds all the statistical parameters and diagnostics necessary for the subsequent testing phase. The next step is to invoke the outlier_test() function directly on this object. This execution computes the studentized residuals for all observations in the dataset and returns them organized within a clear, labeled DataFrame:

# Calculate studentized residuals
stud_res = model.outlier_test()

# Display studentized residuals
print(stud_res)

    student_resid	 unadj_p	 bonf(p)
0	-0.486471	0.641494	1.000000
1	-0.491937	0.637814	1.000000
2 	 0.172006	0.868300	1.000000
3	 1.287711	0.238781	1.000000
4	 0.106923	0.917850	1.000000
5	 0.748842	0.478355	1.000000
6	-0.968124	0.365234	1.000000
7	-2.409911	0.046780	0.467801
8	 1.688046	0.135258	1.000000
9	-0.014163	0.989095	1.000000

Interpreting the Diagnostic Output and P-Values

The resulting DataFrame, labeled stud_res, furnishes a comprehensive assessment of the fit quality for every data point included in the model training. The interpretation relies on understanding the three critical columns provided, which enable a statistically complete outlier assessment:

• student_resid: This column contains the calculated studentized residual value. These values function as standardized t-statistics, measuring the degree of extremity of each observation relative to the others. Analysts initially check for absolute values significantly exceeding the heuristic threshold of 3.
• unadj_p: This is the p-value corresponding to the studentized residual. It tests the null hypothesis that the specific observation is not an outlier, assuming that only this single test is performed.
• bonf(p): This crucial column provides the p-value corrected using the Bonferroni correction method. Because we are simultaneously testing multiple observations (a situation known as the multiple comparisons problem), this correction is applied to rigorously control the Family-Wise Error Rate (FWER). This adjustment ensures that the overall probability of incorrectly identifying at least one observation as an outlier remains controlled at the specified significance level (etypically $alpha = 0.05$).

Analyzing the provided results, we observe that observation index 7 exhibits the largest magnitude of deviation, with a studentized residual of -2.409911. While this represents a notable deviation, it remains below the typical heuristic threshold of 3. More importantly, when applying formal statistical scrutiny, we must focus on the bonf(p) column.

For a point to be classified as a statistically significant outlier at the 0.05 level, its Bonferroni-corrected p-value must be less than 0.05. In our sample output, the smallest corrected p-value is 0.467801 (at index 7). Since all corrected p-values are substantially greater than 0.05, we confidently conclude that no observations in this particular dataset meet the statistical criteria required to be definitively labeled as influential outliers, providing strong evidence for the validity of the OLS model fit.

Visual Confirmation: Creating a Residual Plot

Relying solely on numerical diagnostics is insufficient; comprehensive regression diagnostics demand the complementary use of visualization. The standard practice involves generating a scatter plot that maps the predictor variable (independent variable) against the calculated studentized residuals, commonly known as a residual plot.

This visualization is not merely cosmetic; it is instrumental for verifying core assumptions of the linear model, such as the assumption of homoscedasticity (where the variance of the errors is constant). Furthermore, the plot allows for immediate visual confirmation that no points fall far outside the expected range—specifically, beyond the critical lines corresponding to $|t| = 3$. We utilize the robust plotting capabilities of the matplotlib library to generate this essential diagnostic visualization:

import matplotlib.pyplot as plt

# Define predictor variable values and studentized residuals
x = df['points']
y = stud_res['student_resid']

# Create scatterplot of predictor variable vs. studentized residuals
plt.scatter(x, y)
plt.axhline(y=0, color='black', linestyle='--')
plt.xlabel('Points')
plt.ylabel('Studentized Residuals')

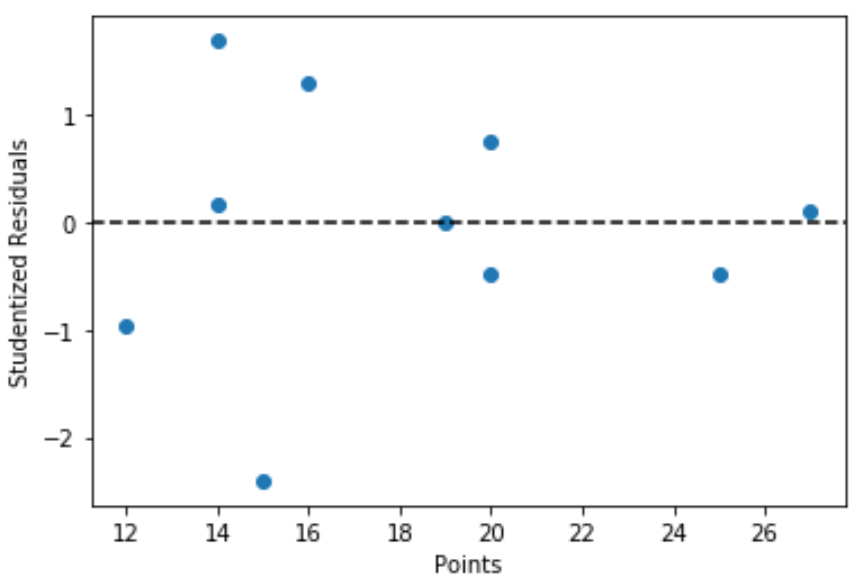

The resulting graphical representation visually confirms the numerical output:

An ideal residual plot displays points scattered randomly and symmetrically around the central zero line, demonstrating a lack of systematic patterns (such as curvature or a funnel shape). Our plot reinforces the conclusion drawn from the outlier_test() output: no observations exhibit a studentized residual with an absolute value greater than 3, further validating the assumption of a well-behaved linear relationship.

Conclusion: Leveraging Studentized Residuals for Robust Modeling

The systematic analysis of studentized residuals is an indispensable process for achieving rigorous regression diagnostics. By standardizing the residuals based on their estimated variances—a mechanism specifically designed to account for observation leverage—we obtain a highly reliable and statistically sound metric for quantifying the deviation of each point from the fitted regression line.

In the practical application demonstrated using Python’s statsmodels, both the calculated values derived from the outlier_test() function and the visual confirmation provided by the residual plot affirmed that our simulated dataset contained no observations that could be statistically classified as influential outliers. This diagnostic rigor is absolutely essential for ensuring the statistical integrity and validity of any subsequent inferences drawn from the fitted OLS model.

Mastering the use of the OLSResults.outlier_test() function, coupled with the ability to interpret the resulting Bonferroni-corrected p-values and diagnostic plots, equips the modern data scientist with the necessary tools to construct and defend robust, reliable, and statistically defensible predictive models.
