Understanding and Calculating Standard Error of Regression in Excel

When performing rigorous statistical analysis, fitting a regression model is an essential practice used to accurately describe the complex relationship between one or more independent variables (predictors) and a dependent variable (outcome). Although we strive for optimal accuracy, it is fundamentally important to acknowledge that achieving perfect prediction is statistically improbable. Every model, regardless of its sophistication, inherently incorporates a degree of unexplained variability.

A standard linear regression model is typically represented by the following general algebraic form:

Y = β₀ + β₁X + … + β_iX + ϵ

In this equation, the term ϵ is defined as the error term (ϵ). This critical component accounts for the random, irreducible variation in the dependent variable (Y) that the established predictor variables (X) cannot adequately explain. For the model assumptions to hold, this random error term is presumed to be entirely independent of the predictor variables X.

To provide a clear, quantifiable measure of this inherent uncertainty and dispersion of the random error, statisticians rely heavily on the standard error of the regression model (SER). The SER serves as a crucial, actionable statistic that quantifies the typical deviation—the average distance—between the actual observed data values and the corresponding values predicted by the regression line. Simply put, the SER is the standard deviation of the model’s residuals.

This comprehensive, expert-level tutorial provides a detailed, step-by-step methodology on how to precisely calculate and correctly interpret the standard error of the regression model utilizing the powerful, built-in statistical functionalities available within Microsoft Excel.

Step 1: Preparing the Sample Data for Analysis

The prerequisite for calculating the standard error of regression in Excel is the establishment of a well-structured and relevant dataset. For the purpose of this practical demonstration, we will conduct a multiple regression analysis focused on student performance. Our goal is to examine how two key factors—study habits and current academic standing—collectively influence students’ final exam scores.

Our demonstration utilizes a dataset comprising 12 distinct student observations. Each individual record includes the three fundamental variables required to properly fit our multiple regression model:

• Exam Score: Designated as our dependent variable (Y), the outcome we aim to predict.
• Hours Spent Studying: Serving as the primary independent variable (X₁), or predictor.
• Current Grade: Acting as the secondary independent variable (X₂), or predictor.

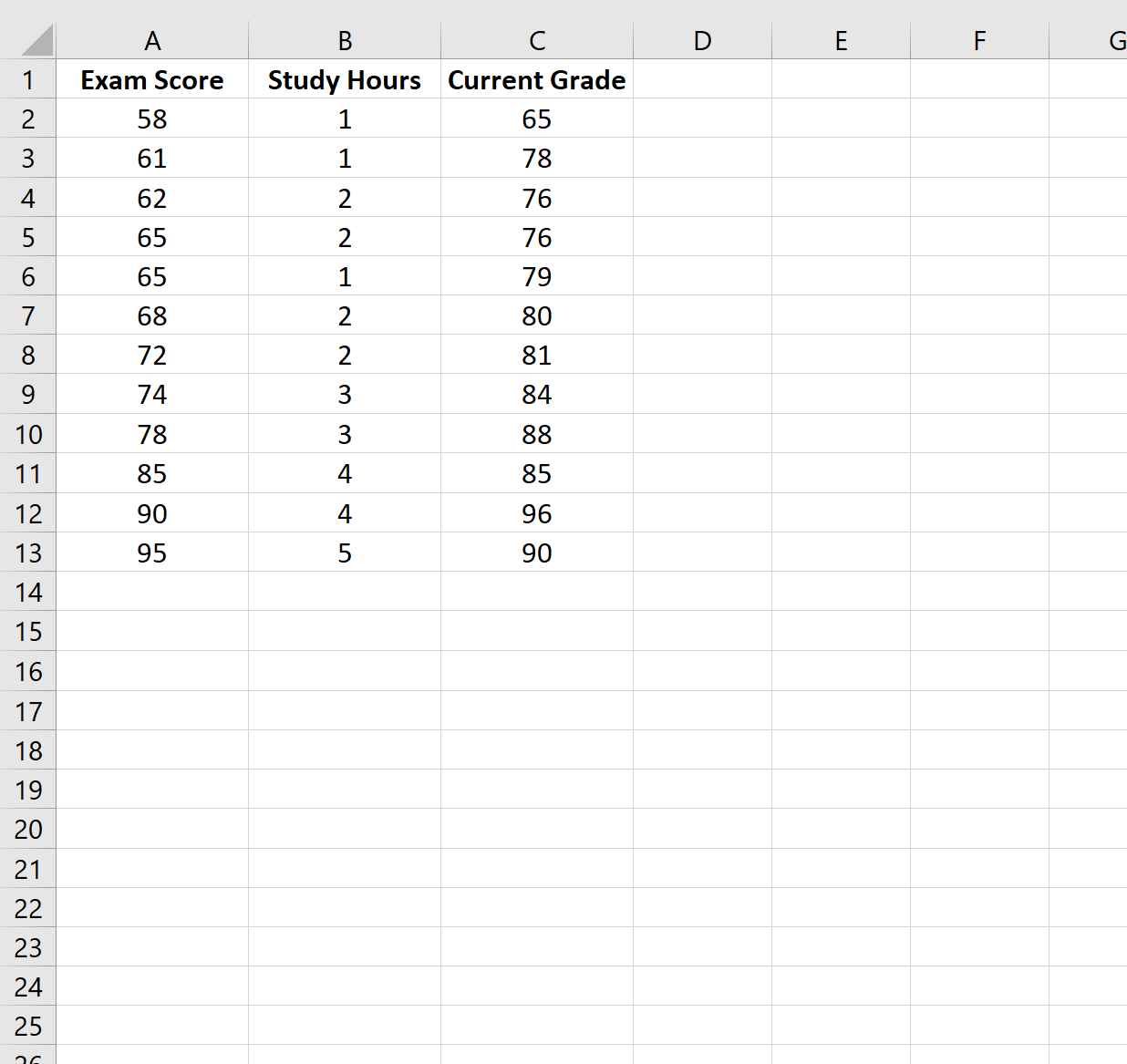

The organized data must be input into the Excel spreadsheet with precision, ensuring proper column labeling and formatting, as illustrated below:

Step 2: Configuring Excel for Regression Analysis

To analyze the prepared data effectively, we must fit a multiple regression model. In this scenario, we use the Exam Score as the outcome variable, predicted jointly by Hours Spent Studying and Current Grade. The initial step in executing this analysis within the Excel environment requires accessing the specialized statistical analysis functionality.

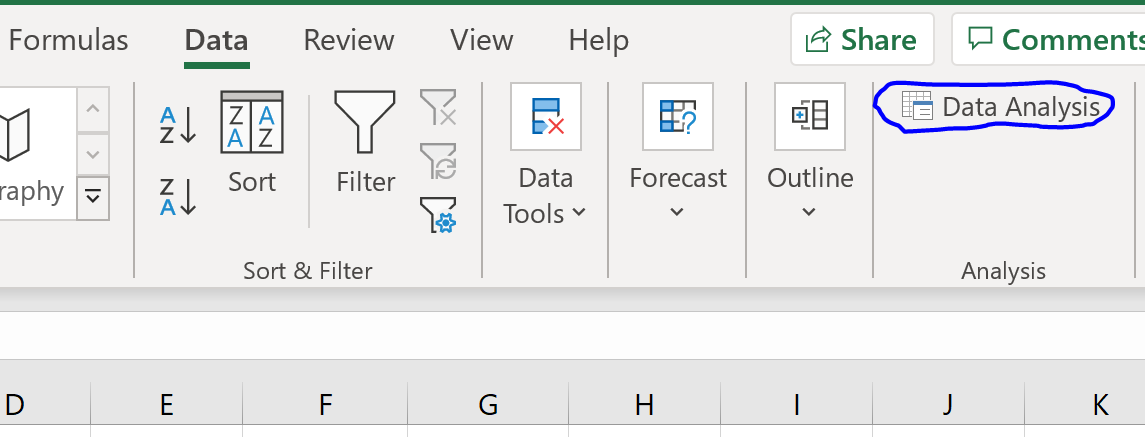

Navigate to the main Excel ribbon located at the top of the application window. Click the Data tab, and within this section, proceed to locate and click the Data Analysis button. This action initiates the selection process for the statistical test:

A crucial prerequisite: if the Data Analysis option is not visible within the Data tab, you must first install and activate the required add-in. You will need to load the Data Analysis ToolPak. This powerful, free tool is absolutely essential for performing sophisticated statistical operations, including regression, variance analysis, and t-tests, directly within Microsoft Excel.

Step 3: Defining and Fitting the Regression Model

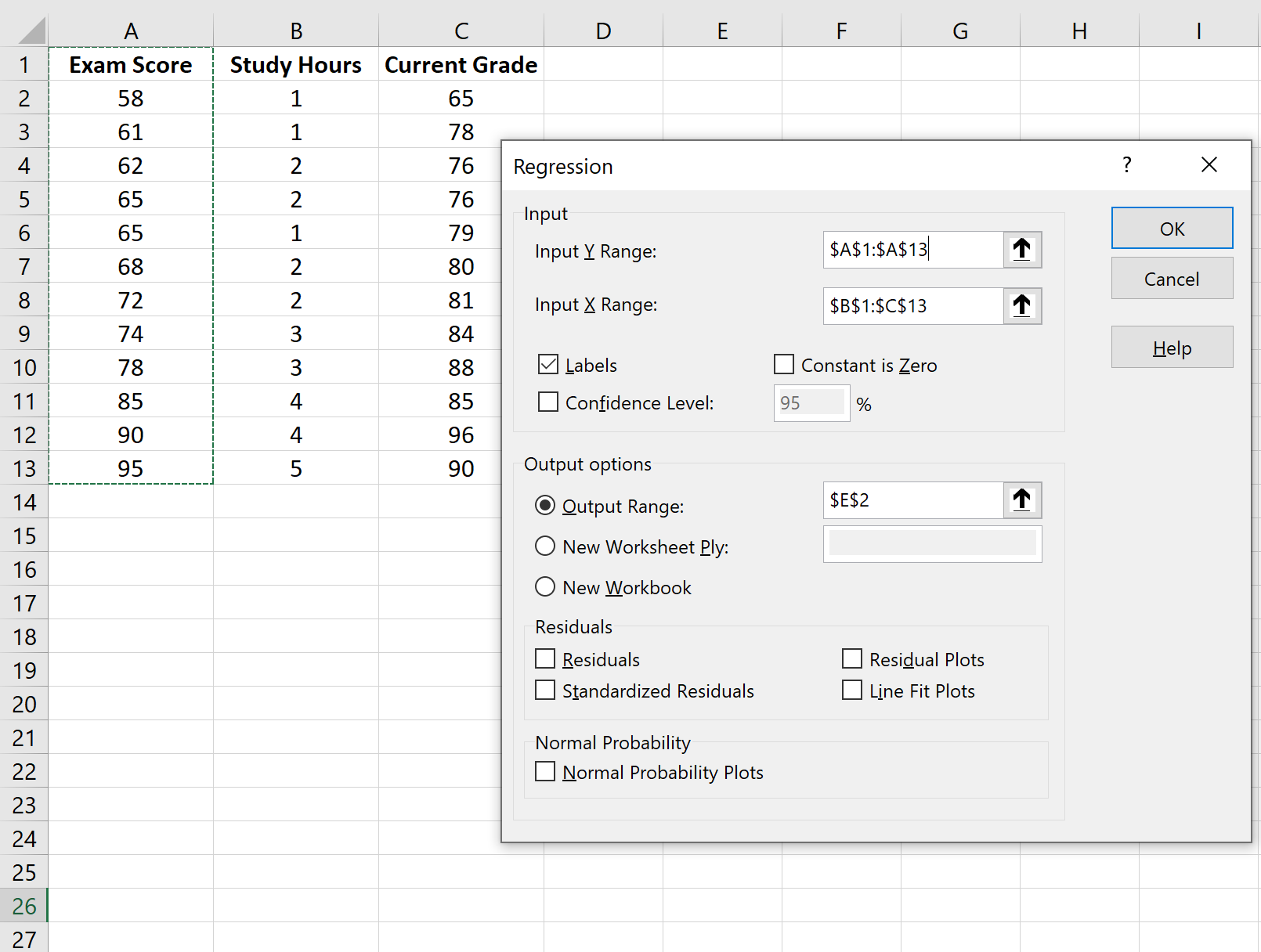

Once the Data Analysis window is open, select Regression from the comprehensive list of available analytical tools. A subsequent dialogue box will appear, prompting the user to precisely define the input parameters necessary for model calculation. Correctly specifying these data ranges is paramount to obtaining accurate results:

• Input Y Range: Carefully select the contiguous cells containing the values for the dependent variable (the Exam Scores).
• Input X Range: Select the cells encompassing all independent, or predictor, variables (both Hours Spent Studying and Current Grade). It is imperative that these predictor columns are selected simultaneously as one single, contiguous block of data.
• Labels: Check this option if your selected ranges (both Y and X) include the header row. Checking this box ensures that Excel uses the descriptive labels in the output, significantly aiding interpretation.

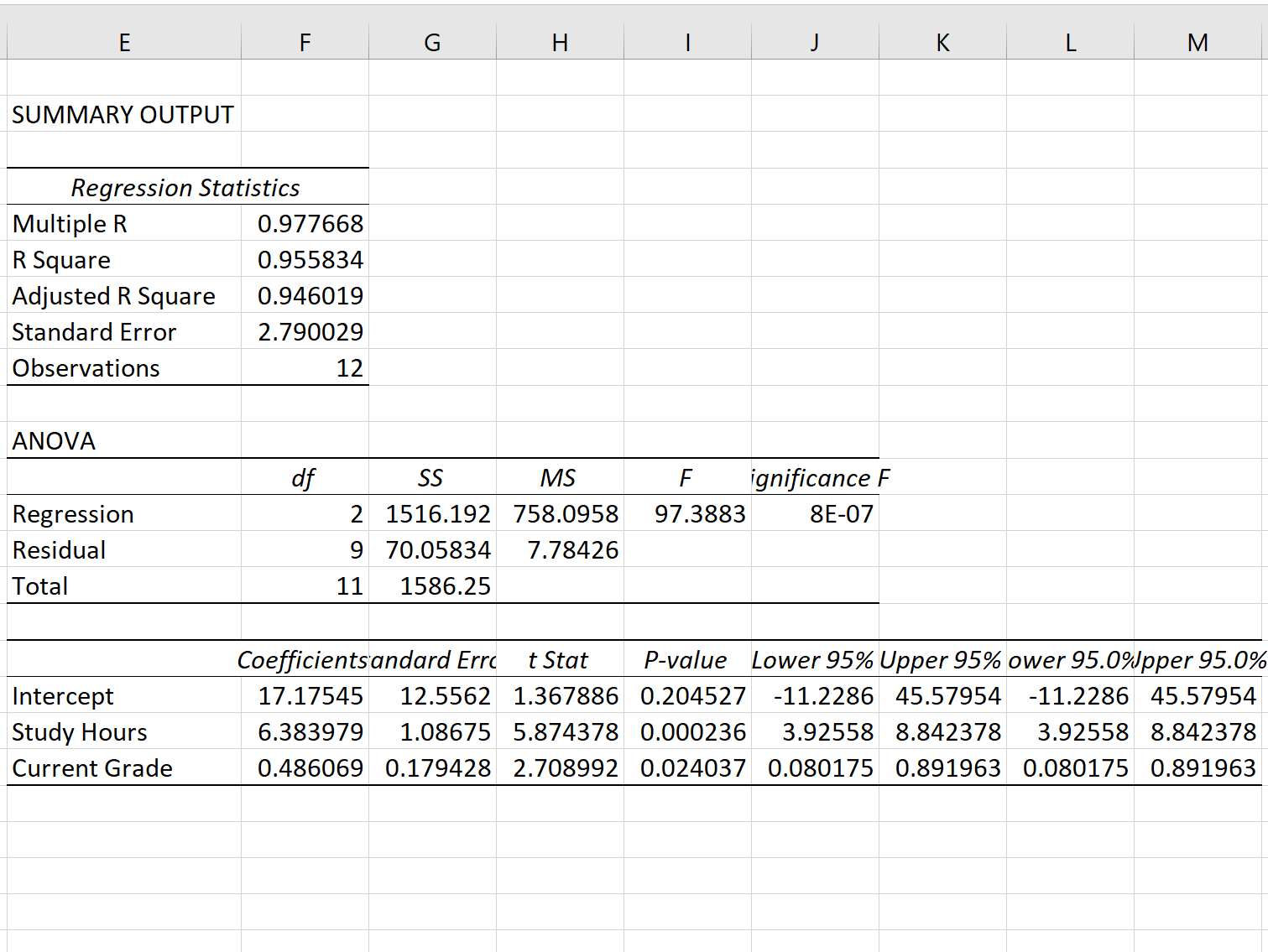

After confirming the input parameters and selecting an appropriate output location (e.g., a new worksheet or a specific cell on the current sheet), click the OK button. Excel will instantly execute the calculations and generate a comprehensive summary report containing all the resulting regression statistics, including the coefficients, ANOVA table, and, crucially, the Standard Error of Regression.

Step 4: Interpreting the Standard Error of Regression

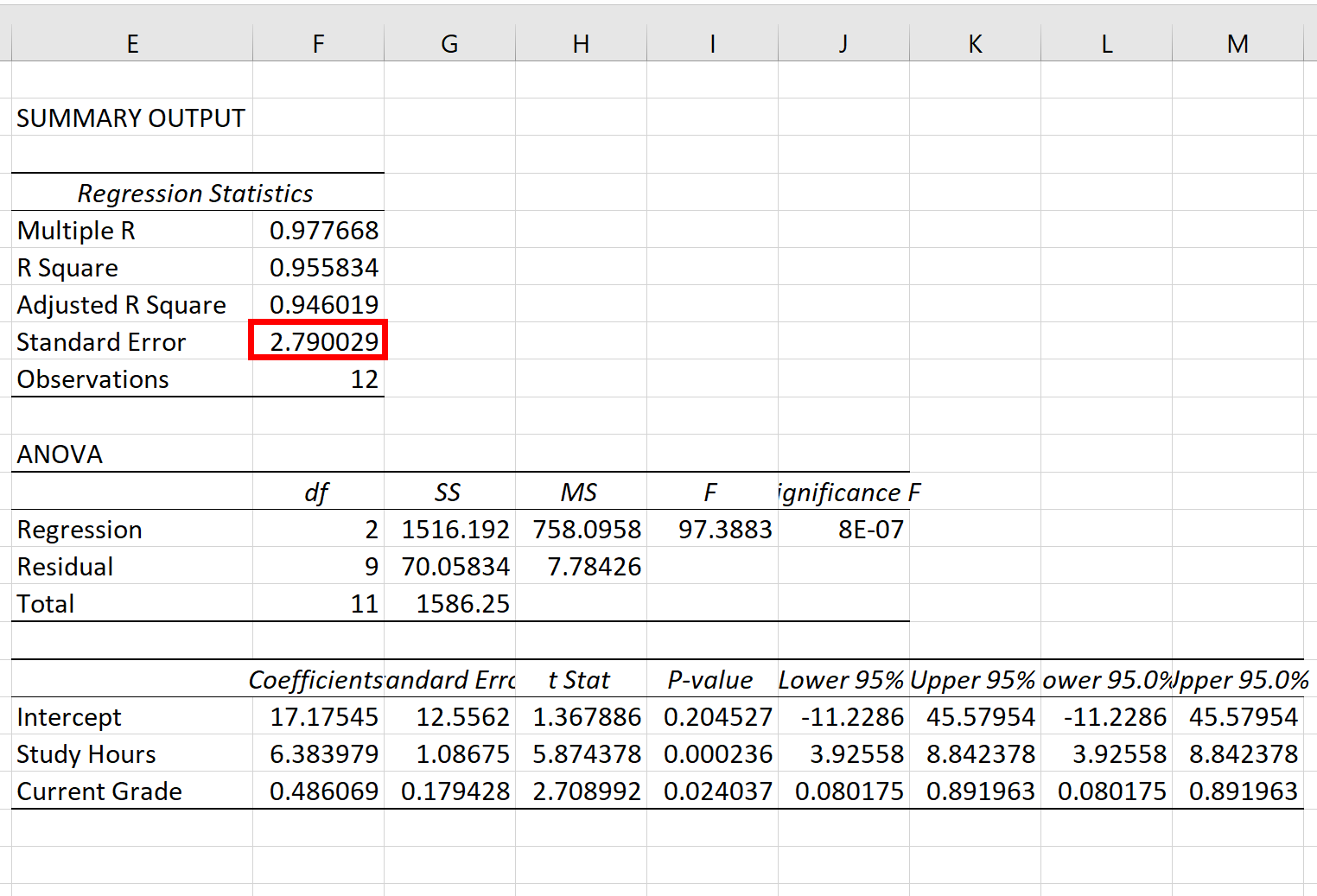

The objective value—the standard error of the regression model (SER)—is prominently featured within the generated output summary. You will find this value located in the first section of the report, labeled “Regression Statistics,” positioned directly adjacent to the label Standard Error.

For the specific multiple regression analysis conducted using our student performance dataset, the calculated standard error of regression is determined to be 2.790029. This highly intuitive figure represents the average magnitude of the inherent error within our predictive model. It serves as the single best estimate of the population standard deviation of the error term (ϵ).

In practical terms, the value 2.790029 signifies the average distance between the actual observed exam scores and the corresponding exam scores predicted by our fitted model. This statistic effectively quantifies the typical size of the residual, or unexplained variation, that remains after accounting for the influence of study hours and current grade.

Step 5: Evaluating Model Precision Using SER

One of the most significant advantages of the standard error of regression is that it provides an exceptionally intuitive measure of model fit because its value is expressed in the exact same units as the dependent variable. Since our dependent variable is exam score points, the SER is also measured in points.

The result of 2.790029 indicates that, on average, the predicted exam score generated by our model for any given student will deviate from their actual observed score by approximately 2.79 points. While the deviations (residuals) for individual students will naturally vary—some may be much closer to the prediction, and others significantly further—this figure establishes the central tendency and expected magnitude of the residual variation across the sample.

It is a fundamental principle of regression analysis that a smaller standard error of the regression model universally indicates a more precise and ultimately better-fitting model. A low SER value implies that the actual observed data points are clustered much more tightly around the regression line or plane defined by the model, leading directly to higher confidence and predictive accuracy.

Consequently, the SER is a powerful tool for model comparison. If, for instance, we were to construct an alternative regression model using a different set of predictors for the same dataset, and that new model yielded a standard error of 4.53, we could confidently and quantitatively conclude that our initial model (with SER = 2.790029) is substantially better and more accurate at predicting exam scores than the alternative model.

Additional Resources: SER vs. R-squared

While the standard error is recognized as a robust and absolute measure of predictive precision, another extremely common metric employed to evaluate overall model fit is R-squared (often referred to as the Coefficient of Determination). For a complete and nuanced statistical analysis, understanding the critical distinction between these two metrics is absolutely essential.

R-squared functions by measuring the proportion, expressed as a percentage, of the total variance in the dependent variable that is successfully explained by the independent variables included in the model. While this metric tells analysts how much of the variation is accounted for, it fails to provide any insight into the physical distance or magnitude of the actual prediction error.

The standard error of regression fills this crucial analytical gap by providing an actionable, distance-based measure of prediction accuracy, delivered in the original, tangible units of the outcome variable. This key distinction elevates the SER to an invaluable tool for practical application, real-world forecasting, and direct comparison of competing regression models.

For a deeper understanding of the nuances of model evaluation, it is highly recommended to consult resources that compare the benefits of using the standard error of the regression model (an absolute measure) to the proportionate measure provided by R-squared.
