Learning VBA: A Step-by-Step Guide to Calculating Time Differences in Excel

Introduction: Mastering Time Difference Calculations with VBA

Calculating time differences is not merely a secondary feature but a fundamental requirement in countless data analysis and business automation scenarios within Microsoft Excel. Professionals across various fields frequently need to precisely measure the elapsed time, whether they are tracking the duration of complex projects, analyzing specific task completion rates, or performing deep dives into large timestamp data logs. VBA (Visual Basic for Applications) provides an essential, powerful toolkit for handling these temporal computations with exceptional efficiency and robust accuracy, allowing users to extend far beyond the limitations inherent in standard worksheet formulas. This comprehensive guide will delve into the core principles and practical, real-world methods for calculating time differences using VBA, offering clear explanations and illustrative examples that will solidify your understanding of this vital programming skill.

The ability to accurately measure time intervals hinges entirely upon understanding how dates and times are fundamentally stored within Excel and subsequently processed by VBA. Unlike typical text or monetary values, dates are stored as integer serial numbers, while times are represented as fractional components of a single day. This critical numerical structure is the bedrock of all reliable time calculations, as it enables straightforward arithmetic operations—most importantly, subtraction—to determine the elapsed period between two defined points in time. Recognizing this underlying mechanism is paramount, as it directly dictates the precision and versatility of all time difference calculations you implement and automate.

By skillfully leveraging VBA, you gain the power to automate calculations that would be impossibly cumbersome, highly repetitive, or excessively prone to error if attempted manually or solely through complex, nested Excel functions. This advantage is particularly pronounced when dealing with massive datasets, integrating time tracking across different applications, or engineering custom functions tailored to specific business logic requirements. The techniques detailed in this guide will equip you to measure intervals precisely in any required unit—from years and days down to milliseconds—providing critical, granular insights necessary for high-level data interpretation and streamlined workflow management.

The Numerical Foundation: How Excel Manages Dates and Times

Before writing a single line of VBA code, achieving mastery over time calculations requires a deep understanding of Microsoft Excel‘s internal system for managing dates and times. Excel employs a serial number system where each date corresponds to a unique integer. By default, January 1, 1900, is represented as the serial number 1, January 2, 1900, is 2, and so forth. This integer component is solely dedicated to tracking the date itself. Time, conversely, is tracked as a decimal fraction of a standard 24-hour day. A time of 0.0 corresponds precisely to midnight (00:00:00), 0.5 corresponds to noon (12:00:00 PM), and a value just shy of 1.0 represents the final second of the day (23:59:59).

When you enter a combined date and time value into an Excel cell—for instance, “2024-10-25 18:00″—Excel seamlessly converts this input into a single, comprehensive serial number. The integer part of this number identifies the specific day (e.g., October 25, 2024, might be serial number 45595), and the decimal part represents the time of day (e.g., 6:00 PM is 0.75, since 18 hours constitutes 75% of 24 hours). The combined value would therefore be 45595.75. This unified numerical representation is crucial because it transforms seemingly complex time intervals into simple, arithmetic values that can be manipulated and calculated programmatically.

This powerful numerical model vastly simplifies the core process of calculating time differences. When one date/time serial value (the start time) is subtracted from another (the end time), the result is the direct difference in days, expressed as a decimal number. For example, subtracting a start time of 45595.75 from an end time of 45596.25 (which represents 6:00 AM the following day) yields exactly 0.5. This result directly indicates that exactly half a day (12 hours) has elapsed. To convert this fundamental daily difference into more usable units, such as hours, minutes, or seconds, only simple multiplication by the relevant conversion factors is required. Understanding this conversion process is the key to translating raw serial number differences into meaningful duration metrics.

Implementing Core Time Difference Calculations in VBA

The most straightforward, precise, and frequently utilized method for calculating time differences in VBA is the direct subtraction of the start date/time serial number from the end date/time serial number. The resultant value is always the duration expressed in days. From this foundational unit, you can then effortlessly convert the measurement into any other desired unit by applying standard conversion factors. This technique provides the highest level of fractional precision, which is often necessary in scientific, financial, or detailed logging applications where sub-second accuracy is mandatory.

To make this process scalable and repeatable across multiple data entries, we implement it within a macro. The following template demonstrates how to calculate the difference and then systematically convert that daily result into hours (by multiplying by 24), minutes (by multiplying by 24 and 60), and seconds (by multiplying by 24, 60, and 60). This foundational code serves as an indispensable starting point, allowing you to quickly process columns of timestamp data and output the calculated durations into adjacent columns for analysis.

Sub FindTimeDifference()

    Dim i As Integer

    For i = 2 To 7
        'calculate time difference in days
        Range("C" & i) = Range("B" & i) - Range("A" & i)

        'calculate time difference in hours
        Range("D" & i) = (Range("B" & i) - Range("A" & i)) * 24

        'calculate time difference in minutes
        Range("E" & i) = (Range("B" & i) - Range("A" & i)) * 24 * 60

        'calculate time difference in seconds
        Range("F" & i) = (Range("B" & i) - Range("A" & i)) * 24 * 60 * 60
    Next i

End Sub

This specific macro utilizes a For loop to efficiently process data across rows 2 through 7. Inside the loop, it targets the end time (held in column B) and subtracts the start time (from column A). The resulting durations are then systematically written into the subsequent columns. This disciplined, iterative approach ensures data consistency and minimizes manual intervention, making it ideal for managing dynamic spreadsheets that frequently receive updated timestamp data.

• C2:C7 stores the difference in days. This is the raw, fractional output derived directly from the subtraction of Excel serial numbers.
• D2:D7 stores the difference in hours. The daily difference is multiplied by 24.
• E2:E7 stores the difference in minutes. This is obtained by multiplying the daily difference by 24 (hours) and then by 60 (minutes).
• F2:F7 stores the difference in seconds. This calculation requires multiplying the daily difference by 24, 60, and a final 60.

The arithmetic subtraction method is the cornerstone of flexible time calculations in VBA. It provides comprehensive control over the unit of measurement and ensures that the result is a continuous, precise fractional value, which is essential when analyzing durations that span multiple days or require sub-second precision for high-stakes analysis.

A Practical Walkthrough: Automating Elapsed Time Calculation

To solidify the concepts introduced, let us apply the direct subtraction macro to a common data processing task. Imagine you are presented with a log containing the start and finish timestamps for a series of operational events or project tasks. Your objective is to rapidly and accurately determine the duration of each event, outputting the results simultaneously in days, hours, minutes, and seconds. Attempting manual calculation or repetitive formula entry for this task would be highly inefficient and extremely prone to human error, especially as the dataset grows.

Consider a dataset structured in an Microsoft Excel sheet where column A contains the start times and column B contains the corresponding end times, as illustrated below. This structure represents typical time-log data frequently encountered in system monitoring or business intelligence applications that requires immediate analysis.

The previously defined FindTimeDifference macro is perfectly engineered to process this data efficiently. It is designed to iterate through the designated rows, calculate the delta between the start and end times, and then write the four distinct unit calculations into columns C, D, E, and F. This level of automation is invaluable, drastically reducing the time spent on data transformation and allowing analysts to shift their focus immediately to interpreting the derived durations and drawing meaningful conclusions from the time logs.

Sub FindTimeDifference()

    Dim i As Integer

    For i = 2 To 7
        'calculate time difference in days
        Range("C" & i) = Range("B" & i) - Range("A" & i)

        'calculate time difference in hours
        Range("D" & i) = (Range("B" & i) - Range("A" & i)) * 24

        'calculate time difference in minutes
        Range("E" & i) = (Range("B" & i) - Range("A" & i)) * 24 * 60

        'calculate time difference in seconds
        Range("F" & i) = (Range("B" & i) - Range("A" & i)) * 24 * 60 * 60
    Next i

End Sub

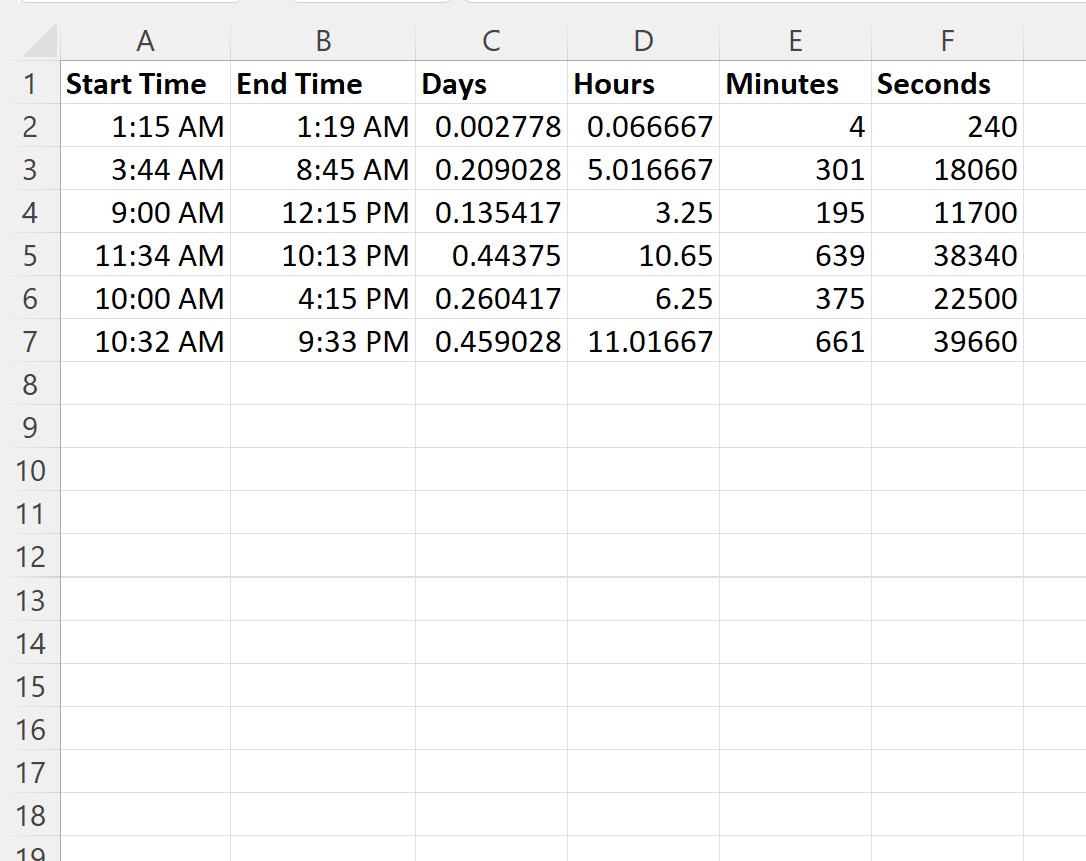

Upon successful execution, the macro immediately fills the designated output columns with the calculated time differences. The visualization below confirms that the elapsed time for each row is now clearly displayed in the specified units. This demonstrates the seamless capability of VBA to convert raw timestamp subtraction into immediately meaningful duration metrics, thereby transforming and optimizing data processing workflows for maximum efficiency.

Advanced Techniques: Utilizing the DateDiff Function

While direct arithmetic subtraction provides the highest fractional precision, VBA offers an alternative, highly convenient function for specific time calculations: the DateDiff function. This built-in function is specifically designed to calculate the number of specified time intervals that occur between two dates or times. Its explicit syntax is: DateDiff(interval, date1, date2, [firstdayofweek], [firstweekofyear]). The crucial parameter here is interval, which dictates the unit of time to be measured, using short codes like “d” for days, “h” for hours, “n” for minutes, and “s” for seconds.

The primary benefit of using the DateDiff function lies in its simplicity and immediacy; it directly returns an integer representing the count of whole intervals, thereby eliminating the need for manual multiplication conversions. For instance, DateDiff("h", startTime, endTime) immediately returns the number of full hours elapsed. However, it is vital to understand the function’s unique counting methodology. DateDiff counts the number of times an interval boundary is crossed. Consequently, DateDiff("h", #1:00:00 AM#, #1:59:59 AM#) returns 0, because the hour boundary has not yet been crossed, while DateDiff("h", #1:00:00 AM#, #2:00:00 AM#) returns 1. This behavior makes it less suitable for applications requiring continuous, fractional duration measurements, but perfect for counting whole units like months, quarters, or years.

A key consideration in any robust time calculation is handling negative time differences, which typically occur when the end time precedes the start time, or when analyzing complex shift patterns that cross midnight (e.g., calculating night shifts). While direct subtraction in VBA will correctly yield a negative serial number difference, Excel’s default time formatting often struggles to display negative time values, frequently showing “#########” or an error. If your application anticipates scenarios where the result might be negative, it is essential to employ conditional logic or the Abs function to return the absolute duration. For advanced reporting, you might also need to check if the difference is negative and, if so, manually format the output string accordingly (e.g., prepending a minus sign) rather than relying on Excel’s default display format.

Best Practices, Validation, and Troubleshooting

To create robust and reliable VBA solutions for time difference calculations, adherence to several key best practices is non-negotiable. The first and most critical step is rigorous data validation. Time calculations rely entirely on the input cells containing valid dates and times. Before executing any subtraction or function call, use VBA’s built-in IsDate function to confirm that the cell content can be interpreted correctly as a date or time value. Failing to validate inputs can lead directly to type mismatch errors and premature macro crashes, undermining the automation process entirely.

Secondly, the correct formatting of the output cells in Microsoft Excel is paramount to accurately displaying the calculated duration. If the result is calculated in raw days (the fractional serial number difference), the cell should typically use a General number format. However, when displaying durations in hours, minutes, or seconds, especially those that might span more than 24 hours, standard time formats (like h:mm:ss) will “roll over” the time, showing only the remainder after division by 24. To display the total elapsed time continuously, regardless of how many days it spans, you must use custom number formats that include square brackets around the unit, such as [h]:mm:ss (for total hours), [m]:ss (for total minutes), or [s] (for total seconds). This ensures that a duration of 30 hours is correctly displayed as “30:00:00,” not “06:00:00.”

Finally, effective error handling must be integrated into any production-level solution. Utilizing statements like On Error GoTo ErrorHandler allows your code to gracefully manage unforeseen problems, such as empty cells, non-numeric text entries in date columns, or unexpected data structures. By anticipating these common pitfalls and building in safeguards, you create automation solutions that are resilient and user-friendly, ensuring that your time calculation processes run smoothly and reliably even when underlying data quality is imperfect.

Conclusion

The ability to calculate time differences accurately and efficiently using VBA is an essential skill for anyone extensively using Microsoft Excel for serious data analysis and automation. By grasping Excel’s unique serial number system for dates and times, you unlock the power of simple arithmetic subtraction to determine elapsed periods with high fractional precision. This foundational method, coupled with multiplication for unit conversion, offers the most flexible and precise approach to measuring durations across various scales.

Alternatively, the specialized DateDiff function provides a rapid solution for counting whole time intervals, although its boundary-counting methodology requires careful application. Regardless of the method chosen, the practical examples presented illustrate how to transform raw timestamp data into actionable insights across various units of time. By consistently applying best practices—including rigorous data validation, precise cell formatting using bracketed custom codes, and robust error handling—you can ensure the accuracy and clarity of your results, significantly enhancing the efficiency and intelligence of your Microsoft Excel workflows.
