Calculating Variance Inflation Factor (VIF) in Excel: A Guide to Detecting Multicollinearity

Detecting Multicollinearity with the Variance Inflation Factor (VIF)

In the realm of regression analysis, a significant challenge known as Multicollinearity can dramatically compromise the integrity of statistical models. This issue arises when two or more independent inputs, commonly referred to as predictor variables or explanatory variables, exhibit a high degree of linear correlation with one another. When this strong inter-correlation exists, the variables essentially cease to provide unique or independent information to the overall model, leading to redundancy.

If the correlation between predictors is sufficiently high, it can severely complicate the process of model fitting and lead to significant interpretation difficulties. The most critical symptoms include unreliable coefficient estimates, meaning the contribution attributed to each predictor becomes highly unstable, and severely inflated standard errors. These inflated standard errors make it difficult to determine which predictors are statistically significant, hindering sound data-driven decision-making.

Fortunately, statisticians rely on a robust diagnostic metric to quantify and detect the presence and severity of this issue: the variance inflation factor (VIF). The VIF is specifically designed to measure how much the variance of an estimated regression coefficient is increased due to the presence of multicollinearity with the other variables in the model. Essentially, a higher VIF value serves as a clear signal of stronger correlation between that specific explanatory variable and the rest of the predictors utilized within the model.

The Underlying Mathematics of the VIF Calculation

The core principle behind calculating the variance inflation factor (VIF) is rooted in the concept of auxiliary regression. For any specific explanatory variable we wish to test, its VIF value is derived by running a separate, secondary regression. In this auxiliary model, the predictor being tested is temporarily treated as the response variable, while all other predictors from the original model serve as the new explanatory variables.

The result of this auxiliary regression that is crucial for VIF calculation is the coefficient of determination (R-squared). This R-squared value quantifies how well the variable in question can be linearly predicted by the other predictors in the model. The VIF is then calculated using the following elegantly simple formula:

VIF = 1 / (1 – R²)

In this formula, R² represents the R-squared value obtained specifically from the auxiliary regression. A high R² value in this context implies that the predictor is highly redundant, resulting in a small denominator (1 – R²) and, consequently, a high VIF score. Understanding this relationship is critical, as the subsequent steps in Microsoft Excel require us to systematically calculate a distinct R-squared value for every predictor variable in our primary model.

Preparing the Dataset in Microsoft Excel

To effectively demonstrate the VIF calculation process, we will use a sample dataset detailing attributes for 10 basketball players. Our objective is to fit a regression analysis model where the player rating is the response variable, and points, assists, and rebounds are the explanatory variables. The foundational requirement for any statistical analysis in Excel is the meticulous organization of raw data.

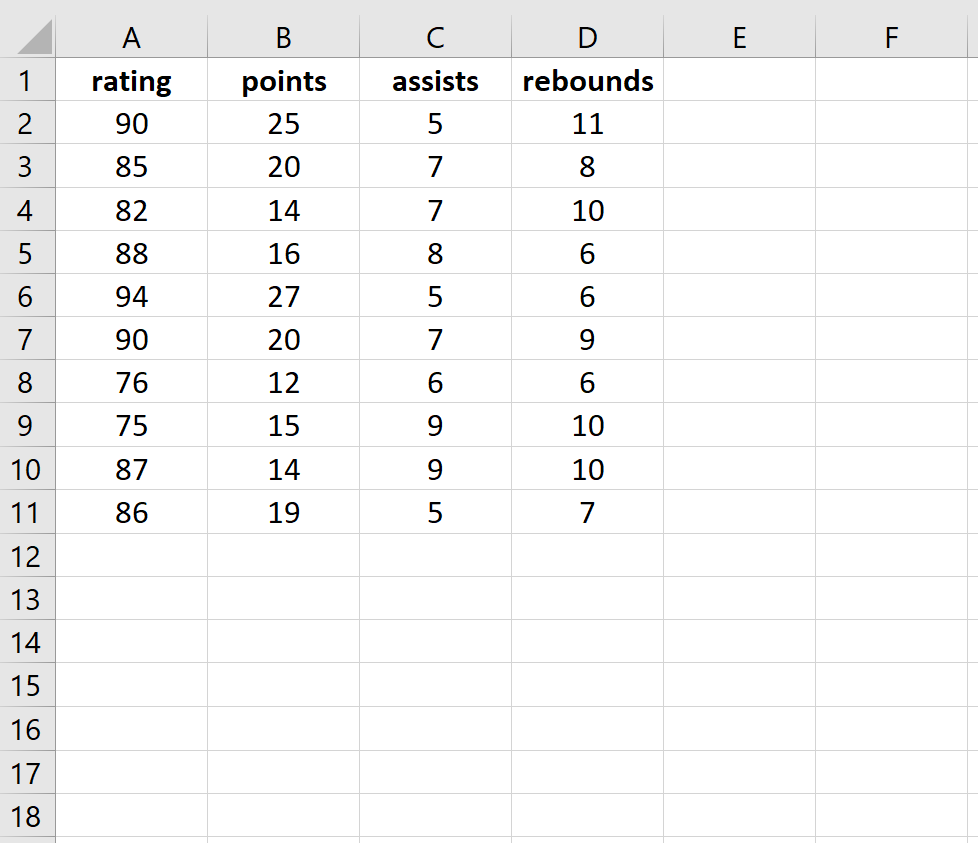

The structured dataset, complete with clear column headers, must be prepared within an Excel worksheet, as illustrated below. It is essential to ensure that this data is correctly formatted and ready for processing by Excel’s statistical computation tools, particularly the Data Analysis Toolpak.

Once the data is accurately structured, we can proceed to the initial multiple linear regression. This step not only establishes the baseline model being investigated for multicollinearity but also confirms the functionality of the necessary Excel add-ins.

Step 1: Executing the Primary Regression Model

The first practical step in the VIF calculation workflow is to execute the primary multiple linear regression model using the statistical capabilities built into Excel. This process is necessary to set up the context for the subsequent auxiliary regressions required for VIF.

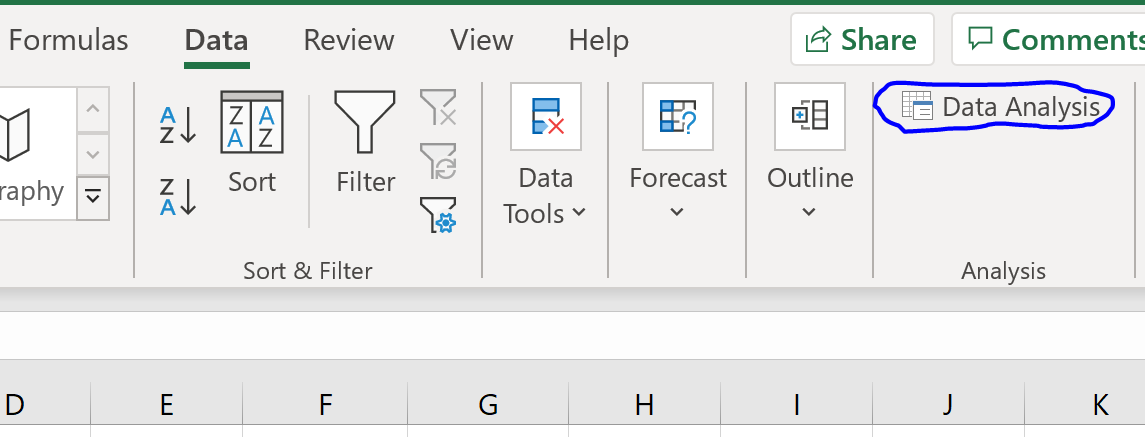

To begin the analysis, navigate to the Data tab located on the top ribbon and select the Data Analysis option. If this option is unavailable, you must first enable the Analysis Toolpak add-in within your Excel settings, as it is indispensable for performing advanced statistical computations, including regression.

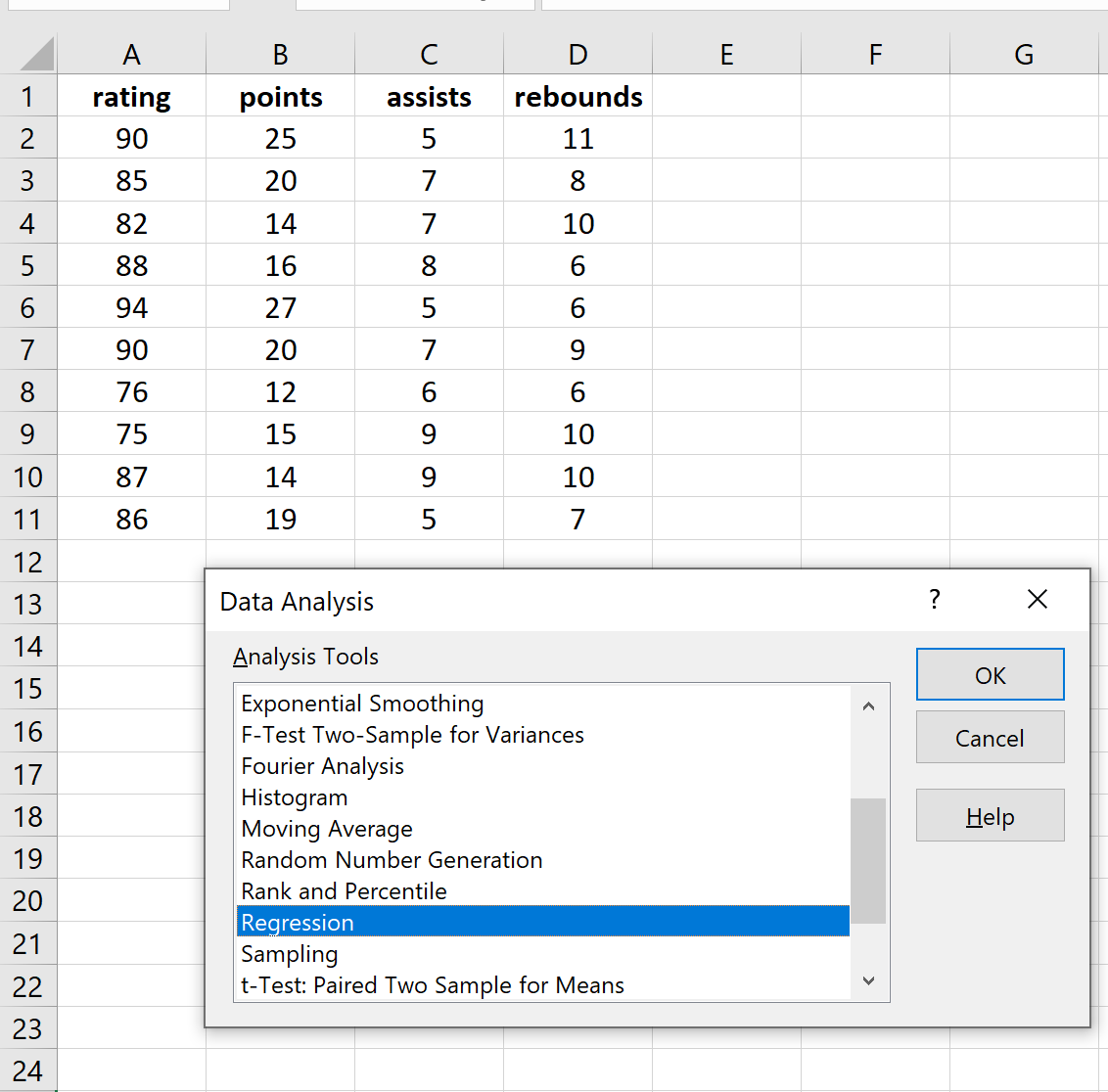

After launching the Data Analysis dialog box, select the Regression option from the list and click OK. This will prompt the Regression input window, where you must precisely define the dependent and independent variables for your model.

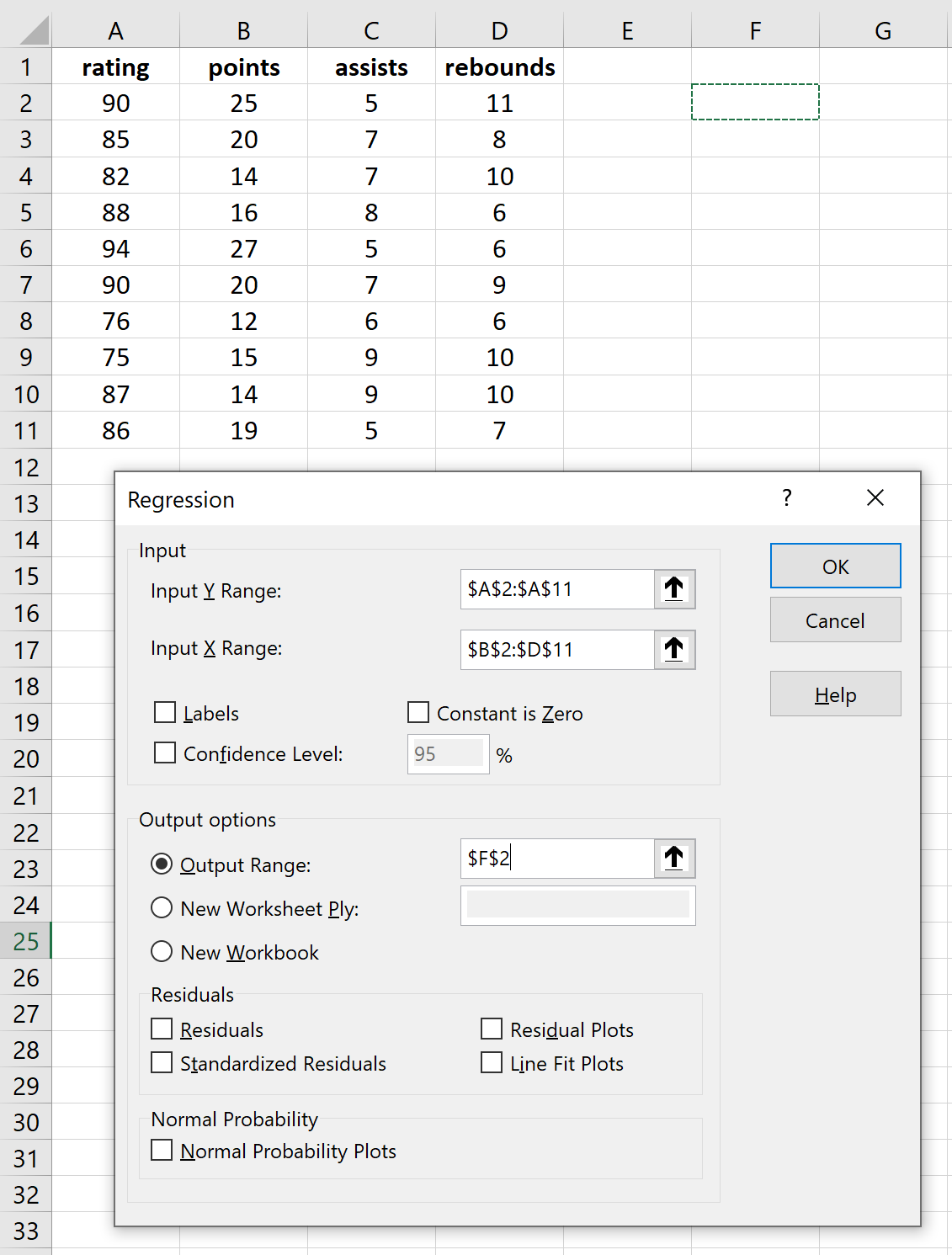

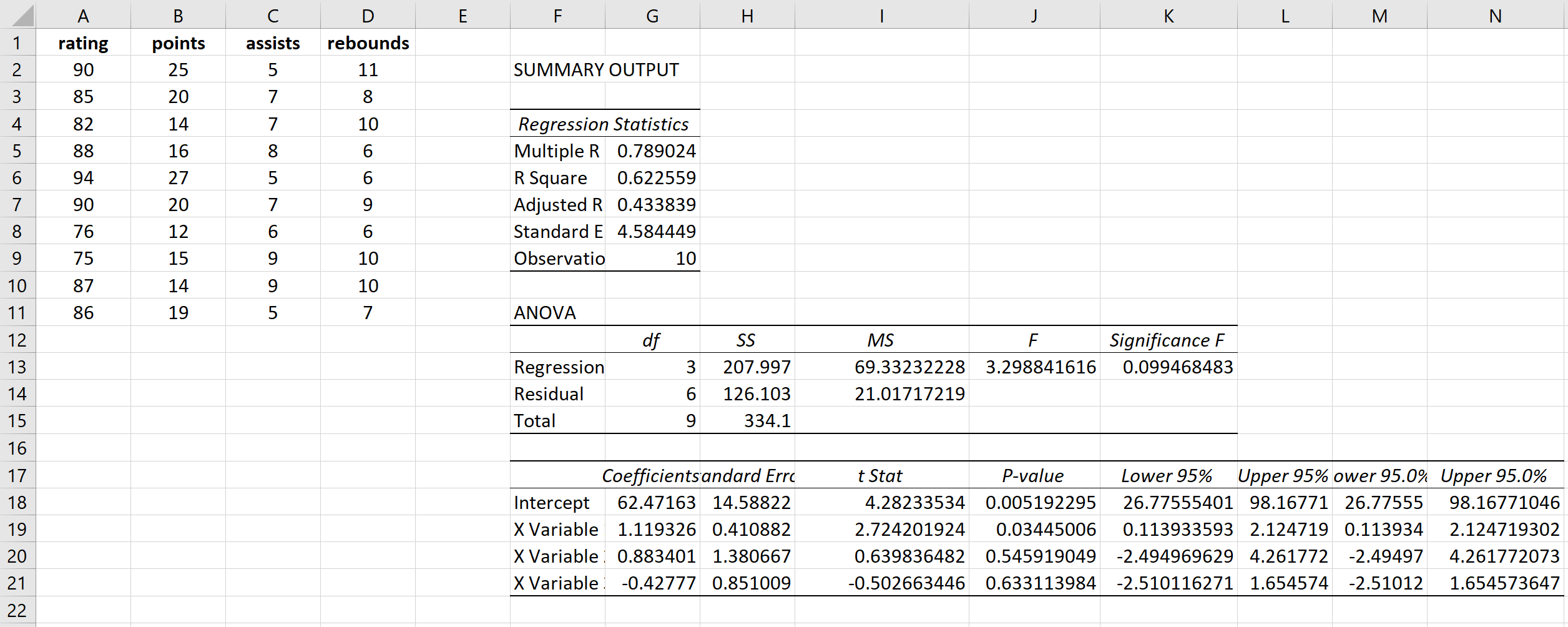

Carefully specify the Y Input Range (the response variable: Rating) and the X Input Range (the explanatory variables: Points, Assists, and Rebounds). Ensure the Labels box is checked if you included header rows in your selections, and designate an appropriate Output Range to display the results. Clicking OK will generate the summary output containing various summary statistics and coefficient estimates for the primary model.

While this initial output provides crucial information about the overall model performance, it is important to understand that Excel’s native regression analysis feature does not directly calculate or display the VIF values. This initial step merely sets the stage for the iterative process of calculating the VIF for each predictor individually.

Step 2: Conducting Auxiliary Regressions and Calculating VIF

To determine the variance inflation factor (VIF) for each predictor, we must run a separate auxiliary regression for every explanatory variable present in our original model. Since our basketball model includes three explanatory variables (Points, Assists, Rebounds), we are required to perform three distinct regressions. In each instance, one predictor from the original model is designated as the response variable (Y), and the remaining predictors serve as the independent variables (X).

The required auxiliary regressions are structured as follows:

1. To calculate the VIF for Points: Run a regression where Points is the response variable (Y) and Assists and Rebounds are the explanatory variables (X).
2. To calculate the VIF for Assists: Run a regression where Assists is the response variable (Y) and Points and Rebounds are the explanatory variables (X).
3. To calculate the VIF for Rebounds: Run a regression where Rebounds is the response variable (Y) and Points and Assists are the explanatory variables (X).

After running the first auxiliary regression (e.g., Points as Y), we must extract the critical piece of information from the output summary: the R Square value (or Coefficient of Determination), which quantifies the degree to which Points is predicted by the other variables. We then apply the VIF formula: VIF = 1 / (1 – R²).

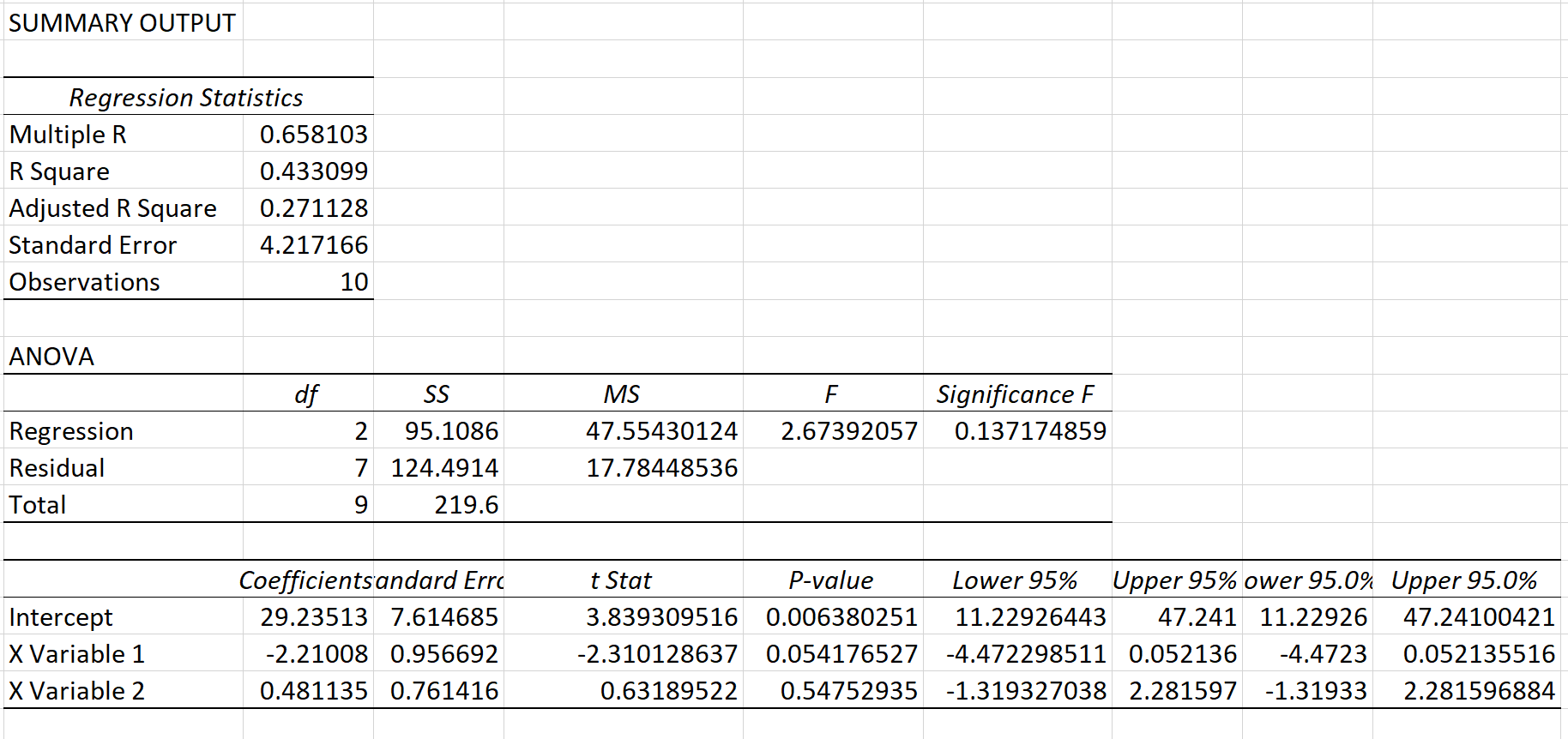

For the auxiliary regression where Points is the response variable, the resultant output summary provides the necessary R Square value:

Based on this output, the R Square value is 0.433099. We can then calculate the VIF for Points: VIF (Points) = 1 / (1 – R Square) = 1 / (1 – 0.433099) = 1 / 0.566901 ≈ 1.76. This exact process must be repeated for both Assists and Rebounds. Upon completion of all three auxiliary regressions, the final VIF results for all explanatory variables are aggregated:

• VIF for Points: 1.76
• VIF for Assists: 1.96
• VIF for Rebounds: 1.18

Interpreting and Applying VIF Thresholds

The VIF value serves as a quantitative measure of the severity of multicollinearity in a model. VIF values begin at 1 and have no upper theoretical limit. Interpreting these results is crucial for diagnosing the overall statistical health of the regression analysis model and deciding whether corrective action is necessary. Statisticians generally rely on accepted rules of thumb for interpreting VIF scores:

• A VIF value of 1 indicates a perfect scenario where the specific explanatory variable is entirely uncorrelated with all other predictors in the model. This signifies the absence of multicollinearity.
• A VIF value between 1 and 5 suggests a moderate degree of correlation among the explanatory variables. While some correlation exists, it is typically not considered severe enough to significantly bias coefficient estimates or dangerously inflate standard errors. Models in this range are generally considered reliable.
• A VIF value greater than 5 (or sometimes 10, depending on the field of study) indicates potentially severe multicollinearity. When scores exceed this threshold, the coefficient estimates and associated p-values derived from the primary model are likely unreliable, unstable, and highly sensitive to minor modifications in the dataset. Serious corrective measures, such as removing the highly correlated predictor or utilizing advanced statistical techniques like ridge regression, must be considered.

Based on the results obtained from our basketball player rating example, the calculated VIF values—Points (1.76), Assists (1.96), and Rebounds (1.18)—are all close to 1 and fall well below the commonly accepted conservative threshold of 5. Therefore, we can confidently conclude that multicollinearity is not a significant statistical concern for this specific model, and the coefficient estimates are likely robust.
