Learn to Use Conditional Formatting in Excel: Change Cell Color Based on Date

Microsoft Excel is an indispensable tool for data analysis and visualization, and at the core of its dynamic capabilities lies Conditional Formatting (CF). This powerful feature enables users to automatically apply specific visual styles—such as cell background colors, font changes, or borders—to data points that satisfy predefined logical criteria. When dealing with critical timelines, such as tracking project deadlines, monitoring equipment maintenance schedules, or managing inventory expiration dates, leveraging CF to change cell color based on a date provides an immediate and crucial visual signal of status or impending urgency.

While Excel offers several basic, built-in date presets (like “Last 7 Days” or “Next Month”), these options are often insufficient for complex business logic involving custom time frames or multiple levels of urgency. The most effective approach for dynamic date tracking requires navigating to the Home tab, accessing the Conditional Formatting dropdown, and choosing the Manage Rules option. By utilizing custom formulas within the Rule Manager, we unlock the full potential of date comparison, transforming static spreadsheets into responsive dashboards.

The foundation of these custom rules rests on defining precise Boolean logic tests. These tests compare the date value housed in the target cell against a constantly updating reference date, which is typically generated by the dynamic TODAY() function. Mastering how these rules interact, especially when implementing a tiered system where multiple conditions target the same cell range, is essential for ensuring successful and accurate visual implementation. In essence, to change cell color based on date in Excel, the Manage Rules interface under the Conditional Formatting menu is the primary tool.

Establishing the Project Timeline Scenario

Before we delve into the exact formulas required, it is crucial to establish a clear and practical scenario. We will simulate tracking project deadlines where the required visual status—or urgency—is dictated by how close the due date is to the current day. To achieve maximum clarity, we will implement a three-tiered urgency system designed to visually flag immediate, near-term, and safely future tasks.

For the purposes of this guide, assume the current reference date is 11/20/2023. It is important to recall that Excel internally handles dates not as simple text strings, but as sequential serial numbers counting the days since January 1, 1900. This numerical treatment is vital because it allows us to perform precise mathematical operations—such as calculating the difference in calendar days—by comparing a cell’s date value against the dynamic result of the TODAY() function.

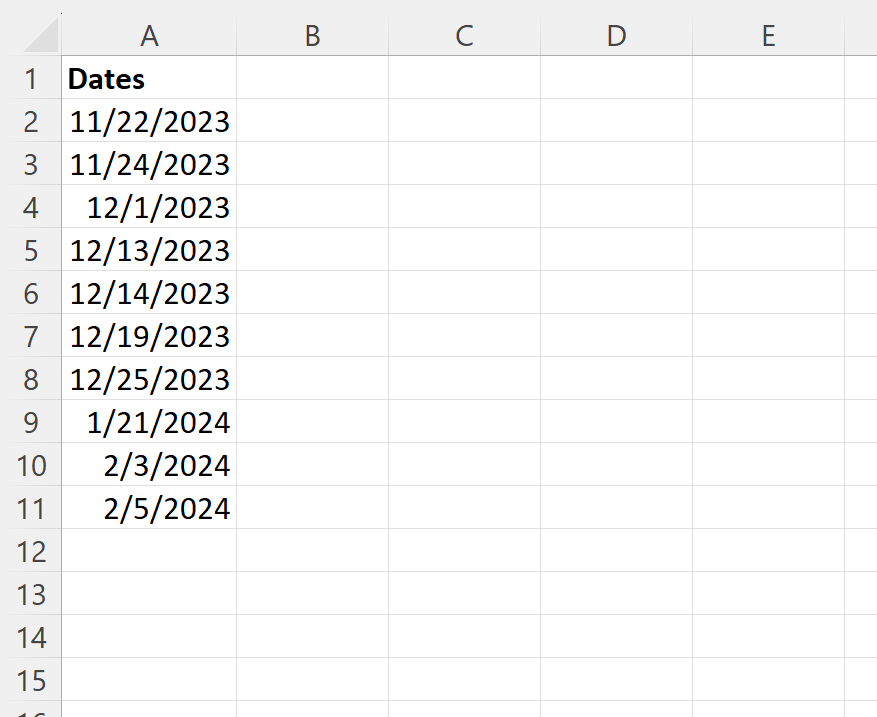

We will utilize the following sample dataset, which lists various deadlines in Column A:

Our objective is to apply a visual status indicator (color fill) to the cells in Column A based on the proximity of the deadline. The tiered urgency structure is defined as follows:

• If the date is 5 calendar days away or less, signifying the most urgent status, the cell color must be red.
• If the date is greater than 5 days away but within 30 calendar days or less, indicating a near-term status, the cell color must be yellow.
• If the date is greater than 30 calendar days away, representing a future/safe status, the cell color must be green.

Step-by-Step Implementation: Defining the Urgent (Red) Rule

The implementation process begins with establishing the correct scope for the formatting. The critical first step is highlighting the entire range of dates that need monitoring, which in our example is A2:A11. It is absolutely essential that the range is selected *before* defining the rule. This is because the custom formula we write must refer to the top-left cell of the selected range (A2). Excel will then automatically adjust this reference (relative referencing) to apply the logic correctly across every subsequent cell in the highlighted range.

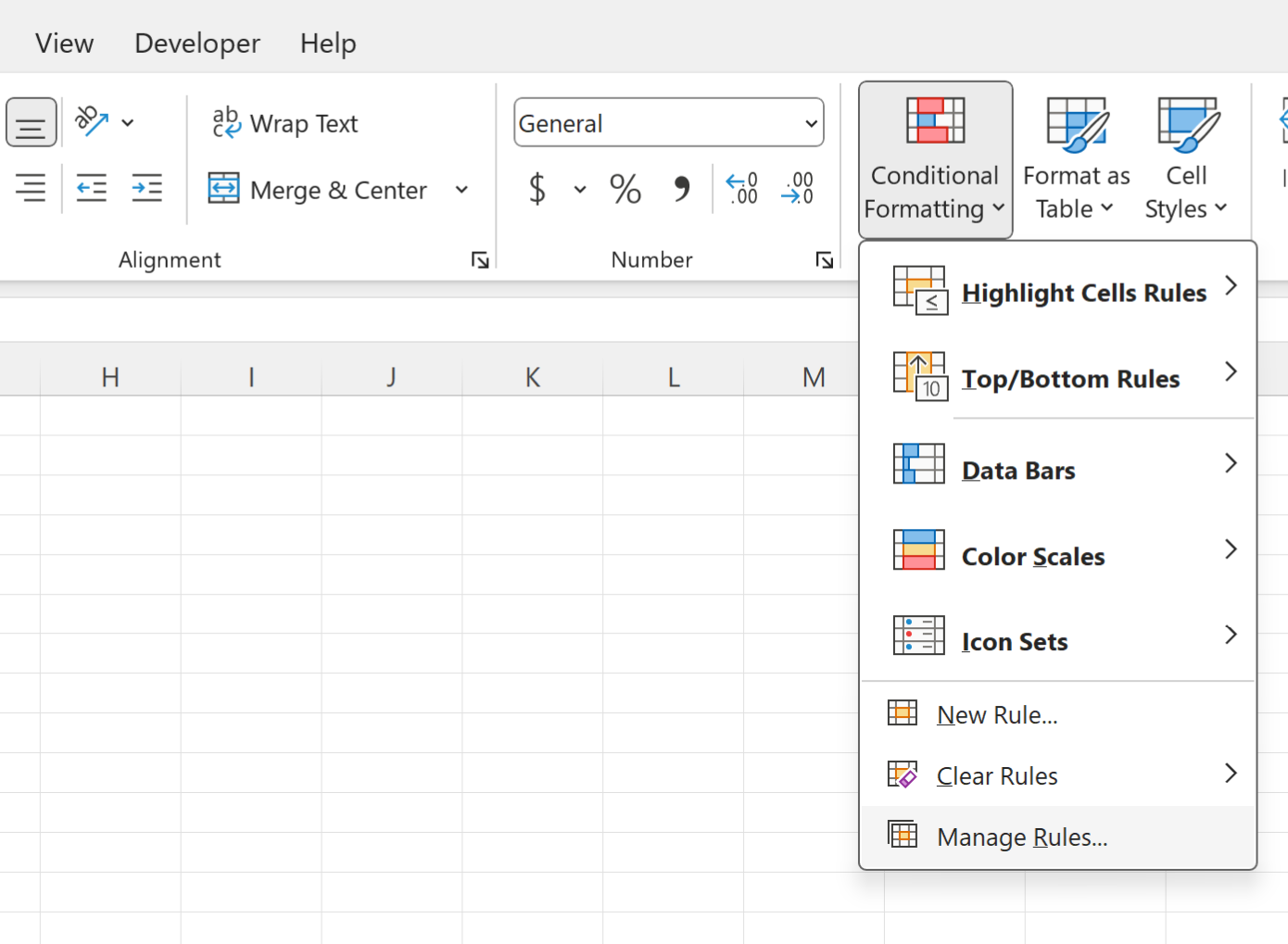

Once the range is active, navigate to the Home tab, select the Conditional Formatting dropdown menu, and choose Manage Rules. This action launches the Conditional Formatting Rules Manager dialog box, which serves as the central control panel for all formatting conditions applied to the worksheet.

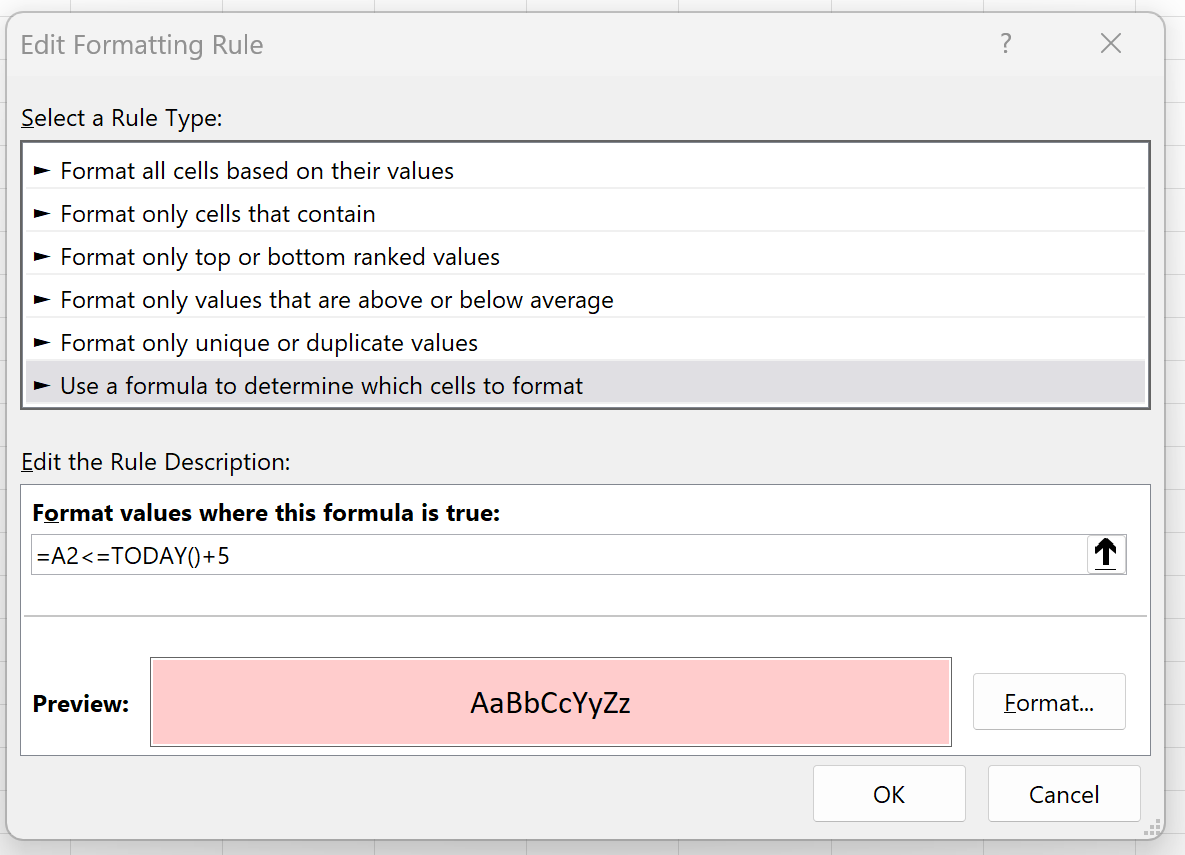

Within the Rules Manager, click the New Rule button. Choose the option labeled Use a formula to determine which cells to format. This option provides the necessary flexibility for performing date calculations. For the most urgent condition (Red, 5 days away or closer), we need a formula that tests if the date in cell A2 is less than or equal to today’s date plus five days. We input the following formula into the rule box:

=A2<=TODAY()+5

This formula dynamically utilizes the TODAY() function, ensuring the condition updates every time the spreadsheet is opened or recalculated. If the date in A2 satisfies this condition, the rule returns a TRUE value, triggering the formatting. After entering the formula, click the Format button and select a red fill color for immediate visual attention.

Confirm the formatting selection by clicking OK, which saves the new rule and brings you back to the Rules Manager panel.

Creating Tiered Urgency: Intermediate (Yellow) and Future (Green) Rules

Once the critical Red rule is established, we must define the subsequent tiers. When setting up cascading rules in Conditional Formatting, the order of priority is extremely important. By arranging the rules from the most restrictive (most urgent) to the least restrictive (least urgent), we only need to specify the upper boundary for each subsequent rule. The previous rule, being higher in priority, will have already filtered out the more urgent dates.

Rule 2: Yellow (Near-Term, 6 to 30 days away). Click New Rule again and select the formula option. Since the Red rule (Rule 1) already captured all dates 5 days away or less, this second rule only needs to define the outer threshold for the 30-day limit. The dates that pass this test will automatically fall between 6 and 30 days out.

=A2<=TODAY()+30

Click Format and select a distinct yellow fill color. This rule effectively highlights tasks that require attention within the next month but are not yet critical.

Rule 3: Green (Future Status, Greater than 30 days away). The final rule establishes the “safe” status. Click New Rule one last time. We must explicitly define this condition to ensure the Green color is applied to all remaining future deadlines. We specify that the date must be strictly greater than 30 days beyond today:

=A2>TODAY()+30

Click Format and select a green fill color. This captures all deadlines that are far enough away not to require immediate attention, concluding the definition of our tiered system.

Mastering Rule Priority and Execution Order

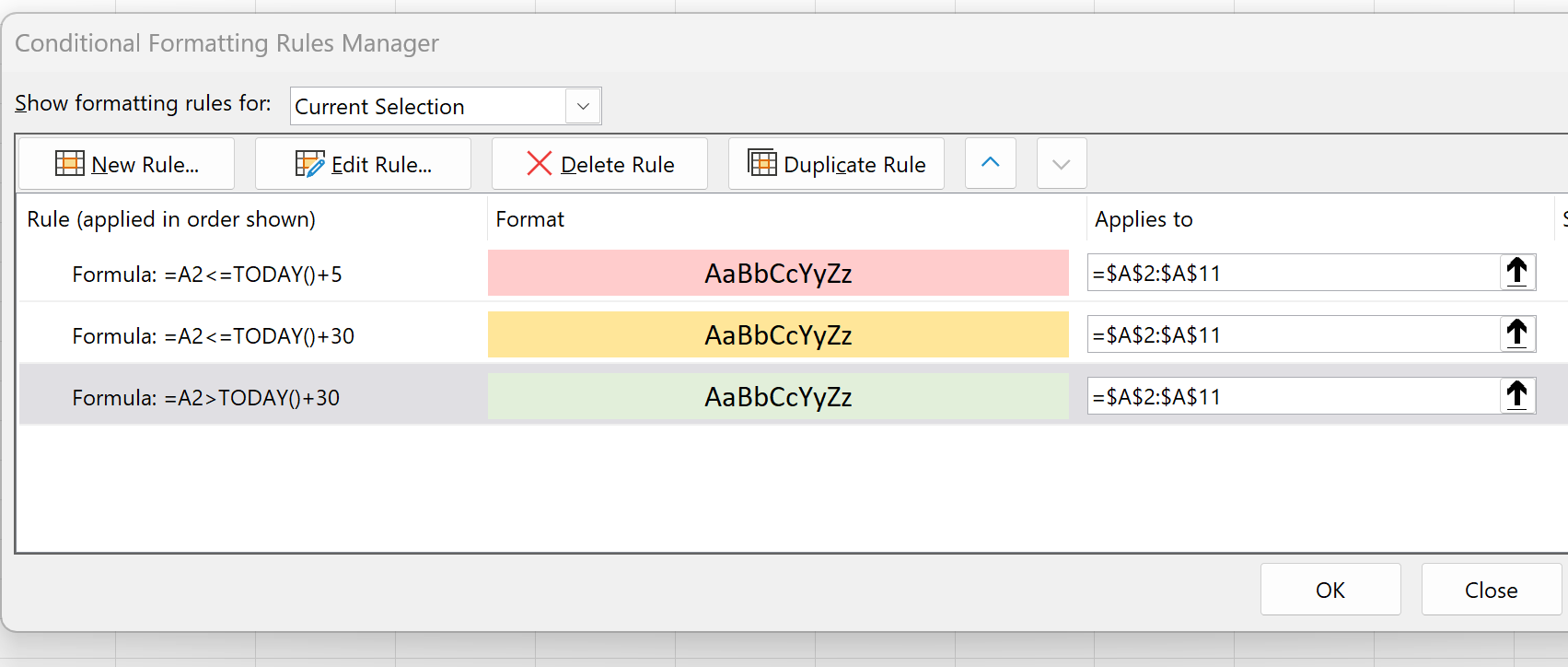

After all three rules have been defined, a crucial step is reviewing the Conditional Formatting Rules Manager panel. The order in which the rules are listed determines their sequence of execution. Excel processes these rules sequentially from top to bottom. If a cell meets the criteria of the first rule and the default “Stop If True” box is checked (which is standard for tiered systems), Excel ceases processing subsequent rules for that specific cell. This cascading behavior is what makes the priority order paramount.

To ensure accurate visualization based on our tiered urgency system, the rules must be ordered precisely from the most urgent (most restrictive) to the least urgent (least restrictive):

1. Red Rule (=A2<=TODAY()+5): This rule has the highest priority.
2. Yellow Rule (=A2<=TODAY()+30): This rule only runs if the Red rule was False.
3. Green Rule (=A2>TODAY()+30): This rule applies to all remaining dates.

If your rules were created out of sequence, use the up and down arrow buttons located within the Rules Manager dialogue box to adjust their priority until they match this required order. Visually confirming the rule application range (which should be =$A$2:$A$11) and the correct sequential order is the final check before application.

Upon clicking OK, the formatting will be instantly applied to your spreadsheet. This methodology is highly scalable, allowing users to introduce finer granularity (e.g., rules for 1 day, 7 days, 15 days, etc.) by consistently applying the same principle of sequential Boolean logic and appropriate priority ordering.

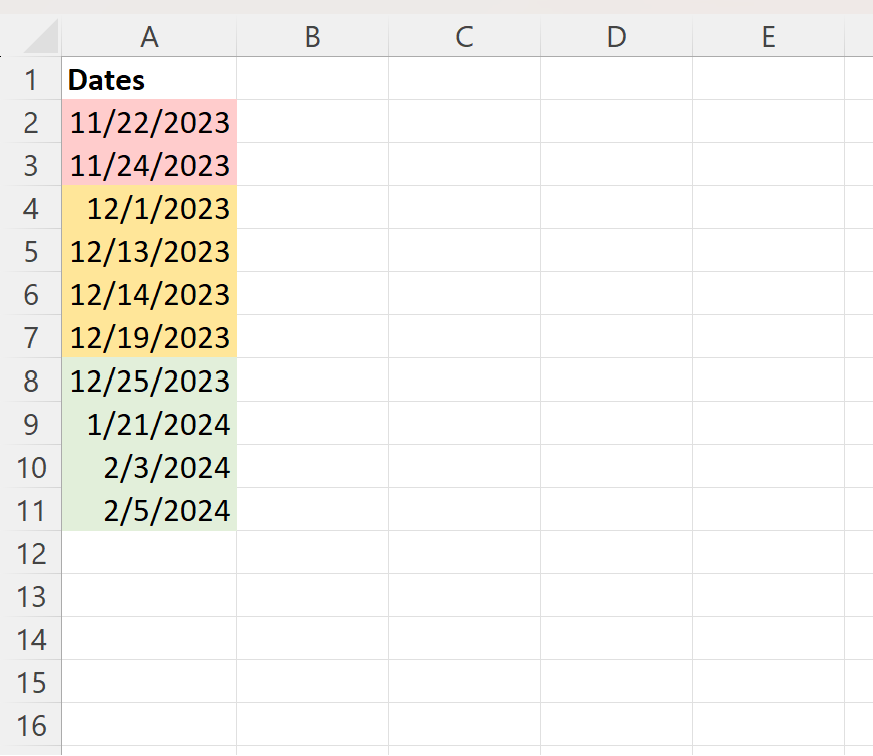

The resulting cells demonstrate how the visual cues accurately reflect the proximity of the deadlines:

Advanced Techniques: Handling Blank Cells and Working Days

While the basic formulas provide robust date tracking, professional spreadsheet management often requires anticipating and resolving common edge cases. Two of the most frequent issues encountered when using date-based conditional formatting are how to handle empty cells and how to distinguish between standard calendar days and official working days.

Addressing Blank Cells: A critical but often overlooked behavior in Excel is that it treats empty cells as having a date value of zero (which corresponds to January 0, 1900). This date value almost always satisfies an “urgent” conditional formatting rule (like Rule 1), leading to blank cells being unintentionally highlighted in red or yellow. To eliminate this issue, you must integrate the AND function into your formula. This ensures that the formatting is applied only if the cell is *not* empty, in addition to meeting the date condition.

The revised, robust formula for the Red rule (Rule 1) should incorporate the non-blank test:

=AND(A2<=TODAY()+5, A2<>"")

This enhanced Boolean logic ensures that two conditions must be met for the cell to turn red: (1) the date is within the urgent range, AND (2) the cell actually contains a date value.

Excluding Weekends and Holidays: If your tracking system is based on business days, relying on simple calendar day addition (e.g., TODAY()+X) will yield inaccurate results. To count only working days, which excludes standard weekends (Saturday and Sunday), you must utilize the WORKDAY function. If the requirement is to turn the cell red if the date is 5 *working days* away, the TODAY() function can be nested within WORKDAY to calculate the true working day difference, providing superior precision for professional or project management applications.

The resulting advanced formula for Rule 1, considering 5 working days away, would be:

=AND(A2<=WORKDAY(TODAY(), 5), A2<>"")

This sophisticated application of Conditional Formatting ensures that the visual cues provided by the cell colors are accurate reflections of real-world project timelines and defined business logic.

Continuing Your Excel Data Visualization Journey

Mastering dynamic, date-based conditional formatting is a fundamental skill for effective and responsive spreadsheet management. The use of custom formulas, combined with careful attention to rule priority, allows for the creation of instantly readable, high-impact data dashboards. For those seeking to further advance their data visualization capabilities within Excel, several other advanced techniques can be explored.

The following resources detail additional complex operations and formatting techniques that build upon the principles discussed here:

• A detailed tutorial explaining how to use the NETWORKDAYS.INTL function to customize weekend definitions or include specific holidays in working day calculations.
• An essential guide for applying sophisticated icon sets and data bars using conditional formatting to visualize metrics beyond simple date proximity.
• Instructions on how to format entire rows based on the date value contained within a single cell, thereby drawing attention to entire records rather than just the date column.
