Learning to Customize Bar Colors in ggplot2 Stacked Bar Charts

Introduction: Enhancing Stacked Bar Charts in ggplot2 with Custom Colors

In the realm of statistical analysis, creating effective data visualizations is paramount for transforming raw data into actionable insights. The ggplot2 package, a cornerstone of visualization within the R programming environment, provides unparalleled flexibility for generating high-quality statistical graphics. Although ggplot2 offers robust default color schemes, there is frequently a need to customize these palettes—perhaps to adhere to corporate branding, enhance chart readability, or emphasize critical data features. This comprehensive guide details the essential techniques for manually changing the colors of bars within a stacked bar chart, ensuring your resulting visualizations are not only informative but also highly polished and aesthetically congruent with your goals.

Stacked bar charts serve as an excellent method for visualizing compositional data, illustrating how different subcategories contribute to a whole within a larger grouping. By default, ggplot2 utilizes an automatic sequence of colors derived from its internal color palettes. However, achieving precise visual control requires moving beyond these defaults. To dictate the exact color mapping for each segment, we must implement specialized scaling functions that override the automatic assignments. This manual control is crucial for professional-grade data visualization.

Understanding the Core Syntax for Color Customization

The key to overriding default color assignments in a stacked bar chart created with ggplot2 is mastering the dedicated scaling function: scale_fill_manual(). This powerful function is designed specifically to allow users to define a custom set of colors that will be mapped directly to the fill aesthetic. The overall construction of your plot pipeline follows a logical sequence: first, define the data and aesthetic mappings; second, specify the geometric layer (the bars); and finally, introduce the custom color scale using scale_fill_manual().

When constructing the chart, the primary requirement is the use of scale_fill_manual() applied after the geometric layer, typically geom_bar(). The essential R code snippet illustrating this customized approach in ggplot2 is presented below. This framework ensures that your categorical variable is correctly segmented and colored according to your specifications, rather than relying on the package defaults.

#create stacked bar chart
ggplot(df, aes(x=x_var, y=y_var, fill=fill_var)) +
  geom_bar(position='stack', stat='identity') +
  scale_fill_manual(values=c('red', 'purple', 'pink', ...))

Dissecting the syntax, df represents the input data frame; x_var and y_var are mapped to the respective axes; and fill_var is the categorical variable responsible for defining the color segments within each bar. Crucially, the geom_bar() call specifies position='stack' to ensure vertical stacking and stat='identity' to use the provided y-values directly, rather than counting observations. The values argument within scale_fill_manual() accepts a vector of color identifiers, which can include standard color names or precise hex color codes, mapping them sequentially to the levels of the fill_var.

Step-by-Step Example: Applying Custom Colors to a Data Set

To firmly grasp the mechanics of color customization, we will walk through a concrete, practical example. Consider a scenario involving sports analytics, specifically a data frame in R detailing scoring statistics for basketball players, categorized by team and their specific position (Guard, Forward, Center). This structure is perfectly suited for a stacked bar chart, allowing us to visualize the total points accumulated by each team, with the contribution of each player position clearly segmented.

Our initial step involves constructing and examining the sample data set. This data frame, named df, contains three variables: team (categorical x-axis), position (categorical fill variable), and points (numeric y-axis). Understanding the structure of this data is foundational before proceeding to the visualization stage in ggplot2.

#create data frame
df <- data.frame(team=c('A', 'A', 'A', 'B', 'B', 'B', 'C', 'C', 'C'),
                 position=c('G', 'F', 'C', 'G', 'F', 'C', 'G', 'F', 'C'),
                 points=c(22, 12, 10, 30, 12, 17, 28, 23, 20))

#view data frame
df

  team position points
1    A        G     22
2    A        F     12
3    A        C     10
4    B        G     30
5    B        F     12
6    B        C     17
7    C        G     28
8    C        F     23
9    C        C     20

When we generate the initial stacked bar chart without any manual color intervention, ggplot2 will automatically assign default colors based on the levels present in the position variable. While this default visualization is technically correct, relying solely on standard color palettes can limit the impact of your data visualization, especially if specific colors are needed for narrative clarity or branding purposes. The following code produces the baseline chart before customization.

library(ggplot2)

#create stacked bar chart
ggplot(df, aes(x=team, y=points, fill=position)) +
  geom_bar(position='stack', stat='identity')

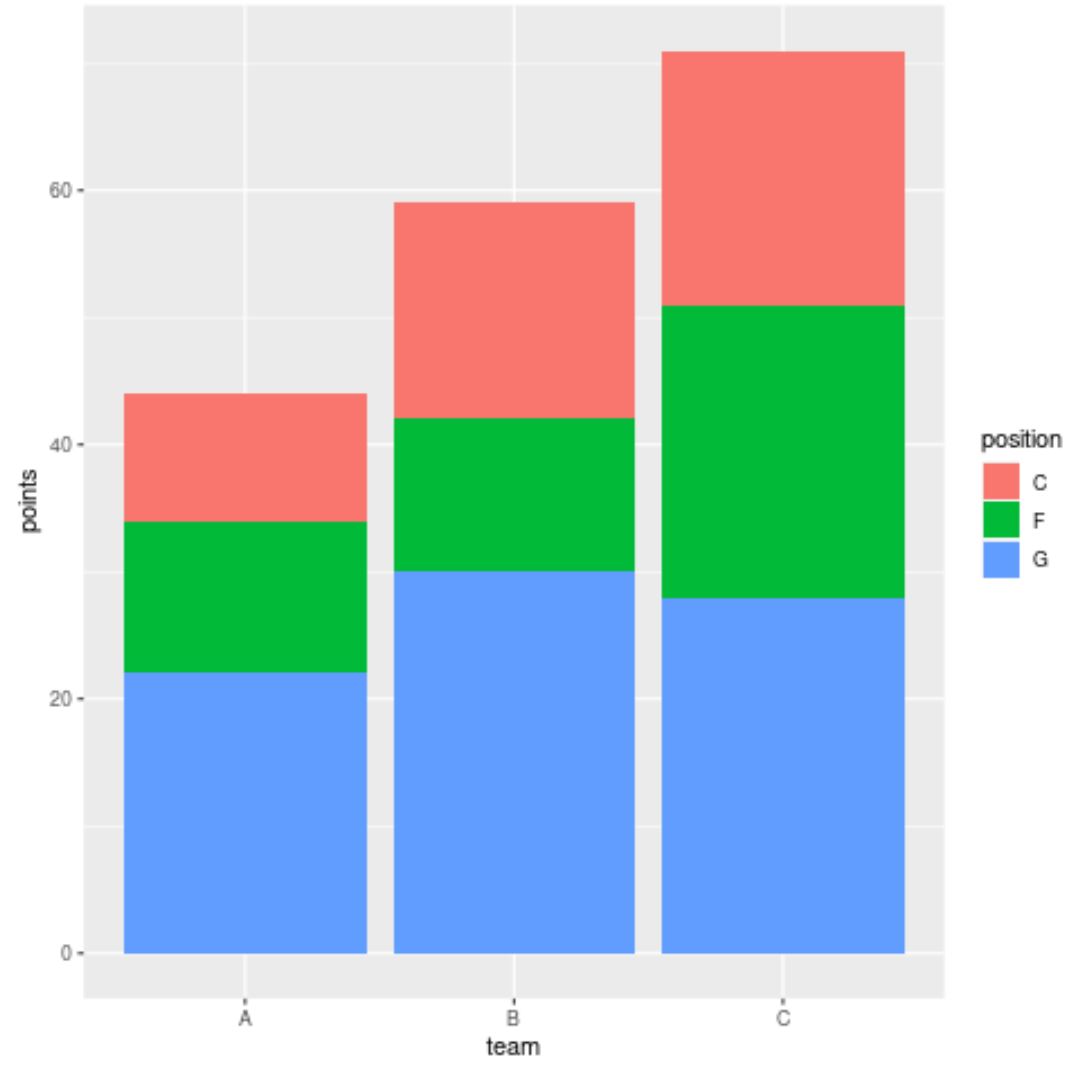

As illustrated above, the chart utilizes the package’s standard color palette. Although the data is clearly segmented, the visual presentation lacks distinction. Our next step is to introduce scale_fill_manual() to replace these generic colors with meaningful, custom selections, thereby significantly enhancing the chart’s visual appeal and communicative effectiveness.

Implementing scale_fill_manual() Using Descriptive Color Names

The scale_fill_manual() function provides direct, categorical mapping capabilities within ggplot2. By passing a vector of color identifiers to the values parameter, you establish a one-to-one relationship between the color definitions and the levels of your fill variable (position in this example). It is important to note that, unless the factor levels of the variable are explicitly ordered using R functions like factor(), ggplot2 will typically map the colors in the order of the factor levels as they appear alphabetically (C, F, G). Therefore, careful sequencing of the color vector is required to ensure the correct mapping.

For our basketball data set, we will now integrate scale_fill_manual() to apply specific, easily identifiable color names, enhancing the visual distinction between player positions. This demonstrates the simplest method of color assignment, relying on R’s built-in named colors.

library(ggplot2)

#create stacked bar chart with custom colors
ggplot(df, aes(x=team, y=points, fill=position)) +
  geom_bar(position='stack', stat='identity') +
  scale_fill_manual(values=c('red', 'purple', 'pink'))

Upon execution, the visual output confirms that scale_fill_manual() has successfully applied the specified colors. Specifically, ‘red’ corresponds to the ‘Center’ position (C), ‘purple’ to ‘Forward’ (F), and ‘pink’ to ‘Guard’ (G), following the default alphabetical sorting of the levels. Utilizing named colors is highly effective for rapid prototyping and general data visualization where highly specific brand colors are not mandatory. This method grants the user immediate and precise control over the visual output without complex color definitions.

Leveraging Hex Color Codes for Precision and Branding

While named colors are convenient for simple charts, they lack the precision often demanded in professional reporting or branding contexts. When exact color fidelity is required, such as aligning with corporate style guides or implementing sophisticated, sequential color palettes, hex color codes become indispensable. A hex color code is a hexadecimal triplet (e.g., #RRGGBB) that defines a specific color by quantifying the intensity of its primary red, green, and blue light components. This standard ensures color consistency across all media.

Integrating hex color codes into the scale_fill_manual() function unlocks the full spectrum of color possibilities, far exceeding the limited set of named colors. For professional data visualization where the integrity of color representation is critical, using hex color codes is the recommended best practice. This approach allows for nuanced color choices that can enhance accessibility and interpretation.

We demonstrate this by replacing the simple color names with a vector of custom hex color codes in our basketball chart. Note that the structure of the R code remains identical, only the values passed to the values argument of scale_fill_manual() are changed to hexadecimal strings:

library(ggplot2)

#create stacked bar chart with custom hex color codes
ggplot(df, aes(x=team, y=points, fill=position)) +
  geom_bar(position='stack', stat='identity') +
  scale_fill_manual(values=c('#2596BE', '#8225BE', '#D4C443'))

The resulting chart now displays the rich, precise colors defined by the hex color codes. This method offers unparalleled flexibility and accuracy, allowing you to fine-tune your visual output to any specification. Choosing the right colors goes beyond aesthetics; it can significantly impact how your data is perceived and understood.

Best Practices for Effective Color Selection in Data Visualization

The selection of colors for any visualization, particularly stacked bar charts, extends far beyond simple aesthetics; it profoundly influences data readability, interpretation, and accessibility. A strategic color scheme can highlight trends and relationships, while a poorly chosen scheme can obscure key findings or even mislead the audience. Effective color choices are integral to high-quality data visualization and should be guided by established cognitive and design principles.

When customizing colors using scale_fill_manual() in ggplot2, always prioritize clarity and accessibility. Consider the context in which the chart will be viewed and the potential challenges faced by your audience. Adopting established best practices ensures that the customization effort translates into a more effective communication tool.

• Accessibility and Color Blindness: It is critical to select color palettes that are safe for individuals with common forms of color blindness (daltonism). Utilizing tools like ColorBrewer or specialized R packages can help generate perceptually uniform and accessible palettes.
• Consistency Across Visuals: If presenting a series of charts, maintain a consistent mapping of categories to colors across all visualizations. This consistency aids rapid comprehension and avoids forcing the viewer to constantly re-reference the legend.
• Purposeful Color Use: Reserve vibrant or high-contrast colors for data points or categories that require specific attention or emphasis. Using too many distinct colors dilutes the visual message and can result in clutter.
• Semantic Meaning: Whenever appropriate, leverage cultural or conventional color associations (e.g., green for profit, red for loss) to immediately convey meaning. If dealing with sequential or divergent data, use appropriate gradients rather than purely categorical colors.
• Contrast and Legibility: Ensure sufficient contrast between adjacent colors in the stack and between the colors and the background/text elements. Poor contrast compromises legibility, rendering the chart ineffective.

Conclusion: Mastering Custom Color Control in ggplot2

The ability to customize the fill colors of bars in a stacked bar chart using ggplot2 is a fundamental skill for any data analyst aiming for professional-grade output. By successfully implementing the scale_fill_manual() function, whether using simple descriptive names or complex hex color codes, you move beyond default settings and gain full command over the visual narrative. This precise control is critical for producing branded, accessible, and highly impactful data visualizations that communicate complex relationships with maximum clarity.

We have demonstrated how scale_fill_manual() integrates seamlessly into the ggplot2 layered grammar of graphics, offering a robust solution for color management. We encourage continued experimentation with various color palettes and advanced techniques to continually refine and tailor your plots to specific audience needs and informational requirements.
