Learning to Customize Facet Axis Labels in ggplot2 for Data Visualization

Introduction: Enhancing Data Clarity with Custom Facet Labels in ggplot2

When constructing sophisticated data visualizations using the powerful ggplot2 package in R, data scientists often utilize the technique of Faceting. This essential graphical method allows for the division of a dataset into meaningful subsets, displaying each subset within its own dedicated panel. This structure is invaluable for facilitating direct comparisons across different categories, revealing trends or relationships that might be obscured in a single, combined plot.

Despite the inherent utility of Faceting, the default labels automatically generated by ggplot2—which are derived directly from the variable levels in your source data—frequently lack the necessary descriptive power or professional polish required for formal reports or publications. If the variable names are cryptic or abbreviated, the resulting facet labels can confuse the audience, diminishing the overall effectiveness of the visualization. The goal of customizing these labels, therefore, is not merely aesthetic; it is a critical step in enhancing the plot’s readability and ensuring that the data communicates its intended message clearly and unambiguously.

This comprehensive guide is designed to walk you through the precise mechanism for modifying these standard facet labels. We will specifically focus on employing the versatile as_labeller() function, a key component in the ggplot2 ecosystem. Through a detailed, practical example, we will illustrate how to move beyond basic, machine-generated descriptors and transform them into meaningful, audience-friendly labels that significantly elevate the quality and interpretive value of your visual data presentation. Mastering this technique ensures your plots maintain both visual appeal and high informational integrity.

Understanding the Core Functions: facet_wrap() and as_labeller()

The foundation of creating multi-panel visualizations in ggplot2 is the facet_wrap() function. This function is essential for breaking down a single plot into smaller, manageable units based on the levels of a categorical variable specified via a formula, such as ~category_name. By default, facet_wrap() automatically creates strip labels derived directly from these factor levels. While this automated process is convenient for rapid exploration, it lacks the precision needed when variables levels require specific terminology or context.

To gain complete editorial control over these automatically generated labels, we introduce as_labeller(). This function serves as the critical bridge, allowing developers to map the original, raw data values found in the faceting variable to completely custom strings of text. Essentially, as_labeller() accepts a named vector or a function, where the names correspond to the existing facet levels (e.g., ‘A’, ‘B’) and the values correspond to the desired new display text (e.g., ‘Team Alpha’, ‘Team Beta’). This robust mapping ensures that every panel is accurately and clearly identified, regardless of the complexity of the underlying data structure.

The integration of as_labeller() occurs directly within the facet_wrap() call, utilizing the dedicated labeller argument. This implementation strategy is clean and self-contained, ensuring that the label customization is handled explicitly alongside the facet definition. The following code snippet demonstrates the typical syntax for implementing a custom labeller, illustrating how simple, single-letter labels are transformed into more informative descriptors for a professional visualization context.

ggplot(df, aes(x, y)) +
  geom_point() +
  facet_wrap(.~group,
             strip.position = 'left',
             labeller = as_labeller(c(A='new1', B='new2', C='new3', D='new4'))) +
  ylab(NULL) +
  theme(strip.background = element_blank(),
        strip.placement='outside')

In this concrete example, the original facet identifiers ‘A’, ‘B’, ‘C’, and ‘D’ are programmatically replaced by the highly readable custom labels ‘new1’, ‘new2’, ‘new3’, and ‘new4’. This ability to precisely manage label text is fundamental for tailoring visualizations to meet specific organizational reporting standards, academic requirements, or simply improving the general comprehension for any end-user.

Preparing the Sample Data for R Faceting

To effectively demonstrate the process of manipulating facet labels, we must first establish a representative dataset within the R environment. This structure allows us to easily isolate a categorical variable for faceting and subsequently apply our custom labeling techniques. For this guide, we will construct a simple but structured data frame that simulates performance metrics across several distinct operational teams.

Our hypothetical data frame, named df, will contain three primary variables: team, which represents the categorical grouping variable; points, tracking one measure of performance; and assists, representing a secondary metric. The team column, featuring levels ‘A’, ‘B’, ‘C’, and ‘D’, will be the variable used by facet_wrap() to partition the plot. Ultimately, our goal is to visualize the relationship between points and assists, examined individually for each of the four teams via separate panels.

The following R code executes the creation of this sample data frame, ensuring it contains sufficient observations to demonstrate the faceting process. We then display the initial structure to confirm the data is correctly loaded and formatted, verifying the presence of the team variable that will drive the customization process:

#create data frame
df <- data.frame(team=c('A', 'A', 'B', 'B', 'C', 'C', 'D', 'D'),
                 points=c(8, 14, 20, 22, 25, 29, 30, 31),
                 assists=c(10, 5, 5, 3, 8, 6, 9, 12))

#view data frame
df

  team points assists
1    A      8      10
2    A     14       5
3    B     20       5
4    B     22       3
5    C     25       8
6    C     29       6
7    D     30       9
8    D     31      12

This output confirms that our data frame df is correctly structured, featuring eight observations distributed across the four categorical levels of the team variable. With the data foundation secured, we can proceed to the visualization phase, starting with the generation of the initial, uncustomized plot.

Generating the Initial Faceted Visualization

The intermediate step of creating a baseline faceted plot is essential because it allows us to observe the default labeling behavior of ggplot2 before applying any custom modifications. This visualization will serve as the control against which the enhanced, customized plot will be compared, clearly illustrating the necessity and impact of using as_labeller().

We initiate the visualization process using the core ggplot2 functions. The ggplot() call establishes the primary aesthetic mappings, setting assists on the x-axis and points on the y-axis to explore their relationship. We then add the graphical layer using geom_point() to render the data as a scatter plot. Finally, the critical facet_wrap() function is invoked, specifying ~team to partition the plot by the team variable, arranging the panels in a vertical configuration using nrow=4.

The following R commands generate this initial faceted visualization:

library(ggplot2)

#create multiple scatter plots using facet_wrap
ggplot(df, aes(assists, points)) +
  geom_point() +
  facet_wrap(.~team, nrow=4)

The resulting plot, as shown below, clearly illustrates the individual performance trends for each team. However, note that the default facet labels remain the rudimentary single characters ‘A’, ‘B’, ‘C’, and ‘D’, corresponding directly to the values in our team variable. While technically correct, these basic labels offer minimal context and fail to meet the standard of professional documentation, highlighting the immediate need for customization to improve clarity.

Implementing Custom Facet Labels with as_labeller()

The transition from functional, but sparse, default labels to descriptive, context-rich labels is the primary goal of this exercise. Instead of relying on the raw factor levels ‘A’, ‘B’, ‘C’, and ‘D’, we aim to utilize more explicit descriptors such as ‘team A’, ‘team B’, ‘team C’, and ‘team D’. This refinement provides immediate clarity to the reader, enhancing the plot’s overall narrative and professional appearance. The mechanism for achieving this precise textual substitution lies in the strategic use of the as_labeller() function.

The customization process involves constructing a named vector—a fundamental data structure in R—which explicitly defines the mapping. In this vector, the names must exactly match the original facet levels (‘A’, ‘B’, etc.), and the corresponding values must contain the desired new display text (‘team A’, ‘team B’, etc.). This named vector is then passed directly to the labeller argument within the facet_wrap() function. This integration ensures that the label substitution is executed seamlessly during the rendering process, guaranteeing that each panel receives its designated custom text.

Furthermore, this customized code block introduces additional aesthetic enhancements to optimize the layout, ensuring the new labels are visually integrated into the plot structure. We utilize strip.position = 'left' to relocate the labels from the top edge to the left side, improving vertical layout efficiency. We also use ylab(NULL) to intentionally remove the y-axis label, as the newly placed facet strips on the left side often provide sufficient context, thus reducing visual clutter. The full code implementing the label transformation is shown below:

library(ggplot2)

#create multiple scatter plots using facet_wrap with custom facet labels
ggplot(df, aes(assists, points)) +
  geom_point() +
  facet_wrap(.~team, nrow=4,
             strip.position = 'left',
             labeller = as_labeller(c(A='team A',
                                      B='team B',
                                      C='team C',
                                      D='team D'))) +
  ylab(NULL) +
  theme(strip.background = element_blank(),
        strip.placement='outside')

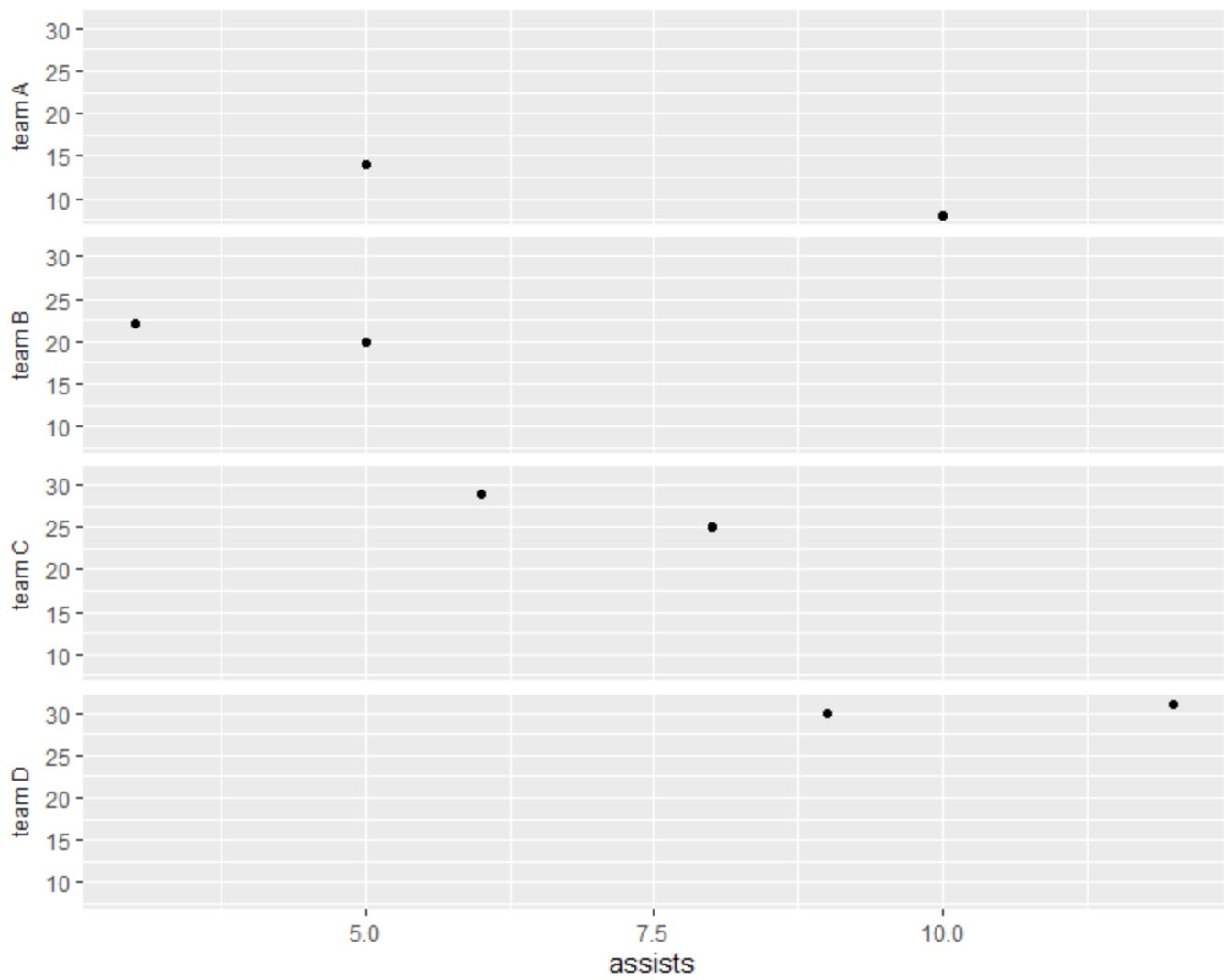

The resultant visualization, presented below, vividly demonstrates the power of this customization. The facet panels are now clearly identified by ‘team A’, ‘team B’, ‘team C’, and ‘team D’, fulfilling the requirement for enhanced clarity and significantly elevating the plot’s informational density and professional aesthetic.

Advanced Aesthetic Refinements: Theme Elements for Facet Strips

While as_labeller() addresses the textual content of the strips, ggplot2 provides detailed control over their visual appearance through the theme() system. Utilizing specific strip arguments within theme() allows for meticulous refinement of the plot’s aesthetics, moving beyond functional labeling toward publication-ready quality. These refinements ensure that the custom labels are not only informative but also beautifully integrated into the overall chart design.

Three key arguments were employed in our final customized plot to achieve this polished look. First, strip.position, used within facet_wrap(), controls the location of the strip labels, moving them to the ‘left’ side in this example. This placement is particularly effective when faceting by a large number of categories or when optimizing space for vertical comparisons. Second, within the theme() function, strip.background = element_blank() is critical for achieving a minimalist aesthetic. By setting the background element to blank, we eliminate the default, often distracting, gray background box that usually surrounds the facet text, resulting in a cleaner and less cluttered appearance.

Finally, the argument strip.placement = 'outside' specifies that the facet strips should be positioned outside the primary area of the plot’s axes and data panel. When combined with strip.position = 'left' and the removal of the y-axis label (via ylab(NULL)), this creates a highly structured and professional layout. Positioning the strips outside the main plotting area gives them greater visual separation and hierarchy, ensuring they are clearly read as contextual headers for the data panels rather than just part of the internal axis structure. These collective aesthetic adjustments transform a standard faceted chart into a refined, high-impact visualization.

Conclusion and Further Resources

The ability to customize facet axis labels within ggplot2 represents a fundamental skill for any practitioner aiming for professional-grade data visualization. While the default settings are useful for rapid data exploration, relying solely on them often results in plots that lack necessary context and descriptive clarity for broader audiences or formal reporting requirements. By thoughtfully applying the as_labeller() function in conjunction with facet_wrap(), you effectively gain precise editorial control over every categorical descriptor in your multi-panel charts.

Effective data visualization requires more than just correct data plotting; it demands careful presentation choices that guide the viewer toward accurate interpretation of the underlying insights. The techniques demonstrated here—specifically the mapping of cryptic data levels to explicit, custom labels—are vital components of this thoughtful presentation process. Furthermore, incorporating aesthetic refinements through theme() arguments, such as managing strip.background and strip.placement, ensures that your custom labels are not only informative but also seamlessly and professionally integrated into the final graphic.
