Learning to Adjust Font Sizes in Seaborn Plots for Effective Data Visualization

Creating effective Data Visualization is fundamentally reliant on clarity, precision, and presentation. Beyond the accuracy of the plot itself, the readability of textual elements—such as axis labels, titles, and tick marks—is paramount. When utilizing the Seaborn library in Python, developers and analysts have two primary, powerful methods for adjusting typography: applying a universal scale factor or customizing specific elements individually.

This comprehensive guide details both approaches. We will first explore the efficiency of global scaling using built-in Seaborn functions, followed by advanced techniques that leverage the underlying Matplotlib framework for granular control. Mastering these methods ensures your visualizations are perfectly legible, whether they are destined for a large presentation screen or integrated into a detailed technical report.

The Foundation: Seaborn and Matplotlib Integration

Seaborn is designed as a high-level wrapper built atop the foundational plotting library, Matplotlib. This architecture is key to understanding font customization. Seaborn excels at providing aesthetically pleasing default styles and simplifying the creation of complex statistical graphics. Critically, it manages the entire aesthetic context of a plot—including colors, line styles, and default font sizes—through cohesive global settings.

When you modify a setting in Seaborn, you are often modifying the default parameters that Matplotlib uses to render the figure. For quick, universal adjustments, Seaborn provides tools that abstract away the complexity of managing dozens of individual Matplotlib parameters, allowing for rapid iteration on the visual style of your data presentation.

Method 1: Global Font Scaling with sns.set()

The most straightforward way to adjust the overall font size across all text elements—including axis labels, tick labels, the legend, and the plot title—is by utilizing Seaborn’s sns.set() function. This function is fundamental to controlling the default style and scaling context of all subsequently generated plots within the current session.

To perform a global adjustment, we use the font_scale parameter within sns.set(). This parameter accepts a numerical value that acts as a multiplier, proportionally increasing the size of all text relative to the default setting (where the default value is 1.0). For instance, setting this value to 2.0 will effectively double the size of all textual components in the visualization. This technique is highly efficient for scenarios requiring a sudden, universal boost in text size, such as preparing visuals for a public talk or a large-format poster.

The following basic syntax demonstrates how to globally increase the font size across all elements in your Seaborn plots. It is important to execute this line before calling any plotting function (like sns.lineplot or sns.histplot):

import seaborn as sns

sns.set(font_scale=2)

It is important to remember that the default value for font_scale is 1.0. By systematically increasing this numerical value, you ensure that the font size of all elements in the plot scales uniformly. The subsequent examples illustrate this principle in practice, providing a clear visual contrast between the default appearance and the scaled appearance.

Practical Demonstration: Global Scaling Example

Our first demonstration establishes a clear baseline. We begin by using the pandas library to construct a simple DataFrame, which we will then visualize using Seaborn’s lineplot() function. In this initial setup, we intentionally omit any font scaling, relying solely on the default settings where font_scale is implicitly 1.0.

The code below generates a simple line chart, allowing us to accurately gauge the default font sizes applied to the axis labels, tick marks, and the title. This resulting figure serves as our control group for comparison:

import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

#create DataFrame
df = pd.DataFrame({'date': ['1/1/2021', '1/30/2021', '1/1/2021', '1/30/2021'],
                   'sales': [4, 11, 6, 18],
                   'company': ['A', 'A', 'B', 'B']})

#plot multiple lines
sns.lineplot(x='date', y='sales', hue='company', data=df).set(title='Sales Data')

The resulting plot below clearly illustrates the standard size and formatting that Seaborn applies when the default configuration is used. Observe the relative size of the title and the labels along the X and Y axes.

Next, we introduce the global scaling factor. By executing sns.set(font_scale=2) before the plotting command, we instruct Seaborn to uniformly magnify all textual components by a factor of two. This instantaneous adjustment provides maximum readability with minimal coding effort, making it the preferred method for quick adjustments.

The following code block demonstrates the integration of the sns.set() function to achieve a dramatic, unified increase in the font size across all elements of the visualization:

import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

#increase font size of all elements
sns.set(font_scale=2)

#create DataFrame
df = pd.DataFrame({'date': ['1/1/2021', '1/30/2021', '1/1/2021', '1/30/2021'],
                   'sales': [4, 11, 6, 18],
                   'company': ['A', 'A', 'B', 'B']})

#plot multiple lines
sns.lineplot(x='date', y='sales', hue='company', data=df).set(title='Sales Data')

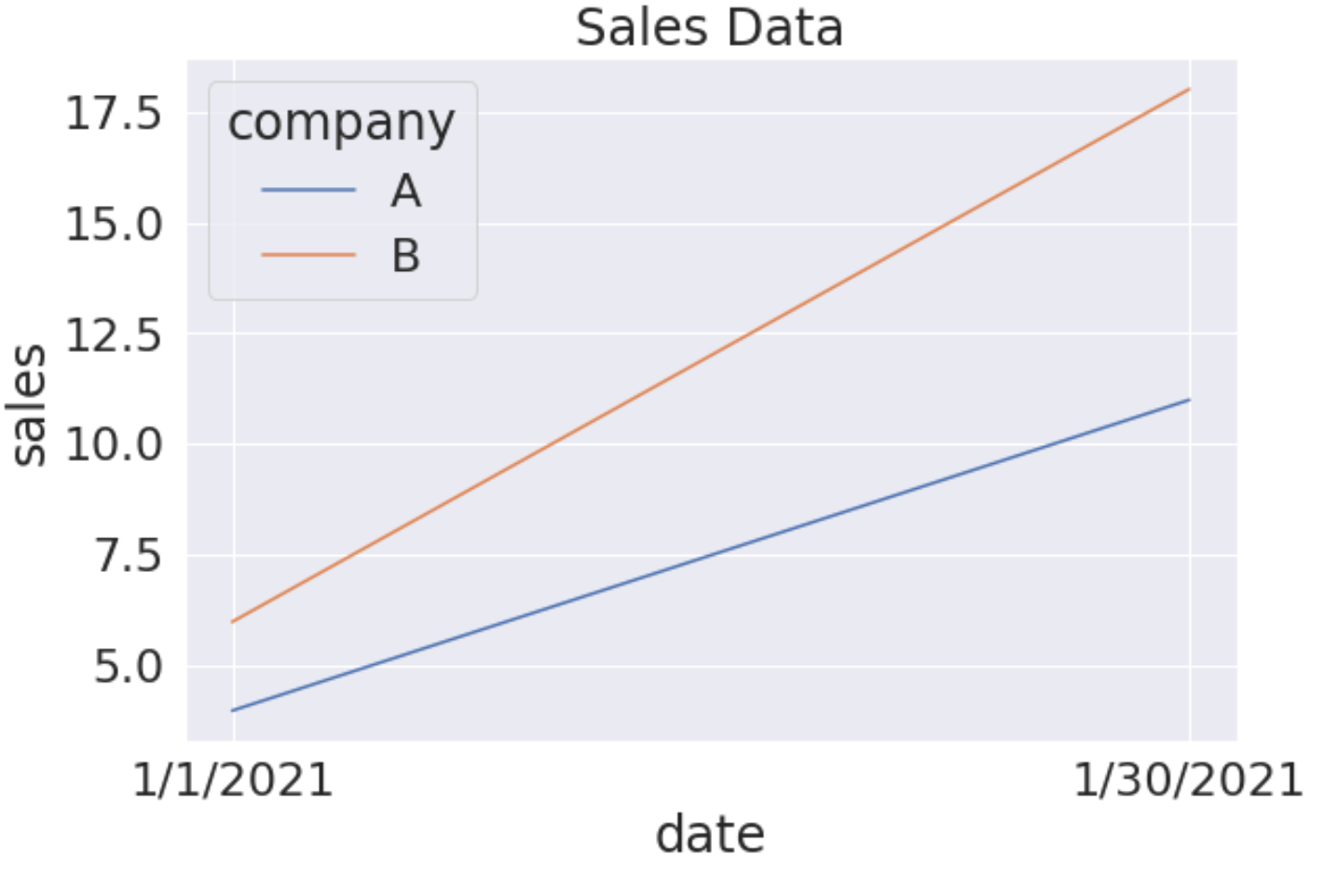

As evident in the resulting image, the font size for every element has increased significantly. While this method is highly effective for overall scaling, it inherently lacks the precision required when certain elements, such as the main title or the legend, need a disproportionately larger or smaller font size than the axis tick marks. For that level of detail, we must move to individual component customization.

Method 2: Granular Control via the Matplotlib API

Achieving a strong visual hierarchy often demands granular control over individual text components. To specify different font sizes for the title, axis labels, and tick marks, we must bypass Seaborn‘s global scaling mechanism and directly interact with the underlying Matplotlib application programming interface (API). Since Seaborn functions return Matplotlib Axes objects, we can leverage the matplotlib.pyplot module (commonly aliased as plt) to modify elements after the plot has been generated.

This powerful technique involves calling specific plt functions—such as plt.title(), plt.xlabel(), plt.ylabel(), and plt.tick_params()—and passing an explicit fontsize argument. This fontsize is typically measured in points (pt), overriding any global settings previously applied by sns.set(). This fine-grained control is vital for creating polished Data Visualization where specific text needs to draw the viewer’s attention first.

The following code illustrates how to generate the plot using standard Seaborn functions and then immediately apply specific, customized font sizes to the title, legend, and axis elements using direct Matplotlib calls:

import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

#create DataFrame
df = pd.DataFrame({'date': ['1/1/2021', '1/30/2021', '1/1/2021', '1/30/2021'],
                   'sales': [4, 11, 6, 18],
                   'company': ['A', 'A', 'B', 'B']})

#plot multiple lines
sns.lineplot(x='date', y='sales', hue='company', data=df)

#modify individual font size of elements
plt.legend(title='Company', fontsize=20)
plt.xlabel('Date', fontsize=16);
plt.ylabel('Sales', fontsize=16);
plt.title('Sales Data', fontsize=20)
plt.tick_params(axis='both', which='major', labelsize=14)

In this customized output, a clear hierarchy is established: the primary title and legend text are the largest (set to 20pt), the axis labels are secondary (16pt), and the tick marks are the smallest readable elements (14pt). This level of precise control is indispensable when preparing figures for publication, academic papers, or professional reports where aesthetic standards are high.

Establishing Visual Hierarchy: Best Practices

The decision between using the global font_scale and specific fontsize parameters should be driven by the intended use and required visual hierarchy. Global scaling via sns.set() is ideal for rapid prototyping, adapting plots to various media (like switching from a desktop view to a slide presentation), or when consistency across multiple figures is prioritized without needing subtle differences in text size.

However, for visualizations that communicate complex findings, defining a strict hierarchy using explicit point sizes (Method 2) is highly recommended. A fundamental design principle suggests that the main title should always be the largest text element, immediately followed by the axis labels, and finally, the tick labels and legend text should be the smallest, while still maintaining full readability. A practical guideline is to set the title size 4 to 6 points larger than the axis labels, and the axis labels 2 points larger than the tick labels.

Beyond size, visual effectiveness relies on contrast and font choice. Always ensure that the text elements possess sufficient contrast against the background of the plot area. Even a perfectly sized font is useless if poor color choices or low contrast make it difficult to read on different screens or under varied lighting conditions. Always test your visualizations under different lighting conditions or on different screens to confirm legibility.

Advanced Customization: Contexts and Fonts

Seaborn offers additional powerful features, primarily managed through sns.set(), that allow for aesthetic tuning beyond simple numerical scaling. These features help streamline the process of preparing plots for specific output environments.

One such feature is the ability to change the default font family. If your project requires compliance with a specific brand style guide or if you wish to use a font optimized for screen viewing (such as ‘sans-serif’ or ‘monospace’), you can pass the desired font name to the font parameter in sns.set(). Note that for this change to render correctly, the specified font must be installed and accessible on your operating system for the underlying Matplotlib backend to locate and utilize it.

Furthermore, Seaborn utilizes preset “contexts” to quickly adjust multiple plotting parameters simultaneously for different common environments. These contexts include 'paper', 'notebook', 'talk', and 'poster'. For example, setting the context to 'poster' automatically applies a configuration that includes a large font_scale suitable for printing on a large physical medium, simplifying the preparation of high-impact visuals. These contexts can also be combined with the font_scale parameter for hybrid control:

• sns.set_context("talk"): Automatically scales text and elements to be suitable for presentations, often resulting in larger default sizes than the notebook context.
• sns.set_context("notebook", font_scale=1.5): Uses the default notebook styling but boosts the font size by 50% using the scale factor.

Conclusion and Further Resources

Mastering font customization in Seaborn, whether through quick global scaling or detailed Matplotlib API calls, is essential for creating high-quality, professional statistical graphics in Python. The flexibility offered by these two methods ensures that your Data Visualization aligns perfectly with the needs of its audience and intended medium.

To continue refining your data visualization expertise, explore additional tutorials focusing on advanced styling, utilizing color palettes effectively, and implementing sophisticated chart types.
