Learning Matplotlib: A Guide to Customizing Font Sizes in Your Plots

When transitioning from basic data exploration to generating publication-quality graphics, mastering the visual elements of your plots becomes paramount. The Python library Matplotlib offers unparalleled control over visualization details, but one of the most frequently adjusted properties is the text scaling. Ensuring that titles, axis identifiers, tick markers, and legends are appropriately sized is not merely an aesthetic choice; it is fundamental to the readability and professional impact of the resulting graph. A poorly scaled plot can confuse the audience or fail to meet the strict formatting requirements of academic journals or corporate presentations.

The challenge lies in managing the font size hierarchy across numerous elements. While Matplotlib provides sensible defaults, these often need modification when plots are resized, embedded in high-resolution documents, or displayed on large projection screens. For instance, a font that looks perfect on a small screen might be unreadable when scaled down for a printed journal figure. This guide focuses on centralizing and simplifying the process of font management, allowing developers to achieve visual consistency with minimal effort.

Fortunately, Matplotlib provides a robust and centralized configuration system known as rc parameters (runtime configuration parameters). By manipulating these settings, we can define default text sizes for entire categories of plot components, eliminating the need to set the size individually every time an element is created. This approach ensures that all visualizations produced within a session adhere to a uniform style, greatly improving workflow efficiency and plot consistency, particularly in complex projects involving multiple figures.

Understanding Matplotlib RC Parameters for Font Configuration

The core mechanism for global font control in Matplotlib is the plt.rc() function. This function allows developers to override default settings by specifying the configuration group and the desired property value. When dealing with text, there are several distinct groups that can be targeted, each governing a specific set of plot elements. Understanding this grouping hierarchy is critical to applying changes efficiently, whether you need a sweeping global adjustment or a highly specific, localized modification.

The most general setting is 'font', which establishes the default font size for elements that do not have a more specific override defined. Other key groups include 'axes' (which controls titles and labels), 'xtick' and 'ytick' (which control the numerical markers along the axes), and 'legend'. These granular controls allow us to maintain a precise visual hierarchy—for example, making the plot title large and bold while keeping the tick labels small and unobtrusive.

The following code snippet demonstrates how these rc parameters are typically configured. Notice how separate commands are used to target different components, allowing for independent scaling of each textual element based on its importance within the visualization. This is the foundation of professional plot styling.

import matplotlib.pyplot as plt

plt.rc('font', size=10) #controls default text size
plt.rc('axes', titlesize=10) #fontsize of the title
plt.rc('axes', labelsize=10) #fontsize of the x and y labels
plt.rc('xtick', labelsize=10) #fontsize of the x tick labels
plt.rc('ytick', labelsize=10) #fontsize of the y tick labels
plt.rc('legend', fontsize=10) #fontsize of the legend

The snippet shows that while plt.rc('font', size=10) sets a global baseline, specific parameters like titlesize and labelsize within the 'axes' group provide targeted control. If a specific setting is omitted (e.g., if we only set 'font', size=10 but leave the titlesize unset), the elements governed by the missing setting will typically inherit the global default. This inheritance model is what makes rc parameters so efficient for managing complexity.

Establishing the Baseline Visualization

To effectively illustrate the impact of these customization methods, we will rely on a simple scatterplot as our running example throughout this guide. This basic plot structure provides all the necessary textual elements—a main title, x and y axes labels, and tick markers—that we will manipulate using the various RC parameter settings. Establishing a clear baseline is essential to accurately observe the effects of each font size modification.

The following Python code initializes the data (simple lists for x and y coordinates) and generates the default visualization. This initial figure uses the standard Matplotlib configuration, where the baseline font size for all textual components is typically 10 points. This size serves as our reference point before any custom adjustments are applied.

import matplotlib.pyplot as plt

x = [3, 4, 6, 7, 8]
y = [12, 14, 15, 19, 24]

plt.scatter(x, y)
plt.title('title')
plt.xlabel('x_label')
plt.ylabel('y_label')
plt.show()

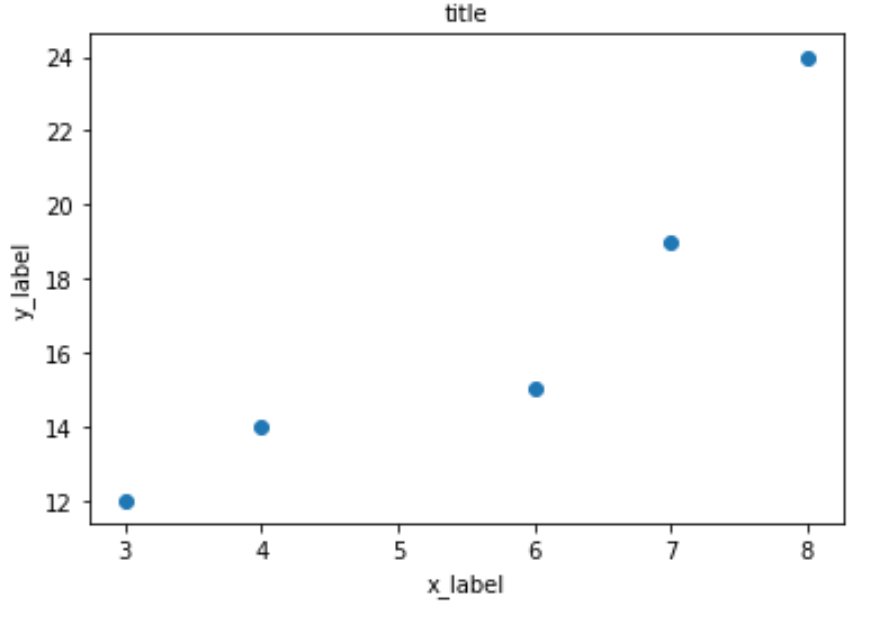

As seen in the initial figure, all text elements—the title, the axis descriptors, and the tick values—are rendered at the default size. While acceptable for quick, internal checks, this configuration rarely suffices for formal presentations or publications, which often require specific sizing for visual impact and adherence to style guides. The subsequent examples will demonstrate how to break this uniformity and apply targeted scaling.

Example 1: Changing the Default Font Size for All Elements Globally

The simplest and most efficient way to quickly adjust the overall textual appearance of a plot is by setting the global default font size. This is achieved by invoking the plt.rc('font', size=N) command, where N is the desired size in points. This setting dictates the size for every textual element within the visualization that has not been explicitly configured otherwise, establishing a uniform visual scale across the entire figure.

This global approach is particularly useful when adapting a plot for an output medium that requires a significant scaling adjustment. For example, if a plot designed for a standard document needs to be enlarged substantially for a projector slide, increasing the global font size ensures that all components scale proportionately, maintaining the intended visual balance between the title, labels, and ticks. It prevents the tedious task of manually adjusting every element’s size property.

In the demonstration below, we significantly increase the default font size to 15 points. Observe how this single change cascades through the entire plot structure, affecting every piece of text equally, thus overriding the original default of 10 points. This confirms that the global 'font' setting acts as the foundational baseline for all other text styling.

#set font of all elements to size 15
plt.rc('font', size=15)

#create plot
plt.scatter(x, y)
plt.title('title')
plt.xlabel('x_label')
plt.ylabel('y_label')
plt.show()

The result clearly shows that the title, axes labels, and tick marks have all uniformly increased in size. While effective for overall scaling, this method lacks the necessary subtlety for creating a professional visual hierarchy, where the title should typically be the largest element. For that level of detail, we must move to more granular, specific rc parameters.

Example 2: Granular Control Over the Plot Title Font Size

In most data visualizations, the plot title is designed to be the dominant textual feature, immediately conveying the subject matter to the viewer. To achieve this prominence, the title often requires a significantly larger font size than the surrounding labels and markers. To modify the title size independently of the global setting, we target the 'axes' group and specifically adjust the titlesize property using plt.rc('axes', titlesize=N).

When customizing the titlesize, it is important to choose a value that ensures the title is instantly recognizable without consuming excessive plot real estate or overshadowing the actual data visualization. A title that is too small minimizes its impact, while one that is disproportionately large can detract from the data presentation itself. This control allows data scientists to adhere strictly to visual branding or publication guidelines that often dictate specific size relationships between plot elements.

The following example illustrates this isolation by setting the title size dramatically to 50 points. Crucially, because we are using the default settings for everything else (which is 10 points in this example, or inherited from the global default if set), only the title is affected, allowing us to maintain a precise focus on this single component.

#set title font to size 50
plt.rc('axes', titlesize=50)

#create plot
plt.scatter(x, y)
plt.title('title')
plt.xlabel('x_label')
plt.ylabel('y_label')
plt.show()

The image confirms that only the title text has been enlarged, while the x and y axes labels and the tick numbers remain at their default size. This selective override demonstrates the power of utilizing specific rc parameters within the 'axes' grouping to achieve a sophisticated and clearly defined visual hierarchy, essential for effective data storytelling.

Example 3: Controlling the Font Size of X and Y Axes Labels

The axes labels, generated via plt.xlabel() and plt.ylabel(), provide the indispensable context for interpreting the independent and dependent variables. They must be easily readable but generally should occupy the second tier of the visual hierarchy, positioned slightly smaller than the main title but larger than the tick markers. This balance prevents them from competing with the title or the underlying data points in the scatterplot.

The font size for both the X and Y axes labels is controlled collectively under the 'axes' parameter group using the labelsize property. Setting plt.rc('axes', labelsize=N) ensures that both labels are scaled uniformly. This coupling is standard practice, as asymmetric label scaling is rare unless dealing with specialized plots where one axis requires different treatment due to complex labeling schemes (e.g., long category names on the X-axis).

Achieving the ideal size for axes labels contributes significantly to the overall clarity of the visualization. If the labels are too small, viewers may struggle to identify the units or variables, but if they are too large, they can clutter the plot area. Following the visual hierarchy principle, we will set the axes label size to 20 points, making them clearly visible but smaller than the title (if the title were set large) and larger than the default tick labels.

#set axes labels font to size 20
plt.rc('axes', labelsize=20)

#create plot
plt.scatter(x, y)
plt.title('title')
plt.xlabel('x_label')
plt.ylabel('y_label')
plt.show()

As demonstrated by the output, only the ‘x_label’ and ‘y_label’ text components have been scaled up to size 20. The title and the numerical tick labels remain at the default size of 10. This precision in sizing allows data visualizers using Matplotlib to create highly optimized figures where every textual element performs its role without conflicting with others, a hallmark of effective scientific communication.

Example 4: Fine-Tuning the Font Size of X and Y Tick Labels

Tick labels, which display the quantified values along the axes, are crucial for precise data reading but are often positioned at the bottom of the visual hierarchy. Their size must be kept small enough to prevent crowding the plot area or interfering with the main axis labels and data markers. Matplotlib rc parameters offer separate, explicit controls for the X-axis tick labels and the Y-axis tick labels, enabling maximum flexibility.

To modify the size of the X-axis tick labels, we use the 'xtick' group with the labelsize property. For the Y-axis tick labels, the 'ytick' group is utilized, also targeting labelsize. While these are often set to the same value for symmetry, having separate controls is invaluable for specialized plots, such as those with complex, non-numeric labels on one axis that may require a smaller font to prevent overlap.

In this final customization example, we set both the X and Y tick label sizes to 20 points. This deliberate increase demonstrates that these elements can be scaled independently from the primary axes labels and the title, completing our mastery of granular font control in Matplotlib.

#set tick labels font to size 20
plt.rc('xtick', labelsize=20)
plt.rc('ytick', labelsize=20)

#create plot
plt.scatter(x, y)
plt.title('title')
plt.xlabel('x_label')
plt.ylabel('y_label')
plt.show()

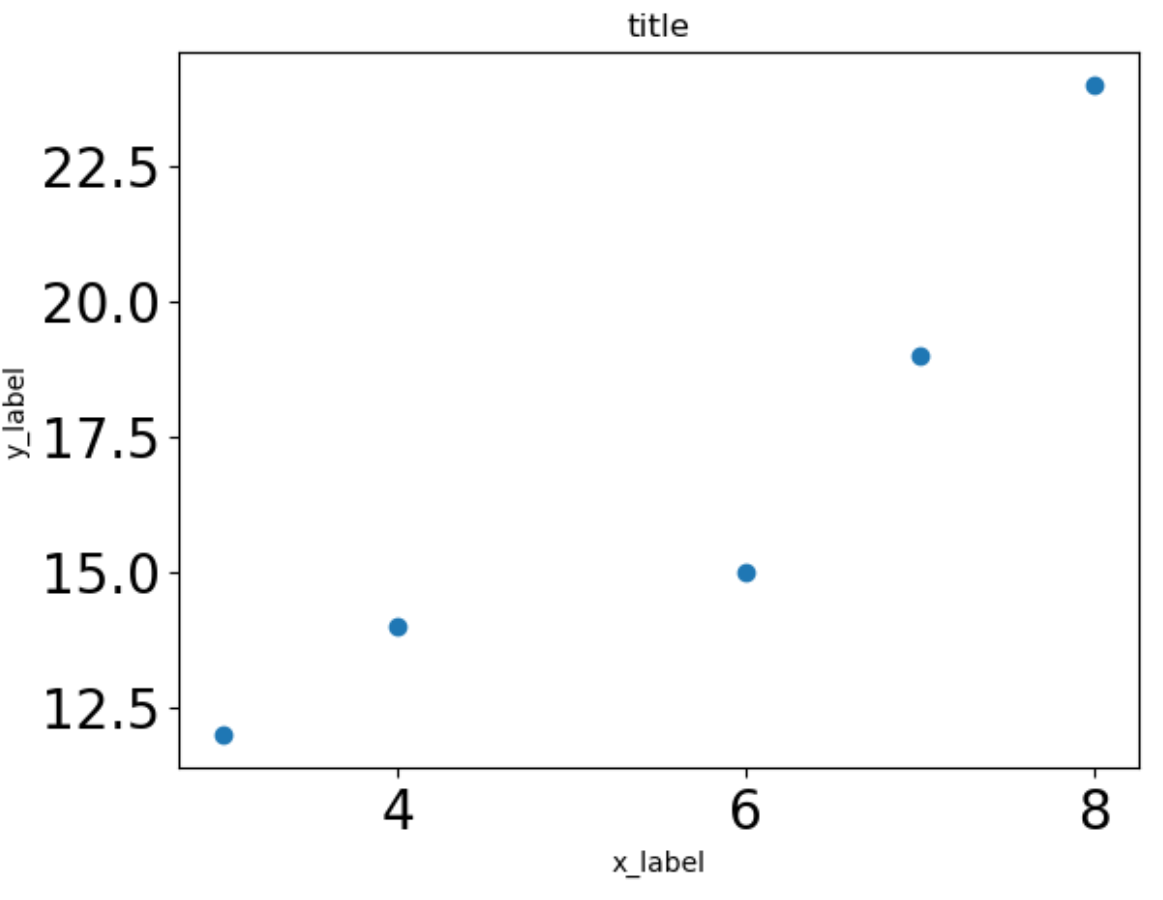

The resulting image confirms the targeted effect: the numerical values along the X and Y axes are now visibly larger (size 20), while the title and the primary axis labels remain at the system default. This capability for isolated scaling is indispensable when designing visualizations for highly specific environments, such as those requiring adherence to strict corporate design templates or optimizing figures for accessibility standards where text must meet minimum size requirements.

Best Practices: Restoring Default Settings and Conclusion

When operating in interactive environments, such as Jupyter notebooks, or when generating a series of plots with different styling needs within a single Python script, it is crucial to manage the state of the rc parameters. If custom settings are not explicitly reset, they persist across subsequent plots, leading to unintended “styling leakage.” This can result in unpredictable font sizes or other visual anomalies in figures that were meant to rely on the clean, original defaults.

To maintain a clean execution environment and ensure that every new plot starts from a predictable baseline configuration, the recommended best practice is to revert all custom RC parameter modifications back to the installation defaults. Matplotlib simplifies this process with a dedicated command that updates the current runtime parameters using the factory defaults.

plt.rcParams.update(plt.rcParamsDefault)

In summary, mastering font size adjustments through the plt.rc() function is fundamental to creating professional and readable data visualizations in Matplotlib. By understanding the hierarchy—starting with the global 'font' setting and moving to specific controls like 'axes.titlesize', 'axes.labelsize', and the distinct 'xtick.labelsize' and 'ytick.labelsize'—you gain the comprehensive ability to tailor plot text precisely for any context or audience requirement. Always prioritize clarity and ensure that text sizes support and enhance the data narrative, rather than distracting from it.

You can find more Matplotlib tutorials here.
