Learning to Customize Fonts in Matplotlib: A Step-by-Step Guide

Creating high-quality data visualizations requires more than just accurate plotting; it demands meticulous attention to design details, ensuring the graphics are both professional and highly accessible. Among the most fundamental design choices is managing the appearance of text, specifically selecting the appropriate font family. When leveraging the robust capabilities of the Matplotlib library within the Python ecosystem, developers have versatile tools to dictate the typography of their plots. This article details the two principal methods available for controlling fonts, allowing users to implement changes globally across a session or apply unique styles to individual plot elements, depending on the complexity and consistency required for the final output.

Method 1: Global Font Adjustment Using rcParams

The first method provides a streamlined solution for maintaining typographic consistency across all elements generated within a given Matplotlib session. This approach is highly recommended when a project dictates a singular, unifying font style for all text components, including the main title, axis labels, tick labels, and any text annotations or legend entries. Achieving this global control involves modifying the default configuration settings stored in the runtime configuration parameters, commonly known as rcParams. By altering this dictionary before any plotting commands are executed, you effectively set a system-wide standard for how text should be rendered.

The core setting for font selection resides in the font.family key within the rcParams dictionary. Setting this parameter overrides Matplotlib’s internal defaults, instructing the library to search the operating system for the specified font. It is important to note that this change persists for the duration of the current script or interactive session, guaranteeing that every subsequent figure adheres to the chosen style, thus enforcing immediate and widespread consistency throughout your data graphic production pipeline.

import matplotlib

matplotlib.rcParams['font.family'] = 'monospace'

This concise code snippet demonstrates how to leverage rcParams to globally establish the monospace font family for all text elements. This method is particularly efficient for large projects or when adhering to specific publication guidelines that mandate a consistent visual identity. The benefit is simplicity: one line of configuration replaces the need to specify the font for dozens of individual text components across multiple plots.

Method 2: Customizing Fonts for Specific Text Elements

While global configuration is powerful for uniformity, complex visualizations often demand element-specific styling. This necessity arises when a designer needs to create visual hierarchy—perhaps making the title bold and distinct using a monospace style, while ensuring readability for the axis labels using a classic serif font. When this level of granular control is required, the global rcParams approach is insufficient. Instead, typography must be managed by passing specific font properties directly into the functions responsible for generating the text element.

To implement this localized styling, users define a standard Python dictionary containing the desired font properties. The key property used here is fontname, which specifies the exact font family to be applied. This dictionary is then passed to relevant plotting functions, such as plt.title(), plt.xlabel(), or plt.ylabel(), using the double asterisk (**) operator. This operator effectively unpacks the dictionary’s contents as keyword arguments that the function understands, overriding any global defaults only for that specific text element.

import matplotlib.pylot as plt

mono_font = {'fontname':'monospace'}
serif_font = {'fontname':'serif'}

plt.title('Title of Plot',**mono_font)
plt.xlabel('X Label', **serif_font)

This powerful technique allows for the precise application of differing styles across a single figure, enabling sophisticated designs that adhere to specific branding or readability standards. The flexibility offered by passing these font dictionaries ensures that regardless of the global configuration, critical text elements can be highlighted or differentiated as required, giving the user complete control over the visual presentation of their data narrative.

Detailed Example: Applying Global Font Changes

When preparing data graphics for publication or internal reports where strict consistency is paramount, implementing a global font change via rcParams offers the most efficient workflow. This method guarantees that every textual component generated by Matplotlib, encompassing everything from the primary plot title and the axis labels to the numerical tick marks and any automatically generated text, uniformly adheres to the designated font family. The key operational requirement is that the font configuration must be established early in the script, specifically before any figure or axis objects are initialized or plotting commands are executed, ensuring the settings are baked into the environment defaults.

The example below illustrates the process of setting the font family globally to monospace before generating a straightforward line plot. Monospace fonts are often chosen for their clarity in coding or technical contexts, making them a popular choice for certain data displays. Observe how the script imports both matplotlib (for configuration) and matplotlib.pyplot (for plotting) and then immediately applies the configuration change, followed by standard plotting commands to create the figure elements.

import matplotlib
import matplotlib.pyplot as plt

#define font family to use for all text
matplotlib.rcParams['font.family'] = 'monospace'

#define x and y
x = [1, 4, 10]
y = [5, 9, 27]

#create line plot
plt.plot(x, y)

#add title and axis labels
plt.title('Title of Plot')
plt.xlabel('X Label')
plt.ylabel('Y Label')

#display plot
plt.show()

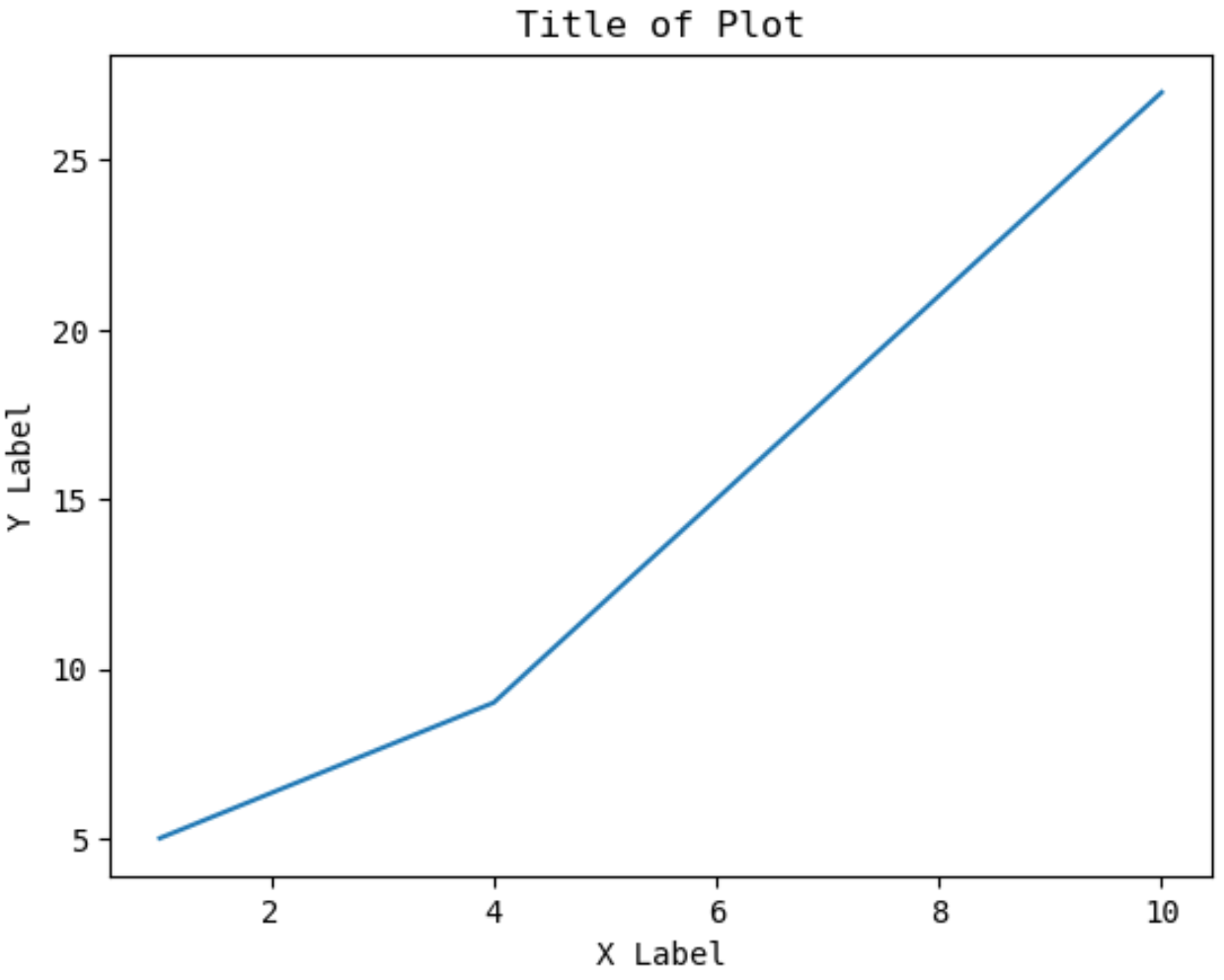

The resulting visualization below serves as undeniable proof of the global application of the font setting. Critically, we see that the title, the defined X and Y axis labels, and most importantly, the automatically generated numerical tick labels along both axes, have all successfully adopted the distinctive monospace style. This uniformity is a direct result of utilizing the rcParams configuration, demonstrating how powerfully this argument enforces typographic harmony throughout the entire data graphic.

Detailed Example: Implementing Element-Specific Font Styling

In contrast to the global method, targeted font styling is necessary when design specifications require visual differentiation between elements. A common scenario involves using a highly legible, standard font like serif for primary data labels, while employing a more stylized or attention-grabbing font, such as monospace, exclusively for the title or footnotes. This intricate level of customization is handled elegantly by Pyplot, which accepts font property dictionaries as keyword arguments for text-generating functions.

The comprehensive example provided below defines two distinct font dictionaries: mono_font for the title and serif_font for the axis labels. These dictionaries are self-contained definitions of the desired typographic properties. By passing these structures into plt.title(), plt.xlabel(), and plt.ylabel() using the unpacking operator (**), we instruct Pyplot to render the specified text components with their unique font styles, overriding any previously defined global configurations or Matplotlib defaults.

import matplotlib.pyplot as plt

#define font families to use
mono_font = {'fontname':'monospace'}
serif_font = {'fontname':'serif'}

#define x and y
x = [1, 4, 10]
y = [5, 9, 27]

#create plot of x and y
plt.plot(x, y)

#specify title and axis labels with custom font families
plt.title('Title of Plot', **mono_font)
plt.xlabel('X Label', **serif_font)
plt.ylabel('Y Label', **serif_font)

#display plot
plt.show()

The critical technical detail here is the use of the ** operator, which is fundamental in Python programming for unpacking dictionaries into keyword arguments. This feature allows highly concise code that clearly separates the styling definitions (the dictionaries) from the plotting logic (the function calls). This separation enhances code readability and maintainability, especially when dealing with plots that require numerous custom text annotations.

Reviewing the output image confirms the successful implementation of the selective styling. The title is distinctly rendered using the monospace font family, while the X-axis and Y-axis labels adopt the classical serif font. It is important to observe that the numerical tick labels, which were not explicitly targeted by the plt.xlabel() or plt.ylabel() functions, revert to the system default font or the most recent global setting. This distinction underscores that element-specific styling applies only to the text object called, offering precise but localized control.

Advanced Considerations: Font Management and Troubleshooting

A common pitfall encountered by users attempting to configure specific fonts in Matplotlib is specifying a font that the system cannot locate. Matplotlib does not contain its own proprietary font library; rather, it relies exclusively on the fonts installed on the underlying operating system (OS) where the plotting code is executed. If a requested font, particularly a proprietary or specialized one, is not installed or properly configured on the system (be it Windows, macOS, or Linux), Matplotlib will not generate an error. Instead, it employs an internal fallback mechanism, attempting to substitute the missing font with a generic alternative, such as sans-serif, serif, or monospace, to ensure the plot is rendered successfully.

To mitigate substitution issues and enhance cross-platform compatibility, Matplotlib organizes fonts into generic font families. These families serve as reliable fallbacks and are standardized across most operating systems. When utilizing rcParams['font.family'], best practice often involves providing a list of preferred families in descending order. Matplotlib will attempt to locate the first available font in that list. This strategy increases the likelihood that the visualization will maintain its intended aesthetic regardless of the execution environment.

The most widely supported generic font families available for configuration include:

• serif: This category generally encompasses traditional typefaces characterized by small lines or strokes (serifs) attached to the end of larger strokes, typically including fonts like Times New Roman or Georgia.
• sans-serif: Meaning “without serifs,” these fonts offer a clean, modern aesthetic, often including popular choices such as Arial, Helvetica, or Verdana.
• monospace: Fonts where every character occupies exactly the same amount of horizontal space, essential for aligning code, tables, or technical data, such as Courier or Consolas.
• cursive: Typefaces designed to resemble handwriting or calligraphy, generally reserved for decorative purposes.
• fantasy: A catch-all category for highly decorative, ornamental, or non-traditional fonts used for impact or thematic representation.

It is strongly recommended that users consult the official Matplotlib documentation on text properties and font management for a complete and authoritative list of available font configuration options. Furthermore, for professional use cases requiring specific licensed fonts, verifying the presence and correct path of the installed font files on the operating system is a critical prerequisite to successful rendering and publication readiness.

Further Enhancing Data Visualizations

Mastering font configuration, whether through global rcParams adjustment or element-specific dictionary passing, is a crucial step in preparing publication-ready visuals. However, typography is only one component of effective data storytelling. To truly elevate your graphics, attention must also be paid to the overall figure dimensions, resolution, and color palette.

The following resources and tutorials address other common operations necessary to refine your Matplotlib outputs, ensuring they are visually compelling, technically sound, and optimized for their intended medium, whether digital display or high-resolution print. Developing fluency in these areas alongside font management is key to becoming a proficient data visualization specialist.

• Techniques for precisely changing the size and aspect ratio of your plot figures and individual elements.
• Best practices and methods for saving figures in high-resolution formats (e.g., SVG, PDF) suitable for academic publishing.
• Strategies for customizing colors, adjusting colormaps, and applying color schemes effectively in complex visualizations like heatmaps and scatter plots.
