Change Legend Position in Base R Plots

The Critical Role of Legends in Base R Plots

Effective data visualization hinges upon clarity, and a strategically positioned legend is non-negotiable for producing an intelligible plot. When working within the R programming language, specifically utilizing Base R graphics, the correct placement of your legend is vital. It acts as the key that allows your audience to seamlessly decode what each graphical element—be it a distinct line, point, or bar—represents on the graph. This article serves as an expert guide, detailing the two primary and powerful methods available in Base R for controlling legend placement with precision and ease, thereby significantly enhancing the aesthetic quality and communicative power of your plots.

The core mechanism for this control is the robust legend() function. This function is specifically engineered to add descriptive legends to plots, providing essential context for the displayed variables. While the act of adding a legend is straightforward, determining its optimal location can often be challenging. The placement must be carefully chosen to avoid obscuring critical data trends or contributing to a visually confusing, cluttered graph.

Fortunately, Base R provides exceptional flexibility for specifying legend positions. Users can choose between two distinct approaches: leveraging exact (x, y) coordinates for unparalleled, pixel-perfect placement across the plotting region, or utilizing a set of convenient, standardized keywords for quick and intuitive positioning. The choice between these methods depends entirely on the complexity of your visualization and your preference for absolute positional control versus streamlined, automatic placement.

Method 1: Mastering Precision with (x, y) Coordinates

The first technique for achieving granular control over legend placement involves defining its position using explicit (x, y) coordinates relative to the data space of the plotting region. This approach offers the highest possible degree of precision, enabling you to anchor the legend at any arbitrary point within your plot. It is particularly indispensable when dealing with complex, high-density charts where standard corner placements might overlap with crucial data points or labels.

To employ this precise method, you must pass the desired numerical x and y values as the first two arguments to the legend() function. For example, executing the command legend(4, 12, ...) instructs R to position the top-left corner of the legend box precisely at the data coordinates (4, 12). Success with this method requires a foundational understanding of the current axis limits of your plot, ensuring that the chosen coordinates fall within the visible range and avoid critical data overlap.

The following syntax illustrates the fundamental structure for using numerical (x, y) coordinates for legend placement:

legend(4, 12, legend=c('y1', 'y2'), col=c('purple', 'red'), lty=1)

In this specific instruction, the numerical values 4 and 12 dictate the x and y positions, respectively. The subsequent arguments, such as legend, col, and lty, define the text labels, corresponding colors, and line types for the plotted series. While offering superior control, this coordinate-based method may necessitate iterative trial and error to locate the optimal coordinates, especially if the underlying data or plot dimensions are subject to frequent changes.

Method 2: Simplified Positioning with Keywords

When the highest level of numerical precision is not required, or if a more user-friendly, adaptive approach is preferred, Base R offers the option of using predefined keywords for legend placement. This streamlined method automatically positions the legend in one of several standard, non-overlapping locations (corners or edges) within the plotting area, significantly simplifying the workflow compared to manual coordinate input.

Instead of providing numerical coordinate arguments, you pass a character string representing one of the designated keywords as the first argument to the legend() function. This instructs R to intelligently place the legend at a common location, such as a corner, automatically adjusting its exact position based on the plot’s current dimensions. This keyword approach is highly recommended for its ease of implementation and instantaneous readability, clearly conveying the legend’s intended location without referencing coordinate systems.

Below is an example illustrating how to utilize a keyword to instantly define the legend’s location:

legend('bottomright', legend=c('y1', 'y2'), col=c('purple', 'red'), lty=1)

A key advantage of using keywords is their inherent adaptability. Irrespective of the scaling or data range of your plot, these keywords guarantee that the legend remains within the visible boundaries, typically minimizing the risk of obscuring vital data. This makes keywords an ideal choice for rapid prototyping, quick visualizations, and scenarios where custom, arbitrary placement is unnecessary.

The following standard locations are available for keyword-based placement:

• “bottomright”: Positions the legend snugly in the bottom-right corner.
• “bottom”: Centers the legend along the entire bottom edge of the plot.
• “bottomleft”: Positions the legend in the bottom-left corner.
• “left”: Centers the legend along the left vertical edge.
• “topleft”: Positions the legend in the top-left corner.
• “top”: Centers the legend along the top horizontal edge.
• “topright”: Positions the legend in the top-right corner.
• “right”: Centers the legend along the right vertical edge.
• “center”: Positions the legend in the exact midpoint of the plot area.

Practical Application: Utilizing Exact Coordinates

To solidify the understanding of coordinate-based placement, let us walk through a practical example that demonstrates how to use numerical (x, y) coordinates to position a legend within a Base R plot. This exercise involves creating a simple graph containing two series of time-series data and then strategically placing the legend at a location defined precisely by the user.

The code snippet below first generates sample data, initializes a multi-line plot using the plot() function, adds a secondary line using the lines() function, and finally, adds a legend precisely at x=4 and y=12. This level of meticulous control is invaluable for fine-tuning the visual composition of professional graphs.

#create data
x <- 1:10
y1<- c(3, 6, 8, 7, 8, 9, 13, 12, 10, 10)
y2 <- c(1, 3, 3, 4, 6, 7, 8, 10, 9, 9)

#create plot with multiple lines
plot(x, y1, col='purple', type='l', xlab='x', ylab='y')
lines(x, y2, col='red')

#add legend
legend(4, 12, legend=c('y1', 'y2'), col=c('purple', 'red'), lty=1)

The sequence begins with plot(), which initializes the graph using the y1 series plotted as a purple line. Subsequently, lines() overlays the y2 data as a distinct red line on the same graph. The final call, legend(4, 12, ...), is the instruction to R to draw the legend, ensuring its top-left corner is anchored at the coordinate pair (4, 12) within the plot area. This guarantees a user-defined placement, irrespective of standard corner conventions.

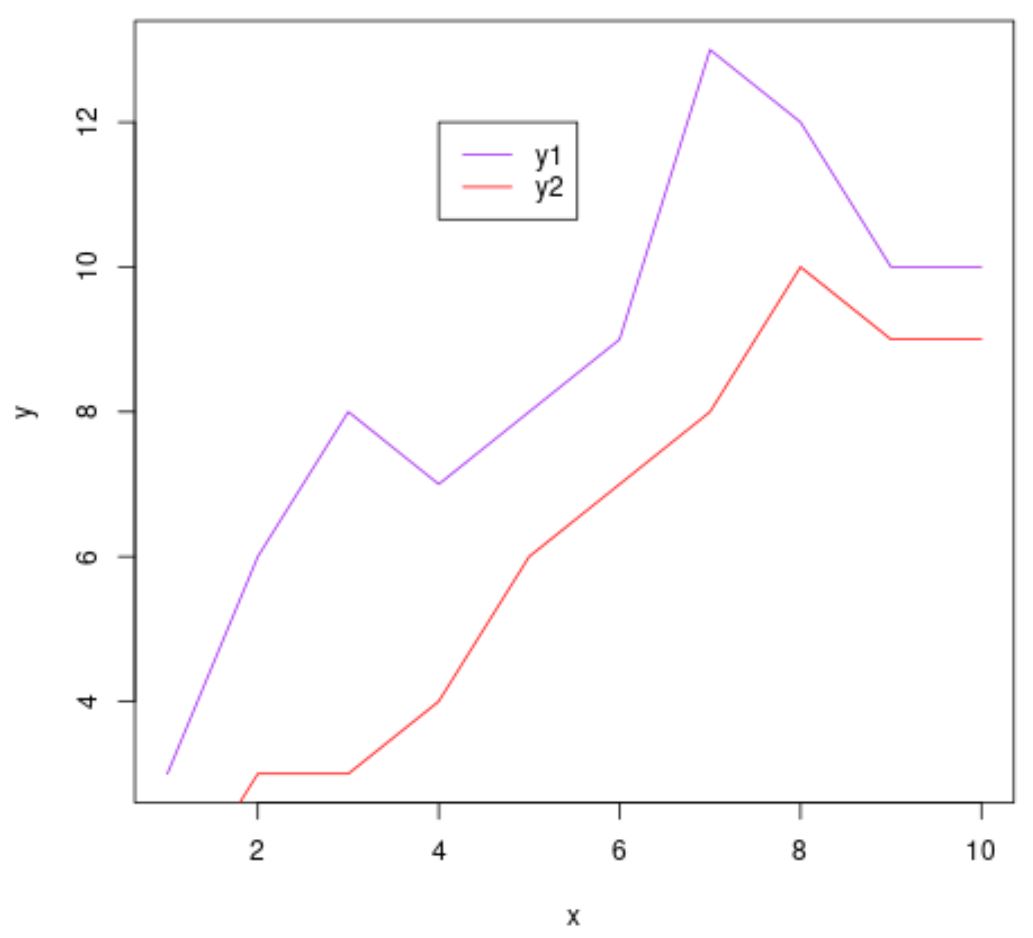

As clearly demonstrated by the resulting plot image, the legend is positioned exactly at the specified (x, y) coordinates. This visual confirmation underscores the fine-grained control achieved with this method, which is essential for avoiding visual overlaps and ensuring maximum clarity in your data visualization efforts.

Practical Application: Leveraging Positional Keywords

Now we pivot to exploring the convenience of keywords for positioning a legend, which offers a practical and significantly quicker alternative to calculating exact (x, y) coordinates. This method shines when the goal is to place the legend in a conventional corner or along an edge of your plot without the need for manual numerical estimation.

We will reuse the identical data and plotting environment to effectively illustrate the power and simplicity of keyword placement. The code below demonstrates how to generate a multi-line plot in Base R and immediately place its legend in the “topleft” corner using only a character string.

#create data
x <- 1:10
y1<- c(3, 6, 8, 7, 8, 9, 13, 12, 10, 10)
y2 <- c(1, 3, 3, 4, 6, 7, 8, 10, 9, 9)

#create plot with multiple lines
plot(x, y1, col='purple', type='l', xlab='x', ylab='y')
lines(x, y2, col='red')

#add legend
legend('topleft', legend=c('y1', 'y2'), col=c('purple', 'red'), lty=1)

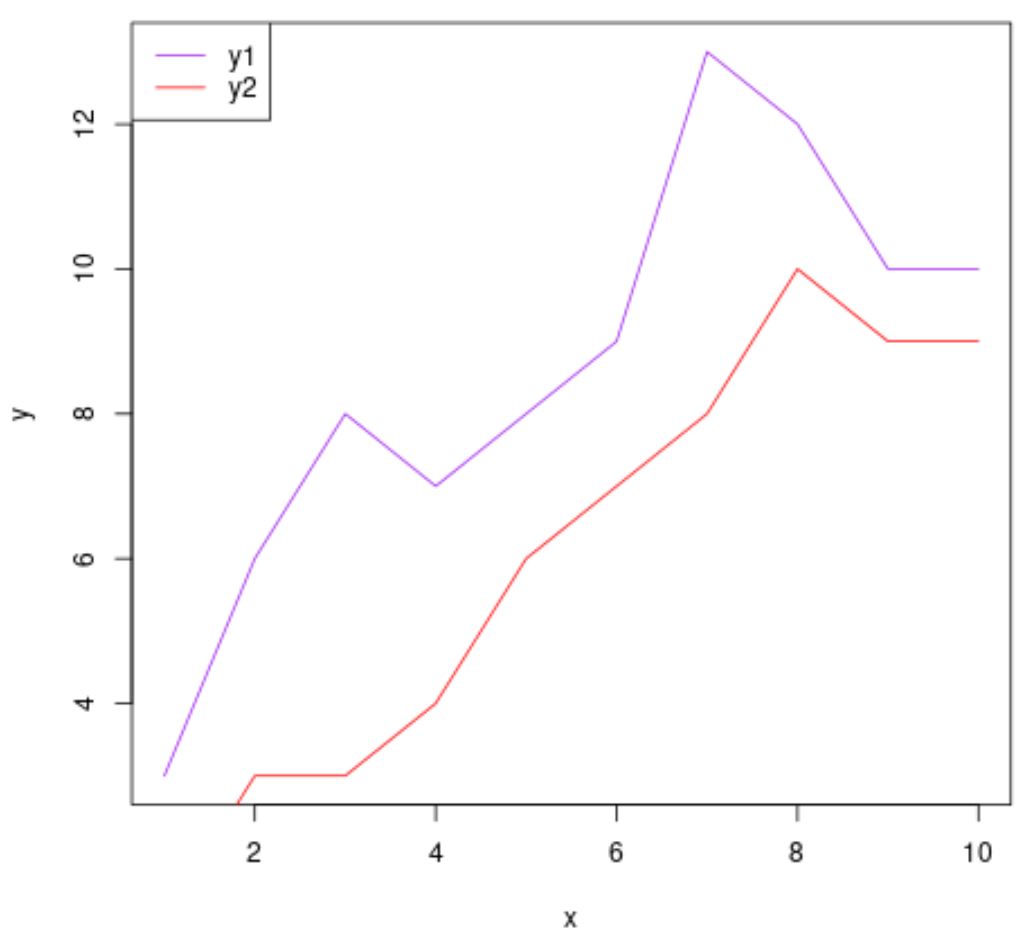

By simply substituting the numerical coordinate pair with the keyword string “topleft”, the legend() function automatically calculates and implements the correct position in the upper-left corner of the plot area. This significantly streamlines the plotting process, eliminating the need for iterative testing or estimation of coordinate values.

The true power of keywords lies in the flexibility to make rapid adjustments to legend placement. If, upon review, the top-left corner obscures crucial information, shifting the legend’s position is instantaneous. We can effortlessly relocate the legend to a different standard location, such as the “bottomright” corner, by making a single, minor modification to the keyword argument:

#create data
x <- 1:10
y1<- c(3, 6, 8, 7, 8, 9, 13, 12, 10, 10)
y2 <- c(1, 3, 3, 4, 6, 7, 8, 10, 9, 9)

#create plot with multiple lines
plot(x, y1, col='purple', type='l', xlab='x', ylab='y')
lines(x, y2, col='red')

#add legend
legend('bottomright', legend=c('y1', 'y2'), col=c('purple', 'red'), lty=1)

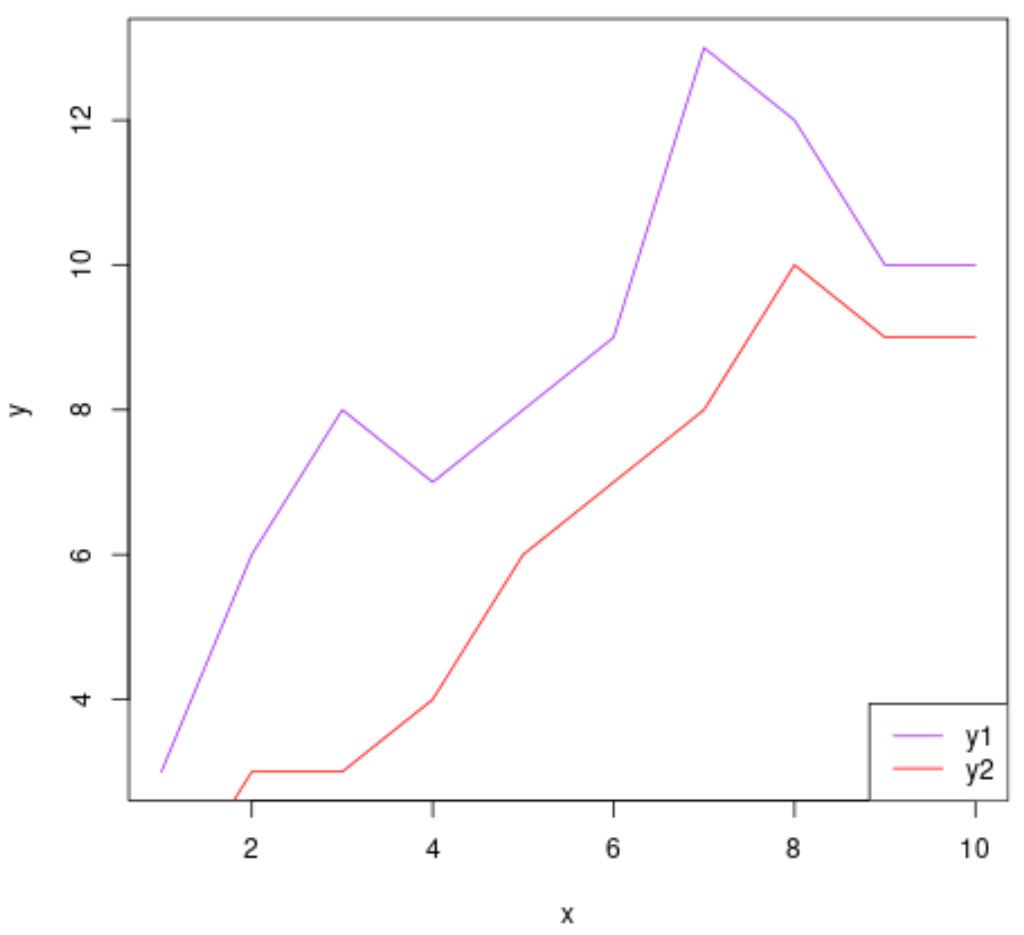

As demonstrated by the final output plot, the legend is now seamlessly relocated to the bottom-right corner. This swift modification capability highlights the efficiency and user-friendliness of keyword-based positioning, making it an excellent choice for dynamic or exploratory data visualization tasks where speed and clarity are paramount.

Choosing the Optimal Method for Your Visualization

The decision of whether to employ precise (x, y) coordinates or convenient keywords for legend placement in Base R graphics should be guided by the unique requirements of your plot and your overall workflow preference for control versus simplicity. Both techniques are highly effective, yet they serve different strategic purposes within the visualization process.

The numerical coordinate method offers unparalleled precision, making it the superior choice when absolute, custom placement is necessary to avoid overlapping with specific data clusters, annotations, or other critical graphical elements. This is especially true for highly complex or crowded plots where the standard corner positions are simply not feasible. However, this method requires the user to possess a solid grasp of the plot’s data range and usually involves a phase of experimentation to zero in on the perfect coordinate pair.

In contrast, the keyword method prioritizes simplicity and speed. It is perfectly suited for exploratory data analysis, rapid prototyping, or any scenario where a standard corner or edge position provides sufficient context. While it naturally sacrifices the pixel-level precision afforded by coordinates, its ease of use and automatic adaptation to varying plot dimensions make it the most practical and efficient choice for the vast majority of routine plotting tasks.

Ultimately, the best approach is to consider the complexity of the data you are presenting, the necessity of precise placement for non-overlap, and the constraints of your production workflow. Many expert users find that a hybrid approach offers the greatest flexibility: starting with a keyword to establish a general region, and then switching to coordinates only if minor, highly specific adjustments are required for maximum visual impact.

Conclusion

Mastering legend positioning is an essential skill for constructing clear, professional, and informative plots in Base R. Whether you select the fine-grained control provided by (x, y) coordinates or the convenient, adaptive efficiency of keywords, the legend() function equips you with robust capabilities to ensure your data visualizations are immediately understandable.

By effectively utilizing and experimenting with both of these distinct methods, you can significantly elevate the readability and aesthetic quality of your graphs. This mastery ensures that your audience can effortlessly grasp the underlying insights you intend to convey without the distraction of a poorly placed legend. Continue experimenting with these techniques to define the optimal legend placement for every Base R plot you create.
