Learn How to Change Legend Position in ggplot2 with Examples

Mastering Legend Control in ggplot2 Visualizations

Effective data visualization hinges on the precise presentation of all graphical components. When leveraging the comprehensive capabilities of the ggplot2 package within the R environment, one of the most frequent requirements for achieving a polished, publication-ready plot is controlling the legend’s placement. The legend is not merely an accessory; it is the fundamental mapping key that translates the visual aesthetics—such as color, shape, size, or linetype—back into the underlying categorical or continuous variables they represent. A poorly placed legend can obscure critical data or disrupt the overall flow of visual interpretation, thereby undermining the clarity of the analysis.

The ggplot2 system, based on the grammar of graphics, provides powerful and consistent mechanisms for customizing non-data elements. This customization is primarily managed through the versatile theme() function. This core function is the gateway to modifying everything outside the data mapping itself, including axis properties, panel backgrounds, grid lines, and, crucially for this discussion, the location and appearance of the plot legend. Understanding how to interact with this function is paramount for any advanced ggplot2 user seeking professional control over their output.

To specifically manage the spatial arrangement of the legend, we utilize the legend.position argument nested within the theme() function. This argument is exceptionally flexible, accepting several types of inputs: simple character strings for general placement (like “top” or “bottom”), or precise two-element numeric vectors, c(x, y), for highly granular internal positioning. The choice of input determines the level of control and the resulting plot layout. Every adjustment to the legend’s location begins with this fundamental syntax, providing a robust foundation for all subsequent customizations required for aesthetic refinement.

The general structure for repositioning the legend is straightforward and forms the basis of all examples demonstrated in this guide:

theme(legend.position = "right")

To provide clear, reproducible demonstrations of these techniques, we will utilize the renowned iris dataset. This standardized dataset, built into the R environment, is perfectly suited for illustrating multivariate visualizations where data points are grouped by a categorical variable, namely the Species of the flower. This allows us to consistently showcase how different legend positions interact with a standard scatter plot structure, ensuring that the visual impact of each positioning choice is clearly demonstrated.

Utilizing Directional Strings for External Legend Placement

The most common and simplest approach to adjusting the legend’s location is by employing directional keyword strings. This method directs ggplot2 to place the entire legend box outside the primary plotting area, positioning it neatly within the margins allocated to the plot’s boundary. This is the preferred default strategy for visualizations where the legend must not overlap or obscure the plotted data points, ensuring maximum clarity and data integrity, especially when data points are dense across the panel.

There are four recognized directional strings that can be passed to the legend.position argument: “top”, “right”, “bottom”, and “left”. By default, ggplot2 assigns the legend to the “right” side, resulting in a vertical stack of legend keys. Utilizing these external positions is ideal for standard reports and presentations where a clean separation between data and key is desired. The choice among the four directions often depends on the plot’s aspect ratio and the required space for axis labels or titles, as placing the legend vertically or horizontally can significantly alter the available plotting canvas.

For instance, if the plot is wide but vertically constrained, a horizontal legend might be more effective than the default vertical stacking. Placing the legend at the top or bottom of the plot achieves this horizontal layout. Setting legend.position = "top" shifts the key above the plot panel. This strategy is highly effective when the legend contains numerous categories, as the horizontal arrangement can be more compact than vertical stacking, ensuring that the full width of the plot is available for the x-axis scale, while keeping the legend immediately visible above the primary visualization area.

library(ggplot2)

ggplot(iris, aes(x=Sepal.Length, y=Sepal.Width, color=Species)) +
       geom_point() +
       theme(legend.position = "top")

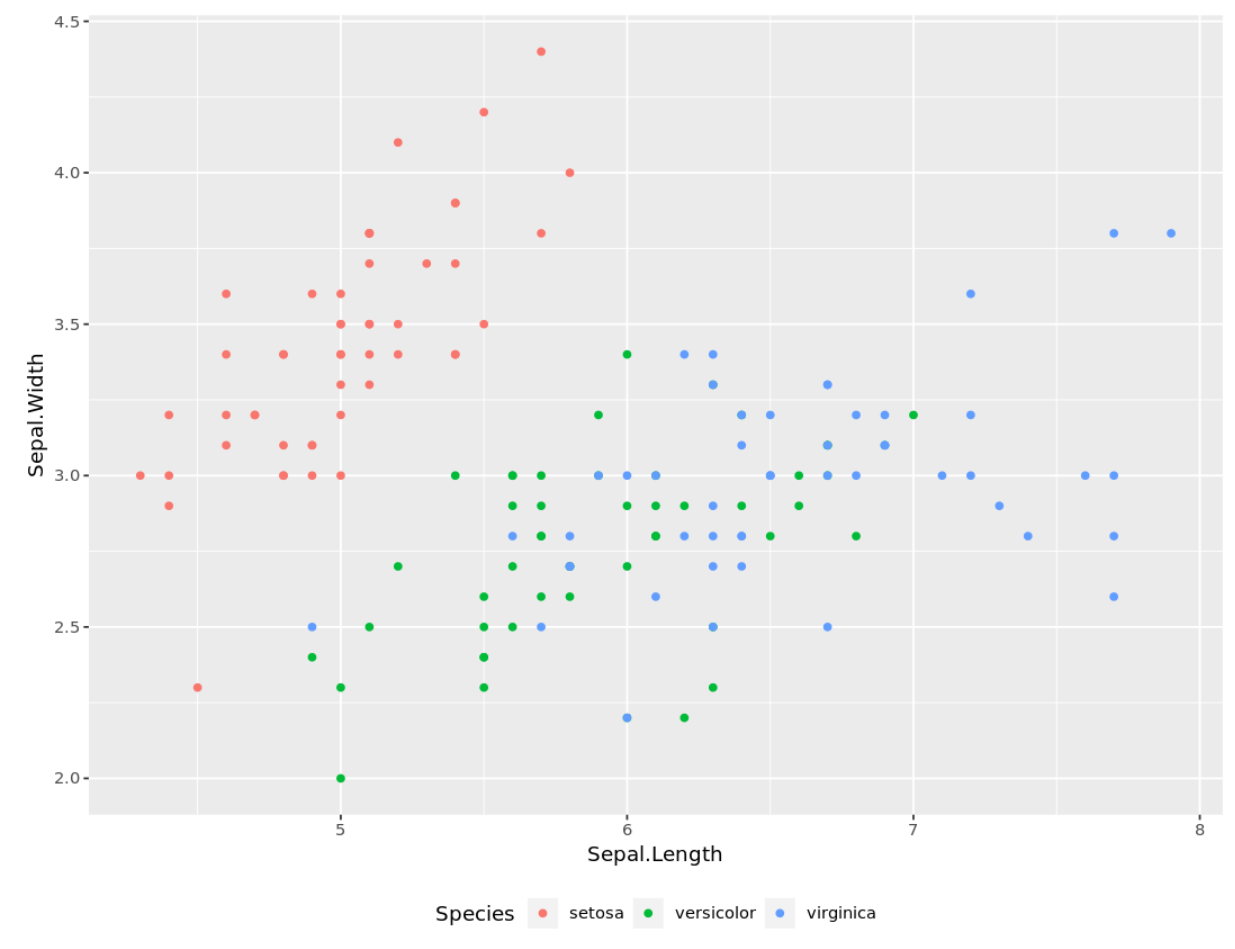

Conversely, placing the legend at the bottom (legend.position = "bottom") offers an excellent solution when the visualization requires maximizing vertical space, or when the legend serves as a clean “footer” beneath the x-axis. This is often preferred when plot height is limited, preventing the need to compress the y-axis range or stack axis tick labels. This alternative layout is easy for the viewer to parse and keeps the main data area uncluttered, especially beneficial for tall, narrow plots or plots with lengthy x-axis annotations. Selecting the appropriate directional string is a crucial first step in optimizing the layout of any ggplot2 output.

library(ggplot2)

ggplot(iris, aes(x=Sepal.Length, y=Sepal.Width, color=Species)) +
       geom_point() +
       theme(legend.position = "bottom")

Granular Control: Internal Positioning Using Normalized Coordinates

In many advanced visualization contexts, such as journal publications or complex dashboard designs, conserving peripheral space is critical. This necessitates positioning the legend directly within the data plotting area. ggplot2 accommodates this through the use of precise numerical coordinates assigned to the legend.position argument. This method sacrifices the automatic non-overlap guarantee of directional strings in favor of absolute spatial control.

To achieve internal placement, the argument must be supplied as a numeric vector of length two: c(x, y). These coordinates are based on a normalized scale relative to the plot panel, ranging from 0 to 1 for both the horizontal (x) and vertical (y) axes. This system provides absolute control over the placement, independent of the actual data values plotted or the underlying coordinate system used for the data itself.

Understanding the coordinate system anchors is key to successful internal placement:

• (0, 0) defines the anchor at the bottom-left corner of the plot panel.
• (1, 1) defines the anchor at the top-right corner of the plot panel.
• (0.5, 0.5) defines the anchor at the exact center of the plot panel.

A critical factor accompanying coordinate-based placement is legend justification. By default, ggplot2 attempts to center the legend box around the supplied c(x, y) coordinate. However, to ensure the legend corner aligns perfectly with the coordinate point (e.g., placing the top-right corner of the legend exactly at the top-right corner of the plot), users must also adjust the legend.justification argument (discussed further below). Precise placement requires trial and error, ensuring the legend utilizes empty space without obscuring crucial data points or visual trends.

For illustration, placing the legend in the top-right quadrant often requires coordinates near (1, 1), such as (.9, .9). This specific placement is strategic; it typically utilizes the upper-right corner where data density might be lower, thereby minimizing overlap with important data clusters. This approach requires careful monitoring to ensure the legend does not inadvertently cover significant visual patterns, particularly when dealing with dense scatter plots or line charts.

library(ggplot2)

ggplot(iris, aes(x=Sepal.Length, y=Sepal.Width, color=Species)) +
       geom_point() +
       theme(legend.position = c(.9, .9))

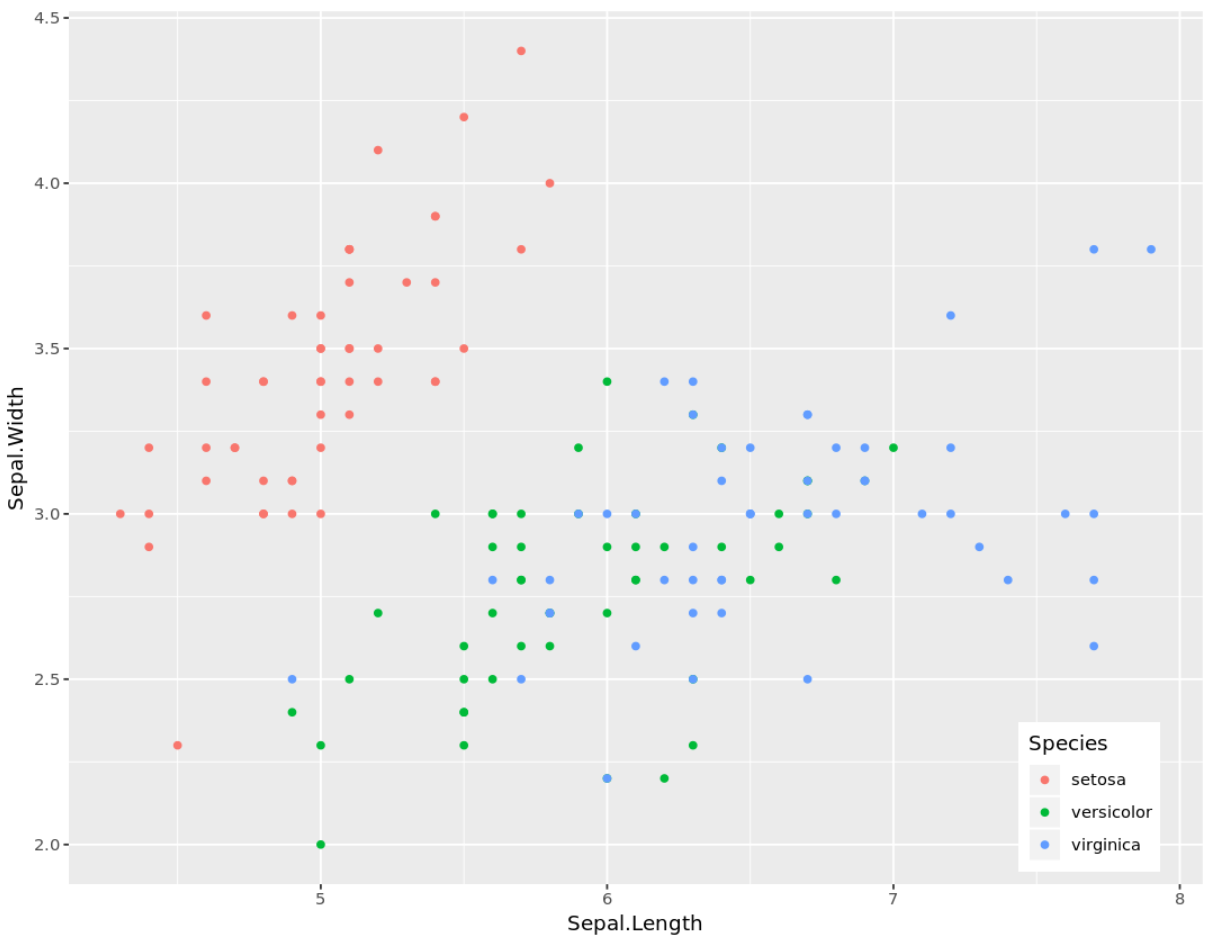

Alternatively, positioning the legend in the bottom-right corner, typically a visually unobtrusive area, is achieved using coordinates close to (1, 0), such as (.9, .1). This technique is particularly effective when the data trends towards the upper quadrants of the plot, leaving the bottom-right quadrant relatively sparse. The use of normalized coordinates provides unparalleled flexibility, allowing the data scientist to tailor the legend placement to the specific distribution and density of the variables being visualized, optimizing both aesthetic appeal and informational clarity.

library(ggplot2)

ggplot(iris, aes(x=Sepal.Length, y=Sepal.Width, color=Species)) +
       geom_point() +
       theme(legend.position = c(.9, .1))

Advanced Control: Justification, Direction, and Layout Refinement

While legend.position handles the macro location, achieving a truly refined plot requires fine-tuning the internal structure and alignment of the legend box using additional parameters within the theme() function. These advanced controls are especially relevant when utilizing internal coordinates, as they dictate precisely how the legend box interacts with the specified anchor point.

The legend.justification parameter is crucial for precise alignment. As mentioned, the default setting is usually "center", meaning the center of the legend box aligns with the legend.position coordinates. However, if you want the corner of the legend box to align, you must provide a numeric vector c(x, y) (also normalized from 0 to 1) to legend.justification. For instance, if you set legend.position = c(1, 1) and legend.justification = c(1, 1), you are anchoring the top-right corner of the legend box exactly at the top-right corner of the plot panel, ensuring it doesn’t overlap the panel boundary. This parameter ensures that the legend box “pushes” inward from the specified coordinate, preventing it from clipping off the plot area.

Another key aesthetic control is legend.direction. This parameter dictates the orientation of the legend keys. By default, external legends placed on the right or left adopt a vertical direction (“vertical”), while those placed on the top or bottom adopt a horizontal direction (“horizontal”). When using internal coordinate placement, manually specifying the direction is often necessary to optimize space utilization and visual flow. For example, if placing the legend near the center of a wide plot, setting legend.direction = "horizontal" typically results in a more compact and visually appealing arrangement than the default vertical stacking, making the key easier to scan.

Furthermore, customization extends to controlling the spacing between the keys and text, adjusting the overall size of the box, and modifying the appearance of the text itself. Elements like legend.key.size (to adjust the size of the color/shape keys), legend.text (to modify font size or style), and legend.title (to adjust the title appearance or position) allow for comprehensive control over the legend’s final appearance. The flexibility inherent in the theme() function ensures that every visual detail of the legend can be tailored to meet the exacting standards of professional data presentation.

Suppressing the Legend: When Less is More

In certain visualization contexts, the legend may become unnecessary, redundant, or actively detrimental to the aesthetic clarity of the plot. This frequently occurs when the aesthetic mapping is self-evident (e.g., plotting only a single group), when the plot is embedded in a document where the groups are explicitly labeled in a caption or footnote, or when the goal is a minimalist design focusing purely on the data trends without interpretive clutter.

To completely remove the legend box and all associated keys from the final output, the legend.position argument must be set to the specific keyword string “none”. This command instructs the ggplot2 rendering engine to suppress the legend layer entirely, thereby maximizing the available space dedicated to the primary visualization area. This action frees up margins and ensures that the data itself occupies the largest possible portion of the display.

Utilizing legend.position = "none" is the most efficient method for cleaning up plots intended for audiences who already possess contextual information about the groups being displayed. It ensures that the viewer’s focus remains squarely on the data patterns rather than the interpretive key. This technique should be applied judiciously, only when the removal does not compromise the viewer’s ability to accurately interpret the aesthetic mappings used in the plot, maintaining a balance between minimalism and informational integrity.

The following example demonstrates the command applied to our scatter plot, resulting in the complete removal of the legend that previously mapped the Species variable to color:

library(ggplot2)

ggplot(iris, aes(x=Sepal.Length, y=Sepal.Width, color=Species)) +
       geom_point() +
       theme(legend.position = "none")

Summary of Legend Positioning Strategies and Best Practices

Achieving mastery over legend placement in ggplot2 is a fundamental skill for producing high-quality, professional data visualizations. The flexibility offered by the theme(legend.position) parameter ensures that the legend can be precisely positioned to complement the plot’s design without obstructing the crucial data narrative. Choosing the correct strategy depends heavily on the intended output medium, plot dimensions, and data density.

Here is a concise summary of the three primary methods for controlling legend position:

1. External String Placement: Uses directional keywords (e.g., "top", "right", "left", "bottom"). This method is optimal for standard reports, guaranteeing that the legend remains outside the plotting area. It automatically adjusts the plot margins to accommodate the legend box.
2. Internal Coordinate Placement: Uses a normalized numeric vector, c(x, y), where coordinates range from 0 to 1. This provides absolute, granular control for integrating the legend directly into the plot panel, ideal for space-constrained or highly customized graphics, often requiring adjustment of legend.justification.
3. Legend Elimination: Uses the keyword "none". This strategy completely suppresses the legend, suitable for minimalist designs or when the aesthetic mapping is clearly explained elsewhere in the surrounding text or caption.

For detailed visual adjustments—such as modifying the spacing between legend keys, changing the background fill, or altering the title alignment—users must delve deeper into the theme() function documentation. This function represents the cornerstone of theme() function‘s customization engine, offering hundreds of elements that allow for the meticulous refinement of every non-data aspect of a visualization.

Further Resources and Advanced Legend Management

To enhance your proficiency in advanced ggplot2 customization and legend management, we recommend exploring the following authoritative resources. These resources cover not only simple positioning but also complex interactions between scales, aesthetics, and themes:

• The Official Tidyverse Documentation for the theme() function, detailing all available parameters for aesthetic control.
• Guides on manipulating aesthetic mappings and scale limits, which fundamentally influence what the legend displays.
• Tutorials covering multi-panel graphics using faceting (e.g., facet_wrap() or facet_grid()), which introduce complex challenges in global vs. local legend placement and synchronization.

By systematically applying these positioning and customization techniques, you can transform functional data plots into compelling visual narratives with maximum clarity and impact.
