Learning to Reorder Items in ggplot2 Legends for Clearer Data Visualization

Mastering Legend Customization in ggplot2: Controlling the Visual Narrative

Effective data visualization transcends mere accurate plotting; it demands that all accompanying elements, particularly the legend, are clear, logical, and aligned with the narrative of the analysis. Within the powerful ggplot2 package ecosystem in the statistical R environment, the default legend order is frequently determined by arbitrary criteria, such as alphabetical sorting of categories or the inherent ordering of factor levels. While convenient, this default sequence rarely reflects the analytical priorities—whether that means ordering by performance, chronology, or specific relevance. Gaining precise control over this legend sequence is therefore a crucial step toward creating professional and persuasive data presentations.

The foundation of customizing visual aesthetics in ggplot2 lies in understanding and manipulating scales. Scales are the fundamental components of the Grammar of Graphics, acting as translators that map raw data values (e.g., specific team identifiers or measurement categories) to aesthetic properties (e.g., color hues, marker sizes, or line types). For discrete, categorical variables that control the visual appearance of elements—such as the fill color in a bar chart or boxplot—the specialized scale function, scale_fill_discrete(), provides the necessary interface for customization. By explicitly calling and configuring this function, developers can override the automatic mapping process and enforce a user-defined order.

The primary mechanism for overriding the default legend order is the breaks argument within the scale function. This argument accepts a defined list of category names, allowing the programmer to specify exactly which levels should appear in the legend and, more importantly, the precise sequence in which they should be displayed. By defining this sequence, analysts ensure that the visual keys provided by the legend guide the viewer through the plotted data points in an order that is most relevant to the underlying statistical findings or business requirements. This declarative approach offers a clean and efficient alternative to modifying the source data structure solely for presentation purposes.

The Core Mechanism: Leveraging scale_fill_discrete() and the breaks Argument

When a categorical variable is assigned to an aesthetic like fill (which typically controls the interior color of geometric objects like bars, boxes, or polygons), ggplot2 automatically employs a discrete scale to manage the visual assignment. If the user does not explicitly define a scale, the package implicitly utilizes a default scale, such as scale_fill_discrete(), which sorts the categories alphabetically or according to existing factor levels. To impose a custom ordering that deviates from these defaults, we must actively intervene by explicitly calling the scale function and passing configuration parameters.

The critical configuration parameter for reordering legend items is the breaks argument. To successfully implement a custom order, the input provided to breaks must be a character vector containing the exact names of the categorical levels as they exist in the original data.frame. The power of this approach lies in the fact that the sequence in which these level names are listed within the character vector directly dictates the final arrangement of the items in the legend. For example, if a dataset contains three categories—’Alpha’, ‘Beta’, and ‘Gamma’—and the desired legend order is ‘Gamma’, then ‘Alpha’, then ‘Beta’, the breaks argument must be supplied with the vector c('Gamma', 'Alpha', 'Beta').

This technique provides a targeted, presentation-layer modification. It allows for flexible legend control without requiring permanent structural changes to the source data, which is often preferable when the custom order is unique to a specific visualization. The generalized syntax for integrating this customization into a standard ggplot2 command involves chaining the scale function after the geometric layers (e.g., geom_boxplot() or geom_bar()). The necessary structure is straightforward and declarative, focusing purely on the desired sequence of items.

The standard syntax for defining a custom legend order using the breaks argument is shown below, demonstrating how to reorganize the visual key elements:

scale_fill_discrete(breaks=c('item4', 'item2', 'item1', 'item3', ...)

Step-by-Step Implementation: Visualizing Default vs. Custom Order

To clearly illustrate why manual legend reordering becomes necessary, let us first establish a baseline visualization. We will create a simple dataset in R designed to track hypothetical performance scores across three distinct teams, labeled ‘A’, ‘B’, and ‘C’. This data structure, organized as an R data.frame, provides the necessary categorical and quantitative variables for plotting a comparison.

Our chosen visualization is a boxplot, which is highly effective for summarizing the distribution of points scored by each team. We map the categorical team variable to two aesthetics: the x-axis position and the fill aesthetic. Mapping team to fill is what triggers the automatic generation of a colored legend key. When the following code is executed without any specific scale definitions, ggplot2 defaults to ordering the categories in the legend alphabetically (‘A’, ‘B’, ‘C’), a sequence determined by the default sorting behavior of the underlying factor levels.

Observe the initial code setup, which produces the default, alphabetically ordered visualization:

library(ggplot2)

#create data frame
df <- data.frame(team=c('A', 'A', 'A', 'A', 'B', 'B', 'B', 'B', 'C', 'C', 'C', 'C'),
                 points=c(6, 8, 13, 16, 10, 14, 19, 22, 14, 18, 24, 26))

#create multiple boxplots to visualize points scored by team
ggplot(data=df, aes(x=team, y=points, fill=team)) +
  geom_boxplot()

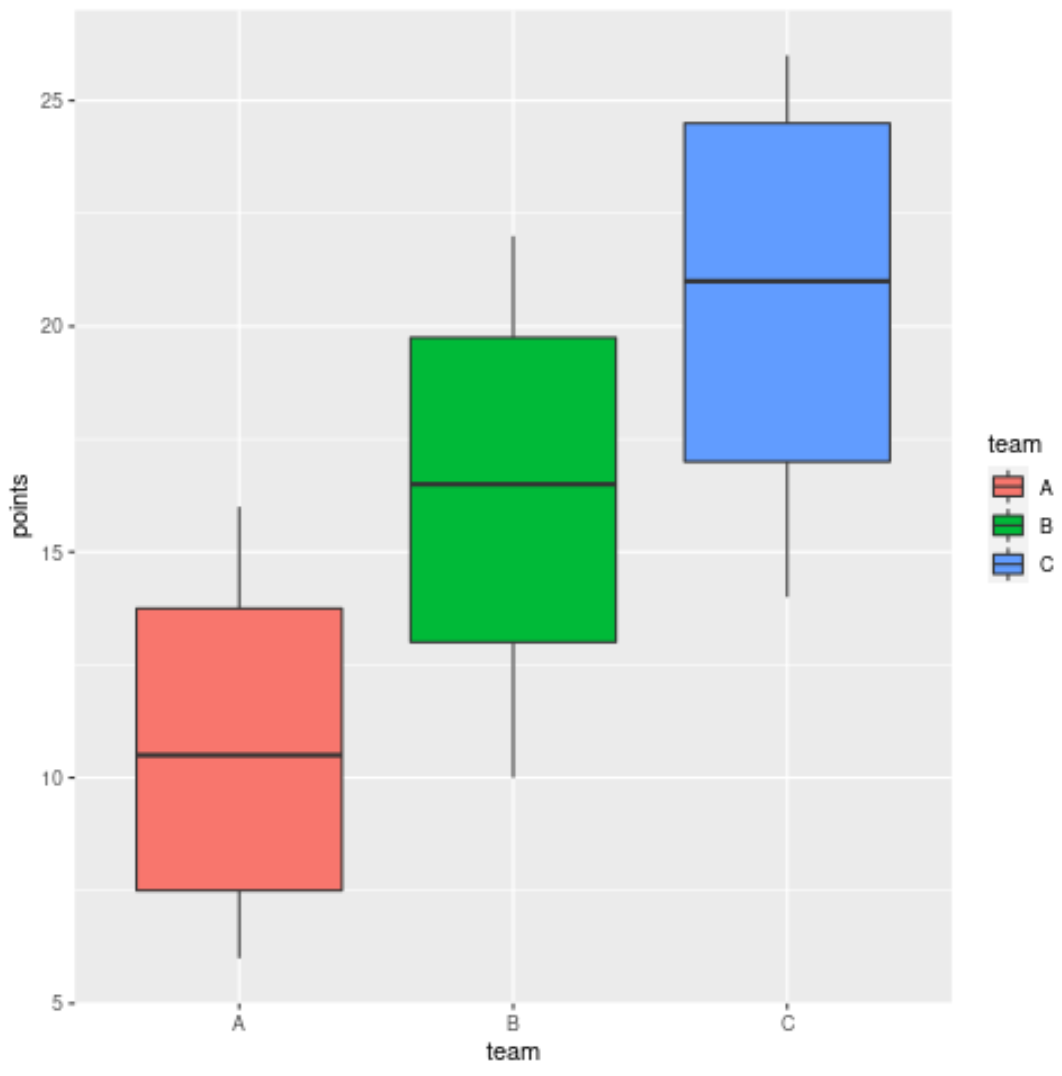

The resulting image confirms this default behavior. While logical in a purely organizational sense, this order may not be statistically optimal. Analytical requirements often necessitate ordering items based on performance (e.g., ranking by median score) or adherence to a specific logical flow, requiring a deliberate override of the automatically generated legend sequence.

Implementing Custom Sequence Control with breaks

Now, we proceed to implement the custom ordering. Assume that our interpretation of the data, perhaps based on external metrics or desired emphasis, dictates that Team B should be presented first in the legend, followed by Team C, and finally Team A. This required sequence—B, C, A—is explicitly non-alphabetical and cannot be achieved without manual intervention via the scale function.

To enforce this desired order, we modify the previous plotting command by appending the scale_fill_discrete() function call. Within this function, we supply the character vector c('B', 'C', 'A') to the breaks argument. It is paramount to ensure that the exact strings used in the breaks vector precisely match the factor levels present in the source data; any mismatch will lead to errors or missing legend items.

The following updated code snippet demonstrates the integration of the custom scale definition, successfully altering the legend structure:

library(ggplot2)

#create data frame
df <- data.frame(team=c('A', 'A', 'A', 'A', 'B', 'B', 'B', 'B', 'C', 'C', 'C', 'C'),
                 points=c(6, 8, 13, 16, 10, 14, 19, 22, 14, 18, 24, 26))

#create multiple boxplots to visualize points scored by team
ggplot(data=df, aes(x=team, y=points, fill=team)) +
  geom_boxplot() +
  scale_fill_discrete(breaks=c('B', 'C', 'A'))

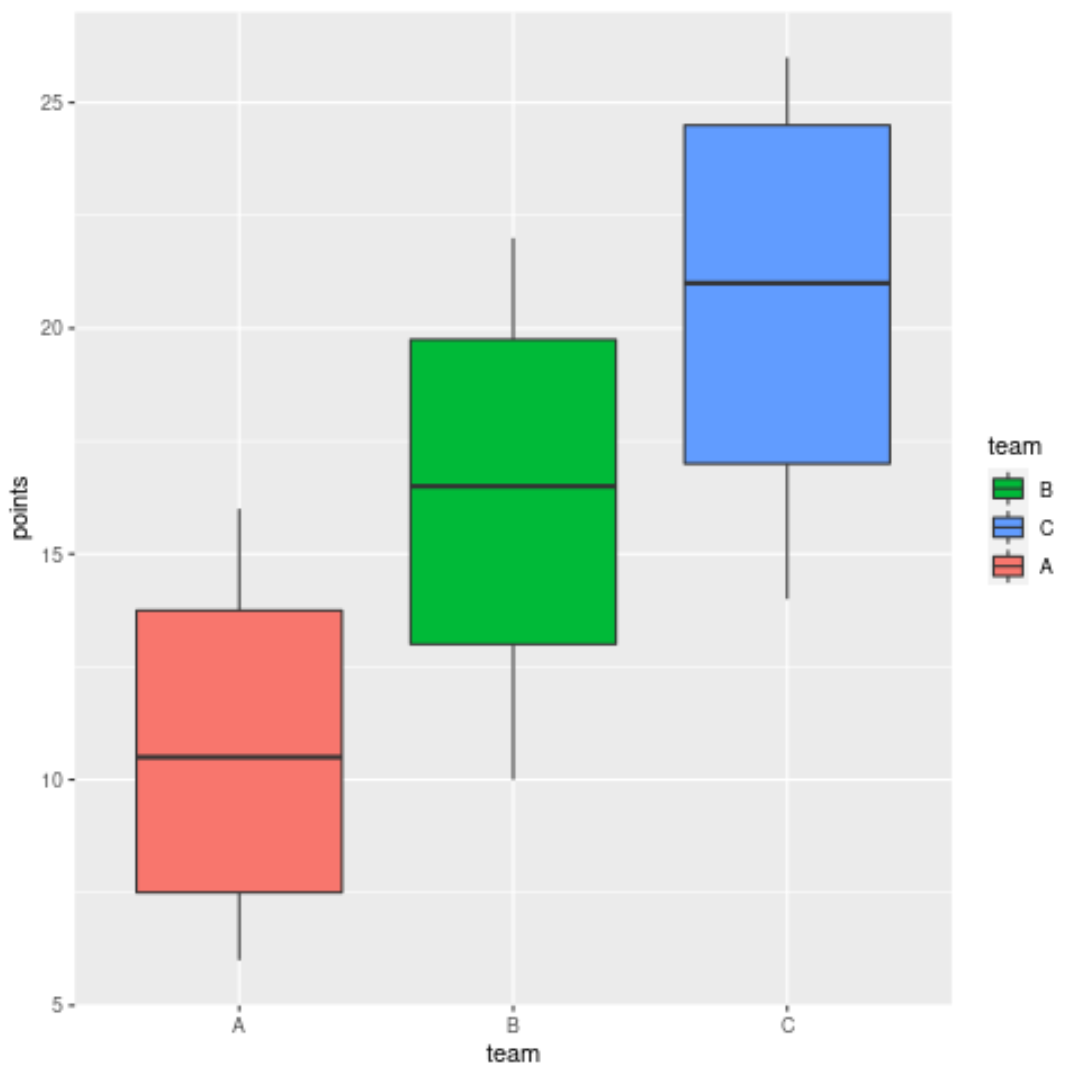

As confirmed by the resulting visualization, the legend has been successfully updated to display the entries in the custom order: B, C, A. This powerful demonstration highlights the simplicity and efficiency of using the breaks argument for achieving granular control over legend presentation in ggplot2. It is important to note a key distinction: while the legend order is changed, the physical arrangement of the boxplots along the x-axis (which remains A, B, C) is unaffected, as the x-axis order is governed by the underlying factor levels of the team variable, not the scale applied to the fill aesthetic. Separate steps, such as modifying factor levels or using scale_x_discrete(limits = ...), would be required to adjust the plot element ordering.

Advanced Customization: Renaming Legend Items with labels

While ordering the legend is essential, using the raw data level names (e.g., ‘A’, ‘B’, ‘C’) is often insufficient for creating a truly communicative visualization intended for a broader audience. To enhance clarity, it is frequently necessary to assign more descriptive text to the legend entries, such as ‘A Team’, ‘B Team’, or ‘C Team’. The scale_fill_discrete() function is designed to accommodate this need through the complementary labels argument.

When implementing both custom order and custom names, two strict synchronization rules must be adhered to. First, the breaks argument must still be supplied to explicitly define the intended sequence of the underlying data levels. Second, the character vector provided to the labels argument must contain the new descriptive names in the exact corresponding order defined by breaks. If the lengths or sequences of the two vectors do not match, the plot will either fail or produce nonsensical results.

In our running example, we wish to maintain the order B, C, A, while displaying the descriptive labels ‘B Team’, ‘C Team’, and ‘A Team’ respectively. We achieve this comprehensive customization by integrating both arguments within a single scale_fill_discrete() call, ensuring the vectors are perfectly aligned:

library(ggplot2)

#create data frame
df <- data.frame(team=c('A', 'A', 'A', 'A', 'B', 'B', 'B', 'B', 'C', 'C', 'C', 'C'),
                 points=c(6, 8, 13, 16, 10, 14, 19, 22, 14, 18, 24, 26))

#create multiple boxplots to visualize points scored by team
ggplot(data=df, aes(x=team, y=points, fill=team)) +
  geom_boxplot() +
  scale_fill_discrete(breaks=c('B', 'C', 'A'),
                      labels=c('B Team', 'C Team', 'A Team'))

This combined methodology offers maximum flexibility for presentation, enabling precise control over both the sequence and the descriptive text of every legend entry. The resulting visualization is professional, informative, and perfectly tailored to the analytical narrative.

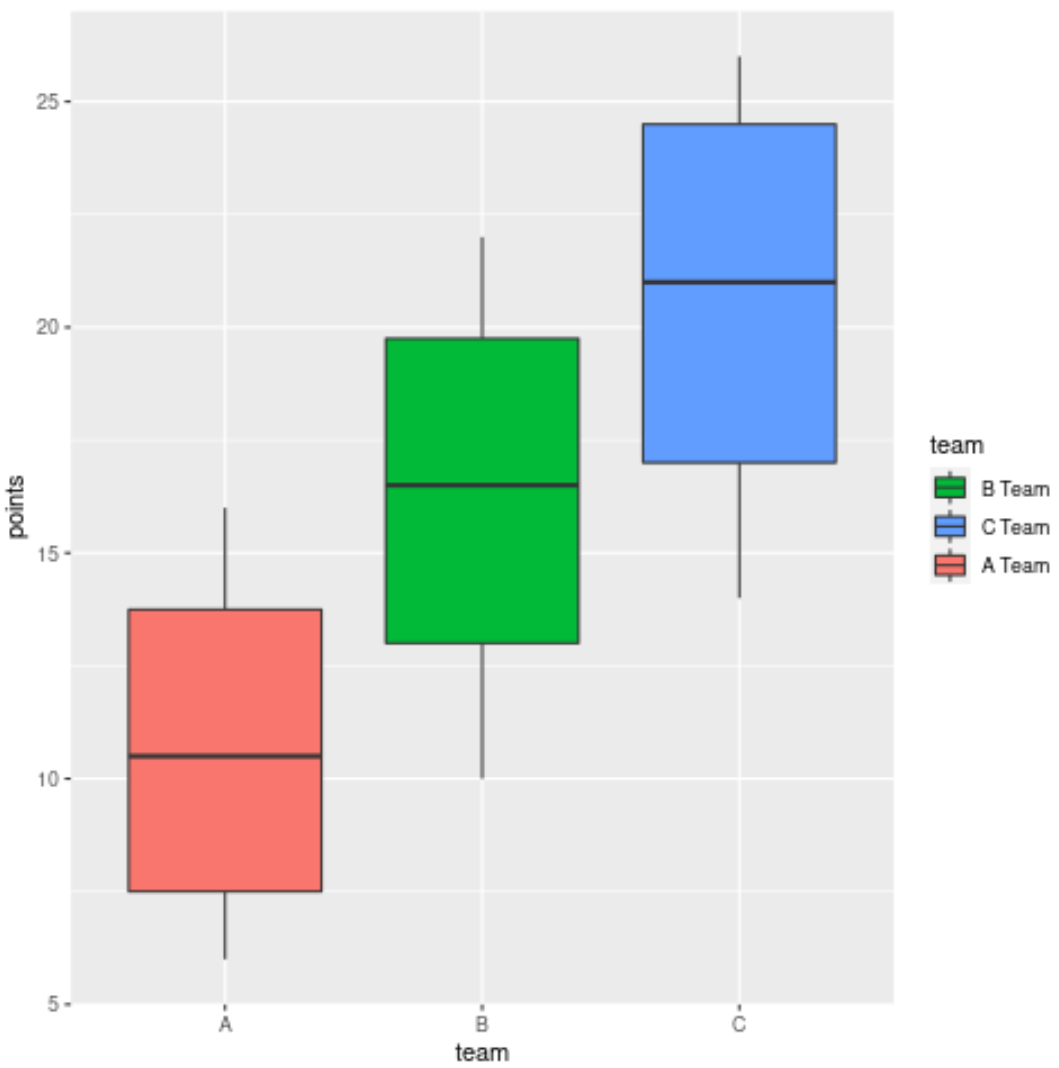

The final legend successfully reads: B Team, C Team, A Team, confirming that the sequence (controlled by breaks) and the displayed text (controlled by labels) have been customized simultaneously and accurately.

Summary and Best Practices for Persistent Legend Control

The ability to control the order of items in a ggplot2 legend using scale functions is an essential technique for tailoring visualizations to specific analytic requirements. The use of scale_fill_discrete() (or equivalent functions for other aesthetics) coupled with the breaks argument provides an elegant, plot-specific solution for manipulating the visual key post-mapping. However, advanced analysts must weigh this approach against the alternative method of modifying the underlying data structure.

For scenarios where a specific order (e.g., B, C, A) must be maintained consistently across multiple plots, tables, or subsequent statistical analyses, it is generally considered superior practice to adjust the underlying factor levels of the categorical variable within the original data.frame. This structural modification ensures that the desired order is inherited by all subsequent operations, including default plotting behavior and summary statistics generation. Tools within the Tidyverse ecosystem, particularly the forcats package, are specifically designed to facilitate robust and flexible factor reordering based on criteria such as manual specification, frequency, or ordering relative to another variable’s aggregate measure.

In contrast, when the required reordering is transient, highly specific to the presentation needs of a single graphic, or when modifying the original data structure is impractical or overly cumbersome, utilizing the scale functions remains the most direct and efficient method. Regardless of the approach chosen, meticulous attention to detail is required. Always ensure that the vector provided to breaks consists of exact matches to the existing factor levels, and verify that the vector provided to labels precisely corresponds in length and sequence to the breaks vector to prevent errors and guarantee accurate visual representation.

Additional Resources for Comprehensive ggplot2 Customization

Mastering scale functions and advanced aesthetic mappings is key to significantly enhancing the quality and communicative power of any data visualization produced in R. For users seeking to deepen their expertise in ggplot2, further exploration of related documentation and tutorials is highly recommended. Understanding the full spectrum of customization options ensures that every visual element supports the analytical conclusion effectively.

• Official ggplot2 documentation for all scale functions, detailing how to map and control attributes such as color, size, shape, and transparency for various data types (discrete, continuous).
• Tutorials focusing on managing factor levels in R, specifically utilizing the specialized forcats package, for implementing permanent and rule-based data structure modifications.
• Guides detailing advanced thematic controls, specifically using the theme() function, to fine-tune the physical appearance, position, orientation, and titles of the legend box itself, moving beyond item ordering to full layout control.
