Learning Matplotlib: How to Reorder Legend Items for Clearer Data Visualization

Mastering Legend Ordering for Professional Data Visualization

In the realm of analytical reporting and data storytelling, effective data visualization serves as the critical bridge between raw data and actionable insight. A well-designed plot ensures clarity, and central to this clarity is the legend, which acts as the map for interpreting the graphical elements. Within the Matplotlib library—the foundational tool for creating static, interactive, and animated graphics in Python—the legend’s sequence often dictates the immediate perception of the data’s hierarchy.

Matplotlib automatically generates legends based on the chronological order in which plotting commands are executed. While convenient, this default approach rarely aligns with the required logical flow or narrative structure of a complex dataset. Data scientists and analysts frequently encounter scenarios where the most critical variable, perhaps plotted last due to data processing constraints, is visually buried at the bottom of the legend. Learning how to manually override this default sorting mechanism is not merely a cosmetic adjustment; it is an essential skill for producing professional-grade graphics that communicate insights efficiently and without ambiguity.

This expert tutorial delves into the precise technical method required to gain granular control over legend entries. We will utilize a concise yet powerful technique involving the manipulation of plotting components known as handles and labels. By mastering this process, you ensure that your visualizations communicate their intended message clearly, imposing a specific, user-defined order that prioritizes interpretability over plotting sequence.

The foundation of the solution lies in a three-step process: retrieval, reordering via indexing, and reapplication. The following code snippet encapsulates the entire technique, serving as a robust foundation for customizing any Matplotlib legend:

#get handles and labels
handles, labels = plt.gca().get_legend_handles_labels()

#specify order of items in legend using index positions from the original list
order = [1,2,0]

#add legend to plot by indexing the original handles and labels
plt.legend([handles[idx] for idx in order],[labels[idx] for idx in order])

Understanding Matplotlib’s Chronological Default

When a user invokes the standard plotting functions in Matplotlib, such as plt.plot(), and includes a label argument (e.g., plt.plot(data, label=’Series A’)), Matplotlib registers that element for inclusion in the legend. By default, when the plt.legend() function is finally called, the library systematically gathers these labeled elements and displays them in the exact order in which their corresponding plotting functions were executed throughout the script. This chronological approach dictates the initial index positions of all legend items.

While this implementation is technically sound and straightforward—mimicking the sequence of code execution—it often results in a sub-optimal visual display. Data analysis frequently requires plotting secondary or baseline data before the main focus variable, or data generation may rely on iterative processes that do not inherently follow the desired visual hierarchy. If the logical interpretation of the data, such as sequencing results from highest impact to lowest, differs significantly from the code execution order, the resulting legend can confuse the viewer or misdirect their attention.

For instance, if a user plots three time series—’Baseline’, ‘Experiment 2’, and ‘Experiment 1’—in that order, the default legend will follow suit. If ‘Experiment 1’ is the primary finding, placing it last in the legend diminishes its immediate prominence. To overcome this critical limitation and ensure the legend serves the visual narrative effectively, we must bypass the automated collection process and directly manage the graphical components used by Matplotlib to construct the legend. This requires engaging with the objects known as handles and labels.

The Technical Solution: Manipulating Handles and Labels

The core strategy for imposing a custom order relies on isolating the existing legend components and then feeding them back to the plt.legend() function in a sequence defined by the user. These components are systematically retrieved using the powerful method get_legend_handles_labels(). The method is invoked on the current Axes object, which is accessed via plt.gca() (Get Current Axes), a crucial function in Matplotlib programming.

The function get_legend_handles_labels() returns two crucial lists: the handles list, containing the graphical representations (e.g., the line objects, marker symbols, or patch artists); and the labels list, containing the corresponding text strings assigned during the plotting stage. Both lists are returned in the default chronological order established by the plotting sequence.

Once these two lists are obtained, the modification is simple: we create an order list. This list contains the zero-based integer indices corresponding to the desired arrangement. For example, if the default order is (A, B, C), and we desire (C, A, B), the index list would be [2, 0, 1]. This index array acts as a map, defining how the original elements should be positioned in the final output.

The final step involves passing the newly arranged lists back to plt.legend(). This reapplication is typically achieved using list comprehension in Python, which efficiently selects the items from the original handles and labels lists according to the custom sequence defined by our order array. By providing the function with two explicitly ordered lists (handles and labels), we instruct Matplotlib to build the legend precisely as specified, overriding any internal sorting logic.

Practical Implementation: A Detailed Code Example

To solidify this concept, let us walk through a practical scenario involving simulated sports performance data. We will utilize the Pandas library for efficient data handling and Matplotlib for visualization. This example clearly demonstrates how to enforce a preferred logical order that contradicts the initial plotting sequence.

In this scenario, we create a line chart plotting three statistical series: Points, Assists, and Rebounds. Crucially, the plotting commands are executed in the order: Points (Index 0), Assists (Index 1), and Rebounds (Index 2).

import pandas as pd
import matplotlib.pyplot as plt

#create data
df = pd.DataFrame({'points': [11, 17, 16, 18, 22, 25, 26, 24, 29],
                   'assists': [5, 7, 7, 9, 12, 9, 9, 4, 8],
                   'rebounds': [6, 8, 8, 10, 14, 12, 12, 10, 11]})

#add lines to plot (Creation Order: 0=Points, 1=Assists, 2=Rebounds)
plt.plot(df['points'], label='Points', color='green')
plt.plot(df['assists'], label='Assists', color='steelblue')
plt.plot(df['rebounds'], label='Rebounds', color='purple')

#add default legend
plt.legend()

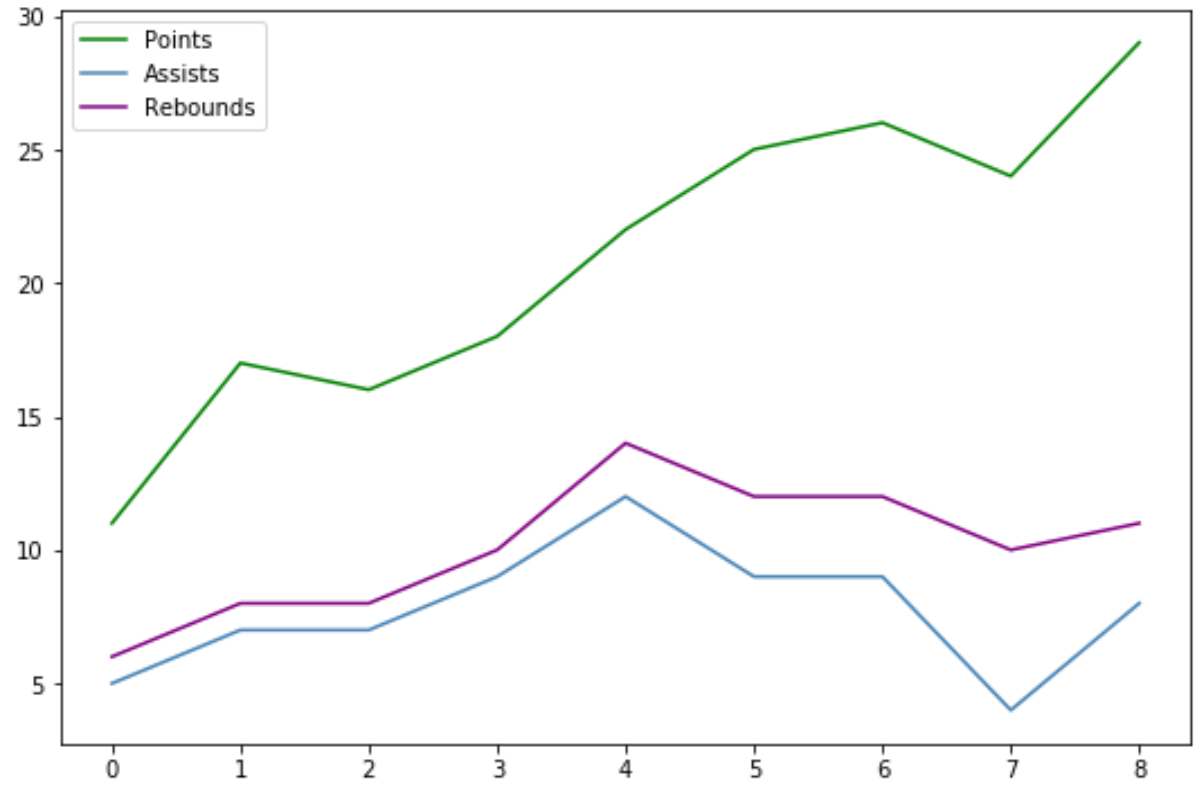

As expected, the initial legend reflects the plotting order, resulting in ‘Points’ being listed first, followed by ‘Assists’ and ‘Rebounds’. This default arrangement is displayed in the visualization below:

Now, assume that for analytical purposes, we want to shift focus. We decide that the secondary metrics (‘Assists’ and ‘Rebounds’) should precede the primary metric (‘Points’) in the legend. We achieve this by defining our custom index array and applying the handles/labels manipulation technique:

import pandas as pd
import matplotlib.pyplot as plt

#create data
df = pd.DataFrame({'points': [11, 17, 16, 18, 22, 25, 26, 24, 29],
                   'assists': [5, 7, 7, 9, 12, 9, 9, 4, 8],
                   'rebounds': [6, 8, 8, 10, 14, 12, 12, 10, 11]})

#add lines to plot (Order remains Points, Assists, Rebounds)
plt.plot(df['points'], label='Points', color='green')
plt.plot(df['assists'], label='Assists', color='steelblue')
plt.plot(df['rebounds'], label='Rebounds', color='purple')

#get handles and labels
handles, labels = plt.gca().get_legend_handles_labels()

#specify desired order: Assists (1), Rebounds (2), Points (0)
order = [1,2,0]

#add legend to plot using the new sequence
plt.legend([handles[idx] for idx in order],[labels[idx] for idx in order])

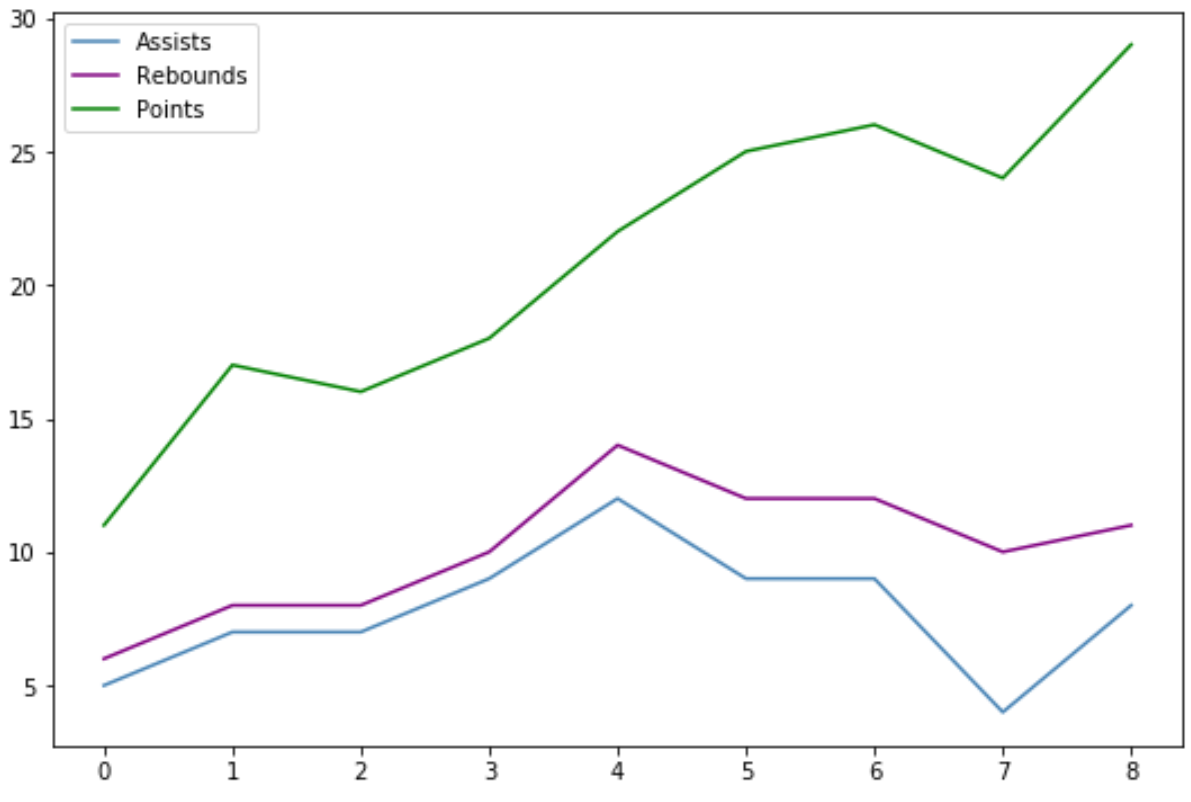

The resulting plot successfully enforces our custom ordering. The legend now accurately displays the sequence: Assists, Rebounds, and then Points, demonstrating complete control over the visual presentation, independent of the plotting code sequence.

Deconstructing the Index Map: How order = [1, 2, 0] Works

A common point of confusion when first applying this technique is misunderstanding the role of the index array, such as order = [1, 2, 0]. It is essential to remember that this array does not define the new index positions (0, 1, 2); instead, it specifies which of the original index positions should be selected for the new legend sequence. It acts as a set of instructions for retrieval.

Based on our example’s plotting code, the original index mapping derived from get_legend_handles_labels() was:

1. Index 0: Represents the ‘Points’ series (Green line).
2. Index 1: Represents the ‘Assists’ series (Steelblue line).
3. Index 2: Represents the ‘Rebounds’ series (Purple line).

Our custom array, order = [1, 2, 0], instructs Matplotlib to construct the final legend in the following manner, ensuring the correct graphical handle is always paired with its corresponding label:

• New Position 0: Retrieve the item from original index 1. This yields the handle and label for “Assists”.
• New Position 1: Retrieve the item from original index 2. This yields the handle and label for “Rebounds”.
• New Position 2: Retrieve the item from original index 0. This yields the handle and label for “Points”.

By mapping the desired output sequence back to the source indices, we guarantee the integrity of the visualization. The line color and pattern remain correctly associated with the descriptive text, achieving the clear presentation order of Assists, Rebounds, and finally, Points.

Strategic Benefits and Best Practices for Custom Legend Ordering

The ability to manually set the legend order offers significant analytical and professional advantages over relying on the default chronological sorting provided by Matplotlib. This granular control is vital for maximizing the communicative impact of any data visualization, aligning the graphical presentation with the overall narrative structure.

One of the primary strategic benefits is the enhancement of the narrative flow. Visualizations are inherently storytelling tools. If the most compelling or relevant data series is plotted late in the process, the default legend order buries that critical information. Custom ordering ensures that the legend immediately highlights the key findings or primary variables, guiding the viewer’s interpretation in a predetermined logical sequence that supports the hypothesis or conclusion being presented.

Furthermore, custom ordering facilitates logical grouping and hierarchy, particularly in complex plots featuring numerous variables. Analysts can group related metrics—such as placing all “Control Group” results before “Intervention Group” results—regardless of when those lines were drawn. This structured arrangement dramatically reduces cognitive load for the viewer, enabling faster and more accurate comprehension of the comparative relationships within the data. It allows the visualization to function as a clear, organized document rather than a simple dump of plotted coordinates.

To ensure robustness and maintainability in your Python workflow, adhere to these best practices when implementing custom legend ordering:

1. Prioritize Consistency: The sequence defined in the legend must logically correspond to the visual hierarchy on the plot. If lines are ranked based on their average value, the legend should reflect that same ranking. Inconsistency between the visual presentation and the key weakens the overall analysis.
2. Rigorous Index Verification: Always confirm the source index positions (0, 1, 2, …) provided by get_legend_handles_labels() before defining the custom order array. Mismatched indices are the leading cause of errors, resulting in mislabeled lines where the wrong color or marker is paired with the wrong label text.
3. Embrace Programmatic Sorting: Avoid hardcoding the order list, especially in production environments or scripts handling dynamic data. Instead, define the order dynamically based on objective data criteria (e.g., sorting labels alphabetically, by standard deviation, or by the maximum value of the series). This programmatic approach ensures the customization remains accurate even if the underlying data inputs or the number of plotted series changes.

Mastery of the handles/labels manipulation is a cornerstone of advanced Matplotlib skills, providing the foundation for even more complex customizations, such as creating custom proxy artists, adding manual entries, or consolidating multiple legends into a single, cohesive unit.

Conclusion: Elevating Plot Quality with Custom Control

Customizing the sequence of items in a Matplotlib legend is an essential step in refining technical plots into professional-grade graphics. By understanding and utilizing the underlying mechanism of handles and labels—retrieving the default components and indexing them with a custom array—data professionals gain comprehensive control over the visual structure. This technique successfully decouples the visual presentation order from the chronological execution order of the plotting code.

Professional data presentation demands attention to detail. Proper legend ordering ensures that the legend effectively supports the narrative of the data visualization rather than simply documenting the code sequence. Always remember to employ the get_legend_handles_labels() method whenever the default plotting order fails to align with the required visual hierarchy, guaranteeing clear, compelling, and informative graphical output.
