Learning Guide: Adjusting Legend Item Spacing in ggplot2 for Enhanced Data Visualization

Creating refined and effective data visualizations is paramount in modern data analysis, and the ggplot2 package in R provides the most robust framework for achieving this goal. While ggplot2 excels at generating complex plots, the seemingly minor details—such as the precise spacing between items in a legend—are critical for ensuring optimal clarity and visual appeal. A well-spaced legend prevents visual clutter, making it easier for the viewer to correlate visual elements with their corresponding categorical labels without distraction.

This comprehensive guide is dedicated to providing expert instruction on controlling both the horizontal and vertical dimensions of legend spacing within your ggplot2 outputs. We will delve into the specific functions and arguments required, notably focusing on the theme() function and the necessary unit specification for precise dimensional control. By mastering these detailed aesthetic adjustments, you will significantly elevate the professionalism and readability of your graphical presentations, transforming functional plots into compelling visual narratives.

The Role of theme() in Legend Layout Customization

In the ggplot2 architecture, plot customization is handled through the powerful and consistent theme() function. This function serves as the central control panel for modifying all non-data components of a visualization, ranging from axis tick marks and background colors to the complete layout and appearance of the legend. For granular control over how individual items within a legend are spaced, theme() exposes dedicated arguments designed specifically for this purpose.

The core arguments utilized for adjusting item spacing are legend.spacing.x and legend.spacing.y. Crucially, these arguments do not accept simple numeric values; instead, they require a unit() object. The unit() function originates from R‘s underlying grid package, which manages graphical elements. By using <a href="https://stat.ethz.ch/R-manual/R-devel/library/grid/html/unit(), developers can specify a precise length using standard measurement scales, such as “cm” (centimeters), “in” (inches), “mm” (millimeters), or “pt” (points), offering absolute control over the spatial dimensions.

While legend.spacing.x directly governs the spacing between items arranged horizontally, and legend.spacing.y manages vertical spacing, vertical adjustments often demand an extra configuration step. If a legend wraps across multiple rows or columns, achieving predictable vertical separation necessitates using the guides() function. Specifically, setting guide_legend(byrow = TRUE) ensures that the legend items are arranged in a row-by-row structure, thereby allowing legend.spacing.y to apply its effect consistently and preventing ambiguous layout behaviors.

Essential Theme Arguments for Spacing Control

The process of modifying spacing between legend items in ggplot2 centers entirely on invoking the theme() function and passing the appropriate spatial parameters. The two critical arguments—legend.spacing.x for horizontal gaps and legend.spacing.y for vertical gaps—are the primary interface for this level of customization. Understanding their required input format is key to successful implementation.

Implementing horizontal spacing is typically achieved by appending the argument structure `+ theme(legend.spacing.x = unit(value, ‘unit_type’))` to your existing ggplot2 object. This structure mandates the use of the unit() function, where you specify a numerical length (e.g., 1.5) and the corresponding measurement unit (e.g., ‘mm’ or ‘in’). Vertical spacing follows an identical syntax using the `legend.spacing.y` argument. The flexibility provided by the unit() function allows developers to integrate plot aesthetics seamlessly with publication or screen display requirements.

A particularly important consideration arises when adjusting vertical spacing, especially when the legend is positioned horizontally or contains many entries that force it to wrap. To ensure that legend.spacing.y applies correctly, it is often necessary to explicitly control the wrapping mechanism via the guides() function. Adding `+ guides(fill = guide_legend(byrow = TRUE))` instructs ggplot2 to arrange the legend keys row by row. This row-based layout is fundamental for legend.spacing.y to apply the desired vertical gap consistently between stacked rows, preventing unpredictable visual artifacts that can occur in default layouts.

For quick reference, the fundamental code structures are provided below:

• For Horizontal Spacing Adjustment:

  p +
    theme(legend.spacing.x = unit(1, 'cm'))


• For Vertical Spacing Adjustment (Requires Row Arrangement):

  p +
    theme(legend.spacing.y = unit(1, 'cm')) +
    guides(fill = guide_legend(byrow = TRUE))

Setting Up the Sample Dataset

To effectively illustrate the practical application of these spacing techniques, a consistent and simple dataset is required. The following examples will utilize a sample data frame named `df`, which simulates hypothetical statistics for several sports teams. This structure is ideal because the categorical variable (`team`) must be mapped to a visual aesthetic (color), thereby generating the customizable legend that we intend to modify.

The structure of the `df` data frame is composed of three vectors: `team`, which holds character strings identifying specific sports franchises; `points`, a numerical measure of points scored; and `assists`, a numerical measure of assists made. This arrangement allows us to create a basic scatter plot where the relationship between points and assists is visualized, and the team identity is differentiated by color, generating the multi-item legend necessary for our demonstrations.

To initialize this sample data frame within R, execute the following code block. This data will serve as the consistent foundation for all subsequent visualization examples, allowing us to clearly isolate the impact of the theme() adjustments on legend appearance.

#create data frame
df <- data.frame(team=c('Mavs', 'Heat', 'Nets', 'Lakers', 'Suns', 'Cavs'),
                 points=c(24, 20, 34, 39, 28, 29),
                 assists=c(5, 7, 6, 9, 12, 13))

#view data frame
df

    team points assists
1   Mavs     24       5
2   Heat     20       7
3   Nets     34       6
4 Lakers     39       9
5   Suns     28      12
6   Cavs     29      13

Practical Application: Adjusting Horizontal Spacing (legend.spacing.x)

Our first practical example focuses on manipulating the horizontal separation between legend items. We begin by constructing a base scatter plot using the `df` data, mapping the `team` variable to the color aesthetic. To make the horizontal adjustment clearly visible, we will explicitly position the legend below the plot area using the `legend.position=’bottom’` argument within theme(). This setup forces the legend entries to be arranged horizontally. Observe the default, often condensed, spacing between the team labels in the initial plot.

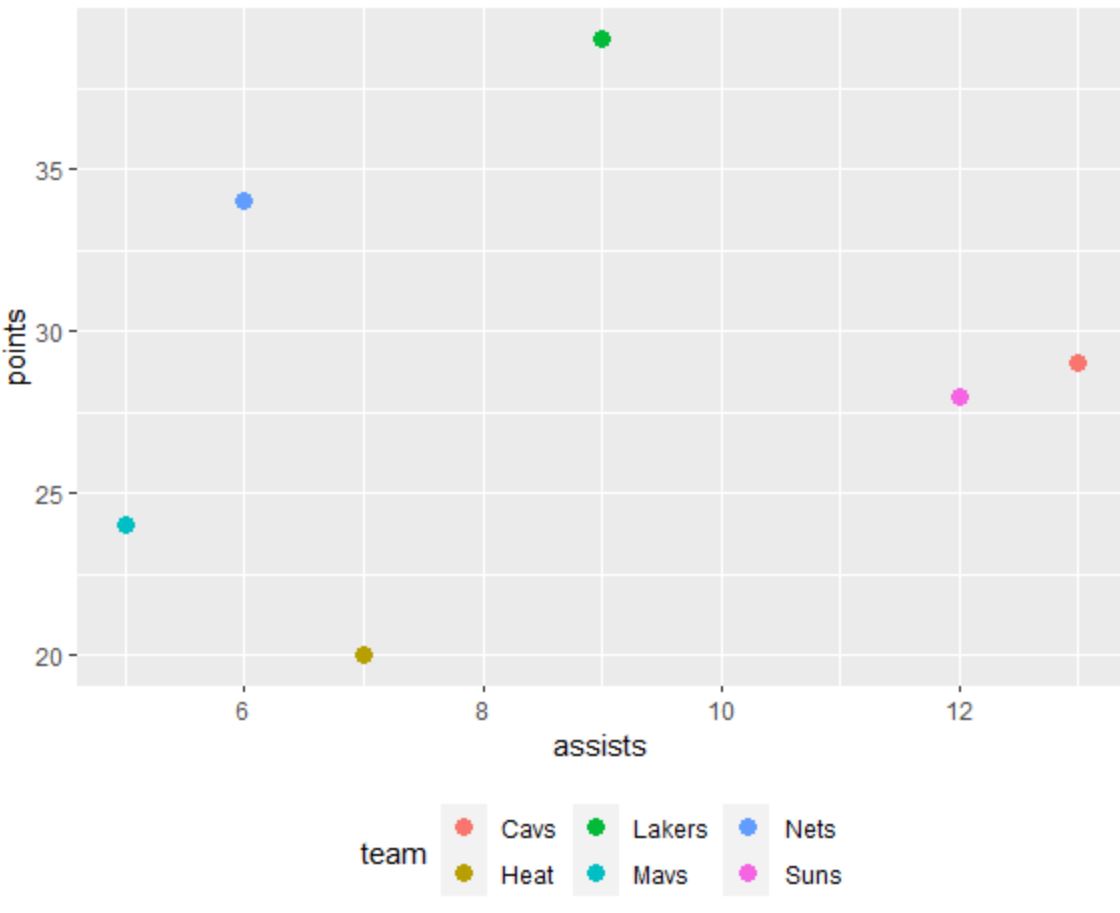

The code below initializes the plot, defining the aesthetic mappings (`aes`) and adding the scatter points (`geom_point`), followed by positioning the legend at the bottom. This resulting visualization establishes our baseline for horizontal spacing before any customization is applied.

library(ggplot2)

#create scatterplot with default spacing in legend
ggplot(df, aes(x=assists, y=points, color=team)) +
  geom_point(size=3) +
  theme(legend.position='bottom')

To introduce greater horizontal separation, we now integrate the legend.spacing.x argument into the theme() function. By setting legend.spacing.x to `unit(1, ‘cm’)`, we mandate a full one-centimeter gap between each successive horizontally arranged legend item. This technique provides immediate and visible results, offering the flexibility to use any value and unit combination within the unit() function to achieve the precise level of separation required for optimal visual balance.

library(ggplot2)

#create scatterplot with increased horizontal spacing in legend
ggplot(df, aes(x=assists, y=points, color=team)) +
  geom_point(size=3) +
  theme(legend.position='bottom',
        legend.spacing.x = unit(1, 'cm'))

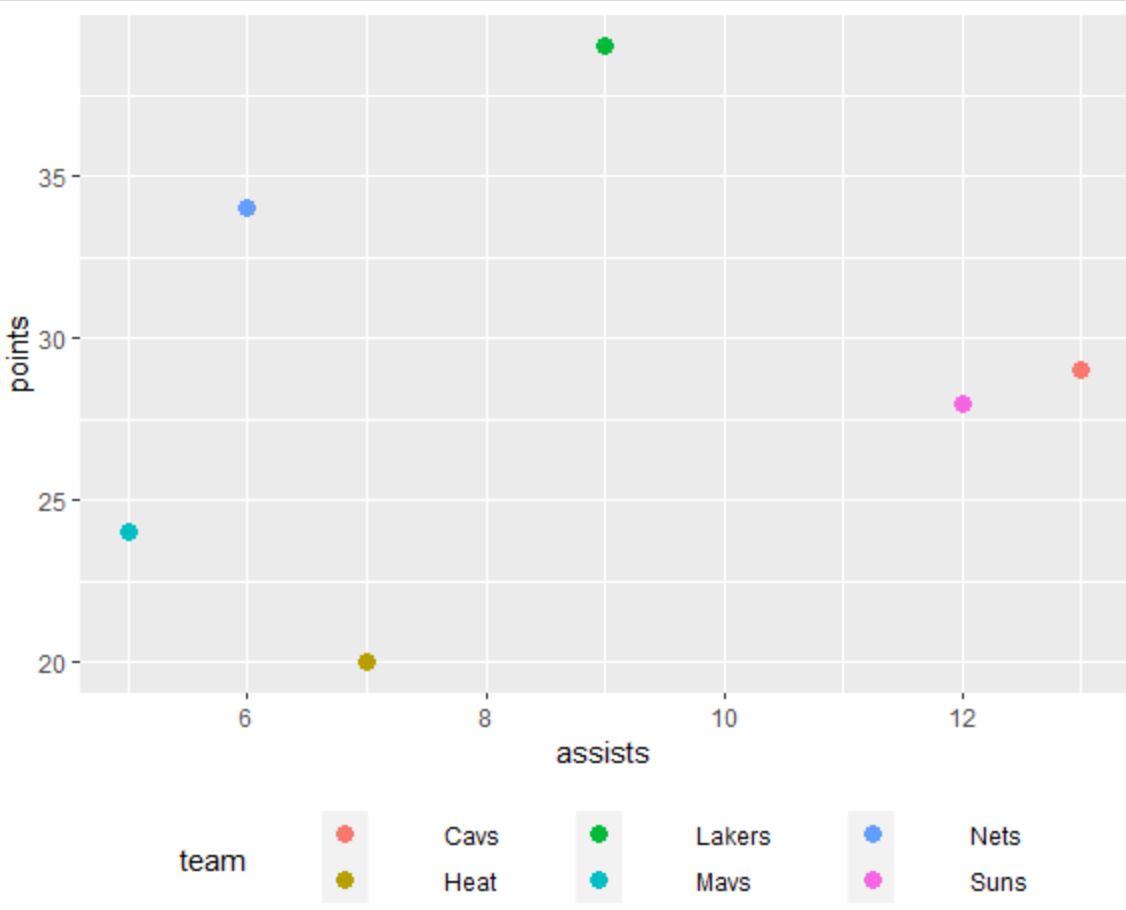

The revised plot clearly demonstrates the increased horizontal spacing between the team entries. This customization is essential when dealing with long categorical labels or when striving for a less visually dense layout. The power lies in the proportional control offered by the unit() function, enabling precise aesthetic decisions that enhance overall plot readability.

Practical Application: Managing Vertical Spacing (legend.spacing.y)

Our second example focuses on manipulating the vertical spacing between legend items. When customizing vertical separation, it is often necessary to ensure the legend is structured vertically, or that wrapping is explicitly controlled. We will begin by generating the plot using ggplot2‘s default settings for the legend position, which typically places it vertically on the right side of the plot.

The initial code omits the legend.position argument, allowing ggplot2 to default to a vertical arrangement, which is the most suitable context for testing vertical spacing changes. Examine the default vertical gaps between the team entries in the resulting visualization before we apply our customization.

library(ggplot2)

#create scatterplot with default spacing in legend
ggplot(df, aes(x=assists, y=points, color=team)) +
  geom_point(size=3)

To increase the vertical spacing effectively, we introduce the legend.spacing.y argument, again specifying a measure using the unit() function, such as `unit(1, ‘cm’)`. Critically, to ensure that vertical spacing is applied reliably, we must include the guides(fill = guide_legend(byrow = TRUE)) component. Even when the legend appears vertical by default, this instruction explicitly confirms the row-by-row arrangement, ensuring that legend.spacing.y applies the desired separation between the items consistently.

library(ggplot2)

#create scatterplot with increased vertical spacing in legend
ggplot(df, aes(x=assists, y=points, color=team)) +
  geom_point(size=3) +
  theme(legend.spacing.y = unit(1, 'cm')) +
  guides(fill = guide_legend(byrow = TRUE))

The output confirms the successful increase in vertical spacing, demonstrating a clear separation between each team’s entry. As emphasized, the critical factor for predictable vertical control is the inclusion of byrow = TRUE within the guides() function, which harmonizes the layout with the spatial instruction provided by legend.spacing.y. This technique is invaluable for improving the flow and legibility of stacked legends.

Conclusion and Next Steps in Customization

The ability to meticulously customize legend spacing is a cornerstone of advanced data visualization using ggplot2. By leveraging the theme() function and its specialized arguments—legend.spacing.x and legend.spacing.y—alongside the precise dimensional control of the unit() function, visualizers can move beyond default settings to create highly polished and aesthetically pleasing graphics. These adjustments directly contribute to the clarity of the plot, ensuring that category differentiation is immediate and unambiguous.

We have successfully demonstrated the application of these techniques for both horizontal and vertical adjustments. A key takeaway from the vertical spacing example is the necessity of employing byrow = TRUE within guides() to guarantee that the layout adheres to the desired vertical separation. These fine-tuning capabilities prevent the issues associated with cramped or excessively sparse legends, ultimately resulting in more impactful and professional data presentations suitable for publication or formal reporting.

We strongly encourage continued experimentation with various values and units in the unit() function to discover the optimal visual balance for diverse datasets and plotting requirements. Furthermore, deeper exploration of the extensive options within the theme() and guides() functions will unlock even more sophisticated customization possibilities for legends and other crucial components of the ggplot2 visualization system, significantly advancing your data visualization skill set.
