Change the Legend Title in ggplot2 (With Examples)

The ggplot2 package, a core component of the tidyverse ecosystem, stands as the professional standard for generating sophisticated and visually compelling statistical graphics within the R programming environment. When preparing data visualizations for reports or publications, clarity and precision are paramount. A frequently required customization involves modifying plot elements such as axis labels, main titles, and, most critically, the legend title.

By default, ggplot2 automatically uses the name of the variable assigned to a specific aesthetic—such as fill, color, or shape—as the default legend title. While functional for initial exploration, this default name is often too technical or lacks the context necessary for clear communication to a broader audience. Fortunately, the package provides two distinct and highly effective methods for changing the legend title in any ggplot2 visualization. The choice between these methods depends entirely on whether you intend only to rename the title or require comprehensive control over both the title and the visual elements (aesthetics) associated with the legend entries.

The two reliable and professional techniques for customizing the legend title are structured around the level of control they offer:

• Method 1: Using the labs() function, which is designed exclusively for quick, non-destructive renaming of labels.
• Method 2: Employing specific manual scale functions, such as scale_fill_manual(), which grants granular control over both the title and the aesthetic properties (like custom colors or shapes).

To quickly illustrate the fundamental difference in syntax between these two powerful approaches, review the following basic code structures:

Method 1: Use labs() (Renaming Only)

ggplot(data, aes(x=x_var, y=y_var, fill=fill_var)) +
  geom_boxplot() +
  labs(fill='Legend Title')

Method 2: Use scale_fill_manual() (Renaming and Aesthetic Control)

ggplot(data, aes(x=x_var, y=y_var, fill=fill_var)) +
  geom_boxplot() +
  scale_fill_manual('Legend Title', values=c('color1', 'color2'))

The subsequent sections of this expert tutorial will provide practical, reproducible examples demonstrating how to implement each of these methods effectively, ensuring your data visualizations achieve professional standards of clarity and customization.

Method 1: Utilizing the labs() Function for Simple Renaming

The labs() function represents the most straightforward and frequently employed method for altering text elements within a ggplot2 visualization. This function is specifically optimized for setting or updating labels across various plot components, including the main plot title, axis labels, and, pertinent to this discussion, the titles of legends.

When implementing labs(), the syntax requires you to reference the specific aesthetic mapping whose legend you intend to modify. For instance, if your visualization uses different colors to categorize data points based on a variable mapped to the fill aesthetic, the corresponding command would be labs(fill = "New Title"). If the variable is mapped to color, you use labs(color = "New Title"). This technique is highly recommended as the default approach whenever your sole requirement is to substitute the variable name with a clearer, more descriptive title for the legend, while preserving the color palette automatically generated by ggplot2.

To illustrate this functionality, we will first establish a base plot using a simulated dataset. This dataset is structured to include categorical variables for team and program type, alongside numerical values. This setup enables us to generate a grouped boxplot, visualizing the distribution of values across different program types within distinct team categories. This foundational example will clearly demonstrate the starting point before any customization is applied.

Example 1: Creating the Default Boxplot

The following R code initializes the necessary ggplot2 library, constructs a sample data frame, and generates the initial plot visualization. It is essential to observe that the default legend title is automatically generated using the exact name of the variable assigned to the fill aesthetic, which is designated as program in our current example.

library(ggplot2)

#create dataset
data <- data.frame(team=rep(c('A', 'B', 'C'), each=50),
                   program=rep(c('low', 'high'), each=25),
                   values=seq(1:150)+sample(1:100, 150, replace=TRUE))

#create boxplot
ggplot(data, aes(x=team, y=values, fill=program)) +
  geom_boxplot()

As clearly depicted in the resulting plot image, the legend title defaults precisely to the name of the variable, program, confirming that it directly matches the aesthetic mapping defined in the initial plot setup.

Example 2: Applying labs() to Customize the Title

In the context of professional reporting, utilizing the raw column name (e.g., program) is often insufficient; a more descriptive title is necessary to maximize the interpretability of the visualization. By simply appending the labs() function to our existing plot code, we can seamlessly override the default title. We must pass the name of the aesthetic we are targeting (fill) and assign it a desired descriptive string, such as “Program Type”.

Crucially, this action only modifies the text title of the legend; it leaves the underlying data, the plot geometry, and the automatically generated color scheme entirely untouched. The simplicity, efficiency, and minimal code footprint of labs() make it the preferred tool for rapid and basic adjustments to legend titles.

library(ggplot2)

#create dataset
data <- data.frame(team=rep(c('A', 'B', 'C'), each=50),
                   program=rep(c('low', 'high'), each=25),
                   values=seq(1:150)+sample(1:100, 150, replace=TRUE))

#create boxplot
ggplot(data, aes(x=team, y=values, fill=program)) +
  geom_boxplot() +
  labs(fill='Program Type')

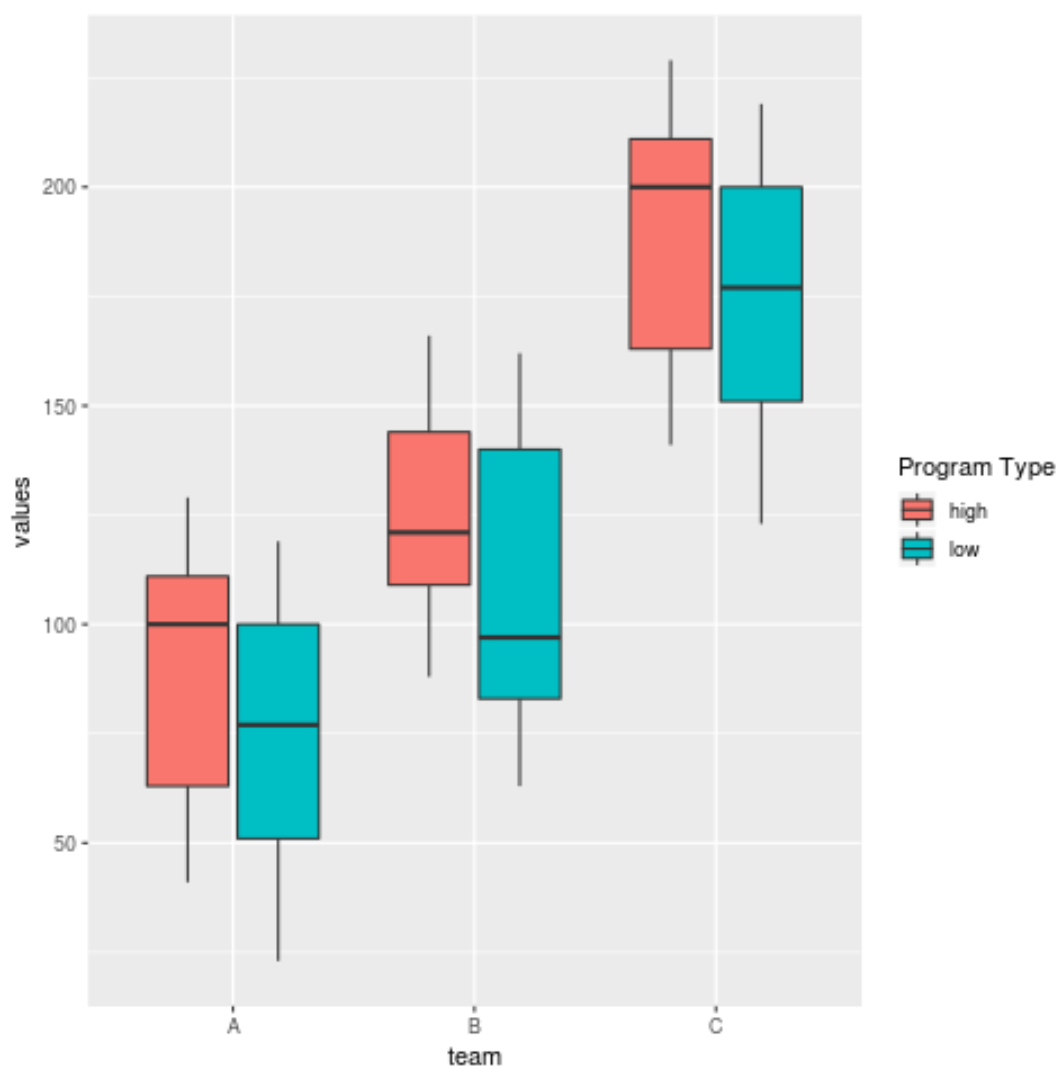

The visualization below clearly demonstrates the immediate and improved interpretability of the legend title after the application of the labs() function, providing a much clearer context for the colored boxplots.

Advanced labs() Usage: Implementing Line Breaks

For situations involving particularly long or complex legend titles, readability can be significantly enhanced by introducing a line break to prevent the title from extending too far horizontally. While this task might seem advanced, ggplot2 seamlessly accommodates this requirement by recognizing standard newline characters within the title string argument.

Specifically, to insert a line break, we utilize the standard n character sequence within the string passed to the labs() function. This character instructs the rendering engine to start a new line at that precise position, resulting in a title that is vertically condensed and avoids cluttering the plot margins. This capability underscores the flexibility of labs() beyond basic single-line text replacement.

library(ggplot2)

#create dataset
data <- data.frame(team=rep(c('A', 'B', 'C'), each=50),
                   program=rep(c('low', 'high'), each=25),
                   values=seq(1:150)+sample(1:100, 150, replace=TRUE))

#create boxplot
ggplot(data, aes(x=team, y=values, fill=program)) +
  geom_boxplot() +
  labs(fill='ProgramnType')

The resulting plot image confirms that the n character successfully separates the title into two distinct lines, significantly enhancing the visual presentation of the legend without compromising the overall plot aesthetics.

Method 2: Using scale_fill_manual() for Comprehensive Aesthetic Control

While the labs() function is ideal for simple text modifications, there are numerous advanced scenarios where analysts need to alter not only the legend title but also the specific visual properties—such as the colors, shapes, or line types—associated with the underlying categories. Achieving this level of granular control over aesthetic mappings necessitates the use of the scale_manual() family of functions.

Because our running example uses the fill aesthetic to define the colors of the boxplot interiors, we must specifically utilize the scale_fill_manual() function. This powerful function accepts several critical arguments. The first, unnamed argument is used to set the new legend title. The second key argument is values, which defines the specific colors (or other aesthetic properties) that must be mapped precisely to the categorical levels in the data.

Employing a manual scale grants the user absolute control, allowing them to override the default color palette chosen by ggplot2. This is essential for maintaining brand consistency, adhering to specific color standards (e.g., for accessibility), or strategically highlighting particular data categories. This method ensures complete customization of the legend’s appearance, encompassing both its descriptive text and its visual representation.

library(ggplot2)

#create dataset
data <- data.frame(team=rep(c('A', 'B', 'C'), each=50),
                   program=rep(c('low', 'high'), each=25),
                   values=seq(1:150)+sample(1:100, 150, replace=TRUE))

#create boxplot
ggplot(data, aes(x=team, y=values, fill=program)) +
  geom_boxplot() +
  scale_fill_manual('Program Type', values=c('pink','blue'))

In the resulting plot, we have successfully achieved dual customization: renaming the legend title to “Program Type” (via the first argument) and simultaneously forcing the specific colors to be “pink” and “blue” (via the values argument), thus fully demonstrating the comprehensive control offered by scale_fill_manual().

Choosing Between labs() and scale_manual()

For efficient and maintainable ggplot2 workflow, understanding the functional difference between these two customization methods is critically important. While both ultimately allow for renaming the legend title, they address distinct requirements based on the desired depth of aesthetic customization:

1. Use labs() when: The only required modification is renaming the title of the legend. This method preserves any automatically generated colors, shapes, or sizes, making it the quickest and least disruptive approach for simple labeling updates.
2. Use scale_manual() when: You need to rename the title and explicitly define the visual properties (colors, shapes, sizes, etc.) associated with each specific categorical level. This method grants total control over the appearance of the legend entries and is mandatory when integrating custom color palettes or brand-specific aesthetics.

It is worth noting that the values provided in the values argument of the scale_manual() functions can be specified using standard color names (e.g., “red”, “cyan”), hex color codes (e.g., “#33A1C9”), or RGB color codes. Ensuring consistency and accuracy in defining these aesthetic values is vital for producing professional, predictable, and publication-quality graphics.
