Learning to Customize X-Axis Labels in ggplot2

Understanding Discrete Scales in ggplot2

The ability to customize visualizations is central to effective data visualization, and this is where the powerful ggplot2 package in R truly excels. Built upon the principles of the Grammar of Graphics, ggplot2 allows users granular control over every visual element, including axis labels. When working with categorical data, the corresponding axis is managed by a discrete scale. By default, ggplot2 uses the raw factor levels or character strings present in your dataset as the labels for these axes. While this automatic labeling is convenient for quick exploration, it often results in suboptimal presentation, especially when the original data labels are technical, overly long, or require translation for a broader audience.

To achieve professional-quality plots suitable for publication or formal reports, we must intervene and define custom labels. This process ensures that the visualization is clear, concise, and immediately understandable to the viewer, regardless of their familiarity with the underlying dataset structure. Modifying the X-axis labels, particularly in bar plots or scatter plots where the X-axis represents distinct groups, is one of the most common customization tasks encountered by analysts using R.

The primary function utilized for this specific task when dealing with categorical data on the horizontal axis is scale_x_discrete(). This function is part of the extensive scaling system within ggplot2, designed specifically to control the appearance and behavior of discrete axes. By leveraging this function, we can replace the default, raw labels with descriptive, tailored strings, greatly enhancing the overall interpretability of the graph.

The Syntax for Customizing X-Axis Labels

The mechanism for overriding default discrete X-axis labels involves passing a vector of new labels to the labels argument within the scale_x_discrete() function. It is absolutely critical that the order and count of the new labels provided match the order and number of the existing discrete levels on the X-axis. If the number of labels supplied is incorrect, ggplot2 will typically throw an error or produce an unexpected output, demonstrating a mismatch between the expected scale structure and the input vector.

The general syntax for applying this customization is remarkably straightforward, requiring only the addition of a single layer to your existing plot object. This demonstrates the additive nature of the Grammar of Graphics, where layers are stacked to build the final visualization. We append the scale_x_discrete() function to the base plot definition, passing a character vector of the desired replacement labels.

The fundamental structure for implementing this change is shown below. Notice the use of a comma-separated list of strings enclosed within the labels argument. Each string corresponds sequentially to a category level established by the data variable mapped to the X-axis in the initial aes() mapping. This method provides immediate control and is often used when the number of categories is small and easily manageable.

p + scale_x_discrete(labels=c('label1', 'label2', 'label3', ...))

Understanding this syntax is the foundation for effective axis customization in ggplot2. The following sections will walk through a concrete example, illustrating how to prepare the data, generate the default plot, and then apply this function to transform the visualization’s appearance.

Practical Example: Setting Up the Data Frame in R

To demonstrate the functionality of scale_x_discrete(), we will begin by creating a sample dataset in R. Data manipulation in R often starts with a data frame, which is the standard structure for storing tabular data. This particular example involves basketball statistics, specifically the points scored by a few prominent teams.

A data frame is an essential component of data analysis in the R environment, serving as a list of vectors of equal length. In our scenario, we require two variables: one categorical variable representing the team name (which will drive our X-axis), and one numeric variable representing the score (which will drive our Y-axis). The precise construction of this data structure is detailed in the code block below, using the built-in data.frame() function.

Suppose we have the following data frame in R that shows the points scored by various basketball teams. Note the clear mapping of team names to their respective scores, creating the foundational dataset upon which our visualization will be built. This structure ensures that when we map the team variable to the X-axis, ggplot2 recognizes it as a discrete factor with four distinct levels.

#create data frame
df <- data.frame(team=c('Mavs', 'Heat', 'Nets', 'Lakers'),
                 points=c(100, 122, 104, 109))

#view data frame
df

    team points
1   Mavs    100
2   Heat    122
3   Nets    104
4 Lakers    109

This resulting data frame, named df, is now properly formatted for use with ggplot2. The next step is to initiate the visualization process and observe the default labeling behavior before proceeding to our necessary customization steps.

Generating the Default Visualization (Before Customization)

Once the data frame is prepared, we can generate a baseline visualization. For this type of categorical data analysis, a bar plot is an appropriate choice to compare scores across different teams. We must first load the ggplot2 library, which contains all the necessary functions for plot creation and customization. The base plot is constructed by mapping the team variable to the X-axis and the points variable to the Y-axis using the aes() (aesthetic) function, and then adding the bar geometry layer using geom_col().

When we execute the code below, ggplot2 automatically inherits the raw values from the team column—’Mavs’, ‘Heat’, ‘Nets’, and ‘Lakers’—and places them directly onto the X-axis as labels. While functionally correct, these abbreviations might not be ideal for a formal presentation. For instance, if the target audience is unfamiliar with these particular team abbreviations, the plot’s clarity is immediately diminished. This scenario highlights the necessity of using scale_x_discrete() to provide more contextually rich labels.

If we create a bar plot to visualize the points scored by each team, ggplot2 will automatically create labels to place on the X-axis, derived directly from the data:

library(ggplot2)

#create bar plot using default labels
ggplot(df, aes(x=team, y=points)) +
  geom_col()

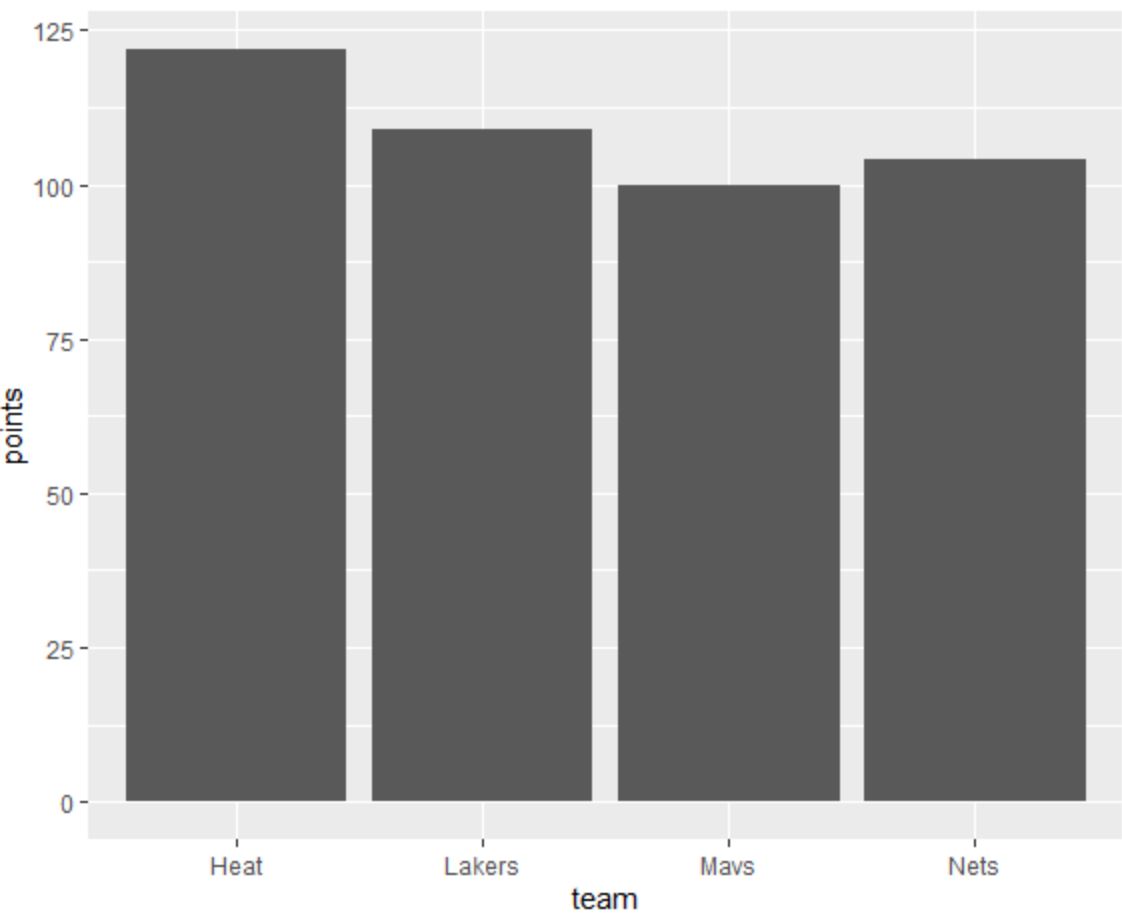

The resulting graph, as shown in the image above, uses the default axis labels. Our objective is now to replace these abbreviations with more descriptive or formal names, thereby improving the overall quality and accessibility of the visualization using the appropriate scaling function.

Implementing Custom Labels Using scale_x_discrete()

The next logical step is to introduce the scale_x_discrete() function to override the default labels. As previously noted, the crucial element is ensuring that the new labels vector is aligned perfectly with the existing factor levels of the team variable. In this case, the order is ‘Mavs’, ‘Heat’, ‘Nets’, and ‘Lakers’. Therefore, our custom labels must follow this exact sequence to ensure correct mapping.

To change the X-axis labels to something different, perhaps generic identifiers or full team names (though here we use ‘label1’ through ‘label4’ for illustrative purposes), we append the scale_x_discrete() function to the plot definition. This function intercepts the default scaling process and substitutes our custom vector for the axis text.

This process demonstrates the efficiency of the ggplot2 framework: complex changes to aesthetic mappings can be achieved simply by adding a single function call. The following code block executes this transformation, incorporating the new labels directly within the function call. Observe that the original data structure (the data frame df) remains unchanged; only the visual representation of the X-axis is altered.

library(ggplot2)

#create bar plot with specific axis order
ggplot(df, aes(x=team, y=points)) +
  geom_col() +
  scale_x_discrete(labels=c('label1', 'label2', 'label3', 'label4'))

As evidenced by the resulting visualization, the X-axis labels now precisely match the custom strings that were specified within the scale_x_discrete() function call. This confirms the successful application of the scaling layer.

Advanced Technique: Using External Vectors for Label Management

While incorporating the label vector directly into the scale_x_discrete() function is effective, it can lead to cluttered code, especially when dealing with a large number of categories or complex, lengthy label strings. A better practice, highly recommended for improved code readability and maintainability, is to define the custom labels as a separate, named variable—a vector—prior to calling the plotting function.

Defining the labels externally serves several important functions. First, it isolates the aesthetic customization data from the plotting logic, making the primary ggplot() call cleaner and easier to read. Second, it allows these labels to be easily reused across multiple plots without duplication, ensuring consistency across a series of visualizations. Finally, if the labels ever need updating (e.g., correcting a typo or translating a term), the change only needs to be made in one place—the external vector definition—rather than searching through complex plotting code.

You can also specify the labels in a vector outside of the scaling function, which is often considered best practice in R programming. We create the vector my_labels and then reference it within the scale_x_discrete() function, streamlining the visualization code significantly. This approach adheres to principles of clean coding by separating data definition from function execution.

library(ggplot2)

#specify labels for plot
my_labels <- c('label1', 'label2', 'label3', 'label4')

#create bar plot with specific axis order
ggplot(df, aes(x=team, y=points)) +
  geom_col() +
  scale_x_discrete(labels=my_labels)

The final plot generated using this advanced technique is identical to the previous one, confirming that passing an external vector to the labels argument achieves the same visual result while offering enhanced code organization. This practice is particularly valuable in large analytical projects where multiple visualizations draw from the same categorical data definitions.

Conclusion and Further Resources

Mastering the customization of axis labels is a fundamental skill when producing publication-ready graphics in R using the ggplot2 package. By effectively utilizing the scale_x_discrete() function and its labels argument, we gain precise control over how categorical data is presented on the X-axis. This control is crucial for translating raw data identifiers into meaningful, audience-appropriate terms, thereby maximizing the communicative power of the visualization.

We have demonstrated two primary methods for applying these custom labels: embedding the label vector directly within the function call and, the preferred method, defining the vector externally for better code structure and reusability. Regardless of the method chosen, the adherence to the correct order of labels is paramount to ensure that the new labels align accurately with their corresponding data categories. This principle holds true across all discrete scales in the Grammar of Graphics framework.

For those seeking to delve deeper into ggplot2 customization, there are numerous related tasks that build upon the understanding of scales. These include manipulating continuous scales (using functions like scale_x_continuous()), rotating labels to prevent overlap, or managing breaks and limits on the axes. The comprehensive scaling system of ggplot2 offers limitless possibilities for tailoring visuals to specific analytical needs.

Additional Resources for ggplot2 Customization

To further enhance your data visualization capabilities, consider exploring these related tutorials and documentation which explain how to perform other common tasks in ggplot2:

• Understanding the difference between geom_bar() and geom_col().

• How to rotate X-axis labels to handle long category names.

• Customizing continuous scales using scale_y_continuous().

• Working with themes to change the overall appearance of your plot.

The ability to manipulate aesthetic elements like axis labels is a cornerstone of producing professional, highly readable statistical graphics.
