Understanding and Applying Chauvenet’s Criterion for Outlier Detection

Understanding the Significance of Outliers in Data Analysis

In the realm of statistics and data science, an outlier is formally defined as an observation point that lies an abnormal distance from other values within a given dataset. These anomalous data points can arise from various sources, ranging from natural variation and experimental errors to systematic measurement flaws or simple data entry mistakes. Regardless of their origin, the presence of outliers poses a substantial challenge to rigorous statistical analysis. Their extreme values can significantly distort measures of central tendency, such as the arithmetic mean, and inflate measures of variability, like the standard deviation. Consequently, failing to accurately identify and address outliers can lead to flawed models, incorrect hypothesis testing conclusions, and ultimately, poor decision-making based on misleading analytical results. Therefore, employing robust and reliable methods for outlier detection is a fundamental prerequisite for ensuring the integrity and validity of any quantitative study.

The necessity for systematic outlier detection methods stems from the inherent vulnerability of many common statistical techniques to extreme values. For instance, the calculation of the sample mean is highly sensitive to outliers; a single, extremely large observation can pull the mean far away from the true central tendency of the majority of the data. Similarly, regression analyses can be unduly influenced, causing the fitted line to inaccurately represent the relationship between variables. While some modern statistical techniques are designed to be robust to these anomalies—such as using the median instead of the mean, or employing non-parametric tests—traditional methods often require the explicit identification and careful handling of these unusual observations. This necessity has driven the development of numerous statistical tests aimed at flagging these points for further investigation.

Among the various techniques available for spotting these anomalies, Chauvenet’s Criterion stands out as a classical and straightforward method, particularly useful when dealing with data that is expected to follow a normal distribution. Unlike more complex techniques involving clustering or machine learning algorithms, Chauvenet’s approach relies on the principle of probability derived from the Gaussian distribution. It provides a structured, objective process for determining whether the probability of obtaining a particular deviation from the mean is so low that the observation should be rejected as an outlier. This criterion offers statisticians and researchers a foundational tool for cleaning data and improving the overall quality of their analytical inputs, ensuring that subsequent statistical inferences are grounded in representative data.

Defining Chauvenet’s Criterion and Its Statistical Foundation

Developed by William Chauvenet in the 19th century, Chauvenet’s Criterion provides a probabilistic rule for the rejection of suspicious data points. The core philosophy of this criterion is that any observation should be retained unless the probability of its specific deviation occurring is less than (1/(2N)), where (N) is the total number of observations in the sample. In simpler terms, the criterion seeks to establish a threshold probability: if an observation is so far removed from the mean that its occurrence is highly improbable given the total sample size, it is flagged for removal. This approach is distinct because the critical value used for detection is not fixed; instead, it dynamically adjusts based on the size of the dataset being analyzed.

The mathematical underpinning of Chauvenet’s Criterion requires the calculation of the expected number of observations that would naturally fall outside a specific range, assuming a perfect normal distribution. If the calculated number of expected outliers is less than 0.5 (i.e., less than half an observation), then the observation furthest from the mean is classified as an outlier. This threshold of 0.5 is equivalent to the probability requirement (1/(2N)). The procedure typically involves calculating the standardized deviation, often referred to as the Z-score, for the observation in question. This standardized measure indicates how many sample standard deviations the observation lies away from the sample mean.

Crucially, the implementation of Chauvenet’s Criterion relies heavily on two foundational statistics derived from the data: the average central value and the spread of the data. The calculation process uses both the sample mean ($overline{x}$) and the sample standard deviation ($s$). These statistics define the expected characteristics of the population from which the data is drawn. The criterion is highly effective precisely because it integrates the sample size ($N$) directly into the determination of the critical threshold, providing a balanced measure that accounts for both the variability within the data and the overall quantity of observations available for analysis. This self-adjusting nature is what gives Chauvenet’s Criterion its historical utility in fields like physics and engineering, where measuring error and data uncertainty are paramount concerns.

The Step-by-Step Procedure for Applying Chauvenet’s Criterion

Applying Chauvenet’s Criterion is a systematic, two-step process that allows researchers to objectively identify potential outliers based on their distance from the central tendency of the data. The first step involves quantifying the deviation of every data point relative to the sample’s variability. This ensures that the analysis is standardized, making the comparison meaningful regardless of the original scale of the measurements. This standardization is achieved by calculating the Z-score for each observation.

The formal mathematical steps are as follows:

1. For each individual value $x_i$ in the dataset, calculate the standardized deviation (Z-score) from the sample mean ($overline{x}$). This deviation is calculated using the following formula:

   Deviation = |$x_i$ – $overline{x}$| / $s$

   where $overline{x}$ represents the calculated sample mean and $s$ represents the calculated sample standard deviation. The use of the absolute value ensures that deviations on both the higher and lower ends of the distribution are treated equally in terms of magnitude. This calculation effectively transforms the raw data point into a measure of distance, expressed in units of standard deviation.

2. Compare the calculated deviation of each individual value to the critical rejection values established by the Chauvenet’s Criterion Table. These critical values are pre-calculated thresholds corresponding to the probability $1/(2N)$. For a given sample size ($N$), the table provides the maximum acceptable deviation (Z-score). If an individual data value possesses a calculated deviation that is strictly greater than the corresponding critical value found in the table, that data value is definitively declared to be an outlier and should be considered for removal or further inspection.

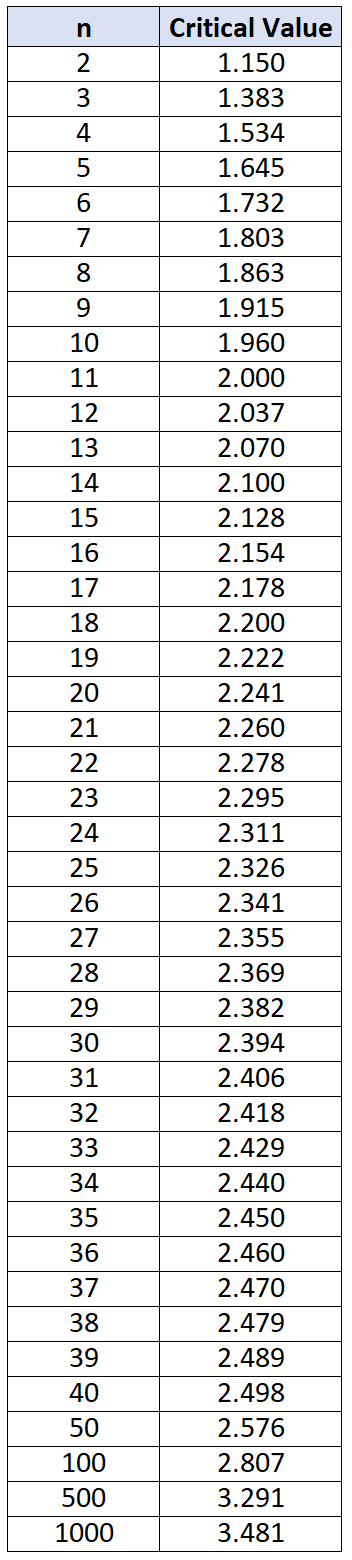

The reference table, which maps sample size ($N$) to the critical maximum allowable deviation, is essential for this process. It embodies the probabilistic nature of the criterion, ensuring that as the sample size increases, the critical deviation threshold also increases slightly, reflecting the higher likelihood of observing extreme values in larger samples.

Illustrative Example: Applying Chauvenet’s Criterion to Identify an Outlier

To solidify the understanding of this technique, let us consider a concrete example involving a small dataset. Suppose we have collected 15 measurements ($N=15$) related to a specific experimental variable. Our goal is to determine if any of these 15 values are statistically significant outliers using Chauvenet’s rule.

The initial dataset of 15 values is presented as follows:

The first critical step involves calculating the fundamental descriptive statistics for this sample. After performing the necessary calculations, we find that the sample mean ($overline{x}$) for this dataset is calculated to be 17.067, and the sample standard deviation ($s$) is determined to be 10.096. These two values form the baseline for assessing the deviation of every single observation. For a sample size of $N=15$, consulting the Chauvenet’s Criterion Table reveals that the critical deviation threshold is approximately 2.128. Any observation with a calculated Z-score greater than 2.128 must be designated as an outlier.

Next, we systematically calculate the deviation for each data point using the standardized formula: Deviation = $|x_i – 17.067| / 10.096$. For instance, considering the two smallest values in the dataset:

• For the first data value, $x_1 = 4$, the deviation is calculated as: $|4 – 17.067| / 10.096 approx 13.067 / 10.096 = 1.294$.

• For the second data value, $x_2 = 6$, the deviation is calculated as: $|6 – 17.067| / 10.096 approx 11.067 / 10.096 = 1.096$.

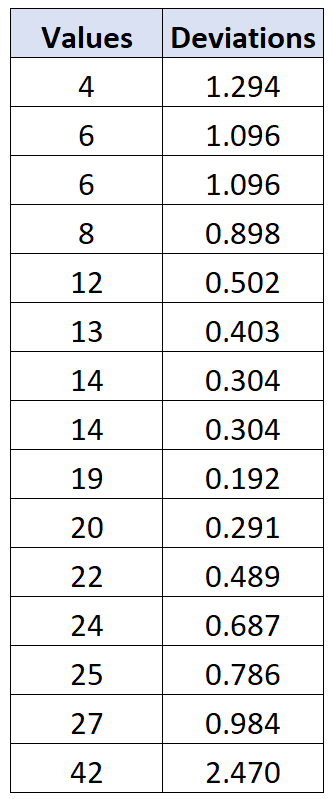

Since both 1.294 and 1.096 are significantly less than the critical threshold of 2.128, these points are retained as valid observations. This process is repeated for all 15 values, generating a comprehensive list of deviations:

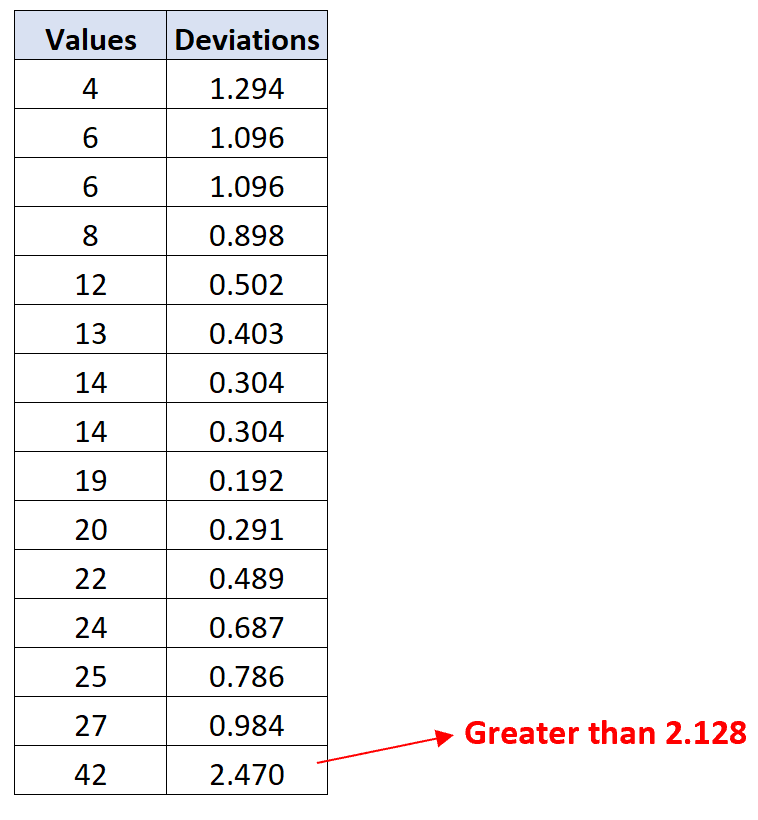

Upon reviewing the full list of calculated deviations, we specifically examine the largest absolute deviation to see if it surpasses the critical value of 2.128. The observation $x_{15} = 42$ yields the largest deviation. The calculated deviation for the value 42 is 2.470. Since $2.470 > 2.128$, the value 42 has a deviation that exceeds the maximum allowable threshold for a sample size of 15. Based on the strict definition of the criterion, the value 42 is statistically identified as the only outlier in this specific dataset.

Critical Assumptions and Limitations of Chauvenet’s Criterion

While Chauvenet’s Criterion is accessible and computationally simple, its validity hinges entirely upon a crucial statistical assumption: that the underlying population from which the sample data is drawn is normally distributed. This assumption of normality is fundamental because the criterion utilizes Z-scores and probability calculations derived specifically from the Gaussian (normal) probability distribution. If the dataset exhibits significant skewness, excessive kurtosis, or simply does not conform to a bell-shaped curve—a scenario common with financial data, exponential growth figures, or count data—then applying Chauvenet’s Criterion to identify outliers is statistically unsound. In such cases, the critical values derived from the normal distribution become meaningless, and the resulting identification of outliers is likely invalid, necessitating the use of alternative, distribution-free methods like the Interquartile Range (IQR) rule.

A second major limitation concerns the potential for sequential or iterative application. A core tenet of using this method is that it should only be applied once to a given dataset. Once an outlier is identified, such as the value 42 in our previous example, and subsequently removed from the sample, the temptation might be to recalculate the sample mean and sample standard deviation for the remaining data and then reapply the criterion. This practice is strongly discouraged. Reapplying the criterion after removing the most extreme point biases the remaining data, potentially causing perfectly valid observations that were previously borderline to now appear as outliers relative to the new, smaller standard deviation. This iterative process, known as “data snooping” or “outlier hunting,” inflates the risk of falsely rejecting valid data points, thereby eroding the integrity of the analysis.

Furthermore, Chauvenet’s Criterion can be overly aggressive, particularly with larger sample sizes. As $N$ increases, the probability threshold $1/(2N)$ decreases, but the critical Z-score required for rejection does not increase dramatically. This means that in very large datasets, the criterion might flag points that are merely typical extreme values for a large normal distribution, rather than true anomalies caused by error. Researchers must also recognize that an outlier, once identified, is not necessarily garbage data. It is incumbent upon the analyst to first investigate the source of the extreme value. Was it a result of a simple data entry error? Was the measurement device faulty? Or does the outlier represent a genuine, albeit rare, event that holds scientific significance? Only after careful validation and verification that the value is not a simple mistake should the analyst consider its removal, bearing in mind the potential impact on overall findings.

Best Practices for Handling Data Identified as Outliers

The identification of a data point as an outlier, whether through Chauvenet’s Criterion or any other statistical test, marks the beginning, not the end, of the decision-making process. The first and most crucial best practice is rigorous data validation. Before any consideration of removal, the researcher must exhaustively verify that the extreme value is not a simple consequence of human error, such as a transcription mistake, a misread instrument, or an incorrect unit conversion. Sometimes, data is simply entered incorrectly (e.g., typing ‘420’ instead of ’42’ or vice versa). If the original source material (e.g., lab notebook, survey form, sensor logs) is available, the anomalous value should be cross-referenced immediately. If a data entry error is confirmed, the value should be corrected rather than deleted.

If the outlier is confirmed to be a true measurement—meaning the value accurately reflects a real, albeit rare, event—the decision to keep or remove it becomes more complex and context-dependent. If the true outlier is deemed to have a disproportionate and significant impact on the overall analytical results, such as dramatically skewing the regression coefficients or invalidating the assumptions of a core statistical test, the analyst may choose to remove it. However, this removal must be transparently documented and justified. Alternatively, instead of removal, robust statistical methods can be employed that minimize the outlier’s influence, such as using median-based statistics, employing trimmed means, or utilizing non-parametric tests which are less sensitive to distributional extremes. Another common technique is Winsorization, where the outlier is replaced by the nearest acceptable non-outlier value, effectively clipping the extreme tail without discarding the observation entirely.

Regardless of the chosen course of action—correction, retention, transformation, or deletion—transparency is paramount in all stages of data analysis. When reporting the results of a study where outliers were identified and treated, it is essential to explicitly mention the method used for detection (e.g., “Outliers were identified using Chauvenet’s Criterion”), the number of points removed, and a brief justification for their exclusion. This level of detail ensures that the research is reproducible and allows readers and peer reviewers to assess the potential impact of the outlier management strategy on the final conclusions. Maintaining the integrity of the scientific record requires that analysts treat these extreme observations not as nuisances to be hidden, but as critical data points that warrant careful scrutiny and transparent handling.
