Understanding and Using the Chi-Square Distribution: A Comprehensive Guide

The Foundation of Quantitative Analysis: The Chi-Square Distribution

The Chi-square distribution ($chi^2$) stands as a pillar of advanced statistics, providing the necessary mathematical framework for numerous methods of statistical inference and hypothesis testing. Unlike descriptive tools that merely summarize observed data, the Chi-square approach allows researchers to transition from sample observations to generalized conclusions about a larger population. This distribution is fundamentally defined by its positive skew and non-symmetrical nature, characteristics that are dynamically controlled by a single, pivotal parameter: the degrees of freedom ($DF$). To conduct rigorous quantitative analysis, mastering the interpretation and use of the corresponding Chi-square distribution table is not merely beneficial—it is essential. This table serves as the definitive benchmark against which calculated test statistics are compared, facilitating the determination of statistical significance.

This comprehensive guide delves deeply into both the theoretical concepts and the practical application of the Chi-square distribution table. The table’s primary function is to serve as a streamlined reference tool, explicitly listing the critical values that mark the boundary of the rejection region for statistical tests. These values are systematically organized based on two core inputs: first, the defined level of risk or confidence, commonly expressed through the probability levels ($P$ or $alpha$), and second, the structural complexity inherent in the dataset, quantified by the degrees of freedom ($DF$). Proficiency in navigating this table empowers analysts to accurately discern whether observed differences or associations within their data represent genuinely meaningful population effects or are simply artifacts arising from random sampling variability. This distinction is paramount for drawing robust and scientifically defensible conclusions across fields such as academic research, social sciences, and sophisticated business analytics.

The unique shape of the Chi-square distribution necessitates the use of a specialized table rather than relying on the standard normal (Z) distribution. Because the Chi-square statistic deals exclusively with squared differences, resulting values are always non-negative, meaning the distribution curve starts at zero and extends indefinitely toward positive infinity. This structure dictates that all hypothesis tests using this distribution are inherently one-tailed tests focused on the upper (right) tail. Consequently, the critical values provided in the table isolate the precise point on the distribution curve corresponding to the area defined by the significance level, ensuring that the researcher maintains control over the potential for Type I error.

Defining Complexity: Degrees of Freedom ($DF$)

The concept of degrees of freedom ($DF$) is arguably the most crucial input required when working with the Chi-square distribution, as it directly dictates the shape of the curve. Statistically, $DF$ represents the number of independent pieces of information used to estimate a parameter, or more intuitively, the number of values in a final calculation that are free to vary without violating a constraint imposed by the data structure. The precise method for calculating $DF$ is highly dependent on the specific Chi-square test being employed.

In the context of a Goodness-of-Fit test, which compares observed frequencies against a theoretical distribution across $k$ categories, the degrees of freedom are calculated simply as the number of categories minus one ($k-1$). This calculation reflects the constraint that if we know the total sample size and the frequencies of $k-1$ categories, the frequency of the final category is automatically determined. Conversely, in the widely used Chi-square Test of Independence, which analyzes the association between two categorical variables organized in a contingency table, the calculation is based on the dimensions of that table. If the table has $R$ rows and $C$ columns, the $DF$ is calculated as the product of the number of rows minus one and the number of columns minus one: $(R-1)(C-1)$.

The $DF$ parameter fundamentally governs the appearance of the distribution curve. As the degrees of freedom increase, the positive skew of the Chi-square distribution gradually diminishes, and the curve begins to approximate the familiar, symmetrical bell shape of the normal distribution. This theoretical convergence is essential, as it explains the relationship between complexity and critical thresholds: lower $DF$ values require larger critical values to achieve the same significance level compared to higher $DF$ values. Researchers must calculate the $DF$ with absolute precision before consulting the table; any error in this initial calculation will inevitably result in selecting an incorrect critical value, leading to a flawed assessment of the null hypothesis. The vertical axis of the critical value table is dedicated entirely to listing these degrees of freedom, typically spanning from $DF=1$ up to $DF=30$ or sometimes more.

Interpreting Probability Levels ($alpha$) and the Type I Error Risk

The second vital component for utilizing the Chi-square table is the probability level ($P$), also known as the alpha level ($alpha$) or the level of significance. This value quantifies the researcher’s willingness to accept the risk of committing a Type I error—the error of incorrectly rejecting the null hypothesis when it is, in reality, true. Standard probability levels utilized across scientific disciplines include $0.05$ (5%), $0.01$ (1%), and $0.001$ (0.1%).

These probability levels are crucial because they define the critical region, or the rejection region, under the distribution curve. If the calculated Chi-square test statistic falls into this critical region, the result is deemed sufficiently rare, assuming the null hypothesis is true, to warrant rejection. The Chi-square table lists these probability levels along its horizontal axis, and these values correspond precisely to the area located in the right tail of the distribution. For instance, selecting $P=0.05$ means the critical value found will delineate the point beyond which only 5% of the distribution area lies. This 5% area represents the most extreme possible outcomes.

By simultaneously selecting a specific $DF$ (row) and a specific $P$-level (column), the researcher isolates the exact critical value needed for their test. This intersection point dictates the threshold for statistical significance. A smaller P-value, such as $0.01$, signifies a more stringent test, requiring a larger calculated Chi-square statistic to achieve significance, thereby reducing the probability of a Type I error but increasing the risk of a Type II error (failing to reject a false null hypothesis). Thus, the selection of the probability level is a fundamental design choice in hypothesis testing that balances these two types of risk.

Practical Guide: Locating Critical Values and Making Decisions

The central function of the Chi-square distribution table is to supply the critical values that serve as the decision threshold. A critical value separates the non-rejection region (where observed results are likely due to chance) from the rejection region (where observed results are statistically significant). If the Chi-square test statistic calculated from the sample data exceeds this critical value, the result is statistically significant at the chosen probability level, and the null hypothesis is rejected. Conversely, if the calculated statistic is less than or equal to the critical value, there is insufficient statistical evidence to reject the null hypothesis, suggesting that the observed data pattern could reasonably be explained by random sampling variability.

Reading the Chi-square distribution table is a systematic, multi-step process that must be performed after the researcher has defined their hypotheses and computed the necessary parameters. The critical values provided within the table act as the final, objective decision maker for the statistical procedure.

The definitive steps for utilizing the table are as follows:

1. Define the Constraints and DF: Accurately calculate the degrees of freedom ($DF$) based on the specific Chi-square test being performed (e.g., $k-1$ for Goodness-of-Fit or $(R-1)(C-1)$ for a Test of Independence).
2. Select the Alpha Level: Choose the desired significance level ($P$ or $alpha$), such as $0.05$ or $0.01$. This level corresponds to one of the column headers in the table.
3. Locate the Critical Value: Find the precise intersection point between the calculated $DF$ row and the selected $P$ column. This numerical value is the $chi^2_{critical}$.
4. Compare Test Statistic: Compare the calculated $chi^2_{calculated}$ (derived from the sample data) with the $chi^2_{critical}$ value obtained from the table.

The decision rule is absolute: If $chi^2_{calculated} > chi^2_{critical}$, the null hypothesis is rejected. If $chi^2_{calculated} leq chi^2_{critical}$, the null hypothesis is retained (not rejected). The visual structure of the table, as illustrated below, immensely simplifies the process of quickly identifying the exact threshold required for the test.

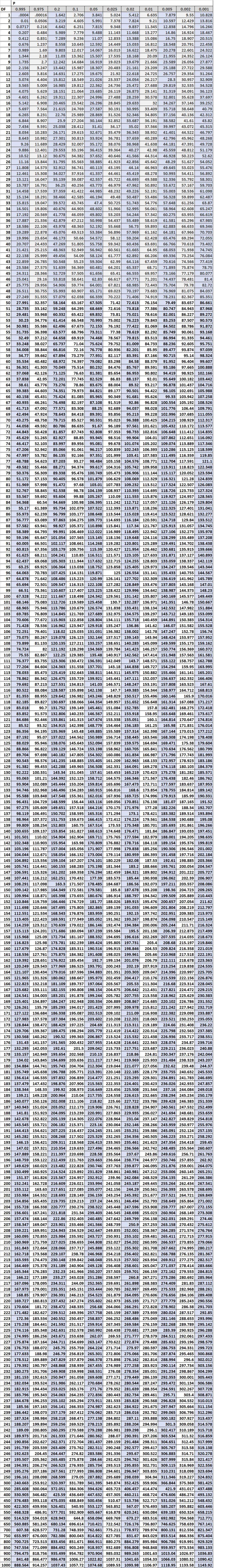

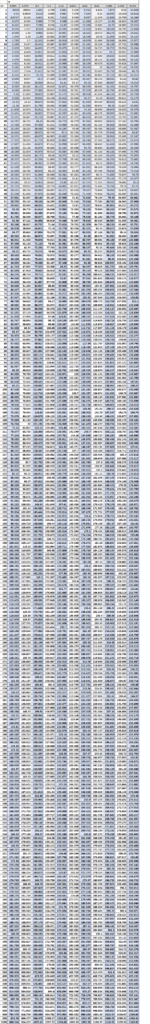

The image below shows the typical layout of the table, displaying the critical values across various probability levels ($P$) and degrees of freedom ($DF$). This structure is essential for locating the threshold value needed to determine the outcome of the hypothesis test.

While modern statistical software often automates this process by providing an exact P-value associated with the calculated statistic, the ability to manually consult the table offers critical theoretical insight. Comparing critical values across different $DF$ levels—for instance, noting that $DF=1$ at $P=0.05$ yields $3.841$, while $DF=10$ at $P=0.05$ yields $18.307$—clearly illustrates how the increasing complexity and certainty associated with more degrees of freedom shifts the decision threshold.

Core Applications: Goodness-of-Fit and Independence Tests

The Chi-square test is predominantly applied within two major hypothesis testing frameworks, both designed specifically for analyzing categorical data (data where observations fall into discrete groups rather than continuous scales). Both frameworks depend entirely on the critical values found in the distribution table for their decision-making phase.

The first primary application is the Chi-square Test for Goodness-of-Fit. This test is employed to determine whether an observed frequency distribution significantly deviates from a hypothesized or expected theoretical distribution. For example, a quality control team might use this test to check if the color distribution of defects (e.g., Red, Blue, Green) matches the historical assumption that defects are equally likely across all three colors. The test compares the observed counts in each category directly against the expected counts (derived from the null hypothesis). A large discrepancy results in a high calculated Chi-square statistic. If this calculated value surpasses the critical value from the table, the null hypothesis of ‘good fit’ is rejected, concluding that the observed data does not align with the theoretical distribution.

The second, and arguably more frequent, application is the Chi-square Test of Independence. This test is used to assess whether there is a statistically significant association between two categorical variables. For instance, a political analyst might investigate if there is an association between voter age group (18-25, 26-40, 41+) and preferred news source (TV, Print, Online). The data must be organized into a contingency table (a cross-tabulation of the two variables). The null hypothesis posits that the two variables are independent (not associated). The expected frequencies for each cell are calculated under this assumption of no relationship. If the calculated Chi-square statistic is greater than the critical value identified via the table, the null hypothesis of independence is rejected, allowing the researcher to conclude that a significant relationship exists between the variables.

In both applications, the proper calculation of the degrees of freedom is non-negotiable, as it is the key to accessing the correct critical threshold. Once the critical value is identified using the table, the decision rule remains universally consistent: a calculated value that exceeds the critical value signifies statistical significance at the predetermined probability level.

Assumptions, Limitations, and Practical Significance

While the Chi-square test is a powerful methodology for analyzing frequency data, its statistical validity is strictly contingent upon meeting several fundamental assumptions. If these assumptions are violated, the interpretation derived from the critical values in the table may be misleading or entirely invalid. Firstly, the input data must consist of raw frequencies or counts; the test cannot be applied directly to percentages, proportions, or continuous measurements. Secondly, all observations must be independent; that is, the inclusion of one data point in a specific category must not influence the probability of any other data point falling into any category.

The most critical assumption relates directly to the magnitude of the expected frequencies. For the Chi-square distribution to serve as an accurate approximation of the true underlying distribution, the expected count in every cell of the contingency table (or category for Goodness-of-Fit) must be sufficiently large. The widely accepted standard guideline states that no more than 20% of the cells should have an expected frequency less than 5, and absolutely no cell should have an expected frequency less than 1. Violating this assumption can lead to an artificially inflated calculated Chi-square statistic, increasing the risk of a Type I error where the null hypothesis is incorrectly rejected based on the critical value.

Furthermore, researchers must acknowledge the test’s sensitivity to sample size. Extremely large sample sizes can render even minor, practically irrelevant differences between observed and expected frequencies statistically significant, leading to the rejection of the null hypothesis even if the actual effect size is negligible in the real world. Conversely, overly small sample sizes compromise the statistical power of the test, making it difficult to detect a true association even when one exists. Therefore, researchers must always temper their reliance on the critical value derived from the table with a careful consideration of the practical significance of the findings, ensuring that statistical significance translates into meaningful, real-world conclusions.

Conclusion: Mastering Statistical Decision-Making

The Chi-square distribution table is an indispensable tool in quantitative research, representing far more than a simple numerical chart. It functions as a vital mechanism for objective decision-making concerning categorical data. By supplying the precise critical values necessary to define the boundary of the rejection region, the table enables researchers to rigorously test hypotheses regarding frequency distributions and associations between variables. The key to its accurate utilization rests upon correctly identifying the structure of the test, which informs the precise calculation of the degrees of freedom ($DF$), combined with the selection of the appropriate probability level ($P$).

In an era where statistical analysis is often automated by software, the foundational knowledge gained from understanding how to manually consult and interpret this table remains profoundly valuable. It solidifies the theoretical connection between analyzed sample data and the resulting population inference, ensuring that practitioners fully grasp the underlying probability associated with their findings. Whether conducting a complex test of independence on a large survey dataset or a straightforward goodness-of-fit analysis, the Chi-square table provides the essential, authoritative benchmark for determining the statistical significance of observed patterns, thereby securing its enduring place as a cornerstone tool in robust quantitative methodology.
