Learning to Compare Data in Excel: A Three-Column Analysis Tutorial

Introduction: Mastering Three-Column Comparison in Excel

In professional data analysis, the ability to efficiently cross-reference and compare values across multiple columns is a fundamental necessity. Whether your task involves verifying data accuracy, identifying inconsistencies across different sources, or isolating specific patterns, Excel provides powerful tools to manage these complex tasks with precision. This comprehensive guide will walk you through a practical and robust methodology for simultaneously comparing the contents of three separate columns, providing you with a clear, adaptable formula structure suitable for numerous scenarios.

The requirement for data comparison arises constantly across various disciplines. Consider having financial records detailing monthly expenditures from three different departments, or quality control logs collected across three production runs. Quickly determining where all three data points are perfectly aligned—or where they diverge—is crucial for informed decision-making. This tutorial is designed to equip you with the skills to execute such multi-column comparisons seamlessly, guaranteeing both accuracy and significant time savings.

Our method centers on utilizing conditional logic, specifically by combining Excel’s foundational IF function with the essential AND function. These functions are the core building blocks for dynamic evaluation within spreadsheets, enabling you to construct criteria that respond to specific inputs. Beyond just calculating results, we will also demonstrate how to significantly improve data visualization by applying Conditional Formatting to immediately highlight matching or non-matching entries.

Deconstructing the Logical Formula for Three-Column Equality

To successfully evaluate whether the values residing in three distinct columns are identical, we must construct an elegant logical formula. This construction relies heavily on nesting the AND function within the IF function. The basic, yet incredibly effective, structure used for this comparison is presented below:

=IF(AND(B2=C2,C2=D2),"Equal","Not Equal")

A deeper understanding of this logic reveals its efficiency. The central element is the AND function, which is designed to test multiple conditions simultaneously and will only return a value of TRUE if every single condition stipulated is satisfied. In the context of three-column comparison, we only need to perform two specific tests to guarantee parity across all three: first, checking if the value in B2 equals the value in C2 (B2=C2), and second, verifying if the value in C2 equals the value in D2 (C2=D2). If B=C and C=D, then mathematically and logically, A must equal D.

The result generated by the AND function (either TRUE or FALSE) is then passed as the logical test to the outer IF function. The IF structure requires three arguments: the test, the result if TRUE, and the result if FALSE. Consequently, if the AND function yields TRUE (meaning B2, C2, and D2 contain identical values), the IF function returns the easily readable text string: “Equal”. If any one of the two internal conditions fails, the AND function returns FALSE, and the final output is “Not Equal”. This method provides an immediate and unambiguous assessment of parity across your selected cells.

Practical Example: Analyzing Consistency in Player Scores

To translate this theoretical logic into a tangible application, let us work through a concrete dataset example. Imagine you are managing statistics for a sports league and need to monitor performance consistency. Specifically, you have tracked the highest-scoring player for several basketball teams across three consecutive games: Game 1, Game 2, and Game 3. Your primary objective is to swiftly identify which teams maintained the exact same top scorer in all three games.

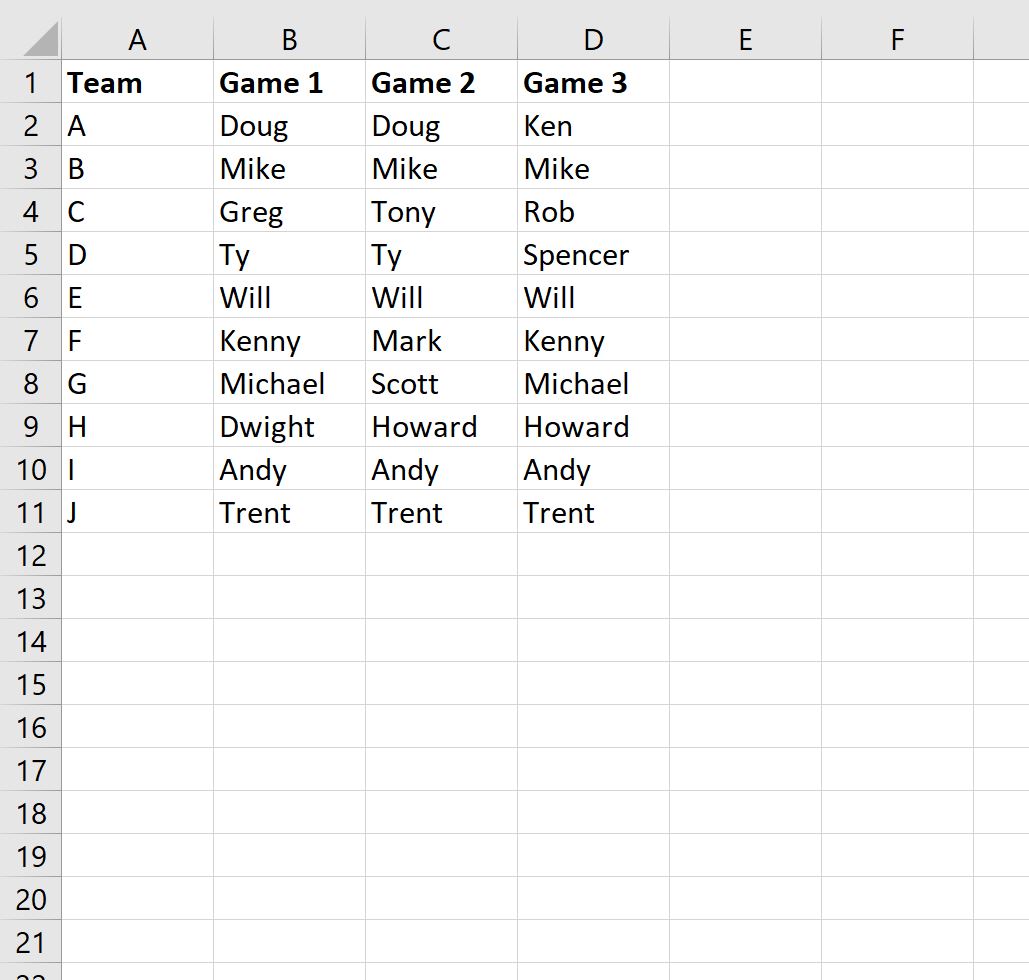

The dataset layout, which is illustrated in the figure below, is organized perfectly for this purpose. Column B lists the top scorer for Game 1, Column C for Game 2, and Column D for Game 3. By evaluating each row, we will determine if the text strings—the player names—in these three columns are identical. This scenario demonstrates the versatility of the comparison formula, confirming its utility for both numerical data and text-based records, which is common in data validation tasks within Excel.

We aim to populate a new column (Column E) with results that clearly indicate whether the top scorer was consistent across all three games for a given team. This output will serve as a powerful identifier, instantly flagging rows that represent consistent performance or, conversely, highlighting rows that require deeper investigation due to changes in leadership. This example effectively demonstrates how simple logical comparisons can yield critical insights into consistency and data integrity.

Step-by-Step Application of the Comparison Formula

With our dataset organized and the objective defined, the immediate next step is to initiate the comparison by applying the logical formula to the first row of data. This initial application is crucial for establishing the correct logic and ensuring its validity before propagating it across the entire spreadsheet. We will place our resultant output in cell E2, corresponding to the first team’s scoring data.

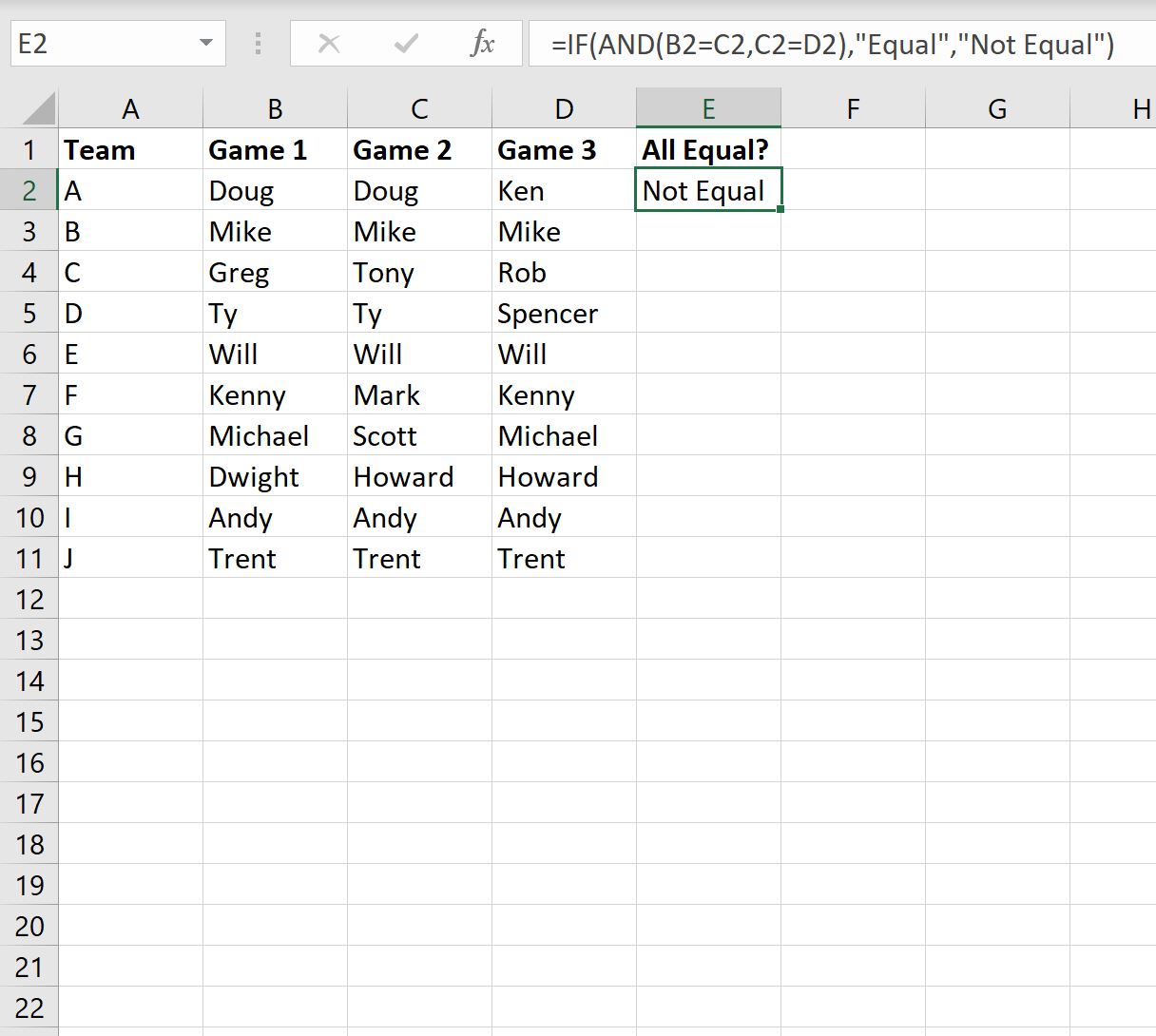

Carefully input the complete formula into cell E2 and confirm the entry by pressing Enter:

=IF(AND(B2=C2,C2=D2),"Equal","Not Equal")

Upon executing the formula, you should immediately see the result displayed in cell E2. As anticipated from the sample data, the formula returns “Not Equal”. This outcome is correct because the player names in the first row (B2, C2, and D2) are distinctly different. This manual verification step is vital: it confirms that our nested IF function and AND function combination is successfully evaluating the required conditions for absolute equality across the three specified columns.

A key architectural element here is the use of relative cell references (B2, C2, D2). This ensures that the logical framework is scalable. When we move to the next stage—extending the formula down the column—Excel will automatically adjust these references to the corresponding row (e.g., B3, C3, D3), preserving the integrity and accuracy of the comparison logic across the entire dataset.

Scaling the Comparison Using the Fill Handle

Once the initial formula in cell E2 has been validated, the next step is to apply this comparison logic to every remaining row in the dataset. Excel’s fill handle is the most expedient tool for this task, allowing you to copy the formula efficiently down a column while intelligently updating the relative cell references for each new row.

To utilize this feature, first select cell E2. Look closely for the small, green square located at the bottom-right corner of the selected cell boundary—this is the fill handle. Click on this square and drag it downwards until you have covered all the rows in Column E that correspond to your data in columns B, C, and D. As you drag, Excel automatically populates the formula into each successive cell, meticulously adjusting the row numbers (e.g., changing B2, C2, D2 to B3, C3, D3, and so forth).

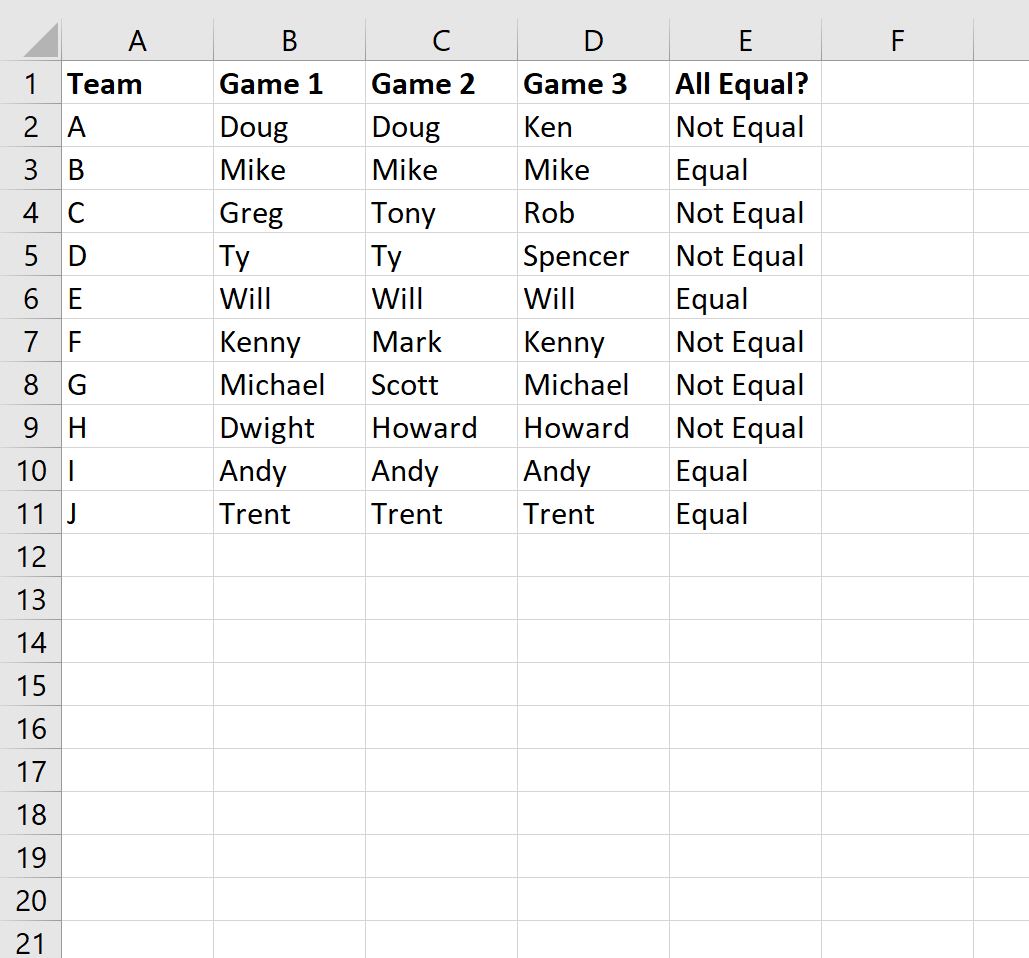

The resulting worksheet, as shown above, provides a complete overview, with each row in Column E clearly labeled either “Equal” or “Not Equal”. You will notice that “Equal” appears only in the rows where the values in all three comparative columns (B, C, and D) are perfectly matched. For instance, if the player name “L. James” is present in B4, C4, and D4, the output in E4 will be “Equal.” This systematic and automated application guarantees that every data entry is rigorously checked against your criteria, drastically reducing manual effort and eliminating the potential for human error in large datasets.

Visual Enhancement through Conditional Formatting

While the text output of “Equal” or “Not Equal” is technically accurate, the analytical power of your spreadsheet can be dramatically increased by incorporating visual cues using Conditional Formatting. This dynamic Excel feature enables you to apply specific formatting—such as background colors or bold text—to cells that satisfy predefined conditions. For our comparison, we will use it to instantly highlight all rows where the three columns were found to be identical, making patterns and exceptions immediately apparent.

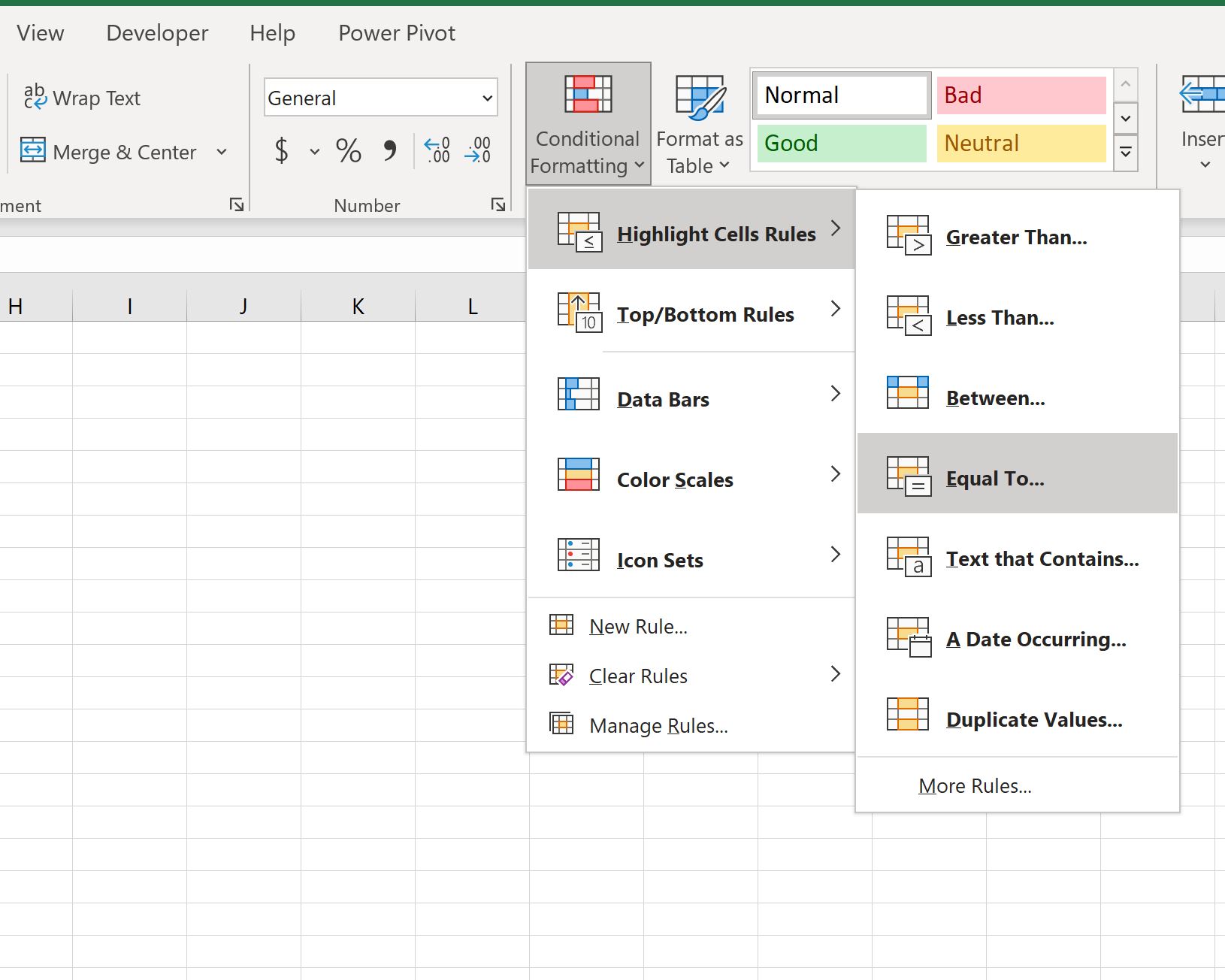

To begin, select the entire range of comparison results in Column E (e.g., highlight the cell range E2:E11). Next, navigate to the Home tab in the Excel ribbon. Locate the Styles group and click the Conditional Formatting button. From the resulting dropdown menu, hover over Highlight Cell Rules, and then select the Equal To… option. This sequence initiates a dialog box where you will define the exact criteria for the visual highlight.

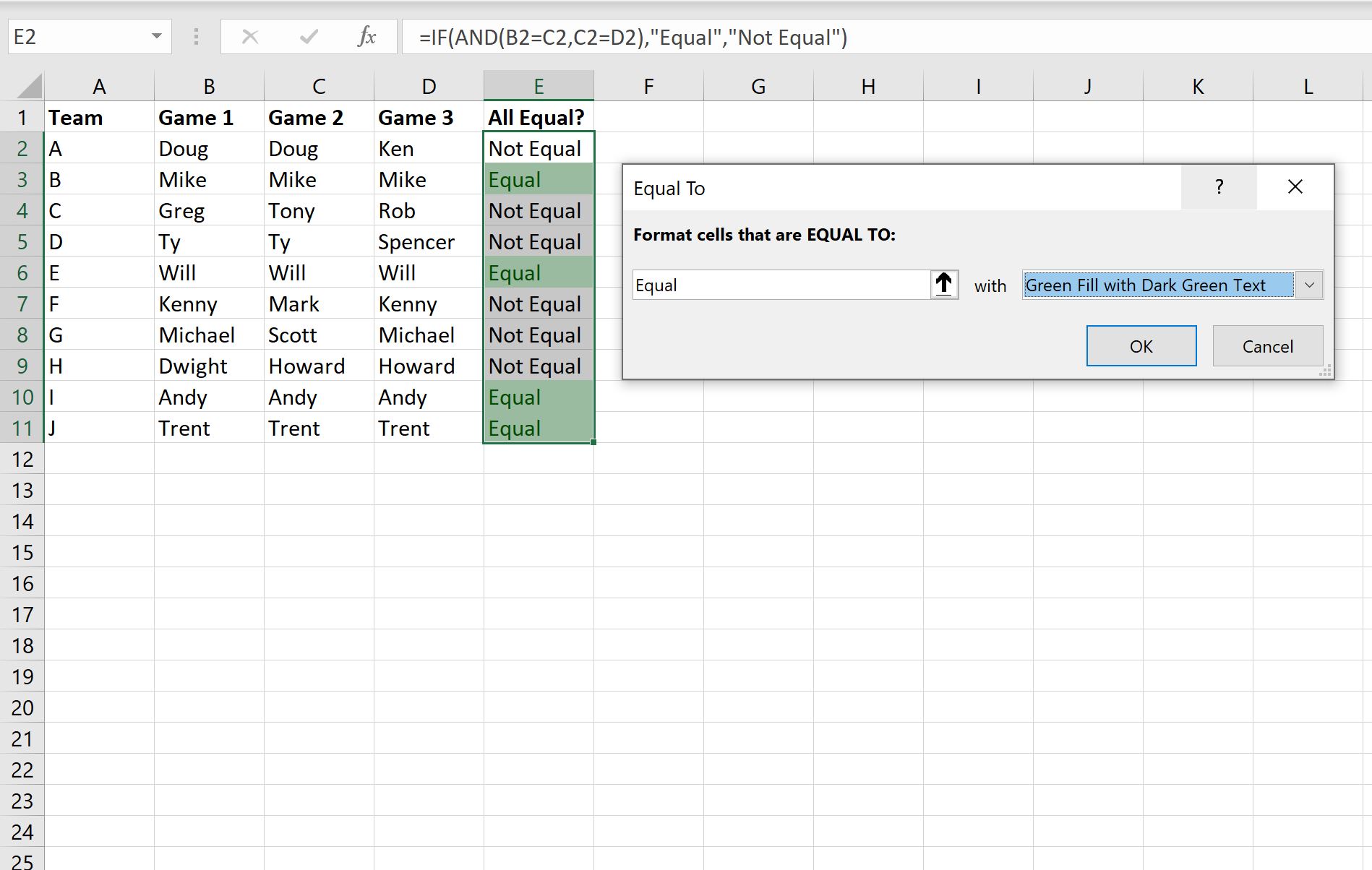

In the “Equal To” dialog window, you must specify the text string that triggers the formatting. Type the value “Equal” into the designated input field. Then, select a contrasting and appropriate formatting style from the dropdown menu—a light green fill with dark green text is a common choice for positive matches, indicating success or consistency. Once your selection is finalized, click OK to apply the formatting rule. This action will visually transform your comparison column, creating an intuitive layer of visual analysis that is easy to interpret.

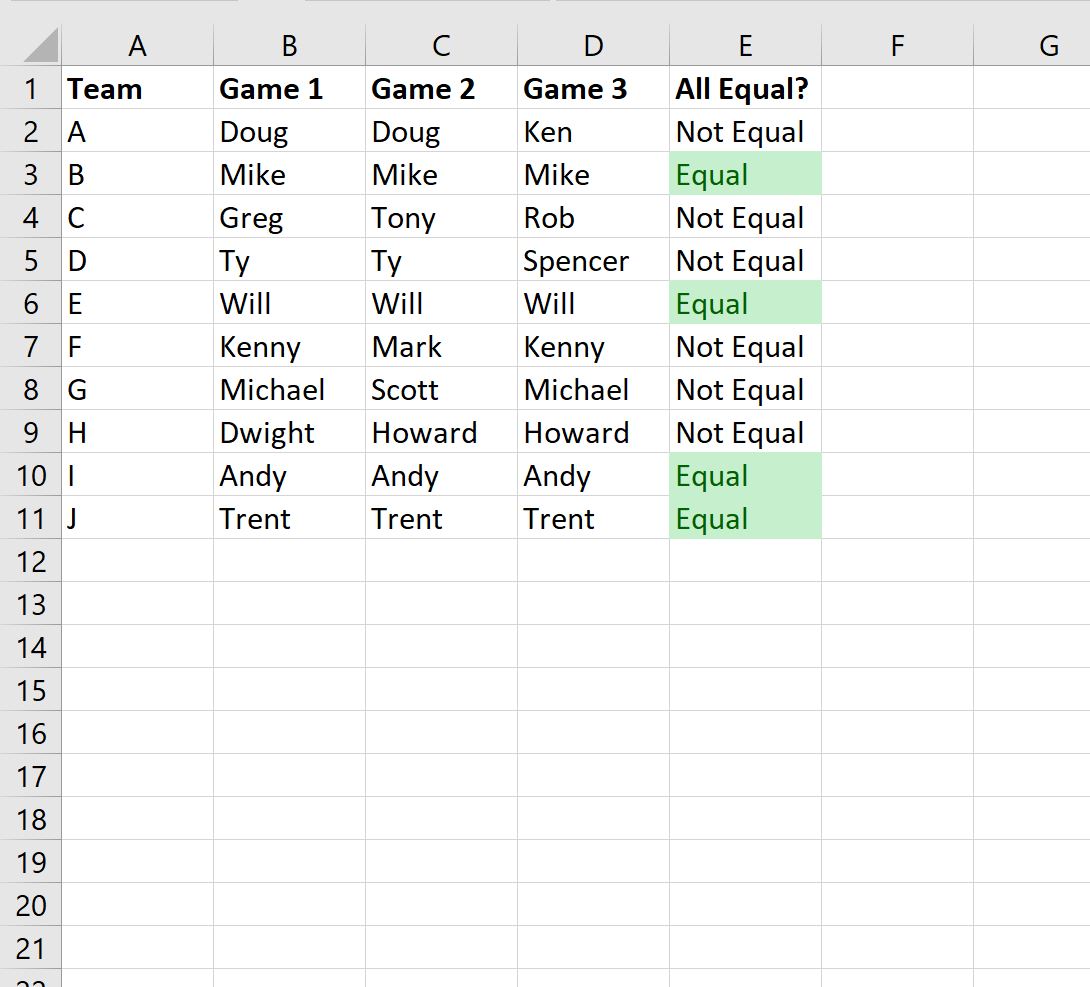

As a powerful outcome of applying Conditional Formatting, every cell in Column E that contains the result “Equal” will now be filled with your chosen color. This immediate visual distinction instantly draws attention to rows of consistent data. Conversely, rows returning “Not Equal” remain unformatted, immediately highlighting discrepancies that may warrant further investigation. This integration of logical formulas and visual cues significantly enhances the overall analytical value and professional presentation of your Excel workbook.

Conclusion and Next Steps for Data Integrity

The effective comparison of data across multiple columns stands as a cornerstone skill in robust data management and analysis within Excel. Throughout this guide, we have established a precise methodology utilizing the nested strength of the IF function and the AND function to definitively assess parity among three columns. By learning how to set up this initial formula and efficiently scale its application using the fill handle, you are now equipped to conduct these critical checks with speed and absolute certainty.

Furthermore, we demonstrated the transformative impact of Conditional Formatting. By visually highlighting matching results, you convert raw data outputs into an intuitive dashboard, enabling immediate identification of patterns, inconsistencies, or vital data points without the need to manually scrutinize every output. This powerful combination of logical formulas and sophisticated visual cues makes your analysis both more reliable and significantly more user-friendly.

We strongly recommend applying these techniques to your own professional datasets. Consider exploring variations of this formula to address different comparative needs, such as checking if values are greater than a threshold, less than another, or specifically not equal to a control group. Mastering these fundamental comparison methods will not only streamline your data validation processes but will fundamentally elevate your analytical capabilities within Excel, ensuring you derive the most meaningful and accurate insights from your data.
