Learning to Compare Receiver Operating Characteristic (ROC) Curves: A Comprehensive Guide

Introduction: Assessing Predictive Efficacy in Binary Classification

In the expansive and critical domain of machine learning, the cornerstone of successful deployment lies in the ability to conduct a rigorous assessment of predictive models. When tackling binary classification problems—tasks such as differentiating fraudulent transactions from legitimate ones, or classifying a tumor as malignant or benign—we require specialized tools that go beyond simple accuracy scores to truly understand model behavior. Among these indispensable analytical instruments, the Receiver Operating Characteristic (ROC) curve stands out as a globally recognized standard for performance evaluation.

The origins of the ROC curve are fascinating, tracing back not to statistics, but to electrical engineering during World War II, where it was initially developed to measure the efficacy of radar operators in distinguishing signal from noise. Today, its application is focused squarely on evaluating the inherent diagnostic capability of statistical and classification models. Crucially, the ROC curve does not capture performance at a single arbitrary threshold; instead, it provides a comprehensive graphical visualization of a classifier’s potential across every possible discrimination threshold, offering unparalleled insight into its underlying ability to separate classes.

The curve visually encapsulates a fundamental tension in classification: the necessary trade-off between the desired benefit (correctly identifying positive instances) and the unavoidable cost (incorrectly flagging negative instances as positive). A nuanced understanding of this trade-off is absolutely essential, particularly in real-world scenarios where the costs of misclassification are asymmetric. For instance, in medical diagnosis or industrial failure prediction, the cost associated with a false negative (missing a critical event) often vastly outweighs the cost of a false positive (a harmless false alarm). By plotting the ROC curve, data scientists gain the authority to select the optimal operating point based on specific financial, regulatory, or operational requirements, thereby circumventing the severe limitations of single-point metrics like accuracy, which frequently fail when faced with highly imbalanced datasets.

Deconstructing the ROC Curve: Understanding the Performance Axes

To properly interpret the contour and placement of a ROC curve, we must first establish a firm grasp of the two core metrics that define its structure: sensitivity and specificity. These metrics are derived directly from the counts tabulated in a confusion matrix, which categorizes outcomes into true positives (TP), true negatives (TN), false positives (FP), and false negatives (FN). The ROC curve is generated by systematically varying the model’s probability threshold, resulting in a continuum of (Sensitivity, Specificity) pairs that map the curve’s trajectory.

Sensitivity, also widely known as the True Positive Rate (TPR) or recall, quantifies the proportion of actual positive cases that the model successfully identifies. Mathematically, it is calculated as TP / (TP + FN). A high sensitivity score signifies a robust capability to detect positive events, minimizing the frequency of false negatives—that is, missed opportunities or overlooked diagnoses. This metric forms the Y-axis of the ROC plot, measuring the rate at which we capture the target positive class.

Conversely, Specificity, or the True Negative Rate (TNR), measures the proportion of actual negative cases that the model correctly screens out. It is calculated as TN / (TN + FP). While high specificity is desirable for minimizing false alarms, standard ROC convention plots (1 – Specificity) on the X-axis. This metric is defined as the False Positive Rate (FPR), and it represents the proportion of negative cases that were incorrectly classified as positive. Plotting the TPR against the FPR allows for a clear visualization of how rapidly the rate of correct positive identification increases relative to the rate of incorrect positive identification.

The optimal classifier ideally resides in the top-left corner of the plot, corresponding to a TPR of 1.0 (perfect sensitivity) and an FPR of 0.0 (perfect specificity). The closer a model’s ROC curve tracks toward this apex, the greater its inherent power to discriminate between the two classes. In contrast, a diagonal line extending from (0,0) to (1,1) represents a classifier whose output is indistinguishable from random chance, possessing zero predictive value.

• Sensitivity (True Positive Rate, TPR): This is the recall, measuring the fraction of all actual positive observations that are correctly predicted as positive.
• Specificity (True Negative Rate, TNR): Measures the fraction of actual negative observations correctly predicted as negative.
• False Positive Rate (FPR): Defined as (1 – Specificity), this crucial metric is plotted on the X-axis, quantifying the likelihood of experiencing a false alarm.

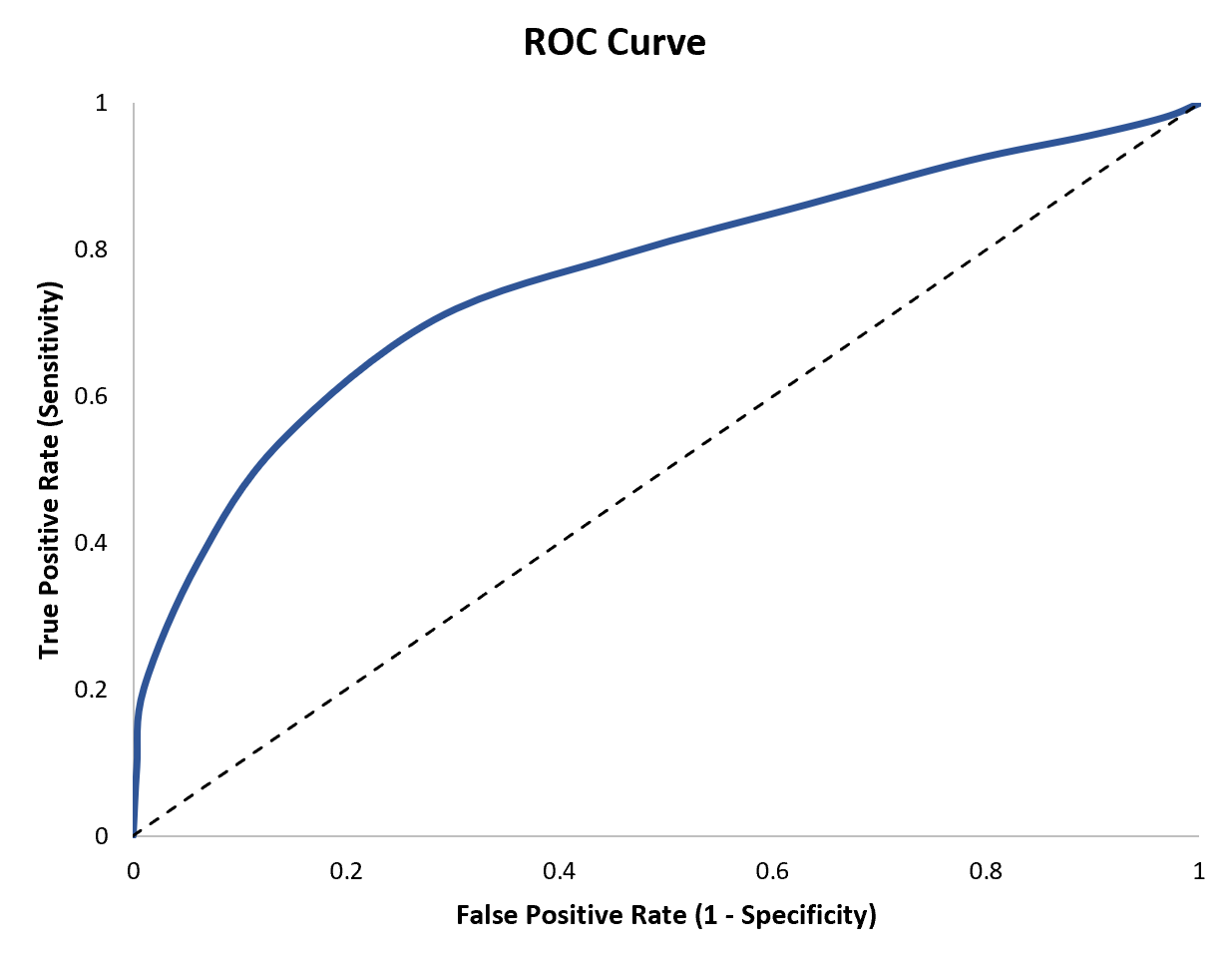

The following visual representation illustrates the relationship between these metrics and the resulting curve structure, which is fundamental for qualitative performance assessment:

Quantifying Discriminative Power: The Area Under the Curve (AUC)

While the visual structure of the ROC curve offers critical qualitative insight, comparing multiple models requires a singular, quantitative summary statistic. The Area Under the Curve (AUC) precisely fulfills this requirement. AUC calculates the entire two-dimensional area lying beneath the ROC curve, effectively condensing the model’s overall performance across the entire range of potential thresholds into one scalar value, bounded between 0 and 1.

The statistical interpretation of the AUC is highly valuable: it represents the probability that a randomly selected positive instance will be ranked higher (assigned a greater predicted probability score) by the model than a randomly selected negative instance. Consequently, a higher AUC value directly signifies a superior ability to correctly order positive and negative cases based on their predictive scores. An AUC of 1.0 denotes a perfect classifier capable of achieving 100% true positives and 0% false positives simultaneously. Conversely, an AUC of 0.5 indicates that the model performs no better than random guessing, possessing zero discriminatory power.

The AUC metric is highly esteemed in machine learning due to its inherent robustness against class imbalance. Unlike accuracy, which can be misleadingly inflated by the presence of a dominant majority class, AUC assesses performance independently of the class distribution. This independence makes it an exceptionally reliable measure for evaluating model effectiveness in real-world settings where positive outcomes may be rare—such as detecting rare diseases or predicting system failures. This crucial characteristic ensures that comparisons between different classification models remain equitable and meaningful, irrespective of data skew or sampling bias.

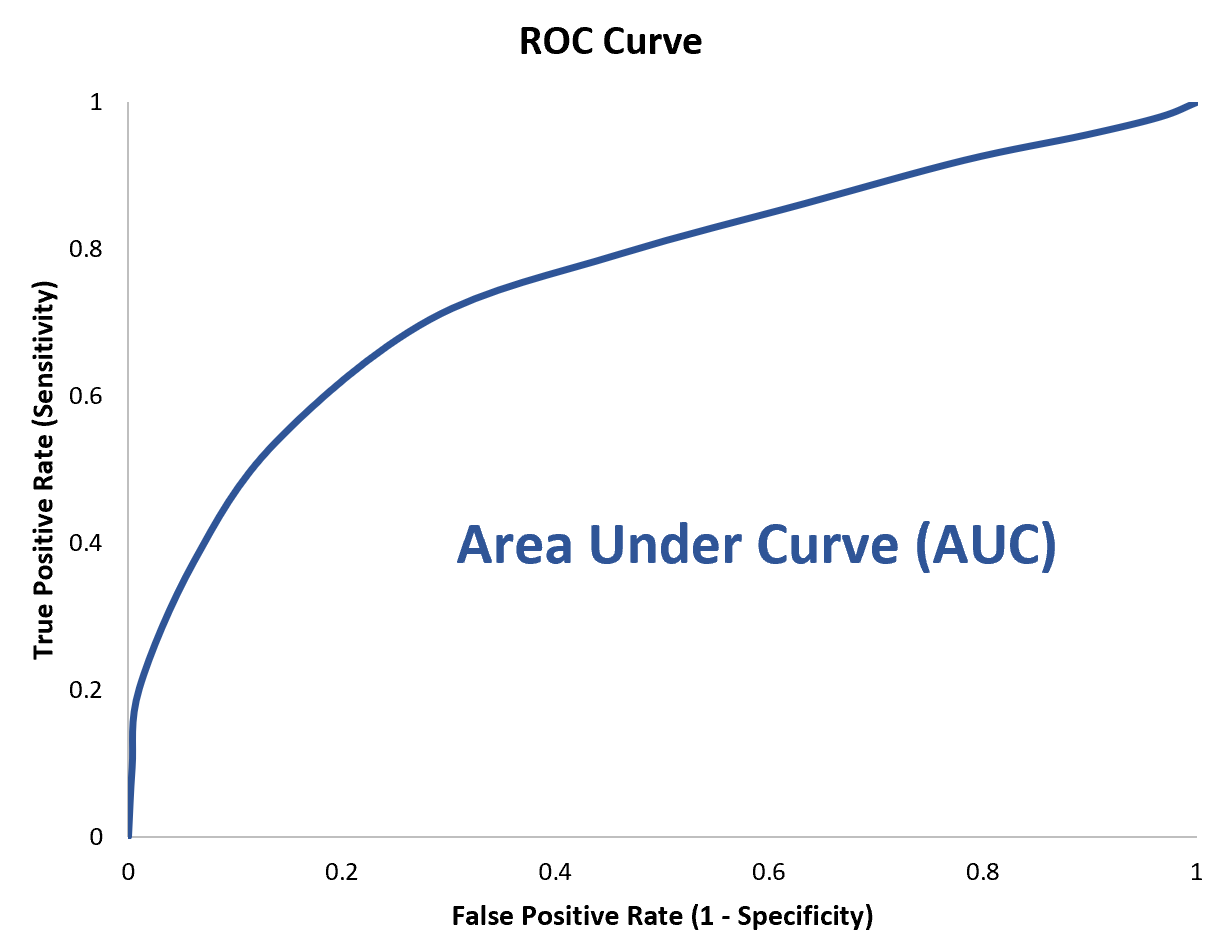

The image below visually highlights the region quantified by the AUC metric. A larger shaded area corresponds directly to superior overall model performance across all operational thresholds:

The Strategic Imperative: Why Compare Multiple Models?

Data science is fundamentally an iterative process; rarely is the initial model the final deployed solution. Instead, practitioners typically evaluate a variety of algorithms, feature engineering techniques, and hyperparameter configurations. When the task is to select the optimal solution from two or more distinct classification models—for example, contrasting a straightforward linear model against a sophisticated tree-based ensemble—a standardized and rigorous methodology is necessary to objectively determine the superior performer. Comparing multiple ROC curves and their corresponding AUC values offers the most intuitive and analytically sound pathway for this critical model selection process.

The primary objective of this comparative analysis is simply to identify the model whose curve yields the highest AUC score and visually tracks closest to the optimal top-left corner of the plot. This model is deemed to possess the greatest predictive separation power. However, the comparison provides more than just a quantitative ranking. By carefully scrutinizing the curve shapes, practitioners can identify subtle performance nuances. For instance, Model A might achieve a significantly better True Positive Rate at extremely low False Positive Rate values (making it ideal when minimizing false alarms is paramount), whereas Model B might maintain a stronger, more consistent overall balance across a wider range of FPR values. These visual insights are crucial for guiding the selection of a model whose operational characteristics align perfectly with the project’s specific performance requirements.

While a substantial difference in AUC values (e.g., 0.96 versus 0.78) provides clear evidence of superiority, smaller differences require greater statistical scrutiny. To ensure that the preference for one model over another is based on genuine performance differentiation rather than random noise or sampling variability, statistical tests must be applied. The widely accepted DeLong’s test, for example, is commonly used to formally determine whether the observed difference between two AUC scores is statistically significant, thereby providing a robust level of confidence in the final model choice prior to deployment.

Practical Application: Visualizing Performance Differences

To ground these theoretical concepts in reality, let us examine a typical scenario requiring the selection between two competing classification models trained on the identical dataset: a traditional logistic regression model and a more advanced ensemble technique, the gradient boosted model (GBM). Both algorithms output the probability of a binary event, and our task is to determine which offers demonstrably superior predictive performance.

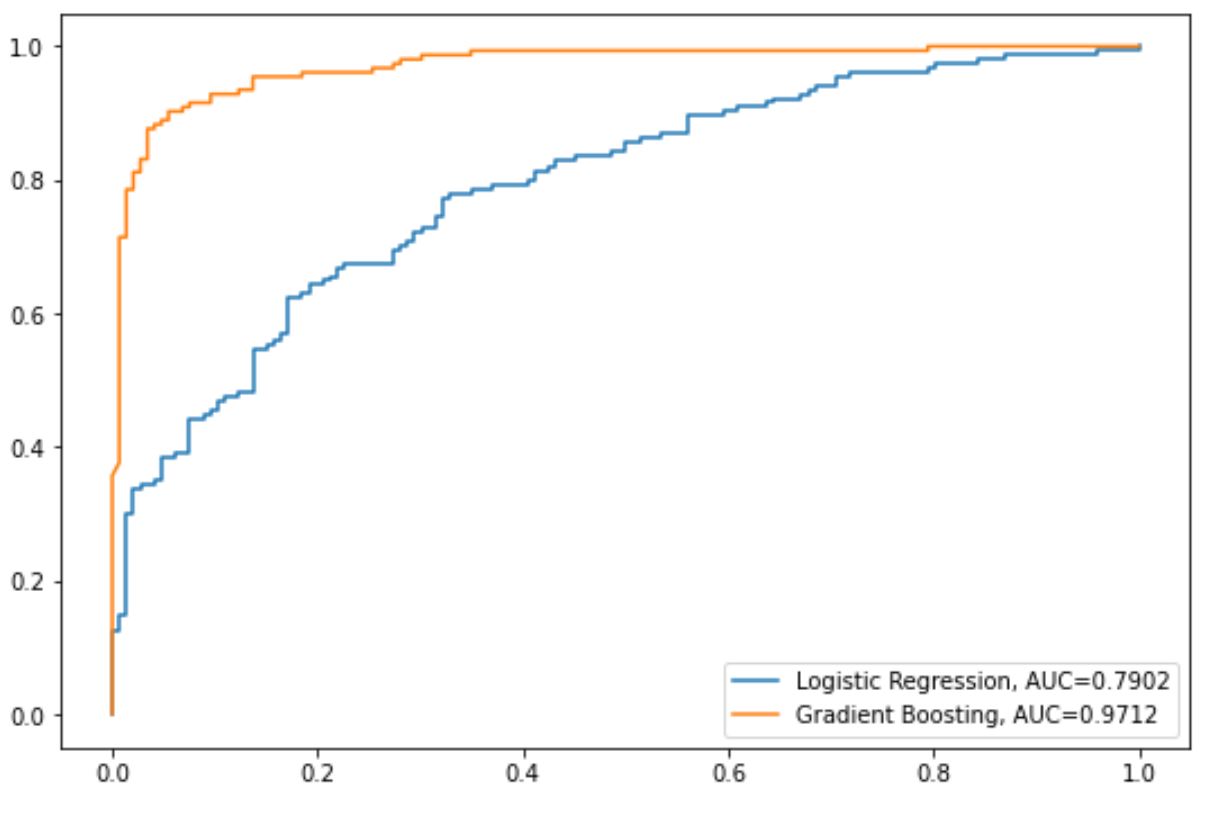

After generating the predicted probabilities for both classifiers, we plot their individual ROC curves on the same axes. This visualization effectively contrasts their performance across every possible classification threshold. The following image explicitly illustrates this direct comparison, mapping the critical trade-off between sensitivity (Y-axis) and the false positive rate (X-axis) for both algorithms:

A visual inspection of the plot immediately reveals that the orange line, representing the gradient boosted model, is consistently positioned higher and closer to the ideal top-left corner compared to the blue line, which represents the logistic regression model. This indicates that the GBM achieves a superior true positive rate for any given false positive rate when compared to the simpler linear approach. Practically speaking, the GBM demonstrates a significantly better ability to separate the positive class from the negative class across the entire probability spectrum.

This visual evidence is quantitatively confirmed by calculating the AUC for each respective model. The calculated results showcase a stark difference in discriminatory power:

• AUC of logistic regression model: 0.7902
• AUC of gradient boosted model: 0.9712

The gradient boosted model’s AUC of 0.9712 is substantially superior to the logistic regression model’s 0.7902. This massive quantitative divergence confirms the initial visual assessment, proving that the gradient boosted model possesses dramatically greater discriminatory power for this specific prediction task. Consequently, the gradient boosted model is the clear and preferred choice, providing a much more reliable foundation for operational decision-making than its less sophisticated counterpart.

Beyond AUC: Holistic Considerations in Multi-Model Selection

While the ROC curve and the AUC metric are the foundational tools for assessing the pure predictive performance of classification models, successful deployment within enterprise machine learning environments demands consideration of factors that extend beyond raw metrics. When evaluating a suite of competing algorithms—such as Neural Networks, Support Vector Machines, or Random Forests—the model comparison process must transition to a holistic evaluation.

It is common for a highly complex model, such as a deep neural network, to yield the marginally highest AUC. However, this complexity often introduces significant trade-offs. These trade-offs typically include severely reduced model interpretability (making it difficult or impossible to explain individual predictions to stakeholders or comply with regulatory mandates), increased computational overhead during both training and retraining phases, and slower prediction latency when deployed in production systems. In direct contrast, a slightly less accurate but highly interpretable model, such such as a simple decision tree or the aforementioned logistic regression model, might be the superior choice in sensitive industries like finance or regulated healthcare, where transparency, regulatory compliance, and swift decision-making are paramount.

Therefore, when comparing multiple ROC curves, the final selection criteria must deliberately weigh the quantitative performance (AUC) against operational feasibility. Key practical considerations include: the total cost of training, infrastructure maintenance, and inference; the regulatory or ethical necessity of explaining the model’s decisions; and the required speed for real-time predictions. While the ROC curve rigorously guides the performance assessment, the real-world deployment context ultimately dictates the final choice, ensuring that the selected solution is not only statistically powerful but also practical, maintainable, and aligned with core business objectives.

Conclusion: Mastering Classification Model Evaluation

The ROC curve and its derived AUC metric are truly indispensable assets in the data scientist’s toolkit for accurately evaluating and comparing classification models. By moving beyond the inherent limitations of single-point metrics, they provide a detailed, threshold-independent perspective on model performance, specifically illustrating the crucial trade-off between sensitivity (true positives) and the false positive rate.

As clearly demonstrated through our practical comparison of a linear model versus an ensemble algorithm, the analysis of ROC curves facilitates the immediate visual and quantitative identification of superior models. This sophisticated methodology ensures that model selection is driven by robust, analytical evidence of true discriminative ability. By thoroughly mastering the interpretation of these curves and their corresponding areas, practitioners are empowered to make informed, high-stakes decisions that lead to the deployment of more reliable, effective, and contextually appropriate machine learning systems in production.

We strongly recommend the continued exploration and application of these evaluation techniques. Experimenting with various datasets, analyzing how feature engineering impacts the curve’s shape, and rigorously applying statistical significance tests to observed AUC differences will substantially deepen your expertise in this vital area of predictive modeling.
