Learn How to Interpret ANOVA Results in Excel: A Step-by-Step Guide

The
Analysis of Variance
(ANOVA) is an indispensable statistical technique utilized primarily to ascertain whether a
statistically significant difference
exists among the population means of three or more independent groups. This test is foundational in experimental research, serving as a robust method for evaluating the influence of categorical factors on continuous outcomes.

This comprehensive guide provides a methodical walkthrough detailing how to conduct and, critically, how to interpret the results generated by a
one-way ANOVA
using the data analysis capabilities inherent in
Microsoft Excel. By focusing on Excel, we illustrate the practical application of this complex statistical test within a widely accessible spreadsheet environment.

Setting Up the Analysis: A Practical Example

To understand the application of ANOVA, consider a typical educational research scenario. An academic researcher is interested in determining the efficacy of distinct study methodologies on student performance. To test this, she recruits 30 students and randomly assigns them into three separate treatment groups, with each group instructed to employ one of three different studying techniques (Method 1, Method 2, or Method 3) in preparation for a unified final examination.

The central objective of this analysis is to evaluate if the observed differences in the mean exam scores across the three groups are large enough to be considered statistically meaningful, or whether these differences are merely due to random chance. The one-way ANOVA is perfectly suited for this design, as it involves one categorical independent variable (Study Method) and one continuous dependent variable (Exam Score).

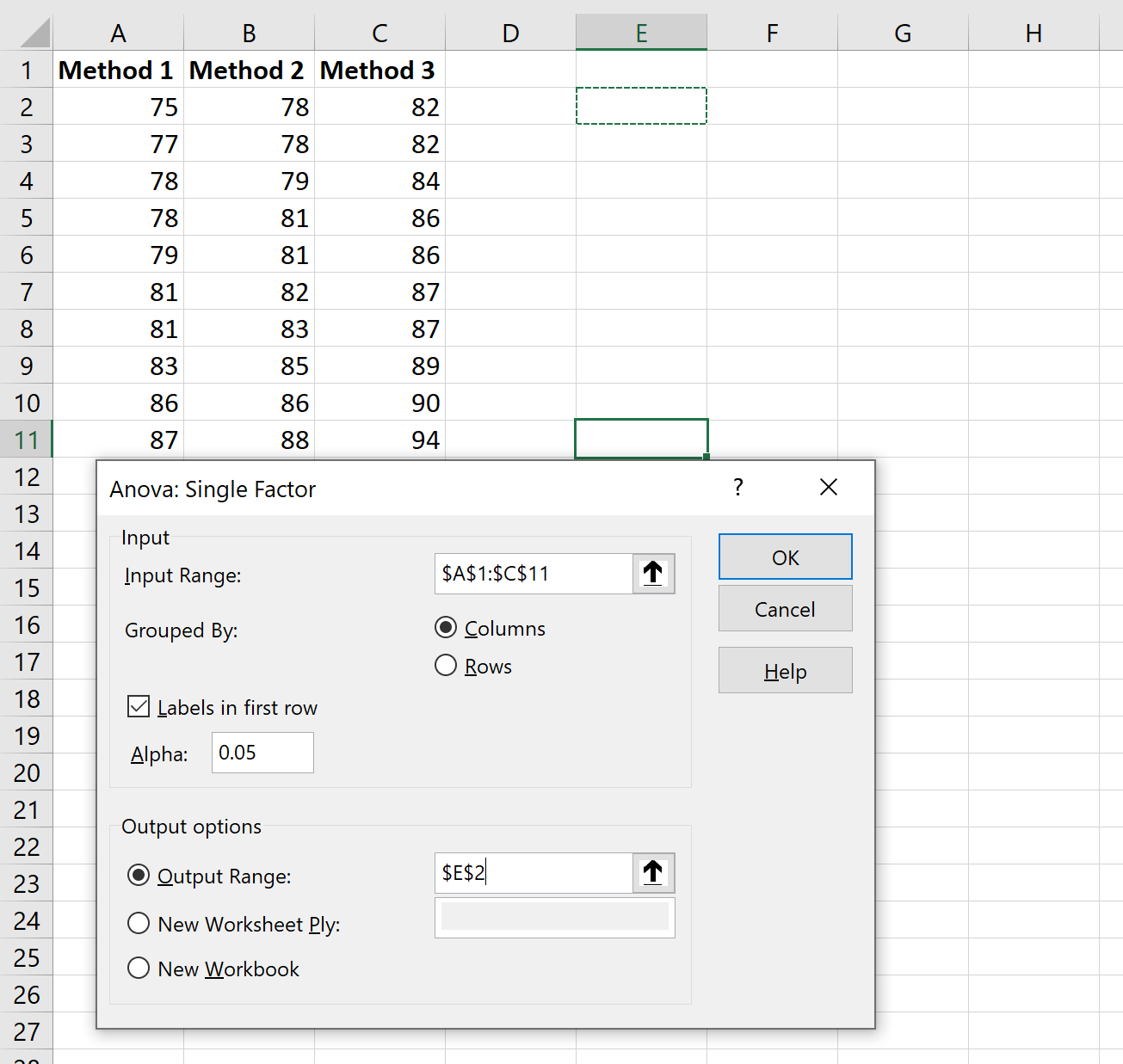

The raw data collected from the participants, organized according to the study method they employed, is visually represented in the data structure below. Each method group contains ten distinct observations, ensuring a balanced design for the subsequent analysis:

Our statistical investigation begins with testing the formal null hypothesis ($H_0$): that the average exam scores are statistically identical across all three experimental groups.

Executing the One-Way ANOVA in Excel

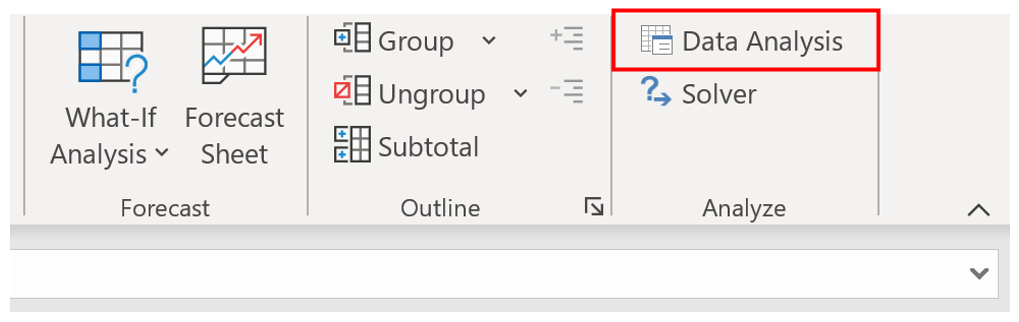

Initiating the ANOVA procedure within Excel requires accessing the dedicated statistical analysis tools. Users must navigate to the Data tab located on the primary ribbon interface. Within the Analysis group, typically situated on the far right of the ribbon, select the Data Analysis option to open the statistical procedure selector.

If the Data Analysis feature is not visible, it indicates that the essential
Analysis ToolPak
add-in must first be activated. This free, built-in Excel component provides the necessary algorithms for performing complex calculations, including ANOVA. Once the ToolPak is successfully loaded, the option will appear under the Data ribbon.

Upon opening the Data Analysis menu, scroll through the list of procedures and choose Anova: Single Factor, which is the appropriate test for a one-way ANOVA design. Click OK to proceed to the parameter configuration dialogue box.

In the subsequent configuration window, carefully define the input range to encompass all columns containing the group data (including the column headers, if specified). Ensure the setting is correctly marked as “Grouped By: Columns,” and confirm that the Alpha level (significance threshold) is set to the standard value of 0.05. This alpha level dictates the probability threshold used to reject the null hypothesis.

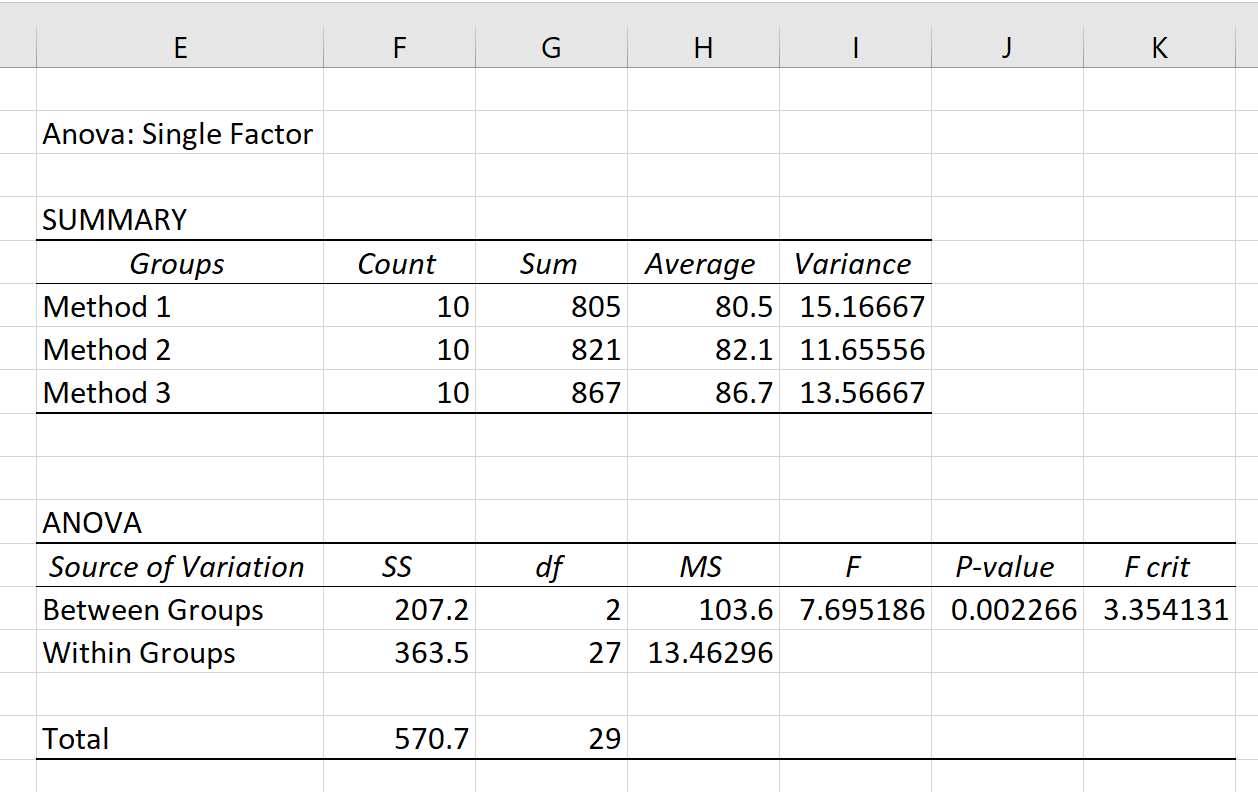

After executing the analysis by clicking OK, Excel generates the comprehensive output report. This report is structured into two fundamental tables: the SUMMARY statistics, providing descriptive metrics, and the main ANOVA table, which contains the inferential test results crucial for hypothesis testing.

Deconstructing the SUMMARY Output Table

The initial section of the Excel output, clearly labeled SUMMARY, presents essential descriptive statistics for each level of the independent variable (i.e., each study method group). Reviewing these statistics is a vital preliminary step, as they provide an initial understanding of the central tendencies and distribution characteristics of the data before formal inferential conclusions are drawn.

The key descriptive metrics reported for each group include:

• Groups: The categorical identifiers for the levels being compared (Method 1, Method 2, Method 3).
• Count: The number of observations or data points contributing to that specific group (N = 10 for each method).
• Sum: The aggregate total score of all values recorded within that group.
• Average: The arithmetic mean score, representing the central tendency of the group.
• Variance: The statistical measure of the dispersion or spread of scores around the mean within that group.

By examining this summary, we can immediately identify preliminary patterns. For instance, the data shows that students assigned to Method 3 achieved the highest average exam score (86.7). However, it is equally important to note that this group also exhibits the greatest
variance
(13.567), which suggests a potentially wider range of individual performance outcomes compared to the other two methods. While the means appear different, the ANOVA table is required to formally test if these observed differences are statistically significant or simply random fluctuations.

Understanding the Inferential ANOVA Table

The core of the analysis resides in the second table, labeled ANOVA. This table systematically partitions the total variability observed in the dataset into two primary components: variability attributable to the factor being tested (Between Groups) and variability attributed to unexplained or random error (Within Groups, often referred to as error variance). This breakdown allows for the calculation of the F-statistic, the test ratio necessary for hypothesis evaluation.

A precise understanding of the metrics presented in the ANOVA table is essential for correct interpretation:

• Source of Variation: Identifies whether the variability originates from the treatment effect (Between Groups) or from individual differences/measurement error (Within Groups).
• SS (Sum of Squares): Represents the total squared deviation from the mean for each source of variation. High SS Between values suggest large differences between group means.
• df (Degrees of Freedom): The number of independent pieces of information used to estimate a parameter. For Between Groups, df = k – 1 (k being the number of groups). For Within Groups, df = N – k (N being the total number of observations).
• MS (Mean Square): Calculated by dividing the Sum of Squares (SS) by its corresponding Degrees of Freedom (df). The MS values serve as estimates of the population variance for each source.
• F (The F-statistic): This is the calculated test statistic, determined by the ratio of MS Between / MS Within. Conceptually, it represents the ratio of explained variance to unexplained variance. A larger F-value indicates stronger evidence against the null hypothesis.
• P-value: The probability associated with the calculated F-statistic. This value is the primary determinant in the decision to reject or fail to reject the null hypothesis.
• F crit: The F critical value. This is the calculated threshold value from the F-distribution that defines the boundary of the rejection region, based on the specified alpha level (0.05) and the Degrees of Freedom.

Decision Making: The P-Value Approach

The definitive step in interpreting ANOVA results is examining the
P-value. In our example, the P-value generated by Excel is 0.002266. This figure quantifies the likelihood of observing the current data (or data more extreme) if, hypothetically, the null hypothesis were true.

The one-way ANOVA test involves evaluating the following mutually exclusive hypotheses:

• H₀ (Null Hypothesis): All population group means are equal ($mu_1 = mu_2 = mu_3$). This implies that the study methods have no effect on the average exam score.
• H_A (Alternative Hypothesis): Not all population group means are equal. This implies that at least one study method results in an average score that is significantly different from the others.

The decision rule mandates that if the calculated P-value is less than the established significance level ($alpha = 0.05$), we must reject the null hypothesis. Since our P-value (0.002266) is substantially lower than $alpha = 0.05$, we reject the null hypothesis ($H_0$).

This conclusion provides sufficient statistical evidence to assert that the average exam scores across the three study methods are not all equal. In practical terms, the study techniques employed produce a statistically significant difference in student performance outcomes.

Verification Using the F Critical Value

Although the P-value approach is the most common method for drawing conclusions, the decision can be robustly confirmed by comparing the calculated
F-statistic
to the F critical value. This serves as a necessary cross-validation step.

The decision rule for the F-ratio comparison is straightforward: If the calculated F-value exceeds the F critical value, the result falls into the rejection region, and the null hypothesis must be rejected. In this specific analysis, the calculated F-value is 7.21, which is clearly greater than the F critical value of 3.35.

This comparison leads to the identical statistical conclusion derived from the P-value analysis: the differences observed between the study method groups are deemed statistically significant. It is important to remember that both the P-value and F critical value methods are derived from the same underlying F-distribution and will invariably lead to the same conclusion regarding the null hypothesis.

Further Learning and Resources

The one-way ANOVA is merely the starting point for analyzing variance. For researchers interested in exploring more intricate experimental designs, such as those involving multiple independent factors or repeated measures, Excel offers additional analysis capabilities.

We encourage further study into more complex designs, such as the two-way ANOVA, which allows for the simultaneous testing of two categorical factors and their interaction effects. Mastering the fundamentals of the one-way ANOVA in Excel establishes a strong foundation for tackling these advanced statistical procedures.
