Understanding ANOVA with SAS: A Practical Guide to Analysis of Variance

A one-way Analysis of Variance, commonly referred to as ANOVA, is a fundamental statistical procedure used to test whether there is a statistically significant difference among the means of three or more independent groups. This powerful inferential technique is indispensable across a vast array of research disciplines, including experimental psychology, pharmaceutical trials, and quality engineering. Researchers employ ANOVA whenever they need to assess the influence of different categorical treatments or factors on a single, continuous outcome variable. By systematically partitioning the total observed variability in the data, the ANOVA methodology allows us to definitively determine if observed group disparities represent genuine experimental effects or are merely the result of random sampling chance.

This comprehensive guide is specifically tailored for analysts and researchers who rely on the rigorous capabilities of SAS (Statistical Analysis System) for conducting their statistical tests. We will provide a precise, step-by-step methodology for interpreting the rich and detailed output generated by SAS when running a one-way ANOVA. Using a highly practical educational research example, we will meticulously analyze the primary ANOVA summary table, interpret the crucial F-statistic and p-value, and finally, dissect the necessary post-hoc tests required for formulating accurate, evidence-based conclusions that move beyond the general finding of difference.

Understanding the ANOVA Core Mechanism

Grasping the underlying logic of the one-way ANOVA is essential before attempting to interpret its output successfully. Unlike the t-test, which is limited to comparing only two groups, ANOVA allows for the simultaneous comparison of multiple group means while rigorously controlling the overall Type I error rate—a significant advantage in complex experimental designs. The central question addressed by this powerful test revolves around variance: Is the variation observed between the groups (attributable to the factor) significantly larger than the unexplained variation observed within the groups (residual error)?

If the calculated ratio of between-group variance to within-group variance—known as the F-statistic—is substantially greater than 1, we conclude that the grouping factor exerts a significant effect on the outcome variable. Furthermore, SAS remains the gold standard for complex statistical analysis due to its unmatched precision, scalability, and comprehensive procedural library. While the output generated by SAS is highly structured and professional, successfully navigating its various statistical tables requires specific expertise, which this guide aims to provide.

Defining the Research Scenario and Data Preparation in SAS

To provide a clear context for our analysis, we will use a hypothetical educational research scenario. Imagine a team studying three distinct studying methods: Method A, Method B, and Method C. The researchers aim to determine which method, if any, leads to the highest student performance on a standardized exam. Twenty-four participants are recruited and randomly assigned to one of the three methods to ensure that any differences observed are caused by the method itself, rather than pre-existing aptitude differences. This setup establishes a classic one-way ANOVA design.

The resulting Score (a continuous variable) is our dependent outcome variable, and the Studying Method (a categorical factor with three levels) is the independent variable. The fundamental statistical objective is to test the null hypothesis that the average exam score does not differ significantly across these three study methods. The raw data, structured by the assigned method, must first be organized for input into the SAS environment.

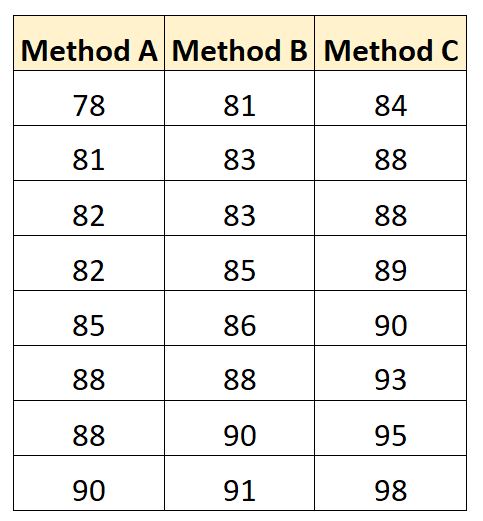

The raw exam results for each student, categorized by their assigned studying method, are presented below. This visual representation demonstrates the necessary structure for creating a dataset within the statistical software environment:

Before proceeding to the analysis, the data must be properly formatted into a dataset. We define a dataset named my_data containing the categorical grouping variable (Method) and the continuous outcome variable (Score). The following SAS code snippet efficiently illustrates the creation of this structure using the DATALINES statement:

/*create dataset*/
data my_data;
    input Method $ Score;
    datalines;
A 78
A 81
A 82
A 82
A 85
A 88
A 88
A 90
B 81
B 83
B 83
B 85
B 86
B 88
B 90
B 91
C 84
C 88
C 88
C 89
C 90
C 93
C 95
C 98
;
run;

Executing the One-Way ANOVA using PROC ANOVA

The core statistical computation within SAS is handled by the specialized PROC ANOVA procedure. This procedure is optimally designed for balanced experimental designs, such as our current study where each of the three groups has an equal sample size (n=8). The primary function of the code block below is to clearly specify to SAS which variable serves as the factor (independent variable) and which serves as the response (dependent variable).

The CLASS statement is mandatory for identifying the categorical variable (Method) that defines the groups. Following this, the MODEL statement defines the statistical relationship under investigation, specifying that Score is predicted by Method. Critically, we introduce the MEANS statement, which is essential for detailed group comparisons and requesting post-hoc tests if the overall ANOVA result indicates significance.

We execute PROC ANOVA using the following syntax. Note the inclusion of the tukey option, which requests the highly recommended Tukey HSD test, along with cldiff for calculating confidence intervals for all possible pairwise comparisons:

/*perform one-way ANOVA*/

proc ANOVA data=my_data;

    class Method;

    model Score = Method;

    means Method / tukey cldiff;

run;

The decision to include MEANS Method / tukey cldiff represents a key analytical safeguard. By requesting the Tukey HSD test only after the main ANOVA test proves significant, we adhere to the principle of conditional testing. This approach is vital for controlling the family-wise error rate, preventing researchers from performing unnecessary or misleading pairwise comparisons that could otherwise inflate the risk of a Type I error (false positive).

Deconstructing the Primary ANOVA Summary Table

Upon execution, the PROC ANOVA procedure delivers several output tables, but the most important for testing the overall hypothesis is the ANOVA summary table itself. This table is the central mechanism of the analysis, quantifying how the total variability observed in the exam scores (Score) is logically partitioned between the variability caused by the experimental factor (Model or Method) and the residual, unexplained variability (Error).

The structure of the ANOVA table systematically organizes the essential statistical components: Degrees of Freedom (DF), Sums of Squares (SS), and Mean Squares (MS). These components are prerequisites for calculating the pivotal F-statistic and the conclusive p-value, enabling the formal test of the equality of the group means. Understanding the contribution of each column is critical for a statistically sound interpretation.

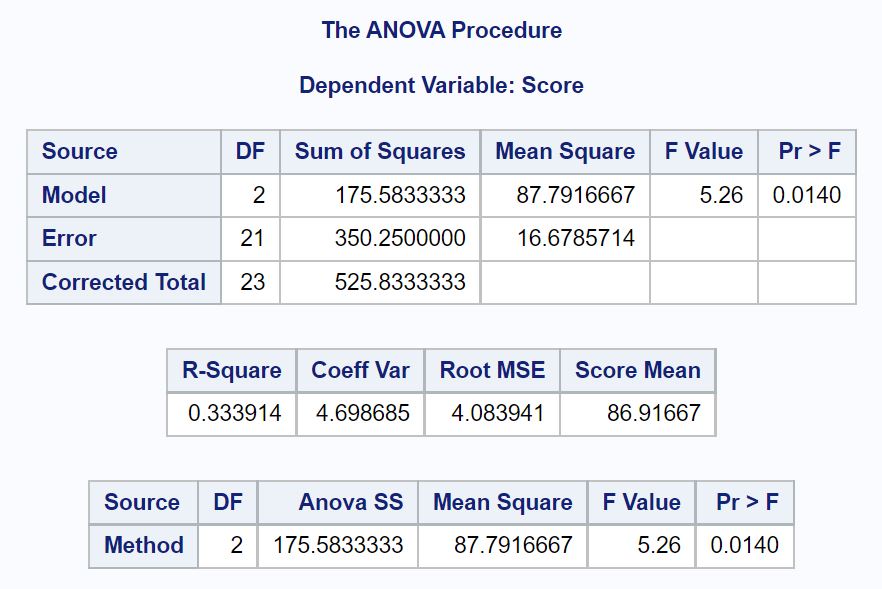

The ANOVA table generated by SAS for our study methods example is shown below. Notice how the variance is clearly categorized into the Model (variance explained by the studying methods) and the Error (variance remaining within the groups):

Interpreting the Variance Components (DF, SS, MS)

A rigorous interpretation of the ANOVA table necessitates a detailed breakdown of how variability is estimated and allocated across the different sources. This process involves analyzing the Degrees of Freedom (DF), the Sums of Squares (SS), and the Mean Squares (MS).

The Degrees of Freedom (DF) represent the number of independent values available to estimate the parameters. The DF Model is calculated as the number of groups minus one (3 – 1 = 2), quantifying the variability explained by the differences in studying methods. Conversely, the DF Error is the total number of observations minus the number of groups (24 – 3 = 21), representing the independent pieces of information contributing to the unexplained residual variation. The total variability is summarized by the Corrected Total DF (23), which is the sum of the Model and Error DF.

The Sums of Squares (SS) quantify the variability around the mean using squared deviations. The Sum of Squares Model (175.583) captures the variability in exam scores directly attributed to the specific differences between Method A, B, and C. The Sum of Squares Error (350.25) quantifies the residual variability observed within each group that the factor cannot account for. The total dispersion is captured by the Sum of Squares Corrected Total (525.833), which measures the total variability of all scores relative to the grand mean.

Finally, the Mean Squares (MS) are derived by dividing the SS by their corresponding DF, providing an average variance estimate. The Mean Square Model (87.79) reflects the average variability explained by the treatment effect. Most importantly, the Mean Square Error (16.68) is the unbiased estimate of the population error variance and serves as the crucial denominator in the subsequent F-statistic calculation.

The Hypothesis Test: F-Value and P-Value

The culmination of the ANOVA table is the calculation of the F-statistic and its associated probability, the p-value (labeled “Pr > F” in the SAS output). The F-statistic is computed as the ratio of the Mean Square Model to the Mean Square Error (87.79 / 16.68 = 5.26). An F-ratio significantly greater than 1 suggests that the systematic differences between the groups are considerably larger than the random, within-group variability.

This F-ratio directly tests the null hypothesis (H₀), which posits that all group means are statistically equal (i.e., μA = μB = μC). We seek evidence strong enough to reject this hypothesis in favor of the alternative hypothesis (H_A), which states that at least one group mean differs from the others.

In our example, the resulting p-value (“Pr > F”) is 0.0140. By comparing this value to the conventional significance level (alpha, α = 0.05), we find that 0.0140 is less than 0.05. This finding compels us to reject the null hypothesis. The conclusion is clear: there is strong statistically significant evidence that the different studying methods have an effect on students’ average exam scores. However, the ANOVA test alone only confirms that differences exist; it does not specify where those differences lie among the three pairs.

Pinpointing Specific Differences with Tukey’s Post-Hoc Test

When the overall F-statistic from the ANOVA table is found to be statistically significant, the next essential analytical step is conducting post-hoc tests. These procedures perform detailed pairwise comparisons across all combinations of groups, simultaneously applying crucial adjustments to the critical value. This methodological adjustment is necessary to prevent the inflation of the family-wise error rate, ensuring that the reported statistical significance across the entire set of comparisons remains statistically rigorous and reliable.

The Tukey Honestly Significant Difference (HSD) test is the most widely recommended post-hoc test, particularly suitable for balanced designs like ours. Since we included the tukey option in our MEANS statement, SAS automatically generated the required output, providing the mean difference, confidence intervals, and the adjusted p-values for all three potential pairwise comparisons.

The final output table, detailing the results of the Tukey HSD post-hoc tests, is displayed below. The key elements to analyze are the Tukey Grouping column and the adjusted p-values, which indicate specific group differences at the 0.05 alpha level:

A careful analysis of the Tukey HSD results shows that the only pairwise comparison achieving statistical significance is the contrast between Group C and Group A. The mean difference is 6.375, suggesting that students utilizing Method C scored, on average, more than six points higher than those using Method A. This effect is robustly confirmed by the 95% confidence interval of [1.228, 11.522], which definitively excludes zero. Conversely, the comparisons between Group A and Group B, and between Group B and Group C, were not statistically significant, implying that the average performance metrics of these specific pairs are statistically interchangeable within the context of this study.

Conclusion and Further Reading

Mastering the interpretation of the SAS output for a one-way ANOVA involves more than simply reading the final p-value. It requires a systematic understanding of variance partitioning, the F-ratio derivation, and the conditional application of post-hoc tests to draw granular, reliable conclusions. The SAS PROC ANOVA procedure provides the necessary rigor, but the analyst must properly translate the statistical components—DF, SS, and MS—into actionable insights concerning the research hypotheses. By following these steps, researchers can confidently report that Method C yielded significantly higher exam scores than Method A.
