Learning Standard Deviation: A Guide to Understanding and Calculating Confidence Intervals

A confidence interval is a powerful statistical tool used to estimate an unknown population parameter by providing a range of plausible values rather than a single point. Specifically, a confidence interval for a standard deviation is a calculated range intended to capture the true, unknown population standard deviation ($sigma$) with a predetermined level of certainty. While a single numerical guess (a point estimate) offers simplicity, the interval estimate provides a far more realistic assessment of the parameter, explicitly acknowledging the inherent uncertainty introduced by statistical variability and the limitations of sampling.

This comprehensive guide is designed to walk you through the precise statistical methodology required to construct and properly interpret this essential measure of variability. Understanding this technique is crucial for researchers, analysts, and students who need to move beyond simple descriptive statistics and quantify the precision of their estimates. We will meticulously cover the following core areas:

• The compelling statistical motivation for utilizing interval estimates over single point estimates.
• The fundamental statistical prerequisites and assumptions, particularly the critical role of the Chi-Square distribution in the calculation.
• The precise formula used to establish the upper and lower boundaries of the interval.
• A detailed, step-by-step practical example illustrating the entire calculation process.
• Guidelines for the accurate interpretation of the final result within a real-world, practical context.

The Rationale: Quantifying Uncertainty in Variability Estimates

In virtually all forms of applied research and statistics, parameters describing an entire population—such as the true population standard deviation ($sigma$)—are unknown and must be approximated using data collected from a smaller, more manageable sample. The fundamental necessity for constructing a confidence interval for the standard deviation lies in the need to formally quantify and capture the inevitable uncertainty associated with this estimation process.

When researchers compute the standard deviation of a sample (denoted as $s$), this value serves as the single best point estimate for the population standard deviation ($sigma$). However, because the sample is merely a subset of the total population, the calculated sample standard deviation is almost certainly not a perfect match for the true population standard deviation. Consequently, if an experimenter were to repeat the sampling process, selecting a different subset of the population, the resulting sample standard deviation ($s$) would vary slightly each time. This inescapable fluctuation between samples is formally known as sampling error.

By defining a range rather than a single number, the confidence interval formally acknowledges and mitigates the risk posed by sampling error. Instead of making an absolute statement like, “The standard deviation is precisely 6.43,” we can provide a statistically responsible statement: “We are 95% confident that the true standard deviation lies somewhere between 5.064 and 8.812.” This approach moves away from false certainty toward a robust and statistically honest measure of the precision and reliability of our variability estimate.

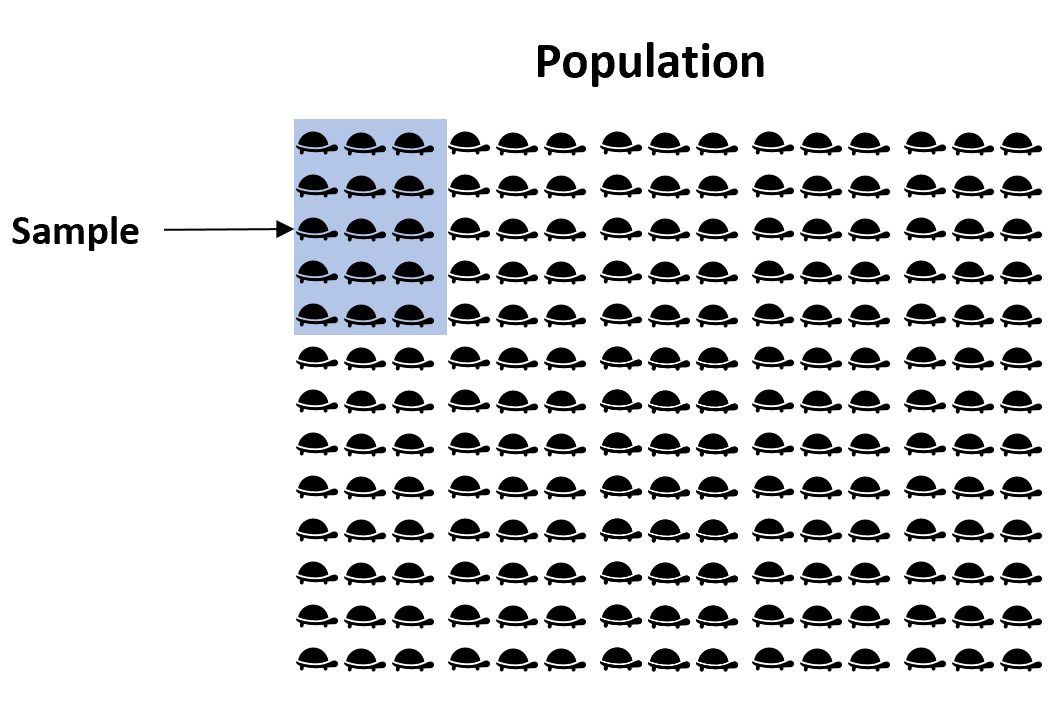

To illustrate this need, consider a scenario where scientists are attempting to estimate the variability (standard deviation) of the weight of a population of endangered sea turtles off the Florida coast. Since the population is vast, dispersed, and consists of thousands of individuals, capturing and weighing every single turtle is impossible due to time, cost, and logistical constraints. Therefore, the research team must rely exclusively on collecting a representative sample of these animals.

If the researcher collects $n=50$ turtles and calculates a sample standard deviation, $s$, this value is inherently an approximation. To provide scientific rigor and context, the researcher must quantify how close this sample statistic ($s$) is likely to be to the genuine population parameter ($sigma$). The construction of a confidence interval provides this crucial context, enabling robust decision-making that appropriately accounts for the inherent statistical variability observed in the collected data.

Statistical Foundations: Assumptions and the Chi-Square Distribution

The methodology for calculating a confidence interval for the standard deviation (or variance, $sigma^2$) differs fundamentally from that used for the population mean. Unlike mean estimation, which often employs the t-distribution, estimating variability requires reliance on the Chi-square distribution ($chi^2$). This specialized distribution is necessary because the sampling distribution of the sample variance ($s^2$) is directly linked to the Chi-square distribution, provided a critical statistical assumption holds true.

The most important prerequisite for accurately calculating a confidence interval for the standard deviation is the assumption that the underlying population data must be approximately normally distributed. This assumption is non-negotiable and represents a major sensitivity point in this type of analysis. While statistical methods for estimating the mean are often robust to minor violations of normality, methods designed for estimating variability (variance and standard deviation) are highly sensitive. If the population data exhibits significant skewness or contains extreme outliers, the resulting confidence interval derived using the Chi-square distribution may be unreliable and statistically misleading.

The confidence interval for the population variance ($sigma^2$) is derived directly from the test statistic for the variance, which mathematically follows a Chi-square distribution. This distribution is characterized by $n-1$ degrees of freedom, where $n$ is the sample size. The relationship between the population variance, the sample variance, and the Chi-square statistic is defined by the following expression:

$chi^2 = frac{(n-1)s^2}{sigma^2}$

By algebraically manipulating this expression, we can isolate the population variance ($sigma^2$) within the bounds defined by two critical Chi-square values: $X^2_{1-alpha/2}$ (the lower tail cutoff) and $X^2_{alpha/2}$ (the upper tail cutoff). Once the interval for the variance is established, taking the square root of both boundary values yields the desired confidence interval for the population standard deviation ($sigma$).

Deriving the Confidence Interval Formula for Standard Deviation

The estimation of the population standard deviation ($sigma$) is performed by first establishing the interval for the variance ($sigma^2$). The definitive formula for the confidence interval for $sigma$ is obtained by applying the square root to the boundaries derived from the Chi-square distribution calculation:

Confidence Interval for $sigma$ = $left[ sqrt{frac{(n-1)s^2}{X^2_{alpha/2}}}, sqrt{frac{(n-1)s^2}{X^2_{1-alpha/2}}} right]$

A crucial detail to observe in this formula is the counter-intuitive placement of the critical values. The larger Chi-square critical value ($X^2_{alpha/2}$), which corresponds to the upper tail of the distribution, is placed in the denominator of the lower bound of the interval. Conversely, the smaller Chi-square critical value ($X^2_{1-alpha/2}$), corresponding to the lower tail, is placed in the denominator of the upper bound. This necessary inversion ensures that the resulting interval correctly represents the range of plausible values for $sigma$.

The essential components utilized in this formula are defined as follows:

• $n$: The sample size, representing the total number of independent observations collected.
• $s$: The sample standard deviation, calculated directly from the collected data.
• $X^2$: The Chi-square critical value, which is determined based on the specified confidence level ($1-alpha$) and the degrees of freedom ($df = n-1$).
• $1-alpha$: The chosen confidence level (e.g., 0.95 for a 95% confidence interval).
• $X^2_{alpha/2}$: The upper-tail critical value, which cuts off an area of $alpha/2$ in the right tail of the Chi-square distribution.
• $X^2_{1-alpha/2}$: The lower-tail critical value, which cuts off an area of $1-alpha/2$ in the right tail (or $alpha/2$ in the left tail) of the Chi-square distribution.

By using this mathematically derived formula, the resulting interval is guaranteed to be centered not on the sample standard deviation ($s$) itself, but around the likely values of the population standard deviation ($sigma$), thereby maintaining the specified level of confidence.

Practical Application: Calculating the Confidence Interval (Example)

Let us now apply this methodology to the ongoing example concerning the estimation of sea turtle weights. Assume the wildlife conservation team successfully collected a random sample of turtles, and the resulting weight measurements yielded the following key statistics. We proceed under the necessary assumption that the turtle weights are roughly normally distributed:

• Sample size $n = 27$
• Sample standard deviation $s = 6.43$

Our objective is to calculate the confidence interval for the population standard deviation ($sigma$). The degrees of freedom are calculated as $df = n – 1 = 27 – 1 = 26$. For a comprehensive understanding, we will calculate the intervals for the three most common confidence levels: 90%, 95%, and 99%.

The initial step requires identifying the appropriate Chi-square critical values for $df=26$. These necessary values are typically sourced from a standard Chi-square distribution table or generated using specialized statistical software, based on the desired $alpha$ level:

90% Confidence Interval ($alpha = 0.10$, $alpha/2 = 0.05$)

For a 90% confidence level, we must locate the critical values corresponding to the 0.05 (upper) and 0.95 (lower) tails:

• $X^2_{0.05}$ (Upper tail, used in lower bound) = 38.885
• $X^2_{0.95}$ (Lower tail, used in upper bound) = 15.379

Plugging these values into the formula: $CI = [sqrt{frac{(26) cdot 6.43^2}{38.885}}, sqrt{frac{(26) cdot 6.43^2}{15.379}}]$

90% Confidence Interval: [$sqrt{(27-1) cdot 6.43^2/38.885}$, $sqrt{(27-1) cdot 6.43^2/15.379}$] = [5.258, 8.361]

95% Confidence Interval ($alpha = 0.05$, $alpha/2 = 0.025$)

For a 95% confidence interval, we utilize the critical values that correspond to the 0.025 and 0.975 tails:

• $X^2_{0.025}$ (Upper tail, used in lower bound) = 41.923
• $X^2_{0.975}$ (Lower tail, used in upper bound) = 13.844

Plugging these into the formula:

95% Confidence Interval: [$sqrt{(27-1) cdot 6.43^2/41.923}$, $sqrt{(27-1) cdot 6.43^2/13.844}$] = [5.064, 8.812]

99% Confidence Interval ($alpha = 0.01$, $alpha/2 = 0.005$)

For a 99% confidence interval, we use the critical values corresponding to the 0.005 and 0.995 tails, requiring the highest degree of certainty:

• $X^2_{0.005}$ (Upper tail, used in lower bound) = 48.289
• $X^2_{0.995}$ (Lower tail, used in upper bound) = 11.160

Plugging these into the formula:

99% Confidence Interval: [$sqrt{(27-1) cdot 6.43^2/48.289}$, $sqrt{(27-1) cdot 6.43^2/11.160}$] = [4.718, 9.814]

Note: While manual step-by-step calculations are necessary for instructional purposes, in professional practice, these confidence intervals are typically generated rapidly and accurately using sophisticated statistical software packages, which streamline the process of finding the exact Chi-square distribution critical values.

Interpreting the Results and Understanding Confidence Levels

The interpretation of a confidence interval must be handled with statistical rigor to avoid prevalent misconceptions. Focusing on the 95% confidence interval calculated above ([5.064, 8.812]), the correct interpretation pertains to the long-run frequency of the estimation method, not to the probability of this specific fixed interval containing the parameter.

The statistically appropriate interpretation is formulated as follows:

If the entire process of sampling (collecting $n=27$ turtles) were repeated numerous times, and a 95% confidence interval were constructed for each resulting sample, approximately 95% of those calculated intervals would successfully contain the true, unknown population standard deviation ($sigma$).

It is statistically incorrect to state, “There is a 95% chance that the interval [5.064, 8.812] contains the true population standard deviation.” Once the specific interval is computed, the true population standard deviation either falls within that range or it does not; the probability is related to the reliability of the estimation method itself, not the specific outcome realized by the current data set.

By comparing the three calculated intervals, we clearly demonstrate the direct relationship between the confidence level and the resulting interval width:

• 90% CI: Width = 3.103
• 95% CI: Width = 3.748
• 99% CI: Width = 5.096

This pattern reveals that as the confidence level increases (e.g., moving from 90% to 99%), the interval width must necessarily expand. This is an intuitive trade-off: to be more certain that we have successfully captured the true population standard deviation, we must accept a broader, less precise range of possible values. Conversely, achieving a narrower, more precise interval requires accepting a lower degree of confidence that the interval actually encompasses the population parameter.

In the context of the sea turtle weights, the 95% confidence interval of [5.064, 8.812] suggests that the true variability in the weights of all Florida sea turtles of this species is highly likely to fall within this range. This provides invaluable context for researchers, indicating that there is only a 5% chance that the true standard deviation is either less than 5.064 or greater than 8.812. This defined range allows conservation teams to make robust decisions regarding the consistency and health metrics of the overall population.
