Learning to Display Percentages on the Axis of ggplot2 Charts

Introduction to Percentage Scales in ggplot2

Visualizing complex datasets effectively is the cornerstone of clear data communication. When presenting information relating to proportions, rates, or shares, expressing data as a percentage is often the most intuitive and impactful method, immediately providing context to the viewer and simplifying interpretation. A percentage scale eliminates the need for mental arithmetic, allowing the audience to focus solely on the comparative insights derived from the graph. In the robust ecosystem of data analysis and visualization provided by R, the ggplot2 package stands out as the premier tool for creating high-quality, customized statistical graphics. Built on the philosophical foundation of the Grammar of Graphics, ggplot2 empowers users to construct sophisticated plots layer by layer, offering unparalleled control over every aesthetic element.

Despite its extensive capabilities, ggplot2 defaults to displaying continuous numerical axes, such as the Y-Axis, using decimal notation. For instance, a return rate calculated as 0.15 will be plotted and labeled as 0.15, rather than the much clearer 15%. While technically accurate, this default representation often falls short of professional presentation standards, particularly when communicating results to non-technical stakeholders who expect proportions to be represented explicitly as percentages. This tutorial addresses this common requirement by guiding you through the precise steps necessary to convert any continuous axis in your ggplot2 visualizations into a polished, percentage-based format.

The transformation process is highly streamlined and relies on integrating specialized formatting functions from the scales package, a dependable utility designed to work seamlessly with ggplot2. This capability is not merely an aesthetic choice; it is an essential technique for anyone serious about delivering data visualizations that are both compelling and unambiguous. By mastering the application of the percentage scale, you ensure that your graphical output maximizes clarity, making the magnitude of change or proportion instantly recognizable to anyone viewing your analysis.

The Mechanics of Axis Conversion: Introducing the Scales Package

Achieving the percentage display on a numerical axis, typically the Y-Axis, requires the use of the scale_y_continuous() function within the ggplot2 framework. This function is fundamental to controlling the appearance and behavior of continuous scales. It is part of a larger family of scale functions that manage the mapping between the raw data values and the visual properties of the plot, such as position, color, or size. When formatting an axis, scale_y_continuous() allows us to intervene in how the axis tick marks and labels are generated and displayed.

The crucial element for percentage conversion is the labels argument within scale_y_continuous(). This argument is powerful because it accepts a function that processes the raw numerical values before they are rendered as text on the axis. To perform the necessary decimal-to-percentage conversion, we employ the percent() function provided by the scales package. When you pass scales::percent to the labels argument, it acts as a formatter: it takes the underlying decimal value (e.g., 0.25), multiplies it by 100, and returns a clean string representation (e.g., “25%”), automatically appending the percent symbol.

The integration of this function is concise and non-disruptive to your existing plotting code. The standard approach involves piping this scale function directly onto your base ggplot2 object. The basic syntax required to execute this transformation is demonstrated below. This line of code represents the core of the technique, and understanding its function is key to mastering proportional visualization in R:

+ scale_y_continuous(labels = scales::percent)

This single command transforms the interpretation of your plot. It moves the visual representation from abstract decimal numbers to immediately comprehensible percentages, thereby making your quantitative analysis accessible to a broader audience. The following sections will apply this syntax practically to a sample dataset, illustrating the immediate and profound visual benefits of this formatting technique.

Preparing Proportional Data for Visualization in R

Before we can apply the aesthetic conversion, we must first structure the data in R. For this tutorial, we will simulate a common business scenario: analyzing return rates across different retail locations. Proportional data like this is typically calculated and stored as decimal values, which are the raw inputs that ggplot2 requires. Our example uses four hypothetical stores (A, B, C, and D) and their respective return percentages, stored initially as decimals. This structure is ideal for demonstrating how the axis formatting only changes the label presentation, not the underlying data structure or values.

We will begin by creating a sample data frame in R. The data frame, named df, contains two columns: store, which is a categorical identifier, and returns, which contains the decimal proportions. Note that store C has the highest return rate at 0.22 (22%), while store B has the lowest at 0.08 (8%). This variation provides a good visual comparison when we generate the plot.

#create data frame
df <- data.frame(store=c('A', 'B', 'C', 'D'),
                 returns=c(.14, .08, .22, .11))

#view data frame
df

  store returns
1     A    0.14
2     B    0.08
3     C    0.22
4     D    0.11

This structured data forms the essential input for our visualization layer. The goal is to produce a bar chart, which is an excellent choice for comparing discrete categories (the stores) based on a continuous metric (the return rate). The height of each bar will be dictated by the returns column, and it is these numerical values on the Y-Axis that we will subsequently format into clear percentages. The next logical step is to plot this data using the default ggplot2 settings to establish our baseline visualization.

Baseline Visualization: The Default Decimal Output

With our data prepared, the next phase involves generating the initial visualization using ggplot2. This foundational plot serves two purposes: confirming the correct mapping of variables and establishing a visual comparison point against the final, percentage-formatted plot. We will create a simple bar chart, mapping the store categories to the x-axis and the decimal return rates to the Y-Axis.

The following code initiates the plot creation. We must include the geom_bar layer and specify the argument stat='identity'. This argument is critical because it tells ggplot2 not to calculate the count of observations but instead to use the actual values provided in the y aesthetic (the returns column) as the bar heights. Without stat='identity', the function would attempt to count the number of rows for each store, which is not our intention when plotting pre-calculated proportional data.

library(ggplot2)

#create bar chart
ggplot(data=df, aes(x=store, y=returns)) +
  geom_bar(stat='identity')

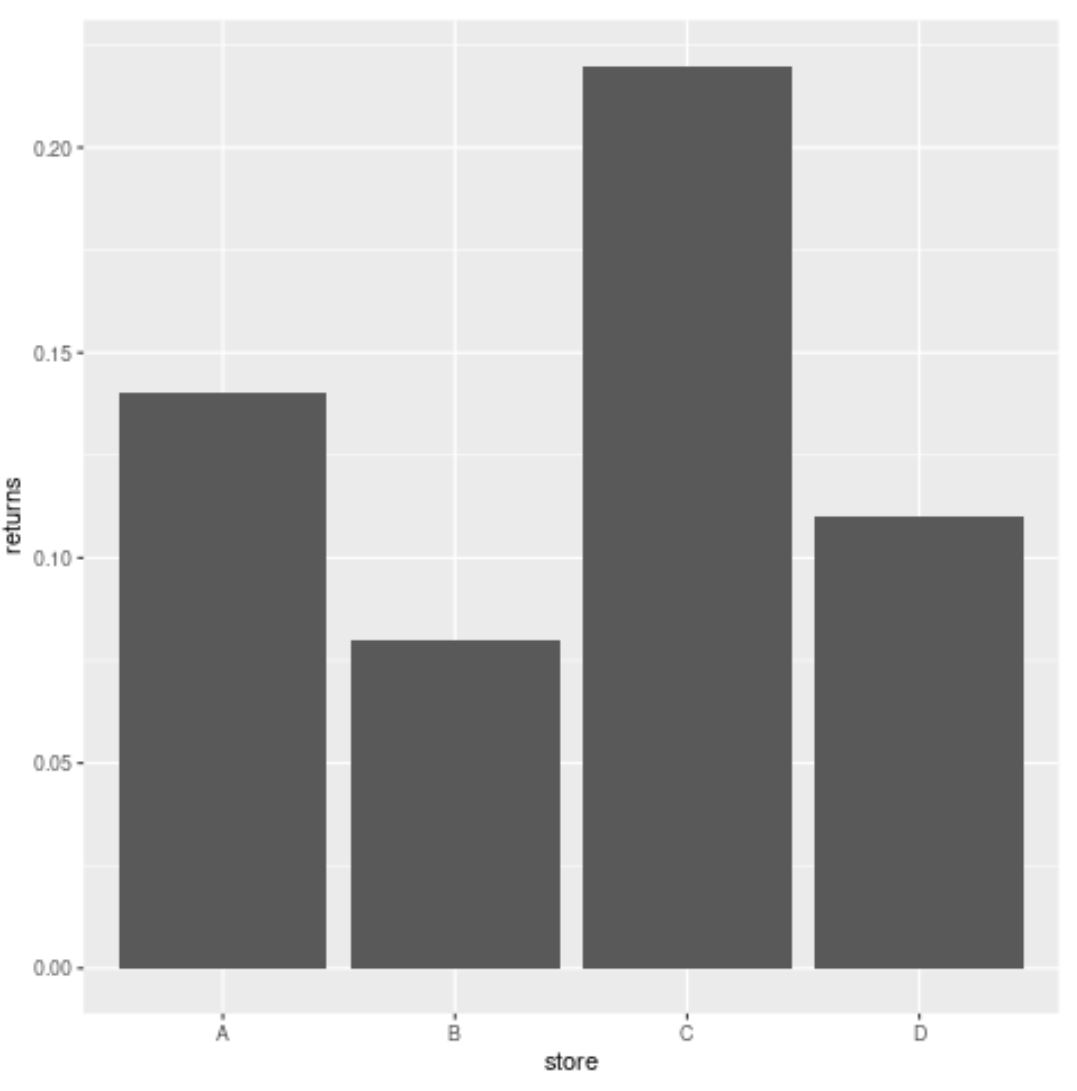

Upon reviewing the output image below, it is evident that ggplot2 has rendered the Y-Axis in its default decimal format (0.00, 0.05, 0.10, etc.). While mathematically sound, this presentation style requires the viewer to mentally multiply each tick mark by 100 to understand the true percentage. This friction in interpretation is precisely what we aim to eliminate. The subsequent section details the straightforward addition required to refine this axis formatting, transitioning from a correct but opaque representation to a clear and professional percentage scale.

Implementing the Percentage Transformation

The core objective of this tutorial is realized by introducing the scale_y_continuous() function, configured to utilize the percentage formatter. This implementation is remarkably simple, yet it yields a substantial improvement in the clarity and immediate interpretability of the bar chart. By adding one specific line of code, we transform the axis labels from decimal fractions into easily digestible percentages, fulfilling the expectation of stakeholders who are accustomed to analyzing proportional data in this format.

We integrate the scale_y_continuous layer into our existing plot definition. We explicitly set the labels argument equal to scales::percent. This function, sourced from the specialized scales package, handles all the necessary formatting logic, including scaling the decimal values and appending the ‘%’ symbol automatically. It is a powerful abstraction that prevents the user from needing to manually manipulate the axis breaks or labels.

library(ggplot2)

#create bar chart with percentages on y-axis
ggplot(data=df, aes(x=store, y=returns)) +
  geom_bar(stat='identity') +
  scale_y_continuous(labels = scales::percent)

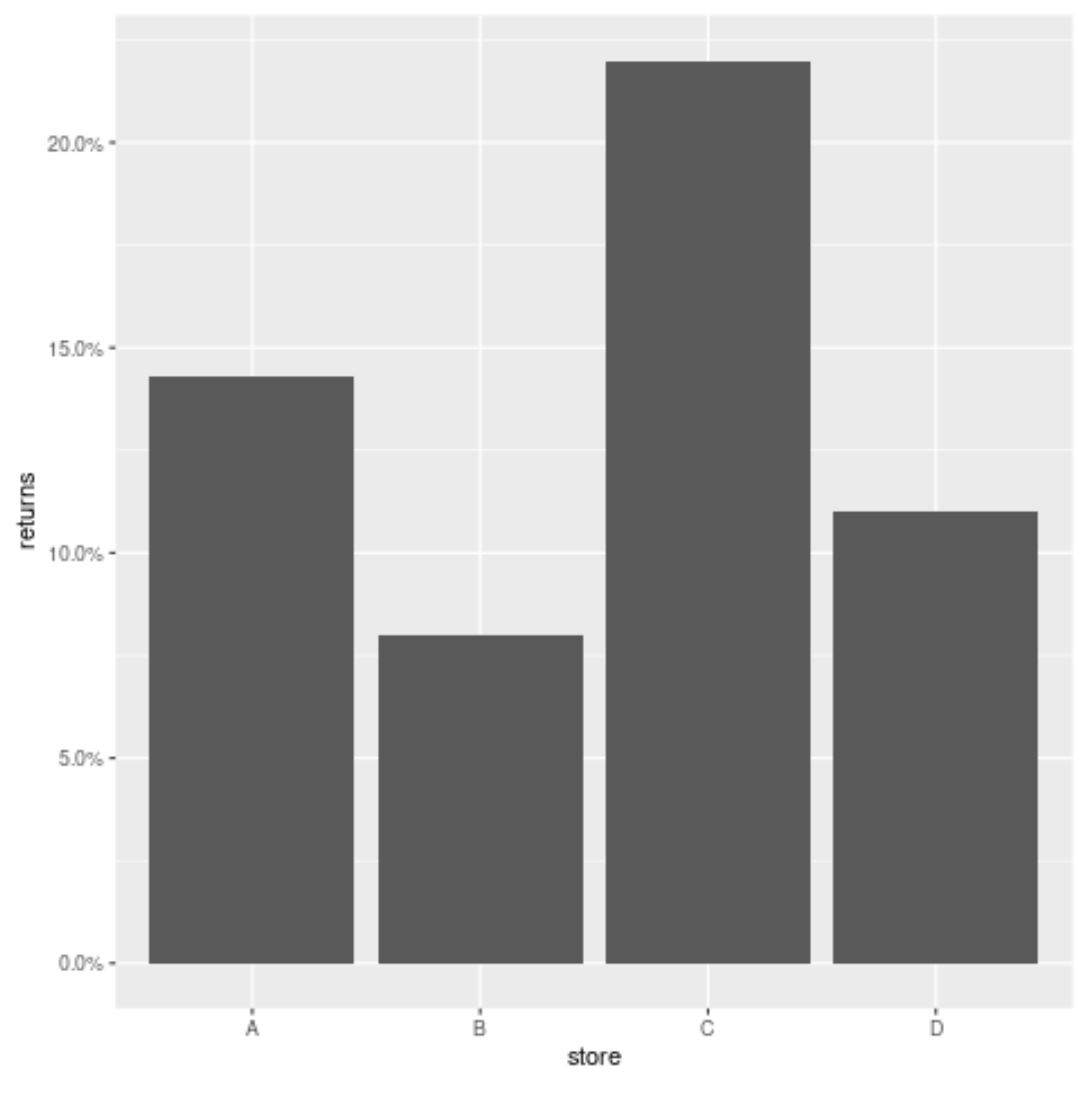

The result of this modification is immediately apparent in the updated visualization below. The Y-Axis now displays percentages (0%, 5%, 10%, 15%, etc.). This change significantly enhances the plot’s utility, allowing viewers to instantly compare the 14% return rate of Store A against the 22% rate of Store C without any cognitive load associated with decimal-to-percentage conversion. This technique is a fundamental skill in producing highly professional data visualizations using the ggplot2 library.

Advanced Customization: Controlling Precision and Formatting

While the basic application of scales::percent successfully formats the axis, the default behavior often includes one decimal place (e.g., “10.0%”). Depending on the nature of your data and the desired level of precision for your audience, this extra decimal place might be unnecessary or even clutter the visualization. For instance, if your underlying percentages are generally whole numbers, displaying the extra “.0” can detract from the clean aesthetic. Fortunately, the scales package provides granular control over the output format through the more versatile function, percent_format().

To manage the number of decimal places, we utilize the accuracy argument within percent_format(). This argument specifies the rounding precision for the labels. By setting the accuracy value to 1, we instruct the formatter to round the percentage values to the nearest whole number. For example, a value of 0.14 will be displayed as “14%”, rather than “14.0%”. If greater precision were required, such as two decimal places, we would set accuracy=0.01. By utilizing percent_format() instead of the shorthand percent(), we gain explicit control over the final visual output.

The updated code below demonstrates how to integrate percent_format() and the accuracy argument to achieve a cleaner, whole-number percentage display on the Y-Axis. This modification is key to refining the plot for publication or formal presentation, ensuring that the visualization is as concise as possible without sacrificing essential information.

library(ggplot2)

#create bar chart with percentages on y-axis
ggplot(data=df, aes(x=store, y=returns)) +
  geom_bar(stat='identity') +
  scale_y_continuous(labels = scales::percent_format(accuracy=1))

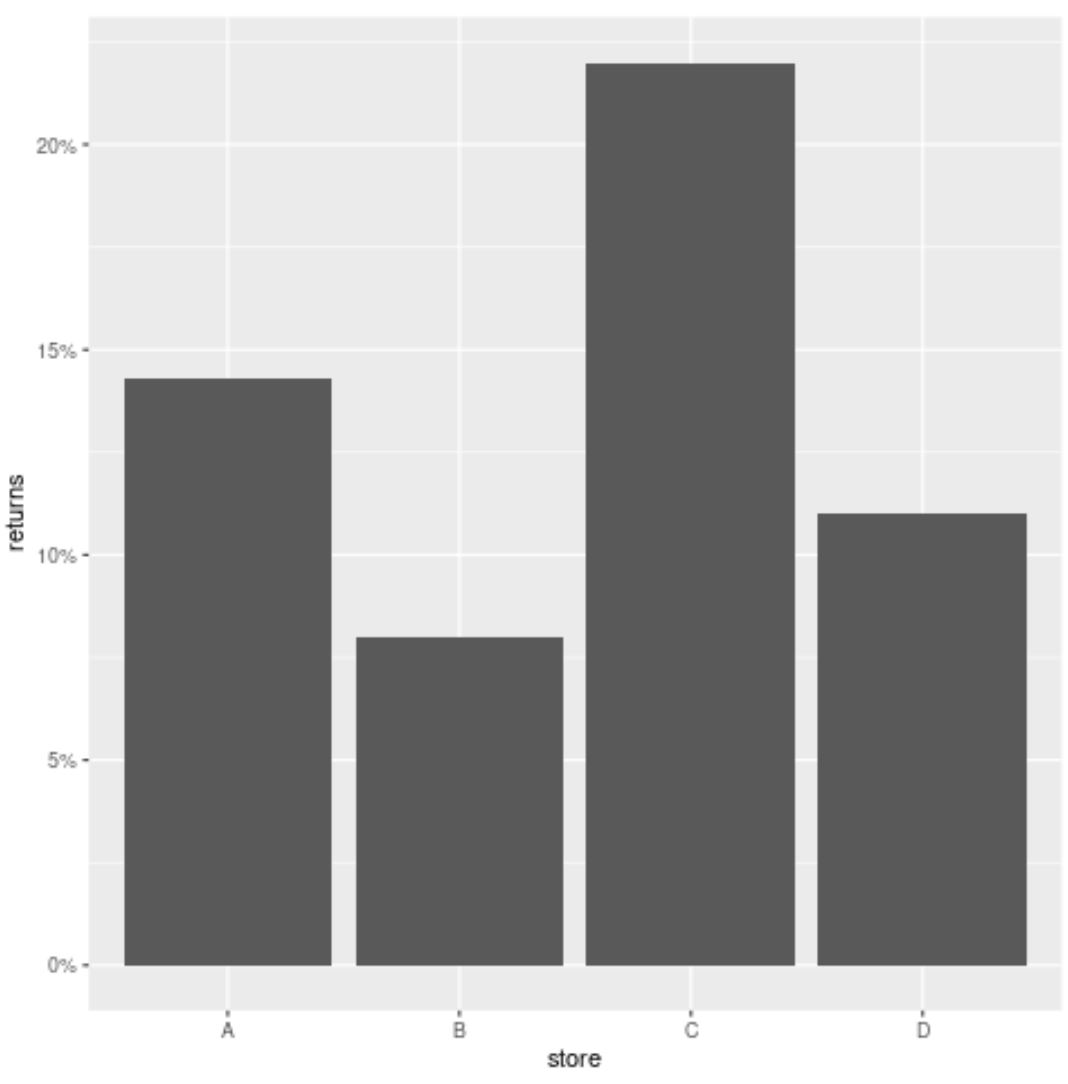

As shown in the final plot image, the axis is now formatted with percentages that have been rounded to the nearest integer. This subtle refinement results in a significantly cleaner visualization, eliminating visual clutter caused by unnecessary decimal zeros. This level of meticulous detail in axis formatting is what distinguishes amateur plots from professional, presentation-ready graphics generated in R.

Conclusion and Summary of Best Practices

Converting the Y-Axis to a percentage scale is an indispensable technique in the data visualization toolkit, particularly when working with proportional data in ggplot2. This process transforms raw decimal representations into visually accessible and immediately understandable percentages, dramatically enhancing the clarity and professional polish of your statistical graphics. The core method hinges on the seamless integration of the scale_y_continuous() function with the specialized formatting capabilities provided by the scales::percent function.

We have demonstrated a step-by-step approach, starting from the creation of a sample data frame and progressing through the construction of the baseline plot, the application of the percentage scale, and finally, the advanced refinement of decimal precision using the accuracy argument within scales::percent_format(). This ability to fine-tune the axis display ensures that your visualizations are tailored precisely to the informational needs of your audience, whether they require high precision or a simplified, concise summary.

Mastery of axis formatting in ggplot2 is foundational to effective data storytelling. Clear, well-labeled axes remove ambiguity and allow the audience to concentrate on the trends and insights you intend to convey. We highly encourage further exploration of ggplot2‘s extensive documentation to uncover additional customization options that can elevate your data presentations. The following resources offer further guidance on related visualization tasks:
