Create a Barplot in ggplot2 with Multiple Variables

Data visualization stands as a cornerstone of effective data analysis, providing an indispensable means of communicating complex findings with speed and clarity. Among the foundational tools available to analysts, the barplot (commonly known as a bar chart) is paramount for illustrating the magnitudes, frequencies, or proportions of various categorical variables. While simple bar charts are excellent for visualizing single categories, real-world data analysis frequently demands moving past basic frequency counts. We often encounter scenarios where primary categories must be segmented and analyzed across multiple subgroups simultaneously. This multivariate approach is critical for deriving richer context, facilitating detailed comparative analysis, and uncovering nuanced patterns within the data structure.

For professionals operating within the powerful statistical computing environment R, the `ggplot2` package, a core component of the Tidyverse, is universally recognized as the industry standard for generating complex, powerful, and aesthetically superior data graphics. Its structured approach allows for unparalleled customization and precision. This comprehensive tutorial is dedicated to walking you through the precise steps required to construct a sophisticated grouped barplot using ggplot2. This specific chart type is engineered to efficiently display the relationships and differences between multiple variables, making comparative analysis straightforward and intuitive.

To illustrate this technique, consider a practical business scenario: visualizing the total revenue generated from two distinct product lines—popcorn and soda—distributed across three separate sports venues or stadiums. Effectively visualizing this data requires a chart that can simultaneously group the sales figures by the primary category (the stadium location) and segment those groups further by the secondary variable (the product type). The resulting visualization must allow for easy comparison both within each stadium and across all venues. The image provided below represents the final, polished grouped barplot we will achieve by the end of this guide, clearly showcasing sales segmented by product type and organized by stadium location.

Understanding Grouped Barplots and `ggplot2` Fundamentals

It is crucial to distinguish the grouped barplot from its close relative, the stacked barplot. While a stacked barplot is designed to highlight the proportion or contribution of various subgroups toward a single, overarching total, the grouped barplot serves a different analytical purpose. By positioning the bars representing subgroups directly side-by-side—a process known as dodging—it maximizes the ability to perform direct, visual comparisons between those subgroups. This visualization technique is invaluable in situations where the absolute differences and relative performance of the secondary categories (like product types) are more critical to the insight than the aggregated magnitude of the primary category (like total stadium sales).

The functionality of the ggplot2 package is rooted deeply in Leland Wilkinson’s influential concept, the Grammar of Graphics. This framework posits that any statistical graphic can be systematically constructed by combining independent components, or layers. To successfully render our desired grouped barplot, we must clearly define and structure three fundamental elements that serve as the building blocks for the visualization. These foundational components guide how the data is interpreted and subsequently mapped onto the visual canvas:

• The Data: This refers to the source data frame or tibble containing the variables designated for plotting.
• The Aesthetics (aes()): This involves defining the mapping between the variables in the data (e.g., stadium, sales figures, product type) and the corresponding visual properties of the plot (e.g., X-axis position, Y-axis height, Color/Fill).
• The Geometries (geom_bar()): These are the visual objects used to represent the data points, such as the bars themselves, points, lines, or polygons.

The technical challenge in producing a grouped bar chart lies in compelling the geometric layer to display multiple bars adjacent to each other rather than stacking them. This critical side-by-side arrangement is achieved through the meticulous use of the position argument, which is applied directly within the geom_bar() function. Specifically, we will utilize the 'dodge' setting for the position parameter, which ensures precise horizontal alignment of subgroups. Understanding this specific mechanism is central to mastering multivariate bar visualization in ggplot2, and we will dissect its implementation fully during the core plotting stages.

Step 1: Preparing the Data Structure: Creating a Data Frame

The success of any visualization built with ggplot2 hinges entirely upon the initial structure of the input data. Prior to initiating the plotting process in R, we must confirm that our dataset adheres to the standardized format preferred by the Tidyverse principles. This involves constructing a well-structured data frame where the data is organized in the “long” format: every row corresponds to a single observation, and every column represents a distinct variable. Our specific example mandates the definition of three key variables: stadium, which serves as the primary grouping variable on the X-axis; food, which functions as the subgroup variable for coloring/filling; and sales, which provides the quantitative measurement for the height of the bars.

The accompanying R code block provides the instructions necessary to generate the sample dataset, which we name df. We utilize base R functionality, specifically the rep() function, to efficiently replicate the categorical factor levels (Stadium A, B, C, and the two product types) ensuring the data is correctly balanced and organized. This synthetic data frame allows us to proceed directly to the visualization steps without needing to load external files. The resulting structure, displayed below the creation script, confirms the required long format setup.

# Create the data frame representing sales across different stadiums and food types.
df <- data.frame(stadium=rep(c('A', 'B', 'C'), each=4),
                 food=rep(c('popcorn', 'soda'), times=6),
                 sales=c(4, 5, 6, 8, 9, 12, 7, 9, 9, 11, 14, 13))

# View the resulting structure of the data frame
df

   stadium    food sales
1        A popcorn     4
2        A    soda     5
3        A popcorn     6
4        A    soda     8
5        B popcorn     9
6        B    soda    12
7        B popcorn     7
8        B    soda    9
9        C popcorn     9
10       C    soda    11
11       C popcorn    14
12       C    soda    13

A critical observation is that this synthetic dataset is already structured in the optimal “long format,” which is the fundamental requirement for seamless plotting with ggplot2. Furthermore, since the sales column explicitly contains the quantitative measure (the pre-calculated heights for the bars), we will not need ggplot2 to perform any aggregation. It is vital for analysts to remember that if the data were initially presented in a “wide format” (where separate columns existed for ‘Popcorn Sales’ and ‘Soda Sales’), a crucial preliminary step would involve data wrangling using transformation functions like pivot_longer() from the tidyr package to correctly reshape the data into the preferred long structure.

Step 2: Building the Basic Grouped Bar Chart using `geom_bar()`

Having successfully prepared and structured our data frame, the next logical step is to initialize the ggplot2 object and incrementally add the required geometric layers. The central principle for constructing a grouped barplot relies on two strategic mappings: defining the aesthetics within the initial aes() function call to specify the variables, and crucially, manipulating the position argument inside the geom_bar() layer to dictate the physical arrangement of the bars. This combination of mapping and positioning is what translates the multivariate data structure into a readable visual grouping.

In our aesthetic mapping, we assign the primary grouping variable, stadium, to the horizontal (X) axis, and the quantitative variable, sales, to the vertical (Y) axis. The most critical step for multivariate visualization is mapping the subgroup variable, food, to the fill aesthetic. By linking food to fill, we instruct ggplot2 to treat the product type as the category that defines the color or shading of each bar, setting the stage for the grouping operation. The following concise code snippet demonstrates the initialization and the addition of the geometric layer using geom_bar():

ggplot(df, aes(fill=food, y=sales, x=stadium)) +
  geom_bar(position='dodge', stat='identity')

The functionality of this core plotting command is determined by two indispensable arguments passed to geom_bar(): stat='identity' and position='dodge'. The stat='identity' parameter is essential here because our input data frame, df, already contains the final sales figures in the sales column, which represent the exact desired heights of the bars. If we omitted this, ggplot2 would default to calculating the count of observations for each category, which is incorrect for pre-summarized data. Simultaneously, position='dodge' is the mechanism that executes the grouping. It overrides the default stacking behavior and physically shifts the bars corresponding to the different food categories so they stand adjacent to one another within the bounds of their shared stadium grouping, producing the distinct grouped visualization shown below.

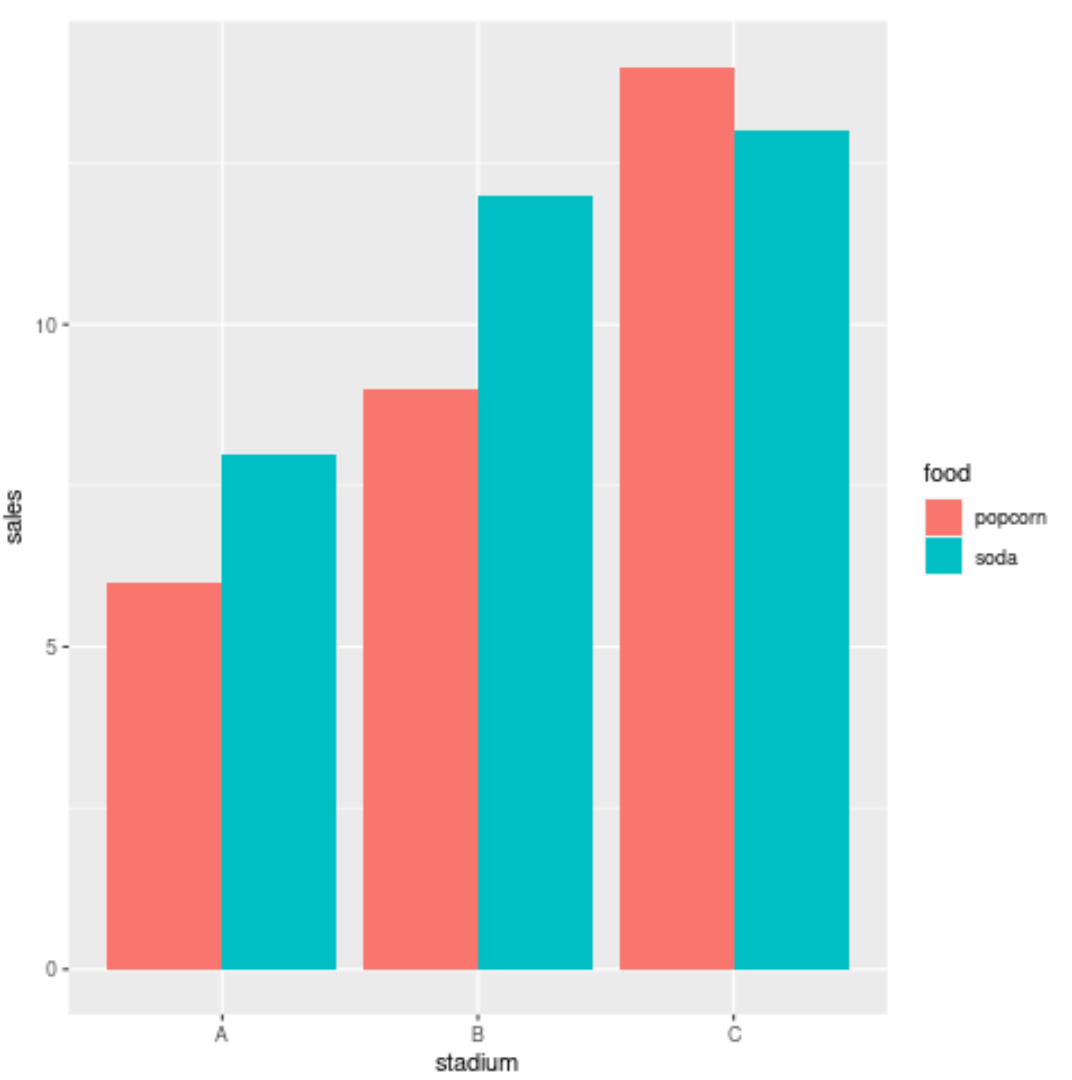

As clearly demonstrated by the output, the primary grouping variable, the various stadiums (A, B, and C), is correctly positioned along the horizontal axis. The sales figures are accurately reflected on the vertical Y-axis. Crucially, the sales metrics for the two product types, popcorn and soda, are visually differentiated using color (the fill aesthetic) and are placed side-by-side within each stadium cluster, confirming that the grouping mechanism has been successfully applied.

Step 3: Enhancing Visual Clarity: Customizing Aesthetics and Labels

Although the plot generated in Step 2 is functionally and structurally correct, default ggplot2 themes often result in visualizations that lack the necessary professional polish and detailed context required for formal reporting. The subsequent stage of refinement is dedicated to leveraging additional layers to drastically improve the plot’s communicative quality. This involves applying specific customizations, such as assigning a descriptive chart title, ensuring axis labels are clear and informative, and replacing the default color palette with a more visually appealing and distinct set of colors to enhance differentiation.

To control the textual elements of the graph, we employ functions such as ggtitle(), xlab(), and ylab() (which are convenient wrappers for the more general labs() function) to precisely dictate the title and axis labels. Furthermore, achieving customized color schemes is managed through the highly flexible scale_fill_manual() function. This function allows us to override the automatically assigned colors for the fill aesthetic, enabling us to define exact color values and even customize the legend title itself. The comprehensive code block below illustrates how these refinements are layered onto our existing plot structure:

ggplot(df, aes(fill=food, y=sales, x=stadium)) +
  geom_bar(position='dodge', stat='identity') +
  ggtitle('Sales by Stadium') +
  xlab('Stadium') +
  ylab('Sales (in thousands)') +
  scale_fill_manual('Product', values=c('coral2','steelblue'))

The implementation of scale_fill_manual() grants the user explicit control over the color mapping. Within this function, we not only define a meaningful legend title (“Product”) but also assign specific, named color values (“coral2” and “steelblue”) directly to the categorical levels of the food variable. This manual control is instrumental in professional data presentation, as it ensures optimal color contrast, adheres to potential branding requirements, and significantly enhances the plot’s overall communicative effectiveness and readability.

The resulting, fully customized visualization provides immediate clarity regarding the data:

Interpreting the Visualization and Advanced Customization

A thorough review of the completed grouped barplot immediately yields several key insights that were previously obscured in raw data tables. The grouping structure allows for effortless intra-group comparisons, meaning we can swiftly assess the performance of popcorn sales versus soda sales exclusively within Stadium A, and then repeat that precise comparison for Stadium B and Stadium C. Furthermore, the side-by-side arrangement enables easy inter-group comparisons. Visually, we can discern that Stadium C achieved the highest single sales metric (popcorn sales at 14 units), while Stadium B exhibits the most pronounced difference in performance between its two distinct product categories, highlighting a potential area for targeted marketing or operational investigation.

While the current visualization fulfills all the core requirements for displaying multivariate categorical data, the true power of ggplot2 lies in its modularity, offering countless avenues for enhancing both the aesthetic presentation and the analytical depth. For users seeking to elevate their graphics to a publication-ready standard or to incorporate additional layers of information, several advanced customization steps should be considered:

• Adding Data Labels: Utilizing the geom_text() or geom_label() geometries allows the analyst to place the exact quantitative sales figures directly above or inside each bar. This level of precision eliminates ambiguity, ensuring viewers do not have to rely solely on interpreting the Y-axis grid lines or tick marks.
• Applying Themes: The default gray background can often be distracting. Functions like theme_minimal(), theme_bw(), or specialized custom themes can be quickly applied to alter the overall visual style of the plot, removing unnecessary or distracting background elements while focusing attention on the data itself.
• Reordering Categories: For datasets where the order of categorical variables (like stadiums) lacks inherent meaning, strategic reordering can greatly improve the visual narrative. Using functions such as fct_reorder() from the forcats package allows the X-axis categories to be ordered based on a summary statistic (e.g., total sales volume), thereby emphasizing performance hierarchy.

True mastery of data visualization within the R environment stems not just from memorizing functions, but from a profound understanding of how each modular layer within the Grammar of Graphics interacts with the others. Regardless of the complexity of the final chart—be it a simple scatter plot or a complex grouped barplot—the fundamental workflow remains constant and disciplined: first, define the structured data; second, accurately map the aesthetics to link variables to visual properties; third, select the appropriate geometry type; and finally, refine the scales, coordinate systems, and textual labels to ensure optimal clarity and communication of the results.

Summary and Next Steps in Data Visualization

The ability to generate effective grouped barplots using ggplot2 is an absolutely fundamental skill set for modern data analysts operating in the R ecosystem. This technique offers one of the clearest and most computationally efficient methods for visually representing and comparing quantitative measures across multiple, interacting categorical variables. The successful creation of this plot hinges on two pivotal technical decisions: leveraging the fill aesthetic to correctly instruct ggplot2 to differentiate the subgroups, and subsequently deploying the position argument set to 'dodge' to ensure the bars are physically separated and aligned for immediate, accurate cross-comparison.

The following ordered list encapsulates the four most critical technical and structural takeaways derived from this detailed visualization tutorial:

1. The importance of structuring raw data into the “long format,” which is the necessary and preferred input standard for all complex visualizations created using ggplot2.
2. The requirement to use stat='identity' within the geom_bar() function whenever plotting data that has been pre-summarized, ensuring that the Y-axis values are taken directly from the input data.
3. The critical and non-negotiable role of position='dodge' in visualizing multivariate categorical data, as this argument is solely responsible for arranging the subgroup bars side-by-side rather than stacking them.
4. The necessity of refining the visual presentation using functions like ggtitle(), specialized axis functions, and the powerful scale_fill_manual() to ensure the resulting graphic achieves the highest possible communicative quality.

For analysts committed to continually expanding their data visualization repertoire, the next logical steps involve exploring the full range of geometry position adjustments offered by ggplot2—including 'stack', which produces the stacked barplot variant, or 'fill', which normalizes stacked bars to 100%. Furthermore, for handling significantly larger and more complex datasets, mastering the use of facets—specifically facet_wrap() or facet_grid()—is essential. These powerful tools enable the creation of complex, multi-panel visualizations that break down aggregated data into manageable, comparable subplots based on additional categorical variables.
