Create a Correlation Heatmap in R (With Example)

Introduction: Visualizing Relationships with Correlation Heatmaps

In the complex landscape of data analysis, gaining a clear understanding of the relationships that exist between various features or variables is absolutely paramount. To achieve this, analysts frequently turn to the correlation heatmap. This powerful graphical tool employs a spectrum of colors to elegantly represent the strength and direction of the statistical correlation measured between pairs of variables. Such a visualization technique is indispensable during exploratory data analysis (EDA), as it allows for the rapid identification of complex patterns, strong associations, and potential areas of interest, providing crucial initial insights before formal modeling begins.

The statistical programming language R is widely recognized and utilized for its robust capabilities in statistical computing and the generation of high-quality graphics. It offers a straightforward and highly customizable path for generating sophisticated data visualizations. Specifically, creating a correlation heatmap in R is made exceptionally efficient through the use of powerful packages like ggplot2. This comprehensive guide is designed to walk you through the precise process of constructing an engaging, informative, and highly interpretable correlation heatmap in R, ensuring that your results are both clear and aesthetically pleasing.

By the conclusion of this tutorial, you will possess the requisite knowledge to transform a complex set of numerical relationships into an intuitive visual format that can be easily digested by any audience. We will meticulously cover the essential R syntax required, demonstrate its practical application using a concrete, real-world example, and explore various methods for customizing your resulting heatmap to ensure optimal presentation and maximum insight extraction. The ability to visualize these core relationships is a fundamental skill for any professional working with data.

The Fundamentals of Correlation and Visualizing with Heatmaps

Before proceeding to the technical implementation in R, it is vital to establish a solid understanding of the core concepts: statistical correlation and the function of heatmaps in visualizing it. Correlation serves as a measure of the statistical relationship between two variables, quantifying the extent to which they move or change together. This relationship is typically summarized by the correlation coefficient, a value bounded between -1 and +1, which precisely indicates both the strength and the direction of the observed linear association.

A coefficient value of +1 represents a perfect positive correlation, signifying that as one variable increases, the other variable increases in perfect proportion. Conversely, a coefficient of -1 indicates a perfect negative correlation, meaning an increase in one variable corresponds to a proportional decrease in the other. Crucially, a value of 0 suggests the absence of any linear relationship between the variables being measured. It is important for analysts to remember the fundamental statistical principle that correlation merely indicates an association and does not, by itself, imply causation.

A heatmap is a powerful data visualization technique where the magnitude of numerical values within a matrix is represented by variations in color intensity and hue. When this technique is applied to correlation analysis, each cell within the heatmap matrix corresponds directly to the correlation coefficient calculated between two specific variables. The assigned color, ranging across a predefined gradient, allows viewers to immediately recognize strong positive, strong negative, or negligible correlations across all possible variable pairs simultaneously. This visual efficiency makes complex, multivariate relationships easy to interpret at a single glance, significantly accelerating the initial data understanding phase.

Essential R Packages for Generating the Visualization

The creation of a professional and informative correlation heatmap in R relies primarily on the synergistic deployment of two fundamental packages: ggplot2, which handles the rendering of high-quality graphics, and reshape2, which is essential for efficient data transformation prior to plotting. These packages are foundational components in virtually all sophisticated data analysis workflows conducted within the R environment.

The ggplot2 package, which is a key component of the popular Tidyverse ecosystem, is built upon the principles of the “grammar of graphics.” This architectural approach provides an incredibly flexible, consistent, and logical system for building plots layer by layer. For constructing correlation heatmaps, ggplot2 offers crucial functions such as `geom_tile()`, which draws the necessary colored squares, and `geom_text()`, which overlays the exact correlation values for enhanced precision. Furthermore, its `scale_fill_gradient2()` function is specifically designed to apply a diverging color scale, which is perfectly suited for visualizing correlations that inherently range from negative to positive values.

The reshape2 package plays a critical supporting role, specializing in the rapid reshaping and aggregation of data structures. Specifically, its highly functional `melt()` command is indispensable for restructuring the calculated correlation matrix into a “long” format. This long structure, where each row represents a single pairwise correlation observation, is the mandatory data structure that ggplot2 requires to correctly map variables (x and y axes) and corresponding correlation values (fill colors) to the aesthetic elements of the plot.

Core Syntax for Generating the Correlation Heatmap in R

The following R code snippet provides a robust and reusable template for generating a correlation heatmap. This syntax effectively combines the computational power of base R’s `cor()` function with the data wrangling capabilities of `melt()` from the reshape2 package and the advanced visualization features offered by ggplot2. Understanding each component of this code is essential for customizing and troubleshooting your visualizations.

#calculate correlation between each pairwise combination of variables
cor_df <- round(cor(df), 2)

#melt the data frame
melted_cormat <- melt(cor_df)

#create correlation heatmap
ggplot(data = melted_cormat, aes(x=Var1, y=Var2, fill=value)) +
  geom_tile() +
  geom_text(aes(Var2, Var1, label = value), size = 5) +
  scale_fill_gradient2(low = "blue", high = "red",
                       limit = c(-1,1), name="Correlation") +
  theme(axis.title.x = element_blank(),
        axis.title.y = element_blank(),
        panel.background = element_blank())

The process begins with `cor(df)`, which efficiently computes the correlation matrix encompassing all numerical variables present within your input data frame, denoted as `df`. Subsequently, the `round(…, 2)` function is applied to format these resultant coefficients to two decimal places, significantly improving their readability. This intermediate matrix, named `cor_df`, holds all the necessary pairwise correlation values.

The subsequent step, `melt(cor_df)`, is critical: it transforms the wide correlation matrix into the required long format. This transformation is essential because ggplot2 operates optimally with data where each observation (a single correlation pair) occupies its own row. The `melt()` function achieves this by converting variable names into two dedicated columns (`Var1` and `Var2`) and placing the correlation coefficients into a third column (`value`), structuring the data perfectly for plotting.

Finally, the `ggplot()` command initiates the construction of the heatmap. The initial call maps variable names to the x and y axes and assigns the correlation `value` to the aesthetic fill color. `geom_tile()` draws the colored squares representing each correlation. `geom_text()` is overlaid to display the precise numerical correlation coefficients directly on the tiles. `scale_fill_gradient2()` is used to define a diverging color scheme—using blue for negative, red for positive, and a neutral white for zero correlation—spanning the full theoretical range from -1 to 1. Lastly, the `theme()` modifications are implemented to remove redundant axis titles and the background panel, resulting in a clean, focused, and professional visualization.

Step-by-Step Example: Analyzing Basketball Player Statistics

5.1. Preparing the Data

To provide a tangible demonstration of correlation heatmap creation, we will utilize a practical example involving hypothetical performance data for eight basketball players. This example employs a standard data frame, designated as `df`, which contains several key performance metrics: points scored, assists made, rebounds collected, and blocks recorded. This multivariate dataset is ideally suited for correlation analysis, as we might intuitively expect certain statistics (e.g., points and assists) to exhibit strong relationships.

The first necessary step is to generate this synthetic sample data within the R environment. We use the `data.frame()` function to construct our dataset, meticulously ensuring that all variables included are numeric, as this is a fundamental prerequisite for the accurate calculation of correlation coefficients. The provided code snippet below illustrates exactly how to set up this data frame and subsequently displays its contents, allowing for verification of both structure and initial values.

#create data frame
df <- data.frame(points=c(22, 25, 30, 16, 14, 18, 29, 22),
                 assists=c(4, 4, 5, 7, 8, 6, 7, 12),
                 rebounds=c(10, 7, 7, 6, 8, 5, 4, 3),
                 blocks=c(12, 4, 4, 6, 5, 3, 8, 5))

#view data frame
df

  points assists rebounds blocks
1     22       4       10     12
2     25       4        7      4
3     30       5        7      4
4     16       7        6      6
5     14       8        8      5
6     18       6        5      3
7     29       7        4      8
8     22      12        3      5

The resulting data frame, `df`, now forms the analytical bedrock for our visualization project. Each row uniquely identifies a player, and each column represents a distinct statistical performance category. Our primary objective is to visually explore the pairwise correlations among these four performance metrics, allowing us to quickly uncover any interesting statistical dependencies or relationships that might exist within the player data.

5.2. Calculating and Reshaping Correlation Coefficients

With the raw data successfully prepared, the subsequent critical phase involves a dual operation: first, the precise calculation of pairwise correlation coefficients for all variables, and second, the necessary transformation of the resulting square correlation matrix into a format specifically designed for effective plotting using ggplot2.

We initiate this step by employing the `cor()` function, a base R utility, to compute the full correlation matrix. The `round()` function is immediately applied to these coefficients to limit them to two decimal places, a measure that greatly improves the clarity and readability of the final heatmap. Following this computation, the `melt()` function from the reshape2 package is invoked. This function converts the data from the wide matrix layout into the required long format, an essential prerequisite for `ggplot2` to correctly map the data points to the plot’s aesthetic dimensions.

library(reshape2)

#calculate correlation coefficients, rounded to 2 decimal places
cor_df <- round(cor(df), 2)

#melt the data frame
melted_cor <- melt(cor_df)

#view head of melted data frame
head(melted_cor)

      Var1    Var2 value
1   points  points  1.00
2  assists  points -0.27
3 rebounds  points -0.16
4   blocks  points  0.10
5   points assists -0.27
6  assists assists  1.00

The output displayed by `head(melted_cor)` vividly demonstrates this necessary data restructuring. Instead of the original square matrix, we now have a streamlined data frame composed of three columns: `Var1` (the row variable), `Var2` (the column variable), and `value` (the correlation coefficient itself). This “melted” format is perfectly structured and ready for the final step of visual generation.

5.3. Generating the Heatmap Visualization

With our correlation data successfully transformed into the appropriate long format, we proceed to the final step: generating the heatmap using the robust capabilities of the ggplot2 package. This stage involves constructing the plot incrementally, commencing with the foundational `ggplot()` function and carefully integrating geometric objects and aesthetic mappings to build the final visualization.

The code below utilizes `geom_tile()` to generate the individual colored cells that define the heatmap structure, where the `fill` aesthetic is explicitly mapped to the `value` of the correlation coefficient. To improve precision and interpretability, `geom_text()` is subsequently added to overlay the exact numerical correlation values directly onto each tile. The `scale_fill_gradient2()` function is critically important here, as it establishes a diverging color scale, which ranges from deep blue (for strong negative correlations) to deep red (for strong positive correlations), with a neutral color like white accurately representing zero correlation. The argument `limit = c(-1,1)` ensures that the color scale accurately spans the full theoretical range of correlation coefficients. Finally, structural adjustments within `theme()` are applied to declutter the plot by removing unnecessary axis titles and the background panel, allowing the correlation patterns to be the central focus.

library(ggplot2)

#create correlation heatmap
ggplot(data = melted_cor, aes(x=Var1, y=Var2, fill=value)) +
  geom_tile() +
  geom_text(aes(Var2, Var1, label = value), size = 5) +
  scale_fill_gradient2(low = "blue", high = "red",
                       limit = c(-1,1), name="Correlation") +
  theme(axis.title.x = element_blank(),
        axis.title.y = element_blank(),
        panel.background = element_blank())

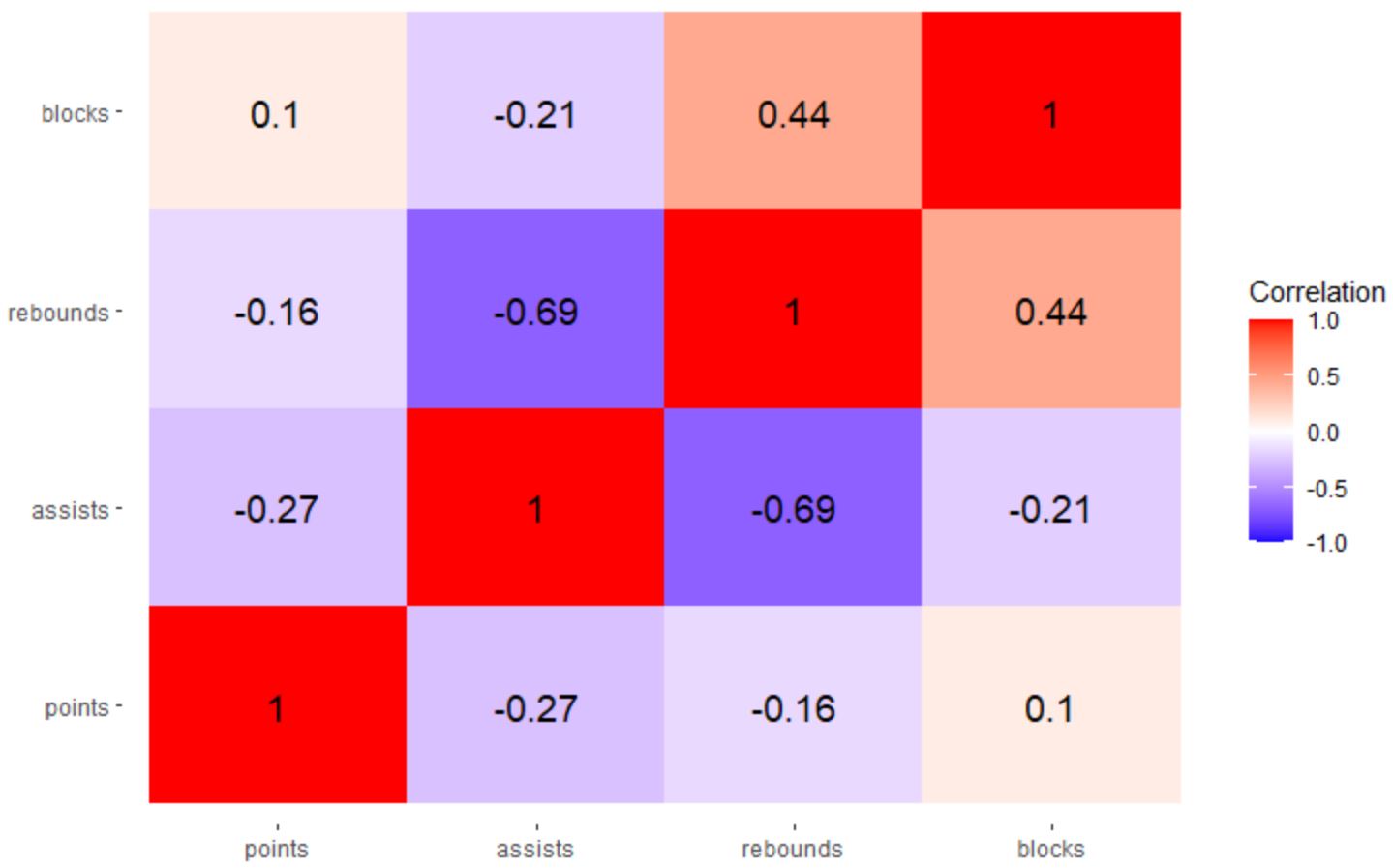

This execution generates a visually rich correlation heatmap, offering immediate insights into the intricate relationships between the chosen basketball player statistics. Visual inspection might reveal, for instance, a strong negative correlation between ‘assists’ and ‘rebounds’, or a moderate positive relationship between ‘points’ and ‘blocks’, should those patterns be present in the underlying data structure.

5.4. Interpreting the Heatmap Colors

The resulting correlation heatmap offers an exceptionally clear and concise visual summary of all pairwise correlation coefficients across your entire data frame. The primary strength of the heatmap visualization lies in its capacity to convey complex numerical information through an intuitive and quickly readable color scheme. In our specific example, we employed a standardized diverging color gradient to visually represent the full range of correlations from -1 to +1.

Specifically, the color scheme chosen for this visualization maps the correlation coefficients according to the following rules:

• The color shifts toward Blue when coefficients approach -1, indicating a strong negative linear relationship between the variables.
• The color settles on White when coefficients are close to 0, signifying little to no linear relationship.
• The color deepens toward Red when coefficients approach 1, representing a strong positive linear relationship.

This carefully engineered color mapping enables viewers to rapidly ascertain both the strength and the specific direction of the relationships. For example, a deeply colored red square immediately suggests that as one variable increases, the other variable tends to increase significantly as well. Conversely, a deeply colored blue square implies a substantial inverse relationship. Lightly colored or white squares indicate that the variables exhibit near independence in a linear sense. By systematically examining these color patterns, analysts can swiftly discern highly related variables, inversely related variables, and independent variables, forming an integral and time-saving component of their exploratory data analysis (EDA) strategy.

Customizing Your Heatmap’s Appearance

6.1. Adjusting Color Palettes

While the traditional blue-white-red color scheme is highly effective and standard for visualizing correlation, the ggplot2 package provides extensive flexibility, allowing users to customize the color palette to better align with specific preferences, corporate brand guidelines, or unique data interpretation requirements. The powerful `scale_fill_gradient2()` function facilitates this customization, enabling you to easily modify the `low`, `mid`, and `high` arguments to precisely define your desired color gradient.

For instance, analysts might prefer a red-green scale, a common choice where red is used to indicate negative outcomes (negative correlations) and green symbolizes positive outcomes (positive correlations). To implement this alternative scheme, you simply need to adjust the `low` and `high` arguments within `scale_fill_gradient2()` to the desired colors. Although the `mid` argument defaults to `midpoint = 0` in our primary example, it can also be explicitly specified to control the color used for zero correlation if a color other than white is preferred.

library(ggplot2)

#create correlation heatmap
ggplot(data = melted_cor, aes(x=Var1, y=Var2, fill=value)) +
  geom_tile() +
  geom_text(aes(Var2, Var1, label = value), size = 5) +
  scale_fill_gradient2(low = "red", high = "green",
                       limit = c(-1,1), name="Correlation") +
  theme(axis.title.x = element_blank(),
        axis.title.y = element_blank(),
        panel.background = element_blank())

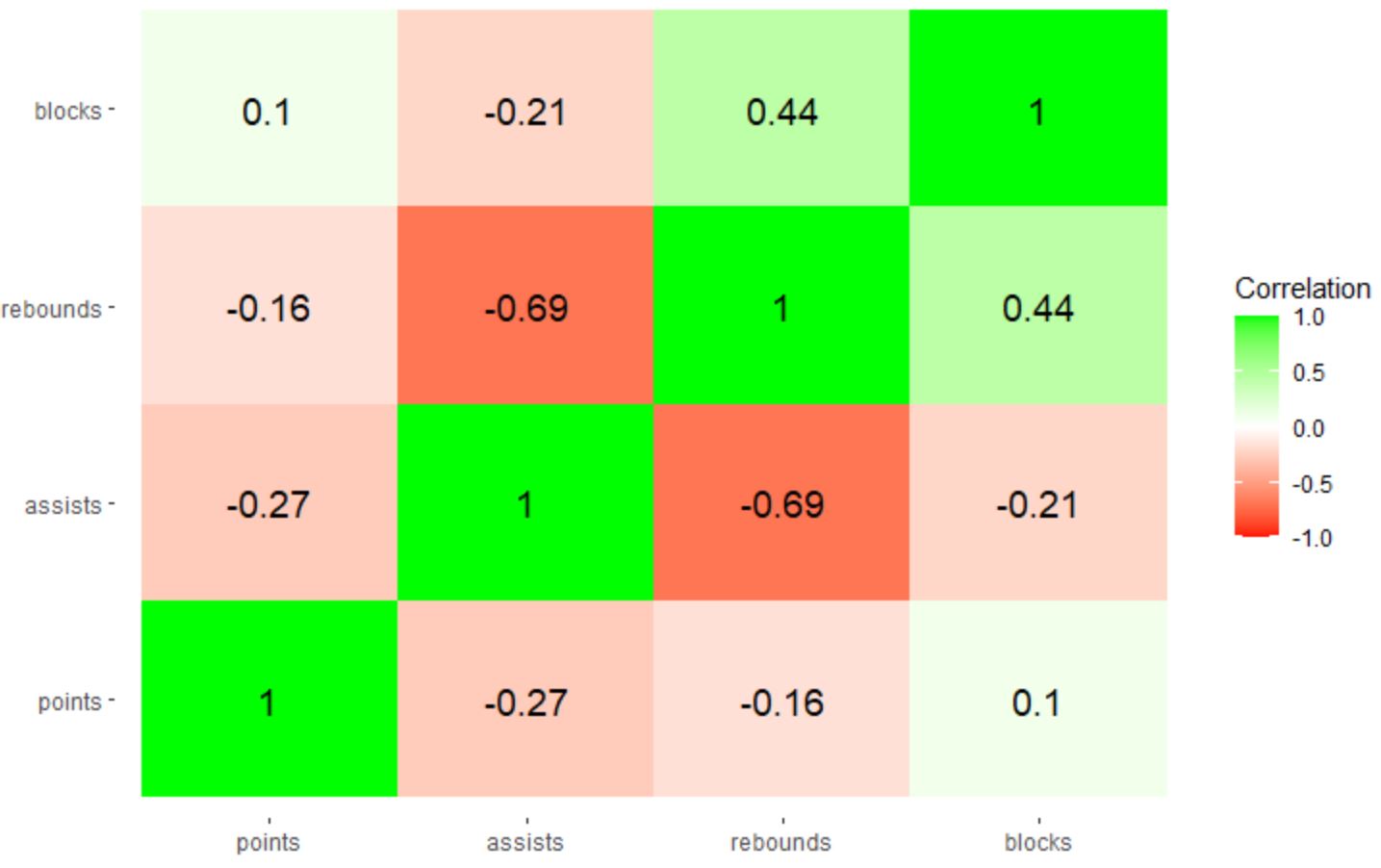

Executing this modified code generates a heatmap featuring the updated color scheme, presenting a distinct visual aesthetic while preserving the integrity of the underlying correlation information. Experimenting with various color choices can profoundly impact both the visual appeal and the speed at which interpretations are drawn from your heatmap.

6.2. Using Hex Color Codes for Precision

For analysts requiring the highest degree of precision and control over their heatmap’s color scheme, specifying colors using hex color codes is the preferred method, rather than relying on common color names like “red” or “blue.” Hex color codes represent colors using a six-digit alphanumeric string, allowing access to millions of distinct color possibilities. This method guarantees precise control over the exact hues, shades, and tints utilized in your visualization, ensuring consistency across all output formats.

For example, one could specify `low = “#0000FF”` for a pure blue and `high = “#FF0000″` for a pure red, or select specific brand-approved shades. This enhanced level of customization is particularly valuable when adherence to specific corporate branding guidelines is mandatory, when plots must comply with accessibility standards for colorblindness, or simply when a unique and professional aesthetic is desired for the visualizations. Numerous online tools are readily available to assist users in selecting and generating the exact hex color codes that meet precise requirements. By mastering this feature, your correlation heatmaps can be optimized to be both statistically rigorous and visually compelling.

Conclusion

Correlation heatmaps stand as indispensable instruments within the contemporary data analyst’s toolkit, providing an intuitive and visually powerful method for deciphering the complex web of relationships inherent within any given dataset. By effectively translating correlation coefficients into a readily interpretable spectrum of colors, these visualizations facilitate the rapid identification of strong positive, negative, and negligible associations, thereby substantially accelerating the entire exploratory data analysis (EDA) phase.

This comprehensive guide has meticulously demonstrated the ease and effectiveness with which such visualizations can be constructed in R. We leveraged the powerful combination of base R’s `cor()` function, the data reshaping utility of `melt()` from the reshape2 package, and the highly versatile plotting capabilities provided by ggplot2. We have covered every essential step, from the initial preparation of your data and the calculation of correlations to the final generation of the heatmap and its customization using various color palettes and precise hex color codes.

The proficiency to quickly visualize and accurately interpret these statistical relationships is of immense value for driving informed decision-making, guiding subsequent rigorous statistical modeling, and efficiently communicating complex analytical insights to diverse stakeholders. We strongly encourage readers to apply these robust techniques to their own datasets, experiment freely with the customization options presented, and uncover the critical hidden patterns and dependencies that ultimately shape their data narratives.

Further Learning Resources

To continue advancing your proficiency in data visualization and statistical analysis within the R environment, it is highly recommended to explore additional dedicated tutorials. These supplementary resources can significantly aid you in mastering other common analytical tasks and expanding the breadth of your toolkit for creating impactful and meaningful graphics.

The following tutorials explain how to perform other common tasks in ggplot2:
