Create a Correlation Matrix in Google Sheets

In the realms of statistical modeling, data science, and machine learning, the ability to discern and quantify the relationships between numerous variables is paramount. Data exploration requires not just summarizing individual metrics, but precisely measuring the strength and direction of the connections that bind them together, enabling informed decision-making and robust model construction.

The standard measure used for this purpose is the Pearson correlation coefficient (PCC). This powerful statistical indicator assesses the linear association between two distinct variables, yielding a value that strictly ranges from -1 (perfect negative correlation) to +1 (perfect positive correlation). While the PCC is highly effective for examining variables in isolation, complex, high-dimensional datasets demand a tool capable of providing a holistic, simultaneous view of all potential pairwise interactions.

This necessity leads directly to the implementation of the correlation matrix. Defined as a square table, this structure systematically organizes the PCCs for every possible combination of variables within the dataset. It serves as an indispensable component of Exploratory Data Analysis (EDA), providing a quick, visual summary of variable interdependence before deeper statistical modeling begins.

This comprehensive tutorial provides a detailed, step-by-step methodology for efficiently creating, accurately calculating, and correctly interpreting a robust correlation matrix directly within the accessible and widely utilized environment of Google Sheets.

The Core Metric: Interpreting the Pearson Coefficient

At the heart of correlation analysis lies the interpretation of the calculated coefficient, often symbolized by $r$. This value, derived from the Pearson correlation coefficient formula, establishes a standardized boundary for understanding the relationship between any two variables. It definitively signals whether variables exhibit co-movement (positive correlation), opposing movement (negative correlation), or linear independence (near-zero correlation).

Crucially, a significant correlation implies that changes observed in one variable are reliably and predictably associated with corresponding changes in the other. However, a fundamental constraint of the PCC is its focus solely on the linear relationship. It is entirely possible for two variables to have a strong non-linear relationship (e.g., quadratic or exponential) yet still yield a PCC value near zero, highlighting the importance of preliminary data visualization.

The three cardinal points of coefficient interpretation provide the necessary framework for reading any correlation matrix:

• -1 (Perfect Negative Correlation): This indicates a flawless inverse linear relationship. As the values of Variable A increase, the values of Variable B decrease by a perfectly predictable and proportional amount.
• 0 (No Linear Correlation): A coefficient of zero suggests that there is no identifiable linear relationship between the variables. Their movements are statistically independent in a linear sense, meaning knowledge of one variable does not help predict the linear movement of the other.
• +1 (Perfect Positive Correlation): This signifies a flawless direct linear relationship. As Variable A increases, Variable B increases proportionally, following a perfectly straight line path.

The magnitude of the relationship is determined by the coefficient’s absolute distance from zero. Whether the value is positive or negative, a coefficient closer to 1 (or -1) denotes a substantially stronger linear relationship than one closer to 0. For example, an association quantified at 0.75 represents a much tighter, more dependable relationship than one measured at 0.15. Mastering the meaning of these individual coefficients is the prerequisite step before attempting to construct or analyze the aggregated view presented by the full matrix.

Structuring Data for Calculation in Google Sheets

The success of correlation analysis hinges entirely upon the initial preparation and proper structure of the raw data. When working within spreadsheet environments like Google Sheets, the necessary format for correlation calculation mandates that each distinct variable must occupy its own column, while every row must represent a single, unique observation or data point. This standardized structure ensures that the built-in functions can accurately process the ranges and compute the relationships across all pairs.

To illustrate the process clearly, we will utilize a practical, small-scale dataset detailing the season performance metrics for 10 hypothetical basketball players. This dataset incorporates three distinct quantitative variables, which serve as our performance indicators: average Points Scored (PTS), average Rebounds Collected (REB), and average Assists Distributed (AST) per game. These three variables—PTS, REB, and AST—will define the scope and dimensions of our resulting correlation matrix.

The primary analytical goal is to move beyond mere descriptive statistics and quantitatively assess the interdependence among these three metrics. We seek answers to specific exploratory questions: Is there a tendency for players with higher scoring averages to also possess higher assist averages? Does proficiency in rebounding strongly correlate with scoring ability, or are these skills independent? The eventual correlation matrix will deliver precise, quantitative answers to these fundamental inquiries.

Before initiating the formulas, it is crucial to allocate adequate, dedicated space within the spreadsheet to display the output. Since our analysis involves three distinct variables (N=3), the resulting correlation matrix will necessarily be a square, 3×3 table. Proper labeling of the rows and columns (using the variable names: Points, Rebounds, Assists) is essential for clarity and accurate interpretation.

Implementing the CORREL() Function Step-by-Step

The calculation of the Pearson correlation coefficient in Google Sheets relies exclusively on the dedicated statistical function: CORREL(). This function takes two array inputs, corresponding to the two variable columns, and returns their standardized coefficient. To successfully construct the full correlation matrix, this function must be meticulously applied to every single unique pairing within the dataset.

The syntax for the CORREL() function is highly intuitive and requires specifying the two ranges of data that represent the variables being compared:

CORREL(data_range_1, data_range_2)

In our 3×3 matrix example (which we assume occupies cells B15 through D17), the process involves filling the grid systematically based on the mathematical properties of correlation:

1. Establishing the Diagonal (Variable vs. Itself): The correlation of any variable with itself is mathematically defined as 1.00. Therefore, cells B15 (Points vs. Points), C16 (Rebounds vs. Rebounds), and D17 (Assists vs. Assists) are populated with the value 1.
2. Calculating Unique Pairwise Correlations: For the off-diagonal cells, we use the CORREL() function. For example, to find the correlation between Points and Rebounds (Cell C15), the formula would explicitly reference the columns containing the raw data for those two variables, such as =CORREL(A2:A11, B2:B11), assuming our data is in columns A and B.
3. Leveraging Symmetry: A key property of the correlation matrix is its symmetry. The relationship between Variable A and Variable B is mathematically identical to the relationship between Variable B and Variable A. This means the matrix is mirrored across the diagonal (e.g., Cell C15 must equal Cell B16). We only need to calculate the unique values in the upper triangle and then copy them to the corresponding cells in the lower triangle, reducing the required number of calculations.

While some statistical packages utilize the COVAR() function (which calculates covariance) as a preliminary step, the CORREL() function is the necessary tool in Google Sheets as it standardizes the covariance, yielding the required Pearson coefficient. The output of this methodical calculation process, including the resulting matrix coefficients and the formulas used to generate them, is illustrated below:

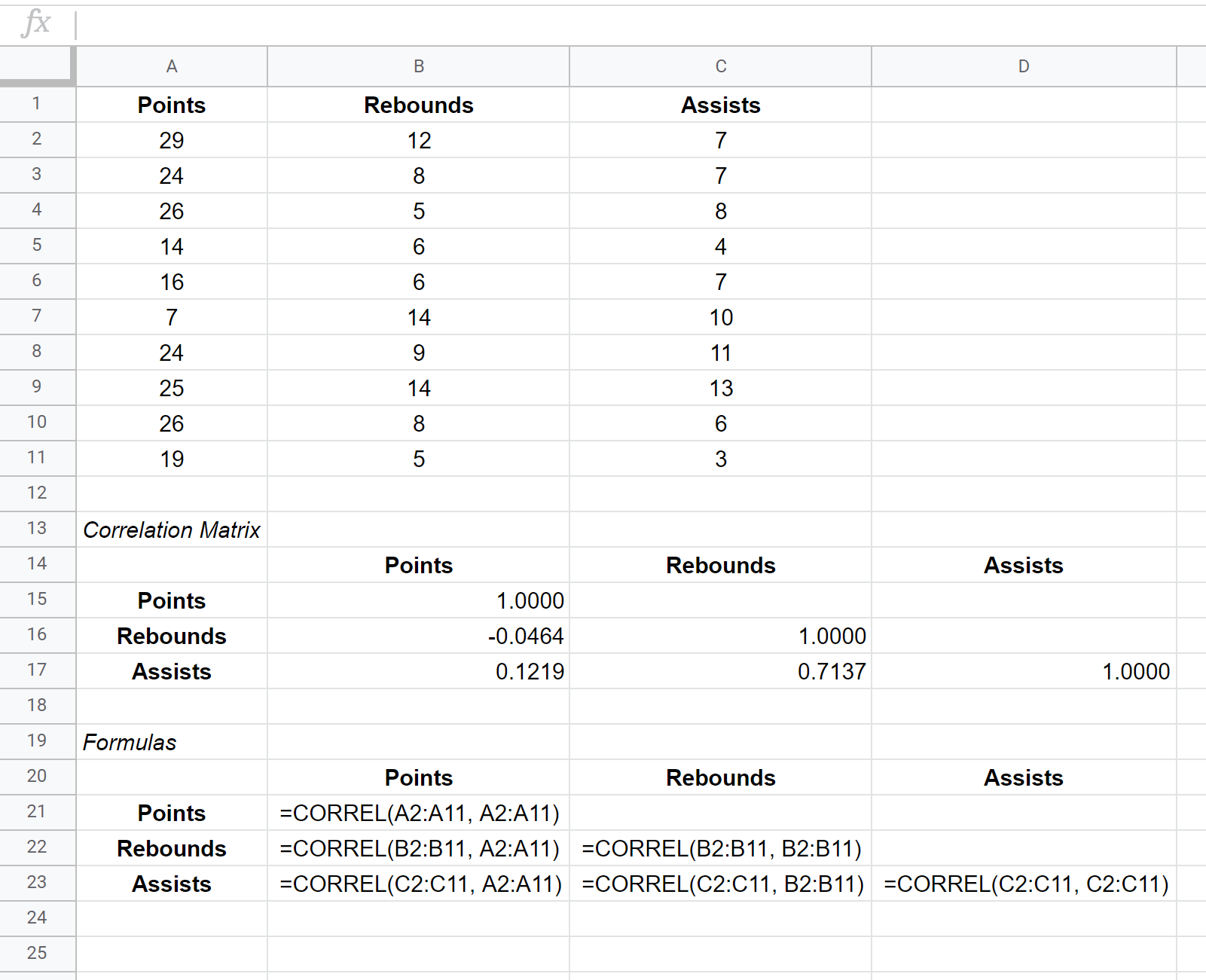

The resulting correlation matrix for this basketball performance dataset is displayed in cells B15:D17. The accompanying set of formulas used to derive these precise coefficients are shown in cells B21:D23 directly below the matrix for complete transparency and clarity:

Analyzing the Output: Decoding Coefficient Significance

Once the matrix is successfully populated, the focus shifts to statistical interpretation. Each coefficient within the matrix cells provides a standardized measure of linear dependency between the intersecting row and column variables. By carefully analyzing these quantitative values, we can extract meaningful statistical insights regarding the interdependence of the variables within our basketball performance dataset.

The analysis of the calculated coefficients reveals three distinct patterns of association among the key performance indicators (PTS, REB, AST):

• Points vs. Rebounds (-0.0464): This value is exceptionally close to zero, indicating a near-negligible linear relationship. Although the sign is slightly negative, suggesting that scoring and rebounding might move in opposite directions, the magnitude is far too small to establish any meaningful statistical connection. For practical purposes, we conclude that scoring prowess and rebounding ability are linearly independent for this sample of players.
• Points vs. Assists (0.1219): This coefficient is positive but still quite weak. A value of 0.1219 suggests that there is a slight, minor tendency for players who score more points to also accumulate more assists. However, because this value remains close to the zero threshold, it constitutes a weak positive correlation, implying that a player’s ability to score is largely unrelated to their ability to distribute the ball effectively.
• Rebounds vs. Assists (0.7137): This is clearly the most salient statistical finding in the matrix. The value of 0.7137 signifies a strong positive correlation. This robust magnitude provides compelling evidence of a substantial linear association between rebounding and assisting. From a sports analytics perspective, this suggests that the skills or player attributes that lead to high rebounding numbers often overlap with those required for high assist numbers, making this relationship crucial for understanding overall player effectiveness.

It is standard practice to acknowledge but generally disregard the values along the main diagonal (e.g., Points vs. Points). Since any variable is perfectly correlated with itself, these cells always contain the value 1.00. The true insight derived from the matrix comes exclusively from the off-diagonal cells, which quantify the relationships between different variables.

Avoiding Pitfalls: Correlation vs. Causation and Data Integrity

Despite its utility in quantifying relationships, the correlation matrix is a statistical tool with distinct limitations that must be acknowledged to prevent misinterpretation. The most fundamental and critical distinction in all statistical analysis is separating correlation from causation. A robust coefficient, such as the 0.7137 observed between Rebounds and Assists, only signifies predictable co-movement; it offers absolutely no evidence that one variable directly causes or influences the other.

If a strong correlation exists, analysts must consider the possibility of lurking or confounding variables—unmeasured factors that simultaneously influence both correlated metrics. For instance, in our basketball example, a third factor like a player’s assigned position (e.g., Center vs. Guard) or total minutes played might drive both high rebound numbers and high assist numbers independently. Establishing genuine causal links requires advanced experimental design or sophisticated econometric modeling, not merely correlation analysis.

Furthermore, standard Pearson correlation coefficients are known to be highly susceptible to the influence of outliers. An extreme data point, resulting either from measurement error or a rare event, can dramatically skew the calculated coefficient, leading to an artificially inflated or deflated view of the overall relationship between the populations. Therefore, a crucial best practice requires thorough data cleaning and visualization—specifically using scatter plots—prior to correlation calculation to identify, investigate, and appropriately handle any anomalous data points.

Finally, analysts must always remember the linear constraint: the PCC is designed exclusively to measure linear dependencies. If the true underlying relationship is complex, such as curvilinear, quadratic, or exponential, the Pearson coefficient may misleadingly report a value near zero, suggesting independence when a strong non-linear association is present. For such cases, exploring alternative methods, such as Spearman’s rank correlation or other non-parametric measures, might be required to accurately capture the variable interdependence.
