Learn How to Calculate and Visualize Correlation Matrices in Python

The Foundation of Relationship Analysis: Correlation and the Correlation Coefficient

In the realm of statistical analysis and data science, quantifying the linear relationship between two distinct variables is a foundational requirement. This quantification is achieved through the calculation of the correlation coefficient, a powerful statistical measure designed to summarize the strength and direction of the straight-line association between paired data points. Mastering the interpretation of this coefficient is the critical first step before engaging in more complex techniques like regression analysis or multivariate modeling. The concept of correlation helps us understand how changes in one variable correspond to changes in another, which is essential for making predictive inferences about the underlying data structure.

The correlation coefficient (often referred to as Pearson’s r) is constrained to a precise, defined scale, yielding a numerical value that always falls strictly between -1 and 1. These boundary values are not arbitrary; they possess specific statistical meanings regarding the nature of the relationship. Understanding these limits is key to accurate interpretation of any correlation analysis.

• -1 signifies a perfectly negative linear correlation. This means that as the value of one variable increases, the value of the second variable decreases with perfect consistency and proportionality.
• 0 indicates the absence of any linear correlation. While the variables may still possess a non-linear relationship, they are considered statistically independent in a linear context.
• 1 represents a perfectly positive linear correlation, illustrating that both variables increase or decrease simultaneously and consistently.

Beyond the sign (positive or negative), the absolute magnitude of the coefficient dictates the strength of the association. The closer the correlation coefficient is to either -1 or 1, the more robust and predictable the linear relationship is deemed to be. While a strong correlation suggests a powerful predictive link, a critical caveat in all statistical work must always be recalled: correlation unequivocally does not imply causation. This principle ensures that statistical findings are interpreted responsibly, distinguishing association from true causal mechanisms.

The Indispensable Role of the Correlation Matrix in Multivariate Analysis

While analyzing the bivariate relationship between two variables provides valuable insight, modern data science problems invariably involve assessing the simultaneous, complex relationships among numerous variables within a single dataset. When analysts need a structured, comprehensive overview of the correlational architecture across all possible pairings, the correlation matrix emerges as an indispensable tool. It transforms complex multivariate data into an organized, readable format suitable for immediate diagnosis.

A correlation matrix is constructed as a square table that systematically organizes and displays the correlation coefficients for every possible pairwise combination of variables present in a given dataset. If a dataset encompasses N variables, the resulting matrix structure will be an N x N dimension. This rigorous structure facilitates the rapid visualization and interpretation of intricate data relationships, quickly highlighting which pairs of variables exhibit co-movement and which appear statistically independent. Furthermore, the matrix helps in identifying issues like multicollinearity early in the modeling process.

This tutorial will provide a detailed, step-by-step methodology for effectively generating, interpreting, and visualizing a correlation matrix. We will harness the powerful data manipulation capabilities available within the Python programming environment, specifically leveraging the industry-standard Pandas library for efficient data processing and calculation.

Step 1: Preparing the Python Environment and Structuring the Data

The initial requirement for any high-performance statistical analysis in Python is the correct setup of the computational environment, primarily relying on the Pandas library. Pandas is renowned for supplying robust, user-friendly data structures and comprehensive data analysis tools, making it the bedrock for most data cleaning and preparation tasks. Before we can calculate any correlation coefficients, our raw data must first be structured as a Pandas DataFrame.

To provide a tangible context for this exercise, we will construct a small, hypothetical dataset that tracks various basketball player statistics, focusing on ‘assists’, ‘rebounds’, and ‘points’. This real-world proxy allows us to observe how these specific variables interact and relate to one another. The process involves initializing the raw data using a standard Python dictionary structure, which is then swiftly converted into a structured, tabular Pandas DataFrame. This conversion is crucial as it unlocks the specialized statistical methods built into the Pandas library.

Execute the following code snippet within your Python environment to import the required library and successfully create the sample data structure:

import pandas as pd

data = {'assists': [4, 5, 5, 6, 7, 8, 8, 10],
        'rebounds': [12, 14, 13, 7, 8, 8, 9, 13],
        'points': [22, 24, 26, 26, 29, 32, 20, 14]
        }

df = pd.DataFrame(data, columns=['assists','rebounds','points'])
df

   assist  rebounds  points
0	4	12	22
1	5	14	24
2	5	13	26
3	6	7	26
4	7	8	29
5	8	8	32
6	8	9	20
7	10	13	14

Step 2: Calculating the Correlation Matrix using Pandas

Once the data has been successfully loaded and structured into a Pandas DataFrame, the process of generating the correlation matrix is exceptionally efficient due to the powerful, built-in functionalities of the Pandas library. The fundamental tool for this operation is the native .corr() method. By default, when invoked on a DataFrame, this method automatically computes the Pearson correlation coefficient between every possible pair of numeric columns present in the dataset.

The output generated by the .corr() method is itself a new DataFrame, which represents the complete matrix with high computational precision. While this level of precision is statistically accurate, for purposes of reporting, human readability, and clear presentation, it is nearly always preferable to simplify the coefficients. This is typically achieved by chaining the .round() method immediately after .corr(). For standard statistical documentation, rounding the coefficients to three decimal places provides an excellent balance between precision and clarity.

Execute the following commands sequentially to first calculate the raw correlation matrix and then generate the more presentable, rounded version suitable for immediate interpretation:

#create correlation matrix
df.corr()

                assists   rebounds     points
assists        1.000000  -0.244861  -0.329573
rebounds      -0.244861   1.000000  -0.522092
points        -0.329573  -0.522092   1.000000

#create same correlation matrix with coefficients rounded to 3 decimals
df.corr().round(3)
	       assists	rebounds  points
assists	         1.000	  -0.245  -0.330
rebounds	-0.245	   1.000  -0.522
points	        -0.330	  -0.522   1.000

Step 3: Systematic Interpretation of the Correlation Matrix

Interpreting the numerical correlation matrix requires a systematic approach to analyzing the calculated values. Due to the inherent symmetry of any correlation matrix (the correlation between A and B is identical to the correlation between B and A), analysts typically focus only on the values in either the upper or lower triangle of the table, avoiding redundant analysis.

The most obvious and structurally important observation is the principal diagonal, which extends from the top-left corner to the bottom-right corner. The coefficients along this diagonal are always fixed at 1.000, representing the perfect correlation of each variable with itself. These values confirm the structural integrity of the calculation and serve as critical reference points. The remaining coefficients, known as the off-diagonal elements, are the focus of our analysis, as they reveal the linear relationships between the distinct pairwise combinations of variables.

By analyzing the rounded matrix derived from our basketball statistics example, we can draw several key conclusions about the relationships between player metrics:

• The relationship between assists and rebounds yields a coefficient of -0.245. This low absolute value suggests a weak, negative linear association. Statistically, this means that while players who record more assists tend to have slightly fewer rebounds, this trend is neither strong nor highly predictable.
• Observing assists and points, we find a coefficient of -0.330. This indicates a moderate, negative relationship. In this specific sample, the data suggests a counter-intuitive outcome: players performing high numbers of assists may score fewer points. This may imply role specialization where high-assist players focus on facilitating, rather than scoring, or it could simply be a function of the limited sample size.
• The strongest observed relationship is between rebounds and points, with a coefficient of -0.522. This value signifies a moderate to strong negative linear correlation. This insight suggests a meaningful inverse relationship: players who dominate rebounding metrics are associated with lower scoring totals, suggesting different positional priorities or skill sets within the team structure.

A thorough and robust understanding of these coefficients is paramount. It empowers analysts to make precise, informed decisions regarding subsequent data handling, including feature selection, identifying potential multicollinearity issues, and gaining comprehensive insight into the overall behavior of the dataset before applying advanced statistical modeling techniques.

Step 4: Enhancing Interpretation Through Correlation Heatmaps

While the numerical matrix provides the precise quantitative values, visualization is essential for enhancing rapid interpretation, particularly when dealing with datasets that involve a large number of variables. The standard and most effective visualization method for a correlation matrix is the heatmap. A heatmap leverages color intensity and hue to instantly represent both the strength (intensity of color) and the direction (hue, e.g., red vs. blue) of the correlation coefficient.

Using Pandas, we can generate a styled, informative heatmap directly from the correlation DataFrame using the powerful .style.background_gradient() method. This technique automatically maps the range of coefficient values (from -1 to 1) onto a chosen color scheme, known as a colormap (specified by the cmap argument). In our initial example, we employ the 'coolwarm' colormap, which is standard for divergence plotting, typically using cool colors (blue) for negative correlations and warm colors (red/yellow) for positive ones, with white or light gray near zero.

corr = df.corr()
corr.style.background_gradient(cmap='coolwarm')

This resulting visualization transforms the numbers into an immediate graphical representation, allowing for quick identification of the strongest positive and negative relationships:

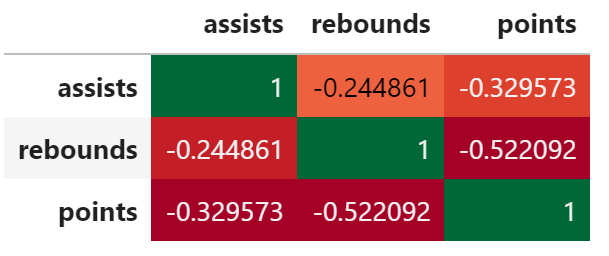

The selection of the cmap argument significantly influences the visual narrative and presentation quality. Different colormaps emphasize specific ranges or transition points within the data, catering to varied analytical needs or audience preferences. For instance, the 'RdYlGn' (Red-Yellow-Green) colormap is frequently utilized to emphasize clear divergence, where red represents strong negative, green represents strong positive, and yellow marks the near-zero range.

corr = df.corr()
corr.style.background_gradient(cmap='RdYlGn')

Another popular choice for visualizing correlation divergence is 'bwr' (Blue-White-Red). In this scheme, deep blue hues typically indicate low values (strong negative correlation), vibrant red hues denote high values (strong positive correlation), with pure white reserved for the zero correlation mark. This high contrast provides immediate visual separation between relationship types.

corr = df.corr()
corr.style.background_gradient(cmap='bwr')

Finally, the 'PuOr' (Purple-Orange) palette is often preferred in professional settings for its distinct color separation and accessibility, offering a clear visual distinction between positive (orange) and negative (purple) linear relationships.

corr = df.corr()
corr.style.background_gradient(cmap='PuOr')

For professionals engaged in comprehensive data visualization tasks, having detailed knowledge of the available colormaps is crucial for effective communication. A complete list of all supported cmap arguments and their associated color schemes can be found by consulting the official Colormap Reference documentation provided by Matplotlib. Understanding these options allows for the creation of visualizations tailored precisely to the analytical goal.
