Calculating Covariance Matrices with Excel: A Step-by-Step Guide

Understanding Covariance and Its Role in Data Analysis

The mathematical concept of Covariance is a fundamental pillar of modern statistical analysis, designed to quantify the linear relationship existing between two distinct random variables. Essentially, it provides a measure of how two variables fluctuate in tandem. When analyzing a dataset, a positive covariance value suggests that as one variable increases, the other tends to increase as well, indicating a direct association. Conversely, a negative value signifies an inverse relationship, meaning that an increase in one variable is typically associated with a decrease in the other. It is important to note that, unlike correlation, covariance is measured in units derived from the product of the two variables’ units. This characteristic often makes direct comparison across different scales difficult, but the sign of the value remains highly informative regarding the direction of the association.

The core statistical calculation for determining the Covariance between variables X and Y involves a summation process. Specifically, the formula requires calculating the product of the deviations of each data point from its respective mean, and then dividing this sum by the number of data points (or $n-1$ when calculating sample covariance). While powerful tools like Excel automate these complex computations, a firm grasp of the underlying mechanism is essential for accurate interpretation. Understanding this formula ensures that analysts appreciate exactly what the resulting output represents in terms of data interaction and simultaneous variability.

COV(X, Y) = Σ(x-x)(y-y) / n

When moving beyond simple pairwise comparisons to analyze the relationships within a system of multiple variables, the concept of covariance is extended into a covariance matrix. This indispensable tool organizes all possible pairwise covariances into a single, symmetric square matrix. This format offers a concise, comprehensive view of how every variable in the dataset relates to every other variable. Crucially, the diagonal elements of this matrix represent the Variance of each individual variable (the spread of its own values), while the off-diagonal elements display the covariance between the corresponding pairs. Constructing this matrix is a foundational requirement for many advanced multivariate statistical techniques, including Principal Component Analysis (PCA) and advanced hypothesis testing.

Prerequisites: Enabling Excel’s Data Analysis ToolPak

The path to generating a covariance matrix efficiently within Microsoft Excel necessitates the activation of a specialized statistical add-in: the Data Analysis ToolPak. This utility is not enabled by default in most installations, yet it is absolutely essential because it contains the specialized functions required for complex calculations, including the specific ‘Covariance’ procedure we will utilize. Without the ToolPak active, the automated calculation method detailed in this guide will not be available under the ‘Data’ tab of the main ribbon.

Enabling the Data Analysis ToolPak is a straightforward process requiring only a few navigation steps. Begin by accessing the ‘File’ menu, then selecting ‘Options,’ and subsequently navigating to the ‘Add-ins’ section. At the bottom of this window, locate the ‘Manage’ dropdown menu, select ‘Excel Add-ins,’ and then click the ‘Go’ button. A new dialog box will appear listing various available add-ins. Check the box next to ‘Analysis ToolPak’ and confirm your choice by clicking ‘OK.’ Upon successful completion of this process, the critical ‘Data Analysis’ option will become permanently visible and accessible on the far right of the ‘Data’ ribbon in the main Excel interface, granting access to powerful statistical capabilities.

Note: If the ‘Data Analysis’ option is still missing after following these steps, ensure that you selected the ‘Analysis ToolPak’ and not the ‘Analysis ToolPak – VBA’ option, and restart Excel if necessary to finalize the configuration change.

Structuring the Dataset for Covariance Calculation

To effectively leverage the multivariate capabilities provided by Excel’s statistical add-in, the raw input data must be meticulously organized. We will use a pedagogical example dataset that tracks hypothetical test scores for students across three distinct academic disciplines: mathematics, science, and history. For the calculation to execute correctly using the Data Analysis ToolPak, two structural rules are crucial: first, all variables must be arranged in adjacent columns; and second, clear variable identifiers (headers) must occupy the first row directly above the corresponding numerical data. Excel interprets each column as a separate variable during the analysis, making this vertical arrangement mandatory.

In our example, the data structure spans cells A1 through C11. Column A holds the Math scores, Column B contains the Science scores, and Column C contains the History scores. The labels (Math, Science, History) are precisely located in row 1. This specific formatting ensures that Excel correctly differentiates the descriptive labels from the numerical inputs during the analysis phase. Proper data preparation is undeniably the essential first step toward obtaining accurate and statistically meaningful results, preventing common errors such as treating header text as numerical input or incorrectly grouping dissimilar variables for calculation.

Generating the Covariance Matrix Using the Analysis ToolPak

Once the data is correctly structured and the Analysis ToolPak is confirmed as active, generating the covariance matrix becomes a rapid, automated process. Initiate the process by navigating to the ‘Data’ tab on the Excel ribbon and clicking the newly visible ‘Data Analysis’ option. This action will launch the main dialog box listing all available statistical procedures. Scroll through the list, locate, and select ‘Covariance,’ confirming your choice by clicking ‘OK’. This opens a secondary configuration window tailored specifically for the covariance calculation inputs.

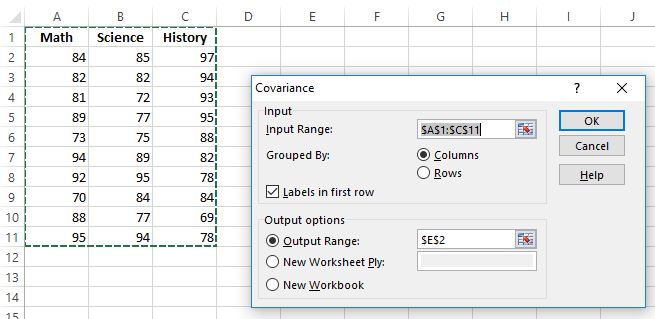

Within the Covariance dialog box, precise configuration of three key parameters is required. First, define the Input Range. This range must comprehensively include both the variable labels in the first row and all the subsequent numerical data points. For our academic score example, the input range must be specified as “$A$1:$C$11”. Second, it is vital to ensure the checkbox labeled Labels in first row is checked. This crucial step correctly signals to Excel that row 1 contains descriptive headers (Math, Science, History) that must be excluded from the mathematical calculations. Third, specify the Output Range, which dictates the exact starting cell for the resulting matrix. Selecting an empty cell, such as $E$2, ensures the output is neatly displayed without overwriting any existing data. Once all settings are confirmed as correct, click ‘OK’ to execute the analysis and generate the matrix.

Upon execution, the analysis tool automatically calculates and presents the full symmetric covariance matrix, placing the results starting at the designated output cell ($E$2). This finalized matrix serves as a powerful summary of the complex relationships between the three subjects, detailing both their intrinsic variability and their specific pairwise interdependence, making it immediately ready for detailed statistical interpretation.

Interpreting the Covariance Matrix: Variability and Interdependence

The interpretation of the numerical values within the generated covariance matrix is arguably the most valuable stage of the analysis, translating raw numerical output into meaningful statistical insights. The matrix’s symmetric structure inherently separates the evaluation into two distinct components: the intrinsic variability of individual scores and the interactive relationship between subject pairs.

The elements positioned along the main diagonal of the matrix—where the row variable corresponds exactly to the column variable (e.g., Math intersecting Math)—represent the Variance of each respective variable. The Variance serves as a robust statistical quantifier of the spread, scatter, or dispersion of a single variable’s scores around its mean. A higher Variance value indicates greater heterogeneity or spread in the student scores for that specific subject. Based on the diagonal values derived from our example output, we can observe the following degrees of variability among the student performances:

• The variance of the math scores is 64.96.
• The variance of the science scores is 56.4.
• The variance of the history scores is 75.56.

In contrast, the off-diagonal elements provide the measure of Covariance between distinct pairs of variables (e.g., Math-Science, Science-History). These values quantify the magnitude and direction of the linear relationship, showing exactly how much the two subjects fluctuate together relative to their means. Due to the matrix’s symmetric nature—meaning the covariance between X and Y is mathematically equivalent to the covariance between Y and X—only the values in the upper or lower triangular section need to be examined. These numerical relationships are summarized as follows:

• The covariance between the math and science scores is 33.2.
• The covariance between the math and history scores is -24.44.
• The covariance between the science and history scores is -24.1.

Analyzing the Direction of Relationships: Positive vs. Negative Covariance

While the absolute magnitude of the Covariance value can be challenging to interpret in isolation—as it is highly dependent on the unit of measurement of the variables—its sign provides immediate and critical insight into the direction of the statistical relationship. Understanding this sign distinction is vital, as it allows analysts to draw meaningful conclusions about how changes in one variable predict or align with changes in another within the observed dataset. This distinction between positive and negative association is a cornerstone output of multivariate analysis.

A positive number for covariance signifies a direct, or positive, relationship: the two variables tend to increase or decrease simultaneously. For instance, the positive covariance of 33.2 observed between Math and Science scores suggests a strong tendency for students performing well in mathematics to also perform well in science. Conversely, those scoring poorly in one subject are statistically likely to score poorly in the other. This finding implies a shared underlying proficiency, such as general analytical skill or study habits, influencing performance across both technical disciplines.

In contrast, a negative number for covariance indicates an inverse, or negative, relationship. This means that as one variable’s value increases, the second variable’s value tends to decrease. The negative covariance (-24.44) between Math and History scores clearly illustrates this trend: students achieving high Math scores are more likely to exhibit lower History scores, and vice-versa. Identifying such inverse relationships is fundamentally important for modeling complex systems, as it may highlight areas of cognitive competition, differing core skill requirements, or contrasting engagement levels between the subject areas.
