Create a Covariance Matrix in Google Sheets

Understanding Covariance: The Foundation of Relationship Measurement

In the realm of statistics and data science, Covariance stands as a foundational metric essential for quantifying the linear relationship between two random variables. Essentially, it serves as a measure of how two different variables fluctuate together. When two variables exhibit a strong positive covariance, it indicates that as one variable increases, the other tends to increase proportionally. Conversely, a strong negative covariance suggests an inverse linear relationship, meaning that an increase in one variable is consistently paired with a decrease in the other.

It is absolutely critical to grasp that covariance measures the degree of linear association, and its numerical value is deeply tied to the units of measurement used for the variables. Unlike standardized metrics, the magnitude of the covariance value itself is not easily comparable across different datasets or variables measured on disparate scales. This dependency on units makes Covariance difficult to interpret regarding the absolute strength of a relationship. For standardized comparisons, analysts often rely on correlation, which normalizes this relationship to a scale between -1 and 1.

The fundamental mathematical definition used to calculate the population Covariance between two variables, conventionally denoted as X and Y, involves a precise calculation: we sum the products of the deviation of each observation from its respective mean, and then divide this total by the number of observations, n. This formula ensures that we capture the degree of simultaneous movement, or co-variation, across the entire dataset.

COV(X, Y) = Σ(x-‾x)(y-‾y) / n

Understanding this single calculation is the first step toward grasping the complexity of multivariate data analysis, where relationships are not confined to just two variables but span across many interacting components. This leads us directly to the concept of the covariance matrix, a structure designed to organize and present these complex pairwise relationships efficiently.

What is a Covariance Matrix?

A Covariance Matrix (often abbreviated as the variance-covariance matrix) is an indispensable statistical tool, structured as a square matrix, that systematically organizes the covariance between every possible pair of variables within a multivariate dataset. If a study involves k distinct variables, the resulting matrix will have dimensions of k x k. This compact structure provides a comprehensive, at-a-glance overview of how all input variables relate to one another simultaneously, forming the backbone of many advanced statistical techniques.

One of the defining characteristics of this matrix is its inherent symmetry. Because the covariance calculation is commutative (i.e., the covariance between Variable A and Variable B is mathematically identical to the covariance between Variable B and Variable A), the matrix is perfectly mirrored across its main diagonal. This means that the upper triangular portion of the matrix will precisely reflect the values found in the lower triangular portion. Consequently, when manually calculating or interpreting the matrix, we only need to focus on the unique pairs of variables, as the results are redundant.

Correctly interpreting the structural components of the matrix is paramount for accurate analysis. The matrix is divided into two distinct sets of values, each providing unique insights into the data’s dispersion and relationships:

• The values situated along the main diagonals (running from the top-left corner to the bottom-right corner) represent the covariance of a variable with itself. Mathematically, the covariance of a variable with itself is defined as the Variance of that specific variable. Variance measures the spread or dispersion of the individual observations around the mean for a single variable.

• The off-diagonal elements display the Covariance between two distinct variables. These are the values we principally examine to determine the direction and magnitude of the linear relationships connecting different components of the dataset.

The organized nature of the Covariance Matrix transforms what would be a long list of individual calculations into a manageable and interpretable statistical object, making it indispensable for multivariate analysis.

Step-by-Step Construction Using Google Sheets

While specialized statistical software offers automated matrix generation, creating a covariance matrix using Google Sheets remains a highly accessible and effective method for quick analysis of small to moderately sized datasets. This process leverages the platform’s built-in statistical functions, specifically the COVAR() function, although it requires a structured, manual approach to construct the final matrix layout.

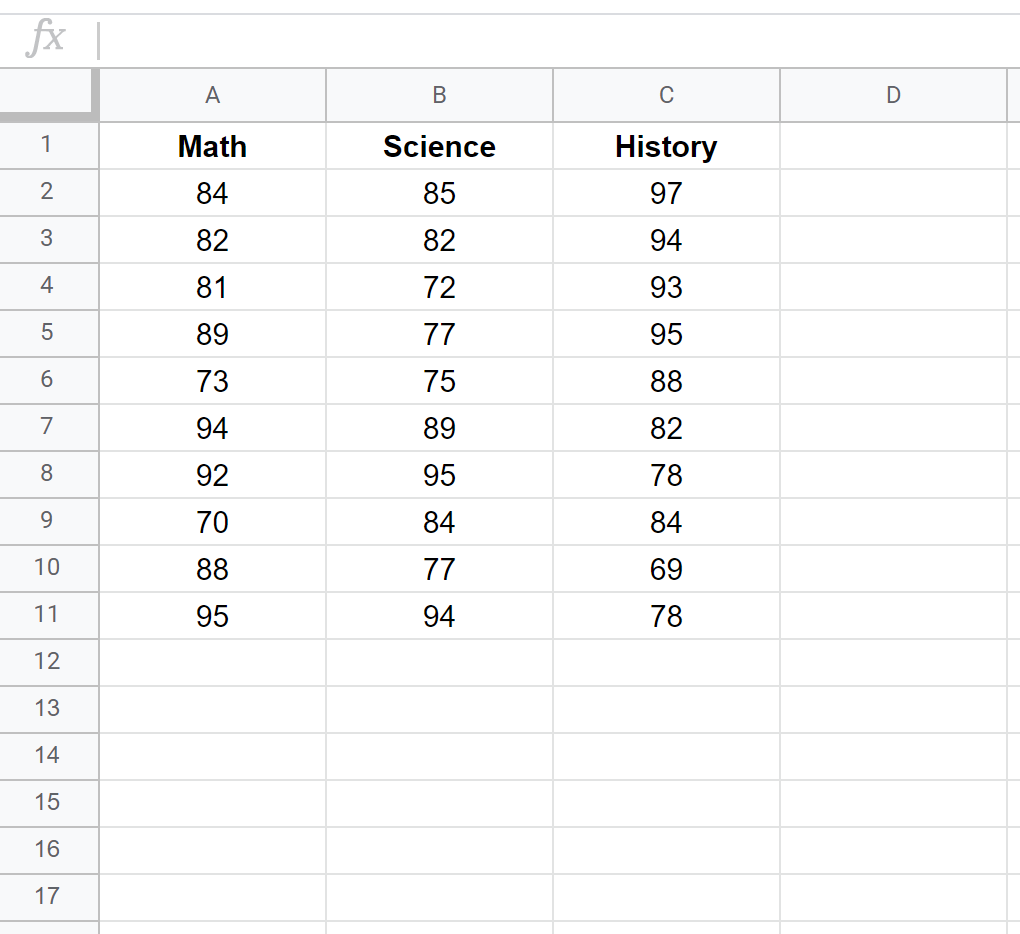

For this detailed demonstration, we will utilize a practical sample dataset comprising the test scores of 10 students across three different academic subjects: Math, Science, and History. The initial step is to ensure your raw data is meticulously organized in adjacent columns within the spreadsheet. This organization is critical, as the `COVAR()` function relies on continuous ranges for calculation.

The Google Sheets implementation of the covariance function uses the syntax: COVAR(data_range_Y, data_range_X). Since Google Sheets lacks a single command to generate the entire matrix simultaneously from a range, we must manually populate the resulting 3×3 matrix by calculating the covariance for every unique pair of subjects. This systematic approach ensures all bivariate relationships are captured correctly.

We will designate a specific range, for example, cells B15:D17, to host our resulting covariance matrix. The crucial step in manual construction is remembering the rule for the main diagonal elements: to calculate the variance of a subject, you must calculate the covariance of that subject’s score column against itself. For off-diagonal elements, you calculate the covariance between the two specific subject columns.

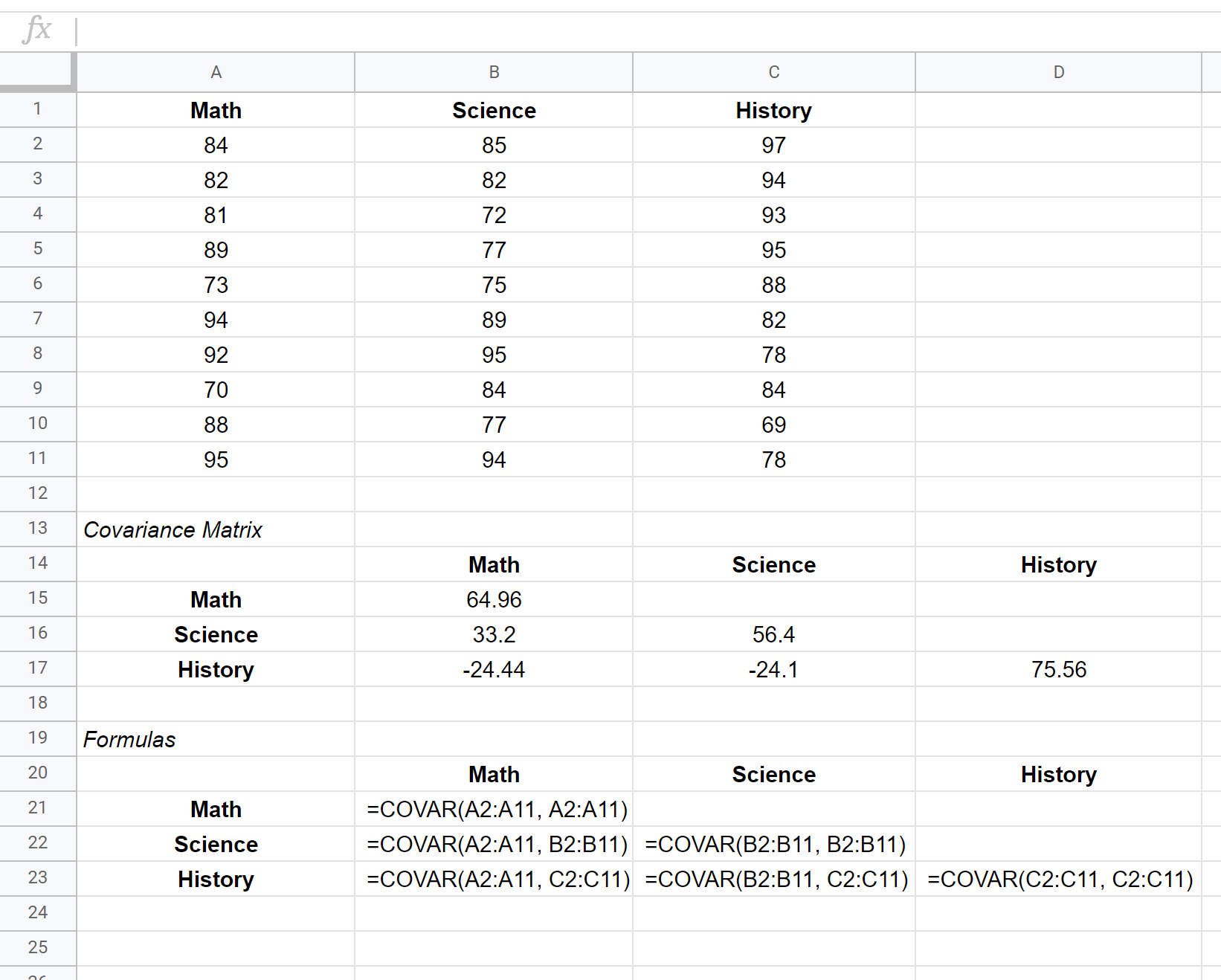

The specific formulas necessary to generate this matrix, along with the precise resulting numerical values, are displayed in the image below. Note how the cell references change systematically to cycle through all subject pairings, ultimately populating the matrix with both variance and covariance values:

Once constructed, this matrix provides a complete statistical profile of the relationships within the student dataset, allowing for in-depth interpretation of performance variability and subject interdependence.

Interpreting the Results: Variance and Bivariate Relationships

The interpretation of the completed covariance matrix is a two-part process that requires separate analysis of the diagonal elements (which describe individual variable dispersion) and the off-diagonal elements (which quantify the bivariate relationships). Understanding both components is essential for drawing meaningful statistical conclusions from the data.

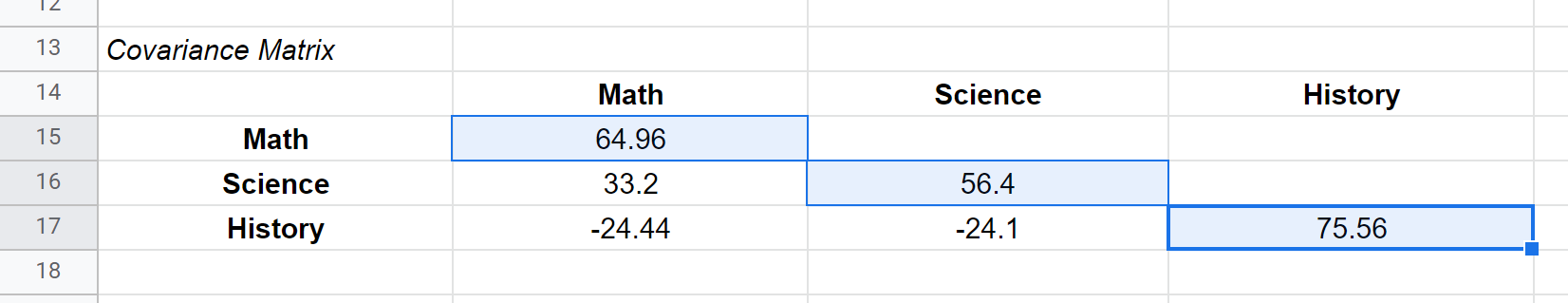

Analyzing the Diagonals (Variance)

The numerical values that run along the main diagonal of the matrix represent the Variance for each respective subject’s scores. Variance is a fundamental measure of dispersion, quantifying the extent to which individual scores deviate or are spread out from the average score of that subject. Higher variance indicates greater heterogeneity in the scores.

Based on the matrix generated from our sample student dataset, we observe the following variances:

• The variance of the Math scores is 64.96.
• The variance of the Science scores is 56.4.
• The variance of the History scores is 75.56.

The fact that History exhibits the highest variance (75.56) suggests that student performance in History is the most spread out, indicating the greatest variability in outcomes compared to the scores in Math or Science. Conversely, Science scores are the most tightly clustered around the mean.

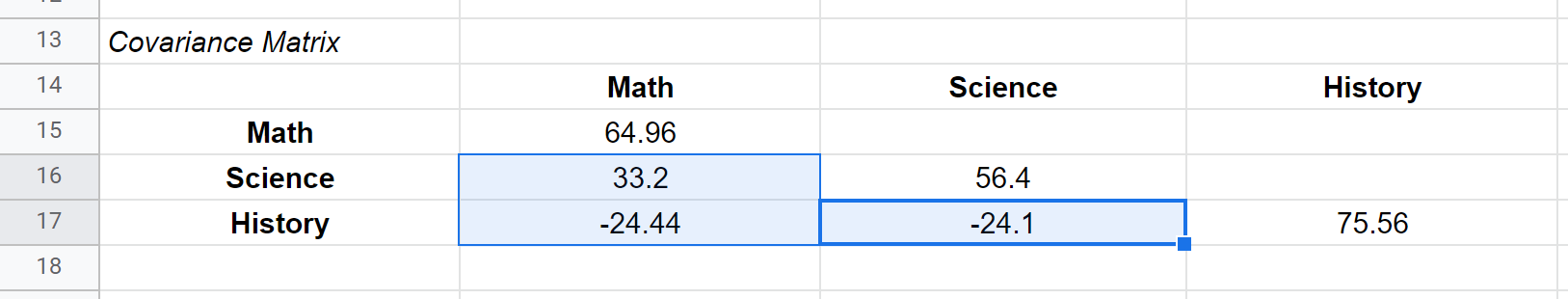

Analyzing the Off-Diagonals (Covariance)

The off-diagonal values are the true Covariances, revealing the direction and strength of the linear relationship between the paired subjects. The sign of the covariance (positive or negative) is the most immediate indicator of the nature of the relationship:

• The covariance between the Math and Science scores is 33.2.
• The covariance between the Math and History scores is -24.44.
• The covariance between the Science and History scores is -24.1.

A positive covariance, such as the 33.2 observed between Math and Science, implies a synchronous movement. Students who achieved high scores in Math were statistically likely to also achieve high scores in Science, suggesting that these subjects might rely on shared intellectual skills or study habits. This positive relationship is the strongest observed in the dataset.

Conversely, a negative covariance, observed between Math and History (-24.44) and Science and History (-24.1), indicates an inverse relationship. As performance increases in one subject, performance tends to decrease in the other. This suggests that the factors or skills driving success in the quantitative subjects (Math/Science) may not align with or may even conflict with the skills needed for high performance in History.

Applications and Limitations of Covariance Analysis

The covariance matrix is far more than a simple table of calculated values; it is a fundamental cornerstone in multivariate statistical analysis and forms the basis for numerous advanced techniques across diverse fields. In financial modeling, for instance, the matrix is indispensable for calculating portfolio risk, allowing analysts to understand how the returns of different assets move together, which is crucial for optimizing diversification and asset allocation strategies. In the field of data science and machine learning, the matrix structure is used as input for vital dimensionality reduction techniques, most notably Principal Component Analysis (PCA), which relies on identifying the underlying variance and covariance patterns to project data onto a lower-dimensional space.

The primary advantage of compiling these complex relationships into a matrix format is the instantaneous and organized identification of potential dependencies within a large set of variables. It allows researchers and analysts to quickly determine which variables exhibit strong synchronous or inverse movement without the tedious process of calculating and comparing individual bivariate statistics one by one. This holistic view aids in hypothesis generation and model building.

Despite its analytical power, covariance analysis carries a critical and often overlooked limitation: the results are entirely unit-dependent. If one set of scores were measured out of 100 and another out of 1000, the resulting covariance magnitude would change dramatically based solely on the measurement scale, even if the underlying linear relationship between the variables remained identical. This scaling issue means that the numerical value of the covariance cannot be used as an absolute measure of relationship strength; a covariance of 500 does not necessarily indicate a stronger relationship than a covariance of 5.

To overcome this critical unit-dependency limitation and standardize the measure of association, analysts routinely convert the Covariance Matrix into a Correlation Matrix. This conversion process uses the standard deviation of each variable to normalize the covariance values. The resulting correlation coefficients are unit-free and are guaranteed to fall within the strict range of -1 (perfect inverse relationship) to +1 (perfect positive relationship), providing a universally comparable measure of relationship strength.
