Learn How to Create Dynamic Tables in Excel

Introduction: Mastering Dynamic Data Visualization in Excel

In the landscape of professional business intelligence and detailed reporting, Microsoft Excel remains an essential application for data analysis. While most users are familiar with its fundamental formulas and features, unlocking advanced techniques can significantly enhance the clarity and impact of data presentation. One such powerful, yet frequently overlooked, capability is the creation of a floating table. A floating table is a versatile, dynamic visual representation—effectively a live image—of a selected data area within your spreadsheet. Unlike data strictly confined by cell boundaries, this object is completely movable and can be positioned anywhere on the worksheet, or even replicated across different sheets, providing superior flexibility for visual design. This dynamic feature is invaluable when constructing interactive dashboards, fine-tuning report layouts, or isolating critical data segments for immediate viewing without disrupting the source data’s organization.

The mechanism responsible for generating these dynamic visualizations is a highly specialized, somewhat hidden utility within Excel: the Camera tool. This tool captures a graphical snapshot of a designated cell range and pastes the result as an independent graphic object. The crucial differentiator is that this object is dynamically linked to the source data. This robust connection ensures that any modification—whether a value change or a formatting update—made to the original range is automatically and instantaneously reflected in the floating table. This guarantees that your visualizations are perpetually current and accurate, drastically improving the reliability of your reports.

This article serves as a comprehensive, step-by-step tutorial designed to guide you through the entire process. We will cover the essential data preparation steps, the specific configuration required to activate the Camera tool (as it is not visible by default), and its practical application to generate a versatile, interactive data element. By the conclusion of this tutorial, you will possess the knowledge to integrate this powerful functionality, significantly enhancing your data presentation capabilities and overall Excel workbook workflows.

Defining the Floating Table and Its Strategic Advantages

A floating table fundamentally differs from a standard Excel Table in both structure and positioning. A conventional Excel Table is anchored to specific cells and governed by the rigid grid system of the worksheet. In contrast, a floating table functions as an independent, graphic object—an active duplicate of a selected cell range. This independence allows users to freely move, resize, and layer the object anywhere on the sheet, much like an embedded picture. The defining and most critical feature that elevates it beyond a static image is its direct, live connection to the source data; it updates automatically whenever the original data is modified, ensuring a reliable and permanently accurate representation without manual intervention.

The practical applications of floating tables are wide-ranging, particularly in scenarios demanding adaptable data display. A prime example is the development of complex, professional dashboards. Often, you need to highlight crucial metrics or summary tables prominently without cluttering the underlying data grid or sacrificing valuable screen real estate. A floating table allows you to seamlessly extract these key performance indicators (KPIs) and position them strategically, contributing to a clean, aesthetically superior layout. Similarly, when preparing financial reports or marketing presentations, a floating table can spotlight specific, critical data segments, effectively directing the audience’s attention while guaranteeing that the displayed figures remain consistent and current due to the dynamic link.

Furthermore, the intuitive drag-and-drop capability significantly streamlines the design and layout phase. Users can efficiently experiment with various arrangements and visual hierarchies to achieve the optimal impact, all without altering the organization or integrity of the original source data. This represents a substantial functional improvement over legacy methods, such as copying data as a static image (which immediately becomes obsolete) or attempting to paste data that must conform strictly to cell gridlines. By integrating floating tables into their processes, analysts can fundamentally elevate their data visualization and reporting practices, resulting in Excel workbooks that are more interactive, visually compelling, and functionally robust.

Preparing the Source Data: Converting to an Excel Table

While the Camera tool can capture any arbitrary cell range, converting your raw information into an official Excel Table structure is the preferred prerequisite for creating a truly dynamic floating table. This foundational step provides numerous benefits, including simplified data manipulation, automated formatting, and structured referencing. We will begin this preparation by inputting a sample dataset into our Excel worksheet. For the purpose of this instructional example, we will use mock data detailing basketball player statistics, including their team affiliation, name, and points scored.

Enter the following sample data into your Excel worksheet, ensuring the header row starts in cell A1:

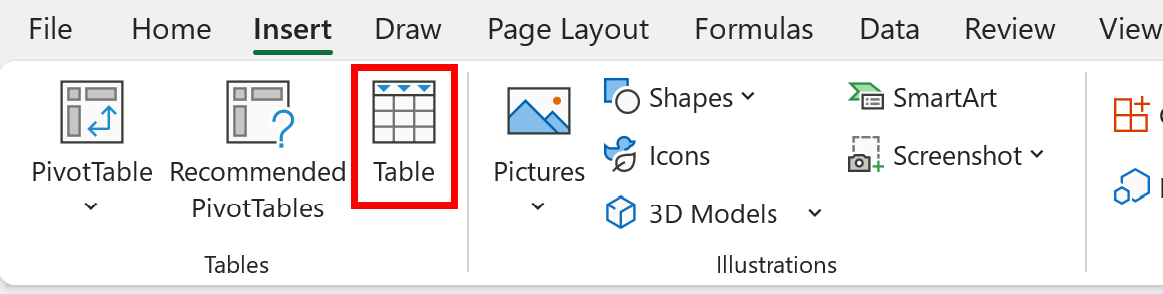

Once the raw data is entered, the critical next step is to formalize this ordinary cell range into a structured Excel Table. To execute this conversion, highlight the entire range containing your dataset and its headers (e.g., A1:C10). With the range selected, navigate to the Insert tab located on the top Ribbon interface. Within the ‘Tables’ group, click the Table icon (or use the shortcut Ctrl+T). Excel will prompt a dialog box to confirm the range and verify if your selection includes headers. Ensure the “My table has headers” box is checked, then click “OK”.

This simple confirmation instantly transforms your selected area into a formally structured Excel Table. This action automatically applies default formatting, such as banded rows, and activates table-specific features like built-in filter buttons in the header row. Most importantly for our goal, it establishes a robust, easily expandable data structure that functions as the ideal source for our dynamic floating table. This structured methodology ensures that our data is not only visually standardized but also optimized for highly efficient management and dynamic display within the Excel workbook.

Activating the Camera Tool: Customizing Your Interface

The Camera tool is indispensable for creating dynamic floating tables, but it is intentionally excluded from the standard Excel Ribbon interface by default. To make this powerful feature readily available, we must execute a one-time customization to add it to the Quick Access Toolbar (QAT). The QAT is a highly customizable toolbar positioned at the very top of the Excel window, specifically designed to grant immediate access to frequently used commands, irrespective of which main Ribbon tab is currently active.

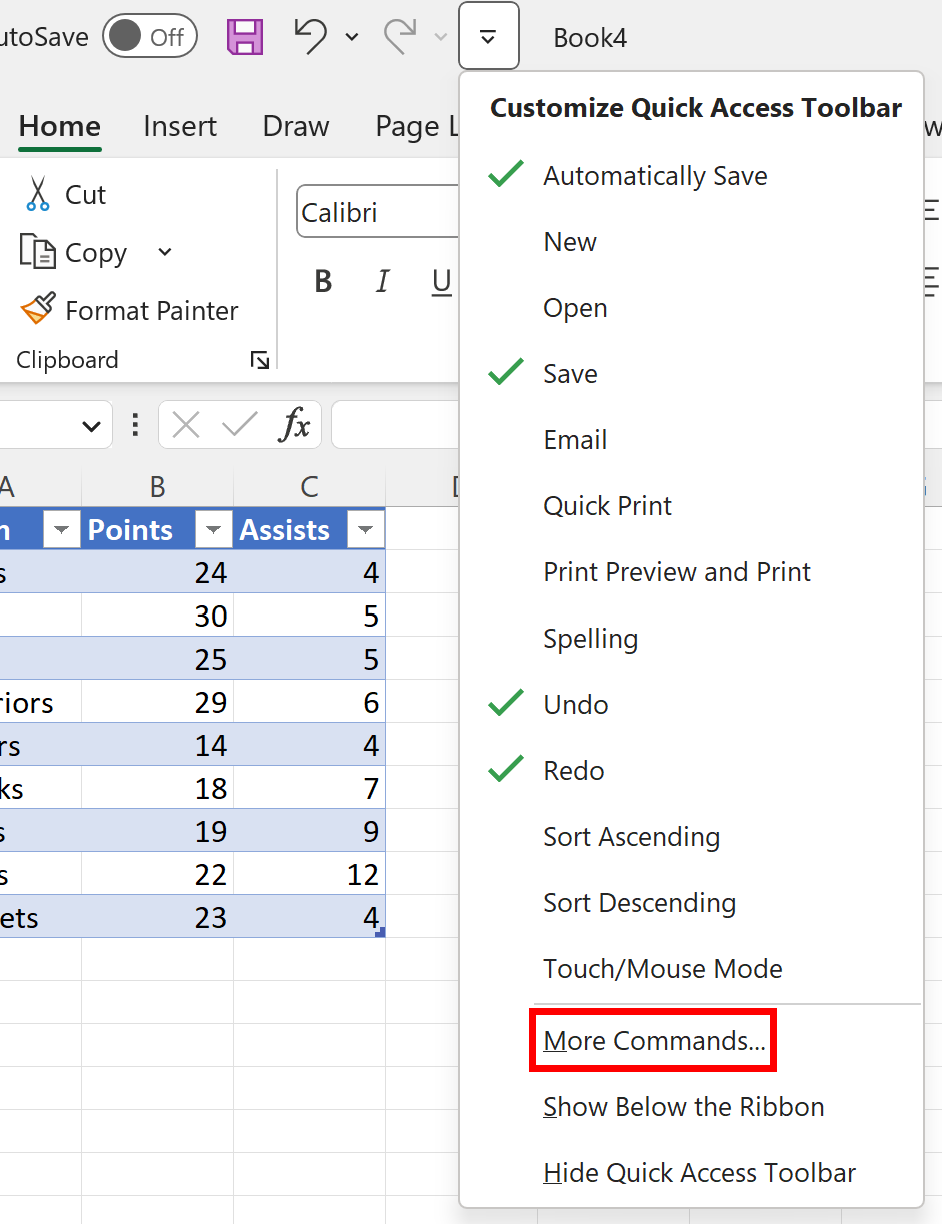

To initiate this crucial customization process, locate the small, downward-pointing dropdown arrow, typically found in the top-left corner of your Excel workbook, situated just above the main Ribbon. Click this arrow to reveal a dropdown menu containing common commands and interface customization options. From this extensive menu, select the option labeled More Commands… Selecting this option will launch the comprehensive Excel Options dialog box, which is the centralized control panel for tailoring your Excel environment and interface components.

Within the Excel Options dialog box, first ensure that the Quick Access Toolbar option is highlighted and selected in the left-hand navigation pane. Next, navigate to the “Choose commands from:” dropdown menu and select the filter option Commands Not in the Ribbon. This vital filter ensures you see commands that are generally hidden from the main tabs. Scroll through the resulting alphabetical list until you locate the Camera command. Select the Camera command, and then click the Add >> button located in the center of the dialog box. This action transfers the Camera tool to your list of QAT commands. Finally, click OK to save your changes and close the dialog box. The Camera icon will now be prominently featured on your Quick Access Toolbar, ready for instant access in any future project.

Capturing the View: Generating the Dynamic Floating Image

With the Camera tool successfully integrated into your Quick Access Toolbar, we are prepared to execute the straightforward, yet powerful, two-step process for creating the dynamic floating table: selecting the source data and capturing the linked image. It is imperative that you accurately define the boundaries of the cell range that encompasses your entire Excel Table, ensuring that all headers and relevant data rows are included in the snapshot.

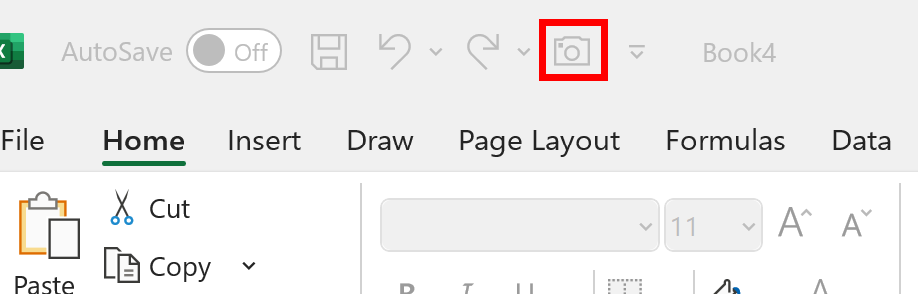

To initiate the capture sequence, highlight the complete cell range of your newly structured Excel Table. Referring to our basketball example, this range corresponds to A1:C10. Once the desired range is selected, immediately click the Camera icon prominently displayed on your Quick Access Toolbar. You will notice that the mouse cursor transforms into a crosshair icon, which signifies that the Camera tool has successfully captured the selection and is now prepared to “paste” the dynamic image link onto the worksheet.

The final step involves strategic placement. Navigate to the exact location on your spreadsheet where you wish the floating table to appear. This destination can be an empty area on the same sheet, an entirely different sheet within the same workbook, or even a separate workbook entirely. For this illustration, we will click on cell E2 to designate the upper-left corner of the resulting object. Upon clicking, a dynamic image replica of your selected Excel Table will be instantaneously inserted. This object is now a live, fully movable representation of your source data, disconnected from the grid but dynamically linked to the underlying values.

Real-Time Synchronization: The Dynamic Behavior of Floating Tables

Once successfully generated, the new floating table exists as a graphic element on the Excel worksheet, similar to any inserted shape or picture object. The hallmark of this feature is its exceptional geometric flexibility and the active, dynamic link it maintains with the source data. You are entirely unrestricted by the initial placement; you can effortlessly click and drag the floating table to any new location on the sheet, or copy and paste it across different sheets and workbooks. Furthermore, its dimensions can be precisely controlled by resizing it using the corner handles, adjusting its size to perfectly fit your layout without causing content distortion. This robust control makes floating tables an incredibly versatile component for designing highly polished and professional dashboards and reports.

The core functional benefit derived from the Camera tool‘s output is its guaranteed live connection. This powerful feature ensures that if any values, formulas, or formatting within your source Excel Table are modified, those changes will automatically and instantaneously propagate to the floating table. This real-time synchronization is invaluable, ensuring that any report, dashboard, or presentation relying on these floating tables consistently displays the most current information available. This eliminates the time-consuming necessity of manual updates or image regeneration, significantly boosting the reliability and professional quality of your Microsoft Excel solutions.

To effectively illustrate this dynamic capability, let us consider our example dataset. Assume the points scored for the player listed under the “Warriors” team were originally recorded as 40. If we update this value to 50 in the original source table (cell C2), the floating table immediately reflects this crucial change. This seamless and rapid interaction highlights the efficiency and accuracy that floating tables contribute to advanced data visualization practices, confirming a perfect, reliable synchronization between the source data and its visual representation.

As the image clearly demonstrates, the updated value within the floating table precisely mirrors the modification made in the source table. This constant synchronization forms the foundation of the floating table’s effectiveness, establishing it as an indispensable asset for professionals who require live, interactive data views. Whether monitoring complex financial metrics, tracking operational progress, or analyzing large scientific datasets, the ability of floating tables to update dynamically guarantees that your visual aids are consistently aligned with the underlying data, fostering greater confidence in your analyses and reports.

Advanced Tips and Limitations of the Floating Table

While the fundamental creation and dynamic updating of floating tables are powerful features, recognizing several advanced tips and inherent limitations is essential for optimizing their use in your Microsoft Excel projects. The most critical aspect to internalize is that although the floating table maintains a dynamic link to its source, it remains, functionally, a graphic image object. This distinction is vital because it means you cannot directly interact with it as you would with a live Excel Table. Actions such as sorting, filtering, or directly editing data values are impossible within the floating image itself. Its core purpose is purely presentation—it offers a live visual display rather than an interactive data entry or manipulation point.

Another key consideration involves the inheritance of formatting. The floating table automatically adopts all aesthetic properties from its source cell range. This includes cell background colors, font styles, borders, and even complex conditional formatting rules. Consequently, if you need to alter the visual appearance of your floating table, you must adjust the formatting applied to the original source data cells. These changes will then automatically propagate to the floating table, ensuring seamless visual consistency across all data representations. This mechanism provides a single, centralized control point for maintaining the aesthetic integrity of your data visuals across multiple placements.

Furthermore, floating tables can be powerfully combined with other Excel functionalities to increase resilience and utility. For instance, defining named ranges for your source data can make the Camera tool reference more robust, especially if the size or location of your source table is dynamic. When preparing documents for printing, floating tables are treated as graphic objects and will print exactly as they are displayed on the screen, making them ideal for integration into high-quality professional reports. Users should also be mindful of layering; floating tables can overlap other worksheet elements, and their order (front to back) can be managed using the “Bring Forward” or “Send Backward” options found on the Shape Format tab, allowing for sophisticated visual compositions.

Conclusion: Elevating Data Presentation and Efficiency

The technique of generating and utilizing floating tables in Microsoft Excel, facilitated primarily by the efficient Camera tool, represents a substantial upgrade in data presentation and management capabilities. This method allows for the creation of dynamic, movable snapshots of essential data, providing unmatched flexibility for designing intuitive dashboards, producing sophisticated reports, and enhancing presentations. By preserving a live link to the original data source, floating tables guarantee that visual outputs are perpetually current and accurate, thereby eliminating the tedious requirement for manual updates and significantly reducing the potential for data discrepancies.

Throughout this comprehensive guide, we systematically detailed the entire process: from structuring raw information into a formal Excel Table, to unlocking the potential of the Camera tool by adding it to your Quick Access Toolbar. We concluded with a practical demonstration of capturing the data as a floating image and observing its dynamic, real-time update functionality. This instructional approach ensures you gain a deep understanding of not just the mechanics, but also the strategic advantages of each step, empowering you to integrate this powerful technique into your own analytical and reporting workflows.

Mastering floating tables will undoubtedly streamline your Excel practices, enabling you to dedicate more time to critical data analysis and less time to the logistics of presentation and maintenance. The ability to communicate complex data in a clear, concise, and visually appealing manner is a hallmark of effective data stewardship. By integrating this versatile tool, you elevate the professionalism and impact of your Excel workbooks, making your data insights more compelling and accessible to every audience.
