Learning to Visualize Meta-Analysis Results: A Step-by-Step Guide to Creating Forest Plots in R

The forest plot, sometimes referred to informally as a “blobbogram,” stands as an indispensable visualization tool, particularly within the domain of quantitative synthesis and meta-analysis. Its fundamental design purpose is to graphically summarize the quantitative results derived from multiple independent studies that address a common research question. By aggregating these findings into a single, comprehensive chart, the forest plot offers a consolidated and compelling overview of the overall evidence base, facilitating rapid interpretation regarding the magnitude and consistency of observed effects across different trials.

This powerful graphical summary allows researchers to quickly assess potential heterogeneity—the variability between study results—and the consistency of key findings. Each element within the plot contributes vital information, presenting the estimated effect size for every contributing study alongside its associated statistical precision. Through this systematic arrangement, the forest plot enables the robust interpretation of complex evidence, moving beyond the individual results of a single trial. This detailed article provides a comprehensive, step-by-step guide on how to expertly create, customize, and interpret a professional forest plot utilizing the advanced statistical and graphical capabilities offered by the R programming environment.

Deconstructing the Essential Components of a Forest Plot

Effective interpretation of any forest plot hinges on a clear understanding of its primary axes and the specific geometric symbols employed to represent statistical outcomes. The horizontal axis (the X-axis) is dedicated to representing the magnitude of the measured outcome of interest. This value typically quantifies a measure of association or difference, such as an odds ratio, a standardized mean difference, or a raw mean difference. Conversely, the vertical axis (the Y-axis) functions as a catalog, systematically listing the results obtained from each individual study that has been incorporated into the overall analysis, ensuring organized visualization.

In this graphical framework, every row corresponds precisely to the statistical result derived from an individual study. The central data marker—frequently visualized as a square, circle, or triangle—denotes the calculated point estimate of the effect size specific to that study. Extending horizontally through this central marker is a line segment that rigorously represents the confidence interval (CI). The length of this horizontal line segment is critically informative: a narrow confidence interval suggests high precision and greater certainty regarding the true effect, implying a larger sample size or lower variance; conversely, a wide interval indicates greater uncertainty concerning the true magnitude of the effect.

A crucial feature of the forest plot is the presence of a definitive vertical line, conventionally referred to as the line of no effect or the null line. This reference line is absolutely essential for rigorously assessing statistical significance. If the confidence interval of a particular study crosses or encompasses this line, it signifies that the study failed to find a statistically significant effect at the predefined alpha level. Furthermore, most comprehensive forest plots incorporate a summary estimate element, usually depicted as a large diamond shape at the bottom. This diamond displays the overall pooled estimate resulting from the meta-analysis, where the center of the diamond marks the combined effect size and its overall width reflects the confidence interval of the combined, aggregated effect, providing the final synthesized conclusion.

Structuring and Preparing Data for Visualization in R

To successfully generate a professional-grade forest plot using the powerful statistical programming language R, it is imperative that the input data be structured in a specific, reliable, and standardized manner. At a minimum, your data frame must contain clearly labeled columns that provide the identification of the study (e.g., study name or ID), the calculated central point estimate (the effect size), and the corresponding numerical values for both the lower and upper bounds of the confidence interval. Rigorous data preparation is the foundational step that ensures both the accuracy and interpretive validity of the resulting graphical visualization.

For the purpose of this practical, instructional example, we will construct a simplified data frame within the R environment containing simulated results meticulously derived from seven distinct hypothetical studies, sequentially labeled S1 through S7. This carefully designed structure will necessarily include an index column to precisely control the vertical plotting order, the central measure of the effect estimate, and the defined numerical bounds corresponding to the 95% confidence intervals. This standardized data frame structure is crucial for the subsequent geometric mapping required by visualization packages.

The following detailed code block illustrates the exact creation and initial inspection of this essential data structure, named df. This process confirms that all required numerical variables are correctly formatted and positioned for immediate use in plotting. Pay close attention to the variable names—effect, lower, and upper—as these will be directly mapped to the horizontal aesthetics of the plot, defining the position and spread of the estimates:

#create data
df <- data.frame(study=c('S1', 'S2', 'S3', 'S4', 'S5', 'S6', 'S7'),
                 index=1:7,
                 effect=c(-.4, -.25, -.1, .1, .15, .2, .3),
                 lower=c(-.43, -.29, -.17, -.02, .04, .17, .27),
                 upper=c(-.37, -.21, -.03, .22, .24, .23, .33))

#view data
head(df)

  study index effect lower upper
1    S1     1  -0.40 -0.43 -0.37
2    S2     2  -0.25 -0.29 -0.21
3    S3     3  -0.10 -0.17 -0.03
4    S4     4   0.10 -0.02  0.22
5    S5     5   0.15  0.04  0.24
6    S6     6   0.20  0.17  0.23
7    S7     7   0.30  0.27  0.33

The resulting data frame, named df, now systematically holds all the necessary statistical information required for plotting. The index column, specifically, is a critical component as it explicitly dictates the exact vertical positioning of the studies on the final visualization. This structure allows for precise and easy mapping of the study order onto the Y-axis, ensuring that the visual representation aligns logically with the underlying data order.

Constructing the Basic Forest Plot using ggplot2

The preferred and most widely utilized package for generating highly customizable, publication-quality visualizations within the R ecosystem is ggplot2. This powerful package is founded upon the principles of the grammar of graphics, a robust conceptual framework that empowers users to construct sophisticated visualizations iteratively by defining layers: aesthetics, geometric objects, statistical transformations, and coordinate systems. This modular approach ensures maximal flexibility and control over the output.

To construct the essential structure of the forest plot, we rely upon two core geometric functions provided by ggplot2: first, geom_point(), which is used to plot the central point estimate of the effect size, and second, geom_errorbarh(), which is designated to draw the mandatory horizontal line segments representing the bounds of the confidence interval. We systematically map the numerical study index to the Y-axis and the effect size value to the X-axis, utilizing the lower and upper variables from our data frame to precisely define the horizontal limits of the error bars.

A crucial aesthetic adjustment necessary for improving immediate readability involves the strategic use of scale_y_continuous. This specialized function permits us to effectively replace the default, abstract numerical index values displayed on the Y-axis with the descriptive, meaningful study names (S1, S2, etc.). This transformation ensures that the final plot is instantly understandable and interpretable to any audience, providing clear context for the data points being visualized. The combination of these layers quickly generates a functional and accurate statistical visualization.

#load ggplot2
library(ggplot2)

#create forest plot
ggplot(data=df, aes(y=index, x=effect, xmin=lower, xmax=upper)) +
  geom_point() +
  geom_errorbarh(height=.1) +
  scale_y_continuous(name = "", breaks=1:nrow(df), labels=df$study)

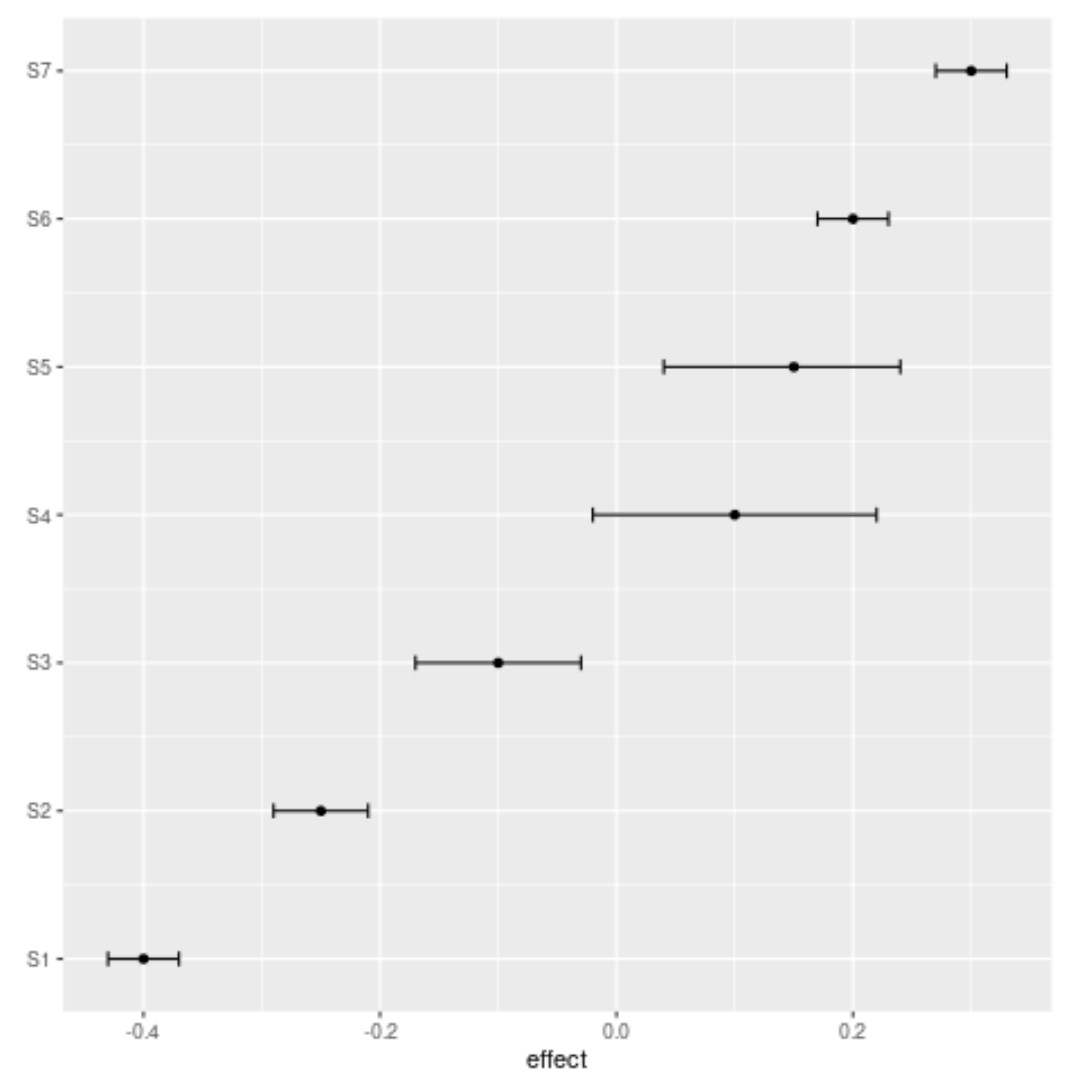

The resulting initial visualization successfully and accurately maps the input data. The X-axis correctly displays the numerical measure of the effect size for each study, while the Y-axis clearly identifies the corresponding study name, replacing the abstract index numbers. In this plot, the central points meticulously represent the mean estimate for each trial, and the horizontal lines clearly illustrate the statistical precision through the bounds of the confidence interval, offering a foundational view for further analysis.

Enhancing Clarity with Annotations and Professional Aesthetics

While the basic plot structure is statistically sound, a truly professional and publication-ready visualization demands significant aesthetic enhancements to achieve maximum clarity and interpretive power. It is absolutely necessary to integrate a descriptive plot title, ensure the axes are properly and meaningfully labeled, and, most critically within the context of systematic review and meta-analysis, include a visual reference marking the definitive line of no effect.

We utilize the robust labs() function within the ggplot2 framework to define a concise plot title and meticulously customize both the X and Y axis labels, thereby providing essential context for the data displayed. The single most significant annotation required is the introduction of geom_vline(), which specifically draws a vertical reference line at the neutral position, conventionally where the effect size is zero (xintercept=0). This line is fundamental because it serves as the unwavering reference point against which the statistical significance of every study must be rigorously evaluated.

The interpretation relies directly on this line: if a study’s confidence interval spans or crosses this vertical reference line, the study result is formally considered non-significant at the selected alpha level. We apply specific styling to this line using dashed lines and a slight transparency (alpha=.5) to ensure it effectively guides the viewer’s eye toward the critical point of comparison without visually distracting from the primary data points. Finally, we apply theme_minimal() to efficiently clean up the background environment and grid lines, resulting in a focused, high-impact, and professional presentation that prioritizes data interpretation.

#load ggplot2
library(ggplot2)

#create forest plot
ggplot(data=df, aes(y=index, x=effect, xmin=lower, xmax=upper)) +
  geom_point() +
  geom_errorbarh(height=.1) +
  scale_y_continuous(breaks=1:nrow(df), labels=df$study) +
  labs(title='Effect Size by Study', x='Effect Size', y = 'Study') +
  geom_vline(xintercept=0, color='black', linetype='dashed', alpha=.5) +
  theme_minimal()

The resulting plot, now complete with critical annotations and refined aesthetics, is highly informative and immediately actionable. Based purely on the visual inspection of the interval overlap with the line of no effect, we can rapidly observe which studies demonstrate statistically significant findings (in this case, S1, S2, S3, and S7) and which studies did not yield a statistically significant result (S4, S5, and S6). This visual assessment confirms the utility of the forest plot as an essential tool for evidence synthesis.

Customizing Visualization Themes for Publication-Ready Output

One of the most significant and celebrated advantages of utilizing the ggplot2 package is its inherent and expansive flexibility in customizing the visual appearance of a plot through the use of dedicated theme functions. These themes meticulously control all non-data elements of the visualization, encompassing background color, the presence and style of grid lines, specific font styles, and the arrangement of borders. While theme_minimal(), as employed previously, provides a clean, intentionally distraction-free view highly suitable for many digital and web publications, other specialized built-in themes are available to precisely cater to varying publication standards or specific aesthetic requirements.

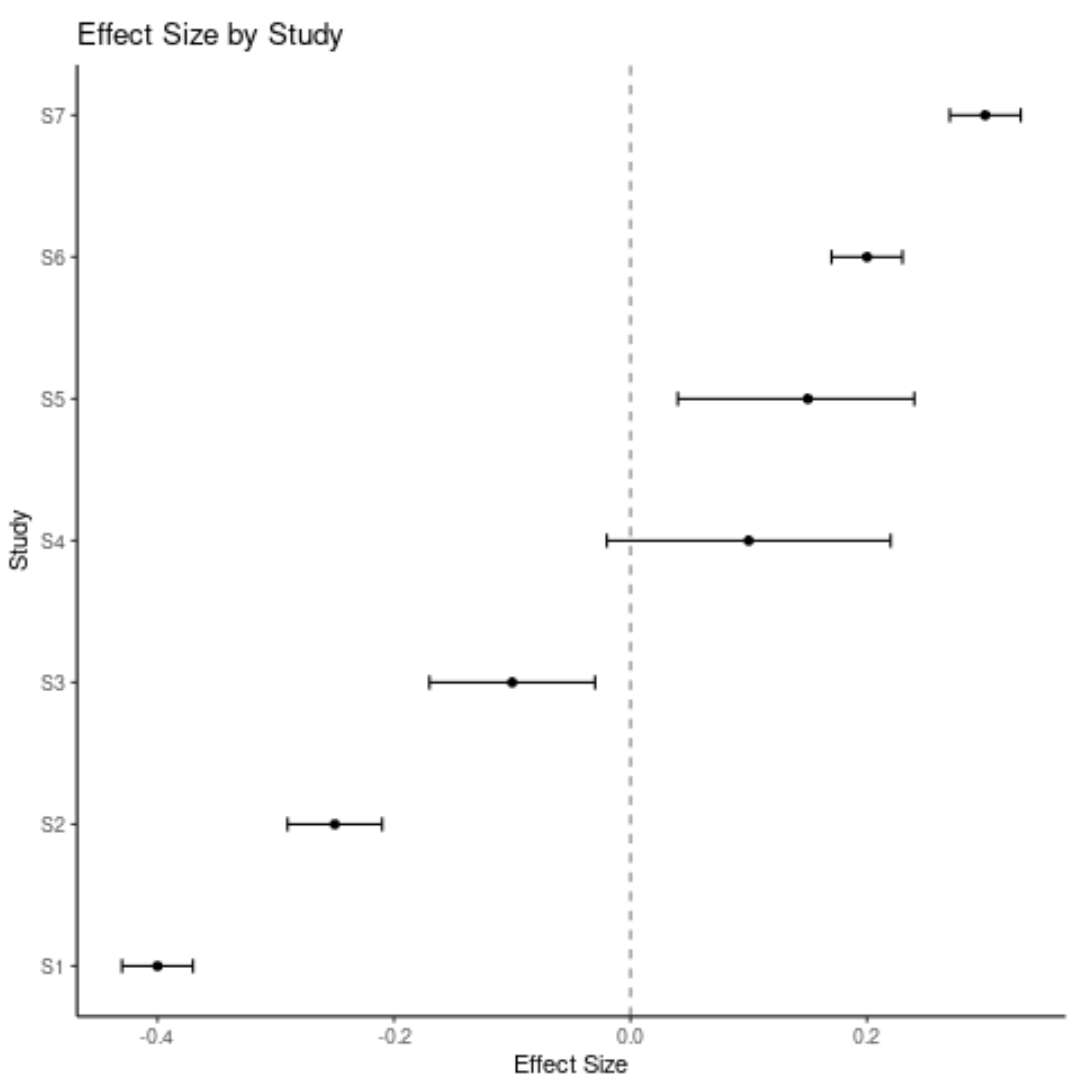

For instance, if the desired output requires a more traditional or classic scholarly appearance—often mandatory for submission to academic journals that emphasize simplicity and conventional formatting—we can effortlessly substitute the theme function. By simply replacing the theme_minimal() call with theme_classic(), we instantaneously eliminate the faint gray background and retain only the essential axis lines, thereby granting the plot a crisper, more conventional, and often preferred look for print media. This demonstrates the speed and power of theme manipulation in R.

It is strongly recommended that users explore the diverse array of available pre-built themes, such as theme_bw() (black and white) or theme_dark(), or even undertake the creation of entirely custom themes tailored to specific branding or rigorous formatting requirements. This level of customization ensures that the final visualizations not only adhere meticulously to formal guidelines but also maintain complete fidelity to the underlying statistical data, resulting in highly effective communication of complex statistical results.

#load ggplot2
library(ggplot2)

#create forest plot
ggplot(data=df, aes(y=index, x=effect, xmin=lower, xmax=upper)) +
  geom_point() +
  geom_errorbarh(height=.1) +
  scale_y_continuous(breaks=1:nrow(df), labels=df$study) +
  labs(title='Effect Size by Study', x='Effect Size', y = 'Study') +
  geom_vline(xintercept=0, color='black', linetype='dashed', alpha=.5) +
  theme_classic()

Summary of Implementation and Advanced Resources

The systematic process of generating a professional and statistically sound forest plot in R, particularly when utilizing the highly adaptable ggplot2 package, proves to be highly efficient and reproducible, provided that the underlying data is correctly structured with defined bounds. By skillfully combining essential geometric layers, such as geom_point() for the central estimate and geom_errorbarh() for the precision, we construct a sophisticated visualization that is absolutely crucial for summarizing, interpreting, and communicating evidence derived from systematic reviews and meta-analysis.

Key technical takeaways for ensuring successful implementation and producing high-quality output include:

• Structuring the primary data frame explicitly to define the point estimate and the definitive bounds of the confidence interval (effect, lower, upper).
• Utilizing geom_errorbarh() combined with geom_point() to accurately visualize the statistical precision of the estimates across all contributing studies.
• Adding a clear and unambiguous vertical line of no effect (achieved via geom_vline(xintercept=0)) to serve as the critical anchor for interpreting statistical significance.
• Customizing visualization aesthetics using the labs() function for labeling and various theme_() functions for generating tailored, publication-ready output that meets specific journal standards.

For researchers and analysts seeking to substantially deepen their understanding of meta-analysis visualizations or explore more complex customizations—such as integrating the crucial overall pooled effect diamond, correctly handling logarithmic scales for ratios (like odds ratios or risk ratios), or creating sophisticated subgroup analyses—several highly specialized R packages (notably metafor or forestplot) and extensive, dedicated documentation resources are readily available. These resources facilitate advanced techniques necessary for cutting-edge statistical reporting.

For further authoritative reading and exploration of more complex examples of statistical visualization and quantitative data synthesis in R, individuals should consult the official documentation provided for the Tidyverse suite and the ggplot2 package, or refer to specialized academic textbooks dedicated to graphical data analysis and rigorous meta-analytic methods. These sources offer deep dives into the theoretical and practical aspects of evidence synthesis.
