Create a Gantt Chart in R Using ggplot2

A Gantt chart is an indispensable project management tool, renowned for its ability to visually represent a project schedule. These horizontal bar charts illustrate the start and finish dates, as well as the dependency relationships between different activities or events within a project timeline. They are essential for resource allocation, monitoring progress, and ensuring that tasks are completed efficiently. Understanding how to generate these visualizations programmatically offers immense benefits for data scientists and analysts.

This comprehensive tutorial details the process of constructing a professional-grade Gantt chart within the statistical programming language R, leveraging the power and flexibility of the highly regarded package, ggplot2. We will transition from a basic visualization to a polished, publication-ready chart, exploring key aesthetic adjustments along the way.

Setting Up the R Environment and Data Preparation

Before plotting, the first critical step involves structuring the data correctly. Gantt charts require specific information: the entity (the worker or task name), the starting point in time, and the ending point in time. This structure naturally lends itself to a well-organized data frame in R.

Consider a practical example where we track the shift schedules of four employees in a retail setting. We define their names, their shift start times (measured perhaps in hours from the start of the day), their shift end times, and a categorical variable describing the shift type. This dataset serves as the foundation for our visualization.

# Create the data frame containing worker schedule information
data <- data.frame(name = c('Bob', 'Greg', 'Mike', 'Andy'),
start = c(4, 7, 12, 16),
end = c(12, 11, 8, 22),
shift_type = c('early', 'mid_day', 'mid_day', 'late')
)
data

# Output of the data structure:
#  name start end shift_type
#1 Bob      4  12      early
#2 Greg     7  11    mid_day
#3 Mike    12   8    mid_day
#4 Andy    16  22       late

Notice a crucial detail in the data: Mike’s start time (12) is numerically greater than his end time (8). While this is unusual for a standard time axis, in a simple numeric representation of hours, this setup is valid for demonstration, though typically end times should be greater than start times unless the shift spans across midnight. For the purpose of the Gantt chart visualization, the segment will simply be drawn between these points on the x-axis, allowing us to visualize the range clearly.

Building the Basic Gantt Chart with ggplot2

To visualize the start and end times for each worker using a Gantt chart structure, we rely on the core functionality of the ggplot2 package. The essence of a Gantt chart, when implemented in ggplot2, is achieved through the geom_segment() function. This geometric object draws a straight line segment between two defined points, which in our case are the start and end times on the x-axis.

We initialize the plot by mapping the aesthetic variables (aes). We define the start time as x and the end time as xend. The worker’s name (name) is mapped to both y and yend, ensuring the segment is drawn horizontally across the timeline. Finally, we assign shift_type to the color aesthetic, allowing ggplot2 to automatically distinguish the types of shifts with different colors.

# Install (if not already installed) and load ggplot2
if(!require(ggplot2)){install.packages('ggplot2')}

# Create the fundamental Gantt chart structure
ggplot(data, aes(x=start, xend=end, y=name, yend=name, color=shift_type)) +
  geom_segment()

Executing this minimal code generates the initial visualization. While functional, the default styling of ggplot2 often results in a chart that is visually sparse and may lack immediate clarity. The segments are thin, and the background gridlines, while useful, often dominate the visual field. This first output successfully maps the data but necessitates further refinement to meet professional standards.

Enhancing Visual Clarity: Customization and Aesthetics

A significant aspect of data visualization involves making strategic aesthetic tweaks to enhance readability and impact. By applying a few simple modifications to the chart’s layout and the geometric object’s parameters, we can transform the basic output into a much more compelling representation of the worker schedules.

Two primary improvements are introduced here: adjusting the plotting theme and modifying the segment thickness. We employ theme_bw(), which provides a cleaner appearance characterized by a white background and subtle black gridlines, a stark contrast to the default grey background. Crucially, we increase the segment size within geom_segment() using the size=8 argument. This change thickens the bars, making them immediately recognizable as distinct timeline blocks, a defining feature of the Gantt chart. Finally, we provide descriptive labels for the axes and a clear title using the labs() function, ensuring context is provided to the viewer.

ggplot(data, aes(x=start, xend=end, y=name, yend=name, color=shift_type)) +
  theme_bw()+ # Utilize the Black & White ggplot theme for a clean look
  geom_segment(size=8) + # Increase the line width (thickness) of the schedule bars
  labs(title='Worker Schedule Visualization', x='Time (Hours)', y='Worker Name')

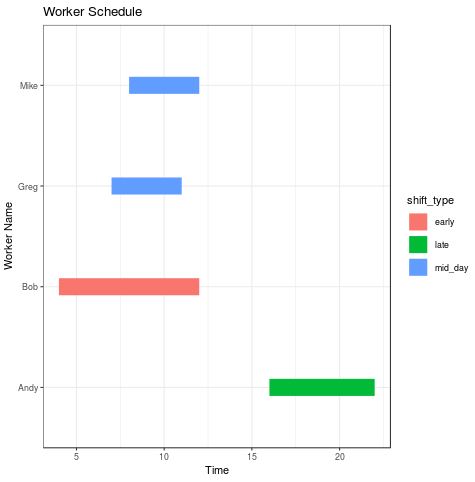

This sequence of adjustments yields a far superior result, offering immediate visual cues about the duration and relative timing of each worker’s shift. The chart is now highly informative, clearly delineating the start and end points along the horizontal time axis and separating the workers along the vertical axis.

Implementing Custom Color Scales

While ggplot2 automatically assigns colors based on the categorical variable shift_type, these default hues may not align with corporate branding guidelines or desired aesthetic preferences. For precise control over the visual output, especially when preparing reports or presentations, defining custom colors is essential.

We achieve this customization by introducing the scale_colour_manual() function. This function allows the user to explicitly map specific color values (defined either by name, as shown below, or by hexadecimal codes) to the levels within the categorical variable (shift_type: early, mid_day, late). The key is ensuring the list of values provided corresponds correctly to the factor levels in the data.

ggplot(data, aes(x=start, xend=end, y=name, yend=name, color=shift_type)) +
  theme_bw()+ # Use the clean Black & White theme
  geom_segment(size=8) + # Set segment thickness
  labs(title='Worker Schedule Visualization', x='Time (Hours)', y='Worker Name') +
  scale_colour_manual(values = c('pink', 'purple', 'blue'))

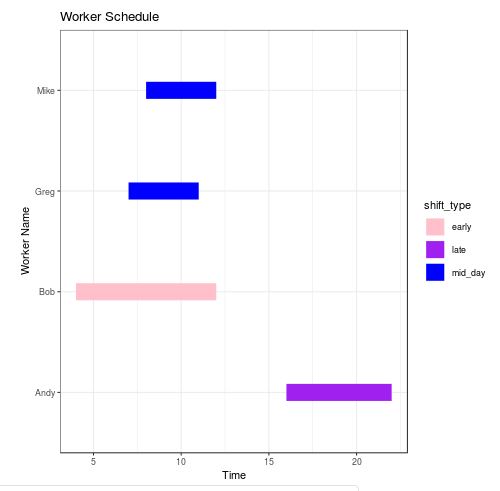

By adding this final layer, we produce a chart that utilizes a specific palette of pink, purple, and blue to represent the different shift types. This level of granular control is vital for creating standardized and professional visualizations that maintain consistency across multiple projects or documents.

Exploring Advanced Styling with External Themes

Beyond the built-in ggplot2 themes, the R ecosystem offers specialized packages that significantly expand styling capabilities. One such library is ggthemes, which provides a collection of themes inspired by popular journalistic and statistical publications. Using these themes can instantly elevate the visual sophistication of a chart, giving it a distinctive and recognizable appearance.

To use these external themes, the ggthemes library must first be loaded into the R environment. The theme functions, such as theme_wsj() or theme_economist(), are then simply added as the final layer to the ggplot object, overriding many of the default aesthetic settings.

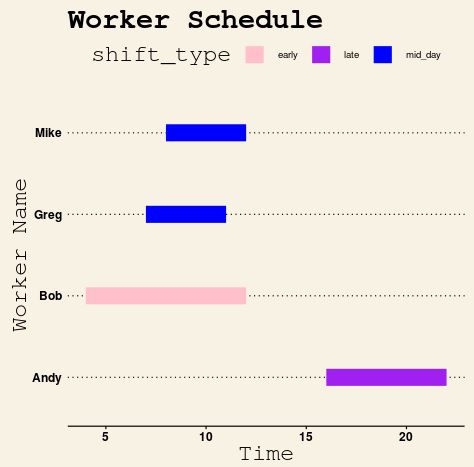

Applying the Wall Street Journal Theme

The Wall Street Journal (WSJ) theme is characterized by its clean lines, subdued color palette, and specific font choices, often lending a serious and authoritative look to the data visualization. Implementing theme_wsj() transforms the chart structure, making it ideal for business reporting or financial analysis contexts. Note the addition of theme(axis.title = element_text()), which ensures that axis titles remain visible, as some themes sometimes suppress them by default.

# Load ggthemes library
library(ggthemes)

# Create Gantt chart with Wall Street Journal theme
ggplot(data, aes(x=start, xend=end, y=name, yend=name, color=shift_type)) +
  theme_bw()+
  geom_segment(size=8) +
  labs(title='Worker Schedule Visualization', x='Time (Hours)', y='Worker Name') +
  scale_colour_manual(values = c('pink', 'purple', 'blue')) +
  theme_wsj() +
  theme(axis.title = element_text())

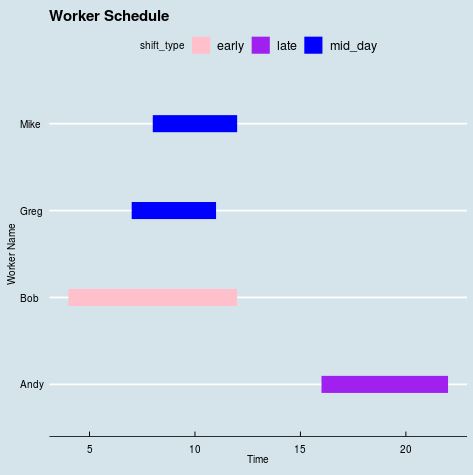

Applying The Economist Theme

The Economist theme is instantly recognizable, featuring a distinctive color scheme (often red and black), specific typography, and a minimalist grid structure. This theme imparts a sophisticated, editorial quality to the chart, suitable for academic papers or high-level strategic documents.

ggplot(data, aes(x=start, xend=end, y=name, yend=name, color=shift_type)) +
  theme_bw()+
  geom_segment(size=8) +
  labs(title='Worker Schedule Visualization', x='Time (Hours)', y='Worker Name') +
  scale_colour_manual(values = c('pink', 'purple', 'blue')) +
  theme_economist() +
  theme(axis.title = element_text())

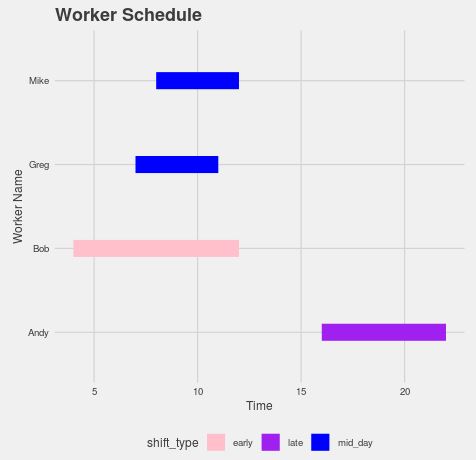

Applying the FiveThirtyEight Theme

The FiveThirtyEight theme, inspired by the data journalism website, emphasizes clarity and data-ink ratio. It typically features slightly bolder colors and removes unnecessary visual clutter, such as heavy gridlines, focusing the reader’s attention squarely on the data segments themselves. This clean, modern approach is highly favored in contemporary data visualization practices.

ggplot(data, aes(x=start, xend=end, y=name, yend=name, color=shift_type)) +
  theme_bw()+
  geom_segment(size=8) +
  labs(title='Worker Schedule Visualization', x='Time (Hours)', y='Worker Name') +
  scale_colour_manual(values = c('pink', 'purple', 'blue')) +
  theme_fivethirtyeight() +
  theme(axis.title = element_text())

Conclusion and Further Resources

Creating a Gantt chart in R using the ggplot2 package is a straightforward yet powerful process. By utilizing geom_segment() and carefully mapping the start and end coordinates, analysts can effectively visualize timelines and schedules. Furthermore, the extensive customization options, including manual color controls and the integration of specialized ggthemes, ensure that the final product is both accurate and aesthetically tailored to any professional requirement.

Mastering these techniques allows for the rapid generation of project management visualizations directly from structured data frame objects, streamlining reporting workflows significantly. For those interested in exploring the full breadth of styling options available, we highly recommend consulting the official documentation for the ggthemes package.

For a complete list of themes available in the ggthemes library, check out the package documentation online.
