Learning to Calculate Lagged Values in Excel: A Step-by-Step Guide

In the realm of data analysis, especially when dealing with sequential data like time series, the requirement to calculate lagged values is indispensable. A lagged value essentially retrieves the measurement of a variable from a prior time step—be it the previous day, month, or quarter. This fundamental calculation supports numerous advanced analytical tasks, including financial forecasting, identifying patterns of dependence through autocorrelation, and preparing datasets for sophisticated statistical models. While specialized software often features dedicated lag functions, we can execute this powerful data manipulation technique with precision directly within Microsoft Excel.

While Excel lacks a single, dedicated “LAG” formula, it provides highly flexible tools necessary to construct this functionality manually. Our method relies primarily on the robust OFFSET() function. This function is perfectly suited for referencing a cell or range based on a defined displacement—a specific number of rows and columns—from a fixed starting point. By mastering the OFFSET() function, analysts can seamlessly mimic the behavior of a specialized lag function, transforming Excel into a more capable platform for introductory sequential analysis.

This guide provides comprehensive, detailed examples illustrating how to effectively deploy the OFFSET() function. We will cover both simple cases involving a single column of data and more complex scenarios that necessitate calculating lagged values based on specific grouping variables, ensuring accuracy across diverse datasets.

Why Lagged Values Are Essential in Time Series Analysis

A lag function operates by shifting a sequence of data backwards by ‘n’ time periods. For instance, if we apply a lag of n=1, the resulting value for the current period is the value observed in the immediately preceding period. If we use n=2, we retrieve the value from two periods ago. Grasping the intricate relationship between a current observation and its historical predecessors is crucial across a variety of disciplines, including behavioral economics, climate science, and detailed business intelligence reporting.

In a typical business context, calculating lags provides immediate insights into underlying momentum, causality, and time-delayed effects. For example, a marketing team might need to quantify how promotional expenditure from the previous quarter influences current sales performance. By accurately deriving these lagged variables, analysts gain the necessary foundational data to build more accurate predictive models, which subsequently offer deeper insights into operational trends and future performance trajectories. This capability elevates standard spreadsheet work to genuine explanatory and predictive modeling.

Since a native LAG formula is absent in Excel, the versatility of the OFFSET() function becomes our primary tool. Its ability to dynamically reference cells based on relative positioning allows us to perfectly replicate the shifting behavior required for time series manipulation. Achieving mastery over this technique significantly expands Excel’s utility, making it a viable environment for many introductory tasks in time series analysis.

Mastering the OFFSET() Function for Dynamic Data Shifting

The entire methodology for calculating lagged values in Excel hinges upon the effective use of the OFFSET() function. This function dynamically returns a reference to a cell or range that is displaced from a starting reference. While OFFSET() accepts five arguments—OFFSET(reference, rows, cols, [height], [width])—we primarily focus on the first three for standard lag calculations.

The function operates as follows: the reference specifies the initial cell where the calculation begins. The rows argument dictates how many rows up (negative value) or down (positive value) the reference should move. The cols argument specifies the column displacement (typically 0 for single-series lags). To achieve a backward shift, which corresponds to looking at previous time periods, we must utilize a negative number for the rows argument. A value of -1, when applied relative to the current cell, instructs Excel to look one row above, thereby retrieving the data point from the immediate previous period.

It is crucial to understand that OFFSET() does not return the content of the cell directly; rather, it returns a cell reference. This reference can then be used by other functions, or, as demonstrated in our simplest examples, it can be used alone to display the value found at the newly referenced location. This dynamic referencing capability is what makes OFFSET() such an efficient and powerful mechanism for manipulating sequential data records within the spreadsheet environment.

Example 1: Calculating a Simple Lag (n=1) for a Single Data Series

We begin with the most straightforward application: calculating a simple one-period lag (n=1) for a standard, continuous dataset. Consider a retail store that tracks its total daily sales over a period of ten days. Our objective is to generate a new column that explicitly lists the sales figure recorded on the preceding day for every entry.

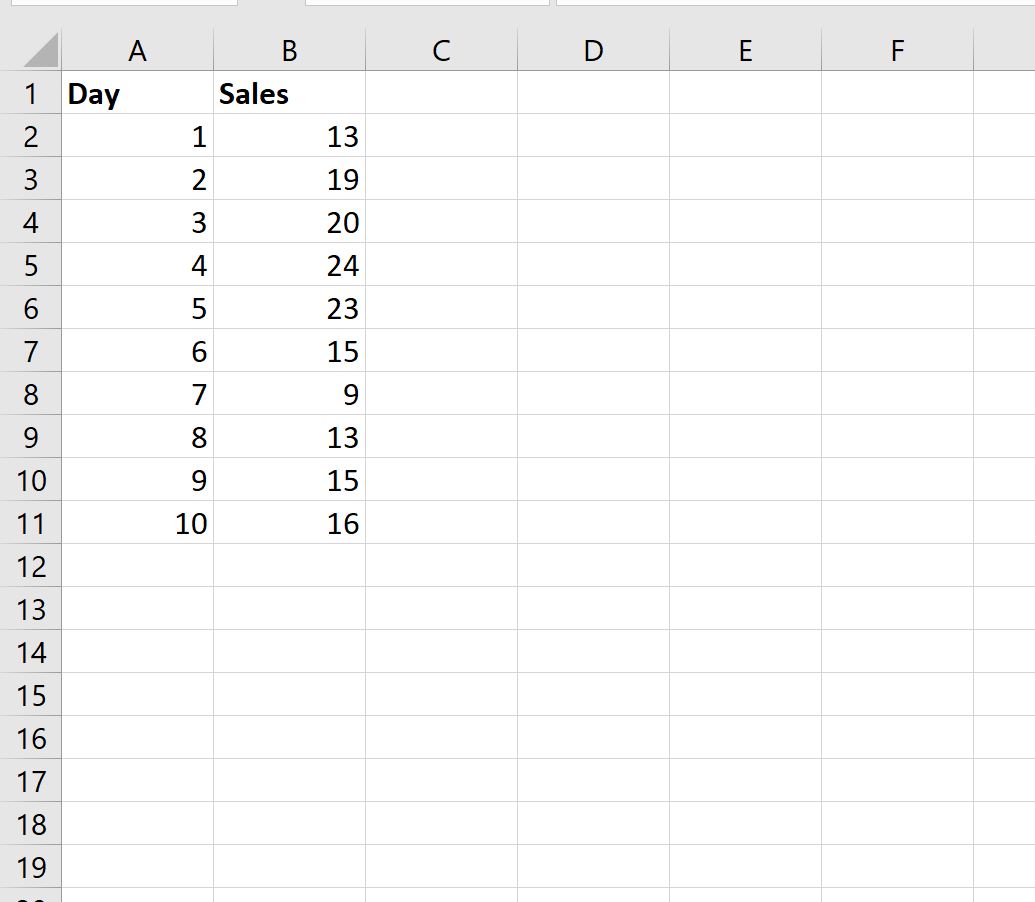

Our initial dataset is organized into columns A (Day Number) and B (Total Sales). To visualize the starting point, refer to the image below:

To implement the one-period lagged sales calculation, we start applying the formula in cell C3 (assuming the headers are in row 1 and the first day’s data is in row 2). We require the OFFSET() function to look back one row from the current row’s sales value in column B. The formula is elegantly concise:

=OFFSET(B3, -1, 0)

When this formula is placed in cell C3, it establishes B3 as the starting point, moves up 1 row (-1), and remains in the same column (0). This action effectively retrieves the value stored in cell B2. After entering the formula, we simply use the fill handle to drag it down through the rest of column C, automatically populating the entire sequence of lagged sales values, resulting in the structure shown below:

Interpreting and Handling Edge Cases in Simple Lag Results

The newly created “Lag Sales” column perfectly aligns the previous day’s sales (a lag of n=1) with the current day’s performance. This arrangement immediately clarifies the sequential relationship between sales figures. For instance, on Day 2, the store recorded 19 sales, and the corresponding lagged value is 13 sales. This figure of 13 accurately represents the actual sales made on Day 1. By juxtaposing these two metrics, analysts can readily conduct day-over-day comparisons.

A critical consideration is the handling of the edge case, specifically the first data point in the series. Since there is no preceding day in the dataset to reference, the first cell intended for a lagged value (C2, corresponding to Day 1) will naturally lack a valid entry. If we had dragged the formula starting from C2, it would likely result in a #REF! error, as the OFFSET() function would attempt to look outside the defined spreadsheet range.

For sound analytical practice, the initial cell in the lagged column is typically left blank, populated with a numerical identifier like 0, or marked with a textual indicator such as NA (Not Available), depending on the requirements of any subsequent statistical model. In our example, by intentionally beginning the formula application from cell C3 (Day 2), the structure inherently avoids the error in the first row, leaving the cell appropriately empty based on the fill action.

Example 2: Implementing Lagged Values Based on Specific Group Criteria

In real-world data environments, datasets often contain records from multiple distinct entities—such as different store branches, various products, or unique customer cohorts. When calculating lags in such grouped data, the calculation must reset whenever the group identifier changes. A simple, unconditional dragging of the OFFSET() formula from Example 1 would incorrectly treat the last entry of Group A as the preceding value for the first entry of Group B, thus corrupting the time series continuity for each group.

Suppose our dataset tracks sales across two distinct stores, Store 1 and Store 2, each reporting data over five consecutive days:

To enforce the necessary lag reset when a new store begins, we must embed the OFFSET() calculation within a conditional statement using the powerful IF() function. This combined formula executes a vital check: it verifies if the current row’s grouping variable is identical to that of the previous row before attempting to retrieve the lagged value.

The following formula, which masterfully combines logic and data retrieval, is entered into cell C3 to calculate the sales lagged by store group:

=IF(A3=A2, OFFSET(B3, -1, 0), "")

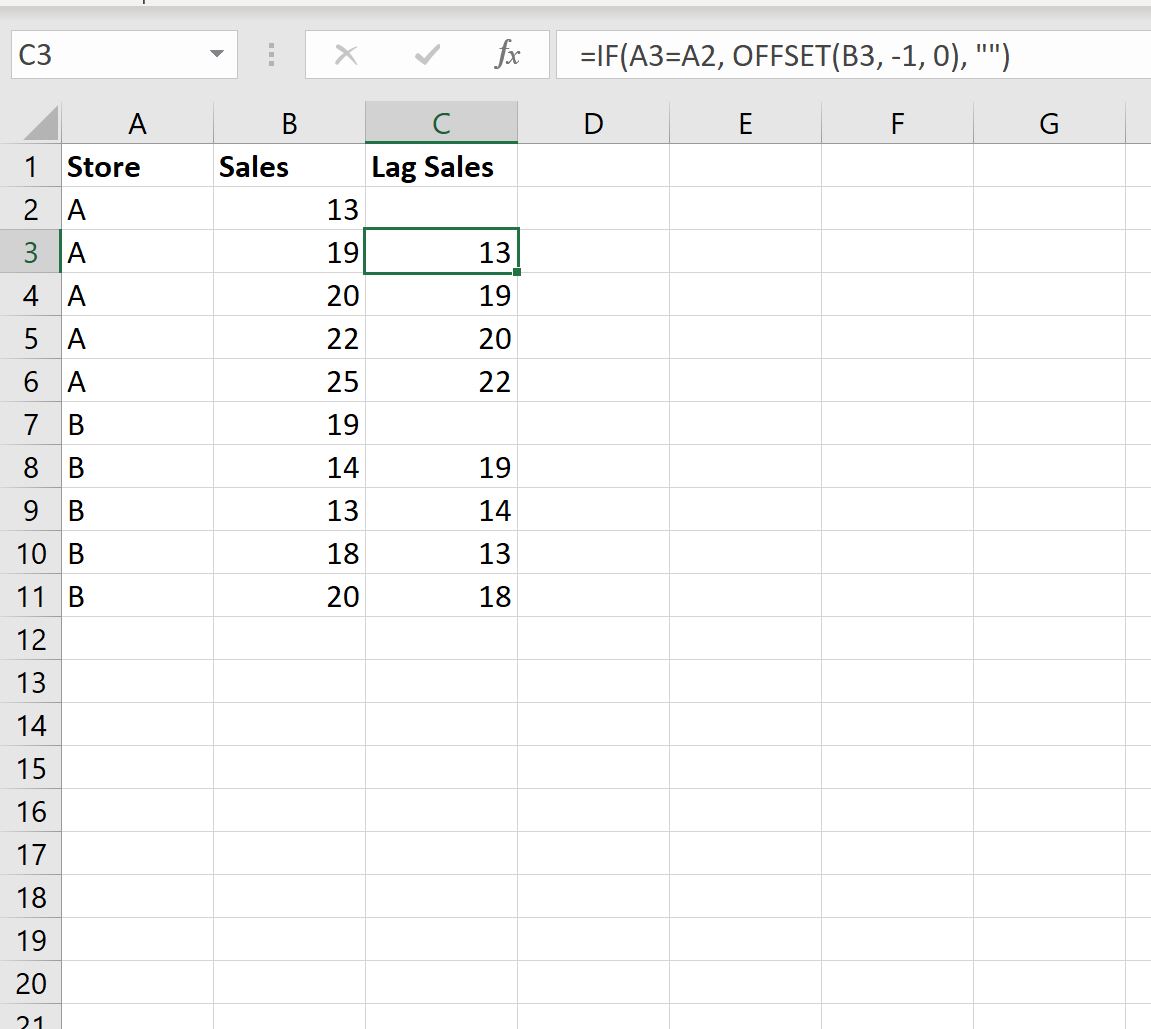

Once entered, this formula is dragged down through the entire range of column C, yielding the required segmented lagged results:

Analyzing the Conditional Lag Logic

The logic embedded in the conditional formula performs two key actions based on its evaluation of the grouping criteria. The conditional statement first assesses the logical test: A3=A2. This test checks whether the Store ID in the current row (A3) matches the Store ID in the previous row (A2).

If the Store IDs are identical (the result is TRUE), the formula proceeds to execute the lag calculation using OFFSET(B3, -1, 0), correctly retrieving the sales figure from the preceding day within that specific store’s sequence. For example, in Row 3, the sales value was 19. Since the Store ID (Store 1) matches the previous row’s ID, the lagged value is calculated as 13 (the sales from Row 2).

Crucially, if the Store IDs do not match (the result is FALSE), the conditional logic returns a blank value (""). This mechanism ensures the integrity of the data segmentation. Observe Row 7: this row marks the commencement of Store 2’s data sequence. Because the Store ID in Row 7 (Store 2) differs from the Store ID in Row 6 (Store 1), the formula returns a blank cell, preventing the sales data of Store 1 from erroneously serving as the lagged value for the start of Store 2’s timeline. This combined technique is indispensable for accurate data analysis involving multiple categories.

Summary of Techniques and Expanding Your Excel Capabilities

By expertly deploying the OFFSET() function, either as a standalone tool for continuous series or integrated with the IF() function for segmented analysis, analysts can successfully emulate dedicated lag functionality within Excel. This capability is absolutely essential for anyone routinely handling sequential, historical, or time-dependent data, ensuring that their data manipulation techniques are both robust and precise.

When implementing these custom lag functions, remember the following critical takeaways:

1. The negative row displacement argument (e.g., -1) within the OFFSET() function is the core requirement for achieving a backward, one-period lag.
2. For datasets featuring distinct categories or groups, always precede the lag calculation with an IF() statement to guarantee that the lag count correctly resets when the grouping variable changes, preventing cross-group interference.
3. The initial data point in any series, or the first point in any new group, will inherently lack a valid preceding value. For analytical cleanliness, these cells should either remain blank or be explicitly defined with an error state or placeholder value.

These proven techniques provide a strong foundation for moving beyond basic spreadsheet organization into more sophisticated data transformation and advanced data modeling within the familiar environment of Excel.

Additional Resources for Advanced Excel Functions

To further refine your skills in handling dynamic references and conditional logic within Excel, consider exploring tutorials focused on these related advanced topics:

• Exploring the power and limitations of array formulas for executing complex calculations across ranges.
• Implementing the highly robust INDEX/MATCH combination, which serves as a superior and more flexible alternative to the traditional VLOOKUP function.
• Developing a deeper understanding of volatile functions in Excel and their impact on workbook performance and recalculation speed.
