Learning to Visualize Data: Using Log Scales in ggplot2

The Imperative of Logarithmic Scaling in Data Visualization

When undertaking serious data visualization, analysts frequently encounter variables whose values span multiple orders of magnitude—ranging perhaps from single digits up to the tens of thousands or millions. Displaying such skewed data distributions on a standard linear axis often renders the plot ineffective, as smaller values are visually compressed near the origin, obscuring vital patterns and relationships among the lower range data points. This phenomenon makes it nearly impossible to accurately interpret rates of change, such as exponential growth or power-law distributions.

To address this crucial challenge, applying a logarithmic scale to the relevant axis becomes not just a preference but a necessity. Logarithmic transformation remaps the data such that equal distances on the axis represent equal proportional (or multiplicative) ratios, rather than absolute differences. This technique effectively expands the lower end of the scale while compressing the higher end, ensuring that all data points contribute meaningfully to the visual narrative, thereby enabling clearer interpretation of exponential trends and complex data structures.

This comprehensive guide details the best practices for implementing logarithmic transformations on the axes within ggplot2, the premier visualization package within the R statistical environment. We will explore the built-in capabilities of ggplot2, focusing specifically on achieving a base-10 logarithmic transformation, which is the most common requirement in scientific and financial data analysis. Understanding the nuances between scale transformation and coordinate transformation is key to producing accurate and aesthetically pleasing plots.

Two Fundamental Approaches to Log Transformation in ggplot2

The ggplot2 framework, designed by Hadley Wickham, provides exceptional flexibility for customizing plot elements, including axis scaling. When aiming for a logarithmic display, there are two principal, built-in methods available to the user. While both achieve a visually similar result for basic plots like the scatterplot, they operate on different conceptual layers of the plot geometry, making the choice between them important, especially when statistical summaries or complex geometric layers are involved.

The critical distinction lies in whether the transformation is applied to the data values themselves (the scale) or to the final layout coordinates. The first method, utilizing functions like scale_y_continuous(), modifies the scale definition prior to drawing the plot elements. This means the axis breaks and labels are calculated based on the transformed values. The second method, employing coord_trans(), applies the transformation to the entire coordinate system after all statistical calculations have been performed.

Due to its direct manipulation of the axis breaks and its predictable interaction with statistical layers, the scale_continuous() approach is generally recommended as the standard method for axis transformation. However, familiarity with both techniques ensures adaptability to various visualization needs within the ggplot2 ecosystem.

1. Using scale_y_continuous() or scale_x_continuous() for Scale Transformation

   This is the preferred and most robust method for applying a logarithmic scale. By passing the argument trans=’log10′ to the appropriate continuous scale function, ggplot2 internally handles the transformation of the data values and automatically generates appropriate logarithmic axis breaks and labels. This ensures accurate representation and scaling across all plot components.

2. Using coord_trans() for Coordinate System Transformation

   Alternatively, the coord_trans() function transforms the coordinate plane itself. While this yields a log-scaled visual layout, it is applied late in the rendering pipeline. Analysts must be cautious when using this method, as it can sometimes distort statistical summaries or geometric objects that were calculated on the original, untransformed data space. For instance, a linear regression line (geom_smooth(method=’lm’)) calculated on linear data will appear curved when viewed through a log-transformed coordinate system.

Method 1: Applying Logarithmic Scale via scale_continuous()

The most straightforward and highly recommended technique for generating a base-10 log scale involves utilizing scale_y_continuous() for the vertical axis or scale_x_continuous() for the horizontal axis. This approach transforms the actual data scale, ensuring that all subsequent elements, including axis labels and grid lines, align perfectly with the logarithmic progression.

To implement this, we simply append the relevant scale function to our base ggplot2 object and specify the transformation type using the trans argument. The value ‘log10’ specifies a base-10 logarithm, which is standard for most scientific visualization contexts. If a natural logarithm is required, one would use ‘log’ instead.

The following generalized code demonstrates how to apply this scale transformation simultaneously to both the X and Y axes of a plot:

ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  scale_y_continuous(trans='log10') +
  scale_x_continuous(trans='log10')

This method is preferred because it handles the difficult aspects of logarithmic visualization internally, generating smooth, appropriate tick marks and labels that accurately reflect the spacing of the transformed data. Let’s see this robust method applied in a practical scenario, focusing on the Y-axis where large value spreads are most commonly encountered.

First, we load the required ggplot2 library and construct a simple data frame where the Y-values range from 1,400 to 11,000, presenting a scenario ideal for logarithmic scaling.

library(ggplot2)

#create data frame
df <- data.frame(x=c(2, 5, 6, 7, 9, 13, 14, 16, 18),
                 y=c(1400, 1700, 2300, 2500, 2800, 2900, 3400, 3900, 11000))

#create scatterplot with log scale on y-axis
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  scale_y_continuous(trans='log10')

The resulting scatterplot, displayed below, clearly illustrates how the data points are spaced exponentially along the vertical axis. This transformation successfully prevents the clustering of data points that would occur near the bottom of a linear scale, thereby offering a visually distinct and informative representation of the data distribution.

Method 2: Transforming the Coordinate System with coord_trans()

The alternative method for achieving a logarithmic visualization involves using the coord_trans() function. Unlike the scale functions that modify the data mapping, coord_trans() changes the actual coordinate system used for rendering the plot. This means the data itself remains untransformed, but the visual space (the canvas) is distorted logarithmically.

While this function delivers the same visual outcome for simple point geometries, analysts must recognize its implications. Since coordinate transformation occurs late in the plotting pipeline, it may lead to inconsistencies when layering complex statistical models or transformations. For basic visualization tasks, however, it serves as a simple, direct way to apply the ‘log10’ transformation to the Y-axis coordinates.

To implement this approach for the Y-axis, we include coord_trans(y=’log10′) in the plot construction. If both axes require transformation, the syntax expands to include the X-axis as well:

ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  coord_trans(y ='log10', x='log10')

Below, we replicate the previous example using coord_trans() to confirm the visual similarity for this specific data set, emphasizing that for simple scatterplot applications, either method may be utilized.

library(ggplot2)

#create data frame
df <- data.frame(x=c(2, 5, 6, 7, 9, 13, 14, 16, 18),
                 y=c(1400, 1700, 2300, 2500, 2800, 2900, 3400, 3900, 11000))

#create scatterplot with log scale on y-axis
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  coord_trans(y='log10')

The plot generated by coordinate transformation (shown below) is almost identical to the plot generated by scale transformation. This confirms that for visual display purposes, both functions successfully implement the desired log scale. However, for advanced statistical plotting, sticking to the scale_y_continuous() method remains the safer choice.

Achieving Enhanced Readability: Formatting Log Axis Labels with Exponents

Although the basic logarithmic transformation correctly spaces the data, the default axis labels often present the values linearly (e.g., 1000, 10000, 100000). While mathematically correct, these labels do not visually reinforce the base-10 logarithmic nature of the axis, potentially confusing the audience. For high-quality scientific publications or reports, it is highly desirable to format these labels using mathematical exponent notation, such as $10^3, 10^4, 10^5$.

To achieve this sophisticated labeling, we must leverage the powerful functions provided by the scales package, which is specifically designed to work seamlessly with ggplot2 for axis and legend customization. The process requires two distinct steps, both integrated within the scale_y_continuous() call: defining the break positions and defining the label format.

First, the trans_breaks() function is used to define the specific locations where the major tick marks should appear. This function ensures that the breaks land precisely on powers of ten (10, 100, 1000, etc.). Second, the trans_format() function, combined with math_format(), converts these numerical break values into the required exponential notation ($10^x$).

The following code block outlines the implementation structure for integrating custom exponent labels onto a log-transformed Y-axis. This combination provides both structural integrity (via scale_y_continuous()) and enhanced readability (via the scales package functions).

ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  scale_y_continuous(trans='log10',
                     breaks=trans_breaks('log10', function(x) 10^x),
                     labels=trans_format('log10', math_format(10^.x)))

Practical Demonstration: Implementing Custom Exponent Labels

Building upon our previous examples, we now execute the advanced labeling technique. This requires loading both the ggplot2 library and the necessary scales package. By explicitly controlling the breaks and labels, we can generate a plot that is not only mathematically sound but also visually professional.

In the trans_breaks() function, we specify ‘log10’ transformation and provide an inverse function (function(x) 10^x) to calculate the breaks based on the logarithmic steps. For the labels argument, trans_format() ensures that the math_format(10^.x) function correctly renders the label as an exponent of 10, where .x represents the power.

The complete code for producing a scatterplot with a log scale featuring exponent notation is provided below, using the same sample data frame for consistency.

library(ggplot2)
library(scales)

#create data frame
df <- data.frame(x=c(2, 5, 6, 7, 9, 13, 14, 16, 18),
                 y=c(1400, 1700, 2300, 2500, 2800, 2900, 3400, 3900, 11000))

#create scatterplot with log scale on y-axis and custom labels
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  scale_y_continuous(trans='log10',
                     breaks=trans_breaks('log10', function(x) 10^x),
                     labels=trans_format('log10', math_format(10^.x)))

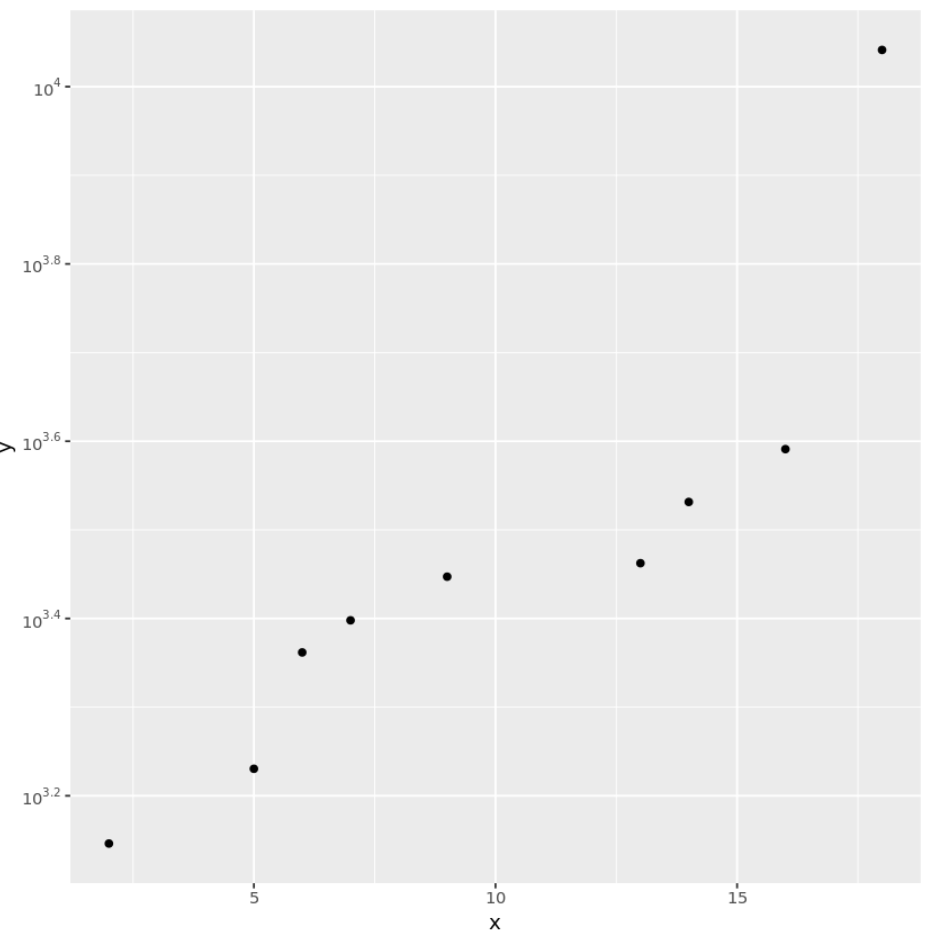

Examine the resulting visualization. The Y-axis now clearly communicates the logarithmic progression using base-10 exponents ($10^3, 10^4$), offering the highest level of detail and clarity for data presentation where magnitude is the key factor. This approach represents the gold standard for representing log-transformed data in the R ecosystem.

Conclusion and Further Resources

Mastering the implementation of logarithmic scales is a fundamental skill in high-quality data visualization, especially when dealing with data that exhibits exponential growth or wide value ranges. The ggplot2 library provides flexible mechanisms to achieve this, with scale_y_continuous(trans=’log10′) standing out as the most robust method for transforming the data scale itself. Furthermore, integrating the scales package allows for the creation of mathematically precise exponent labels, significantly enhancing the scientific rigor and readability of the final visualization.

By systematically applying these functions, users can ensure their visual representations accurately reflect complex data relationships, moving beyond the limitations of standard linear plotting. We strongly recommend using the scale transformation method for consistency and integrating custom labels whenever preparing figures for publication.

For users interested in further mastering the customization of ggplot2 visualizations, the following resources provide additional guidance on related topics:

• The Complete Guide to ggplot2 Titles
• A Complete Guide to the Best ggplot2 Themes
• How to Create Side-by-Side Plots in ggplot2
