Learning to Customize Legends in ggplot2: A Step-by-Step Guide

When professional standards require high-quality data visualization, the ability to exert absolute control over every element of a plot is not merely a preference—it is essential. The powerful R package ggplot2, while offering sophisticated default settings, frequently encounters situations where the standard automatically generated legend must be precisely customized. This need arises when working with corporate branding guidelines, accessibility standards, or complex models requiring explicit color definitions.

Manually adjusting the aesthetic mappings in ggplot2 allows the user to dictate exactly how data variables translate into visual properties. This ensures that the final graphical representation is not only accurate but also perfectly aligned with the intended interpretability. Achieving this level of granular customization is primarily managed through the family of manual scale functions. For controlling the color of lines and points, the critical function is scale_color_manual().

This comprehensive tutorial serves as an authoritative guide, demonstrating the implementation of a fully customized manual legend within the ggplot2 framework. We will provide clear, practical examples and meticulously detail the arguments necessary to achieve precise, publication-ready control over the visual output of your charts.

Introduction to Manual Scaling in ggplot2

The philosophical foundation of ggplot2 is rooted in the Grammar of Graphics, a system that fundamentally links data variables to specific visual properties, known as Aesthetics (such as color, size, shape, or line type). When a categorical variable is mapped to the color aesthetic, ggplot2 automatically handles the creation of a color scale and its accompanying legend based on its internal defaults.

While these default color palettes are convenient, they often fall short in meeting specific requirements related to accessibility, visual contrast, or aligning with a specific thematic schema. Manual scaling is the necessary technique used to explicitly override these automatic assignments, thereby granting the user the power to specify exactly which color maps to which unique level within the categorical data. This process transforms an automatically generated plot into a controlled, professionally styled graphic.

For discrete variables, manual scales establish an explicit, user-defined correspondence between the categorical data values and the desired visual outputs. This technique is particularly vital in scenarios involving comparative visualizations, such as comparing the performance of distinct models or grouping data points where specific, consistent color coding is required to maintain clarity and visual linkage across multiple related plots.

The foundational function for controlling the color aesthetic for lines or points is scale_color_manual(). This function empowers the user to define the entire structure of the resulting legend, including the legend’s organizational title, the specific order in which items appear, and the precise color value associated with each item level, ensuring maximum flexibility and accuracy in data representation.

Understanding the scale_color_manual() Function

The scale_color_manual() function serves as the central component for constructing customized legends tied to the color aesthetic in ggplot2. It operates within the broader family of scale functions designed to manage the mapping process, but distinctively, the manual scale accepts direct, user-specified mappings rather than relying on qualitative or sequential algorithms.

Utilization of this function becomes essential whenever the data intended for the legend is not derived directly from a single column in the primary data frame, or when the default labels, colors, and ordering provided by ggplot2 are insufficient for the task at hand. This is commonly observed when incorporating multiple geometry layers, such as several calls to geom_smooth(), each generating its own aesthetic mapping based on non-data-frame variables. In such complex cases, scale_color_manual() is indispensable for unifying these disparate entries into a single, cohesive legend.

It is critically important to understand the prerequisite: the manual scale cannot operate in isolation. ggplot2 requires that a clear aesthetic mapping (e.g., aes(color='Specific Model Name')) must first be established within the geometry layer—such as geom_smooth or geom_line. If the underlying aesthetic mapping is not explicitly set within the geometry, the manual scale has no existing visual property to modify, resulting in an error or the failure to generate the desired legend.

Practical Example: Customizing Regression Lines

A frequently encountered scenario that mandates the use of a manual legend involves the comparison of multiple fitted regression analysis models on a single scatter plot. For instance, a data analyst may wish to visualize linear, quadratic, and cubic fits simultaneously, demanding that each fit be represented by a distinct color and accurately labeled in the legend. The following example demonstrates the process of plotting three separate regression lines using the geom_smooth() function and subsequently applying a fully custom legend via scale_color_manual().

The code block below begins by defining a simple sample data frame. It then proceeds to construct the plot by adding three individual geom_smooth layers. The crucial step here involves mapping a descriptive, static string (e.g., aes(color='Linear')) to the color aesthetic within each geometry call. These strings act as the unique identification keys that the subsequent manual scale function will use to assign specific colors and labels.

library(ggplot2)

#create data frame
df <- data.frame(x=c(1, 2, 2, 3, 5, 6, 8, 8, 9, 9, 10, 11, 12, 15, 15),
                 y=c(2, 3, 3, 4, 5, 5, 6, 7, 8, 8, 9, 10, 16, 19, 28))

#create plot with three fitted regression models
ggplot(df, aes(x, y)) +
  geom_point() +
  geom_smooth(se=FALSE, aes(color='Linear')) +
  geom_smooth(formula=y~poly(x, 2), se=FALSE, aes(color='Quadratic')) +
  geom_smooth(formula=y~poly(x, 3), se=FALSE, aes(color='Cubic')) +
  scale_color_manual(name='Regression Model',
                     breaks=c('Linear', 'Quadratic', 'Cubic'),
                     values=c('Cubic'='pink', 'Quadratic'='blue', 'Linear'='purple'))

The resulting visualization effectively differentiates between the three distinct regression analysis models. This is achieved by assigning the precise custom colors specified in the code, along with a clear, descriptive legend title that aids immediate interpretation, as demonstrated in the visual output provided below.

Deconstructing the scale_color_manual() Arguments

The entire efficacy of the manual legend mechanism rests upon the accurate specification of the three fundamental arguments contained within the scale_color_manual() function. Each argument fulfills a unique and vital role in defining both the content and the organization of the resulting legend display.

By effectively implementing the scale_color_manual() function, we gain the ability to specify the following essential components of the legend structure:

• name: This argument requires a character string that dictates the title displayed at the top of the legend box. It must be chosen carefully to be a descriptive and informative label that clearly identifies the aesthetic property being mapped (e.g., ‘Regression Model Type’ or ‘Experimental Treatment Group’).
• breaks: This argument defines the exact list of labels that will be presented in the legend, crucially controlling their sequential order. The strings listed within breaks must precisely match the identifying strings that were used in the aesthetic mapping (aes()) within the geometry layers (e.g., ‘Linear’, ‘Quadratic’, ‘Cubic’). Any mismatch will prevent the correct association.
• values: This is the core mapping component where the assignment of actual color values takes place. It must be provided as a named vector where the names of the vector elements correspond precisely to the entries defined in the breaks argument (e.g., 'Cubic'='pink'). This explicit pairing guarantees that the intended color is flawlessly assigned to the corresponding data level.

It is paramount to understand that precision is the key requirement when working with manual scales. Even minor discrepancies in spelling, capitalization, or spacing between the strings utilized in the aes() mappings, the breaks argument, and the names within the values vector will inevitably lead to errors, such as colors being incorrectly assigned, or the legend appearing incomplete or entirely missing. Careful cross-referencing of these strings is always recommended during the creation process.

Enhancing Legend Appearance with theme()

While the family of scale functions, including scale_color_manual(), is dedicated to controlling the content—that is, the actual colors, labels, and mapping logic—the visual properties of the legend, such as its font sizes, background appearance, and overall placement on the plot, are managed using the general plot customization function: theme().

The theme() function grants users the capability to specifically target individual components of the legend element. Key components frequently customized include the legend’s title (accessed via legend.title) and the text associated with the individual item labels (accessed via legend.text). This level of control is particularly useful when preparing graphics for formal publication or high-stakes presentations where text readability and adherence to stylistic guidelines are of the utmost importance.

The following expanded example illustrates how to seamlessly integrate theme() into the existing plot structure to significantly increase the font size of the legend elements. This adjustment ensures that the textual components are prominent, accessible, and easy to read alongside the rest of the data visualization.

library(ggplot2)

#create data frame
df <- data.frame(x=c(1, 2, 2, 3, 5, 6, 8, 8, 9, 9, 10, 11, 12, 15, 15),
                 y=c(2, 3, 3, 4, 5, 5, 6, 7, 8, 8, 9, 10, 16, 19, 28))

#create plot with three fitted regression models
ggplot(df, aes(x, y)) +
  geom_point() +
  geom_smooth(se=FALSE, aes(color='Linear')) +
  geom_smooth(formula=y~poly(x, 2), se=FALSE, aes(color='Quadratic')) +
  geom_smooth(formula=y~poly(x, 3), se=FALSE, aes(color='Cubic')) +
  scale_color_manual(name='Regression Model',
                     breaks=c('Linear', 'Quadratic', 'Cubic'),
                     values=c('Cubic'='pink', 'Quadratic'='blue', 'Linear'='purple'))+
 theme(legend.title=element_text(size=20),
       legend.text=element_text(size=14))

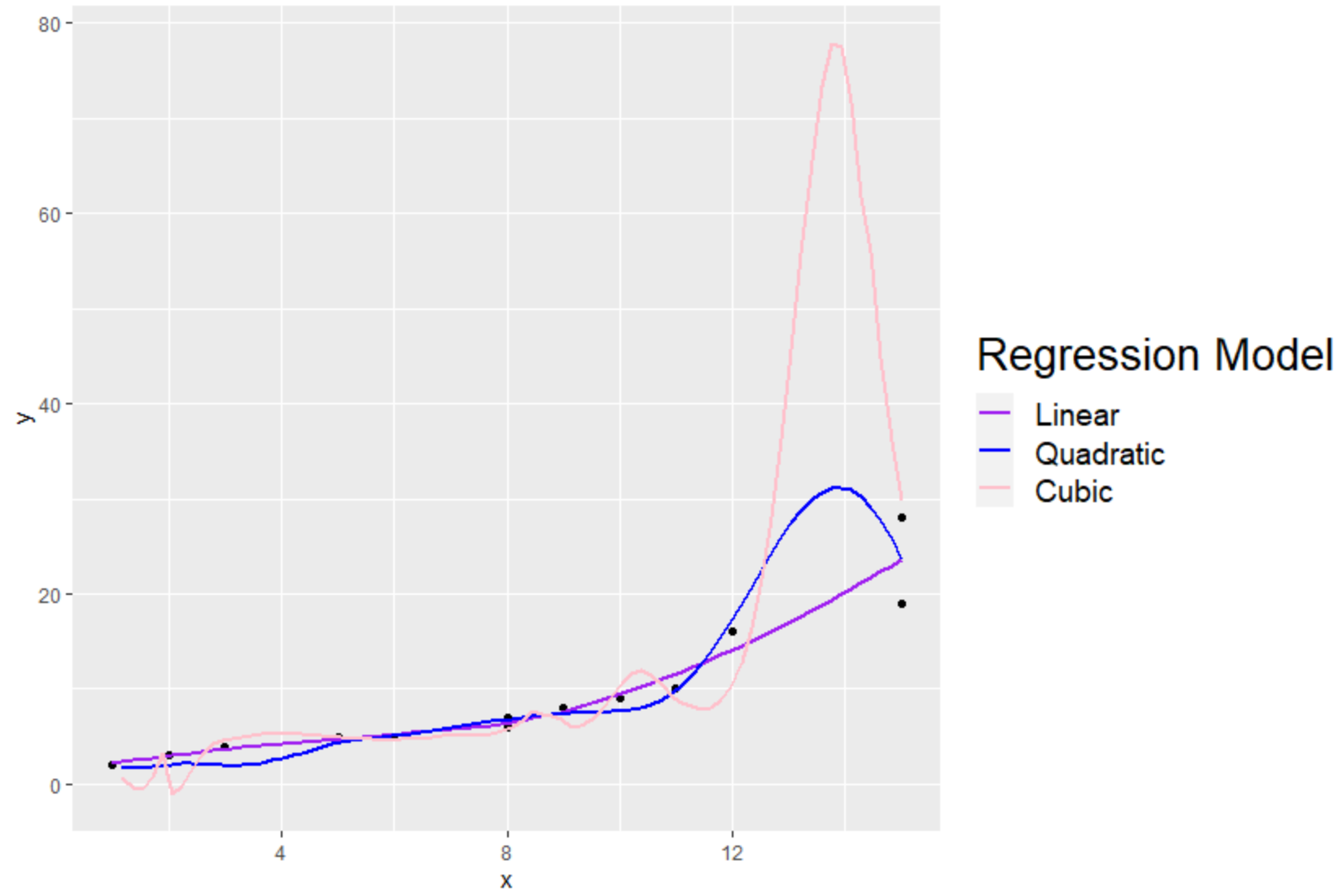

As clearly observable in the resulting image, the size of both the legend title and the individual item labels has been substantially increased. This modification significantly enhances the visual impact and overall readability of the legend. This capability for granular control over both content and styling is essential for producing truly high-quality, publication-ready graphical output.

Advanced Legend Customization Techniques

Beyond the fundamental adjustments of color and text size, ggplot2 offers several advanced strategies for fine-tuning legends, particularly when a plot incorporates multiple distinct aesthetics or when the user needs to selectively hide certain automatically generated legends.

Firstly, it is vital to recognize that the principle of manual scaling extends across all discrete aesthetics. If a visualization involves mapping categories to fill colors (typical in bar plots or heatmaps), the corresponding function is scale_fill_manual(). Similarly, if the user is customizing the shapes of data points, scale_shape_manual() is used. The core arguments—name, breaks, and values—maintain consistency across this family of manual scale functions, allowing for rapid transfer of knowledge between different plot types.

Secondly, a crucial distinction must be made regarding continuous data. Manual scales are generally unsuitable for continuous variables, which represent a smooth range of values (e.g., temperature or financial magnitude). For these data types, one must instead rely on functions such as scale_color_gradient() or scale_color_viridis_c() to define a smooth, continuous color range. However, if a continuous variable is intentionally binned or discretized into distinct categories, a manual scale can then be appropriately applied to those resulting categorical bins.

Finally, controlling the visibility of specific legends on the plot is managed through the guides() function. For instance, if a scatter plot generates a default legend for point size (because size was mapped to a variable) but the user only wants the custom color legend to appear, the solution is to suppress the unwanted legend explicitly. This is achieved by appending code such as + guides(size = "none") to the plot object. This selective display control ensures that only the most relevant visual information is presented to the viewer, reducing visual clutter.

Summary and Best Practices

Mastering the creation of a manual legend in ggplot2 is an indispensable skill for anyone committed to producing high-quality data visualization. By skillfully utilizing the scale_color_manual() function, analysts gain complete sovereignty over the aesthetic mapping process, ensuring perfect correspondence between categorical data identifiers and their visual attributes.

The foremost key to successful implementation lies in guaranteeing a perfectly seamless link between the aesthetic mappings defined within the geometry layers (e.g., inside geom_smooth()) and the subsequent explicit definitions provided in the manual scale function. It is imperative to meticulously verify that the strings used for the breaks argument and the names within the values vector are an exact match, including case and spacing, to the legend labels created by the initial aesthetic mapping.

In addition, always leverage the powerful theme() function to manage the visual styling and layout of the legend. This duality—combining manual content control via scales with aesthetic adjustments via theme()—is what enables the creation of sophisticated, highly readable, and presentation-ready graphics tailored precisely to the communication goals.

Additional Resources

To further advance your expertise in customizing plots and managing legends within the R environment, the following areas provide detailed explanations of other common operations in ggplot2:

• How to modify point shapes using scale_shape_manual().
• Techniques for changing the position and orientation of the legend using theme() arguments like legend.position.
• Guides on combining multiple legends into a single unified key.
