Create a Normal Probability Plot in Excel (Step-by-Step)

A normal probability plot (NPP), often interchangeably referred to as a Q-Q plot (Quantile-Quantile Plot), serves as an indispensable diagnostic instrument in statistical analysis. This powerful graphical technique allows researchers to visually assess whether the values within a specific dataset align with the expectations of a normally distributed population.

Establishing the underlying distribution of your data is frequently a mandatory prerequisite for employing many parametric statistical tests. Consequently, utilizing the NPP is a critical first step in the rigorous process of data exploration and validation. It provides immediate, intuitive insight into the symmetry and tail behavior of the sample data.

This comprehensive tutorial offers a detailed, step-by-step methodology for constructing a precise normal probability plot for any dataset using Microsoft Excel. We will ensure absolute clarity in both the mathematical calculation of the theoretical scores and the subsequent graphical interpretation of the final visualization.

The Statistical Foundation of the Normal Probability Plot

The fundamental objective of the normal probability plot is to systematically compare the observed distribution of the sample data against a theoretical standard normal distribution. When the observed data perfectly mirrors the theoretical model, the resulting plot points will align tightly along a perfectly straight line. This alignment indicates that the data meets the critical assumption of normality required by many advanced statistical procedures, such as t-tests and ANOVA (Analysis of Variance).

This visualization method provides significantly more nuanced and actionable information than merely reviewing descriptive summary statistics or simple histograms alone. The NPP is highly effective at highlighting subtle deviations, particularly those occurring in the extreme ends (the tails) or the center of the distribution, which might otherwise be easily overlooked. The assumption of normality is not merely a technical formality; it is foundational for ensuring the reliability of inferences drawn from these common statistical procedures.

While the terms NPP and Q-Q plot are often used interchangeably, a classic normal probability plot specifically maps the observed data values on one axis and the corresponding theoretical Z-Scores (or expected normal scores) on the other. This configuration facilitates a direct, visual comparison of the data’s empirical quantiles against the theoretical quantiles derived from the standard normal curve.

Step 1: Preparing and Organizing Your Data in Excel

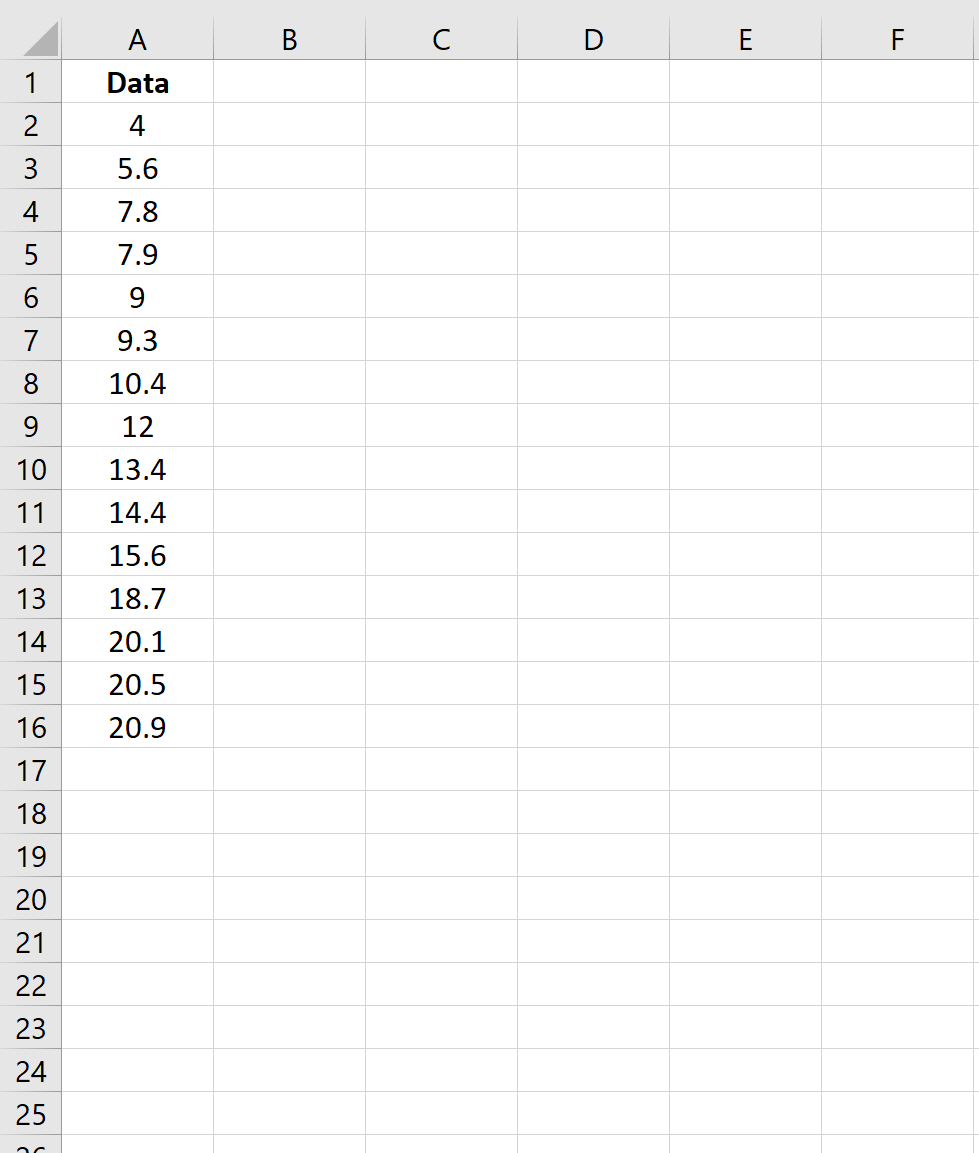

Before initiating any calculations, the first critical requirement is to prepare and organize the dataset destined for analysis. For the purpose of this practical demonstration, we will utilize a small, fictitious sample dataset containing 15 numerical observations. It is absolutely essential that your raw data is clean, free of errors, and structured vertically within a single column in your Excel worksheet.

Effective data organization forms the bedrock for achieving accurate statistical visualization within Excel. In our running example, we will assume that the 15 observations are neatly contained within cells A2 through A16. This structure ensures that subsequent calculations can reference the data range consistently and accurately.

Once the observations have been successfully entered and verified, we can transition seamlessly to the calculation phase, which involves mathematically determining the expected normal scores corresponding to each individual data point.

Step 2: Calculating Theoretical Quantiles (Expected Z-Scores)

The derivation of the theoretical Z-Scores constitutes the most mathematically intensive component of generating the NPP within Excel. These calculated values represent the precise location where each data point should fall if the entire dataset were perfectly aligned with a standard normal distribution. This complex calculation process is efficiently condensed into a single, nested formula that executes three fundamental steps sequentially:

1. Determining the precise Rank of the observed value relative to all other values within the complete dataset.
2. Calculating the plotting position, which estimates the cumulative probability (P) associated with that rank.
3. Converting the calculated plotting position (P) into a theoretical Z-Score using the inverse standard normal cumulative distribution function.

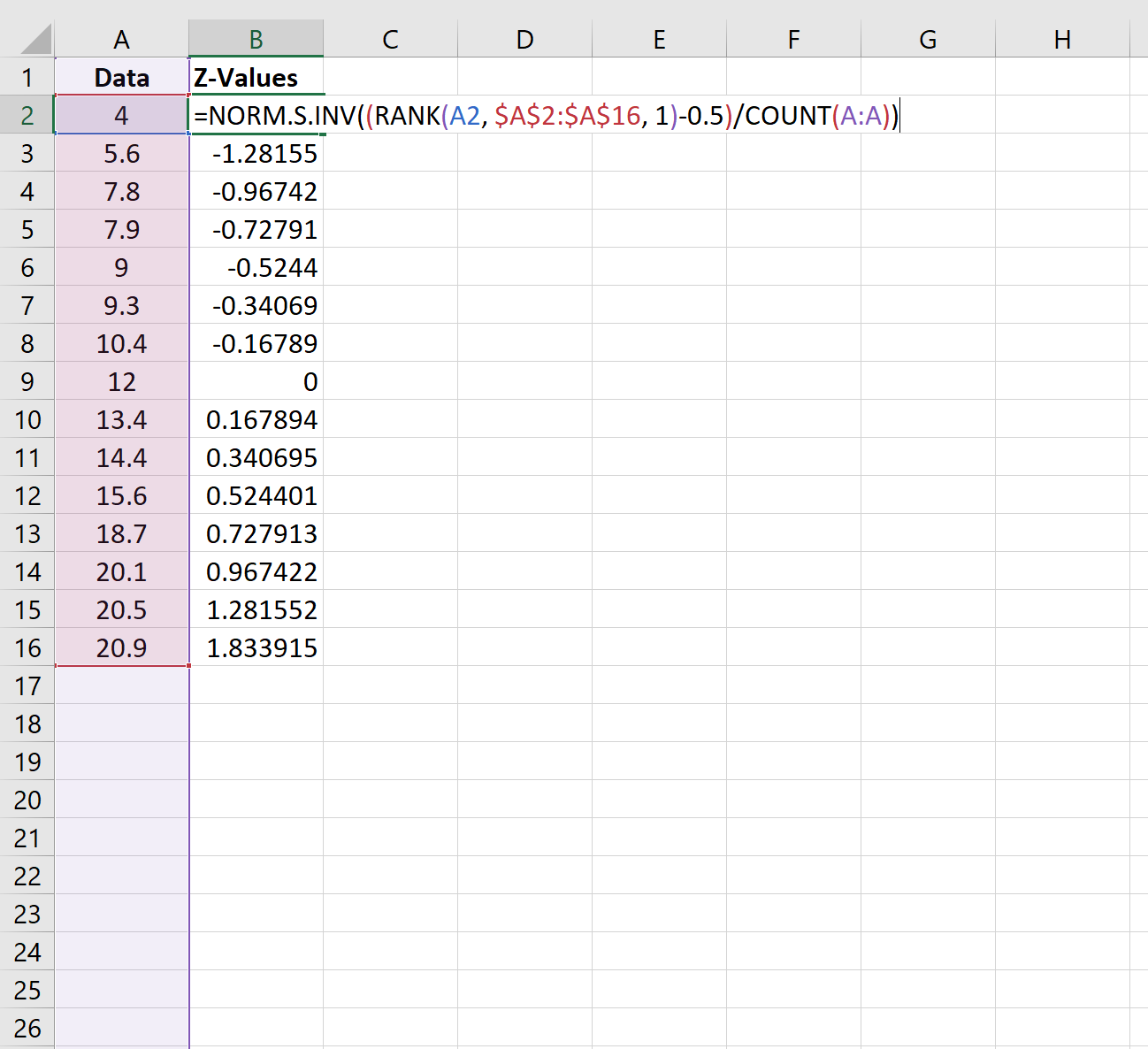

We apply the following precise formula to calculate the Z-score corresponding to the first data value, located in cell A2. This exact formula must be accurately entered into the adjacent cell, B2:

=NORM.S.INV((RANK(A2, $A$2:$A$16, 1)-0.5)/COUNT(A:A))

To fully grasp this powerful statistical calculation, it is essential to analyze the components contained within the formula. The inner function, RANK(A2, $A$2:$A$16, 1), establishes the position of the value in A2 within the fixed dataset range A2:A16, applying an ascending order designated by the ‘1’. The subtraction of -0.5 from the rank applies a crucial statistical adjustment (known as the Blom plotting position), which ensures a more accurate estimation of the cumulative probability and effectively prevents the calculation from yielding mathematically impossible probabilities of 0 or 1. This adjusted rank is then normalized by dividing it by the total number of observations using /COUNT(A:A), which finally produces the desired cumulative probability (P).

The outermost function, NORM.S.INV function, takes this derived cumulative probability (P) as its input and returns the corresponding theoretical Z-Score from the standard normal distribution. This output is the expected normal score we require for the plot. After entering the formula correctly into cell B2, it must be copied down the column through B16. Critically, verify that the range reference for the dataset ($A$2:$A$16) remains an absolute reference (fixed), while the reference to the individual data point (A2) dynamically adjusts for each subsequent row (A3, A4, etc.).

Step 3: Generating the Scatter Plot Visualization

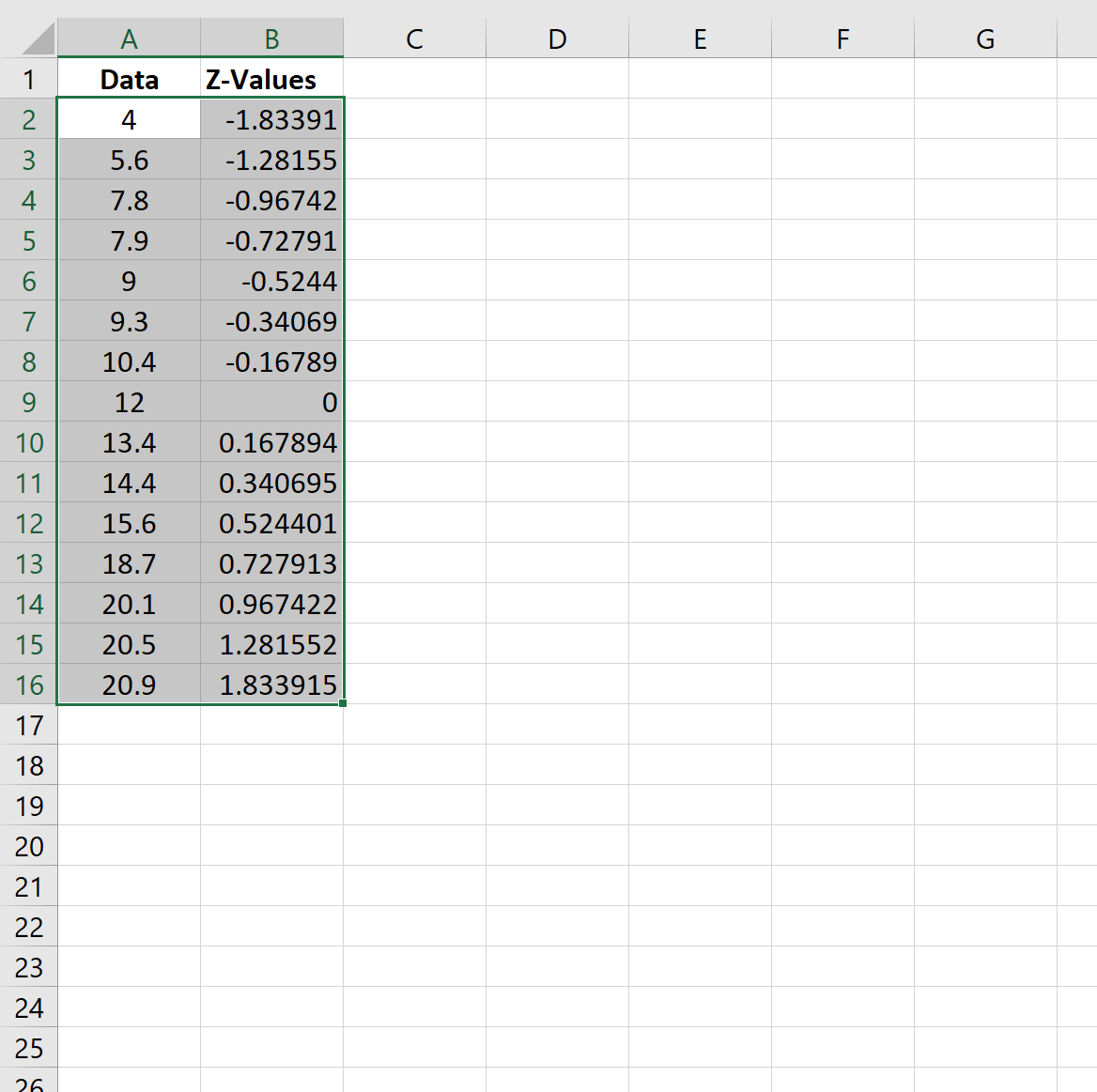

With the observed data values secured in Column A and their precisely calculated theoretical Z-Scores ready in Column B, we possess all the necessary components to construct the normal probability plot utilizing Excel’s robust charting capabilities. The visualization process begins by highlighting the entire relevant data range, encompassing both the raw observations and the calculated theoretical scores. For our example, this designated cell range is A2:B16.

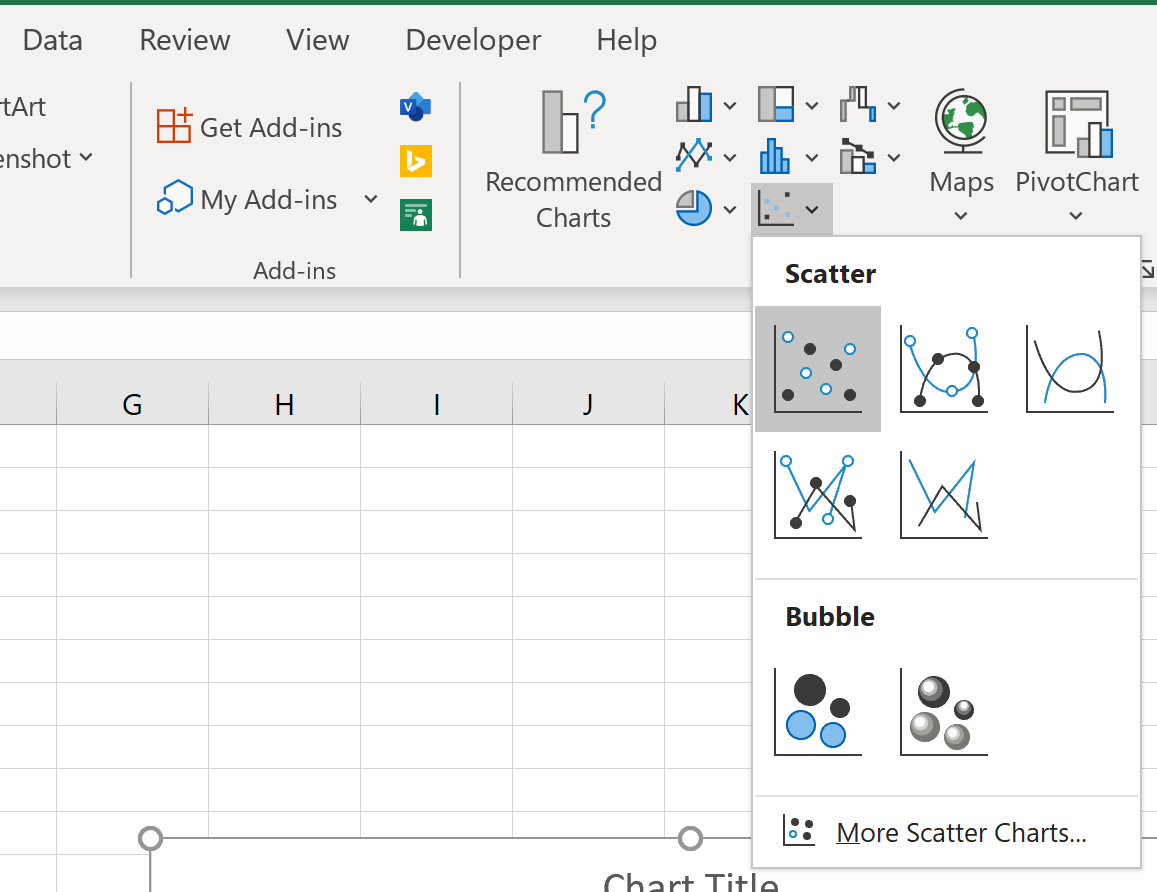

Once the data is highlighted, navigate to the top ribbon menu and select the Insert tab. Within the Charts grouping, it is imperative to choose the Scatter chart type. Specifically, select the first option, “Scatter with only Markers.” This choice is crucial because a normal probability plot requires the display of discrete points representing the corresponding pairs of quantiles, rather than continuous lines, which would misrepresent the data comparison.

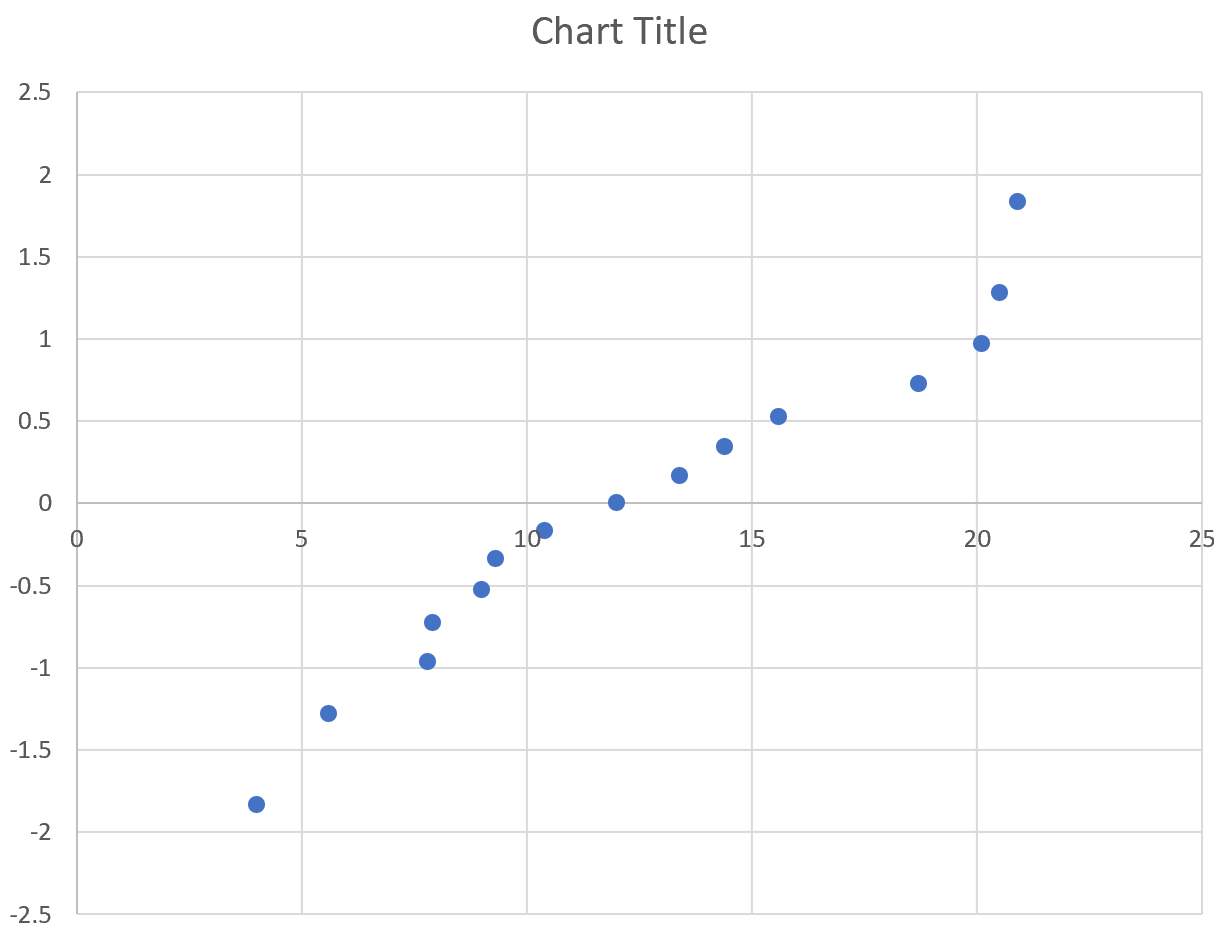

Excel will immediately generate a basic graphical representation. By default, the x-axis typically displays the ordered observed data values (Column A), while the y-axis displays their corresponding theoretical quantiles (Column B). To elevate the plot’s clarity, professionalism, and informational value, you should dedicate time to customizing the chart elements. This includes adjusting the chart title, clearly labeling the axes (e.g., “Observed Data Values” versus “Theoretical Normal Quantiles”), and refining the overall visual aesthetics to ensure the plot is maximally informative for its intended audience.

Interpreting Deviations in the Normal Probability Plot

The interpretation of a normal probability plot is highly straightforward and intuitive, relying on visual assessment. The core principle is simple: if the majority of the plotted data points adhere closely to a roughly straight line—ideally approximating a 45-degree reference line—then the underlying dataset can be confidently considered to be approximately normally distributed. This straight line visually represents the perfect alignment between the empirical observed quantiles and the expected theoretical quantiles.

Conversely, any substantial or systematic deviation from this reference line serves as a strong indicator that the distribution of the observed data differs significantly from the expected normal curve. For instance, in the plot generated using our sample data, we can readily observe that the data values noticeably curve away from linearity, particularly pronounced at the extreme ends, or “tail ends.” This pronounced curvature strongly suggests that the data exhibits characteristics inconsistent with true normality, potentially possessing either heavier tails (platykurtic) or lighter tails (leptokurtic) than the ideal normal distribution.

Specific patterns of deviation displayed on the NPP are powerful diagnostic tools, revealing the exact nature of the non-normality present in the data:

• S-Shaped Curve: This pattern frequently suggests issues related to kurtosis, indicating that the data possesses tails that are either too heavy or too light compared to the standard normal distribution.
• Curvature Only at the Extremes: This type of deviation often points primarily to the influence of a few significant outliers located at the boundaries of the dataset.
• Bow or Banana Shape: This shape is generally indicative of skewness (asymmetry). If the points systematically curve upward at the high end, it strongly suggests the data is positively skewed (skewed right).

Supplementing Visual Inspection with Formal Normality Tests

While the normal probability plot is an excellent, efficient, and powerful diagnostic instrument, it is fundamentally a method of visual inspection and relies, to a degree, on subjective judgment. It is crucial to understand that the NPP does not, in itself, constitute a formal statistical hypothesis test. Its primary utility lies in providing a quick, intuitive means to visually verify whether a dataset’s shape aligns sufficiently with the normal curve, which is essential for validating assumptions prior to running parametric statistical tests.

However, whenever a rigorous, quantifiable proof of normality is mandated—such as in formal academic research, quality control environments, or regulatory reporting—researchers must always complement the visual plot analysis with a formal statistical normality test. The two most widely recognized and utilized formal tests are the Shapiro-Wilk test, which is generally preferred and more powerful for smaller sample sizes, and the Kolmogorov-Smirnov test, often applied to large datasets.

If your analytical requirements necessitate a definitive p-value to objectively test the null hypothesis (that your data is normally distributed), seeking dedicated statistical software packages such as R, SPSS, or specialized add-ins for Excel is highly recommended. These packages offer far more robust and accurate testing capabilities than manual calculations or built-in, limited Excel functions.
