Learning to Visualize Data: Creating Pairs Plots in Python for Exploratory Data Analysis

A pairs plot, often referred to as a scatterplot matrix, stands as an indispensable instrument in the initial stages of Exploratory Data Analysis (EDA). This sophisticated visualization provides a comprehensive matrix view, enabling data analysts to rapidly assess the pairwise relationships between numerous variables within a single dataset. By consolidating individual feature distributions and bivariate correlations into one cohesive graphic, the pairs plot is crucial for identifying linear and non-linear correlations, spotting nascent data clusters, and gaining a foundational understanding of underlying feature distributions before formal modeling begins.

The process of generating these powerful statistical graphics within the Python ecosystem is highly efficient, largely due to specialized libraries designed for statistical visualization. The most straightforward and widely accepted approach leverages the powerful pairplot function, which is a core component of the Seaborn statistical data visualization library. Seaborn is meticulously constructed atop Matplotlib, offering a high-level, intuitive interface that significantly simplifies the creation of attractive, information-rich statistical graphics tailored for data exploration.

This guide provides detailed, step-by-step examples demonstrating how to effectively utilize the pairplot function. We will progress logically, starting with a basic visualization encompassing all numeric variables and moving toward highly customized plots that emphasize specific feature subsets and categorical differences using the hue parameter. Mastering the Seaborn pairplot is an essential prerequisite for any analyst or data scientist engaging in robust multivariate analysis using Python.

The Role of Pairs Plots in Multivariate Analysis

When working with datasets characterized by a large number of features, analyzing relationships one pair at a time can quickly become prohibitively tedious and inefficient. The pairs plot offers an elegant solution by automatically generating a grid of plots. This consolidated grid simultaneously presents the marginal distribution of each individual variable alongside the bivariate relationships corresponding to every possible combination of features. This systematic approach saves significant time and ensures no crucial pairwise dependency is overlooked.

This visualization tool is exceptionally effective for the initial identification of correlations. For instance, observing a distinct linear pattern in the corresponding scatterplot between two variables immediately suggests a strong linear correlation, whether positive or negative. Conversely, if the data points are uniformly dispersed without a discernible pattern, it indicates a weak or absent correlation. These critical initial insights derived from the pairs plot are fundamental, guiding subsequent decisions regarding feature selection, data transformation, and the appropriate statistical models to deploy.

Before committing to complex statistical or machine learning models, a quick examination of the pairs plot can reveal immediate structural challenges, such as the presence of significant outliers, the indication of non-linear dependencies requiring transformation, or the inherent separability of categorical classes. Consequently, the pairs plot serves as a cornerstone for robust EDA, ensuring the analyst possesses a deep, intuitive comprehension of the data’s composition and structure before advancing to more sophisticated analytical techniques.

Prerequisites: Setting Up the Python Environment and Data

To effectively generate high-quality pairs plots, we rely on the industry-standard Python data science ecosystem. The core stack necessary for this task includes Pandas for efficient data manipulation and structuring, Matplotlib providing the underlying plotting capabilities, and, most importantly, Seaborn for its specialized statistical plotting functions, particularly pairplot. For demonstration purposes, we will utilize the classic Iris dataset, which is conveniently pre-loaded and accessible directly within the Seaborn library, streamlining the data loading process.

The Iris dataset is a pedagogical staple in statistics and machine learning, comprising measurements for four key features—sepal length, sepal width, petal length, and petal width—recorded across 150 individual iris flowers, distinctly categorized by their species. Its relatively small size, clean structure, and inherent distinct categorical groupings make it the ideal candidate for illustrating powerful multivariate visualization techniques.

The essential initial setup involves the standard practice of importing these necessary libraries and loading the dataset into a Pandas DataFrame. The following code snippet executes these prerequisites, preparing the environment for generating the first visualization.

Fundamental Application: Creating the Base Pair Plot (Example 1)

The simplest and most immediate application of the pairplot function is to plot every numeric variable found within the input DataFrame. This action yields an instantaneous, holistic summary of the entire dataset’s structure and the interplay between its continuous features. The code provided below demonstrates the process of loading the Iris dataset and subsequently generating the complete scatterplot matrix for its four numeric features.

import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

#define dataset
iris = sns.load_dataset("iris")

#create pairs plot for all numeric variables
sns.pairplot(iris)

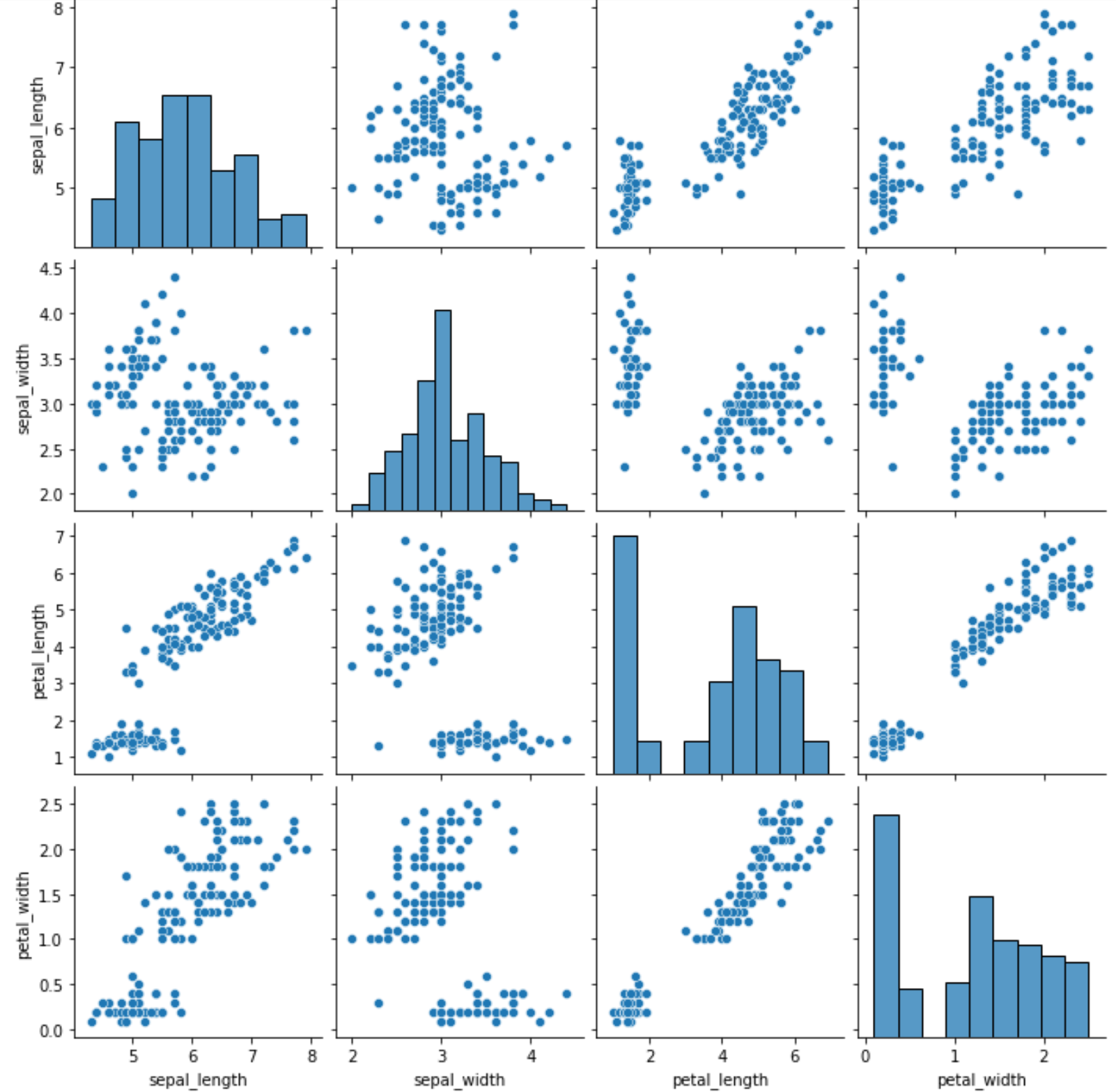

Upon execution, this code renders a symmetric matrix where the number of rows and columns precisely corresponds to the count of numeric variables in the DataFrame (four, in this specific instance). This initial visualization serves as the definitive starting point for any rigorous multivariate analysis, offering a dense, comprehensive summary of all potential feature interactions and their individual distributions.

Examining the resultant visualization, one immediately notices the plot’s inherent symmetry across the main diagonal. For example, the scatterplot illustrating the relationship between sepal_length versus sepal_width is merely a transposed mirror image of the plot showing sepal_width versus sepal_length. While this redundancy is integral to the matrix structure, it facilitates clear alignment and comparison across the various feature pairings.

Interpreting the Matrix: Diagonal and Off-Diagonal Elements

A systematic understanding of the pairs plot architecture is critical for accurately extracting meaningful insights from the visualization. The matrix is structurally divided into two fundamentally important categories of graphical elements: the diagonal plots and the off-diagonal plots, each serving a distinct yet highly complementary purpose in describing the data’s characteristics.

The interpretation framework for the scatterplot matrix is straightforward yet powerful:

• The diagonal elements display the marginal distribution of each individual variable. By default in Seaborn, this is represented by a histogram, although it can often be replaced by a Kernel Density Estimate (KDE). This element is crucial for visualizing the shape of the data for a single feature, allowing analysts to quickly check for characteristics such as normality, skewness, or potential multimodality (multiple peaks).
• All off-diagonal elements are dedicated to displaying a scatterplot that illustrates the bivariate relationship between every pairwise combination of variables. These bivariate plots are the core tools for revealing correlation and dependency. For instance, locating the box in the bottom-left corner of the matrix reveals the scatterplot of petal_width values plotted against sepal_length values.

By meticulously examining the off-diagonal scatterplots, analysts can instantaneously infer the nature and strength of correlations. A tight, dense grouping of points forming an upward trajectory (positive slope) clearly signals a strong positive correlation, while a downward trajectory suggests a negative correlation. This singular visualization provides a remarkably powerful initial assessment of the relationship dynamics between every pair of variables in the dataset, significantly accelerating the early stages of comprehensive data analysis.

Advanced Customization: Subsetting Variables and Categorical Grouping (Examples 2 & 3)

While a complete plot of all numeric variables offers an excellent holistic overview, analytical efficiency often dictates focusing only on the relationships between a specific subset of features. Including variables irrelevant to the hypothesis can needlessly clutter the plot and increase processing time. Fortunately, the pairplot function is highly flexible, allowing for straightforward customization by inputting only a subset of the Pandas DataFrame.

To narrow the scope of the analysis, the analyst simply needs to subset the DataFrame using standard Pandas indexing before passing the resulting smaller DataFrame to Seaborn’s pairplot function. This technique is invaluable when confronting massive datasets containing dozens or even hundreds of features, where a full matrix plot would be impractical or illegible.

The following code demonstrates how to generate a pairs plot restricted to examining only the sepal_length and sepal_width features of the Iris dataset, resulting in a compact 2×2 matrix.

sns.pairplot(iris[['sepal_length', 'sepal_width']])

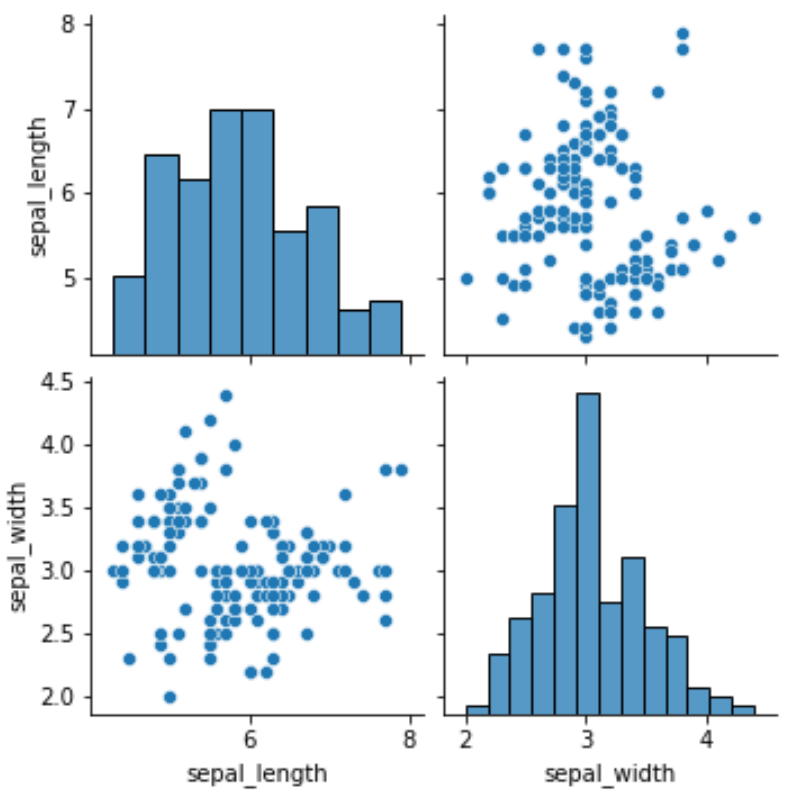

By restricting the input to only two variables, the resulting visualization is a compact 2×2 grid. This simplified view successfully focuses the analyst’s attention solely on the relationship between these two chosen features, facilitating a deeper, undistracted interpretation of their joint distribution and correlation.

A truly powerful feature of the Seaborn pairplot is the capability to introduce a categorical third dimension into the visualization through the use of the hue argument. This critical parameter automatically colors each point in the scatterplots (and segments the distributions on the diagonal) based on the unique values of the specified categorical variable. Introducing hue transforms the pairs plot from a simple correlation tool into a sophisticated classification analysis aid. It allows for immediate visual determination of whether different categories (like the species in the Iris dataset) are linearly or non-linearly separable based on the combination of continuous features.

In the context of the Iris dataset, setting hue='species' color-codes the data points according to the three distinct species of iris flowers. This immediately reveals which feature pairs are most effective at distinguishing between the species.

sns.pairplot(iris, hue='species')

The resulting plot dramatically clarifies the separation for many feature combinations. For example, the scatterplot depicting petal length versus petal width shows near-perfect separation among the three species clusters, strongly suggesting that these two variables are highly predictive of the species category. Utilizing the hue argument offers a superior understanding of the data’s intrinsic structure, specifically how a categorical factor influences the distributions and bivariate relationships of the continuous variables, making it invaluable for feature selection in classification modeling.

Conclusion and Best Practices

The Seaborn pairplot function is recognized as an exceptionally efficient and powerful visualization utility for conducting initial multivariate analysis within Python. It delivers a dense, compact summary encompassing both marginal distributions and bivariate correlations, thereby establishing itself as a mandatory first step in any comprehensive EDA workflow.

To maximize the diagnostic effectiveness of pairs plots, analysts should adhere to several key best practices. Firstly, always leverage the hue argument when a relevant categorical variable is present, as this dramatically enhances the ability to identify critical group separation and clustering. Secondly, for datasets containing an excessive number of variables (e.g., more than 10 to 15), plotting the full matrix becomes counterproductive; instead, use Pandas subsetting techniques to focus the visualization exclusively on the most theoretically relevant or correlated features.

Finally, it is essential to remember the customization options available within Seaborn. While the default histogram on the diagonal is informative, analysts can easily replace it with alternative visualizations, such as KDE plots, or modify the off-diagonal plots to include regression lines, utilizing arguments like diag_kind and kind. This level of customization allows the analyst to precisely tailor the plot to address specific analytical questions and hypotheses.

Additional Resources

For users seeking to explore deeper into advanced visualization configurations, aesthetic customization, or detailed control over specific plot elements, the official Seaborn documentation provides extensive technical details on arguments such as vars, diag_kind, and kind.
