Learn to Create Pareto Charts in R for Data Analysis

A Pareto chart stands as a fundamental and highly effective statistical quality control tool used across various domains, including manufacturing, business process analysis, and data science. This specialized visualization method uniquely combines the simplicity of a bar chart—displaying the frequency of different categories—with a superimposed line graph that illustrates the respective cumulative frequencies.

The core utility of the Pareto chart lies in its ability to quickly prioritize issues or factors. By presenting data in a specific, ranked order, analysts can immediately identify the few factors that contribute most significantly to the majority of outcomes, allowing for strategic resource allocation where the impact will be maximized. This comprehensive tutorial serves as an expert guide, walking you through the precise, step-by-step methodology required to generate, customize, and interpret a professional-grade Pareto chart using the robust statistical programming environment, R.

Foundation: The Power of the Pareto Principle

The conceptual basis for the Pareto chart is the Pareto Principle, famously recognized as the 80/20 Rule. This powerful empirical observation asserts that, in nearly any system, roughly 80% of the consequences or effects stem from just 20% of the causes or inputs. For instance, 80% of production defects might originate from 20% of machine errors, or 80% of customer complaints might concern 20% of product features.

Applying this principle through visualization is what makes the Pareto chart so valuable. The construction mandates that categories must be sorted in descending order of frequency or magnitude. This structure instantly highlights the “vital few”—the small number of factors on the left side of the chart that account for the vast majority of the total count—and separates them from the “trivial many,” which contribute comparatively little to the overall result.

The descending bar structure coupled with the cumulative percentage line provides a dual perspective. The bars show the individual contribution, while the line reveals the compounding effect of the top categories. Identifying the point on the cumulative line that crosses the 80% threshold is often the primary goal, as it pinpoints the exact set of factors requiring immediate attention and improvement efforts.

Step 1: Data Preparation and Structuring in R

Before any successful statistical analysis or visualization can be performed in R, the raw data must be correctly organized into a suitable structure. For the purpose of this demonstration, we will use a hypothetical dataset derived from a survey of 350 participants who were asked to choose their most favored cereal brand from six distinct options, labeled A through F.

In the R environment, the standard and most efficient way to handle this type of tabular data—consisting of categorical labels and corresponding numerical frequencies—is through an R data frame. A data frame is essentially a list of vectors of equal length, designed to store datasets where each column can contain different data types (e.g., character strings for brand names and integers for counts). The structured approach ensures that the visualization function can correctly map the categories to the bars and the counts to the frequencies.

The R code below initializes this data frame, assigning the brand labels to the ‘favorite’ column and the vote totals to the ‘count’ column. Viewing the structure confirms that the data is ready for plotting.

# Create the data frame containing brand names and vote counts.
df <- data.frame(favorite=c('A', 'B', 'C', 'D', 'E', 'F'),
                 count=c(140, 97, 58, 32, 17, 6))

# View the resulting data structure.
df

  favorite count
1        A   140
2        B    97
3        C    58
4        D    32
5        E    17
6        F     6

Step 2: Generating the Base Pareto Chart using the qcc Package

To streamline the process of creating complex quality control charts, the R community provides specialized packages. For generating Pareto charts, the qcc package is the established standard. The qcc package provides essential functions, including the highly effective pareto.chart() function, designed specifically for this type of analysis. If this package has not been installed on your system, you would first use install.packages("qcc"), followed by the necessary step of loading the library into your current R session.

The pareto.chart() function requires, at minimum, a vector of numerical counts representing the frequency of each category. We pass the count column from our prepared data frame (df$count) directly into the function. It is important to note that the function automatically handles the crucial steps of sorting the data in descending order and calculating the cumulative percentages, thus adhering strictly to the Pareto Principle structure.

Executing the code below not only generates the graphical visualization but also outputs a comprehensive statistical summary table, which is invaluable for precise numerical analysis and interpretation.

library(qcc)

# Execute the pareto.chart function on the count data.
pareto.chart(df$count)

Pareto chart analysis for df$count
     Frequency  Cum.Freq. Percentage Cum.Percent.
  A 140.000000 140.000000  40.000000    40.000000
  B  97.000000 237.000000  27.714286    67.714286
  C  58.000000 295.000000  16.571429    84.285714
  D  32.000000 327.000000   9.142857    93.428571
  E  17.000000 344.000000   4.857143    98.285714
  F   6.000000 350.000000   1.714286   100.000000

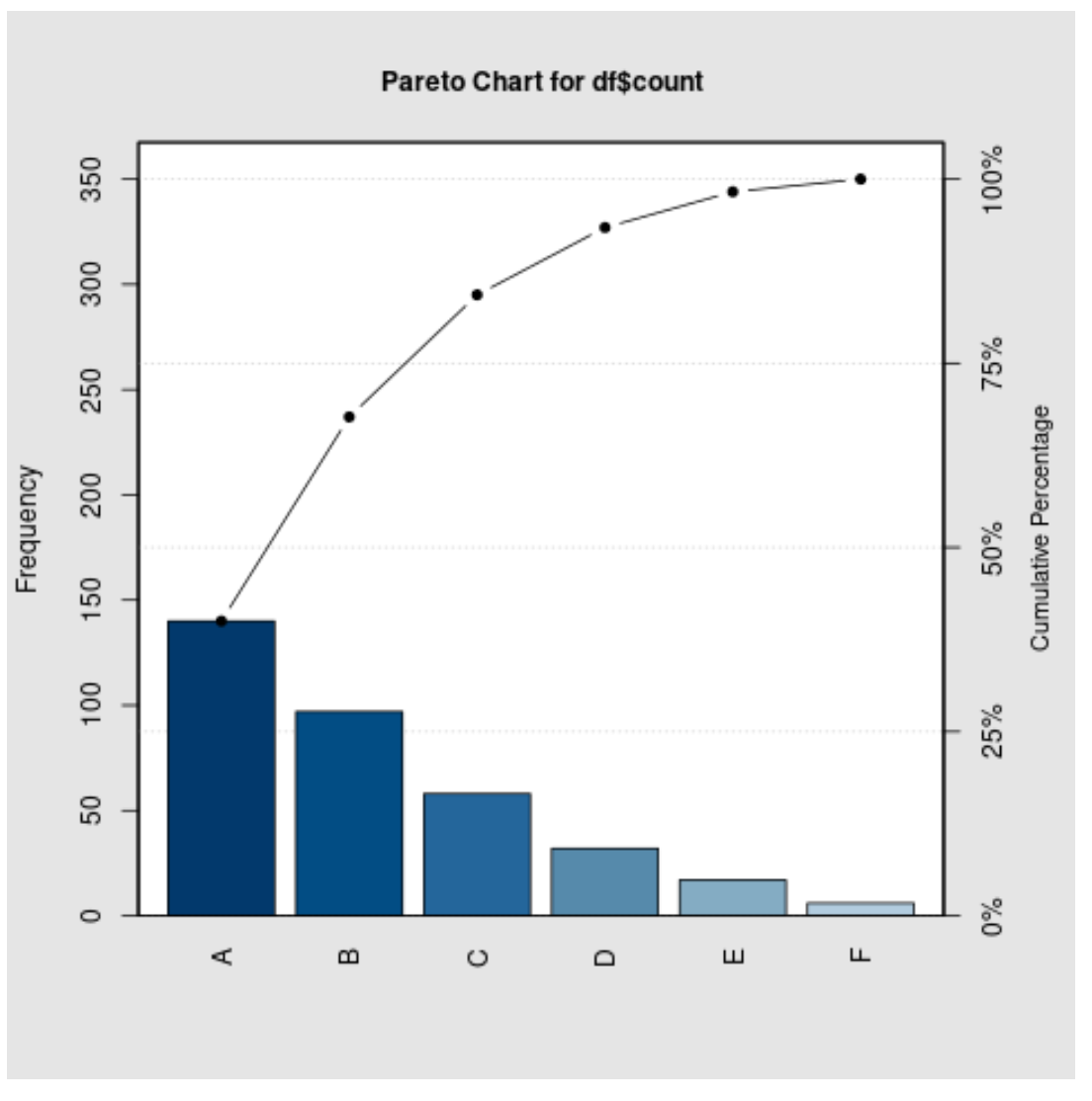

Upon execution, the resulting graph visually confirms the descending order of preference, clearly positioning Brand A as the most dominant factor in our survey results.

Step 3: Interpreting Cumulative Frequency and Identifying “The Vital Few”

While the bar heights provide an immediate visual understanding of individual frequencies, the true analytical power of the Pareto chart emerges from the statistical table generated alongside the graph, particularly the columns dedicated to cumulative statistics. These columns—Cumulative Frequency and Cumulative Percentage—allow us to perform the necessary prioritization inherent to the Pareto analysis.

The Cumulative Frequency column shows the running total of votes as categories are added in descending order. The Cumulative Percentage column translates this running total into a percentage of the grand total (350 votes in our example). This percentage is the critical metric for applying the 80/20 rule.

By examining the Cumulative Percentage, we can quickly pinpoint the minimum number of categories required to exceed the 80% mark, thereby identifying the “vital few” that warrant primary attention. In this dataset, we observe that Brands A, B, and C collectively account for 295 votes, which translates to 84.29% of all survey responses. This finding is highly actionable: if this data represented defects, we would know that fixing the causes related to Brands A, B, and C would eliminate more than four-fifths of all observed issues.

This detailed analysis illustrates how the cumulative data drives strategic decision-making:

• Brand A Frequency: 140 votes | Cumulative Frequency: 140 (40.0% of total)
• Brand B Frequency: 97 votes | Cumulative Frequency (A + B): 237 (67.7% of total)
• Brand C Frequency: 58 votes | Cumulative Frequency (A + B + C): 295 (84.3% of total)
• Brand D and subsequent brands contribute less than 16% combined, marking them as the “trivial many.”

Step 4: Customizing Visuals for Professional Presentation

While the standard output from the pareto.chart() function is statistically sound, customizing the visual aesthetics is often necessary to meet professional presentation standards or to align the chart with specific corporate branding guidelines. The function is highly flexible, accepting various arguments to control appearance, including the chart’s main title and the color scheme used for the frequency bars.

We can significantly enhance the chart’s clarity and appeal by utilizing the main argument to set a descriptive title and the col argument to define a specific color palette. In the example below, we employ R’s built-in heat.colors function, which dynamically generates a gradient based on the total number of categories (determined by the length of the count vector), resulting in a visually distinct and appealing chart.

This level of customization ensures that the final visualization is not only statistically accurate but also highly readable and effective in communicating key findings to stakeholders.

pareto.chart(df$count,
             main='Pareto Chart for Favorite Cereal Brands',
             col=heat.colors(length(df$count)))

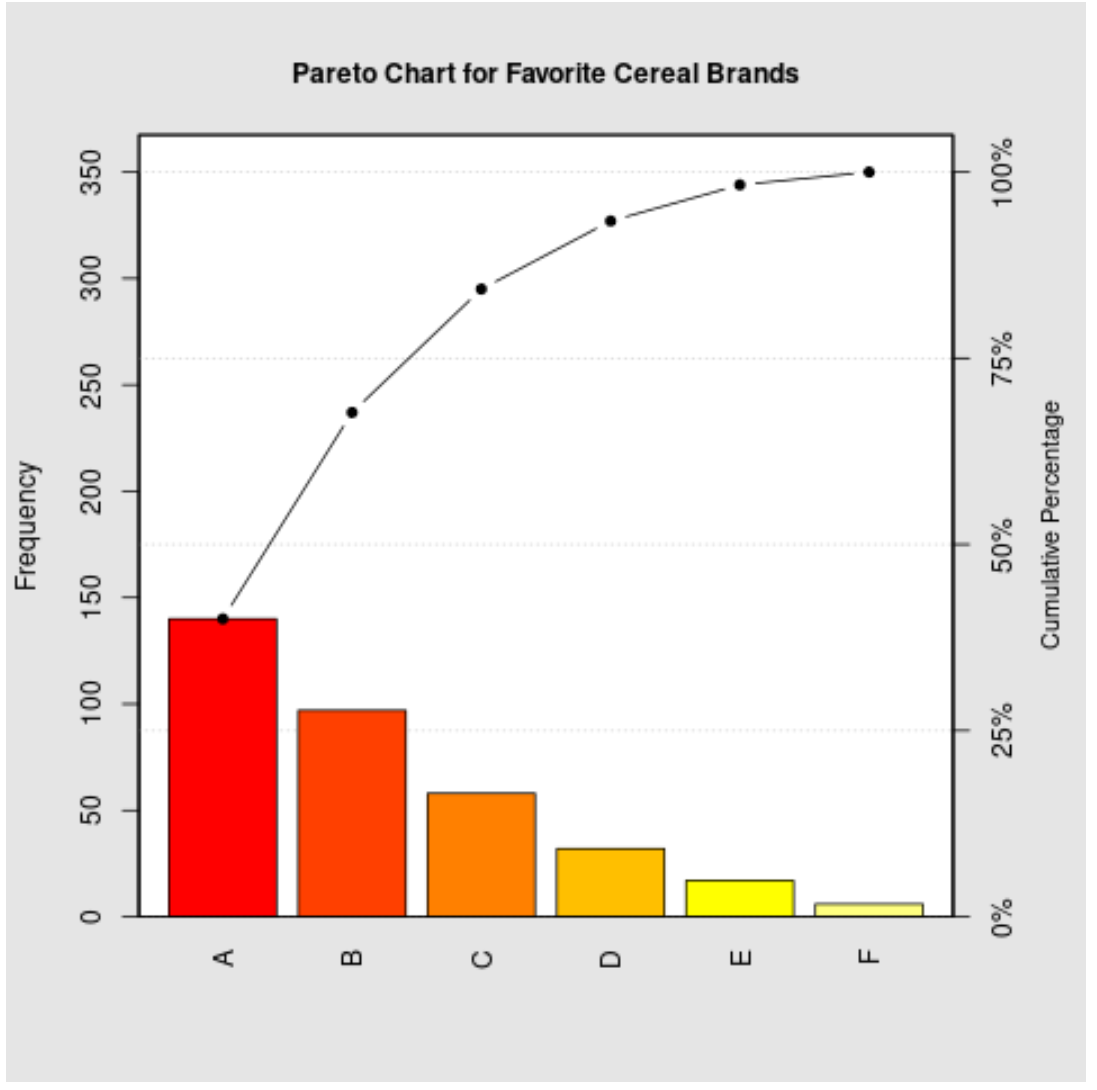

Executing this modified code yields the final, professionally styled Pareto chart, ready for inclusion in reports or presentations.

Conclusion and Resources for Advanced R Charting

The Pareto chart remains an indispensable tool for prioritization and root cause analysis across countless industries. By systematically leveraging the statistical capabilities provided by the qcc package within the R environment, analysts can rapidly convert raw frequency data into insightful visualizations that clearly articulate which factors drive the majority of observed results, adhering directly to the 80/20 principle.

Developing proficiency in this visualization technique is a foundational requirement for professionals engaged in statistical quality control, process improvement, and data science. For users seeking to explore more sophisticated charting options, dynamic color palettes, or interactive visualizations, the vast ecosystem of R graphics packages, such as ggplot2 or plotly, offers advanced customization far beyond the scope of basic static charts. Consulting the official documentation for these graphics packages is recommended for those ready to take their R visualization skills to the next level.
