Learning VBA for Excel: A Step-by-Step Guide to Creating Pie Charts

Automating Chart Visualization with VBA in Excel

Excel remains an indispensable tool for intensive data analysis and generating dynamic visualizations. While creating charts manually suits one-off tasks, achieving true efficiency requires a programmatic approach utilizing VBA (Visual Basic for Applications). This method offers superior control, particularly when managing repetitive visualization tasks, processing large datasets, or enforcing standardized reporting formats across diverse projects. This comprehensive guide will walk you through leveraging VBA to programmatically construct pie charts, a skill that significantly boosts workflow productivity and ensures consistent data presentation.

The capacity to generate sophisticated visualizations directly through code is essential for seamlessly integrating chart creation into broader automation frameworks or advanced macros. This integration is crucial for maintaining real-time dashboards, developing specialized analytical tools for specific user groups, and handling data updates without manual intervention. By completely eliminating the need for step-by-step manual charting, this technique not only provides substantial time savings but also drastically reduces the probability of human error, guaranteeing that visualizations are accurate, timely, and always reflect the most current underlying data.

Our structured exploration begins with a necessary theoretical foundation: a detailed breakdown of the core VBA syntax required to initiate chart construction. Following this, we transition to a practical, step-by-step implementation example. We will demonstrate how these concepts are applied in a real-world scenario, covering everything from defining the appropriate data source range to the successful display and basic customization of the finished chart object. This learning path is designed to provide a robust understanding of automated chart generation in the Excel environment.

Deconstructing the Essential VBA Syntax for Pie Chart Generation

Programmatically creating any chart within Excel using VBA relies on a precise and logical sequence of commands. This fundamental syntax establishes the backbone of our chart creation macro, encompassing crucial steps such as declaring necessary chart objects, assigning the relevant data source range, and explicitly defining the required chart type. Understanding this standardized structure is paramount for effective and reliable automation projects.

Sub CreatePieChart()

    Dim MyChart As ChartObject

    'get input range from user
    Set Rng = Application.InputBox(Prompt:="Select chart input range", Type:=8)

    'create pie chart
    Set MyChart = Worksheets("Sheet1").ChartObjects.Add(Left:=ActiveCell.Left, _
    Width:=400, Top:=ActiveCell.Top, Height:=300)

    MyChart.Chart.SetSourceData Source:=Rng
    MyChart.Chart.ChartType = xlPie

End Sub

The automated routine, named CreatePieChart, initiates several critical programming actions upon execution. Firstly, it uses the Dim statement to declare the variable MyChart as a ChartObject. This declaration is foundational because the ChartObject class provides the necessary programmatic interface to manipulate the chart container directly within the Excel worksheet environment, distinguishing it from the internal Chart object. Secondly, the script incorporates the Application.InputBox function (specifically utilizing Type:=8 for range selection) to generate an interactive dialogue, enabling the user to dynamically define the data range required for the visualization, thereby maximizing the macro’s flexibility across different datasets.

The subsequent block of code handles the physical instantiation and initial configuration of the chart visualization. The command Set MyChart = Worksheets("Sheet1").ChartObjects.Add(...) is responsible for introducing a new chart container onto Sheet1, precisely positioning and dimensioning it (using Width and Height properties) relative to the current active cell. Once the container exists, the data linkage is established: MyChart.Chart.SetSourceData Source:=Rng binds the previously selected user data to the chart object. Finally, MyChart.Chart.ChartType = xlPie explicitly sets the visual representation to the desired pie chart format, completing the essential programmatic setup.

Practical Implementation: Visualizing Data with the Pie Chart Macro

To fully grasp the practical benefits of this VBA automation technique, we will now apply the developed macro to a realistic data visualization scenario. Imagine we are analyzing performance metrics, specifically the cumulative points scored by a group of athletes. Our core objective is to rapidly generate a visual representation that clearly illustrates each player’s contribution as a percentage or proportion of the total team score.

A pie chart is the optimal visualization choice for this specific data type, as its circular structure inherently emphasizes and compares proportional relationships between parts and a whole. Each segment within the generated chart will accurately reflect an individual player’s score relative to the aggregate total, offering users an immediate and intuitive grasp of the distribution of performance. By utilizing VBA for this process, we effectively automate the creation of this specialized chart, highlighting the precision and high level of efficiency attainable through programmatic methods compared to manual insertion.

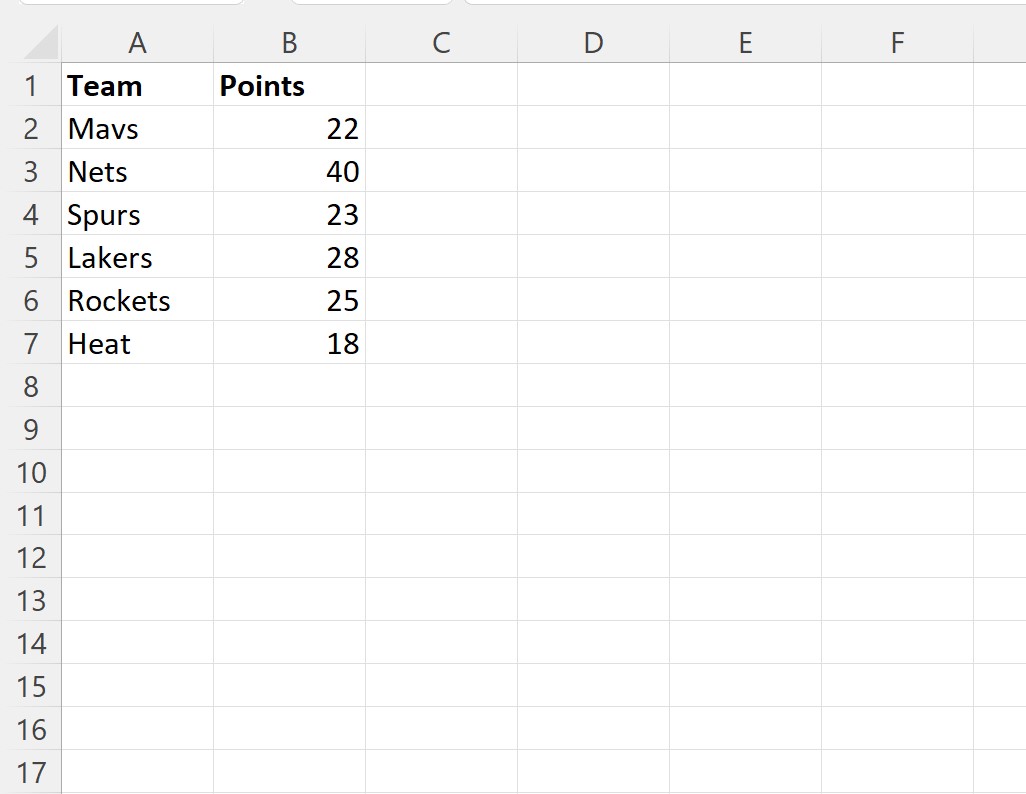

The sample dataset we will use for this demonstration is structured within the worksheet as illustrated below, consisting of descriptive player names listed in one column and their corresponding point totals in an adjacent column. This simple two-column structure is standard for pie chart input:

Executing the VBA Code and Handling Data Input

To successfully transform the structured dataset shown above into a professional pie chart, we must deploy the previously defined, versatile VBA macro. A significant design advantage of this particular macro is its reliance on user interaction to define the input range; this means the underlying code requires no internal modification or maintenance to adapt to varying data sizes, locations, or even different datasets entirely within the worksheet environment.

Sub CreatePieChart()

    Dim MyChart As ChartObject

    'get input range from user
    Set Rng = Application.InputBox(Prompt:="Select chart input range", Type:=8)

    'create pie chart
    Set MyChart = Worksheets("Sheet1").ChartObjects.Add(Left:=ActiveCell.Left, _
    Width:=400, Top:=ActiveCell.Top, Height:=300)

    MyChart.Chart.SetSourceData Source:=Rng
    MyChart.Chart.ChartType = xlPie

End Sub

The initial step in executing this routine is accessing the VBA development environment and running the macro. You must first ensure that the crucial Developer tab is visible on your Excel ribbon; if it is not present, it must be enabled via the Excel Options menu. Once the tab is visible, navigate to the Developer tab and locate the Macros button situated within the Code grouping.

Clicking the Macros button invokes a dedicated dialog box that systematically lists all available automation routines within the current workbook. From this comprehensive list, you must select the routine specifically titled CreatePieChart and initiate its execution by clicking the Run button. This action triggers the VBA sequence immediately, presenting the user with the crucial input dialogue box generated by the script.

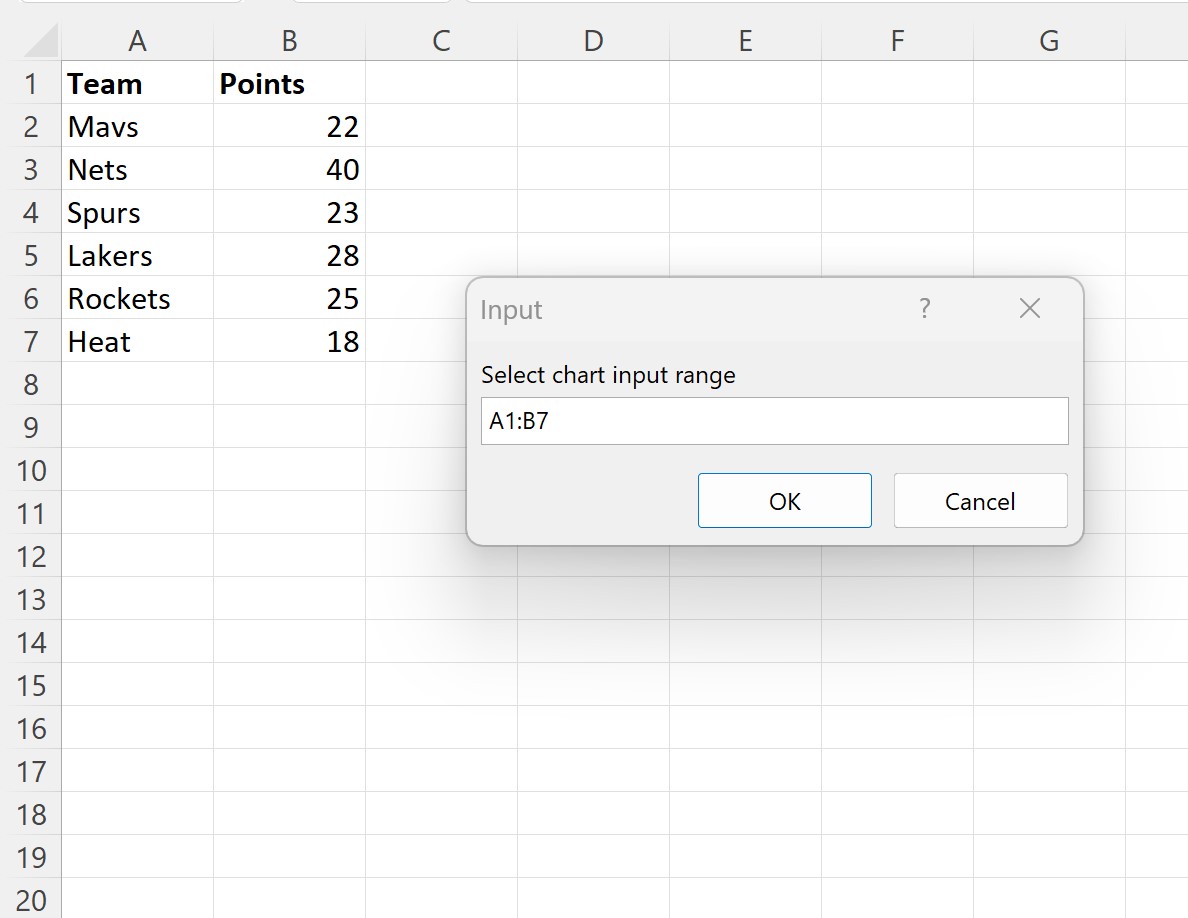

This interactive prompt, which is generated by the Application.InputBox method, requires the user to precisely specify the data range that the chart is intended to visualize. This interactive element is paramount for maintaining the macro’s generic utility and decoupling the code from fixed cell references.

For our specific example involving basketball scores, the required input range that encompasses both the player labels and their corresponding scores is A1:B7. Once this range address is accurately entered into the prompt, confirming the selection by pressing OK instructs the macro to proceed with the final chart generation and rendering steps.

Analyzing the Output and Customizing Chart Properties

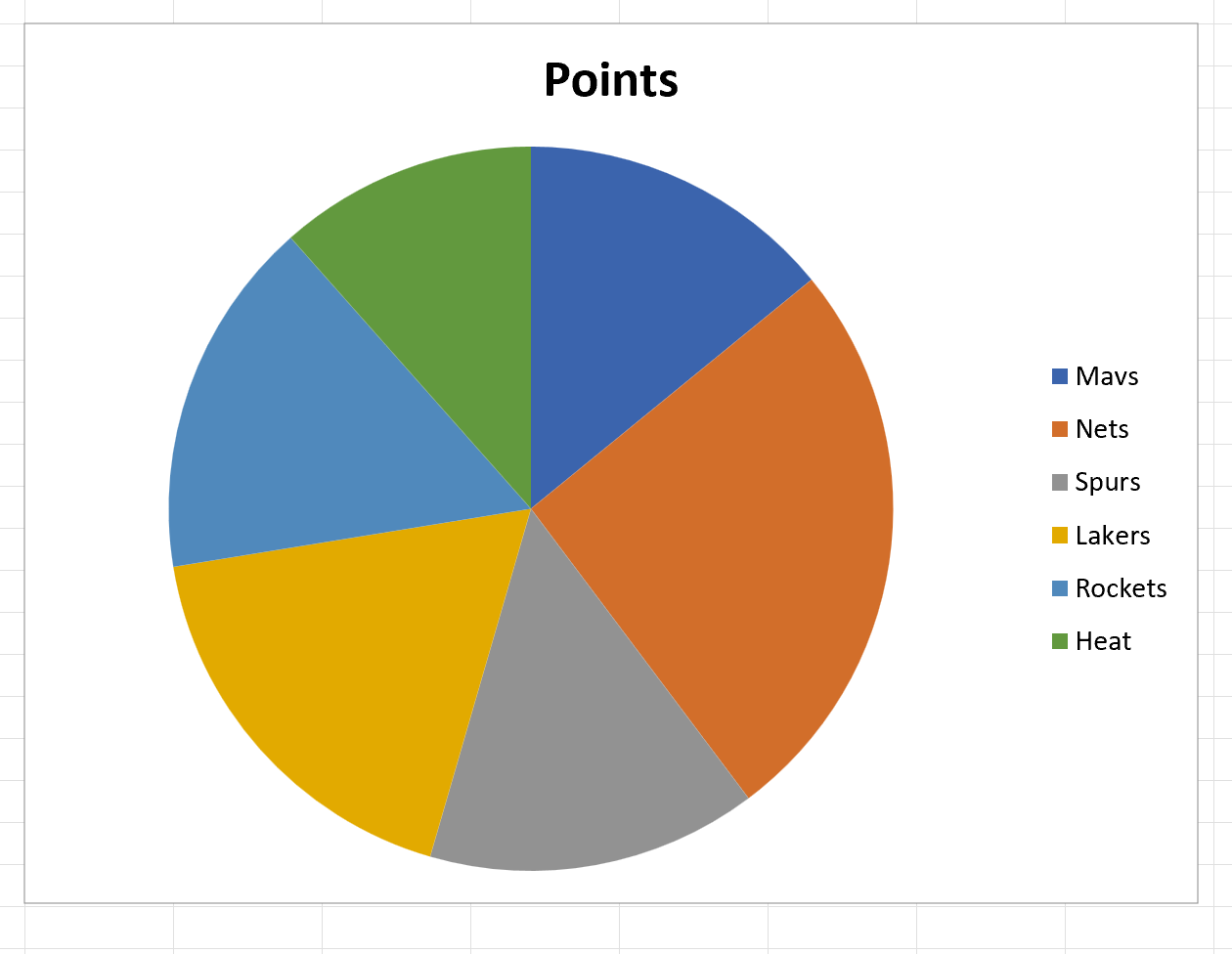

Immediately after the input range A1:B7 is confirmed, the macro executes the remaining processing commands and instantly inserts the resulting pie chart visualization directly into Sheet1. The exact physical placement of the chart within the worksheet is dynamically governed by the state of the worksheet at the moment the macro began its execution: its top-left corner is precisely positioned relative to the cell that was actively selected when the routine was initiated. For instance, if cell D2 was the active cell, the chart object will start its placement coordinates at that location.

This automated generation technique ensures that the chart rigorously adheres to all the spatial and typological parameters defined within the VBA code, consistently providing a reliable and standardized visualization output. The resulting circular chart visually segments the total points based on the input data, enabling an immediate and precise assessment of each player’s proportional contribution to the overall team score, fulfilling our initial visualization objective.

Note on Customization: The initial size and placement of the generated chart are easily and directly adjustable by modifying the numerical arguments passed within the ChartObjects.Add() method call in the VBA source code. For example, if a wider visualization is desired for dashboard integration, the dimension argument Width:=400 can simply be increased to Width:=500. Similarly, altering the Height value allows for precise vertical resizing of the object container. Advanced programmers are strongly encouraged to experiment with these values and explore additional VBA chart properties to fine-tune the chart’s aesthetic integration within specific report layouts.

Best Practices for Robust and Flexible Chart Automation

Although the provided macro is fully functional and effective for fundamental chart creation tasks, incorporating advanced programming features significantly enhances its overall reliability, utility, and resilience. A fundamental best practice for any serious automation project involves integrating robust error handling mechanisms. This is critically important for anticipating and gracefully managing common potential failures, such as instances where a user might input an invalid cell range (e.g., non-contiguous cells or text-only data) or attempt to execute the macro on a worksheet name that does not exist in the workbook. Implementing initial checks for data structure or validity before the chart creation process begins ensures that only appropriate numerical data is processed for visualization, preventing runtime errors.

For enhanced adaptability, professional developers should transition static elements into dynamically configurable variables. For example, instead of hardcoding a specific worksheet name (e.g., "Sheet1"), the VBA macro could be revised to accept the target sheet name as an explicit input variable or default reliably to the currently ActiveSheet. This crucial flexibility allows the automation routine to operate seamlessly across different workbooks or dynamically generated sheets without requiring constant manual code revisions or maintenance whenever the project structure changes.

Furthermore, to achieve a truly professional and fully automated output, advanced users should dedicate specific lines of code to comprehensive aesthetic customization. This includes programmatically adding detailed chart titles, defining meaningful data labels, accurately customizing the chart legend position, and applying specific corporate color palettes or themes directly within the VBA script. By diligently adhering to these established best practices, your chart creation macros become substantially more resilient, universally adaptable, and capable of generating polished, professional-grade reports automatically and consistently.

Expanding Your Automation Skills

Mastering the use of VBA within the Excel environment unlocks vast opportunities for high-level task automation, extending significantly beyond the scope of simple static chart generation. The core principles acquired in this guide—specifically object declaration, method application, and dynamic data source binding—are foundational concepts applicable to manipulating virtually every element within the Excel application structure, including complex data restructuring, large-scale report compilation, and sophisticated model interactions.

To continue building upon this expertise and explore more advanced functionalities, we highly recommend focusing on the following areas of study. Developing strong skills in these specialized areas will empower you to transform routine, time-consuming Excel tasks into streamlined, efficient, and fully automated processes, significantly boosting your overall productivity:

• Techniques required to programmatically generate diverse chart categories, such as professional bar charts, trend-tracking line graphs, and correlation-identifying scatter plots, utilizing VBA’s extensive and varied charting library.
• Advanced methods for dynamic range selection, including reliable techniques for locating the actual last row or column of data, which guarantees that macros adapt perfectly to ever-growing or constantly changing datasets without manual updates.
• Detailed methods for comprehensive chart formatting, including the automation of precise title placement, accurate axis scaling, controlled legend positioning, and applying custom data label formats for maximum clarity.
• Strategies for seamlessly embedding chart creation macros into larger, multi-step automation workflows, such as generating summarized analytical reports for distribution or scheduling automated data refreshes and updates.
