Learning to Create Pivot Tables Using the Power BI Matrix Visualization: A Step-by-Step Guide

1. Understanding Pivot Tables in Power BI

The process of analyzing large datasets often requires sophisticated tools to summarize and reshape information quickly. In the realm of business intelligence, the pivot table stands out as an indispensable instrument for data aggregation and cross-tabulation. A pivot table allows users to dynamically reorganize and summarize selected columns and rows of source data to obtain meaningful insights, often calculating sums, averages, counts, or other summary metrics. While spreadsheet programs like Excel have popularized this feature, Power BI, Microsoft’s leading analytical service, offers an equally powerful, yet distinct, method for achieving the same result.

Unlike traditional spreadsheet environments where a dedicated “Pivot Table” feature is selected, Power BI utilizes its extensive library of built-in visualizations to handle this type of structured aggregation. The goal of this guide is to demonstrate the most effective and straightforward technique for constructing a robust pivot table within the Power BI desktop environment, ensuring that complex data patterns become immediately accessible and understandable. This method leverages a specific, highly flexible visual component designed precisely for cross-tabular analysis.

2. The Core Tool: Leveraging the Matrix Visualization

The designated and most efficient tool for creating the functional equivalent of a pivot table in Power BI is the Matrix visualization. This visual is specifically engineered to handle two-dimensional data arrangements, allowing for hierarchical display across rows and columns, which is the hallmark of effective pivot table construction. Understanding the distinction between the Matrix and other visuals is key to successful data modeling in Power BI.

It is crucial to emphasize that the Matrix visualization should not be confused with the simple Table visualization, which often sits adjacent to it in the Visualizations pane. The Table visual presents data in a flat, detailed row-by-row format, similar to a standard spreadsheet, offering limited aggregation capabilities. Conversely, the Matrix visual excels at summarizing data, automatically calculating subtotals, and displaying complex, grouped results based on the fields mapped to its specific input wells (Rows, Columns, and Values). This structural flexibility is what allows it to function seamlessly as a dynamic pivot table.

The following image highlights the icon for the Matrix visual within the Power BI interface, confirming its appearance and location for easy identification during the report creation process. This is the starting point for our practical example.

Note: This is not to be confused with the Table visualization located directly next to it.

3. Setting Up the Data Environment (The Practical Example)

The following example demonstrates how to create a pivot table in Power BI in practice. To illustrate the implementation of the Matrix visualization, we will work with a hypothetical dataset. Suppose we have the following table in Power BI named my_data that contains information about points scored by basketball players on various teams. This structure is ideal for a pivot table, as we need to aggregate numerical data (Points) against two categorical variables (Team and Position).

The raw data table includes columns for Team (e.g., Team A, Team B), Position (e.g., Center, Guard, Forward), and Points (the score achieved by the player). The primary objective of the resulting pivot table will be to consolidate this information: determining the total points accumulated for every unique combination of team and player position. This transformation shifts the focus from individual player entries to high-level performance summaries.

Review the structure of the source data below. Notice the repetitive entries for teams and positions, which necessitates aggregation to gain a summary view. This raw format is typical of transactional data loaded into Power BI:

Suppose we would like to create a pivot table that summarizes the total points scored by team and position. Our immediate task is to transform this detailed list into a concise pivot structure that efficiently summarizes the total points scored by team (on the rows) and position (on the columns).

4. Step-by-Step Implementation of the Pivot Table

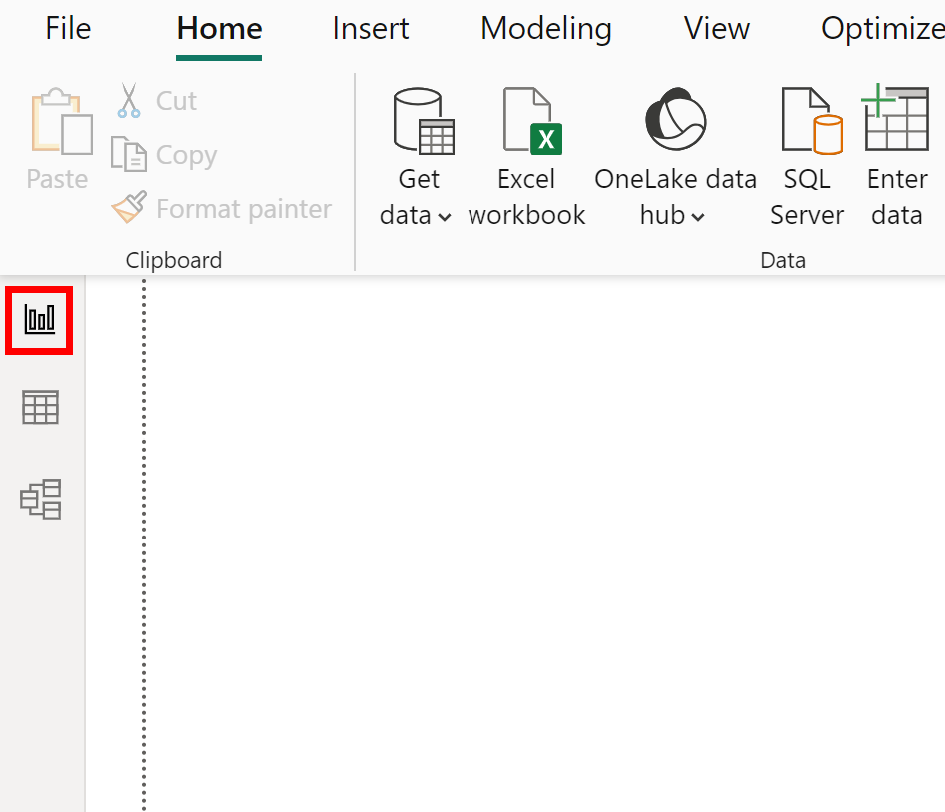

Creating the pivot table begins by navigating to the appropriate interface within the Power BI Desktop application. Start by ensuring you are in the Report View, which is the environment dedicated to building and designing visualizations. To do so, click the Report View icon on the left hand side:

Once in the Report View, select the Matrix icon located under the Visualizations tab. Clicking this icon places an empty Matrix container onto your report canvas. Then click the Matrix icon under the Visualizations tab. The next step involves mapping the data fields from the my_data table to the corresponding input wells of the Matrix visual, which define how the data will be sliced and aggregated.

The mapping process is simple drag-and-drop. You must drag the categorical fields (Team and Position) to define the axes, and the numerical field (Points) to define the aggregated values:

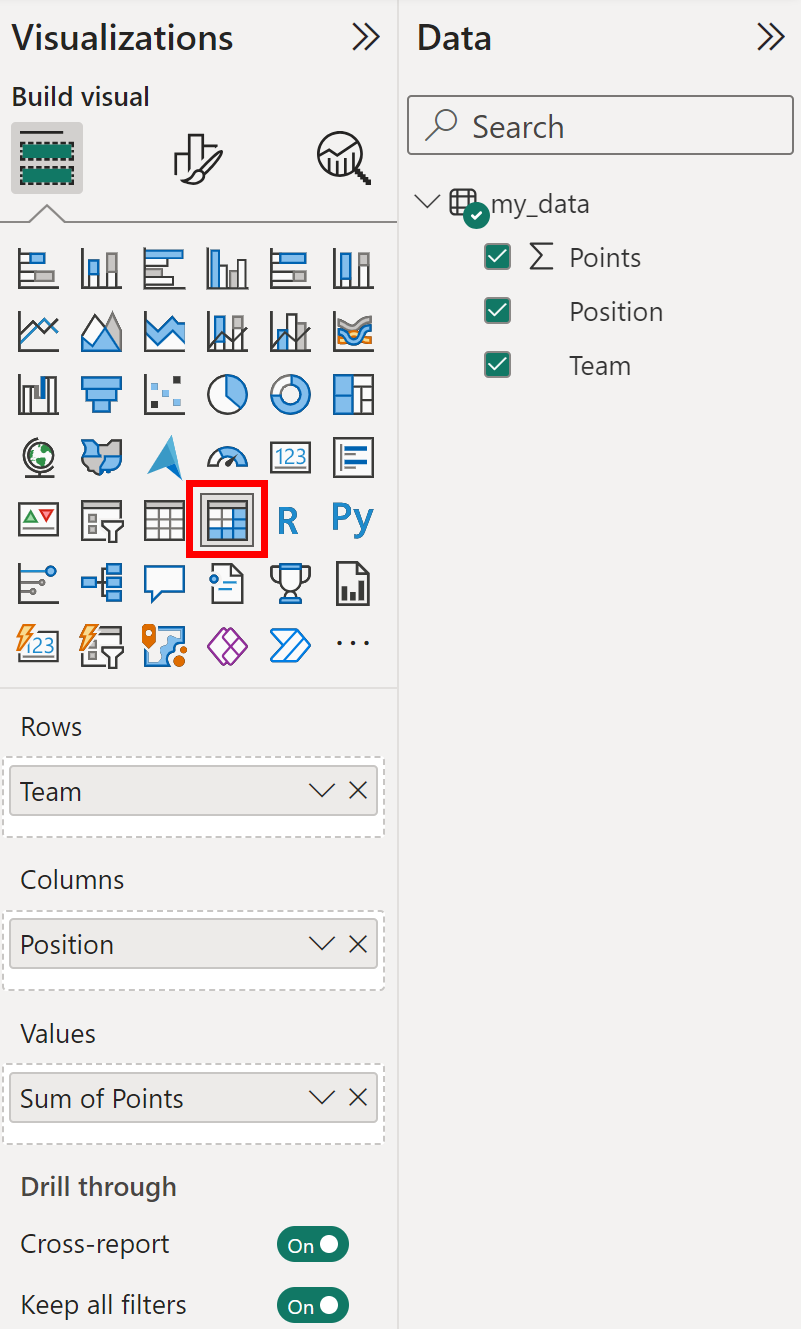

Then drag the Team field under the Rows label, the Position field under the Columns label and the Points field under the Values label:

5. Interpreting and Analyzing the Results

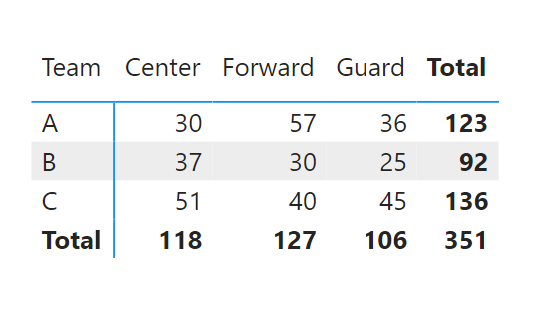

Upon correctly mapping the fields, the Matrix visualization immediately processes the underlying data, producing a clean, summarized pivot table view. This will produce the following pivot table, which dynamically aggregates the Points field using the default setting, which is typically the Sum function, based on the intersections defined by the rows (Teams) and columns (Positions).

The rows show the names of the teams, the columns show the names of the positions, and the values inside the table represent the sum of points for each combination of team and position. This structure provides instant insights into the performance breakdown across different segments of the dataset.

For example, we can see specific aggregated performance data:

• Centers on Team A scored a total of 30 points.
• Forwards on Team A scored a total of 57 points.
• Guards on Team A scored a total of 36 points.

And so on. Furthermore, the table automatically generates grand totals for both rows and columns, providing immediate context regarding overall team performance and overall position contribution across all teams.

6. Advanced Aggregation: Customizing Summary Metrics

If you’d like, you can also use a different aggregation method, known as a summary metric, in the pivot table. The true power of a pivot table lies in its ability to quickly switch between different analytical methods. Depending on the analytical requirement, summing the points may not be as informative as calculating the average, count, minimum, or maximum value.

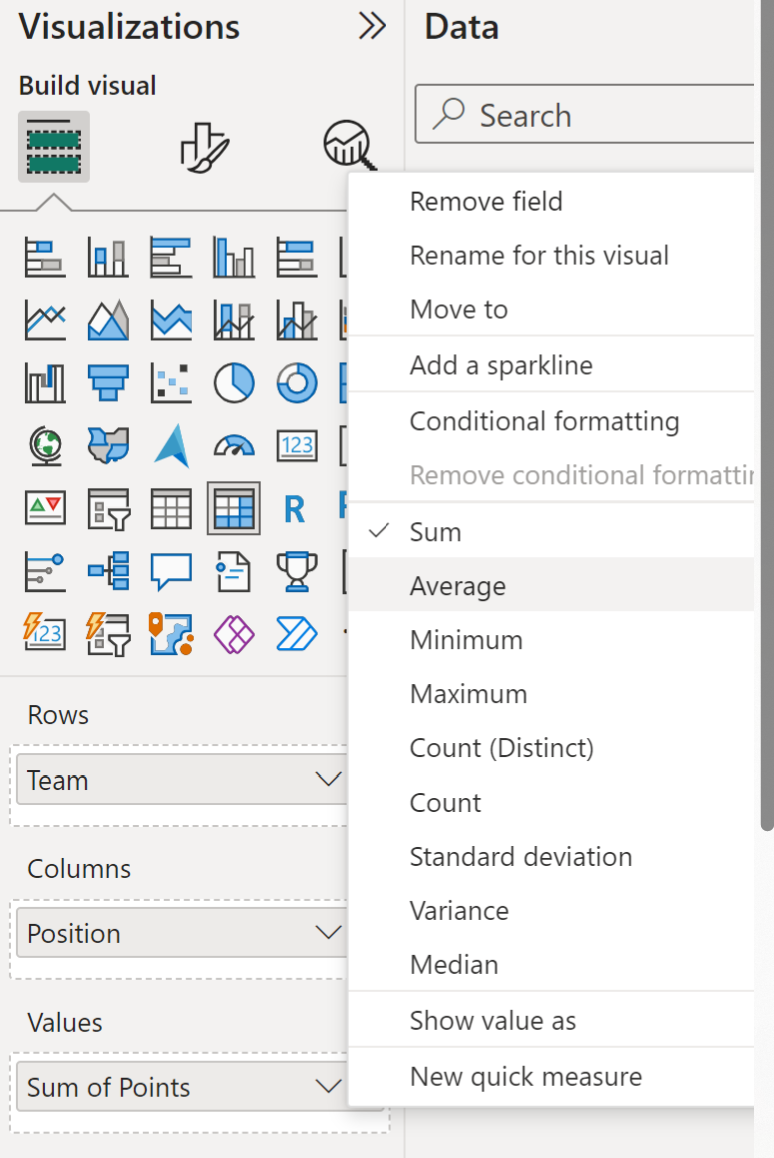

For example, you could display the average value instead of the sum of values by clicking the dropdown arrow next to Sum of Points, then clicking Average. This modification is performed directly within the Visualizations pane, offering flexibility in data analysis:

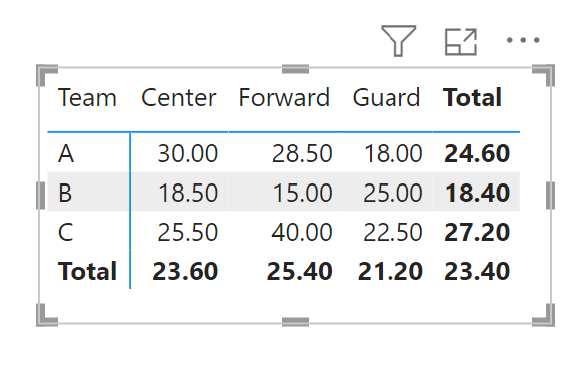

After selecting the new aggregation, the pivot table will instantly update to display the average points scored by players on each team and position, offering a normalized view of performance:

Feel free to use whichever summary metric you would like within your pivot table, adjusting the calculation based on your current reporting needs.

7. Conclusion and Further Resources

Mastering the Matrix visualization is synonymous with mastering pivot table functionality within Power BI. This powerful visual tool simplifies complex data summarization, making sophisticated cross-tabular analysis accessible to all users. By correctly mapping data fields to the Rows, Columns, and Values wells, you can generate dynamic, insightful reports that instantly aggregate metrics like sums and averages, providing clarity on performance drivers and underlying data structures.
