Learn How to Create a Population Pyramid in Excel: A Step-by-Step Guide

Introduction to Population Pyramids

A population pyramid is a highly specialized type of graphical representation used extensively in demography and statistical analysis. It serves as a fundamental tool for visualizing the age and gender distribution of a specific population, whether it represents a country, a region, or a smaller community. Unlike standard bar graphs, the pyramid structure offers immediate insight into the demographic composition, clearly reflecting historical patterns related to birth rates, mortality patterns, and migration trends over extended periods. Analyzing the shape of this pyramid—which can appear expansive (rapid growth), constrictive (declining growth), or stationary (stable)—is crucial for demographers and policymakers who need to make informed projections about future societal needs, such as resource allocation for healthcare, education infrastructure, and pension funding.

This comprehensive guide is designed to walk you through the precise steps necessary to create a professional and accurate population pyramid using Microsoft Excel. While Excel is primarily a spreadsheet application, its robust charting capabilities, when correctly leveraged, allow for the creation of complex and customized visualizations that meet rigorous reporting standards. We will systematically transform raw demographic statistics into a compelling visual narrative that adheres to established demographic presentation formats.

By following the detailed instructions provided, you will learn how to manipulate Excel’s features, specifically the stacked bar chart option, to construct the characteristic bilateral structure. This final chart will display the male population percentages extending to the left and the female population percentages extending to the right, centered around the common vertical axis of age brackets. The final result will be a polished demographic tool, mirroring the standard visualization shown below:

Preparing the Data for Visualization (Step 1)

The first essential stage in generating a population pyramid is the meticulous organization of the raw demographic data. The structure of your data input dictates the success of the subsequent chart creation. You must create three initial columns: one for the Age Bracket (which will form the central vertical axis of the pyramid), and separate columns dedicated to the raw population counts for Males and Females within those corresponding age groups.

It is standard practice to sort this data logically, starting with the youngest age cohorts at the top of the dataset and progressing sequentially to the oldest groups at the bottom. This ensures that the pyramid builds naturally from its base upwards. Ensure that the data range is clean, with consistent labeling and no merged cells, which can interfere with Excel’s charting engine. For this example, we begin by inputting the population counts based on predetermined age brackets:

This raw data table represents the foundational information required. Ensure you calculate the Total Population count by summing all male and female counts across all age brackets. This grand total will be essential for the next step: converting counts into proportional percentages.

Calculating Proportional Data (Step 2)

A population pyramid graphically represents proportions of the total population, not just raw counts. Therefore, converting the counts into percentages is a mandatory step. This allows for standardized visual comparisons across different cohorts and enables researchers to analyze the structural weight of each age group within the total population. Furthermore, to achieve the correct visual mirroring effect in Excel, the percentage values representing the male population must be plotted using negative numbers. This mathematical manipulation is crucial as it forces the male bars to extend horizontally to the left from the central axis when the chart is generated.

To calculate the necessary percentages, you must create two new columns: Male Percentage and Female Percentage. For the Male Percentage, the formula involves dividing the male count for a specific age bracket by the total population count (using an absolute reference, e.g., $A$15) and then multiplying the result by -1. For the Female Percentage, perform the same division but keep the result positive. The use of absolute references (using the dollar sign, $) for the total population cell ensures that the reference remains fixed when the formula is copied down the entire column.

The resulting data structure, incorporating the calculated percentages (with negative values for males), is now ready for charting. This prepared format ensures that the data will plot correctly across the central axis:

Creating the Initial Stacked Bar Chart (Step 3)

With the data correctly formatted with opposing positive and negative percentages, we can now initiate the chart creation process. The foundation of the population pyramid in Excel is the 2-D Stacked Bar Chart. This specific chart type is chosen because it inherently allows two distinct data series (male and female percentages) to be plotted symmetrically around a shared vertical axis (the age brackets).

To proceed, select the range containing only the calculated percentage data and the corresponding age bracket labels. In our example dataset, this selection would include the Age Bracket column, the Male Percentage column (negative values), and the Female Percentage column (positive values). Crucially, exclude the raw count columns from this selection.

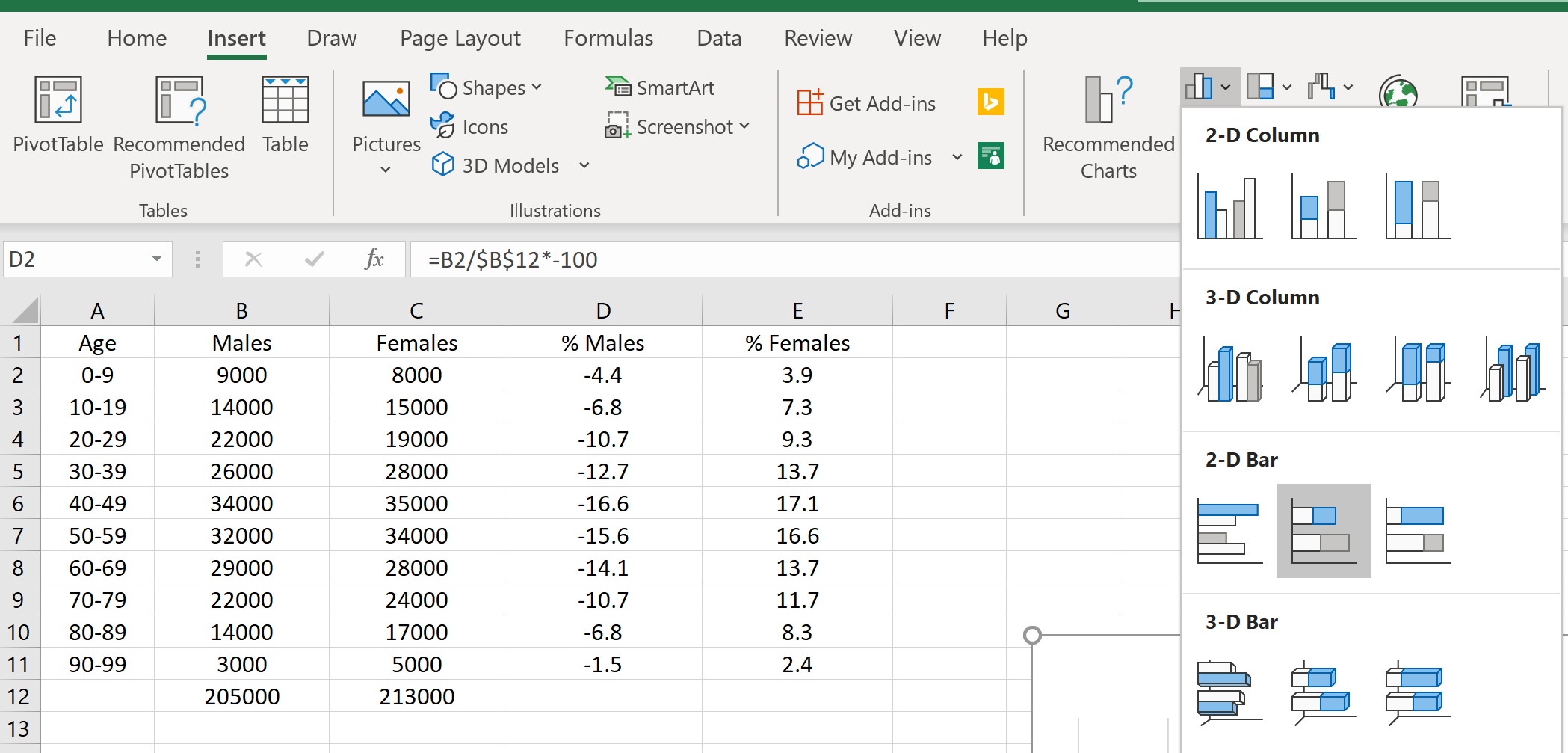

Navigate to the Insert tab on the Excel ribbon. Within the Charts group, locate the bar chart category and select the option labeled 2-D stacked bar chart. This action instructs Excel to generate the preliminary visualization based on the symmetrical percentage data provided.

Upon insertion, Excel will display a chart where the male bars extend to the left and the female bars extend to the right. While the basic structure is present, the chart will not yet possess the professional appearance of a true population pyramid, often exhibiting excessive spacing between age groups and potentially misordered age labels.

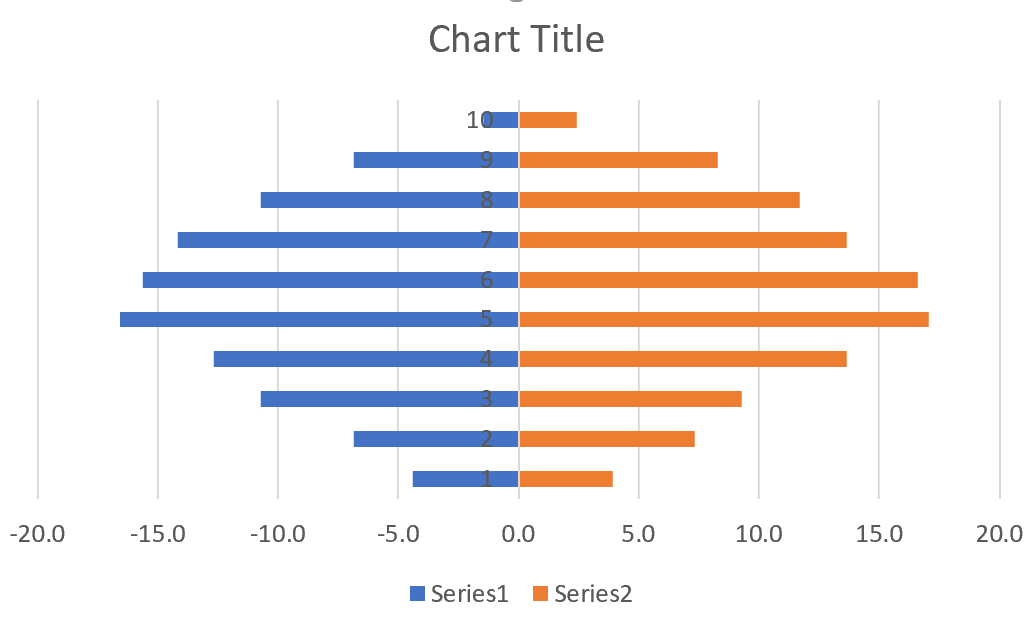

The initial chart generated will look approximately like this:

Refinement I: Achieving the Contiguous Bar Structure

The most visually defining characteristic of a population pyramid is that its bars are stacked contiguously, representing the continuous nature of age cohorts. The standard Excel stacked bar chart includes a significant space between bars, known as the Gap Width, which must be eliminated. Removing this gap is the critical modification that transforms the visualization from a simple chart into a solid, pyramidal structure.

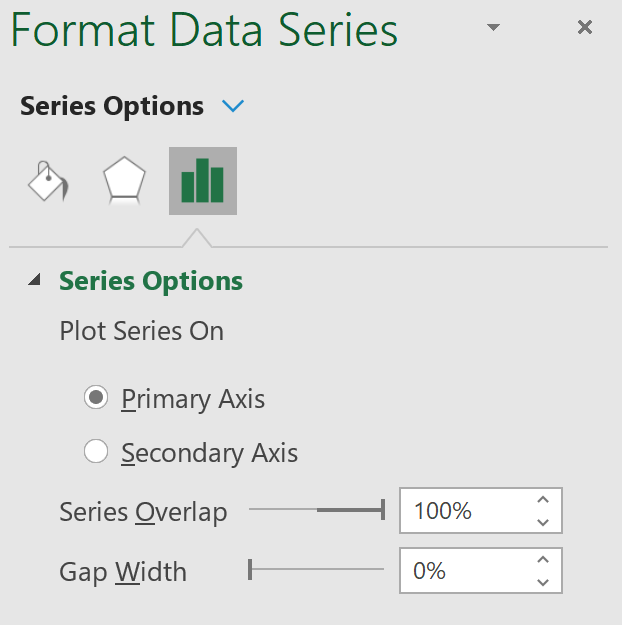

To remove the gap width:

• Right click any bar on the chart (it does not matter if you select the male or female series). From the contextual menu that appears, select Format Data Series…
• In the formatting panel, look for the Series Options. Change the setting for Gap Width to 0%. This setting forces the bars to occupy the entire space allocated to the age category, ensuring no separation between the rows.

Although the bars are now contiguous, adding a distinct border to each age cohort is highly recommended to improve readability and clearly demarcate the boundaries between age groups. This step significantly enhances the professionalism of the visualization.

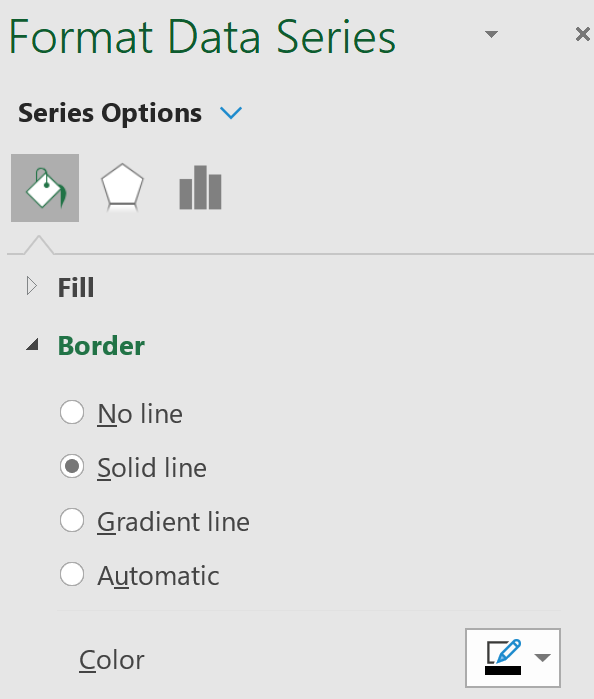

To add a border to each bar:

• While still in the Format Data Series panel, click the paint bucket icon (Fill & Line options).
• Expand the Border section. Select the option for Solid line.
• Change the Color setting for the border to black (or a dark, contrasting color). You must repeat this exact process for the second data series (the other gender) to ensure uniformity across the entire pyramid structure.

Refinement II: Formatting Axes for Demographic Clarity

The final technical adjustments involve reformatting the axes to align with standard demographic presentation conventions. This includes ensuring the horizontal axis displays positive values and correctly centering the age axis.

Due to the necessary use of negative numbers for the male population data series, the horizontal (X) axis—which represents the percentage of the population—will automatically display negative values on the left side. While mathematically correct for plotting, population proportions are universally referenced using positive magnitudes. We must apply a custom number format to display all numbers as positive magnitudes without altering the underlying negative data used to plot the chart.

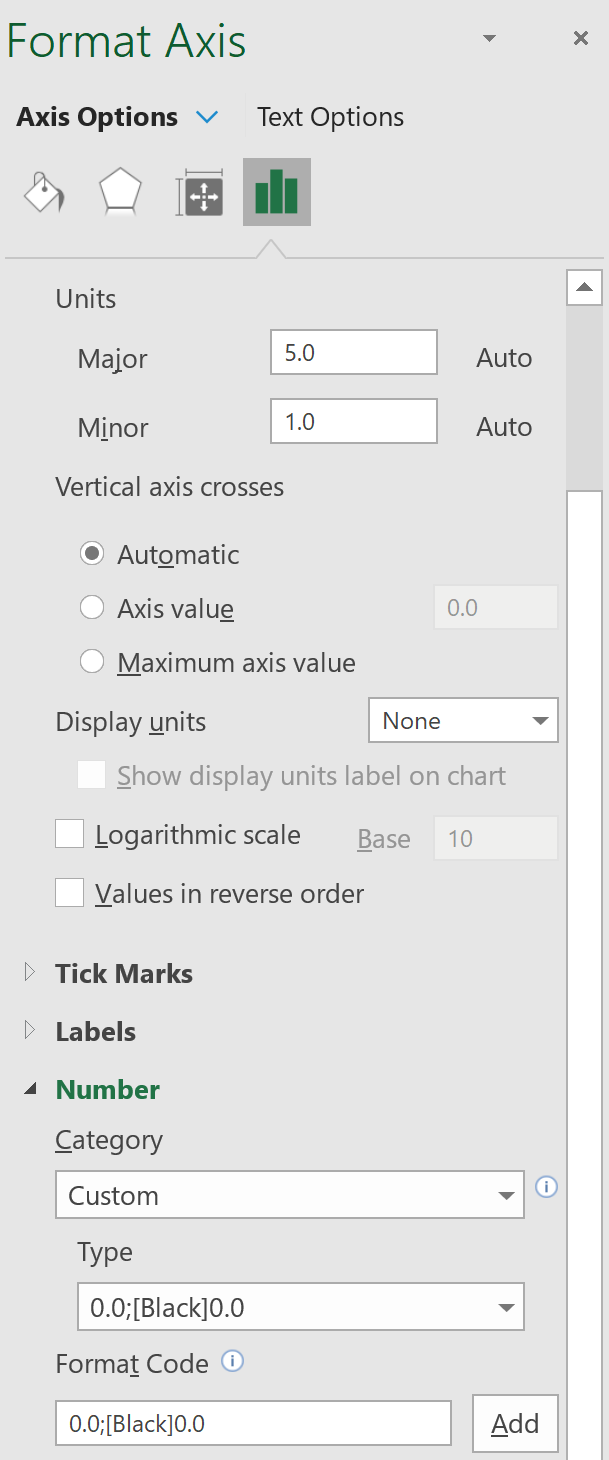

To adjust the X-axis labels:

• Right click directly on the x-axis labels (the percentage numbers at the bottom of the chart). Then select Format Axis…
• In the formatting panel, navigate to the Number category.
• Under the Format Code input field, type the following custom code precisely: 0.0;[Black]0.0. This code instructs Excel to display positive numbers normally (0.0) and to display negative numbers (the second part of the code) as their absolute positive value, without the minus sign. After entering the code, click Add.

Next, the vertical (Y) axis, which lists the age brackets, must be centrally positioned to act as the clear divider between the male and female populations. By default, Excel usually places this axis on the chart’s left boundary.

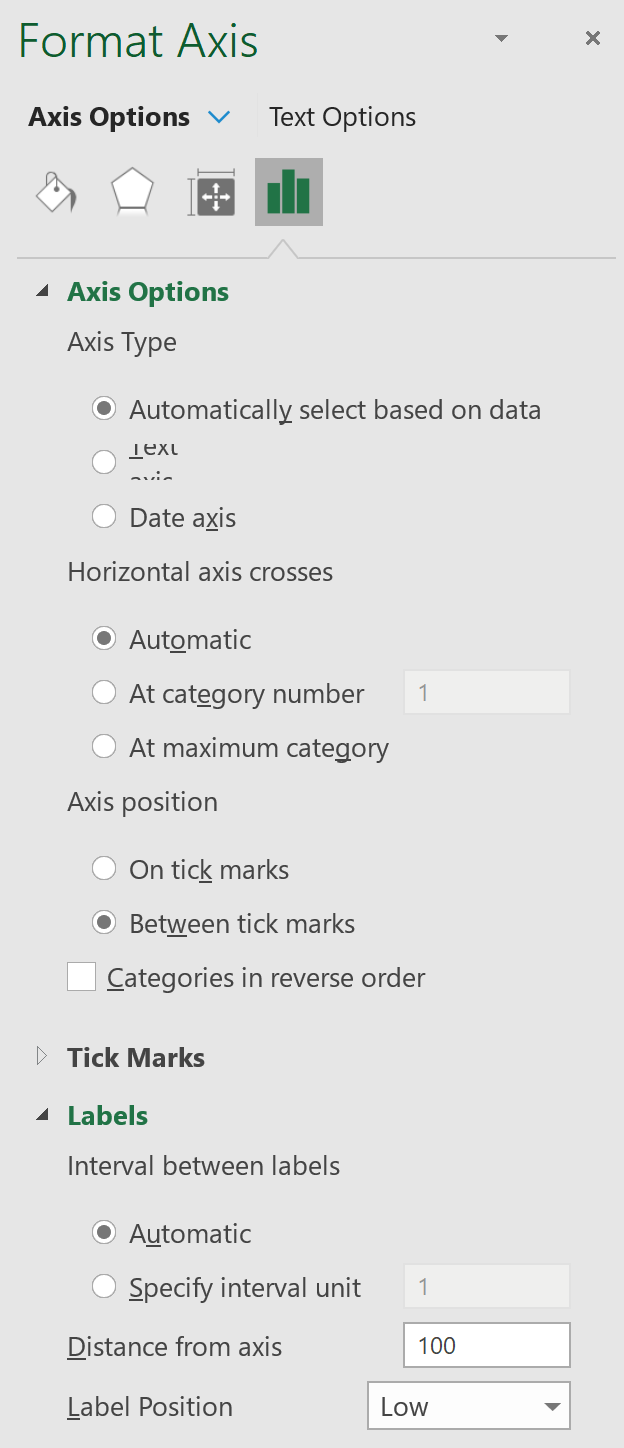

To center the Y-axis:

• Right click on the y-axis (the age labels). Then select Format Axis…
• In the formatting panel, locate the Labels section. Change the Label Position setting from its default to Low. In the context of a stacked bar chart where the x-axis is centered at zero, setting the position to ‘Low’ forces the axis labels to the central zero point, effectively positioning the age labels between the two data series.

Finalizing and Interpreting the Visualization

With the structural and technical formatting complete, the final steps focus on enhancing the aesthetics and ensuring the visualization is fully interpretable. This includes setting an informative title, adjusting colors based on demographic standards, and removing non-essential visual clutter.

Always assign a clear, descriptive title to your chart that accurately reflects the population and year represented (e.g., “Population Structure of State X, 2024”). Furthermore, consider adjusting the bar colors. While not strictly mandatory, demographic charting often utilizes cool colors like blue for the male population and warmer colors like red or orange for the female population, which aids in immediate recognition and interpretation. These color adjustments can be made via the Format Data Series options.

Finally, clean up any extraneous elements that might distract the viewer. Vertical grid lines, which are often automatically included in Excel charts, can be removed by simply clicking on them and pressing the Delete key. This step helps to focus attention primarily on the shape and structure of the pyramid itself.

The resulting chart is now a fully functional and demographically accurate data visualization. The width of the base of the pyramid provides insight into the birth rate; a wide base suggests high fertility. The slope of the sides toward the apex reflects the mortality rate across age groups. Any notable irregularities, such as indentations (suggesting population loss due to emigration or historical crises) or bulges (indicating large cohorts resulting from immigration or baby booms), offer critical insights into the population’s history and future trajectory.

The final, polished output of the population pyramid created in Excel should seamlessly blend structure and aesthetics, appearing as follows:

Mastering this technique allows analysts and researchers to utilize a widely accessible tool like Excel to generate powerful, standardized visualizations essential for demographic reporting and policy analysis.
