Learning to Visualize Population Demographics: A Python Tutorial on Creating Population Pyramids

Introduction to Population Pyramids

The population pyramid is a fundamental visual tool in the study of demography and a cornerstone of data visualization techniques. Far more than a simple bar chart, this specialized graph expertly illustrates the age and gender distribution of a specific population. It earns its name from the historical reality that most populations were characterized by high birth rates and high mortality rates, resulting in a shape with a wide base (representing the youngest cohorts) that quickly narrowed toward the apex (representing the oldest cohorts). Analyzing the structure of a population pyramid yields essential insights into demographic processes, including birth rate trends, mortality patterns, overall life expectancy, and potential future socioeconomic pressures. For instance, a bulging older population immediately signals future strain on public services like healthcare and retirement systems. Consequently, mastering the creation and interpretation of these visualizations is a critical skill for analysts, policymakers, and researchers dedicated to accurate demographic forecasting.

Today, many modern population pyramids deviate significantly from the classic triangular form, reflecting the impact of major societal shifts, such as the demographic transition model. Developed nations often display shapes that are more rectangular or even inverted, indicating prolonged periods of low fertility and increasing life spans, leading to aging populations. Conversely, many developing nations still maintain a broader base, signifying higher birth rates. To effectively generate these sophisticated analytical graphics, robust tools are required. Python, with its comprehensive ecosystem of scientific and data analysis libraries, offers the ideal platform for this task. Python facilitates seamless data manipulation and produces high-quality graphical output that is both precise and ready for professional presentation. This detailed tutorial guides you through utilizing Python’s capabilities to construct a clear and insightful population pyramid, starting with necessary data preparation steps and culminating in advanced aesthetic customization.

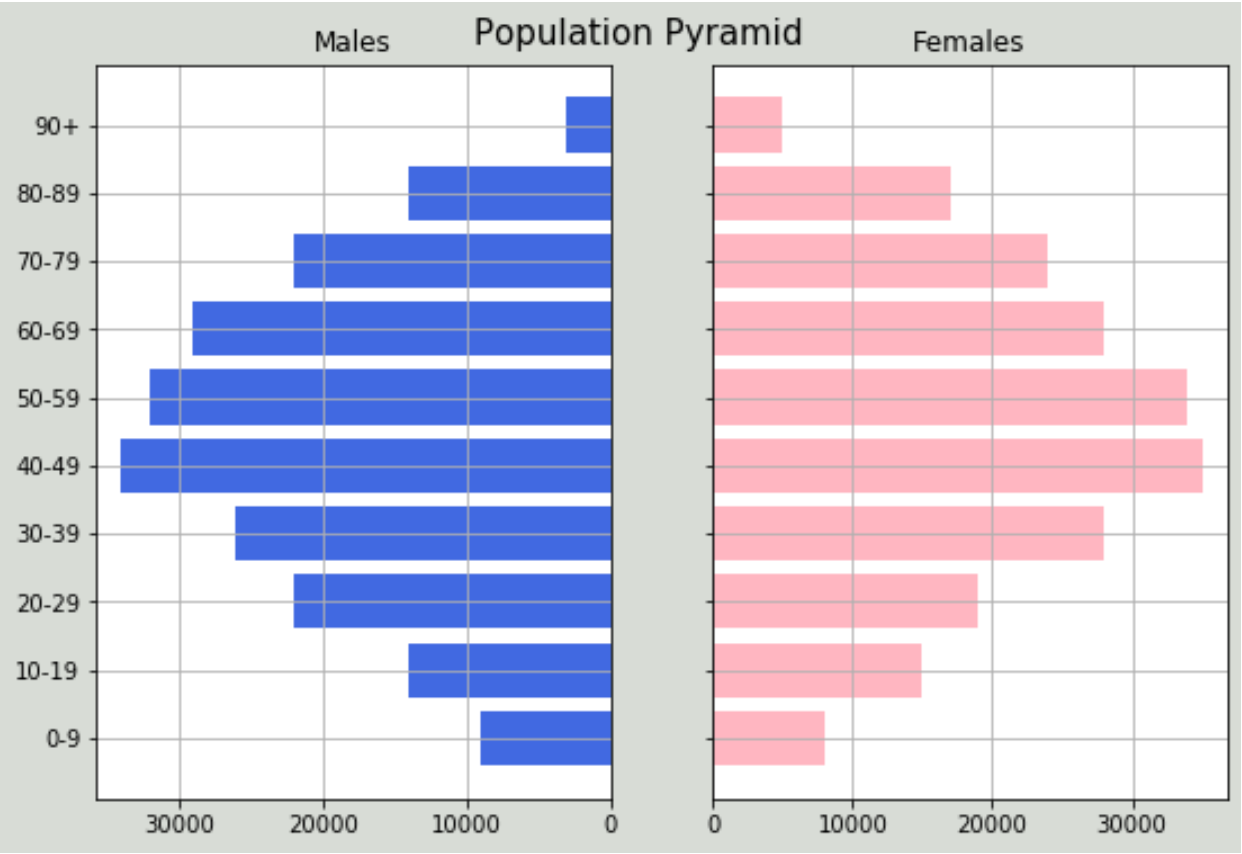

To demonstrate the objective of this tutorial, the image provided below showcases the final population pyramid we will construct. Notice the inherent symmetry, the clear distinction between the male and female populations, and the precise labeling of age groupings along the central axis. This visualization effectively encapsulates the age-gender structure, providing immediate clarity on the population’s composition and inherent growth momentum. Achieving this level of detail requires careful handling of plotting parameters, which we will detail in the following sections.

Setting Up the Environment and Preparing Data

Successfully executing any complex data visualization project in Python depends heavily on establishing the correct environment and importing the necessary foundational libraries. Our visualization relies on three essential components: NumPy for efficient numerical operations and array handling; Pandas for managing data structures, specifically DataFrames; and Matplotlib, which serves as the primary engine for generating static, interactive, and animated plots. Ensuring these libraries are installed and correctly imported at the beginning of your script is paramount, as they provide the core functionalities required for structuring the raw data and then mapping it graphically. Any failure in this initial preparation phase will prevent the data from being properly formatted for visualization.

For the purpose of this practical demonstration, we assume the availability of a standard demographic dataset. This dataset must contain population counts stratified by clearly defined age categories and separated by gender (Male and Female). This specific tabular structure is mandatory because the population pyramid fundamentally requires two horizontal bar charts—one for males and one for females—to be plotted in opposing directions against a shared central vertical axis representing the age groups. The raw data provided below serves as our exemplary input. We must load this data into a Pandas DataFrame, which offers a highly efficient and structured way to handle heterogeneous data, simplifying the indexing and referencing of columns (population counts) and rows (age cohorts) later when we define the visualization parameters.

The following code snippet demonstrates the required library imports and the subsequent creation of our sample DataFrame structure. Observe the critical organization: an ‘Age’ column listing categorical ranges, alongside distinct columns for ‘Male’ and ‘Female’ population counts within those ranges. This precise tabular format is the standard input requirement for generating the dual horizontal bar charts that form the population pyramid. Once this code is executed, the DataFrame is properly structured and ready to proceed to the visualization stage, where we will define the plotting logic based on these population counts.

# Import necessary libraries for data handling and visualization
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

# Create the DataFrame containing age groups and gender-specific population counts
df = pd.DataFrame({'Age': ['0-9','10-19','20-29','30-39','40-49','50-59','60-69','70-79','80-89','90+'],
                    'Male': [9000, 14000, 22000, 26000, 34000, 32000, 29000, 22000, 14000, 3000],
                    'Female': [8000, 15000, 19000, 28000, 35000, 34000, 28000, 24000, 17000, 5000]})
# Display the resulting DataFrame structure
df

    Age  Male Female
0   0-9  9000   8000
1 10-19 14000  15000
2 20-29 22000  19000
3 30-39 26000  28000
4 40-49 34000  35000
5 50-59 32000  34000
6 60-69 29000  28000
7 70-79 22000  24000
8 80-89 14000  17000
9   90+  3000   5000

Constructing the Population Pyramid Visualization

The technique for generating a population pyramid using Matplotlib hinges on plotting two horizontal bar charts that share a synchronized vertical axis, with one chart spatially inverted to create the characteristic mirror effect. Before initiating the plotting commands, we must establish the spatial relationship between our data series. This involves defining the data for the X-axis (population counts for both genders) and the common Y-axis (the categorical age groups). We calculate the length of the DataFrame to accurately define the extent of the Y-axis indices. The crucial `plt.subplots()` function is then utilized, allowing us to generate a figure object alongside a set of subplots arranged in a 1×2 configuration. This configuration ensures that both plots share the exact same Y-axis, which is essential for aligning the age cohorts perfectly across the central division of the pyramid.

Within the plotting script, specific configurations are necessary to transform these standard horizontal bars into the easily recognizable pyramid shape. We begin by setting an appropriate background color for the entire figure using `fig.patch.set_facecolor()`, which improves overall visual presentation. A centralized, descriptive title is added using `plt.figtext()`. The core visualization process involves plotting the male population data onto the left subplot (`axes[0]`) and the female population data onto the right subplot (`axes[1]`). Critically, the male axis must be inverted using the command `axes[0].invert_xaxis()`. This forces the male population bars to extend horizontally leftward from the center line, achieving the symmetrical, opposing structure required for a population pyramid. Without this inversion, the result would merely be a side-by-side bar chart, failing to accurately represent the symmetrical structure of the population distribution.

The final steps involve refining the aesthetic details to maximize clarity and readability. We set the Y-ticks on the left axis (`axes[0]`) to correspond to the data index and accurately label them using the ‘Age’ column extracted from our Pandas DataFrame. To aid in visual estimation of population counts, gridlines are added to both axes. By assigning distinct titles—’Males’ and ‘Females’—to the respective subplots, we clearly differentiate the two halves of the visualization. This integrated application of Matplotlib’s features ensures that the resulting graph is a highly effective tool for demographic analysis, relying on precise code execution to deliver an accurate and professional output.

# Define x and y limits based on data indices and population counts
y = range(0, len(df))
x_male = df['Male']
x_female = df['Female']

# Define plot parameters: creating a figure with two subplots sharing the Y-axis
fig, axes = plt.subplots(ncols=2, sharey=True, figsize=(9, 6))

# Specify background color and plot title for visual enhancement
fig.patch.set_facecolor('xkcd:light grey')
plt.figtext(.5,.9,"Population Pyramid ", fontsize=15, ha='center')

# Define and plot the male and female bars
axes[0].barh(y, x_male, align='center', color='royalblue')
axes[0].set(title='Males')
axes[1].barh(y, x_female, align='center', color='lightpink')
axes[1].set(title='Females')

# Adjust grid parameters, set Y-axis labels, and invert the male axis
axes[1].grid()
axes[0].set(yticks=y, yticklabels=df['Age'])
axes[0].invert_xaxis()
axes[0].grid()

# Display the final plot
plt.show()

Interpreting the Results and Demographic Insights

A careful review of the generated population pyramid allows for immediate and meaningful conclusions regarding the demographic structure represented by the input dataset. The initial point of analysis is the symmetry between the male and female population distributions. In this specific visualization, the distributions are largely symmetrical across most age groups, which usually suggests an absence of significant recent gender-specific events, such as large-scale economic emigration predominantly involving one gender or historical conflicts. Minor observed differences, particularly the slight numerical advantage of females in the oldest age brackets (80-89 and 90+), are typical globally and often reflect higher female life expectancy, a consistent demographic trend.

More critical insights are derived from the overall shape of the pyramid. This visualization displays a structure that is broadest in the middle age ranges (40-49, 50-59) and narrows considerably toward both the youngest (0-9) and the oldest (90+) cohorts. The relatively narrow base strongly indicates a lower recent birth rate, suggesting that the population is either stabilizing or experiencing slow growth. Conversely, the prominent bulge in the middle section signifies a large cohort of working-age individuals. This group often represents a ‘baby boomer’ generation, benefiting from past periods of high fertility and prosperity. While this currently represents high economic productivity potential, it simultaneously signals significant future challenges related to population aging.

The most pressing long-term issue revealed by this visualization concerns the future dependency ratio dynamic. As the large middle-aged cohort inevitably moves into retirement (70+), the comparatively smaller younger population will be tasked with supporting them financially and socially. Policymakers and urban planners can use this precise visual data to proactively anticipate escalating demands on social security systems, healthcare infrastructures, and long-term care facilities. Simply by examining this single, well-structured plot created in Python, analysts gain a comprehensive, actionable understanding of the country’s current demographics and the probable trajectory of its population structure over the coming decades, underscoring the immense value of data visualization in quantitative analysis.

Customizing Visual Aesthetics for Presentation

While analytical accuracy is the primary objective of creating a population pyramid, its effectiveness in communication and professional presentation is profoundly influenced by its visual aesthetics. Matplotlib provides extensive customization capabilities, enabling users to fine-tune virtually every aspect of the plot, including color palettes, font styles, and background themes. Customization is especially vital when visualizations are intended for formal reports or corporate presentations, where color schemes must align with specific branding guidelines or accessibility requirements. Although Matplotlib’s default colors are functional, modifying them can dramatically enhance the clarity and visual impact of the data being conveyed. This flexibility to exert detailed control over graphical output is one of the core strengths of using Python for advanced visualization tasks, offering capabilities far exceeding those found in basic spreadsheet software.

For instance, the preceding example utilized ‘royalblue’ and ‘lightpink’ bars against a ‘light grey’ figure background. However, if a warmer background or higher-contrast bar colors are required for the target audience or medium, these parameters can be easily altered. Matplotlib supports various methods for specifying colors, including standard HTML color names, precise hexadecimal codes, or descriptive ‘xkcd’ color names, providing thousands of options. To showcase this powerful capability, we can modify the three key color components—the figure background color (`fig.patch.set_facecolor`), the male bar color, and the female bar color—to generate an entirely new visual experience without altering the fundamental data or the underlying structural logic of the pyramid plot.

The following code snippet demonstrates how to redefine the color scheme, switching the background to ‘beige’ and adopting ‘dodgerblue’ and ‘hotpink’ for the gender bars. This minor adjustment effectively illustrates how quickly an analyst can iterate through various design choices to determine the most effective and aesthetically appealing presentation style. When selecting new color schemes, it is always important to consider factors such as accessibility for color blindness and maintaining a professional tone. Experimenting with different color palettes is highly recommended to ensure the final output maximizes both informational content and visual accessibility, delivering the demographic message clearly and compellingly.

# Update the color scheme for a different visual effect
fig.patch.set_facecolor('xkcd:beige')

axes[0].barh(y, x_male, align='center', color='dodgerblue')

axes[1].barh(y, x_female, align='center', color='hotpink')

plt.show()

Ultimately, the freedom afforded by Matplotlib to modify the color scheme based on specific preferences or strict reporting requirements is a distinct advantage. Whether the choice leans toward subtle, professional tones or vibrant, high-contrast colors, the integrity of the underlying data remains secure, enabling the critical demographic message to be delivered powerfully through compelling visual design. Users are encouraged to explore the vast array of color options detailed in the Matplotlib documentation to fully personalize their population pyramids and ensure their data analysis stands out.
