Understanding and Interpreting Q-Q Plots in SAS for Distribution Analysis: A Comprehensive Guide

Understanding Q-Q Plots: A Fundamental Tool for Distribution Assessment

A Q-Q plot, short for “quantile-quantile plot,” is a foundational graphical methodology in statistics used to rigorously determine whether a given empirical dataset plausibly originates from a designated theoretical probability distribution. The underlying principle is deceptively simple yet profoundly powerful: the observed quantiles derived directly from the analyzed data are plotted against the theoretical quantiles expected if the data perfectly followed the chosen model. This visual technique provides data analysts with a rapid, non-subjective means to diagnose conformance or significant deviation from expected distributional assumptions, making it an indispensable step in data exploration and validation.

While Q-Q plots are versatile enough to compare any two distributions—whether two distinct empirical datasets or a single dataset against a theoretical model—their most frequent and arguably most critical application is assessing whether a set of observations conforms to the normal distribution. The necessity of confirming normality cannot be overstated, as the statistical power and validity of numerous parametric statistical tests, including t-tests, ANOVA, and linear regression models, hinge upon the assumption that the underlying data, or often the residuals (errors), are normally distributed. Failure to verify this foundational assumption risks compromising the entire analysis, potentially leading to inaccurate inferences and misleading conclusions, thus demanding a careful and early diagnostic review.

The interpretation of a Q-Q plot is highly intuitive, offering immediate visual feedback on the quality of the distributional fit. When the empirical data aligns perfectly with the specified theoretical distribution, the plotted points will form a tight, coherent cluster precisely along a straight diagonal reference line. This straight line acts as the standard, signifying perfect concordance between the observed data quantiles and the expected theoretical quantiles. Conversely, any noticeable or significant departure of the data points from this linear trajectory constitutes strong visual evidence that the dataset does not adhere to the specified theoretical distribution. Furthermore, the specific pattern of deviation—such as an S-shape or a strong curve—can offer crucial diagnostic clues regarding the nature of the difference, frequently exposing characteristics like significant skewness, excessive kurtosis (heavy tails), or the presence of influential outliers that require further methodological consideration.

The Critical Role of Distributional Assessment in Statistical Modeling

Adherence to normality is more than a mere statistical checklist item; it is a foundational prerequisite for ensuring the reliability of a vast spectrum of advanced statistical methodologies. In complex applications like linear regression modeling, the assumption most often applies to the distribution of the model’s errors (residuals), guaranteeing that the estimated parameters are unbiased and possess maximum efficiency. For general hypothesis testing, the robustness of parametric tools relies directly on the normality of the samples or, more accurately, the sampling distribution of the chosen test statistic. When this crucial assumption is met, these powerful tests yield the most precise and trustworthy results. However, when normality is violated—a common scenario with real-world, naturally occurring data—analysts must strategically implement data transformations (such as logarithmic or square root) or, if transformations fail, pivot toward the adoption of robust, assumption-free non-parametric tests to safeguard the integrity of the research findings.

Beyond the strict boundaries of inferential statistics, establishing the distributional shape of data is paramount for effective descriptive analysis. Knowing that a dataset is approximately normal informs the appropriate selection of summary statistics; for instance, the mean and standard deviation are highly stable and informative when describing symmetric distributions, whereas the median and interquartile range are often superior choices for highly skewed or non-normal data. Moreover, visual diagnostic tools such as the Q-Q plot are fundamental to the crucial process of outlier detection, as extreme values typically manifest as noticeable breaks or strong, isolated deviations at the extreme ends (tails) of the plot. Therefore, the Q-Q plot provides a compelling visual confirmation that works synergistically with formal statistical measures, contributing to a comprehensive and robust pre-modeling assessment of the data’s characteristics.

While formal numerical tests for normality, such as the Shapiro-Wilk or Kolmogorov-Smirnov tests, provide a quantifiable p-value that summarizes the overall deviation from the theoretical curve, they often fail to offer any insight into the specific nature of the non-normality. This is precisely where the Q-Q plot excels: it delivers a tangible, visual representation that clearly illustrates the pattern of deviation. For example, a Q-Q plot can instantly reveal whether the data exhibits tails that are significantly heavier or lighter than those of a normal distribution, whether the data is severely skewed toward one side, or whether the overall shape is being distorted by a handful of isolated, influential outliers. This unique capacity to diagnose specific distributional flaws makes the Q-Q plot an irreplaceable tool for initial data exploration, crucial validation checks, and effective data preparation prior to sophisticated modeling efforts.

Generating Q-Q Plots in SAS: Utilizing PROC UNIVARIATE

SAS (Statistical Analysis System) is globally recognized as a premier software suite relied upon for sophisticated data management, business intelligence, and advanced statistical analytics. Within the expansive capabilities of the SAS environment, the creation of high-quality Q-Q plots is made highly efficient and straightforward, thanks primarily to the dedicated functionality embedded within the PROC UNIVARIATE statement, specifically utilizing its QQPLOT option. PROC UNIVARIATE is the designated procedure for conducting exhaustive univariate analysis, delivering a wealth of outputs ranging from detailed descriptive statistics and formal numerical tests for normality to various essential graphical visualizations, including histograms and the indispensable Q-Q plot required for visual diagnostics.

The most efficient and common methodology for generating a Q-Q plot in SAS involves coupling the PROC UNIVARIATE statement with the QQPLOT statement. The foundational syntax requires two core inputs: the name of the SAS dataset containing the observations and the specific numeric variable whose distribution is to be assessed. A crucial efficiency measure often employed is the inclusion of the NOPRINT option. This valuable option instructs SAS to suppress the generation of the usually extensive tables of summary statistics, moments, and other diagnostic text that PROC UNIVARIATE produces by default, thereby ensuring a clean output stream focused exclusively on the resulting Q-Q plot graphic, which is ideal for integration into reports or dashboards without extraneous information.

The basic structure and command syntax required for generating a standard Q-Q plot against the default normal distribution in SAS is presented below. This template serves as a robust starting point, requiring only the substitution of your actual dataset and variable names into the respective placeholders, demonstrating the concise power of the SAS programming language for statistical graphics generation:

proc univariate data=my_data noprint;
   qqplot my_variable;
run;

In this standard structure, the placeholder my_data must be precisely replaced with the name of your active SAS dataset, and my_variable must denote the specific numeric variable whose empirical distribution you intend to scrutinize visually. The inclusion of the NOPRINT option, while technically optional, is strongly recommended for users aiming for a focused and minimalist output, particularly when the graphical visualization is the sole objective of the procedure run, as it efficiently avoids unnecessary textual clutter in the log or output window and can optimize processing time.

Case Study 1: Validating the Normal Distribution Assumption

To effectively demonstrate the diagnostic capability of Q-Q plots, we first establish a critical baseline scenario by mathematically generating data that is engineered to adhere perfectly to a normal distribution. This controlled simulation serves as the ideal benchmark, clearly illustrating the expected appearance of a Q-Q plot when the assumption of normality is satisfied without question. For this specific exercise, we will simulate 1,000 distinct observations drawn from a normal distribution defined by a specified mean of 10 and a standard deviation of 2. This highly controlled environment allows for an unambiguous observation of the characteristics inherent in a Q-Q plot derived from truly normal data, providing an essential visual standard for comparison against complex, real-world datasets.

The following SAS code block details the precise steps required to execute this data simulation and subsequent plot generation. The process initiates with the DATA step, which is responsible for creating a new dataset named normal_data. Within a simple iterative DO loop structure, the powerful rannor function is utilized to generate random numbers, initially drawn from a standard normal distribution (mean 0, SD 1). These standard normal deviates are then mathematically transformed to match the desired population parameters (mean 10 and SD 2). Finally, the PROC UNIVARIATE statement, paired with the QQPLOT option, is called upon to visualize the distribution of the newly created variable x, providing the required graphical assessment focused strictly on the distributional shape.

/*generate 1000 values that follow normal distribution with mean 10 and sd 2 */
data normal_data;
    do i = 1 to 1000;
	x = 10 + 2*rannor(1);
        output;
    end;
run;

/*create q-q plot*/
proc univariate data=normal_data noprint;
   qqplot x;
run;

A careful inspection of the resulting Q-Q plot reveals that the overwhelming majority of the simulated data points are situated extremely close to the straight diagonal reference line. While minute fluctuations and slight deviations are almost always present, particularly towards the extreme quantiles (the “tails”) due to the inherent randomness and finiteness of sampling, these minimal variations do not invalidate the overall assumption of normality. The clear and strong linear trajectory observed provides robust visual confirmation that this simulated dataset is highly consistent with a normal distribution model. This visual assurance is a crucial preliminary step, confirming the data’s suitability for sophisticated parametric analyses that rely on the assumption of underlying normality, such as those performed using generalized linear models and multivariate techniques.

Case Study 2: Identifying Deviations Using Exponential Data

To fully appreciate the crucial interpretive power of Q-Q plots as a diagnostic tool, we must now examine a contrasting scenario featuring data that intentionally violates the normality assumption. For this counter-example, we will deliberately simulate 1,000 observations generated from an exponential distribution. The exponential distribution is a classic example of a distribution characterized by significant positive skewness (a long tail extending to the right) and a fundamental lack of symmetry, making it the perfect candidate to illustrate the distinct visual signature of non-linearity and non-normality on the Q-Q plot when compared against the normal curve standard.

The methodology, detailed in the SAS code below, closely mirrors the previous application. A new DATA step creates a dataset named exp_data. Inside its DO loop, the specialized ranexp function is utilized to generate random numbers strictly following the exponential distribution, requiring no further transformation for our purpose. Subsequently, the familiar PROC UNIVARIATE is executed in conjunction with the QQPLOT statement to produce the graphical assessment for the variable x, enabling us to visually quantify and precisely characterize the data’s departure from the expected normal trajectory and understand the specific nature of that deviation.

/*generate 1000 values that follow an exponential distribution*/
data exp_data;
    do i = 1 to 1000;
	x = ranexp(1);
        output;
    end;
run;

/*create q-q plot*/
proc univariate data=exp_data noprint;
   qqplot x;
run;

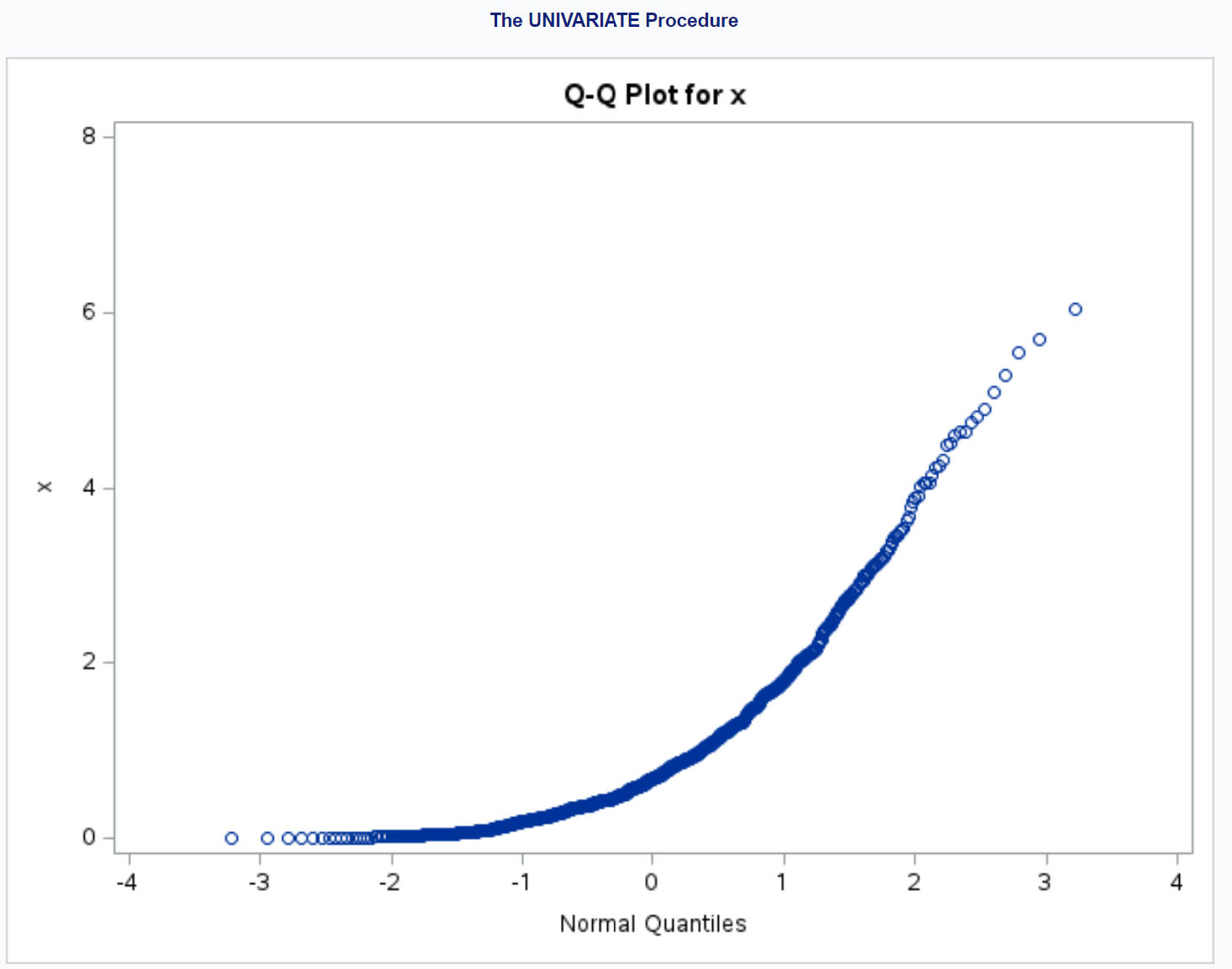

When observing this Q-Q plot, the most striking and immediate feature is the pronounced and undeniable deviation of the data points from the expected straight diagonal line. Far from forming a linear cluster, the points trace a distinct, concave-up curve. This unmistakable curvature is the hallmark visual signature of a severely skewed distribution. This empirical evidence provides clear and unambiguous confirmation that the simulated dataset fundamentally fails to follow a normal distribution. Since the data was intentionally generated from an exponential distribution, this observation powerfully validates the Q-Q plot’s efficacy in identifying and characterizing patterns of non-normality with high resolution.

Crucially, the specific direction and shape of the curvature itself serves as an invaluable diagnostic tool. The upward, concave-up curve observed here is intrinsically characteristic of a distribution that is positively skewed, meaning it possesses a long, drawn-out tail extending to the right, which perfectly describes the mathematical properties of the exponential model. Conversely, if the curve were concave down, it would indicate negative skewness. These visual insights are exceptionally valuable for guiding subsequent methodological decisions, such as whether to apply specific data transformations (e.g., logarithmic or reciprocal transformations) designed to induce symmetry, or whether the analysis requires immediate recourse to robust non-parametric statistical methods that bypass strong distributional assumptions entirely.

Advanced Customization and Integrated Diagnostic Practices

While the primary focus of this discussion has centered on the critical assessment of normality, it is essential to highlight the inherent versatility of Q-Q plots within the SAS environment. Q-Q plots are not limited to comparing empirical data solely against the normal curve; they are robust diagnostic tools capable of assessing fit against a wide variety of theoretical distribution models. Analysts can leverage the power of PROC UNIVARIATE to easily generate Q-Q plots comparing their data against distributions such as lognormal, Weibull, gamma, or beta distributions. This essential flexibility is achieved simply by specifying the target distribution through specialized options within the QQPLOT statement, allowing researchers to explore nuanced distributional assumptions highly relevant to specialized fields like reliability engineering, finance, or survival analysis.

Furthermore, the powerful PROC UNIVARIATE procedure offers an array of advanced customization features designed to substantially enhance both the diagnostic capability and the visual quality of the resulting plots. A particularly crucial advanced option is the ability to incorporate confidence limits onto the plot. These limits create a visual band surrounding the reference line, offering a statistical framework to assess whether observed deviations are statistically significant enough to reject the null hypothesis of distributional fit, or if they are merely attributable to expected sampling variability. Beyond statistical enhancements, SAS provides extensive control over aesthetic elements, enabling users to modify colors, change marker styles, customize axis labels, and refine titles, ensuring the creation of publication-quality graphics that meet specific reporting standards and organizational branding needs.

For truly comprehensive distributional scrutiny, statistical best practice dictates that Q-Q plots should rarely be used in isolation. It is highly beneficial to integrate them with other complementary diagnostic plots, forming a multi-faceted approach to data visualization. Combining a Q-Q plot with a high-resolution histogram, a box plot, or a kernel density estimate provides a holistic view of the data’s overall shape, central tendency, spread, and tail behavior, while also aiding in the swift and definitive identification of potential outliers. This robust, integrated diagnostic strategy ensures a thorough and statistically sound evaluation of all underlying distributional assumptions prior to the deployment of complex formal statistical modeling, thereby strengthening the reliability and validity of the entire analytical process.

Recommended Resources for SAS Proficiency and Statistical Literacy

To continue building proficiency in utilizing SAS for statistical analysis and graphical diagnostics, the following high-quality resources are highly recommended for detailed exploration and further study:

• SAS/STAT User’s Guide: PROC UNIVARIATE Overview: This is the official, authoritative documentation providing exhaustive details on all syntax, options, and full capabilities of the UNIVARIATE procedure within the SAS statistical suite.
• SAS Training and Certification Programs: Explore the official training courses and professional certification pathways offered by SAS to significantly deepen your expertise in data manipulation and advanced statistical application.
• Wikipedia: Statistical Graphics: A foundational resource offering excellent introductions and contextual information on various types of statistical plots, including Q-Q plots, and their appropriate applications across different analytical tasks.
• Carnegie Mellon University: Q-Q Plots Explained (PDF): An academic resource providing profound theoretical insights, mathematical background, and detailed interpretive guidelines regarding quantile-quantile plots, suitable for advanced learners seeking deeper statistical understanding.
