Create a Quadrant Chart in Excel (Step-by-Step)

A quadrant chart is recognized as an exceptionally powerful data visualization technique. Its primary function is the clear, spatial depiction of data points distributed across four distinct sections, or quadrants, all housed within a single scatter plot. This format excels at illuminating the relationship between two crucial variables, allowing users to rapidly identify performance categories, pinpoint outliers, and discern overarching trends within complex datasets.

This analytical tool is widely embraced across diverse professional domains, including strategic business planning, rigorous project management, and detailed market analysis. The intuitive structure of quadrant charts provides an easy method to categorize items based on their position relative to predefined critical thresholds. For example, organizations frequently use them to assess products based on metrics like market share versus growth potential, or to evaluate personnel according to performance and potential, thereby facilitating swift and informed decision-making.

This comprehensive, step-by-step tutorial is designed to walk you through the precise process of constructing a fully dynamic and functional quadrant chart utilizing Excel. We will provide detailed instructions coupled with clear supporting screenshots for every phase. By the completion of this guide, you will possess the ability to transform raw numerical data into actionable insights using a chart structure mirroring the high-quality example presented below.

1. Preparing and Structuring Your Data in Excel

The foundation of any successful chart created in Excel relies heavily on the proper organization of the input data. To construct an accurate quadrant chart, you require a structured dataset where each observation is represented by a pair of numerical values: the independent x-value and its corresponding dependent y-value.

To begin, open a fresh worksheet in Excel and carefully input your source data. It is essential to ensure that all x-values reside in one dedicated column, and their associated y-values are placed immediately in an adjacent column. This structured, columnar arrangement is critical, as it enables Excel to correctly interpret the coordinates when plotting the initial visualization.

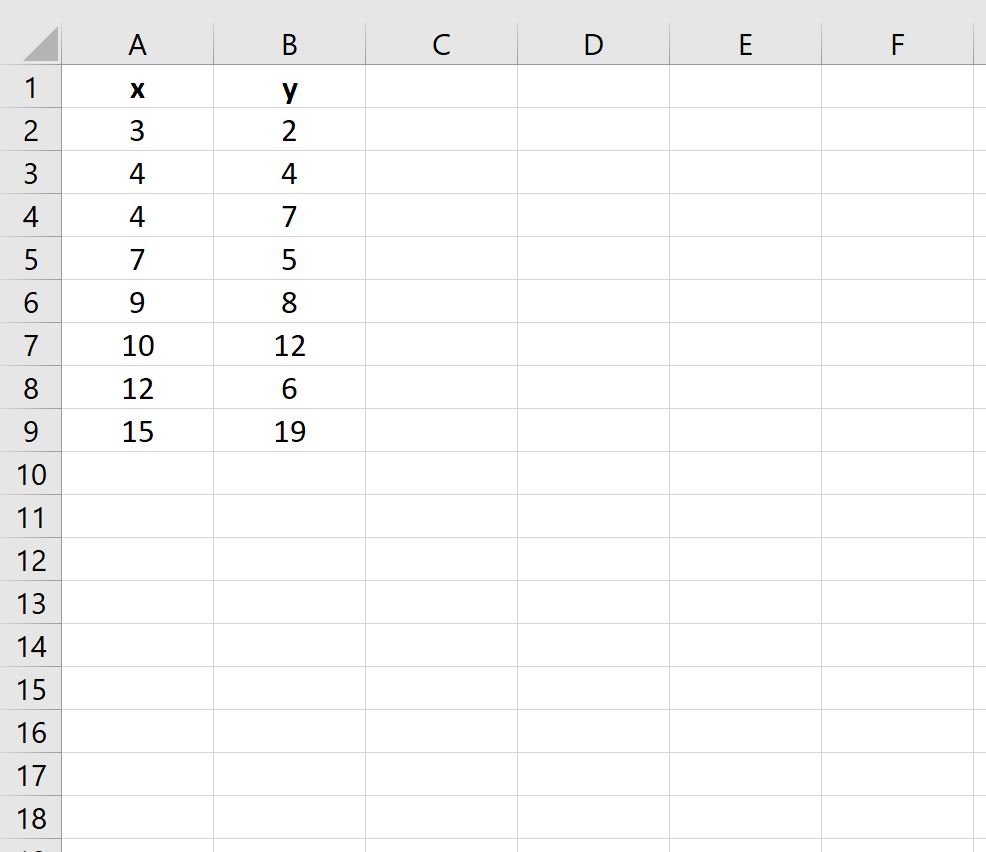

For the purpose of this tutorial, we will work with the following sample data. Please enter these exact values into your Excel sheet, ensuring the headers begin in cell A1, replicating the layout shown in the image below:

2. Generating the Base Scatter Plot

With the data properly arranged, the subsequent step is to generate a standard scatter plot. This plot serves as the essential canvas for our final quadrant chart. A scatter plot visually maps the relationship between the two numerical variables by displaying each data point at the exact intersection of its respective x-axis and y-axis coordinates.

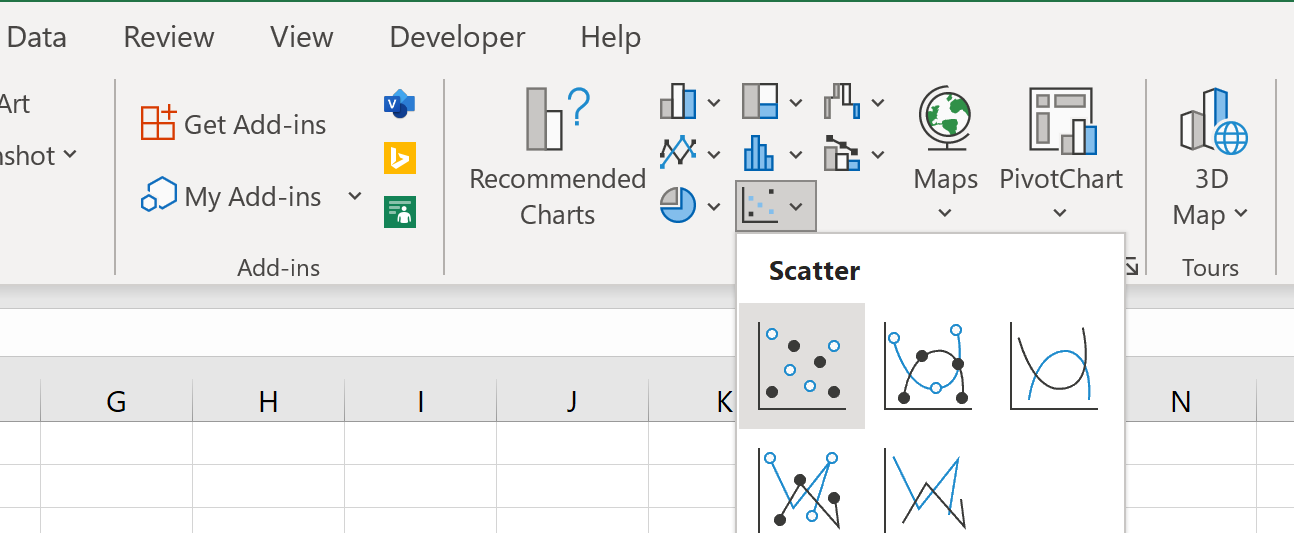

To initiate the chart creation, first meticulously highlight the complete range of your numerical data. In our current example dataset, this range corresponds to cells A2:B9. Once the data selection is confirmed, navigate to the Insert tab located on the Excel ribbon. Within the Charts group, locate and click the Scatter option. This menu will display several chart types; select the basic ‘Scatter’ option, typically illustrated by individual points.

Upon selection, Excel will immediately generate and embed the initial scatter plot directly onto your active worksheet. At this stage, the chart will display all your data points, showing the raw distribution of the dataset without any dividing lines or quadrant markers.

3. Calculating and Preparing Quadrant Thresholds

To transition from a simple scatter plot to an insightful quadrant chart, we must introduce clear horizontal and vertical dividing lines that establish the quadrant boundaries. Before adding these custom elements, it is highly recommended to remove the default chart gridlines to ensure a visually clean presentation.

To remove the default lines, click on any horizontal or vertical gridlines within the plotting area to select them, and then press the Delete key. Repeat this action for both sets of gridlines until the chart background is completely clear. This action prepares a clean canvas for the precise placement of our custom quadrant separators.

The next crucial step involves mathematically determining the exact coordinates for the horizontal and vertical quadrant lines. These lines typically represent key thresholds, such as the mean, median, or a specific business benchmark, along their respective axes. For maximum clarity, we will calculate these lines based on the minimum and maximum values, centered around the average, of your data along the x-axis and y-axis.

We need to create two new data series, one for each line. Here is the logic for calculating the required points:

• For the Horizontal Line (Y-Threshold):
  • X-values: These must span the full width of the chart. Use the min and max values of your primary x-axis data (the original data points).
  • Y-values: This line must be drawn at a constant height. Calculate and use the average y-value of your entire dataset, repeating this value for both points.
• For the Vertical Line (X-Threshold):
  • X-values: This line must be drawn at a constant position across the chart. Calculate and use the average x-value of your entire dataset, repeating this value for both points.
  • Y-values: These must span the full height of the chart. Use the min and max values of your primary y-axis data.

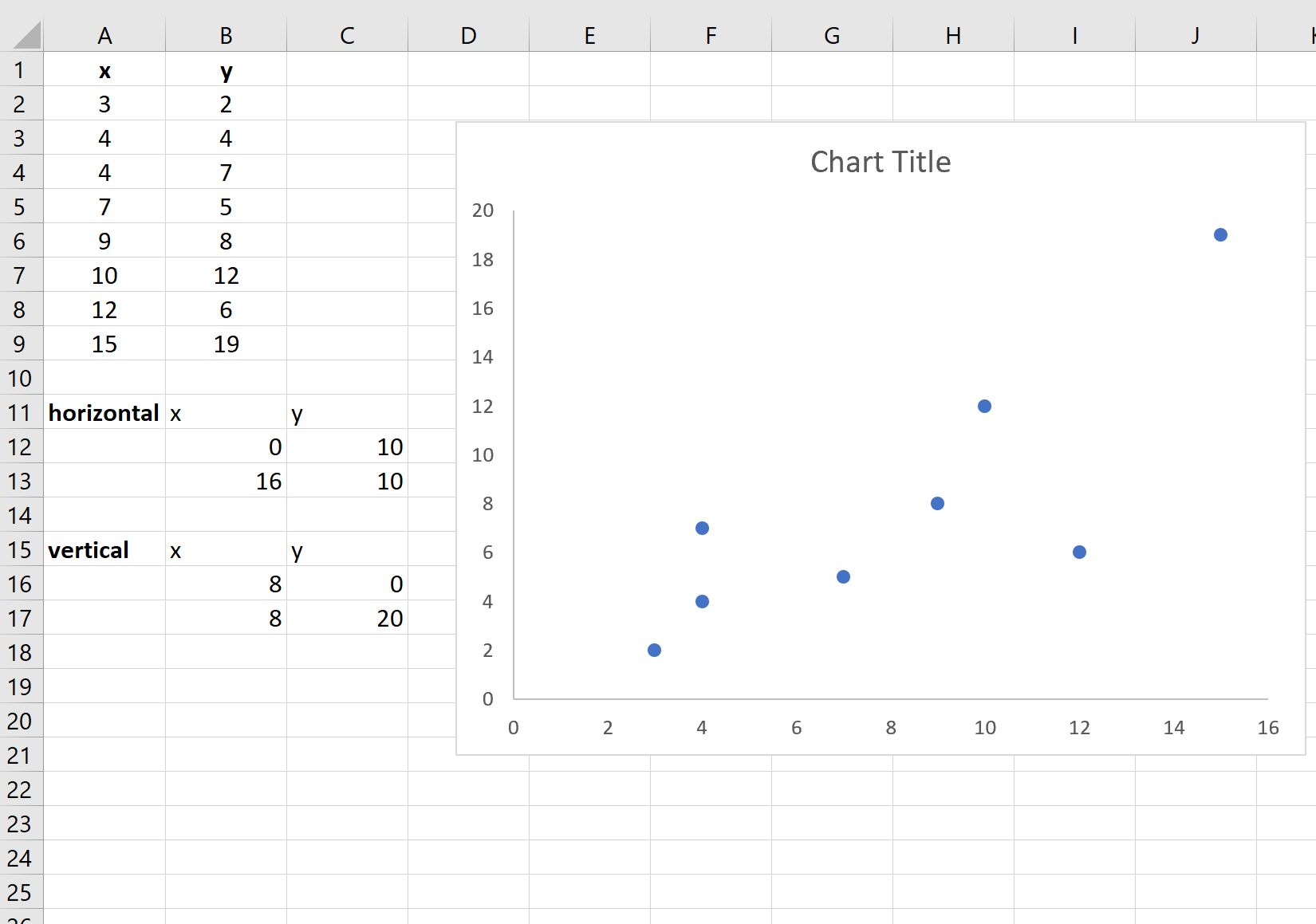

The screenshot below demonstrates how to implement these calculations directly within your Excel sheet. These calculated coordinates will form the new data series that we will subsequently add to our existing scatter plot to define the quadrant boundaries.

4. Integrating and Formatting the Quadrant Lines

With the precise coordinates for our quadrant lines calculated, the next phase involves successfully integrating these values as new data series into our existing scatter plot. This is achieved by tricking Excel into plotting two points that, when connected by a line, serve as our quadrant boundaries.

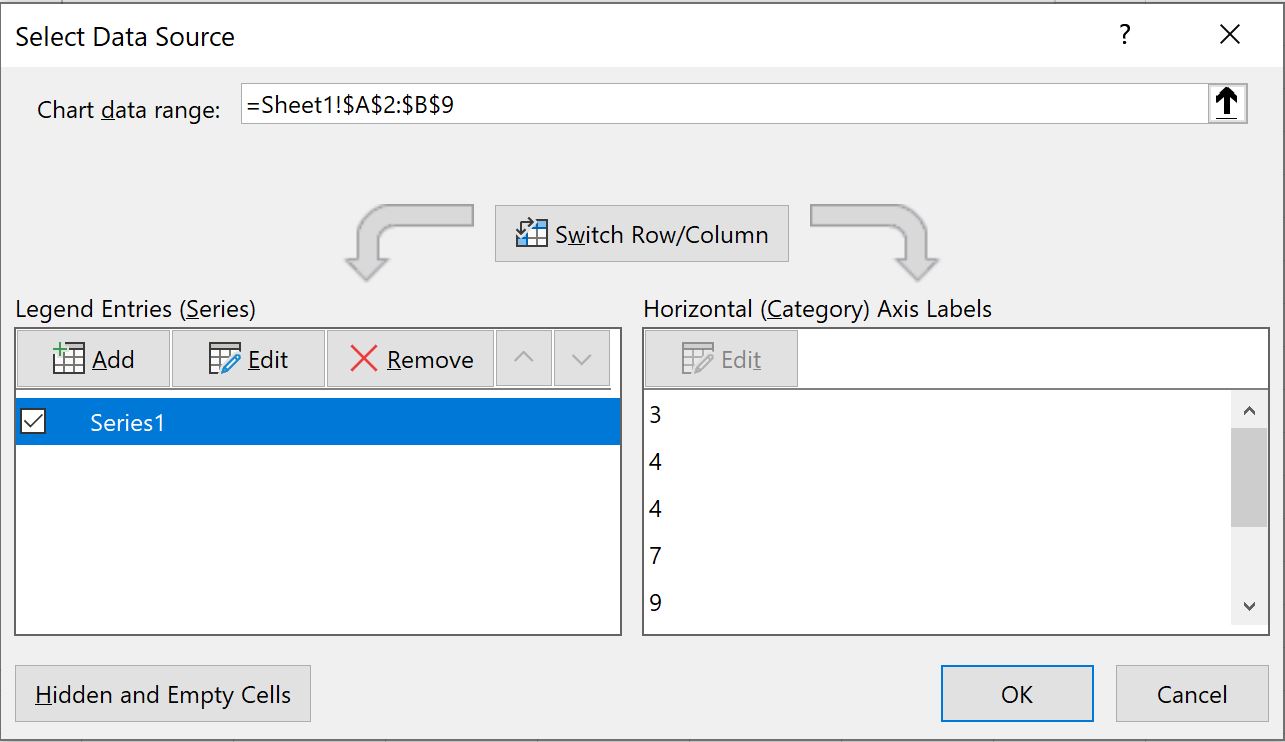

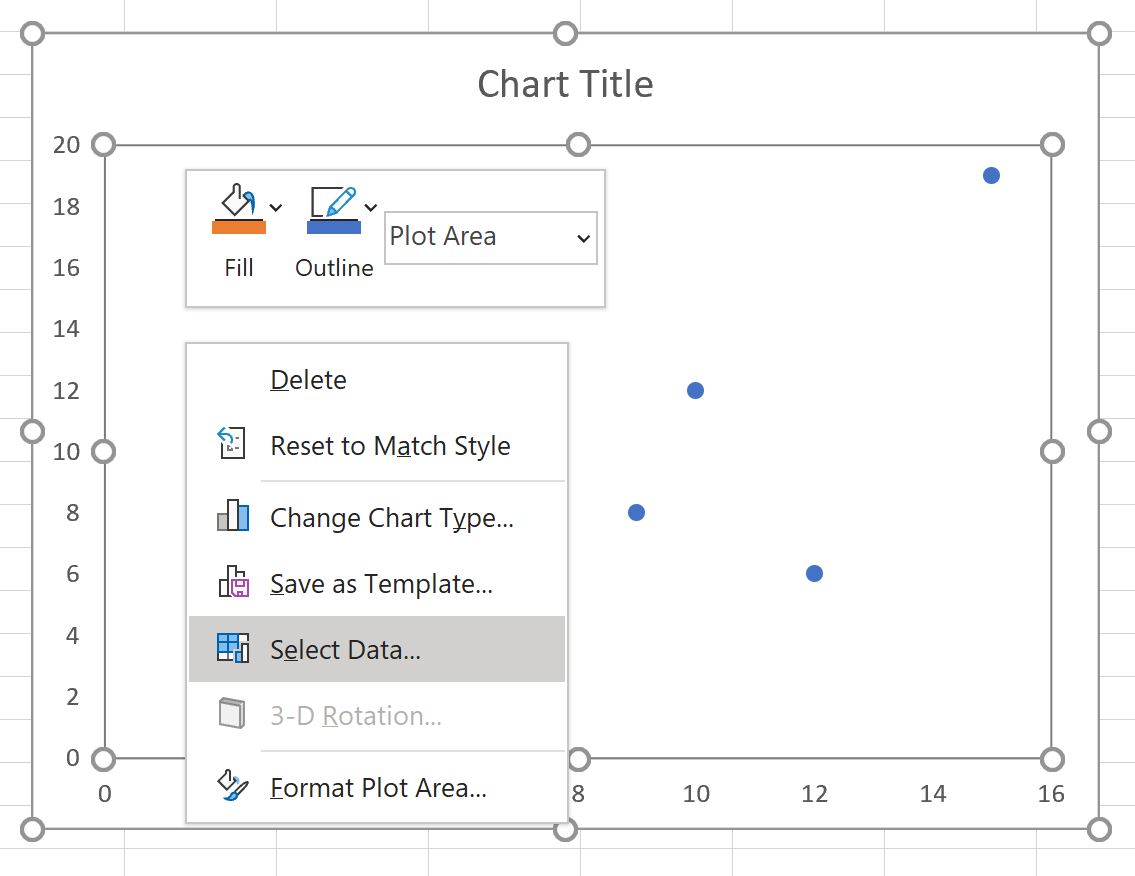

To begin the integration process, right-click anywhere within the chart area to access the context menu, then select Select Data. This action will open the “Select Data Source” dialog box, which is the management interface for all data series displayed in your chart.

Inside the “Select Data Source” window, locate and click the Add button within the “Legend Entries (Series)” section. This prompts the “Edit Series” dialog box to open, requiring you to define the parameters for your new data series. We will start by defining the horizontal quadrant line.

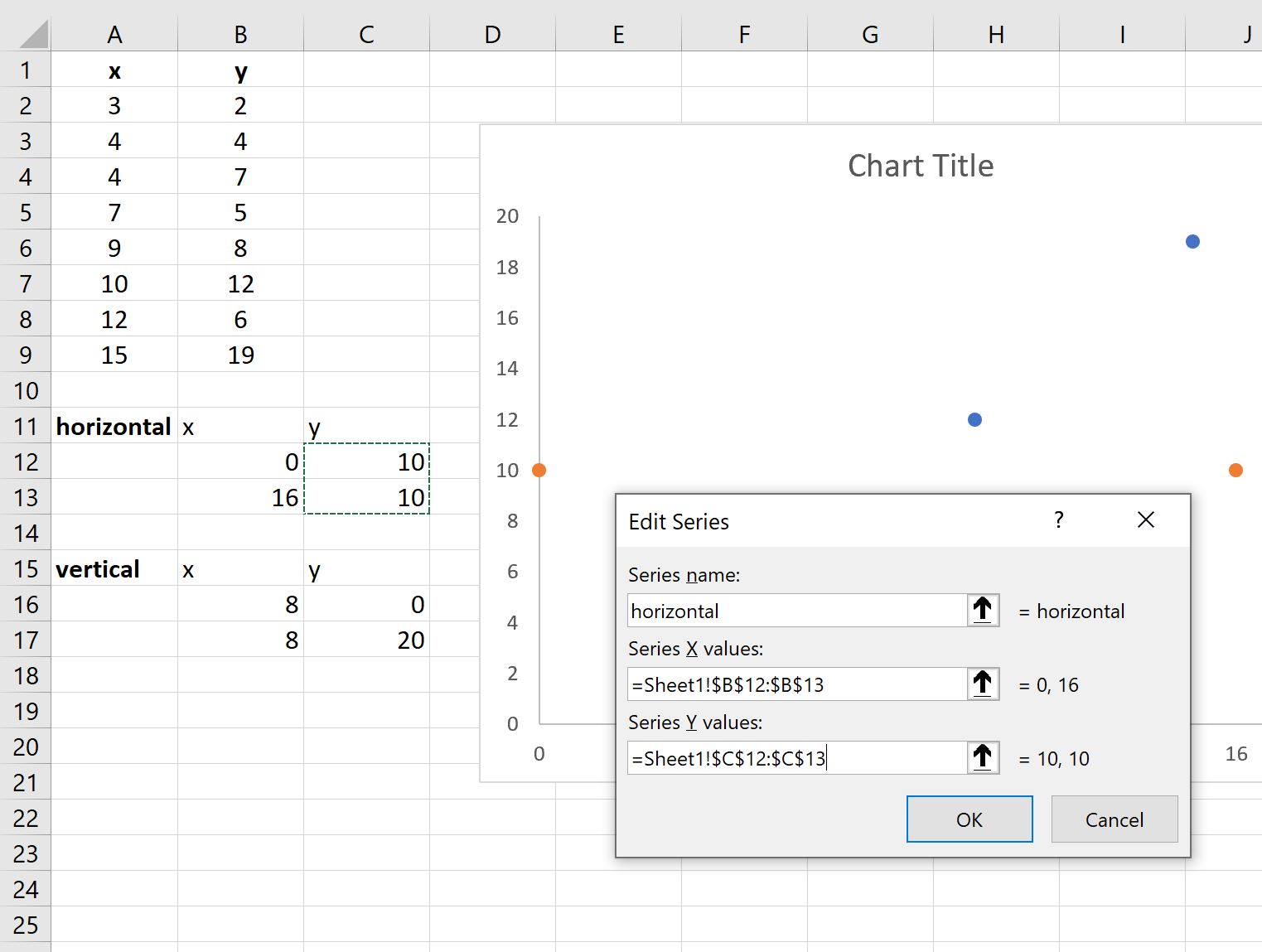

In the “Edit Series” dialog box, input a clear label, such as “Horizontal Line,” in the Series name field. For the Series X values, select the two cells containing your calculated x-values for the horizontal line (e.g., B12:B13). Similarly, for the Series Y values, select the two cells with your constant y-values (e.g., C12:C13). Confirm these ranges by clicking OK to add the series to your chart.

After adding the new series, you will observe two new data points (likely orange dots) appear on your plot, representing the two endpoints of your horizontal line. To convert these points into a continuous line, click directly on either of the orange dots to select the newly added data series. This action should automatically activate the Format Data Series panel on the right side of your Excel interface.

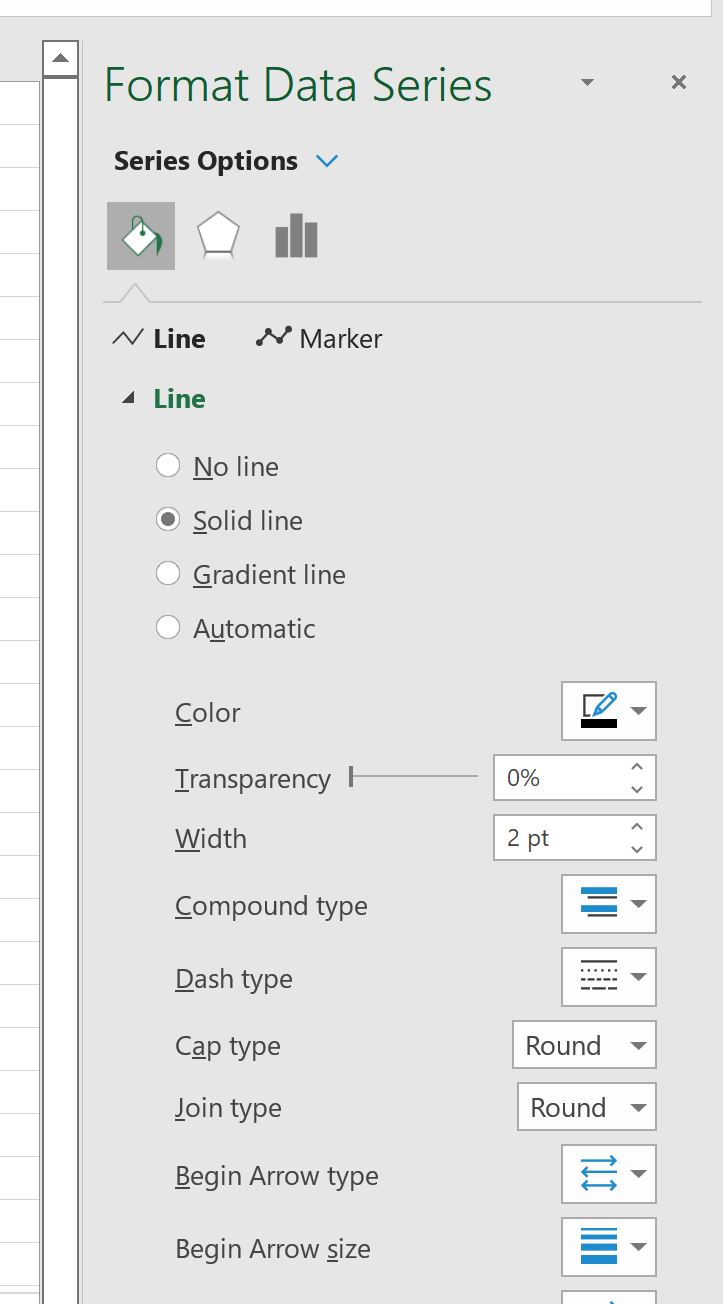

Within the Format Data Series panel, navigate to the Fill & Line icon (which resembles a paint bucket). Under the “Line” category options, select Solid line and choose Black as the Color to maximize visibility. You may also increase the width (weight) of the line for greater prominence.

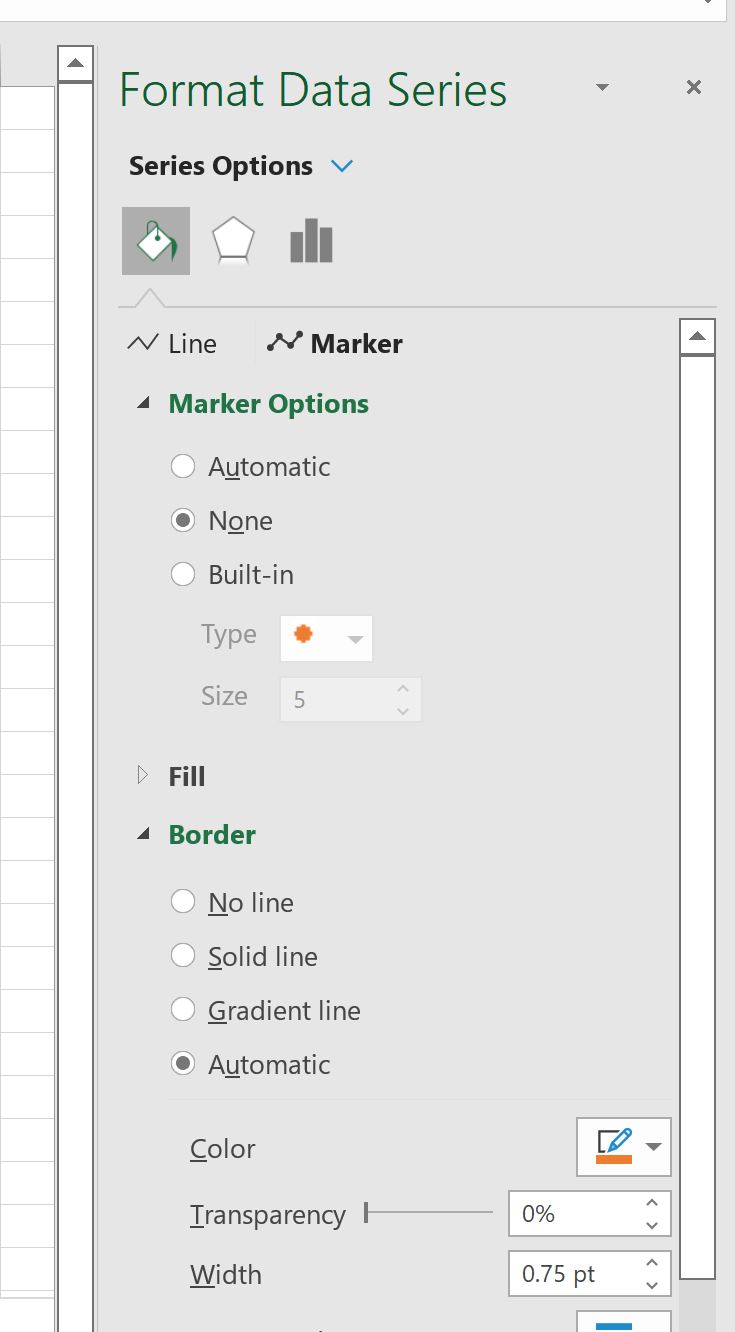

Next, while still in the Format Data Series panel, click on the Marker icon (usually next to the paint bucket). Expand the “Marker Options” section and explicitly select None. This step is crucial as it removes the visible dots at the ends of the line segment, resulting in a continuous, professional-looking quadrant boundary.

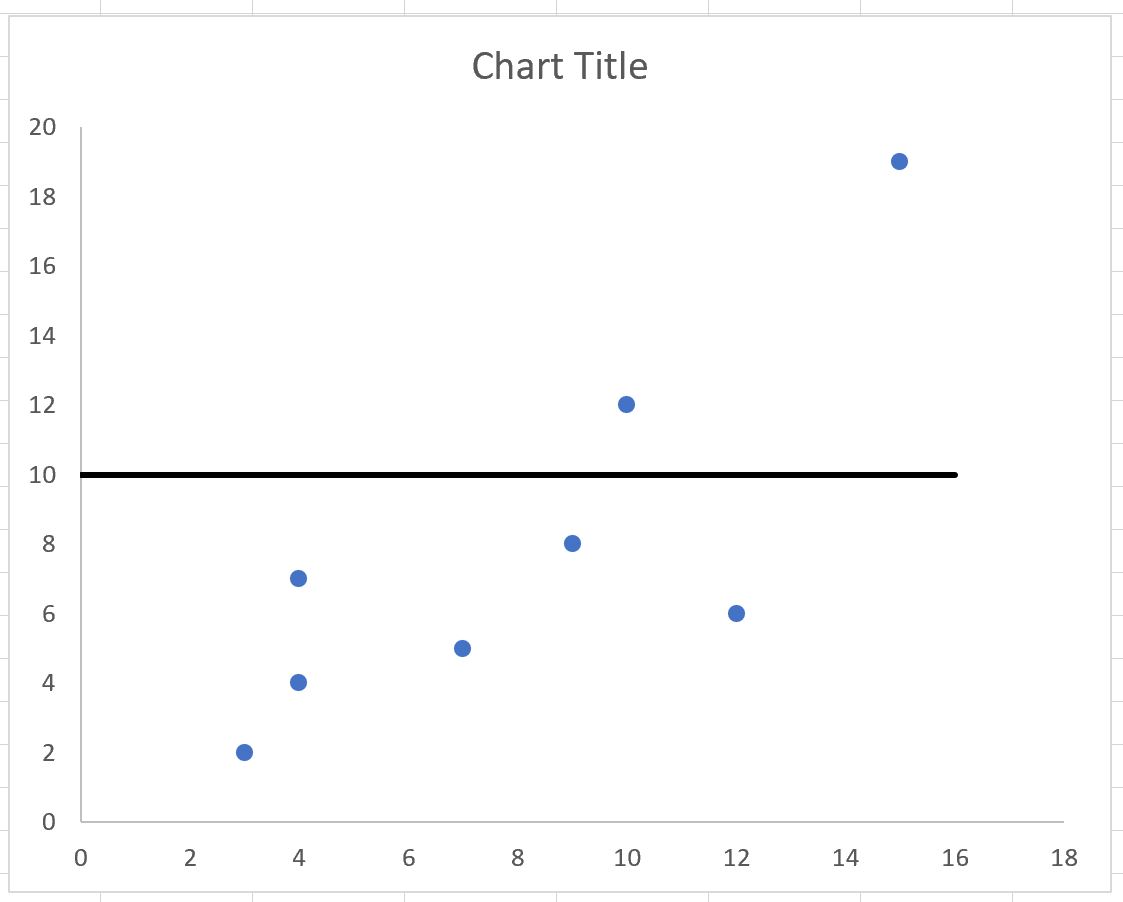

Once these formatting changes are successfully applied, the horizontal line will be seamlessly integrated into your chart, clearly segmenting the data into upper and lower categories. To fully complete your quadrant chart, you must repeat this entire process for the vertical line. Return to Select Data, click Add a new series, input the appropriate Series X Values and Series Y Values for your vertical line, and then format it to be a Solid line with the Marker set to None.

5. Finalizing the Quadrant Chart for Interpretation

Upon the successful integration and careful formatting of both the horizontal and vertical dividing lines, your foundational scatter plot is now completely transformed into a functional and insightful quadrant chart. The precise intersection of these two lines defines the central point, thereby establishing four distinct areas, each representing a unique category or performance segment based on the critical thresholds you calculated.

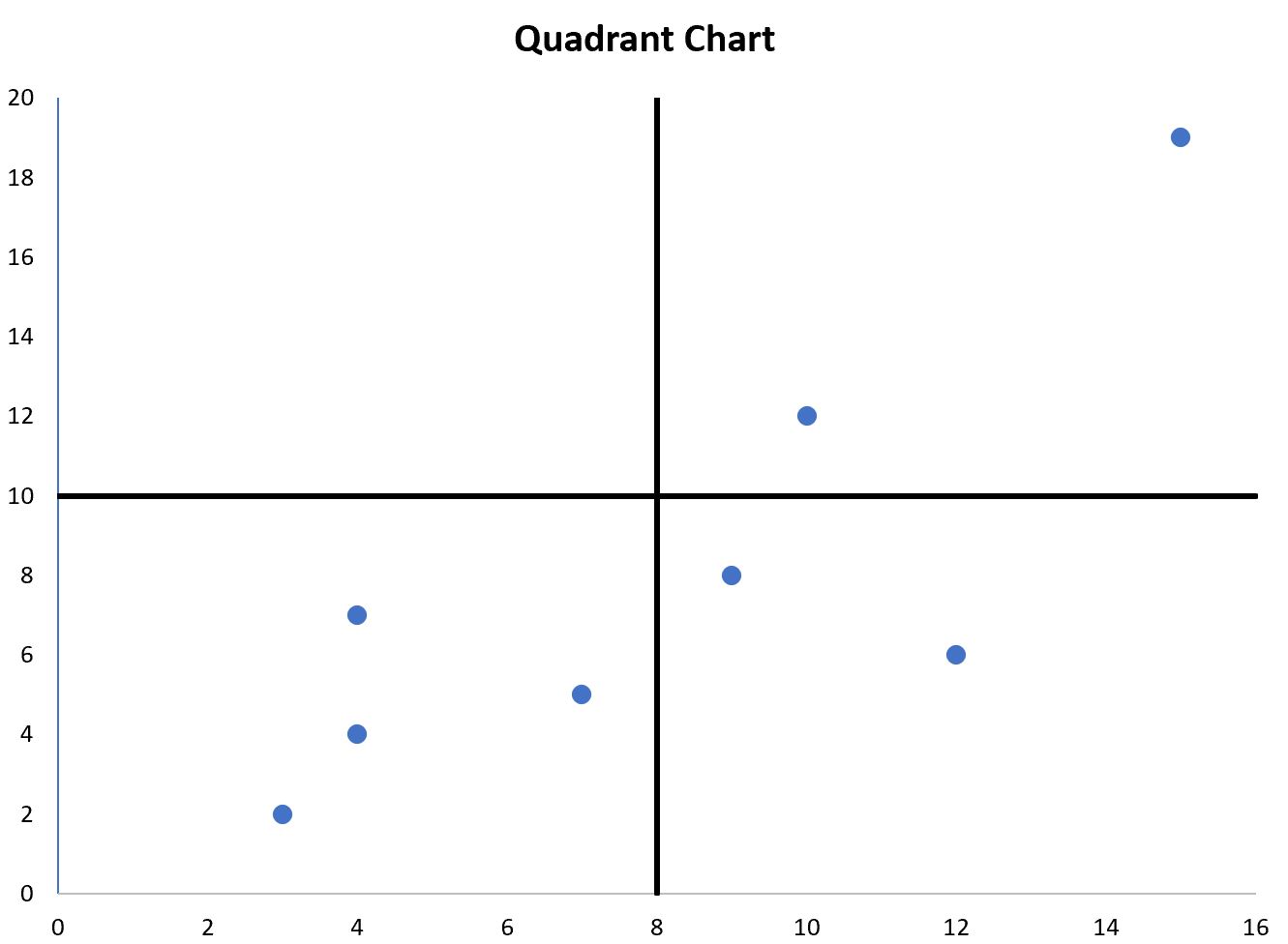

The final result of these steps is a clear, visually arresting, and analytically powerful visualization:

With the quadrants clearly delineated, every data point on your chart is visibly categorized into one of the four sections. This structure enables immediate and powerful interpretation of your dataset, allowing you to quickly spot data clusters, identify problematic outliers, and assess the overall distribution relative to the critical benchmarks set by your quadrant lines. This visualization method is a significant enhancement for data analysis and supports more effective strategic planning.
