Learning Regression Analysis: A Guide to Creating and Interpreting Residual Plots in R

Ensuring the validity and reliability of statistical inference hinges entirely on understanding and confirming the underlying assumptions of a chosen statistical model. For linear modeling, this confirmation process is paramount. Among the most crucial diagnostic tools available to statisticians and data scientists are residual plots. These powerful visualizations are indispensable for rigorously assessing whether the errors (residuals) generated during a regression analysis conform to the necessary assumptions regarding their distribution, variance structure, and independence.

This comprehensive tutorial offers an expert, step-by-step guide on how to generate and interpret the three primary types of residual plots within the R statistical environment. We will explore the practical implementation using standard R functions, focusing specifically on how to visually detect critical issues such as non-linearity, unequal error variance (known as heteroscedasticity), and significant deviations from the expected normality assumption. By mastering these diagnostic techniques, researchers can perform robust checks on their models, ensuring that the resulting statistical conclusions are sound, trustworthy, and defensible.

The Foundational Importance of Residual Diagnostics

Linear regression models, particularly those estimated using Ordinary Least Squares (OLS), rely on a specific set of core assumptions about the error term. Violations of these fundamental assumptions—such as non-normality, or non-constant variance—can severely compromise the modeling results. Specifically, they can lead to biased standard errors, inefficient coefficient estimates, and ultimately, incorrect conclusions regarding the statistical significance of the predictor variables. Residual plots provide the necessary visual evidence to confirm or deny the integrity of these assumptions, acting as the first line of defense against faulty inference.

A residual is defined simply as the observed value minus the value predicted by the model. When the linear model is correctly specified and all assumptions hold true, these residuals should exhibit a completely random distribution without any discernible systematic pattern. The observation of any systematic pattern—be it a curve, a cone, or an uneven scatter—is a definitive indicator of a structural flaw in the model or a violation of a foundational assumption. Such a finding mandates immediate investigation and corrective action, which might involve transforming variables or adopting more advanced modeling techniques better suited to the data structure.

The diagnostic plots we focus on—the Residual vs. Fitted Plot, the Q-Q Plot, and the Density Plot—each serve a distinct and vital diagnostic purpose. The Residual vs. Fitted plot is primarily designed to address the critical assumptions of linearity and constant variance, known as homoscedasticity. In contrast, the Q-Q plot and the Density plot are focused exclusively on verifying that the error terms are approximately normally distributed, an assumption that is crucial for the calculation of accurate confidence intervals and reliable p-values in hypothesis testing.

Setting Up the Linear Regression Model in R

To effectively illustrate the process of generating residual plots, we will use a practical example utilizing a widely recognized, built-in R dataset: the mtcars dataset, which compiles information on various characteristics of automobiles. Our analytical objective is to model the vehicle’s fuel efficiency (measured in miles per gallon, or mpg) as a function of two explanatory variables: engine displacement (disp) and gross horsepower (hp).

The initial step in any rigorous regression analysis involves fitting the model and subsequently extracting the necessary diagnostic components, chiefly the residuals themselves. We employ the standard R function lm() (linear model) for estimation. This estimation process not only provides the familiar coefficient estimates but, critically, also calculates the exact residuals required for our diagnostic visualizations. Before proceeding, analysts must ensure that the dataset is properly loaded and that all relevant variable types are appropriate for linear analysis.

Once the linear model has been successfully fitted, we use the resid() function to isolate the list of residuals. This list forms the essential foundation for all subsequent diagnostic visualizations. This structured, reproducible approach ensures that our analysis adheres strictly to standard statistical practice and facilitates easy verification of results.

Step 1: Fit regression model and extract residuals. We define mpg as the response variable and disp and hp as the predictor variables in our linear model specification:

#load the dataset
data(mtcars)

#fit a regression model using mpg as the response variable
model <- lm(mpg~disp+hp, data=mtcars)

#get list of residuals
res <- resid(model)

Visualizing Linearity and Variance: The Residual vs. Fitted Plot

The Residual vs. Fitted plot is frequently cited as the single most critical diagnostic tool for assessing the validity of two core OLS assumptions: linearity and constant variance. This plot displays the model’s standardized residuals on the vertical (y) axis plotted against the predicted (or fitted) values on the horizontal (x) axis. If the OLS assumptions are satisfied, the residuals must be randomly scattered around the horizontal line fixed at zero, forming a band of roughly equivalent width across the entire spectrum of fitted values.

The primary structural flaw this plot helps to detect is heteroscedasticity, which is the condition where the variance of the residuals changes systematically with the predicted values or the predictor variables. Visually, heteroscedasticity is evident as a distinct, non-random pattern, often appearing as an expanding “funnel” shape (widening variance) or a narrowing shape as the fitted values increase. Observing such a systematic pattern is a strong and undeniable signal that the constant variance assumption has been violated, which potentially invalidates the standard error estimates and subsequent hypothesis tests.

Conversely, if the variance is truly constant (homoscedastic), the dispersion of the residuals both above and below the zero line should remain uniform, indicating a rectangular band of points. In R, we use the abline(0,0) command to draw the crucial horizontal reference line at y=0. This line significantly simplifies the visual inspection process, allowing analysts to objectively judge whether the residuals are centering around zero and maintaining a consistent spread.

Step 2: Produce residual vs. fitted plot. This code generates the scatter plot and adds the required horizontal reference line for immediate interpretation:

#produce residual vs. fitted plot
plot(fitted(model), res)

#add a horizontal line at 0
abline(0,0)

Upon careful inspection of the resulting plot, where the x-axis represents the fitted values and the y-axis represents the residuals, we evaluate the overall spread. In this particular example using the mtcars data, the spread of the residuals appears somewhat higher or more dispersed for larger fitted values compared to smaller ones. This suggests a mild degree of non-constant variance. However, depending on the research context and the researcher’s tolerance for minor assumption violations, this pattern may not be severe enough to necessitate immediate, complex model adjustments.

Assessing Normality: The Quantile-Quantile (Q-Q) Plot

The second major distributional assumption inherent in OLS regression is that the error terms are approximately normally distributed. While statistical practice often permits minor, tolerable deviations from normality, severe violations can critically undermine the statistical validity of hypothesis testing (t-tests and F-tests). The Q-Q plot (Quantile-Quantile Plot) is the universally accepted graphical method utilized for evaluating this specific distributional assumption.

A Q-Q plot functions by comparing the ordered quantiles of the observed residuals against the theoretical quantiles expected from a standard normal distribution. If the residuals perfectly adhere to a normal distribution, the plotted data points should align very closely along a single, straight diagonal reference line, typically drawn at a 45-degree angle. Any noticeable or substantial deviation from this straight line provides visual evidence of a departure from the required normality assumption.

Specific patterns within the Q-Q plot reveal different types of non-normality. For instance, an S-shaped curve often suggests skewness, where residuals are unevenly clustered on one side of the mean. Conversely, points that stray dramatically from the line, especially at the extreme ends, typically suggest issues with kurtosis—meaning the distribution has tails that are either significantly heavier or lighter than those of a true normal distribution. Robust interpretation of the Q-Q plot requires focusing particularly on these tails, as violations in the extremes have the most significant adverse impact on statistical inference.

Step 3: Produce a Q-Q plot. We utilize the qqnorm() function to generate the plot and the qqline() function to add the essential straight reference line:

#create Q-Q plot for residuals
qqnorm(res)

#add a straight diagonal line to the plot
qqline(res)

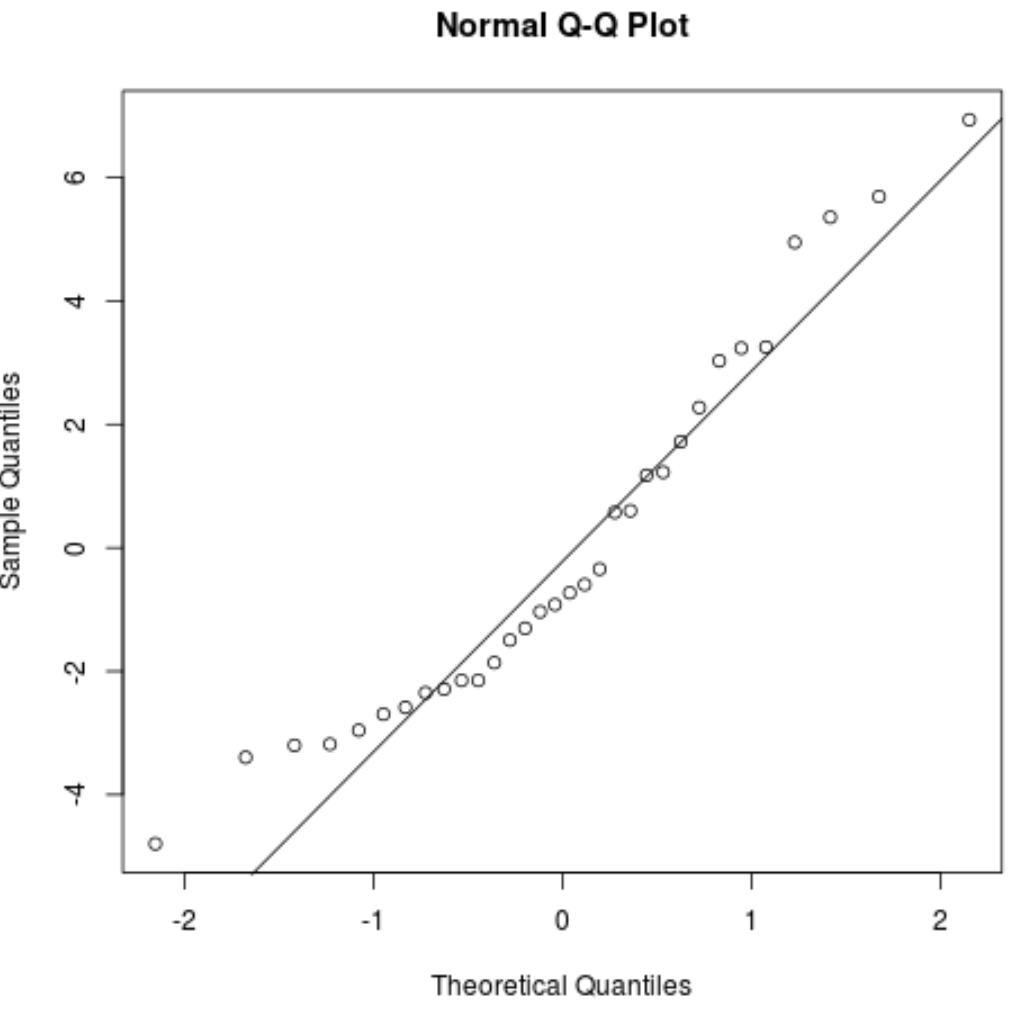

Observing this specific Q-Q plot generated from the mtcars model, we can clearly see that the residuals tend to stray significantly from the diagonal line, particularly near the extreme quantiles (the upper and lower tails). This visual pattern provides strong evidence suggesting that the residuals are not perfectly normally distributed. Researchers must critically evaluate the magnitude of this deviation and determine whether it warrants corrective measures before confidently proceeding with advanced hypothesis testing.

Complementary Diagnostic: Interpreting the Residual Density Plot

While the Q-Q plot offers a direct comparison against theoretical quantiles, the residual density plot provides a complementary, often more intuitive visual check of the distribution’s overall shape. This plot essentially generates a smoothed frequency distribution curve (a kernel density estimate) of the residuals. It provides a quick visualization of the frequency counts across the range of residual values.

For the residuals to be considered reasonably normal, the resulting density plot should closely approximate the classic “bell shape” characteristic of the Gaussian distribution. This means the curve should be highly symmetric around the mean (which should ideally be zero) and exhibit relatively light, smooth tails. This visualization serves as an excellent complement to the Q-Q plot, offering a clearer, visual representation of any skewness or kurtosis when interpreting the overall distributional characteristics.

If the plot appears heavily skewed (lopsided) or displays multiple distinct peaks (indicating a bimodal or multimodal distribution), it reinforces the non-normality suggested by the Q-Q plot. The density plot is often preferred by non-statisticians as it translates the abstract concept of quantiles into a more familiar frequency curve, making issues like skewness immediately apparent.

Step 4: Produce a density plot. We use the plot(density()) function to generate the smoothed frequency distribution curve of the residuals:

#Create density plot of residuals
plot(density(res))

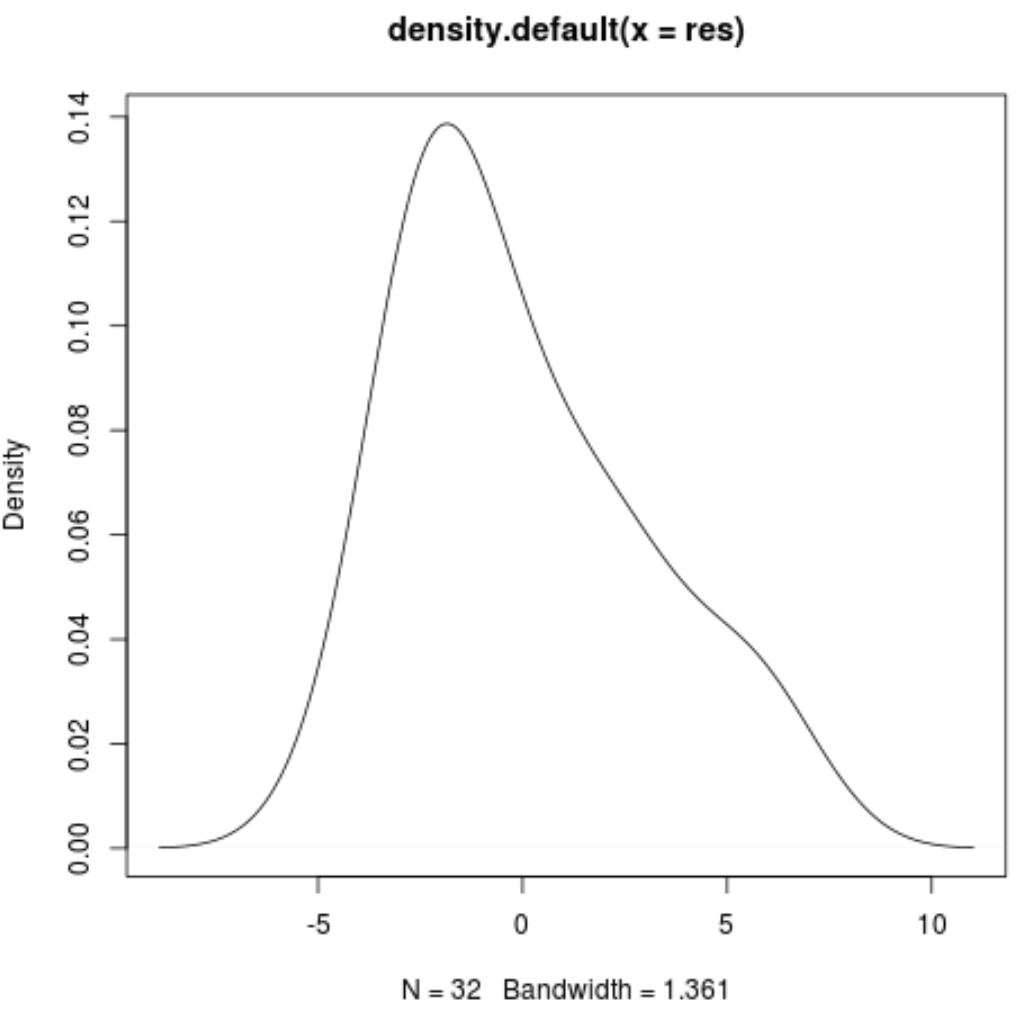

The resulting density plot does follow a general bell shape, which is initially encouraging. However, a closer examination reveals that the distribution is slightly skewed to the right (positive skew), meaning the right tail is longer. This slight deviation aligns precisely with the findings observed in the Q-Q plot. Based on the requirements for the study, a researcher must decide whether this level of non-normality is acceptable or if a transformation of the response or predictor variables is necessary to better approximate a normal distribution and ensure the most reliable statistical inference possible.

Addressing Violations: Next Steps in Robust Modeling

Identifying assumption violations through residual plots represents only the first phase of robust modeling; correctly addressing these issues is equally essential. If the Residual vs. Fitted plot clearly indicates severe heteroscedasticity (non-constant variance), common remedial strategies include employing Weighted Least Squares (WLS) regression, which systematically assigns less weight to observations associated with higher variance, or applying variance-stabilizing transformations (such as logarithmic or square root transformations) to the response variable.

If the Q-Q plot or Density plot reveals substantial non-normality, particularly pronounced skewness or excessively heavy tails, researchers should first attempt data transformation on the response variable. For example, a logarithmic transformation is a standard method used to mitigate positive skewness. If transformations prove insufficient or if the non-normality is extreme, then alternative modeling strategies—such as generalized linear models (GLMs) or robust regression techniques, which inherently do not rely on the strict normality assumption—may be the more appropriate path forward.

It remains critical to remember that residual diagnostics are powerful tools for determining model fitness, but they should not be treated as inflexible mandates. A minor deviation from normality in a very large dataset is often far less concerning than severe heteroscedasticity or clear evidence of non-linearity, as the latter issues are far more likely to compromise the accuracy of standard error calculations and the fundamental interpretation of the model coefficients.

Conclusion: Ensuring Model Integrity

Residual plots are truly indispensable for validating the core assumptions underpinning linear regression models. By systematically generating and carefully interpreting the Residual vs. Fitted plot, the Q-Q plot, and the Density plot, analysts gain the ability to visually confirm the assumptions of homoscedasticity, linearity, and normality. These visual diagnostics provide a deeper, more nuanced, and often more reliable understanding of model performance than relying solely on numerical or statistical tests.

In our practical example utilizing the mtcars dataset, we successfully identified both minor heteroscedasticity and a clear deviation from perfect normality in the residuals, especially in the tails. The logical and necessary next step would be to address these identified issues, perhaps through a variable transformation or the exploration of alternative, more robust modeling techniques, thereby solidifying the statistical conclusions drawn from this regression model.

For analysts seeking to deepen their expertise, exploring alternative diagnostic plots is highly recommended. These include the Scale-Location plot, which provides another visual check focused specifically on variance spread, and the Cook’s distance plot, which is crucial for identifying highly influential observations that might unduly skew the model parameters. Mastering this comprehensive suite of diagnostic techniques ensures the integrity and reliability of all quantitative research founded upon linear modeling.
