Create a Scatter Matrix in Pandas (With Examples)

A scatter matrix, frequently referred to as a pair plot, stands as an indispensable instrument within the field of exploratory data analysis, particularly when utilizing the Pandas library in Python. This sophisticated visualization technique organizes a collection of individual scatterplots into a cohesive, grid-like matrix format, offering a panoramic view of the data structure.

The primary advantage of the scatter matrix lies in its ability to facilitate rapid, visual assessment during the initial stages of multivariate analysis. By plotting every numerical variable against every other numerical variable, data scientists can instantaneously identify complex patterns, gauge the strength and direction of potential correlation, detect data clustering, and understand the underlying distributions of individual features within the dataset.

In Pandas, the creation of this comprehensive chart is streamlined through the native plotting functionality, specifically the scatter_matrix() function. This function abstracts away much of the complexity, making powerful visualization accessible with minimal code:

pd.plotting.scatter_matrix(df)

The subsequent examples will detail the practical implementation of this essential function, employing a carefully constructed sample DataFrame designed to represent hypothetical performance metrics in a sports context.

Prerequisites, Setup, and Data Initialization

Before any visualization can commence, it is essential to establish the foundational environment by importing the necessary computational libraries and preparing a suitable dataset. For this demonstration, we rely heavily on the Pandas library for efficient data manipulation and structuring, and the NumPy library, which is indispensable for generating reproducible, random numerical data that accurately simulates real-world variability.

The following Python code block systematically constructs our sample DataFrame. This structure comprises 1,000 synthetic observations across three key continuous numerical variables: ‘points’, ‘assists’, and ‘rebounds’. To ensure statistical relevance and smooth visualization, we employ the np.random.randn() function. This method draws samples from a standard normal distribution (mean=0, standard deviation=1), which is ideal for illustrative purposes regarding distribution shapes and basic correlation patterns.

Setting the random seed to a fixed value (np.random.seed(0)) is a critical step in ensuring that the random data generated remains identical every time the script is executed. This practice is crucial for maintaining the reproducibility and verifiability of technical examples.

import pandas as pd
import numpy as np

# Ensure the example is reproducible across sessions
np.random.seed(0)

# Create DataFrame with 1000 observations drawn from a normal distribution
df = pd.DataFrame({'points': np.random.randn(1000),
                   'assists': np.random.randn(1000),
                   'rebounds': np.random.randn(1000)})

# Display the initial structure of the DataFrame
df.head()

	points	        assists	        rebounds
0	1.764052	0.555963	-1.532921
1	0.400157	0.892474	-1.711970
2	0.978738	-0.422315	0.046135
3	2.240893	0.104714	-0.958374
4	1.867558	0.228053	-0.080812

With the synthetic DataFrame successfully initialized, this structured data is now perfectly prepared to be processed by the plotting function, enabling us to begin visualizing the pairwise relationships among the variables ‘points’, ‘assists’, and ‘rebounds’.

Example 1: Generating the Comprehensive Standard Scatter Matrix

The simplest and most common usage of the scatter_matrix() function involves passing the entire DataFrame object as its sole argument. This action automatically instructs Pandas to construct a comprehensive N x N matrix, where N is defined by the count of numerical columns present in the input data. This full matrix provides the broadest possible initial assessment of the dataset’s structure.

The resulting visualization is strategically segmented into two primary components, each serving a distinct analytical purpose. The off-diagonal cells are populated with standard scatterplots. These plots are crucial for examining the bivariate relationship between every unique pair of variables (e.g., ‘points’ plotted against ‘assists’). They allow data analysts to visually assess the presence of linearity, identify trends, and spot potential outliers. Conversely, the diagonal cells—which represent a variable plotted against itself—default to displaying a histogram. The histogram is vital for illustrating the univariate distribution of that specific variable, showing its central tendency, spread, and overall shape (e.g., Gaussian, skewed, or uniform).

The following concise code demonstrates the fundamental approach to creating this basic yet powerful scatter matrix, offering an immediate and complete overview of the dataset’s internal structure and variable interactions:

pd.plotting.scatter_matrix(df)

By interpreting this output, analysts gain immediate insights: the histograms reveal whether variables follow a normal distribution, while the off-diagonal scatterplots confirm the presence or absence of linear, non-linear, or clustered relationships between the paired features.

Example 2: Focusing Analysis on Specific Variable Subsets

In advanced analytical contexts or when dealing with datasets containing dozens of variables, plotting a full scatter matrix can result in a complex, overly cluttered visualization that obscures meaningful relationships. It is often more efficient and illuminating to concentrate the analysis on a targeted subset of variables relevant to a specific hypothesis.

To achieve this focused visualization, we must first subset the original DataFrame before passing it to the plotting function. Pandas provides highly flexible indexing methods for this purpose, including direct column selection by name or integer location indexing using the powerful .iloc accessor.

The subsequent code snippet illustrates how to construct a scatter matrix exclusively for the first two columns of the DataFrame—’points’ and ‘assists’—by utilizing integer slicing notation (df.iloc[:, 0:2]). By specifying this slice, we restrict the plotting mechanism to only these two features. The resulting matrix is therefore a compact 2 x 2 grid, delivering a highly focused, clean, and direct view of the relationship between these two critical performance metrics.

pd.plotting.scatter_matrix(df.iloc[:, 0:2])

This practice of subsetting data is fundamental to efficient data visualization. It ensures that generated graphics are not only visually appealing but also directly relevant, preventing visual noise and maximizing the clarity of the conclusions drawn from the focused investigation.

Example 3: Customizing Visual Aesthetics for Enhanced Clarity

While the default settings of the scatter_matrix() function are useful for initial exploration, the ability to customize visual appearance is essential for improving readability, highlighting specific features, and conforming to organizational presentation standards. Pandas provides several key parameters to control the aesthetic elements of the plots.

Two of the most frequently adjusted parameters are color, which defines the hue of the data points in all scatterplots, and hist_kwds, which accepts a dictionary of keyword arguments specifically designed for configuring the properties of the diagonal histogram plots. This granular control allows for fine-tuning based on the specific needs of the analysis.

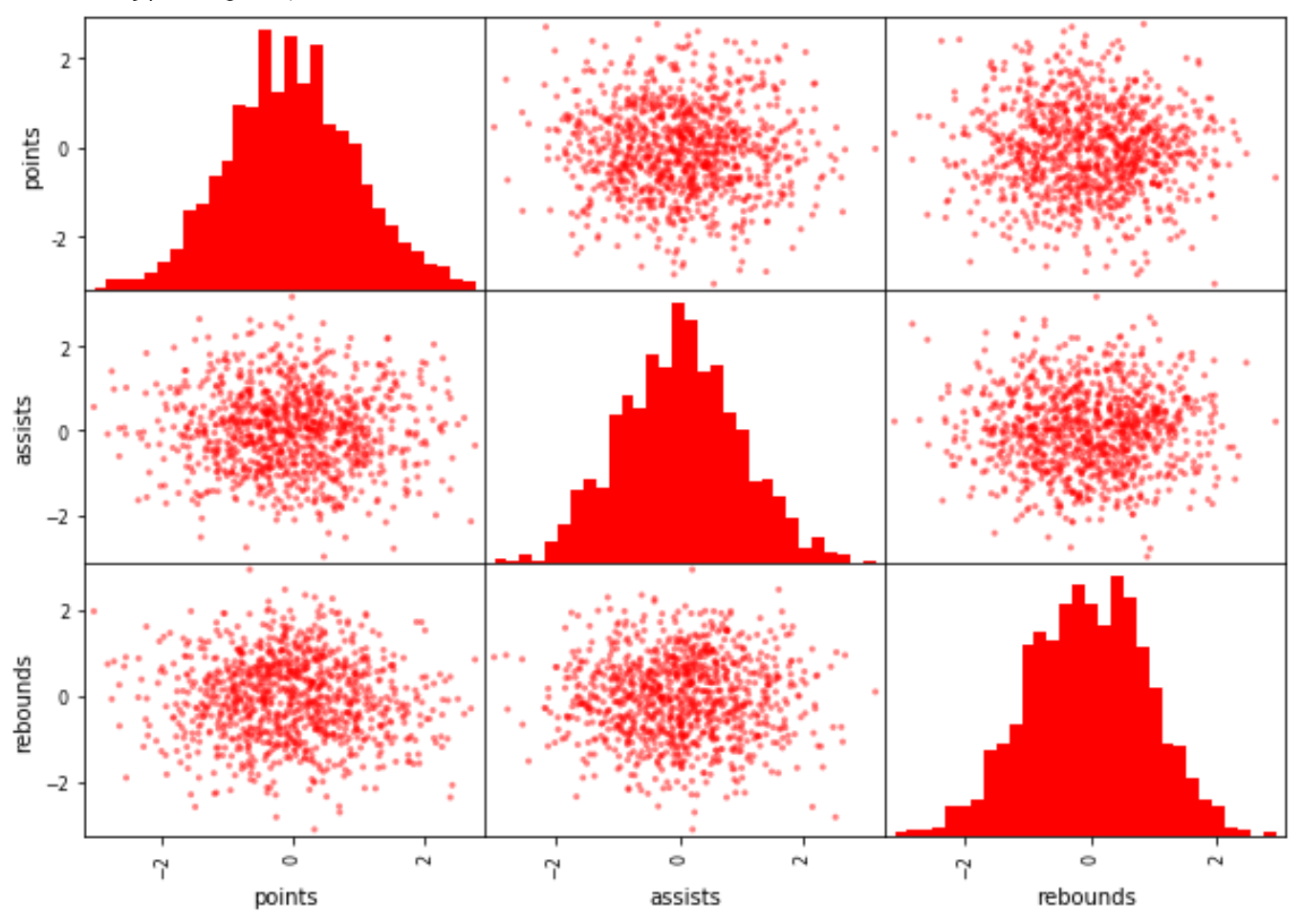

In the example below, we apply two primary customizations. First, we set the overall point color to red, ensuring visual consistency across the entire matrix. Second, we utilize the hist_kwds parameter to specify that the diagonal histograms should employ 30 bins instead of the default value. Increasing the number of bins results in a finer resolution of the underlying data distribution, which can be critical for accurately identifying subtle peaks or gaps in the data spread.

pd.plotting.scatter_matrix(df, color='red', hist_kwds={'bins':30, 'color':'red'})

The effective use of custom keyword arguments (kwargs) provides substantial flexibility over the default stylistic elements provided by the plotting library. This level of granular control is vital when preparing visualizations for formal reports or publications where specific aesthetic guidelines must be met.

Example 4: Employing Alternative Diagonal Representations with KDE

While the histogram is the default and standard representation for univariate distributions, offering a count-based view, data analysts sometimes prefer a smoother, non-parametric estimation of the probability density. The diagonal parameter within the scatter_matrix() function is specifically designed to control the type of plot rendered on the main diagonal.

By setting diagonal=’kde’, we instruct Pandas to substitute the traditional bar-based histograms with a Kernel Density Estimate (KDE) plot. A KDE plot is a method for estimating the probability density function of a continuous random variable. Unlike the histogram, which relies on discrete bins, the KDE plot generates a smooth curve that offers a clearer, more continuous picture of the underlying distribution shape, often making it easier to identify multi-modal or highly irregular distributions.

The following implementation demonstrates how to generate a scatter matrix where the diagonals feature these advanced KDE plots, facilitating a more sophisticated and nuanced distributional analysis:

pd.plotting.scatter_matrix(df, diagonal='kde')

The strategic choice between using a histogram (5 links used) and a KDE plot is usually dictated by the specific goals of the analysis. KDE is preferred when seeking a polished, smooth visual representation of the density, whereas the histogram is favored when precise frequency counts within defined intervals are necessary.

Conclusion: The Power of Visual Multivariate Exploration

The scatter matrix remains an unparalleled and essential visualization tool for initial data exploration within the Python data science ecosystem. It expertly consolidates immediate visual feedback on complex bivariate relationships and crucial univariate distributions into a single, comprehensive graphic.

The versatility inherent in the scatter_matrix() function within Pandas is remarkable, permitting detailed customization that extends far beyond the defaults. This flexibility encompasses critical features such as precise variable selection, fine-tuning of aesthetic properties (like color and binning), and the ability to choose between count-based histograms and smooth KDE plots for diagonal representations.

For data scientists seeking more specialized control—such as altering marker types, setting explicit plot titles, or integrating the visualization output with other advanced plotting libraries like Matplotlib or Seaborn—it is highly recommended to consult the official library documentation. This resource provides the most current and comprehensive guidance on all available parameters and advanced usage patterns.

Readers interested in exploring the full scope of capabilities offered by the Pandas plotting API can find the complete online documentation for the scatter_matrix() function here.
