Learning Linear Regression: A Guide to Creating Scatterplots with Regression Lines in R

The Critical Role of Visualization in Linear Regression Analysis

When executing simple linear regression analysis, relying solely on numerical outputs—such as regression coefficients, R-squared metrics, and P-values—provides only an incomplete picture. It is absolutely paramount for data scientists and statistical analysts to visualize the underlying relationship between the independent variable (X) and the dependent variable (Y). This visual inspection is essential for several reasons: assessing the appropriateness of the model fit, efficiently identifying influential data points or outliers, and confirming that the foundational linearity assumptions hold true. A scatterplot stands as the single most powerful initial tool for this diagnostic process, offering an immediate, intuitive graphical representation of the bivariate data distribution.

The true value of this visualization extends far beyond merely plotting individual data points. The core objective is to seamlessly overlay the calculated regression line onto the data cloud. This line, commonly referred to as the “line of best fit,” is mathematically derived to minimize the sum of squared residuals, thereby offering the most accurate linear estimate of the mean response for any specified X value. Without this crucial visual context, it becomes remarkably easy to misinterpret the true strength, direction, or functional form of the relationship that is described solely by aggregated numerical summaries.

Fortunately, the R programming language is specifically designed for statistical computing and offers robust, native functionality for generating high-quality analytical graphics with straightforward code. By mastering a handful of essential base R functions, practitioners can rapidly produce publication-ready plots that clearly and effectively communicate the key findings of their regression analysis, elevating their work from basic data display to sophisticated visual storytelling.

Step 1: Establishing the Foundation with the Base Scatterplot

Before we proceed to incorporate advanced graphical components, such as the regression line and uncertainty bands, we must first define our dataset and generate the foundational scatterplot. For the purposes of this demonstration, we will begin by constructing a synthetic dataset directly within the R environment. This methodology provides the advantage of precisely controlling the known linear relationship between X and Y, making the subsequent visualization steps clearer and highly illustrative of the statistical concepts being applied.

The primary function responsible for rendering individual data points in base R graphics is the plot() function. This function is exceptionally versatile and requires two vectors corresponding to the X and Y coordinates of the data points. Once the data frame containing the variables is successfully defined, simply passing the respective columns to plot() instantly renders the basic bivariate scatter diagram. This initial graphic serves as the essential canvas upon which we will systematically build our complete, detailed regression visualization.

# Create some synthetic data for demonstration
data <- data.frame(x = c(1, 1, 2, 3, 4, 4, 5, 6, 7, 7, 8, 9, 10, 11, 11),
                   y = c(13, 14, 17, 12, 23, 24, 25, 25, 24, 28, 32, 33, 35, 40, 41))

# Generate the initial scatterplot of the data
plot(data$x, data$y)

The result of executing the code block above is a simple yet clear graphical representation of our 15 data points, which immediately confirms the presence of a generally strong, positive linear trend. This visualization serves as confirmation that a simple linear regression model is statistically appropriate and well-suited for analyzing and describing this relationship.

Step 2: Calculating and Overlaying the Fitted Regression Line

With the base scatterplot successfully generated, the next vital step in the process is to mathematically calculate and subsequently overlay the estimated regression line. This procedure requires two distinct and sequential operations within R: first, fitting the statistical model itself using the powerful lm() (linear model) function, and second, drawing the resulting line onto the existing graphical canvas utilizing the abline() function.

The lm() function is responsible for calculating the least-squares estimates for both the intercept and the slope, thereby precisely defining the equation of the line that provides the best linear prediction of Y based on X. Once this model object is created, the abline() function proves to be incredibly efficient because it can accept a fitted model object directly as its primary argument. When abline() is provided with the output from lm(), it automatically extracts the necessary intercept and slope coefficients and draws the corresponding line onto the currently active plot window. This streamlined, two-step approach simplifies the process of adding the most central component of our regression visualization.

# Fit a simple linear regression model using the lm() function
model <- lm(y ~ x, data = data)

# Add the fitted regression line to the scatterplot using abline()
abline(model)

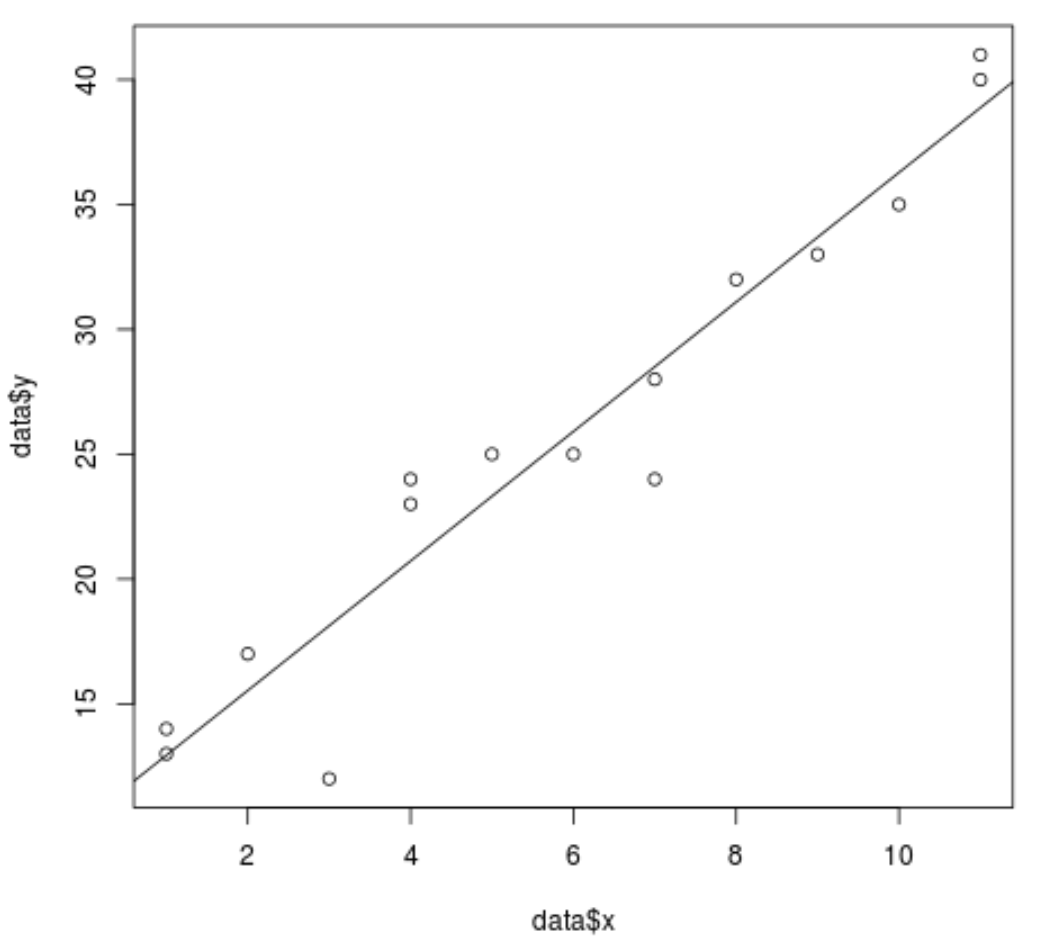

Executing these commands immediately updates the plot, resulting in the clear display of the calculated line of best fit traversing through the data points. This visual confirmation is absolutely critical for understanding how effectively the linear model captures the central tendency and overall trend of the data cloud.

Step 3: Quantifying Uncertainty with Confidence Intervals

While the regression line accurately displays the estimated mean relationship between X and Y, it is equally necessary to visualize the inherent uncertainty associated with that specific estimate. This precision, or lack thereof, is conventionally represented by the confidence interval (CI). The CI defines a range within which the true population mean response for a given X value is expected to fall (typically using a 95% threshold), assuming the specified model structure is correct. Crucially, the confidence interval reflects the precision surrounding our estimated regression line parameters.

To calculate these important intervals across the full range of our observed data, we leverage the highly flexible predict() function in R. We must first define a sequence of new X values (designated as newx) that spans the entire observed data range. By setting the argument interval=”confidence” within predict(), we instruct R to compute the upper and lower bounds of the 95% confidence interval for the mean response at every point defined in newx.

Once the interval boundaries are computed, we use the lines() function to draw the upper and lower bounds onto the existing scatterplot. By applying specific styling—for example, using a distinct color and a dashed line type (lty=2)—we effectively differentiate these uncertainty boundaries from the central regression line. It is important to note visually that the CI band is typically narrowest around the mean of the X values and systematically widens as it moves toward the extremes, accurately reflecting the greater uncertainty involved in extrapolation.

# Define a sequence of x values spanning the data range
newx = seq(min(data$x),max(data$x),by = 1)

# Find 95% confidence interval for the range of x values
conf_interval <- predict(model, newdata=data.frame(x=newx), interval="confidence",
                         level = 0.95)

# Re-create the scatterplot of values with the central regression line
plot(data$x, data$y)
abline(model)

# Add dashed lines (lty=2) for the 95% confidence interval
lines(newx, conf_interval[,2], col="blue", lty=2)
lines(newx, conf_interval[,3], col="blue", lty=2)

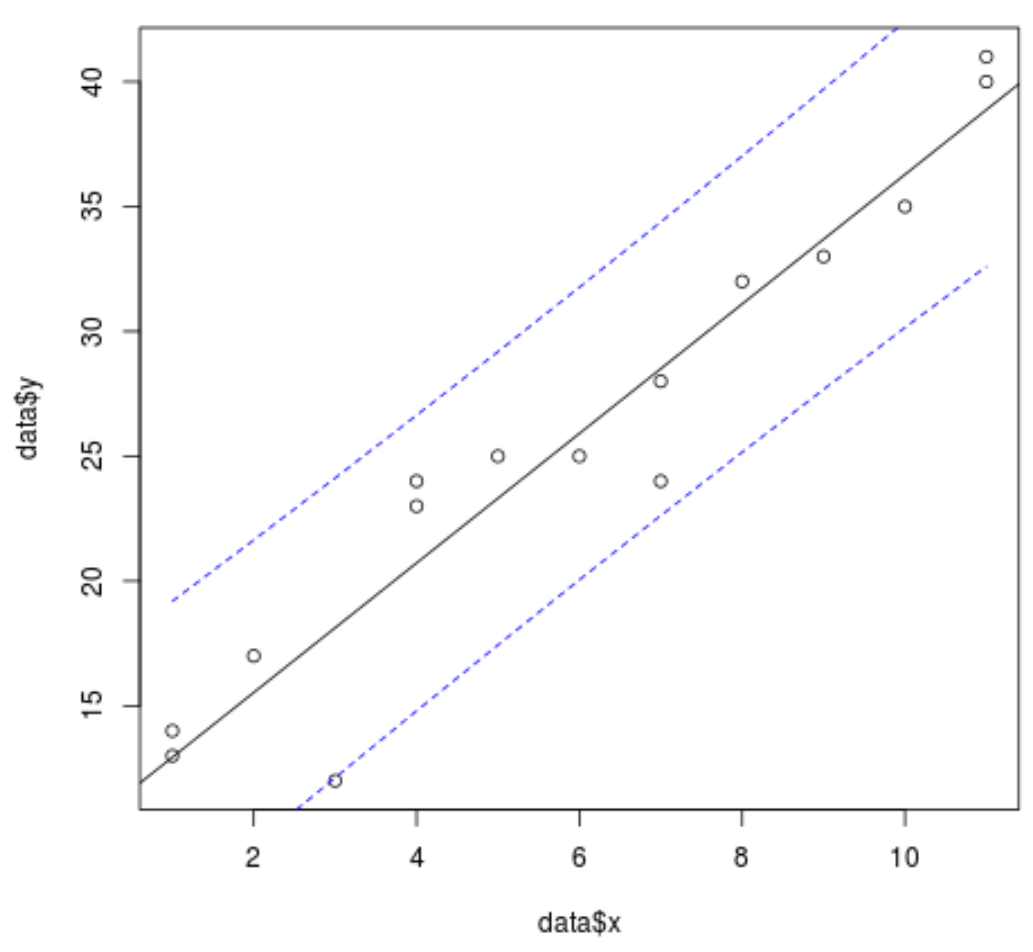

The resulting plot now clearly illustrates not only the best linear fit but also the statistically defined region of uncertainty surrounding the estimated population mean of Y for any corresponding value of X.

Step 4: Incorporating Prediction Intervals for Individual Forecasting

In contrast to the confidence interval, which estimates the precision of the mean response, the prediction interval (PI) addresses a different forecasting need: estimating the range within which a single, new observation (Y) is likely to fall (typically 95% of the time) for a given X value. The PI must inherently account for two cumulative sources of variability: first, the uncertainty involved in estimating the regression line itself (as already captured by the CI) and, second, the inescapable, random variation of individual data points around that fitted line (known as the residual variance).

As a direct consequence of accommodating this additional source of randomness, the prediction interval is always substantially wider than the corresponding confidence interval. It accurately represents the expected range when predicting a future individual outcome, a task that is statistically more uncertain than predicting the average outcome. We calculate the PI using the exact same predict() function utilized previously, but we modify the crucial argument to interval=”prediction”.

This visualization step is particularly vital for real-world applications where accurate individual forecasting is paramount, such as in quality control processes or advanced financial modeling. By visually comparing the boundaries of the PI against those of the CI, analysts gain a comprehensive understanding of the two distinct types of uncertainty present in the simple linear regression model. We again rely on lines() to plot these boundaries, often selecting a contrasting color (such as red) to clearly distinguish the PI from the previously plotted CI.

# Define a sequence of x values (same as before)
newx = seq(min(data$x),max(data$x),by = 1)

# Find 95% prediction interval for the range of x values
pred_interval <- predict(model, newdata=data.frame(x=newx), interval="prediction",
                         level = 0.95)

# Re-create the scatterplot of values with the central regression line
plot(data$x, data$y)
abline(model)

# Add dashed lines (lty=2) for the 95% prediction interval
lines(newx, pred_interval[,2], col="red", lty=2)
lines(newx, pred_interval[,3], col="red", lty=2)

The resulting graph provides a comprehensive and visually rich summary of the simple linear regression model, simultaneously displaying the fitted relationship, the uncertainty surrounding the mean estimate, and the expected range for any future individual observation.

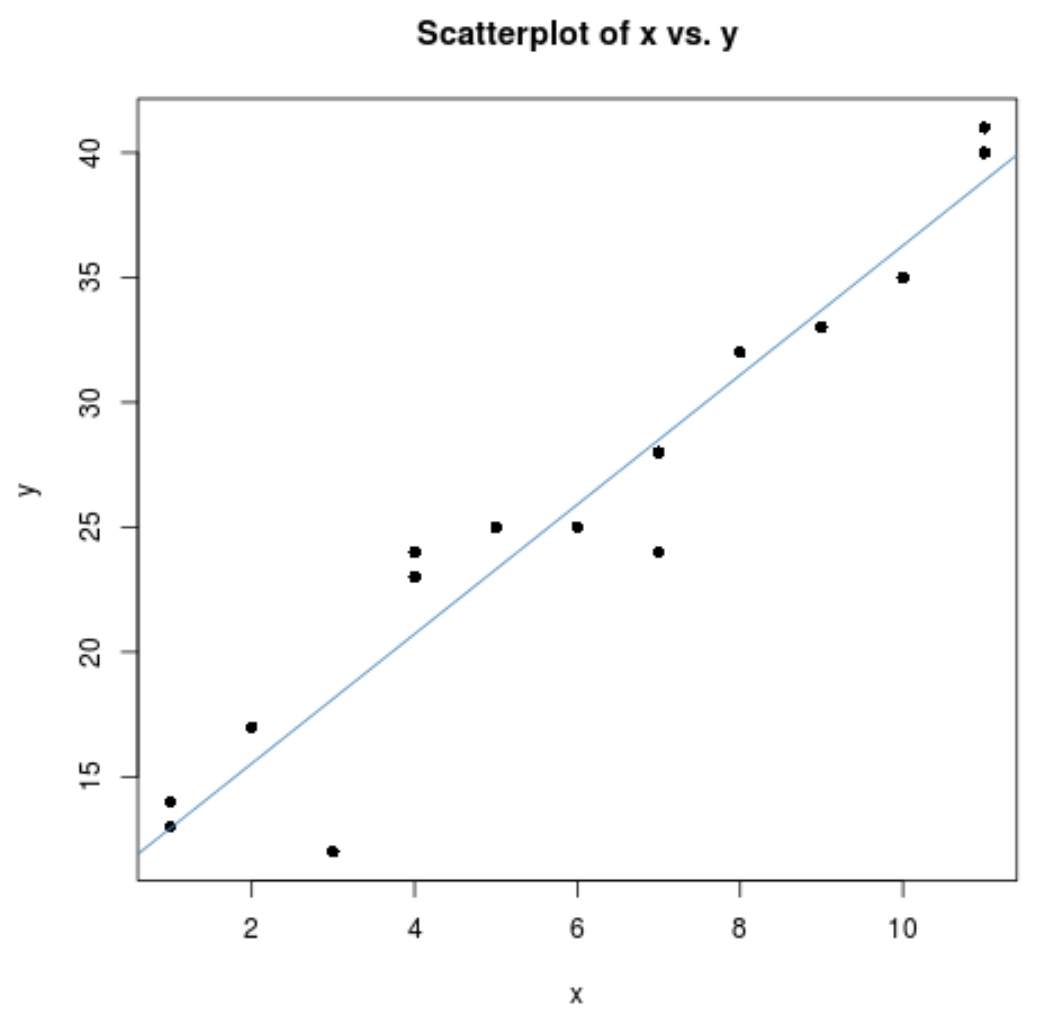

Step 5: Refining Plot Aesthetics for Professional Publication Quality

While the previous four steps successfully generated statistically accurate plots, the default output produced by standard R base graphics often lacks the polished, professional appearance typically required for formal reports, academic papers, or business presentations. This final step focuses on significantly enhancing the aesthetics of the scatterplot by customizing key visual elements: providing a descriptive title, defining clear axis labels, improving the appearance of the data points, and selecting appropriate line colors.

The versatile plot() function accepts numerous optional arguments that govern these aesthetic features. For instance, the main argument allows you to set a descriptive plot title, while xlab and ylab define the labels for the respective axes, providing essential context for the analyzed variables. Furthermore, the pch (plotting character) argument controls the geometric shape of the individual data points. Utilizing a value like pch=16, which specifies a solid circle, often dramatically improves visual readability compared to the default open circles.

Similarly, the appearance of the central regression line can be easily customized within the abline() function using the col (color) argument. Selecting a professional and distinct color palette ensures that the final visualization is clear, highly engaging, and entirely suitable for formal presentation, completing the essential transition from a functional diagnostic tool to a polished communication piece.

plot(data$x, data$y,
     main = "Scatterplot of x vs. y", # Add descriptive title
     pch=16, # Specify points to be solid (filled in)
     xlab='x (Independent Variable)', # Change x-axis name
     ylab='y (Dependent Variable)') # Change y-axis name

abline(model, col='steelblue') # Specify a distinct color for the regression line

By applying these final aesthetic adjustments, the resulting visualization is rendered both statistically informative and visually appealing, making it fully ready for inclusion in any formal analytical report or presentation.

Conclusion: Mastering Visual Communication in R

The ability to rapidly generate a comprehensive scatterplot that is complete with a fitted regression line, precise confidence intervals, and robust prediction intervals is a fundamental and indispensable skill for statistical analysis using R. These advanced visualizations move significantly beyond mere data display, serving to effectively communicate the strength, direction, and critically, the inherent uncertainty within a simple linear regression model.

The methodology demonstrated throughout this tutorial relies entirely on essential base R plotting functions: plot(), lm(), abline(), predict(), and lines(). Mastering these core functions is crucial for any data analyst, as they ensure that visualizations are both statistically accurate and easily reproducible across different projects and environments.

For practitioners interested in exploring alternative and often more complex visualization paradigms, the popular external ggplot2 package offers unparalleled flexibility and greater control over intricate graphical aesthetics. However, the foundational base R methods outlined here remain highly robust and exceptionally effective for generating high-quality standard statistical graphics.
